Product Applications:

Water supply systems, condensation systems, air conditioning systems, water treatment, industrial washing, and other specialized applications.

Scope of Application:

Pumped media: Clean water or liquids with physicochemical properties similar to water; non-flammable, non-explosive, low-viscosity liquids free from solid particles or fibers.

Medium temperature: -15°C to +70°C

Ambient temperature: Max. +40°C

Operating pressure: Max. 10 bar

Product Overview:

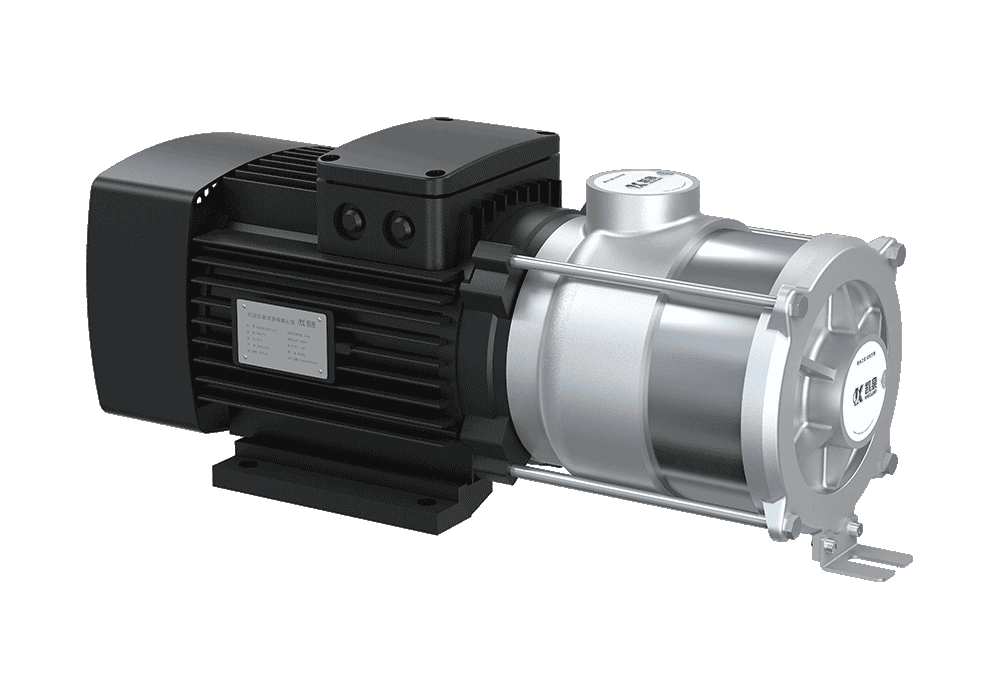

The KQDS series consists of non-self-priming, lightweight, horizontal multistage centrifugal pumps featuring a new industrial design and a more compact structure. The flow-passage components are manufactured from stamped and welded stainless steel sheets, with the suction section, discharge section, and motor end cover secured together by tie bolts. These pumps feature a compact footprint, axial inlet, and radial outlet. Key characteristics include energy efficiency, environmental friendliness, low noise levels, a modern appearance, lightweight construction, ease of installation and maintenance, and high reliability.
