Product Applications:

Water supply systems, condensation systems, air conditioning systems, water treatment, environmental applications, and other specialized uses.

Scope of Application:

Pumped media: Clean water or liquids with physicochemical properties similar to water; non-flammable, non-explosive, low-viscosity liquids free of solid particles or fibers.

Liquid temperature: -15°C to +70°C; +70°C to +120°C

Ambient temperature: Max. +40°C

Operating pressure: Max. 10 bar; maximum inlet pressure is limited by the maximum operating pressure.

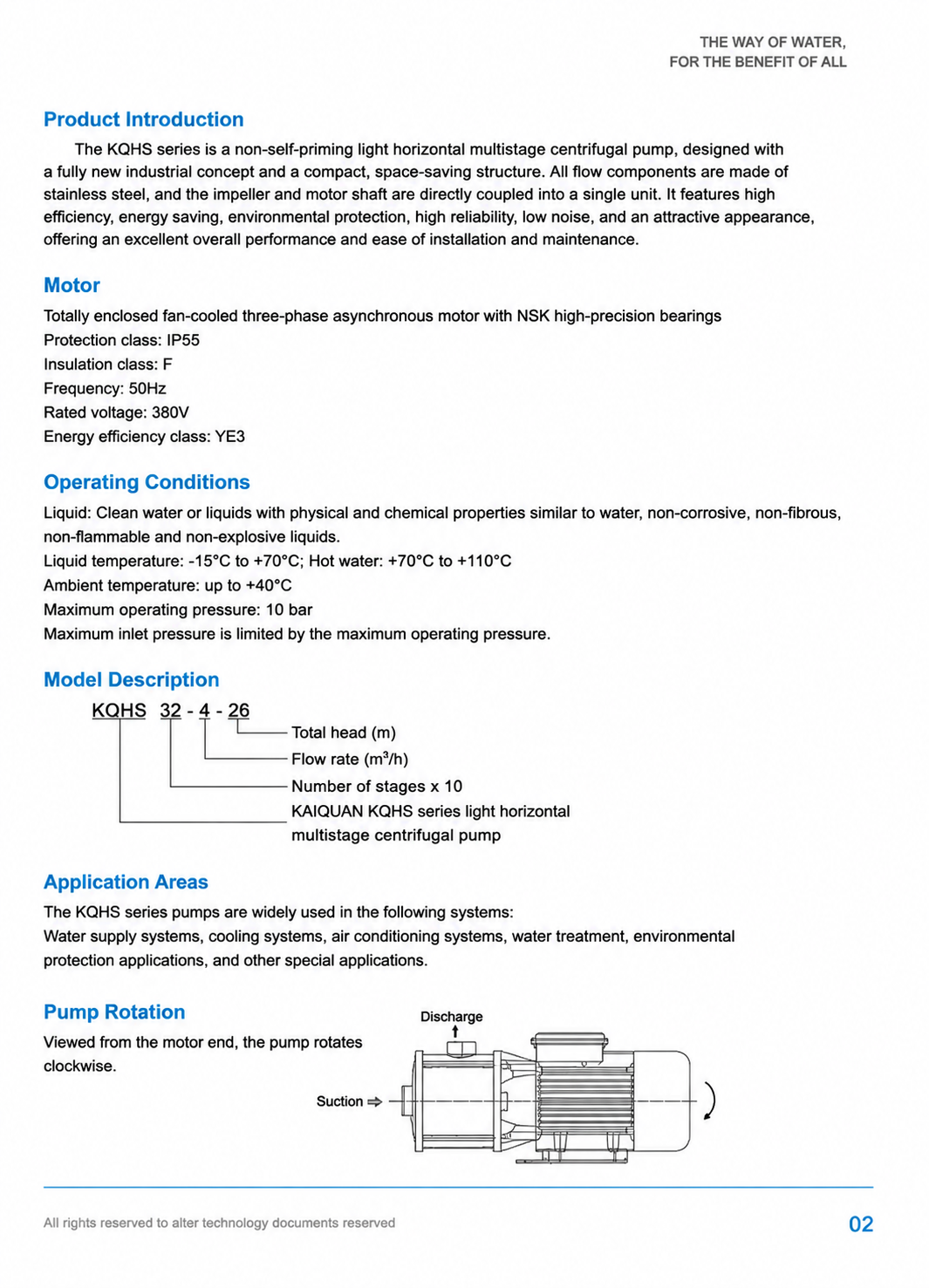

Product Overview:

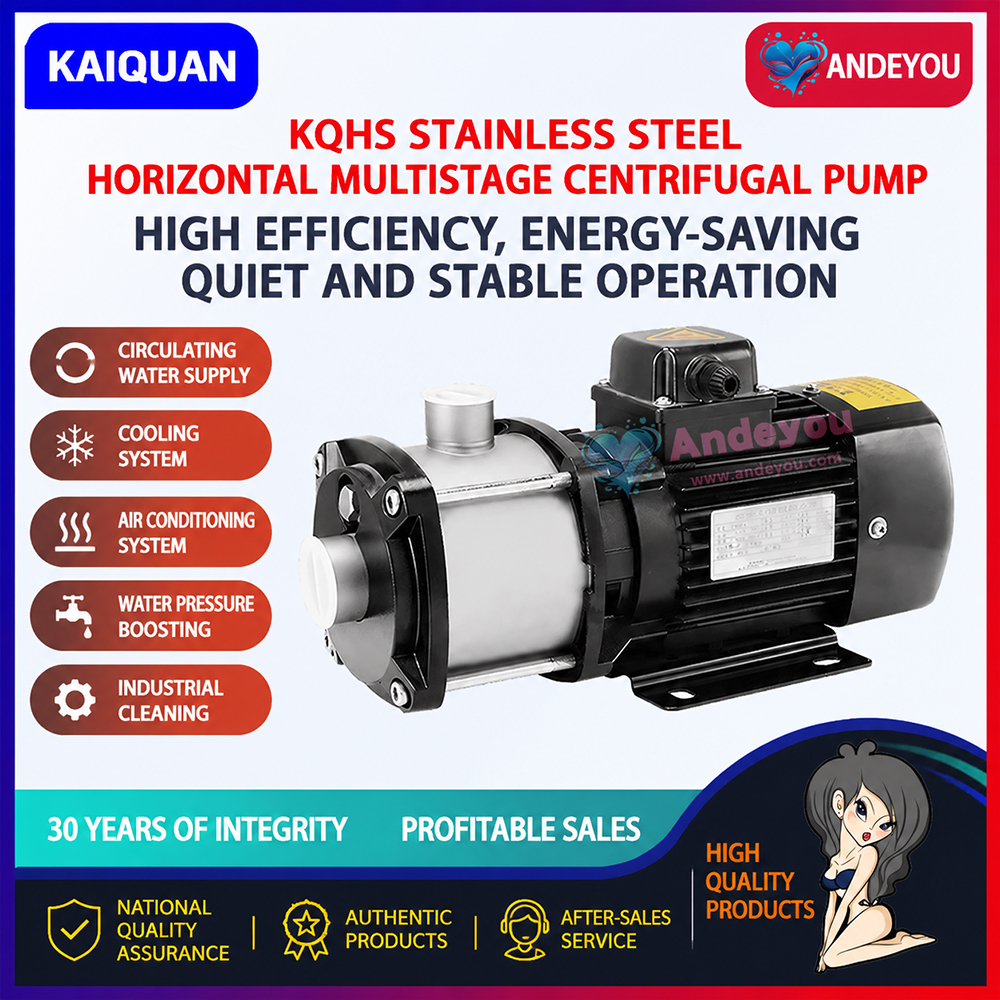

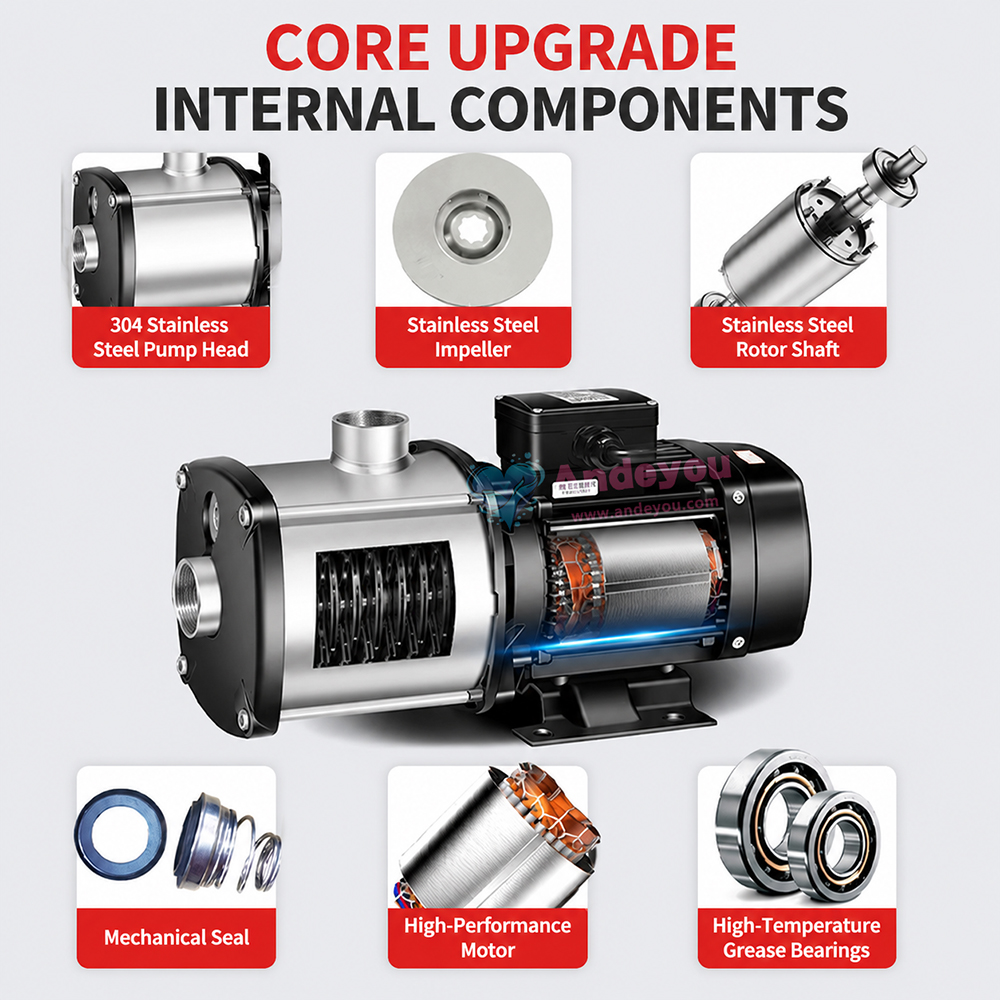

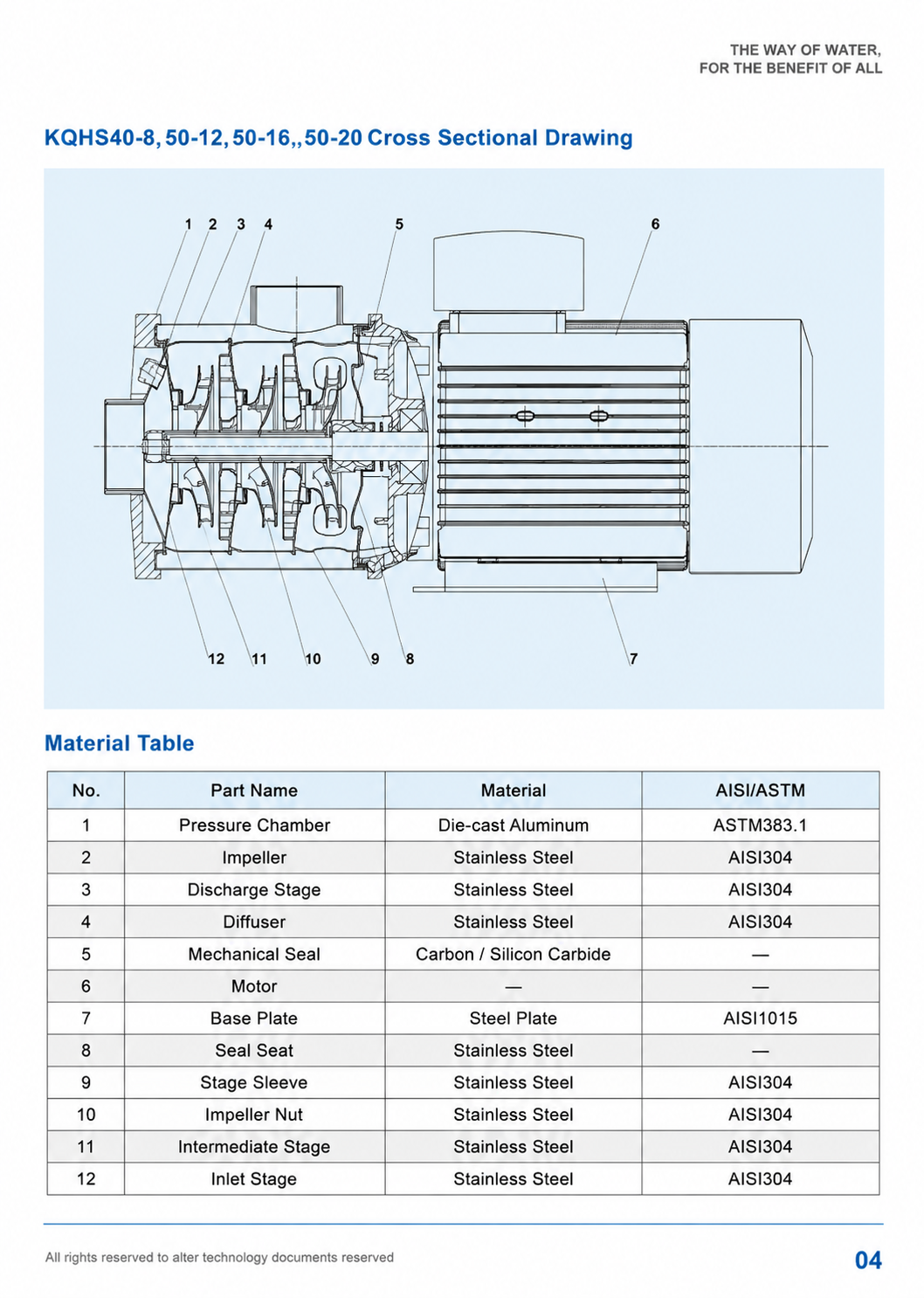

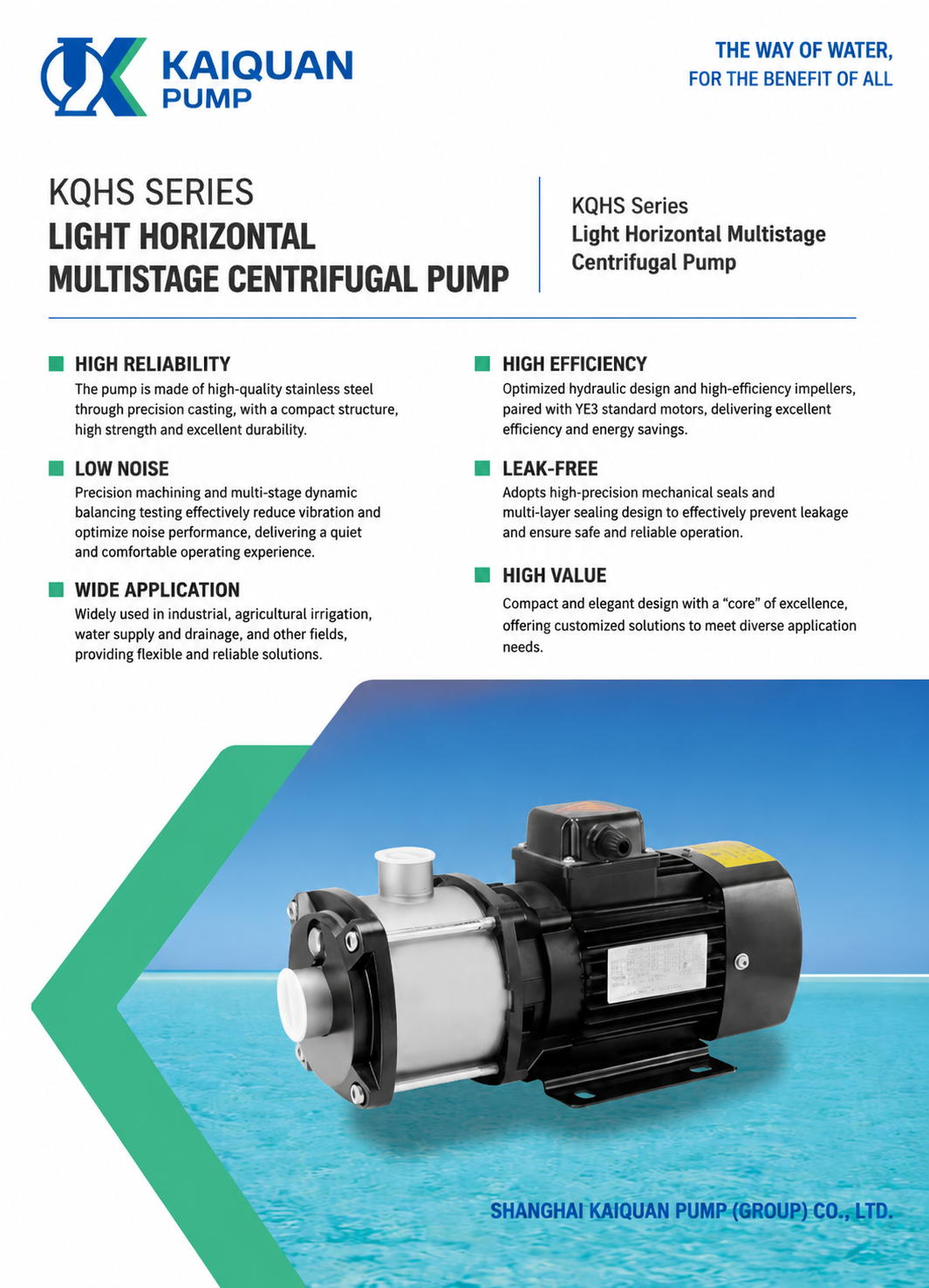

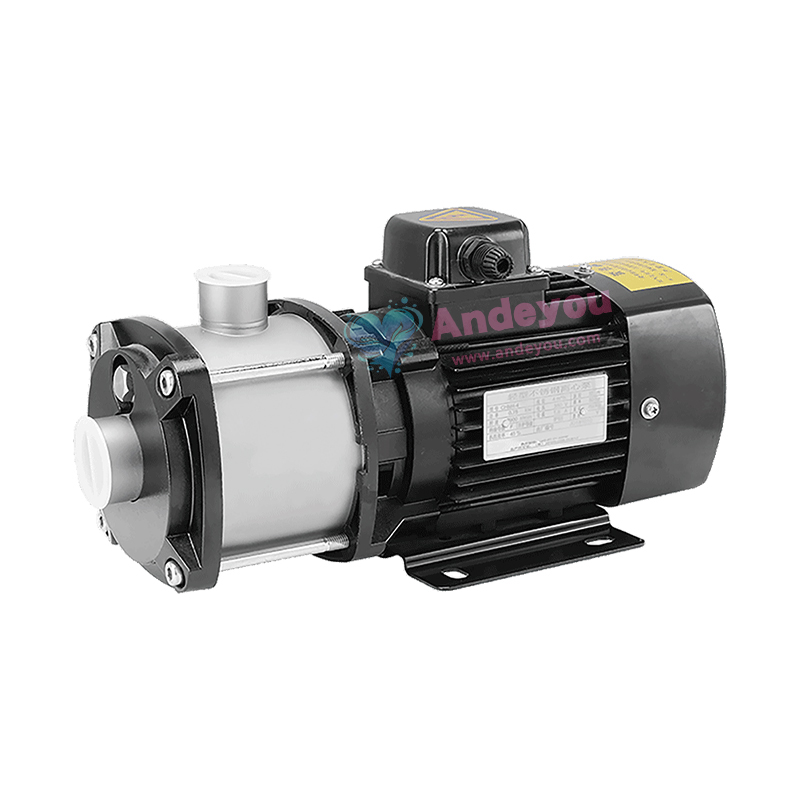

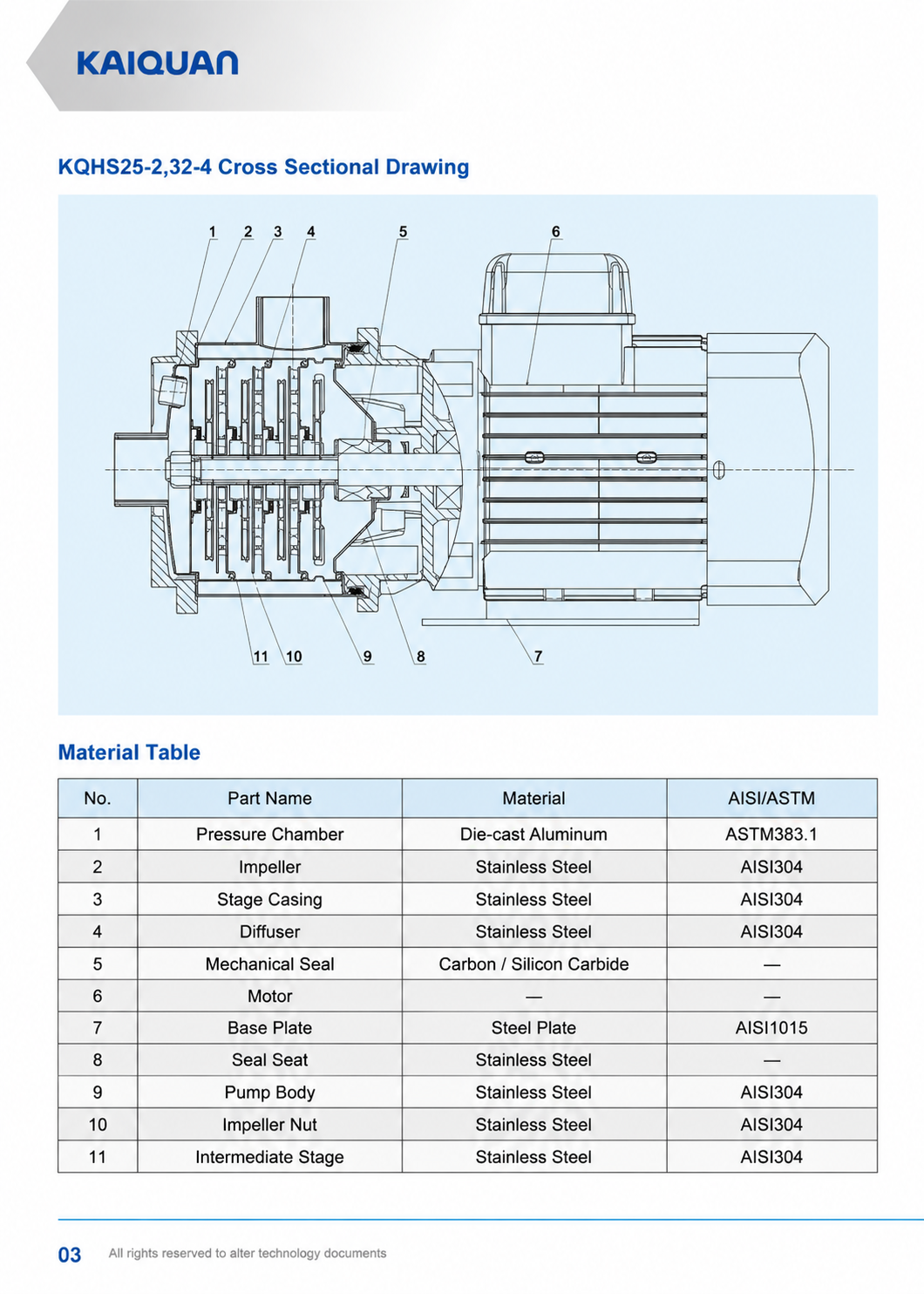

The KQHS series consists of non-self-priming, lightweight, horizontal multistage centrifugal pumps featuring a new industrial design and a more compact structure. The flow-passage components are manufactured from stamped and welded stainless steel sheets, with tie bolts securing the pressure plates, inlet/outlet sections, and motor end cover into an integrated unit. Key features include energy efficiency, environmental friendliness, high reliability, low noise, an attractive appearance, light weight, and ease of installation and maintenance.
