Applications:
Suitable for pumping clean water and other liquids with similar physical properties. Ideal for domestic water supply, automatic irrigation systems, small air-conditioning systems, and as a component in other equipment.
Also frequently used in sectors such as petroleum, chemicals, synthetic fibers, pharmaceuticals, and fertilizers, as well as for small boiler feed applications; suitable for transporting non-corrosive liquids.

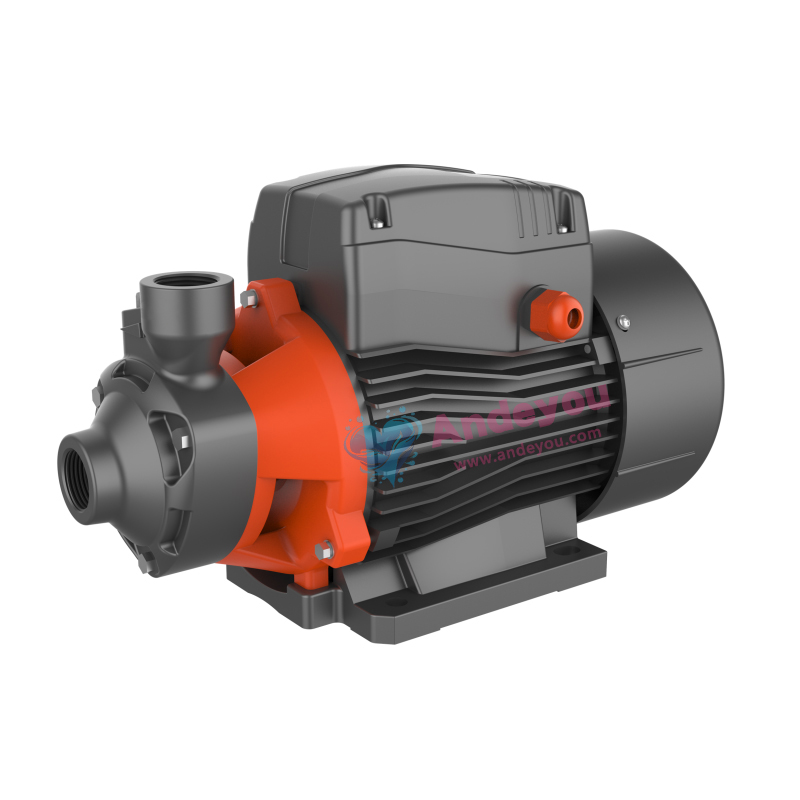

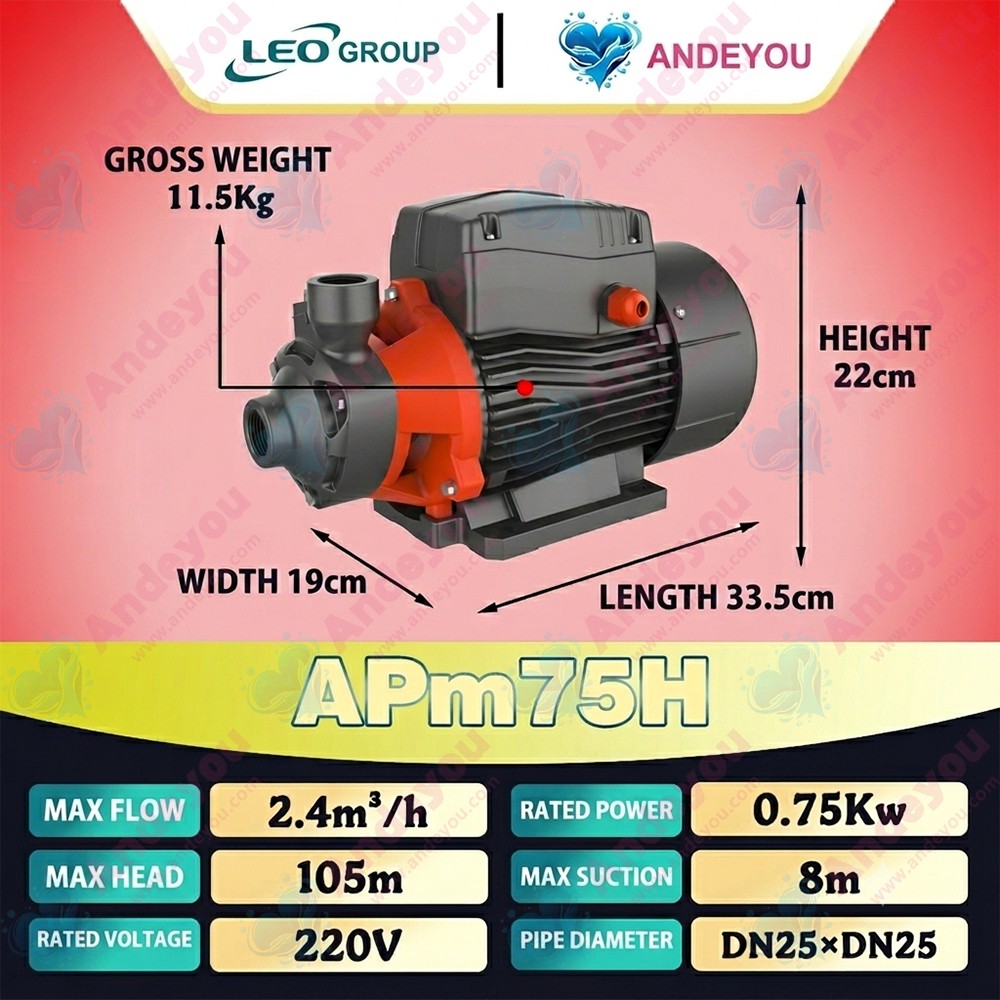

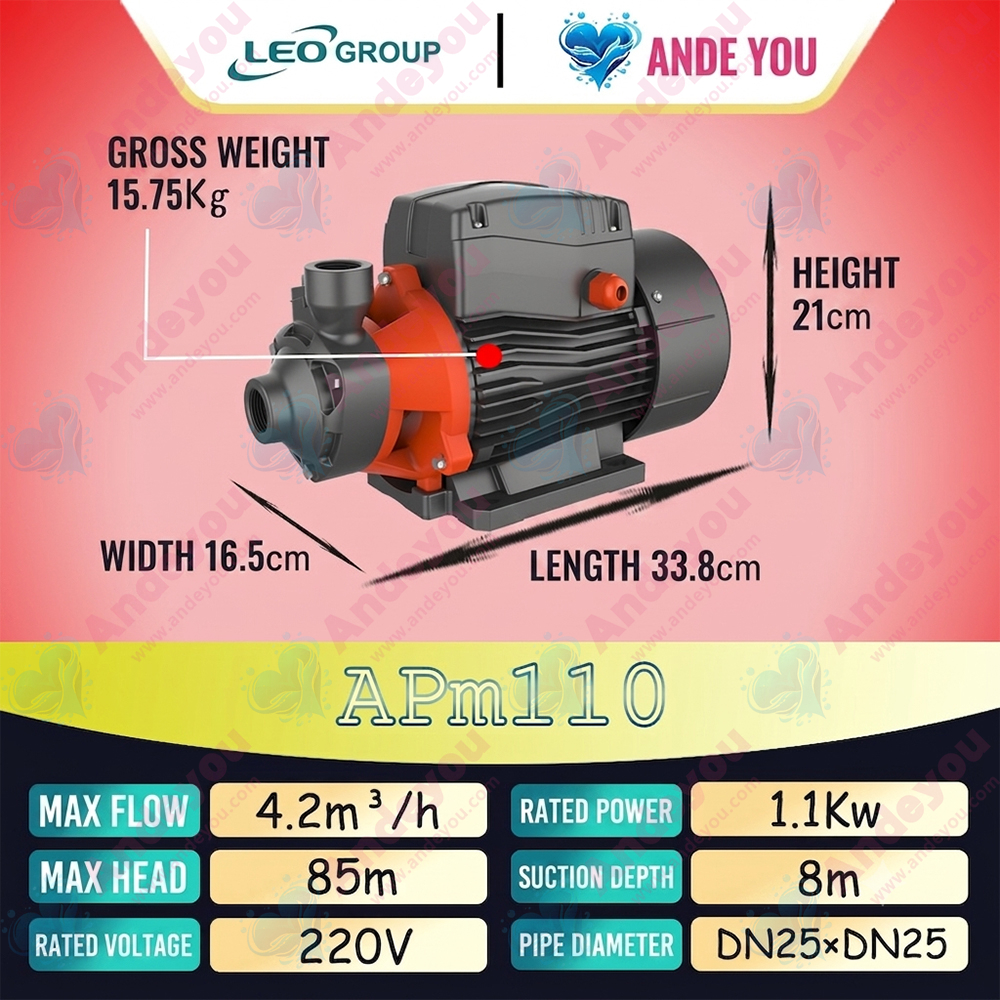

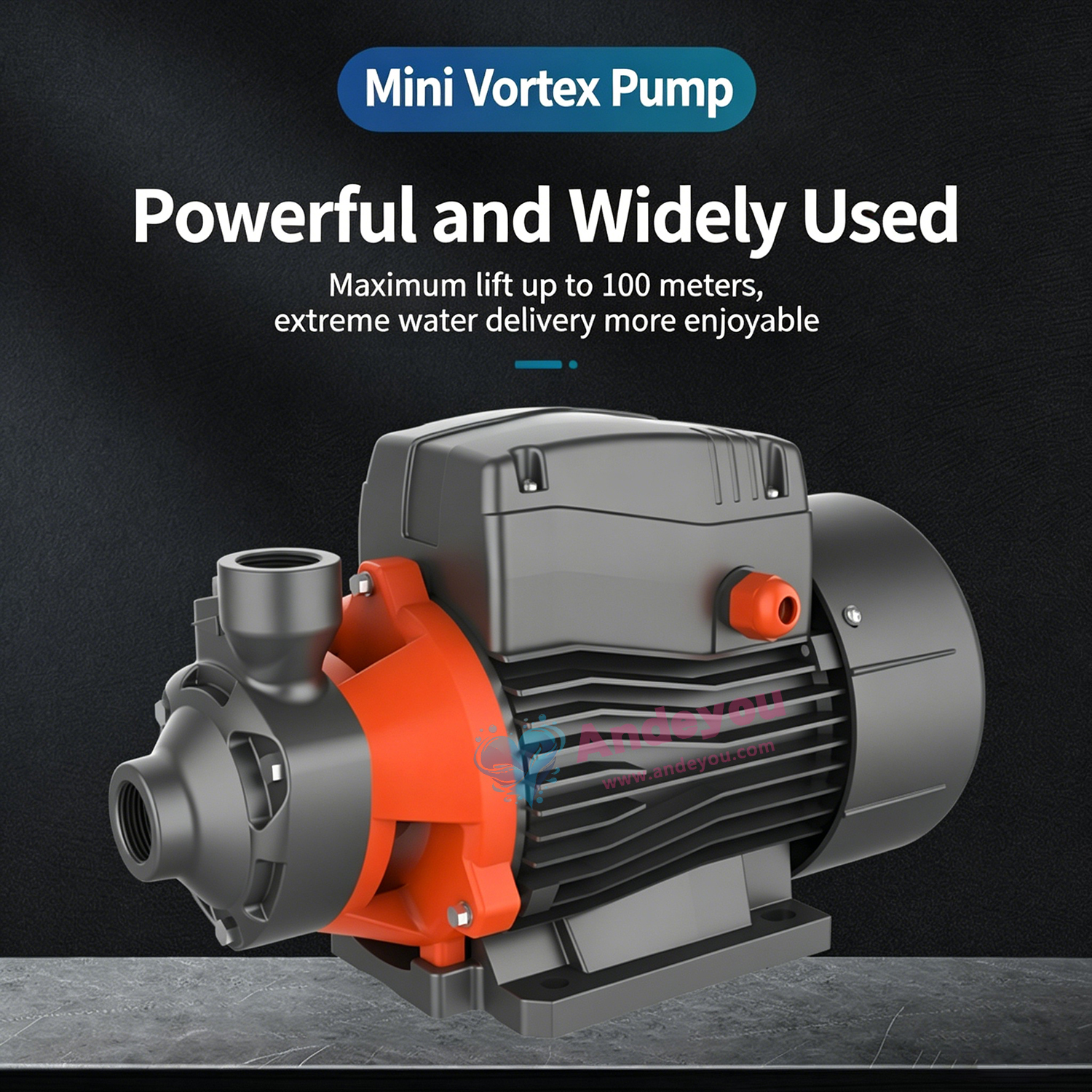

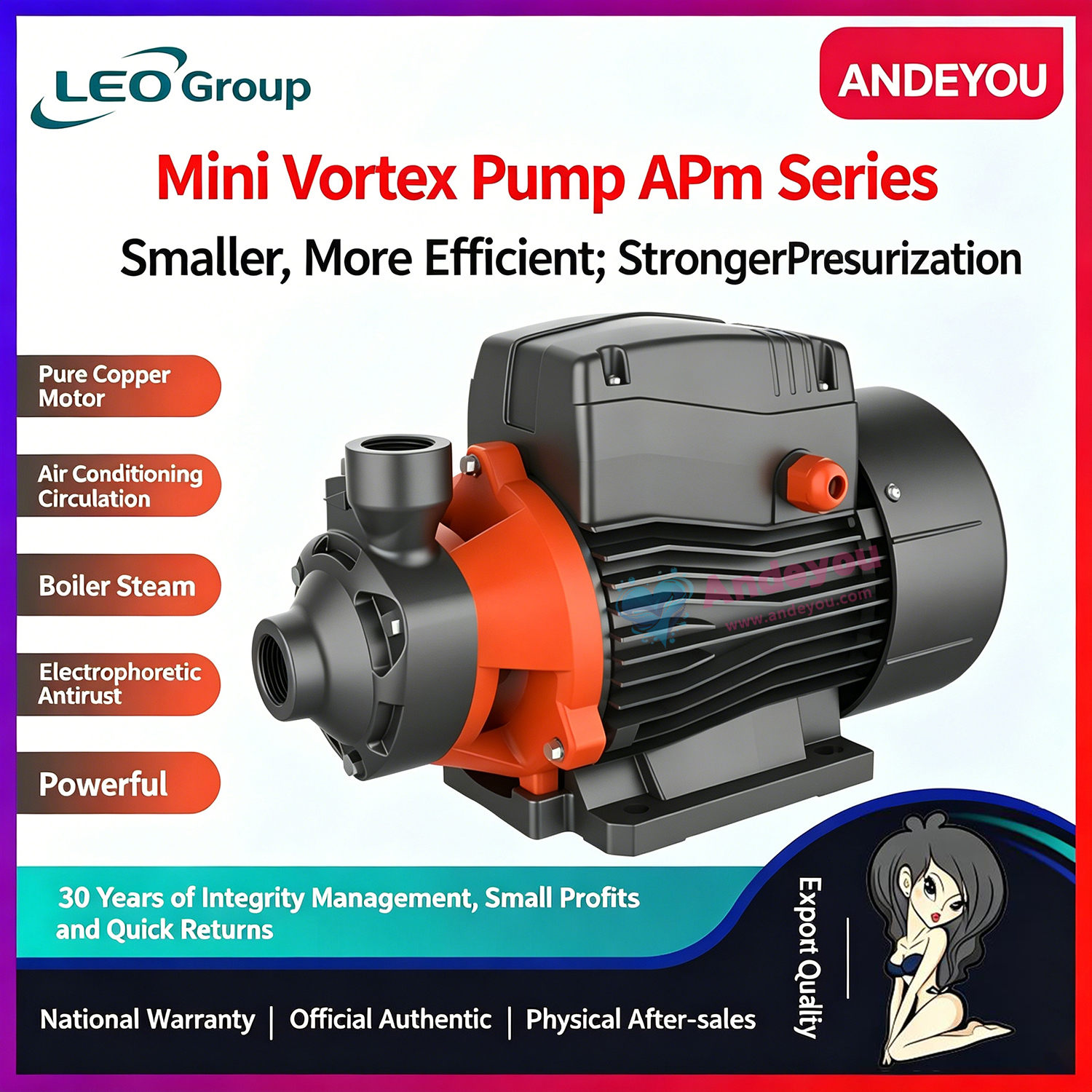

Pump Features:
- Cast iron pump body treated with a special anti-rust process.
- Brass impeller (featuring brass casting or stainless steel inserts to effectively prevent impeller jamming after long periods of inactivity).
- AISI 304 stainless steel welded shaft (prevents shaft corrosion and subsequent leakage caused by prolonged water exposure).
- Maximum liquid temperature: +60°C
- Maximum suction lift: +8m (requires a foot valve at the inlet and a primed pipeline; the pump is not self-priming).
- High-efficiency bearings (maintenance-free/lubrication-free).
- Motor with copper windings (100% copper wire; true specifications).
- Single-phase motor with built-in thermal protection.
- Insulation class: F
- Protection class: IPX4
- Maximum ambient temperature: +40°C
