Product Introduction:

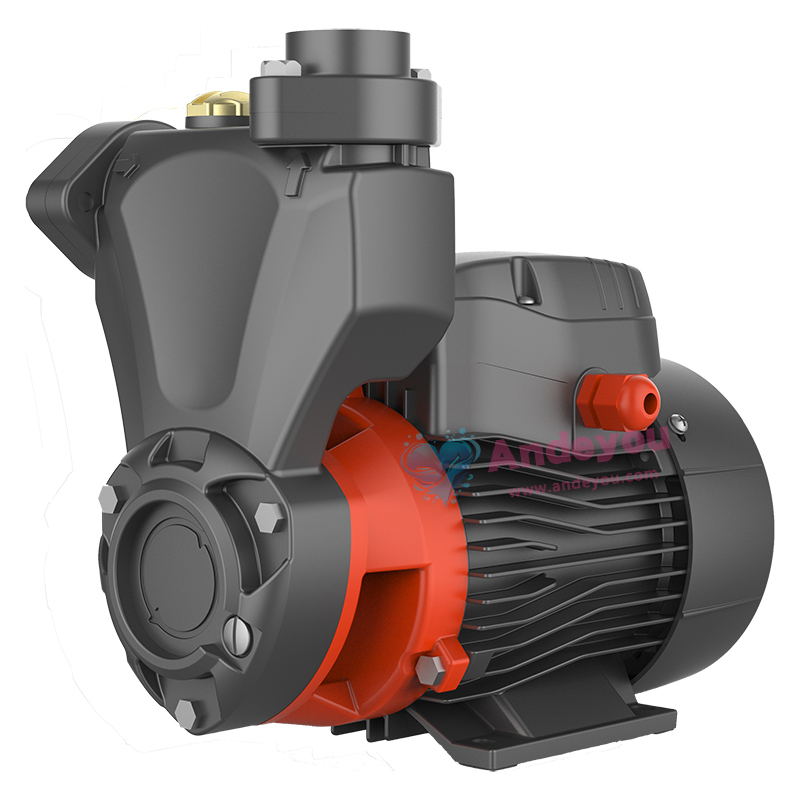

APSm Self-Priming Pump

Features: Anti-rust protection, anti-jamming protection, over/under-voltage protection, freeze protection, fault alarms, and more.

High-precision cast iron pump body for superior durability;

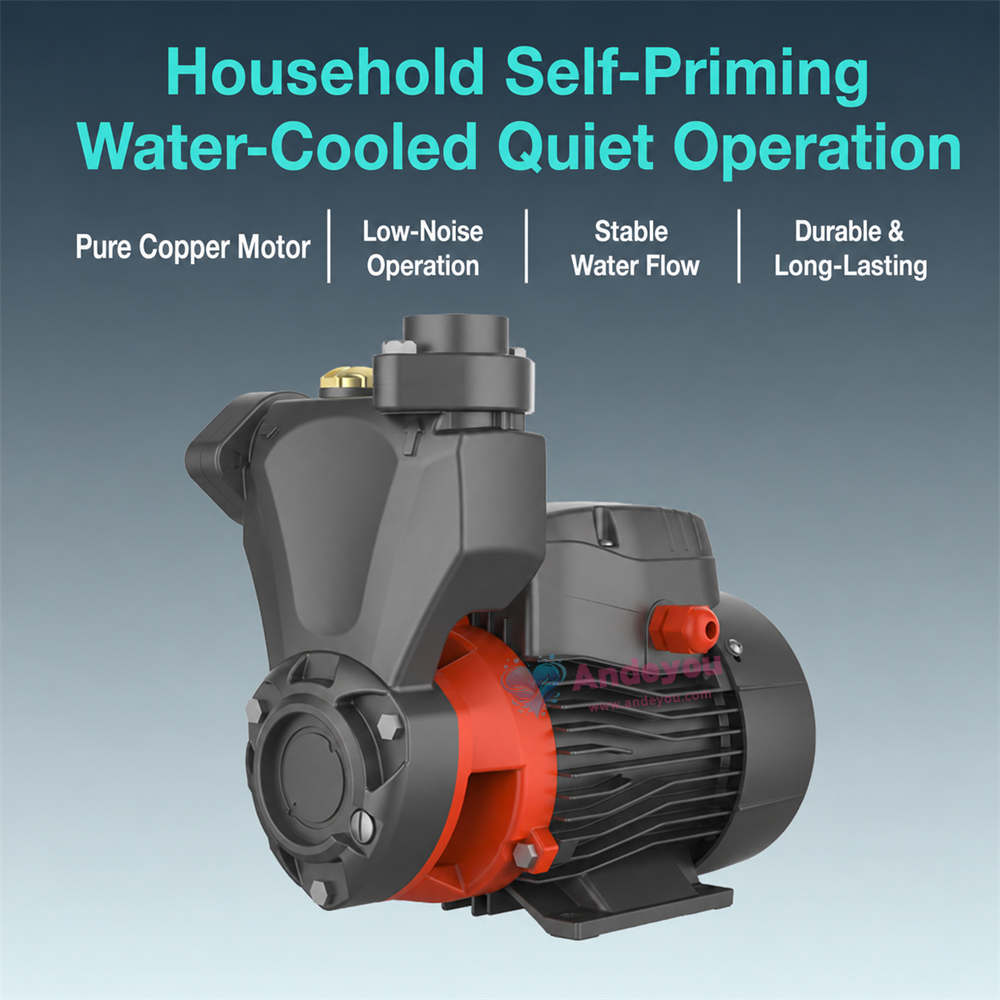

Quiet design: low noise, maintenance-free, and long service life;

Pump cover designed for easy flow-path cleaning to quickly resolve clogging issues;

Easy installation, powerful performance, simple maintenance, and versatile application;

Applications:

Suitable for pumping clean water and other liquids with similar properties. Ideal for domestic water supply, automatic irrigation systems, small air conditioning systems, and as a component in other equipment.

Common uses: Household water supply and intake, pressure tank supply pumps, high-rise booster pumps, air conditioning water pumps, and circulation booster pumps.

Pump Features:

1. Cast iron pump body treated with a special anti-rust process.

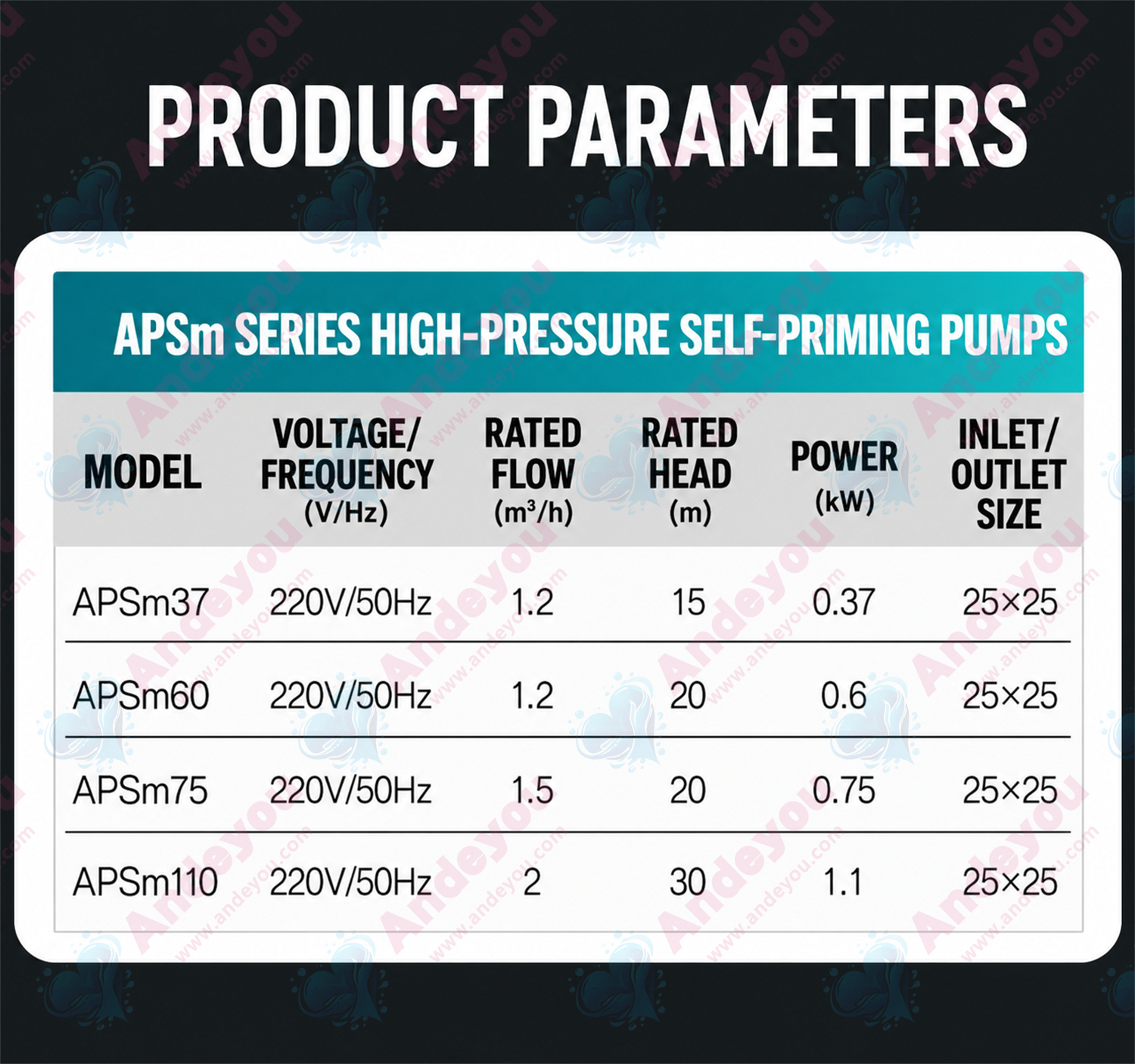

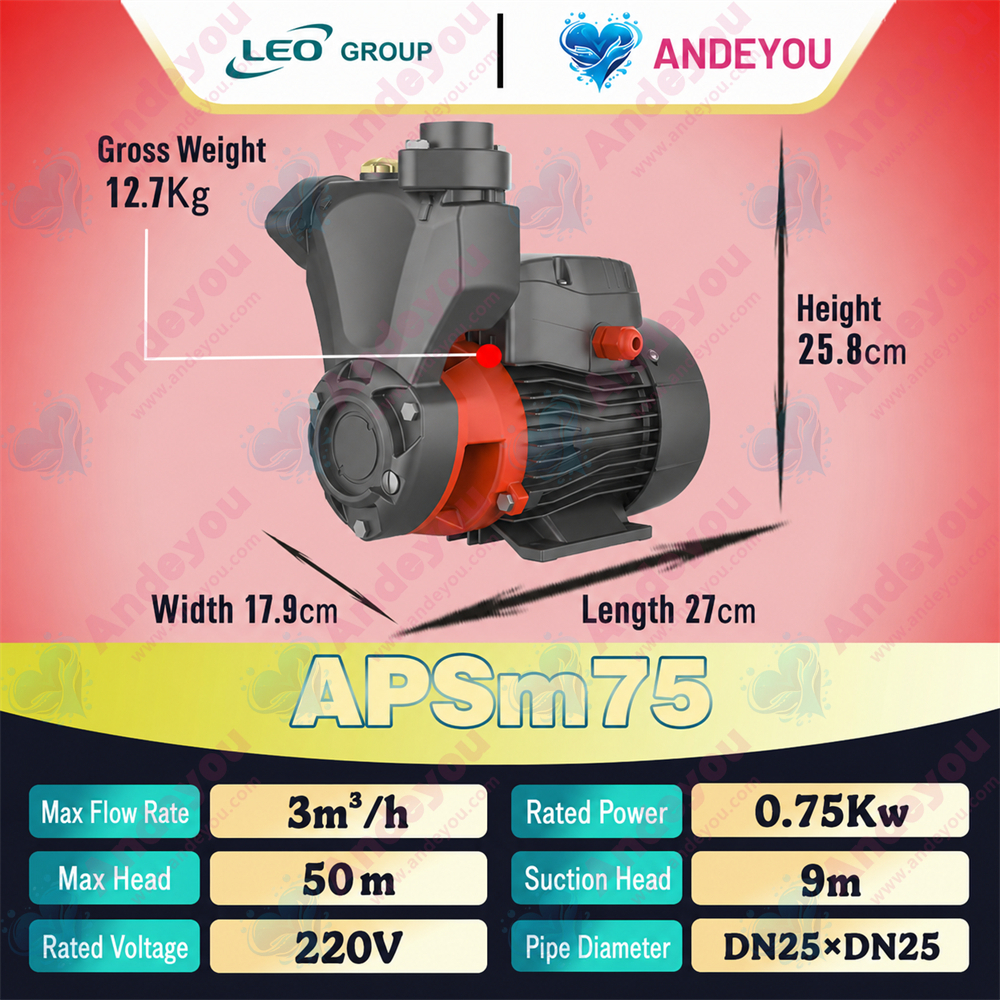

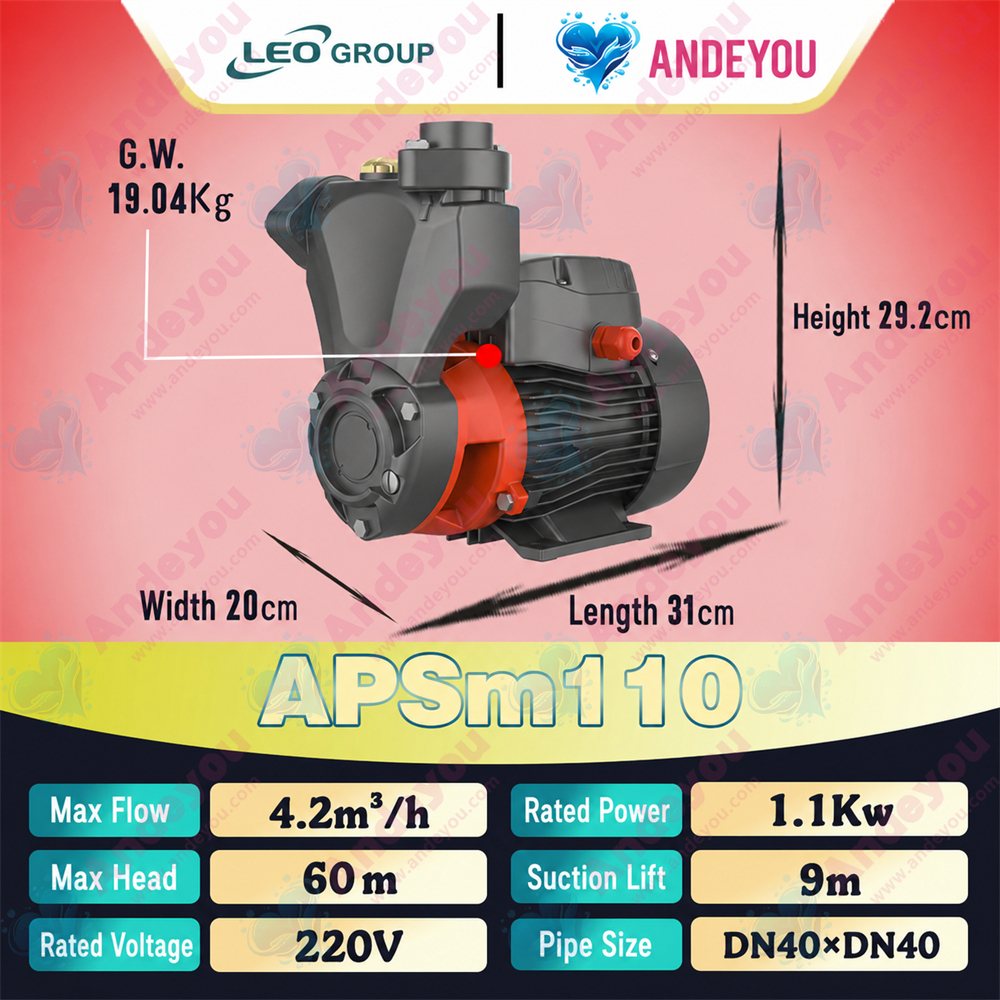

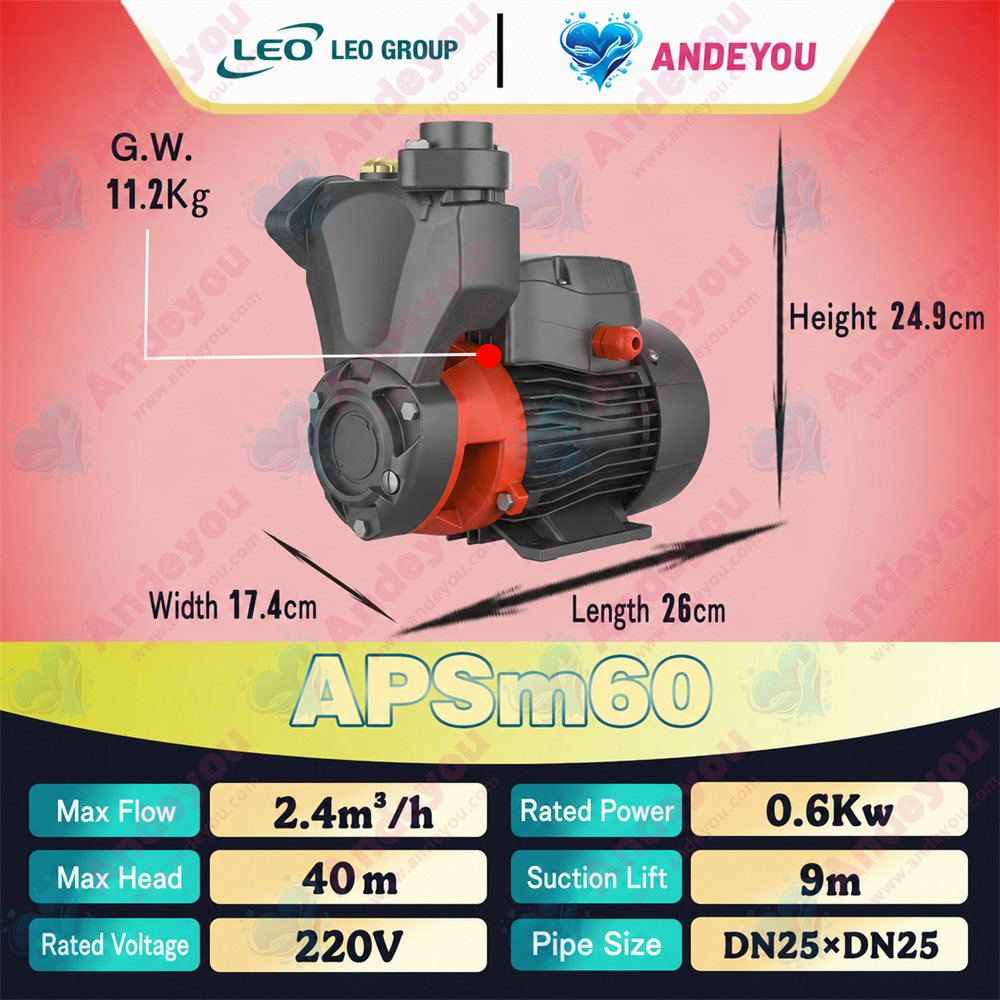

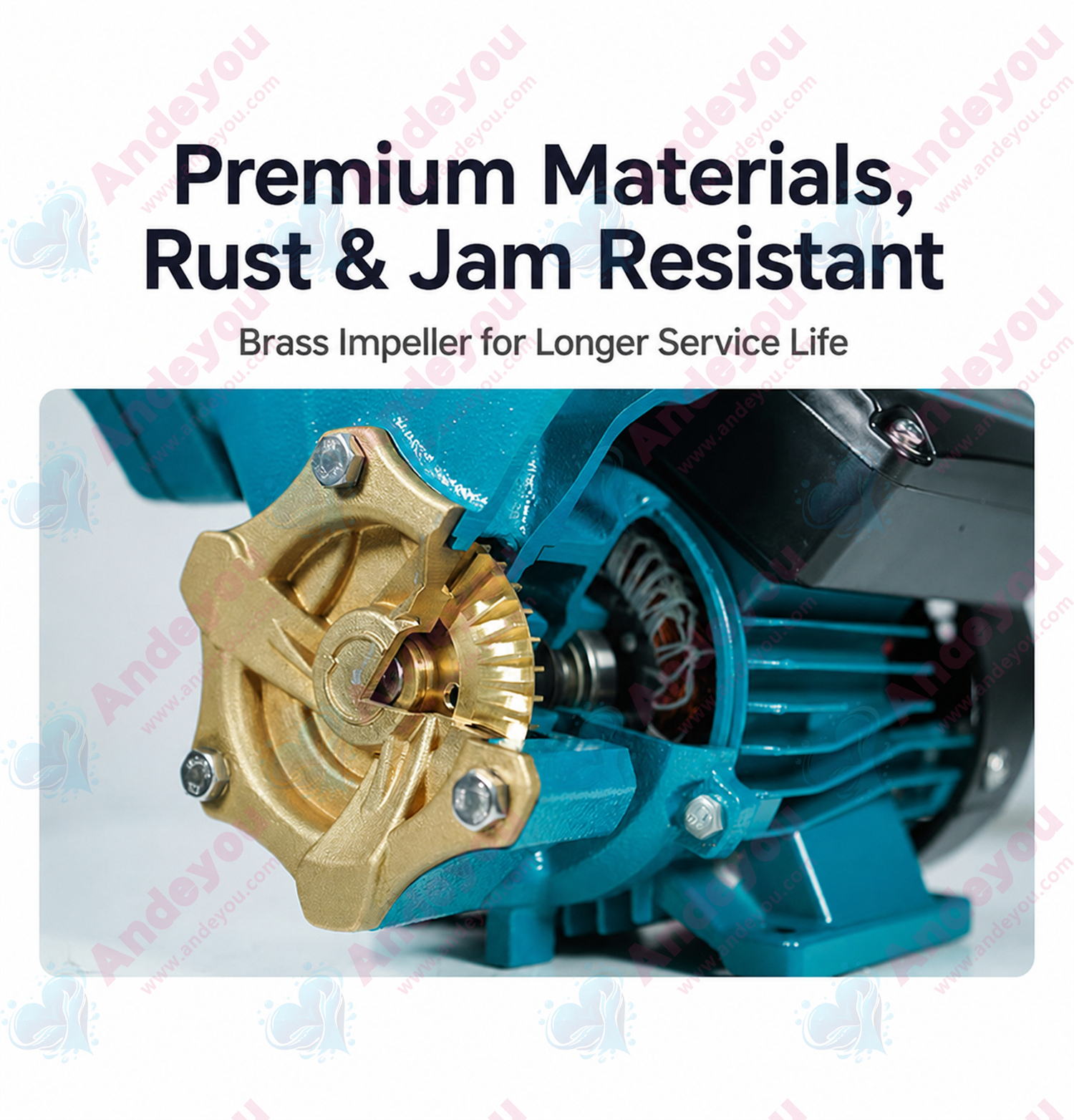

2. Copper impeller; APSm37, APSm60, and APSm75 models feature stainless steel inserts, while the APSm110 features a copper insert (effectively preventing impeller jamming after long periods of inactivity).

3. AISI 304 stainless steel welded shaft (prevents long-term water corrosion of the shaft, which could lead to leakage).

4. Maximum liquid temperature: +60°C

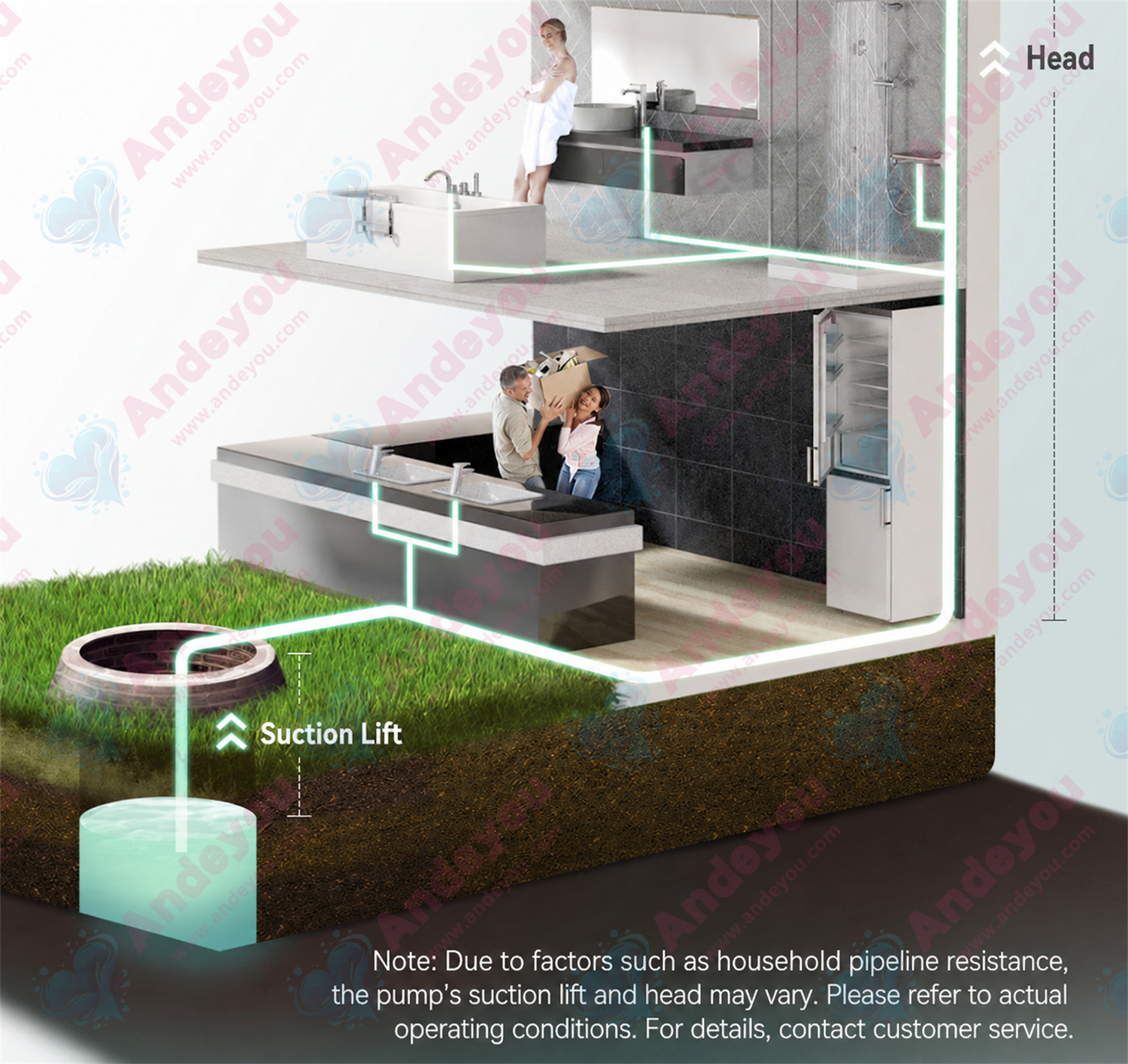

5. Maximum suction lift: +8m

6. Self-priming capability

7. High-efficiency bearings (maintenance-free/lubrication-free)

8. Copper-winding motor (100% copper wire; true specifications)

9. Single-phase motor with built-in thermal protection

10. Insulation class: F

11. Protection class: IPX4

12. Maximum ambient temperature: +40°C
