Product Introduction:

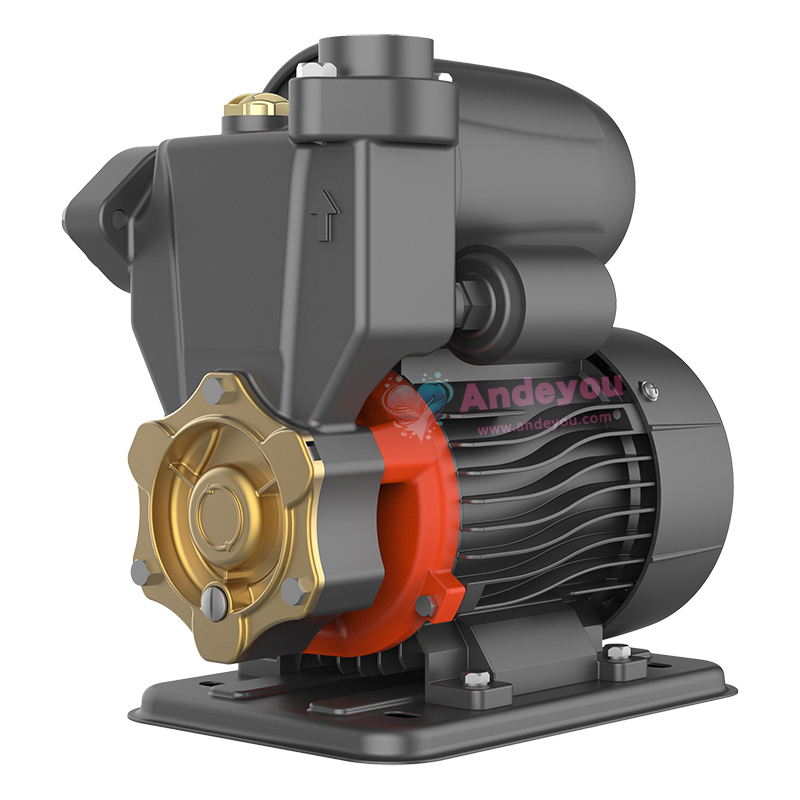

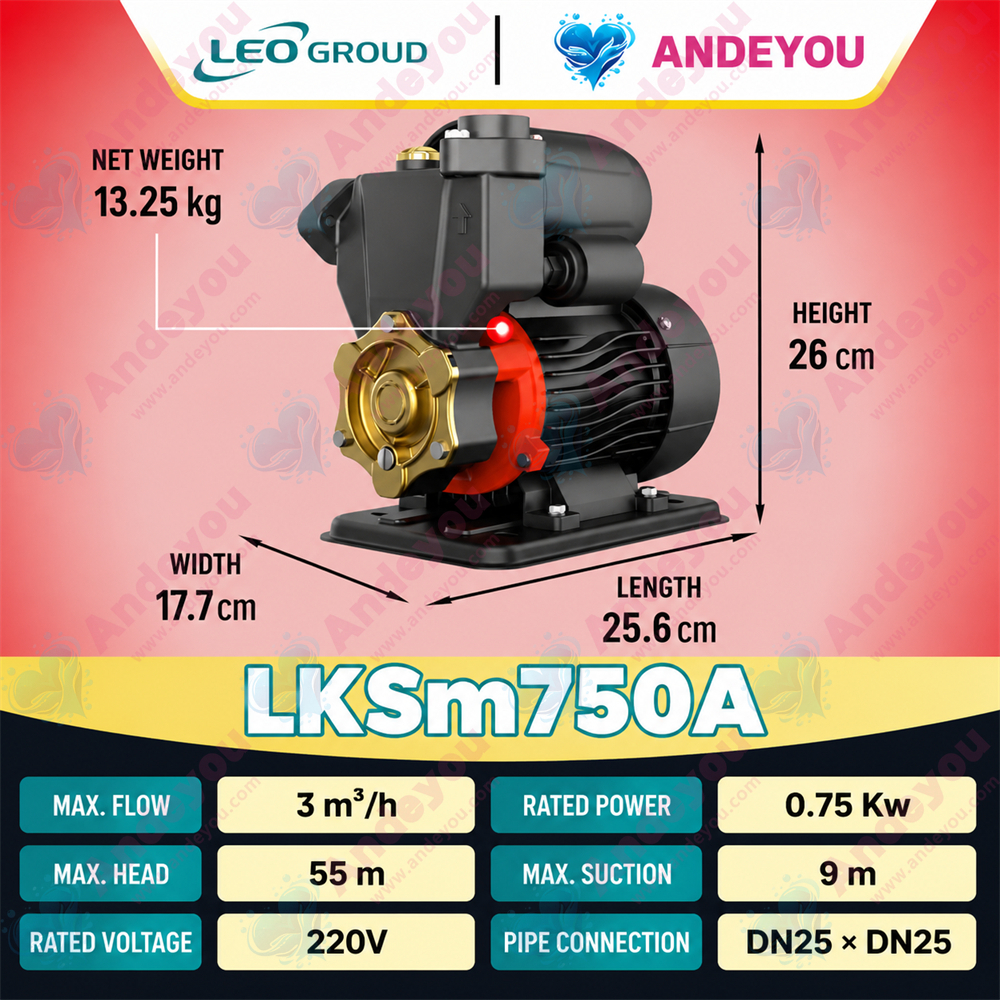

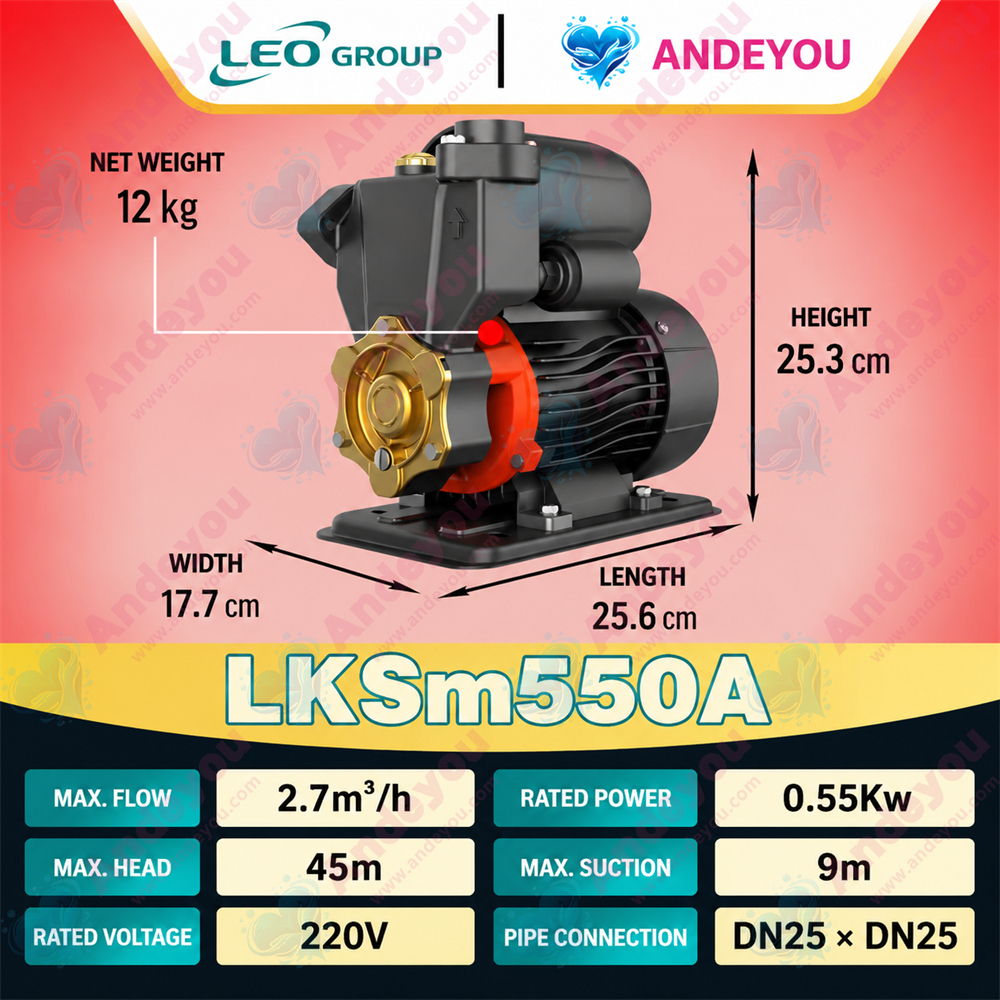

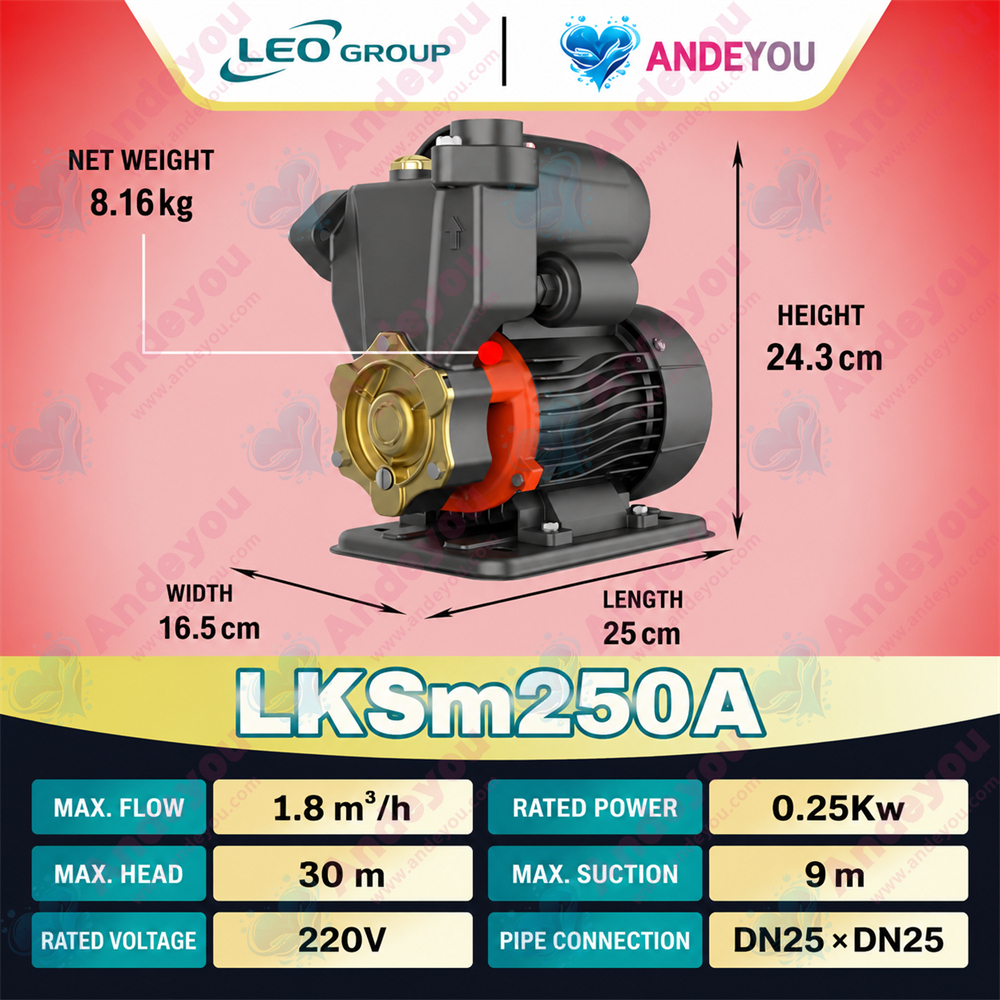

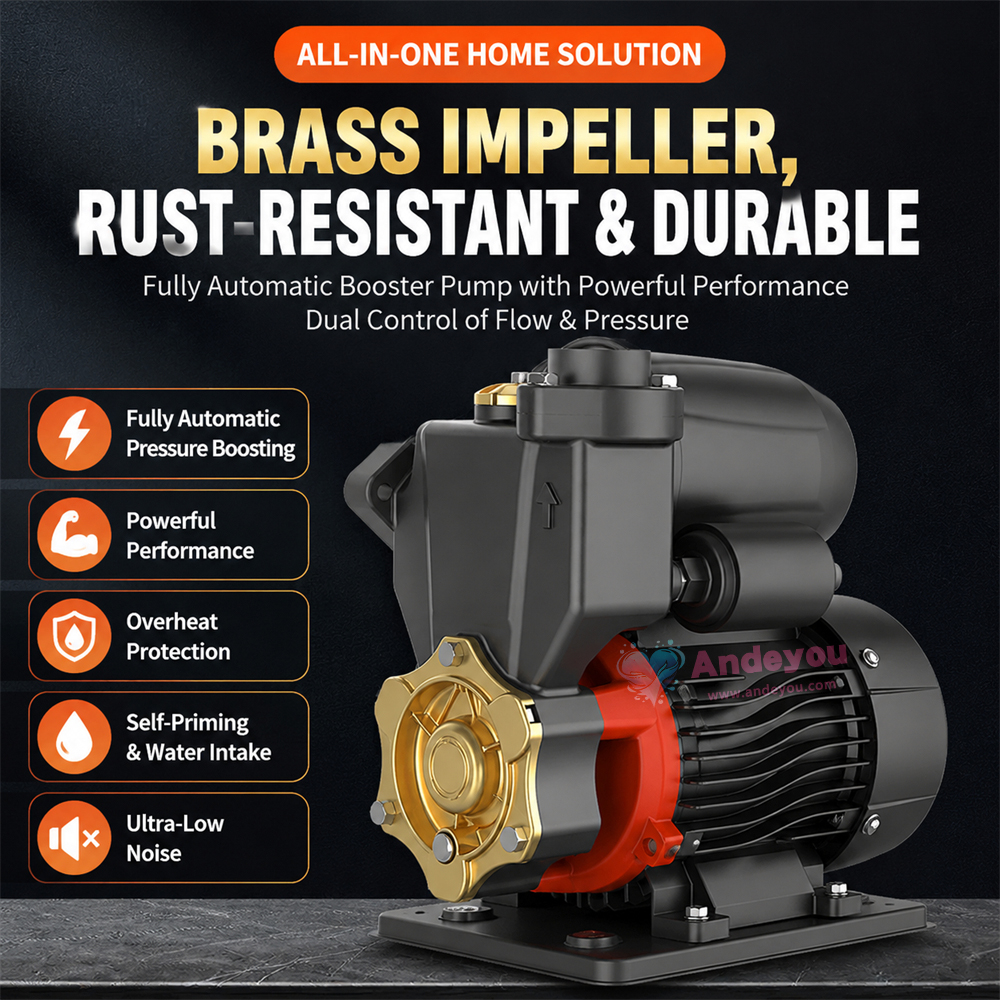

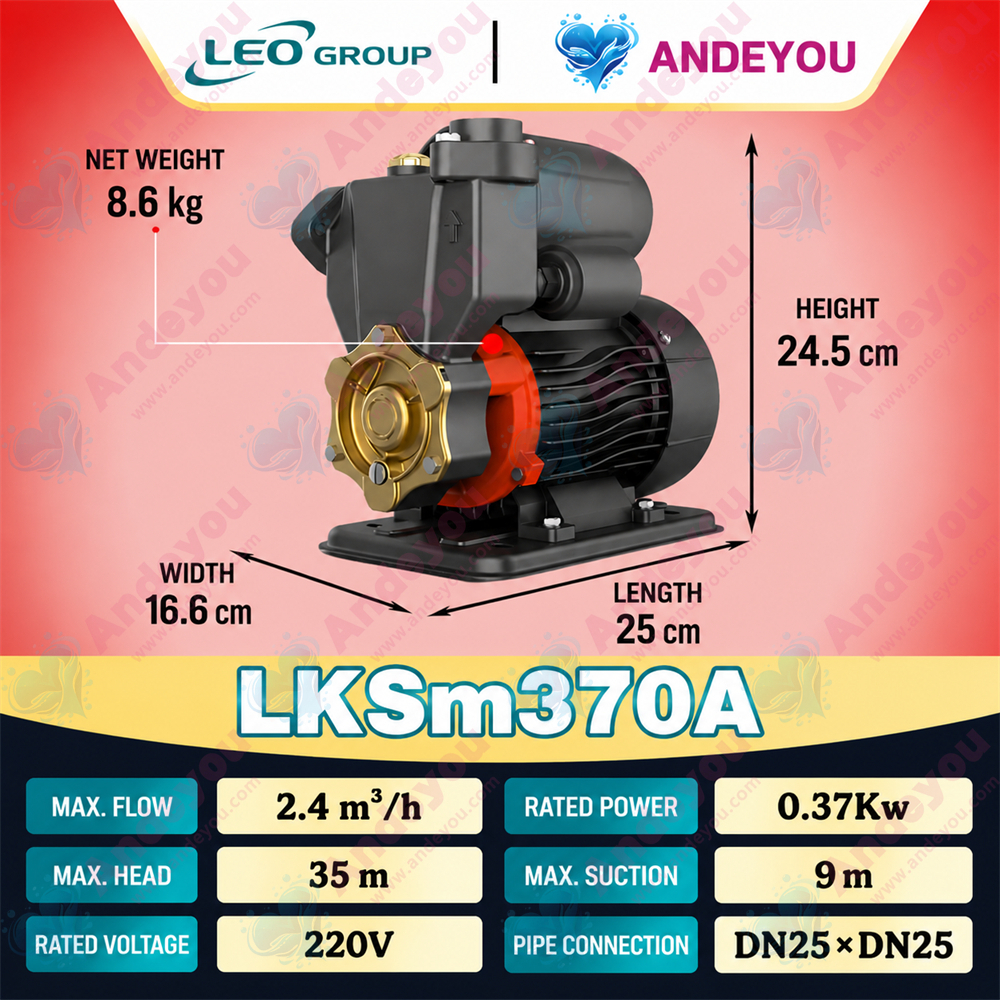

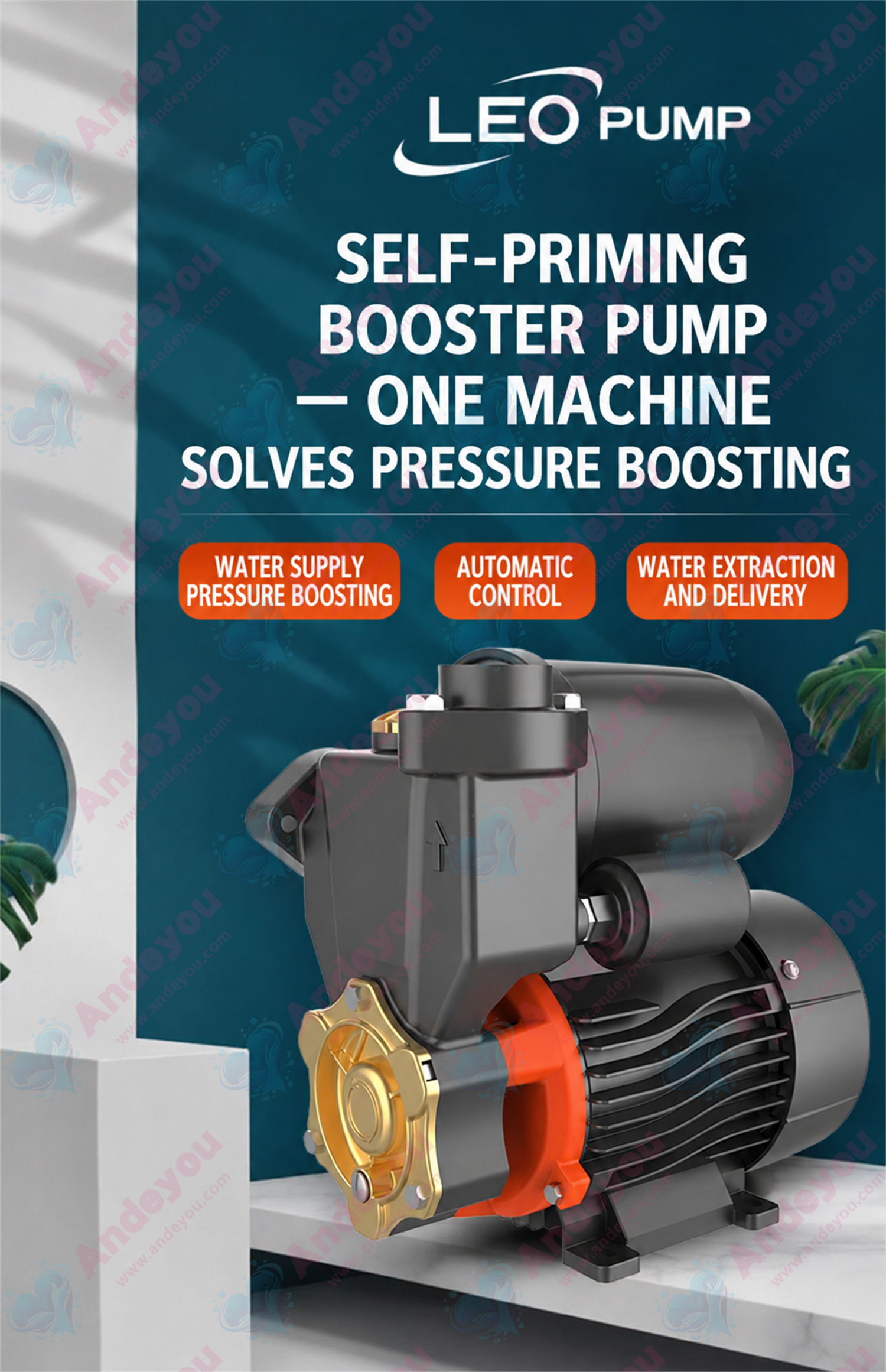

LKSm High-Pressure Self-Priming Pump

A self-priming booster pump that handles pressurization, water supply boosting, automatic control, and water transfer—all in one unit;

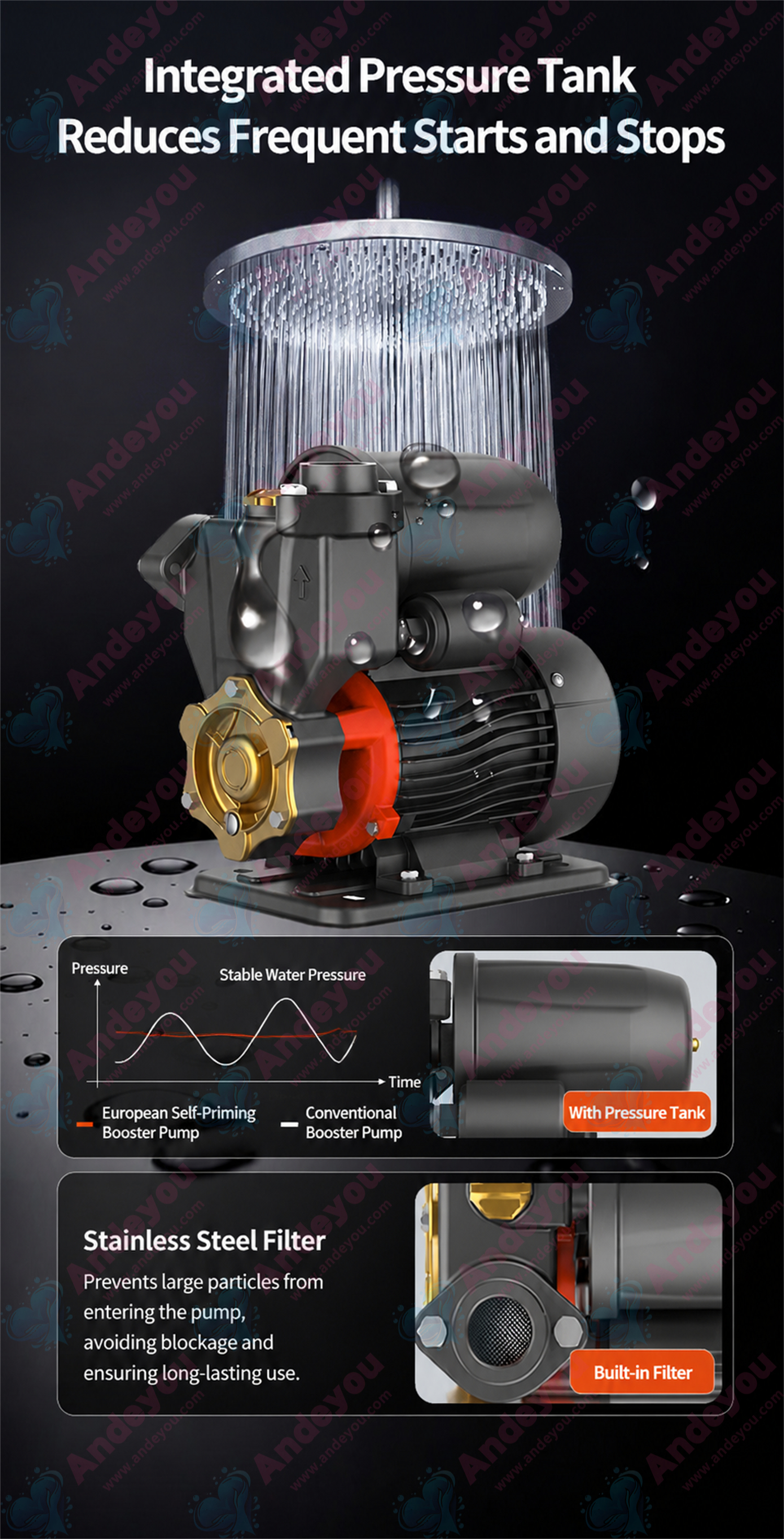

Stainless steel filter screen prevents large particles from entering the pump body and causing jams or operational failure;

Brass impeller ensures a longer service life;

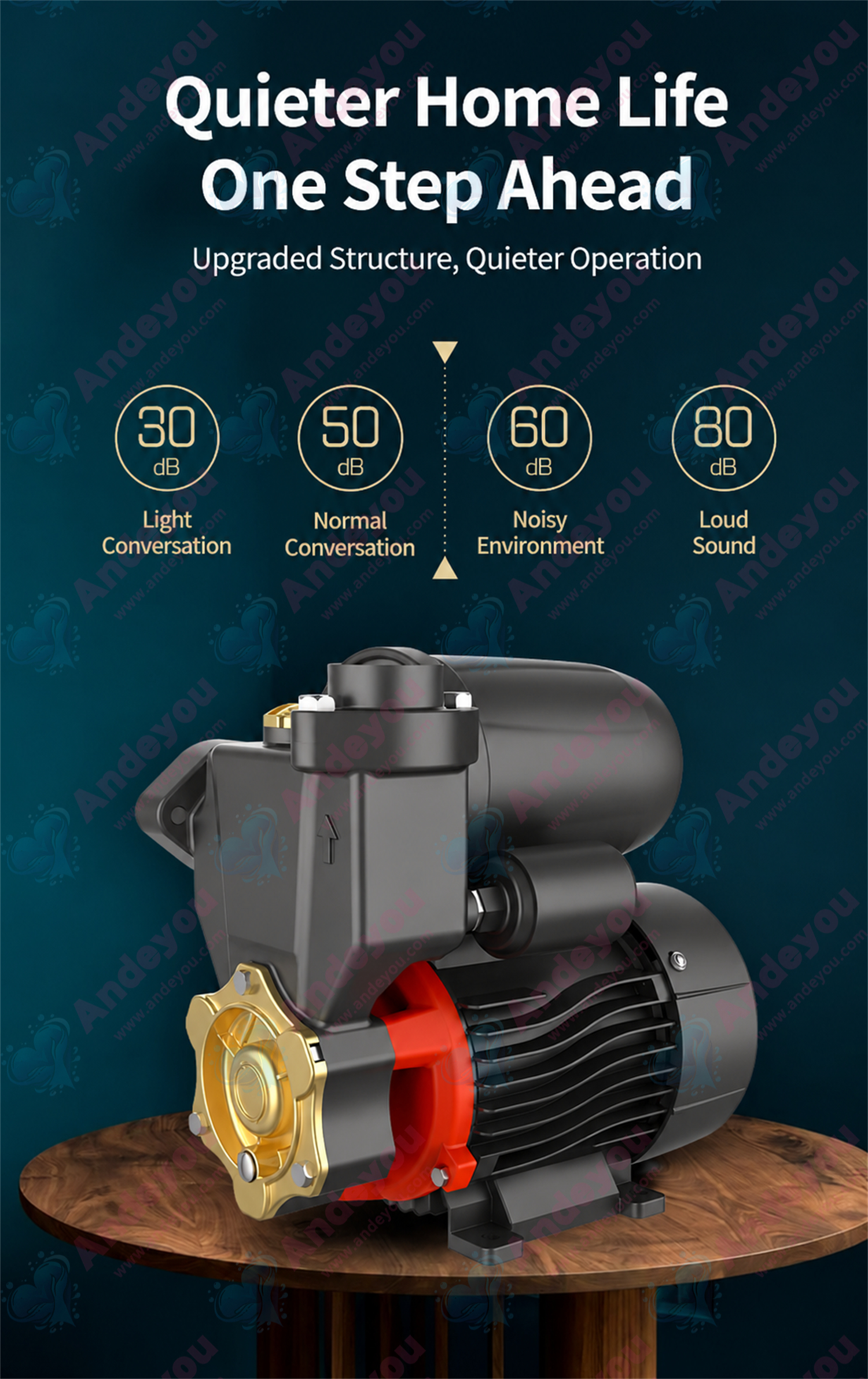

High water pressure, high flow rate, quiet operation, and low power consumption;

Cast iron pump body treated with a special anti-rust process;

Brass impeller and brass inserts effectively prevent impeller jamming when restarting the pump after long periods of inactivity;

AISI 304 stainless steel welded shaft.

Applications:

Suitable for conveying clean water and other liquids with similar properties. Ideal for domestic water supply, automatic irrigation systems, small air conditioning systems, and as a component in other equipment.

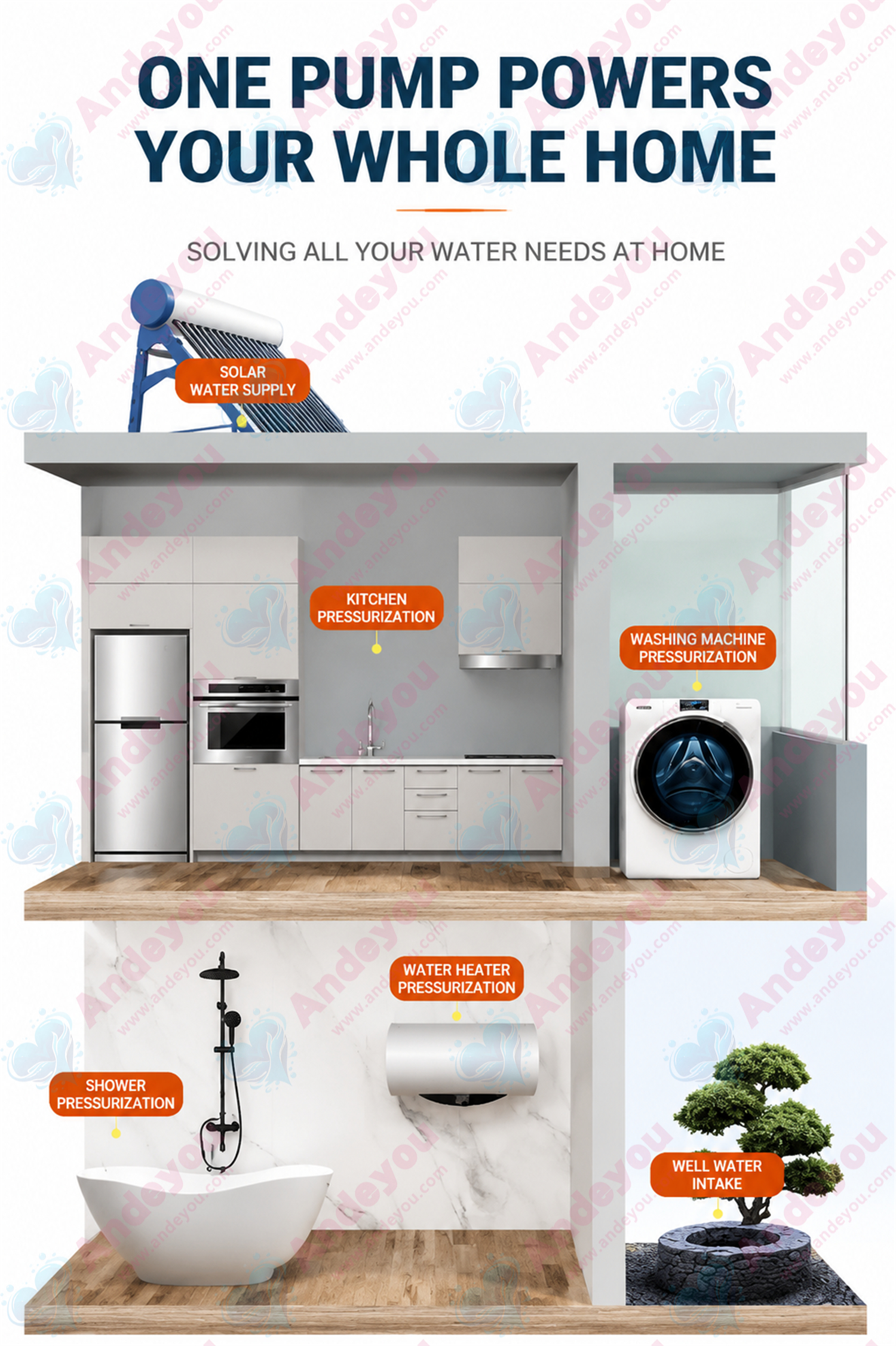

Common uses: Household water supply and suction, pressure tank supply pumps, high-rise booster pumps, air conditioning water pumps, and circulation booster pumps. A dedicated pump for fully automatic water supply and transfer.

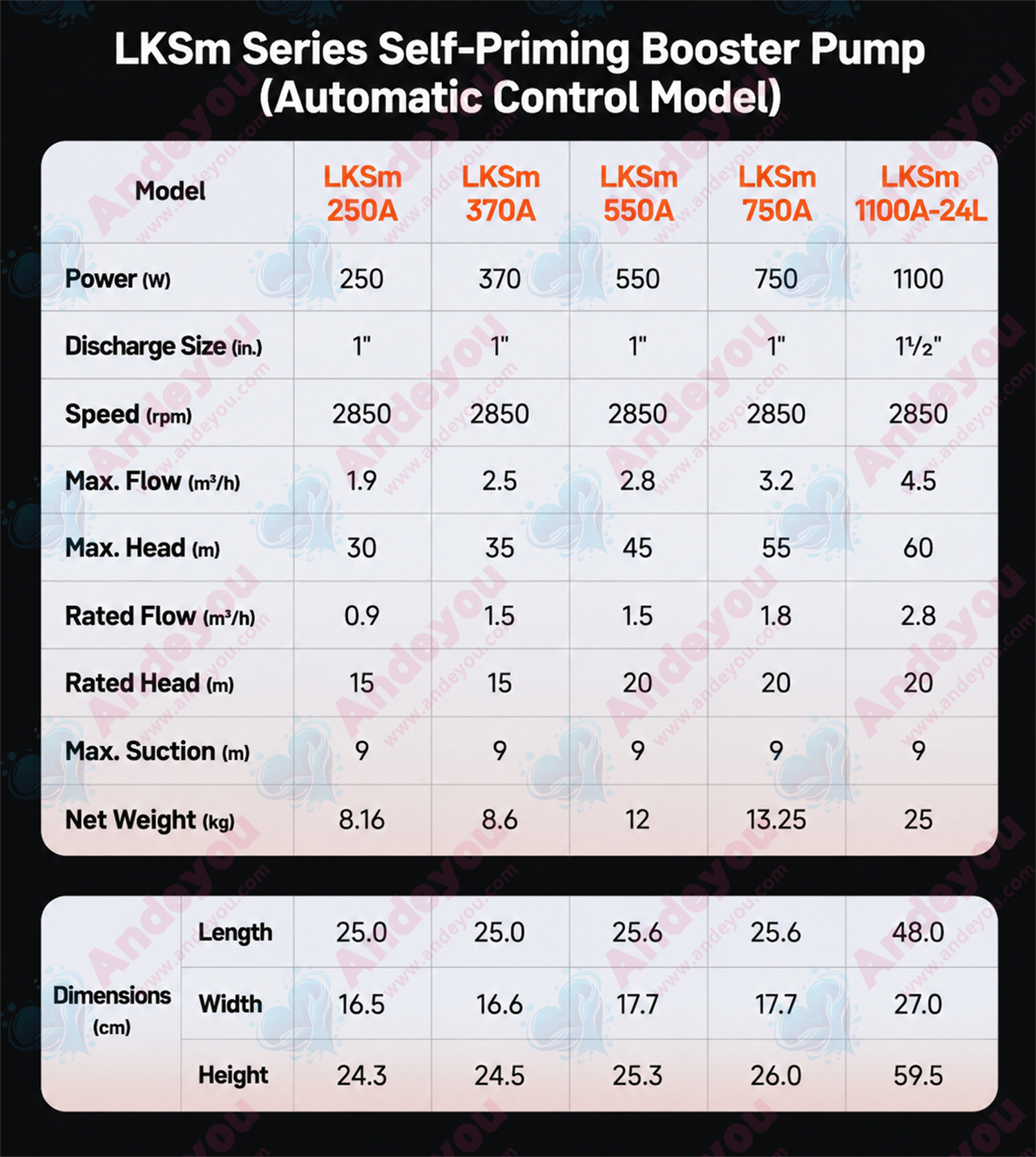

Pump Features:

1. Cast iron pump body treated with a special anti-rust process

2. Brass impeller and brass inserts; effectively prevents impeller jamming upon restart after long periods of inactivity

3. AISI 304 stainless steel welded shaft (prevents long-term water corrosion of the shaft, which could lead to leakage)

4. Maximum liquid temperature: +60°C

5. Maximum suction lift: +9m

6. Self-priming capability

7. High-efficiency bearings (maintenance-free/no oiling required)

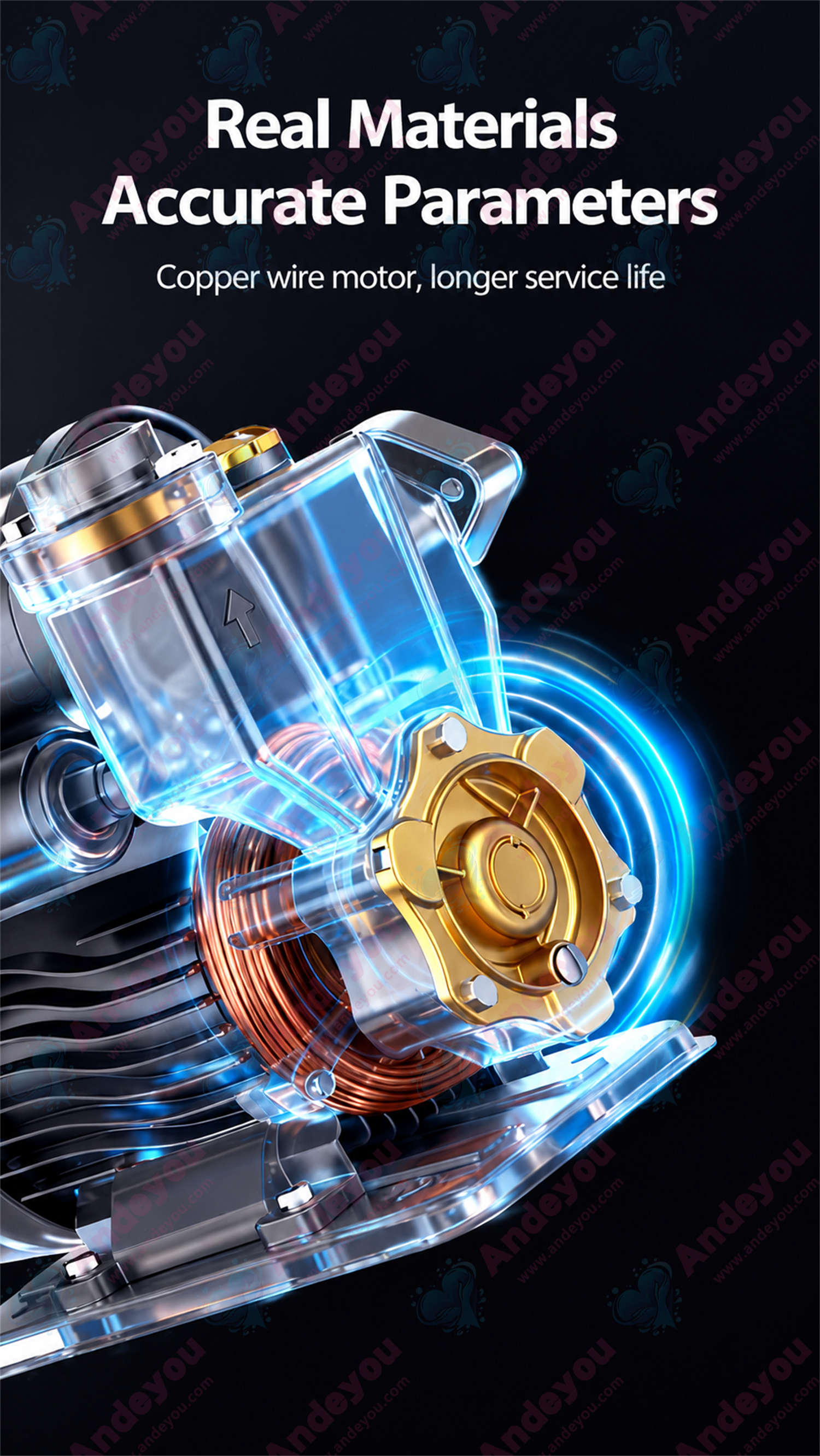

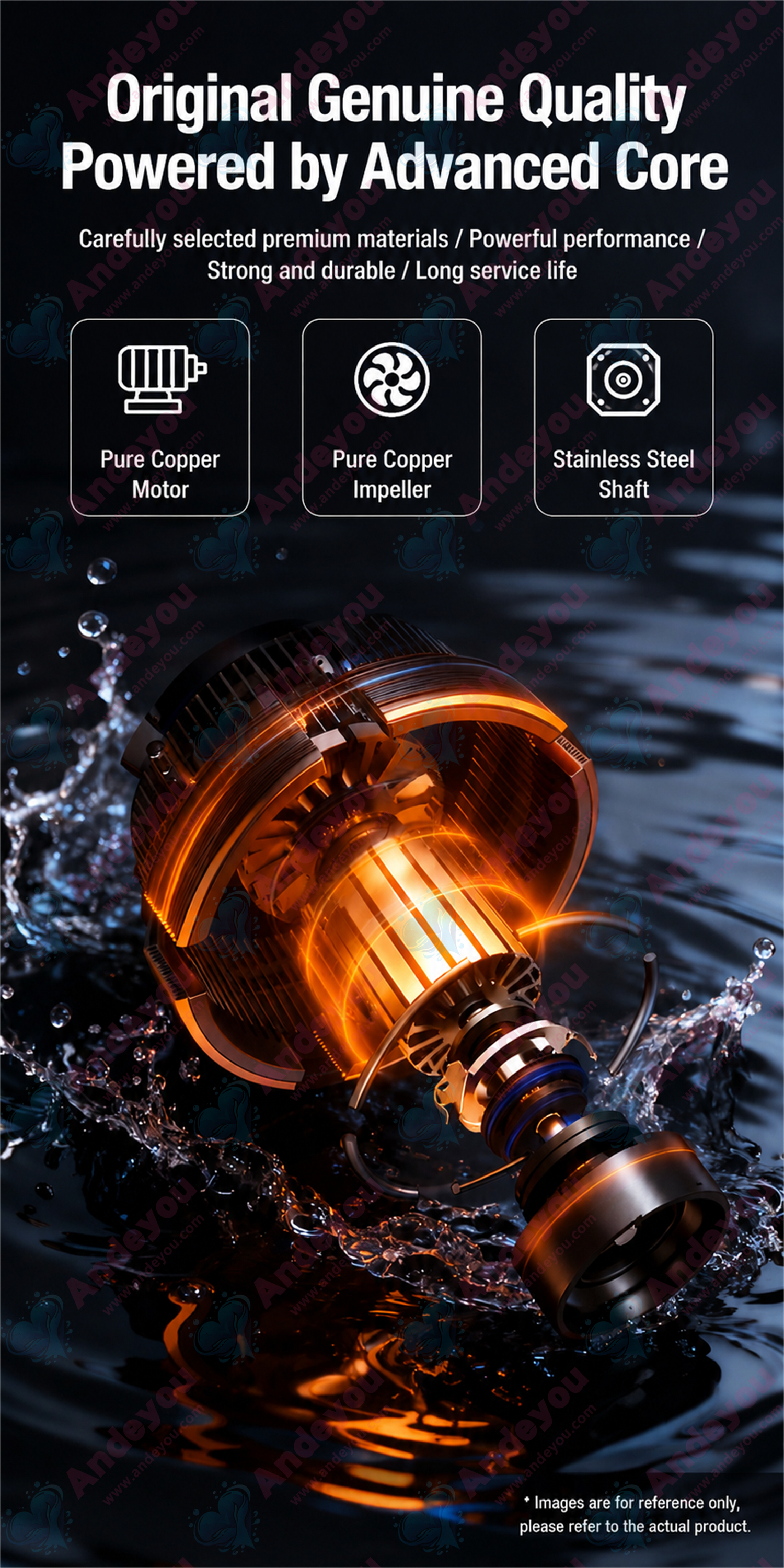

8. Motor with copper windings (100% copper wire; true specifications)

9. Single-phase motor with built-in thermal protection

10. Insulation class: F

11. Protection class: IPX4

12. Maximum ambient temperature: +40°C
