Product Introduction:

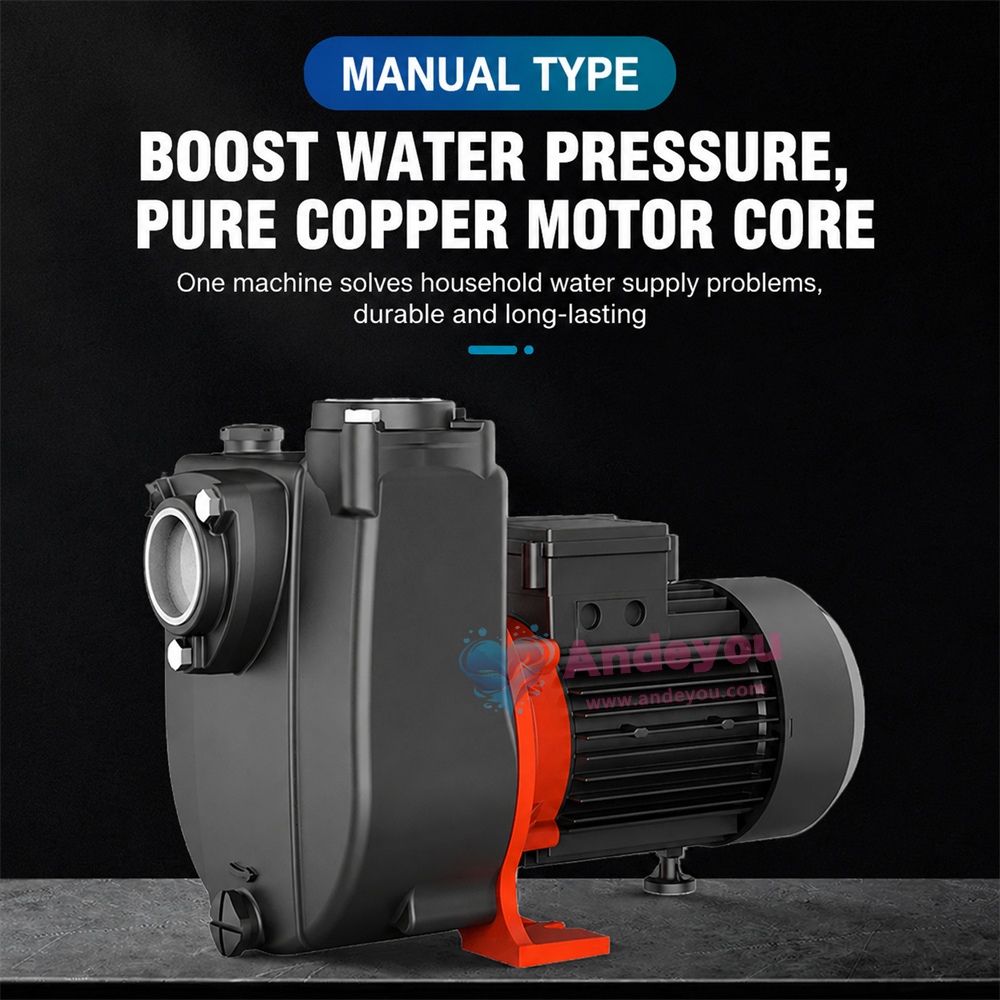

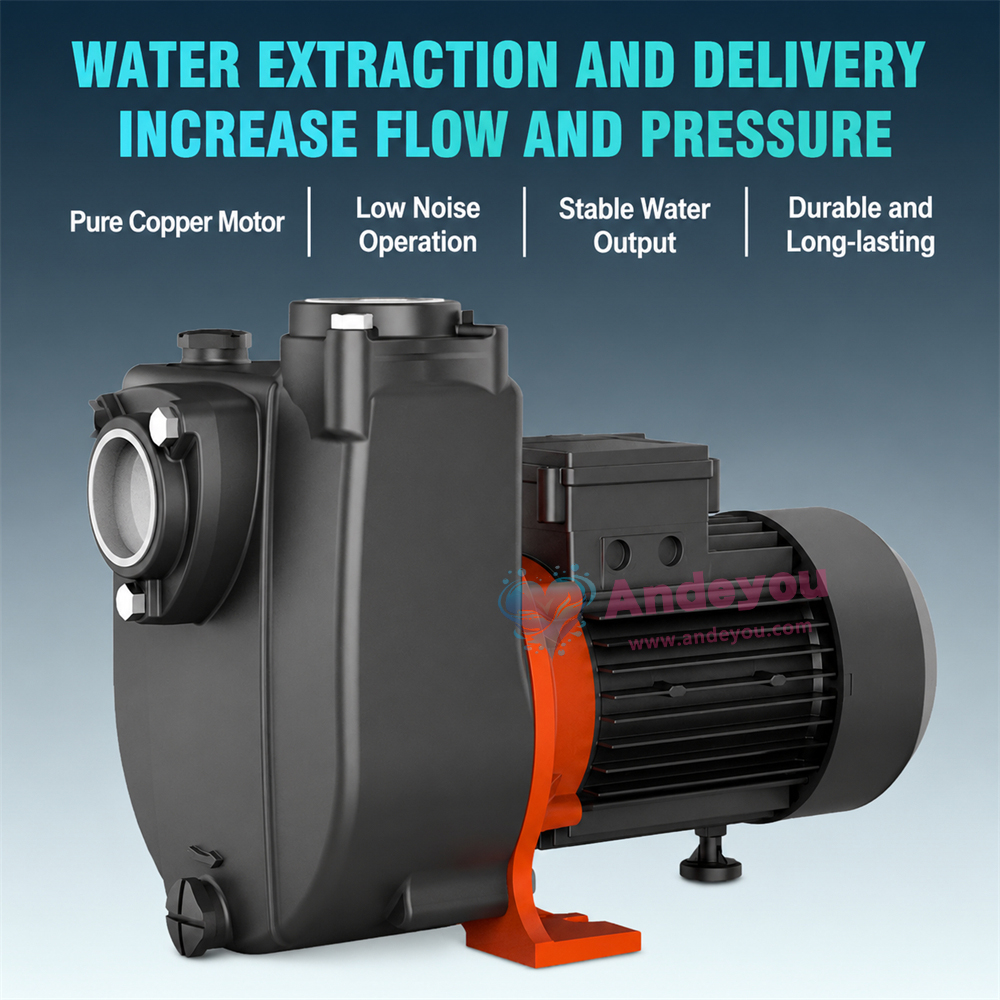

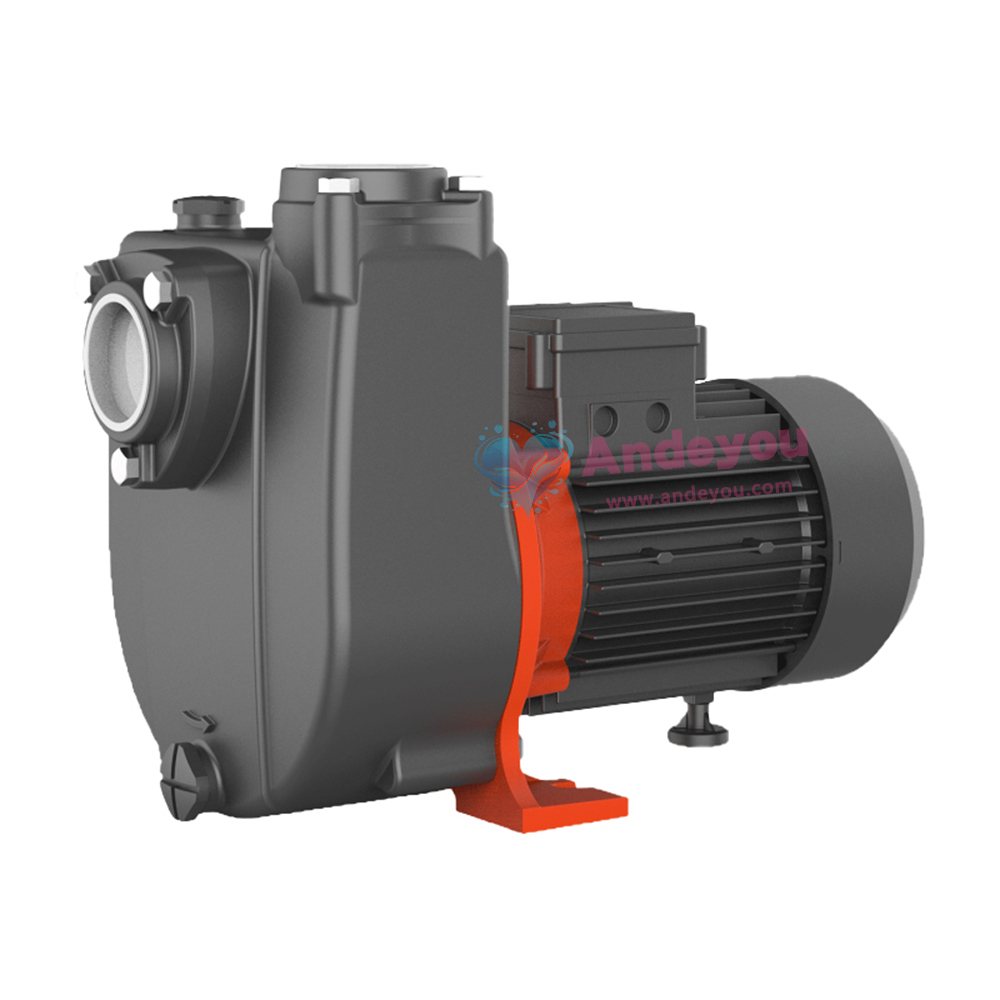

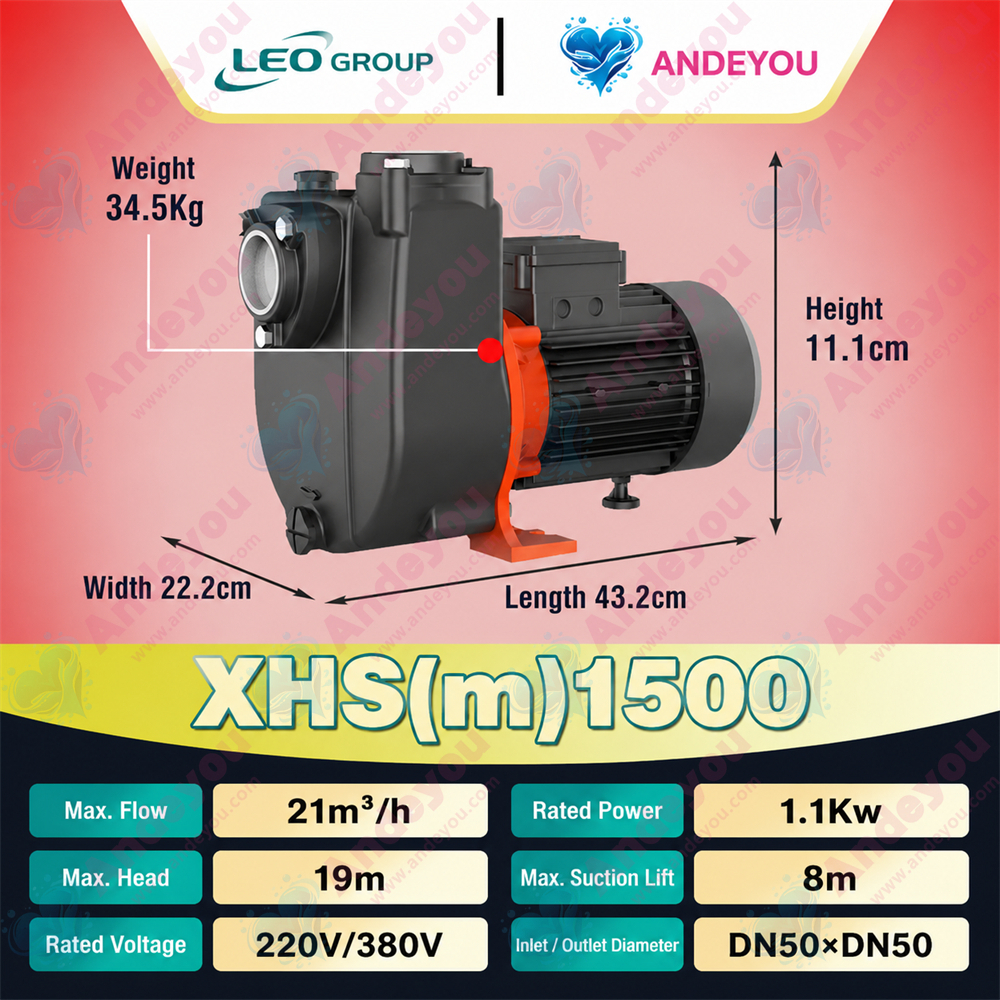

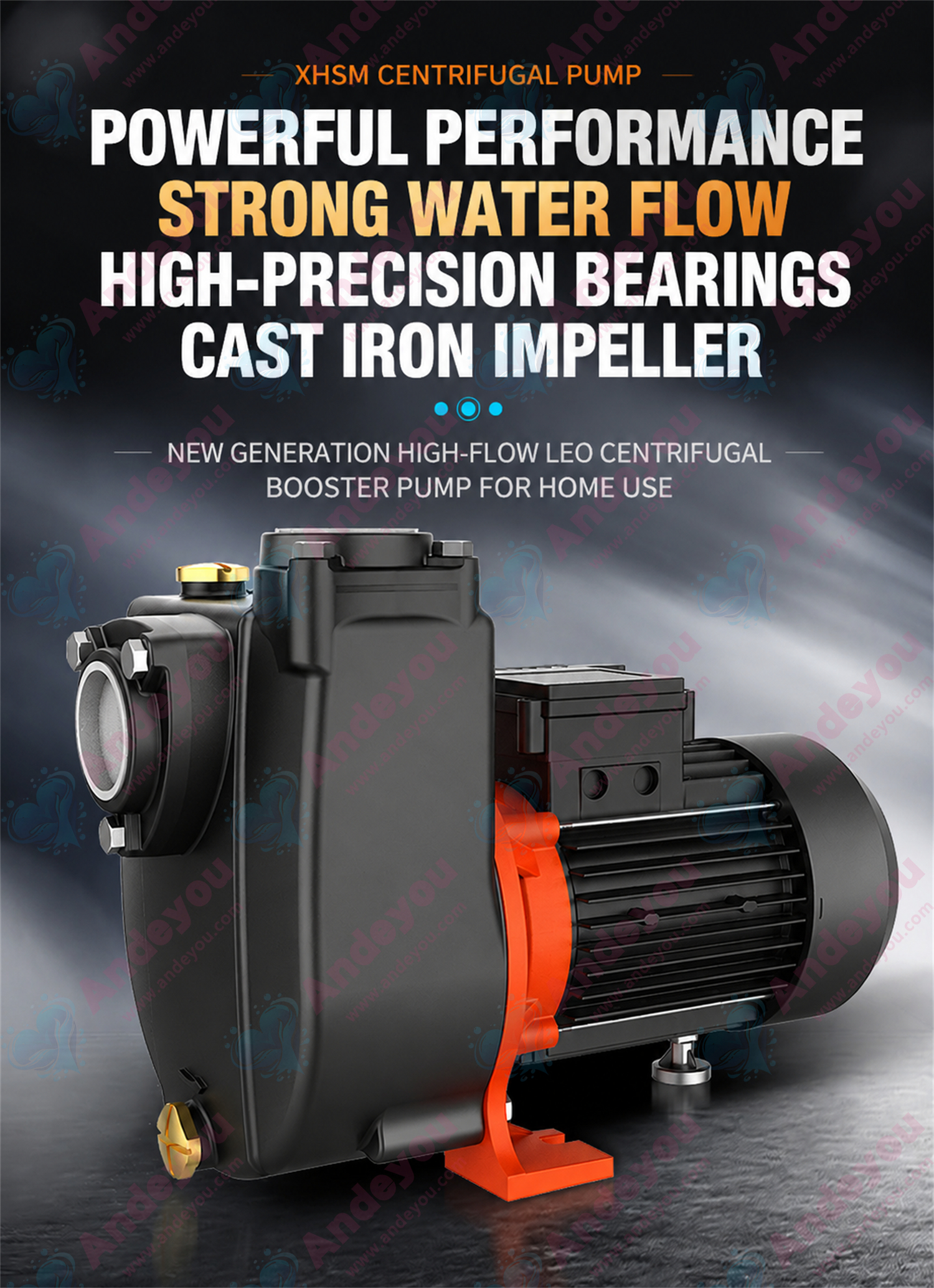

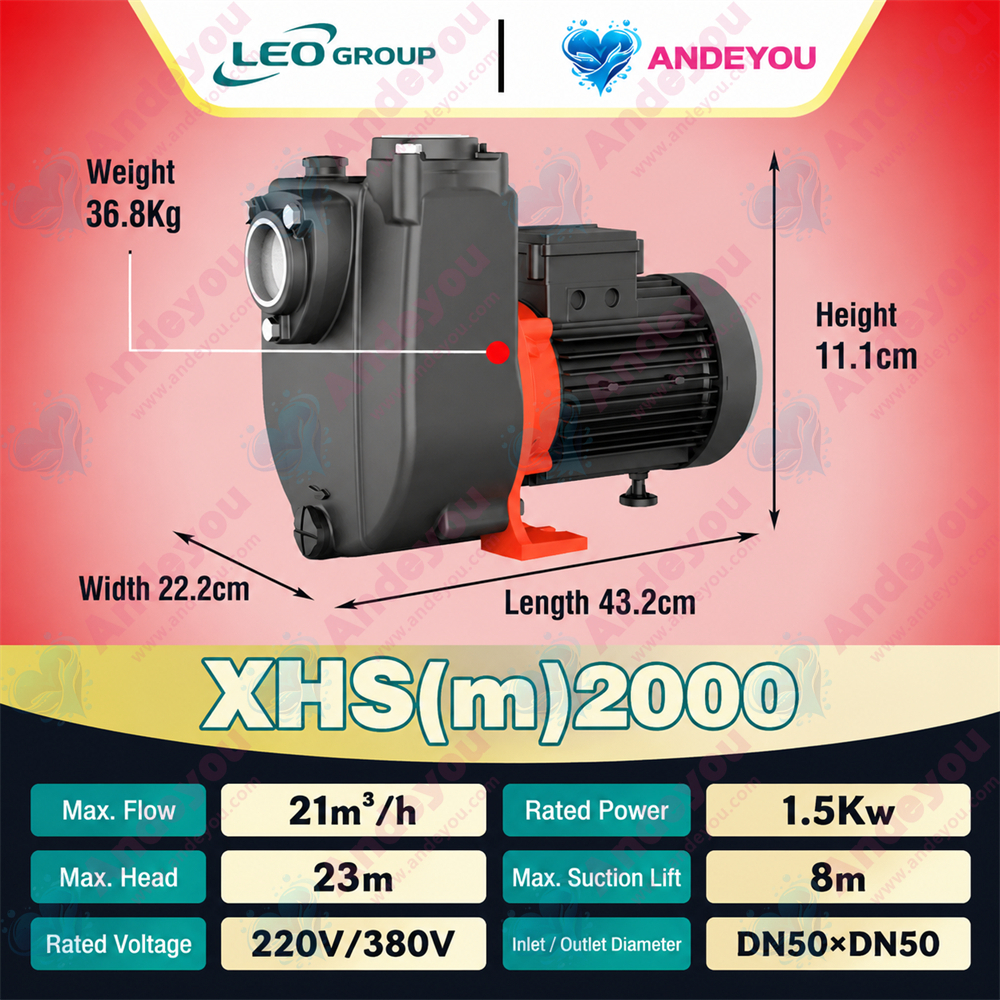

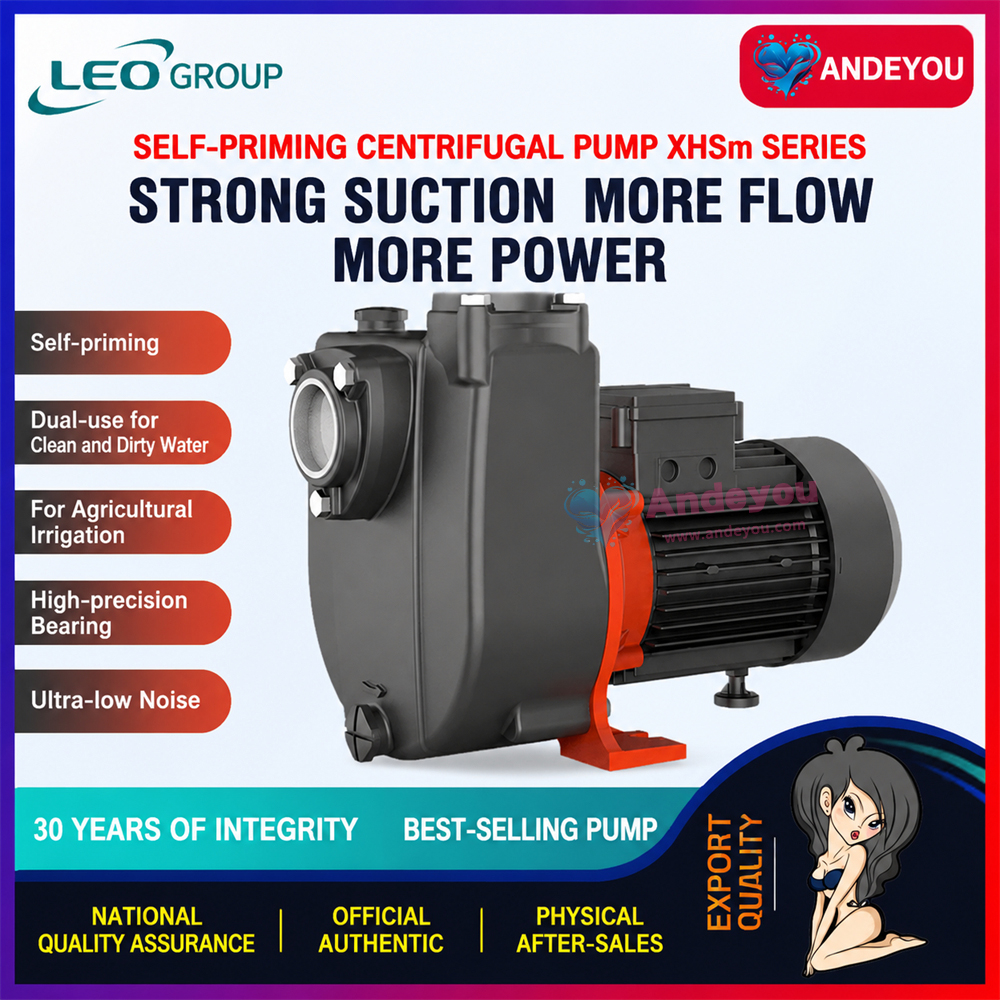

XHSm Self-Priming Centrifugal Pump

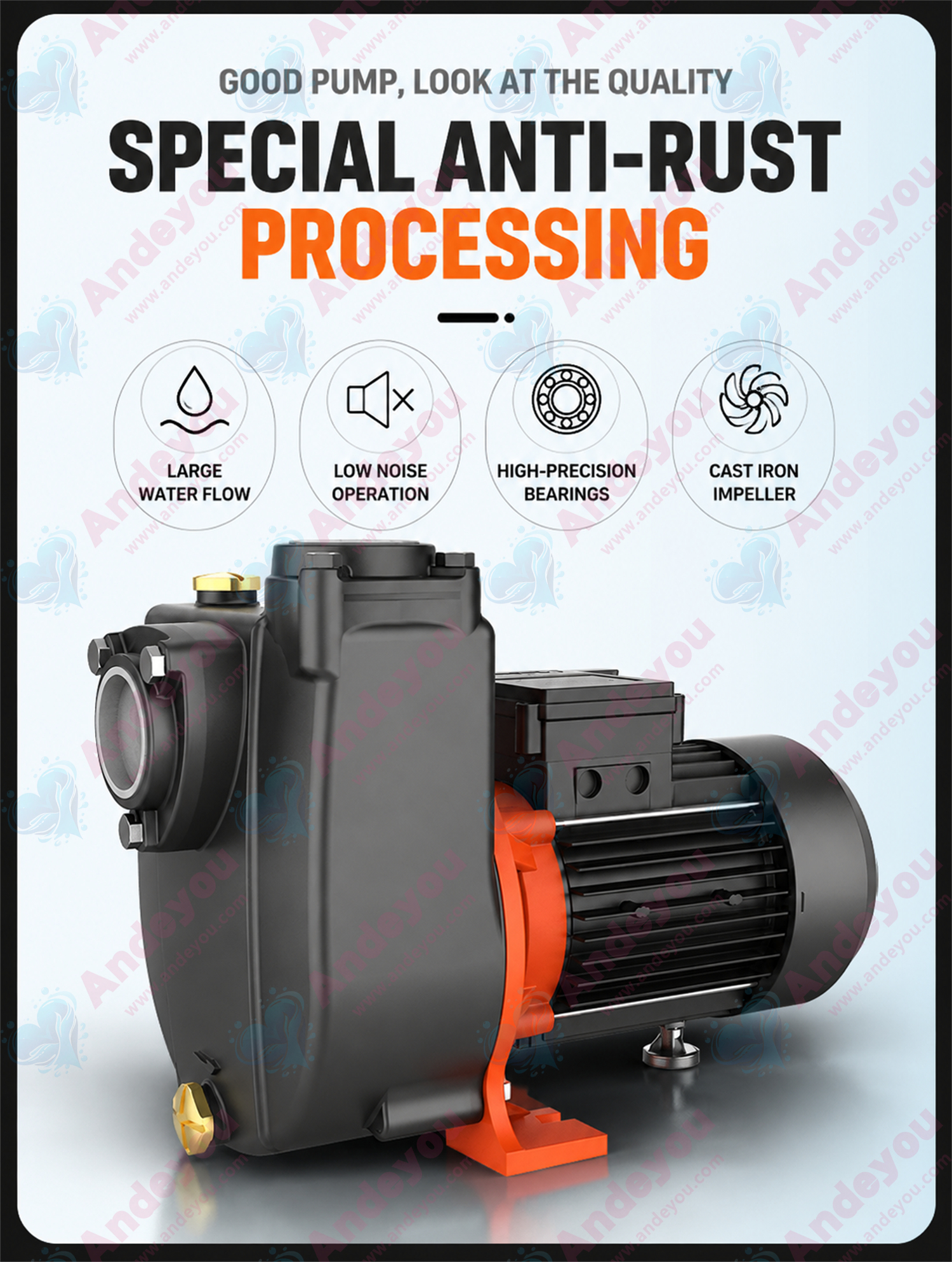

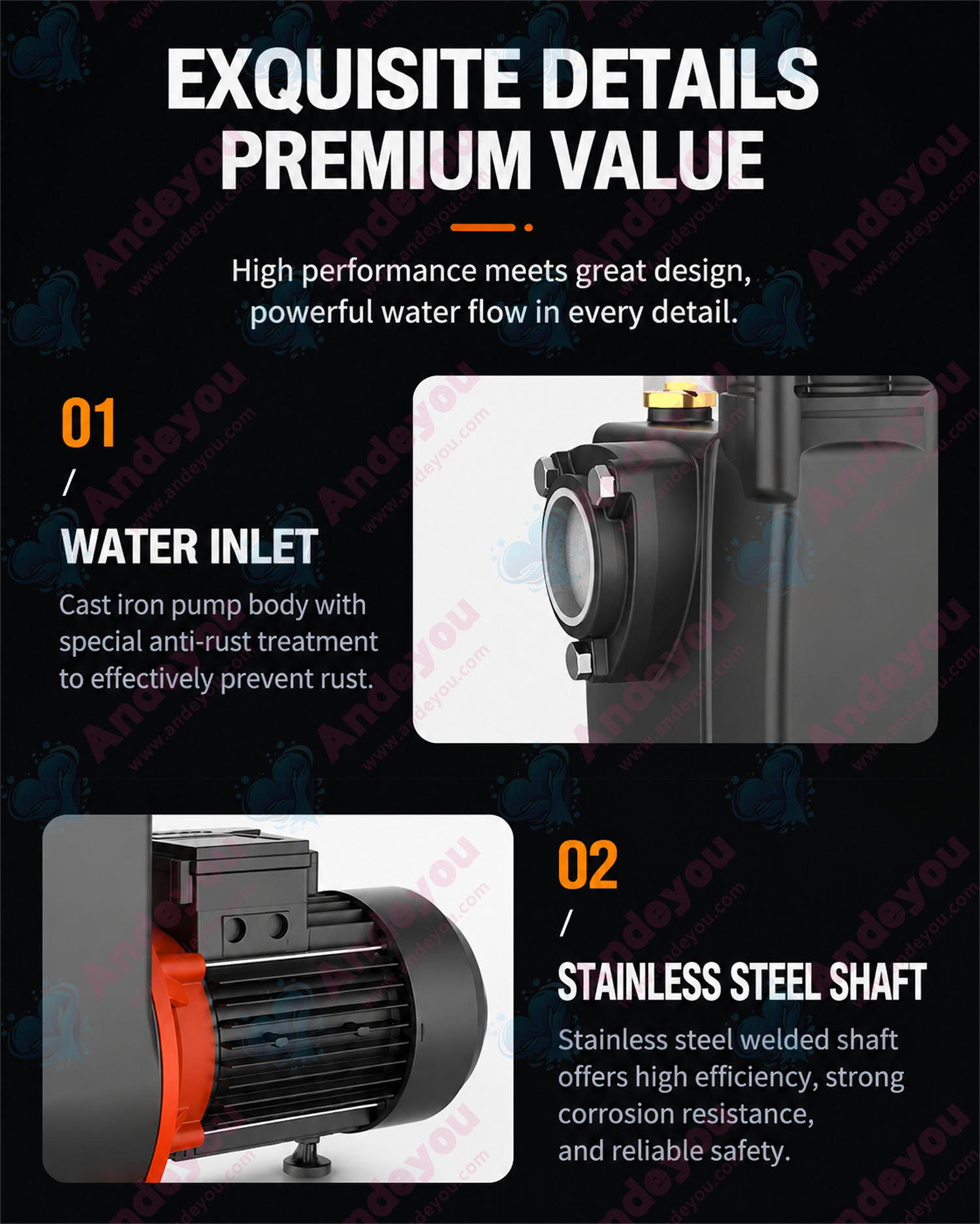

Cast iron pump body with special anti-rust treatment

Cast iron impeller

AISI 304 stainless steel welded shaft

Maximum suction lift: 8m

High-efficiency bearings

Copper-wound motor

Single-phase motor with built-in thermal protection

Insulation class: F

Protection class: IPX4

Maximum ambient temperature: +40°C

Applications:

This series is widely used in industry, agriculture, aquaculture (ponds/rivers), mining, construction sites, and municipal sewage projects. It is capable of pumping fluids containing short fibers, paper scraps, silt, or soft solids—such as muddy water, domestic wastewater, and sewage. It serves as ideal hydraulic equipment for agricultural irrigation and drainage, pond desilting, and construction site operations; however, it is not suitable for environments requiring explosion-proof equipment. It is also applicable for industrial and municipal water supply, high-rise building pressure boosting, fire-fighting systems, garden irrigation, long-distance water transport, HVAC systems, hot/cold water circulation, and as a component for other equipment.

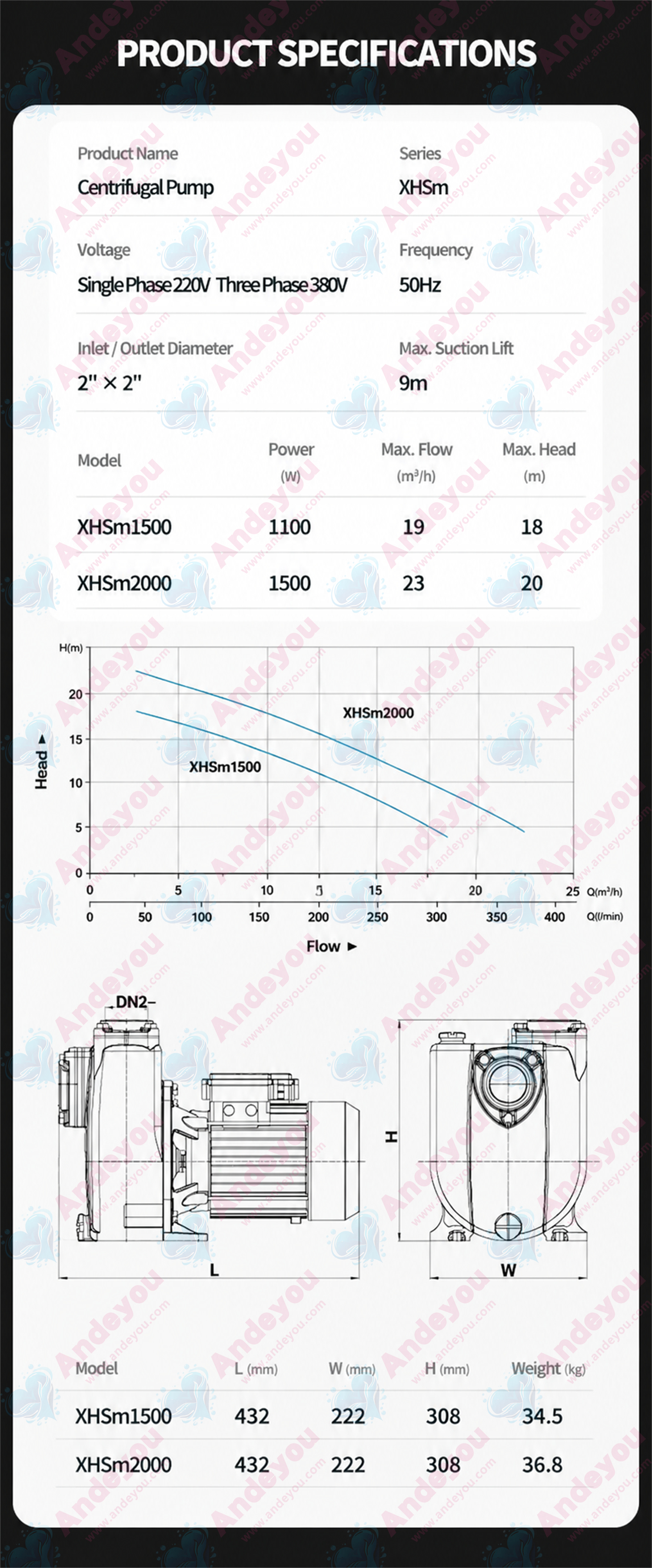

Pump Features:

Maximum ambient temperature: +40°C

Medium temperature: 4°C to +60°C

pH value of pumped medium: 6–9

Solid volume ratio in medium ≤ 2%; solid particle size within specified limits

Altitude: ≤ 1000m

Copper-wound motor (true specifications)

Bearings: Single-row radial ball bearings

Insulation class: F

Protection class: IPX4

Power supply: Single-phase 220V/50Hz or Three-phase 380V/50Hz
