Product Introduction:

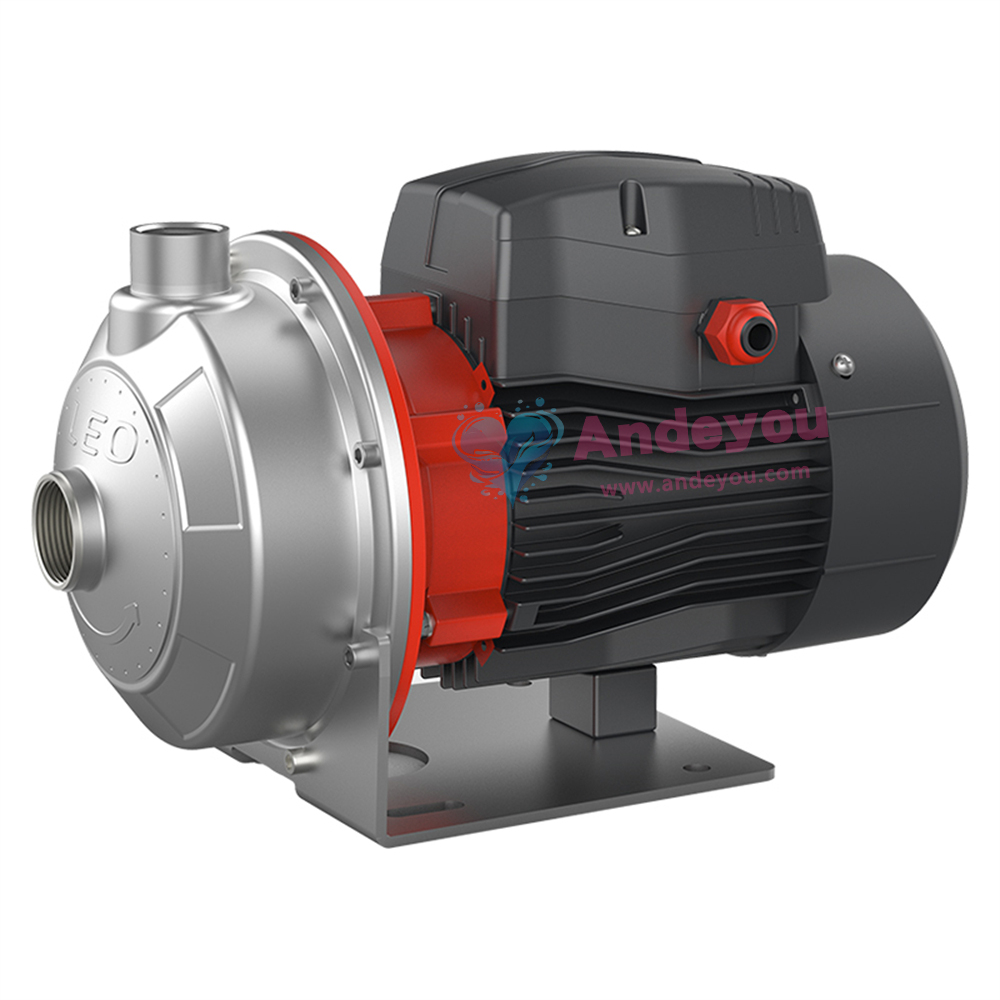

The AMS series consists of horizontal, single-stage stainless steel centrifugal pumps suitable for a wide range of applications in domestic water supply, industry, and construction. They can be used for liquid transfer and circulation in light industry, pressure boosting, and domestic water supply, as well as in cooling and air-conditioning systems.

Suitable for thin, clean, non-corrosive, non-flammable, and non-explosive liquids free of solid particles and fibers;
A higher-power motor is required if the density of the pumped medium exceeds that of clean water;
Liquid temperature range: 0°C to 85°C;
Maximum ambient temperature: +40°C;
Maximum working pressure: 4.5 bar;
Maximum suction lift: Depends on the pump's NPSH (Net Positive Suction Head), medium temperature, and installation altitude.

Application Scenarios:

Liquid transfer and circulation in light industry;

Pressure boosting and domestic water supply; also widely used in cooling and air-conditioning systems.

Pump Features:

1. Equipped with a totally enclosed, fan-cooled, squirrel-cage motor;

2. Protection class: IPX4;

3. Insulation class: F;

4. Standard voltage: Single-phase 220–240V, 50Hz; Three-phase 380–415V, 50Hz;

5. Single-phase motor features a built-in thermal protection device.
