Product Introduction:

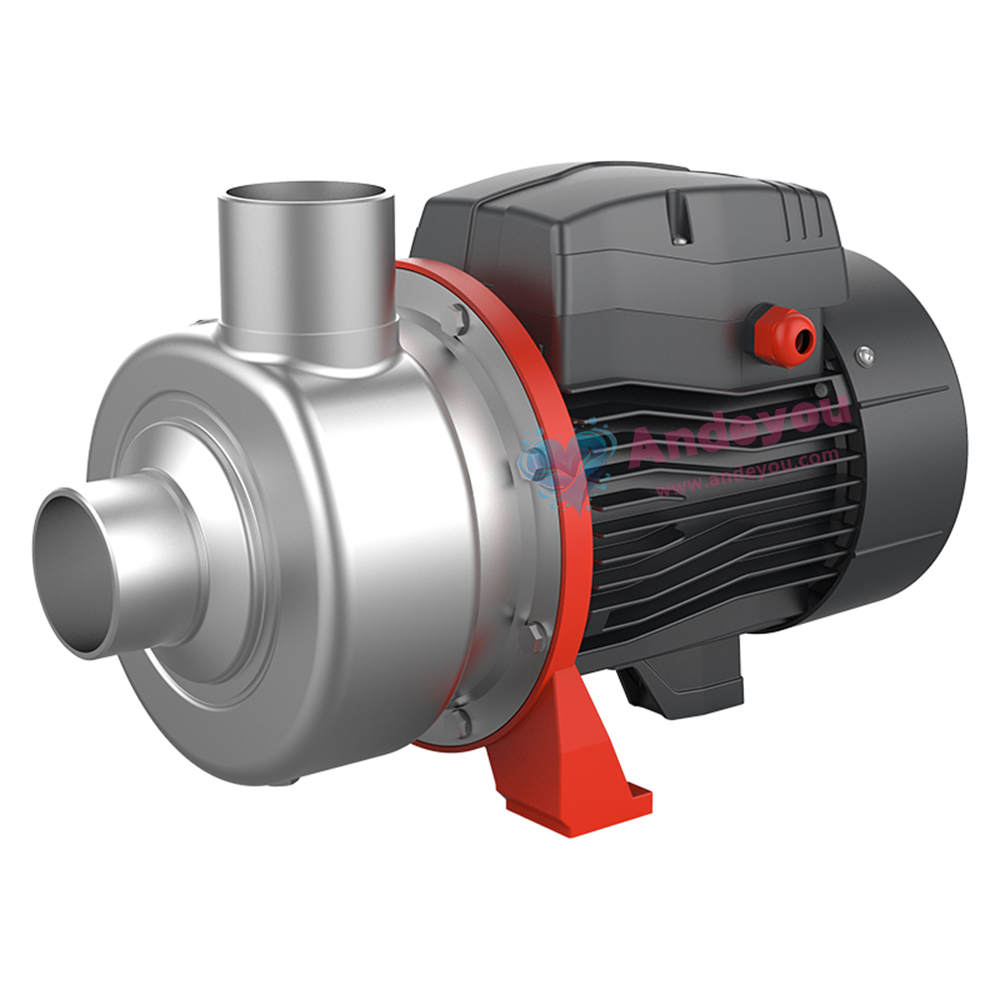

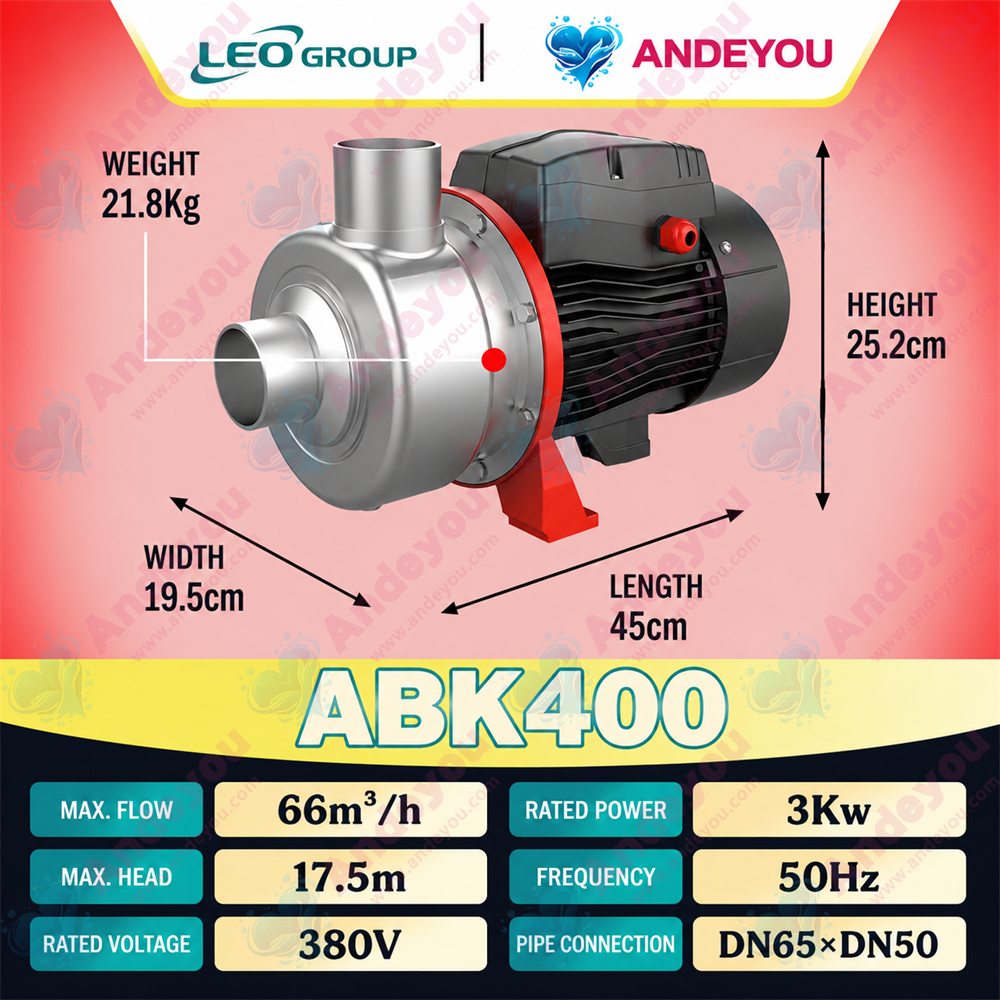

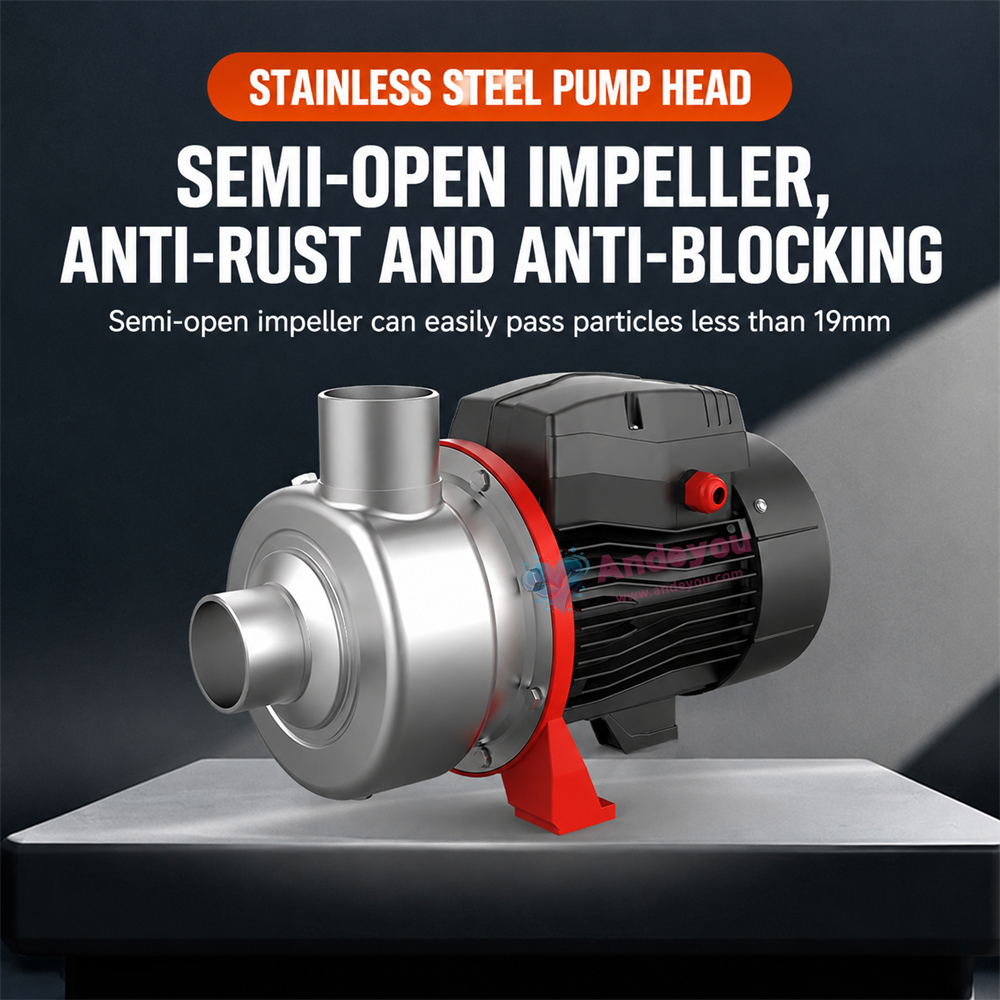

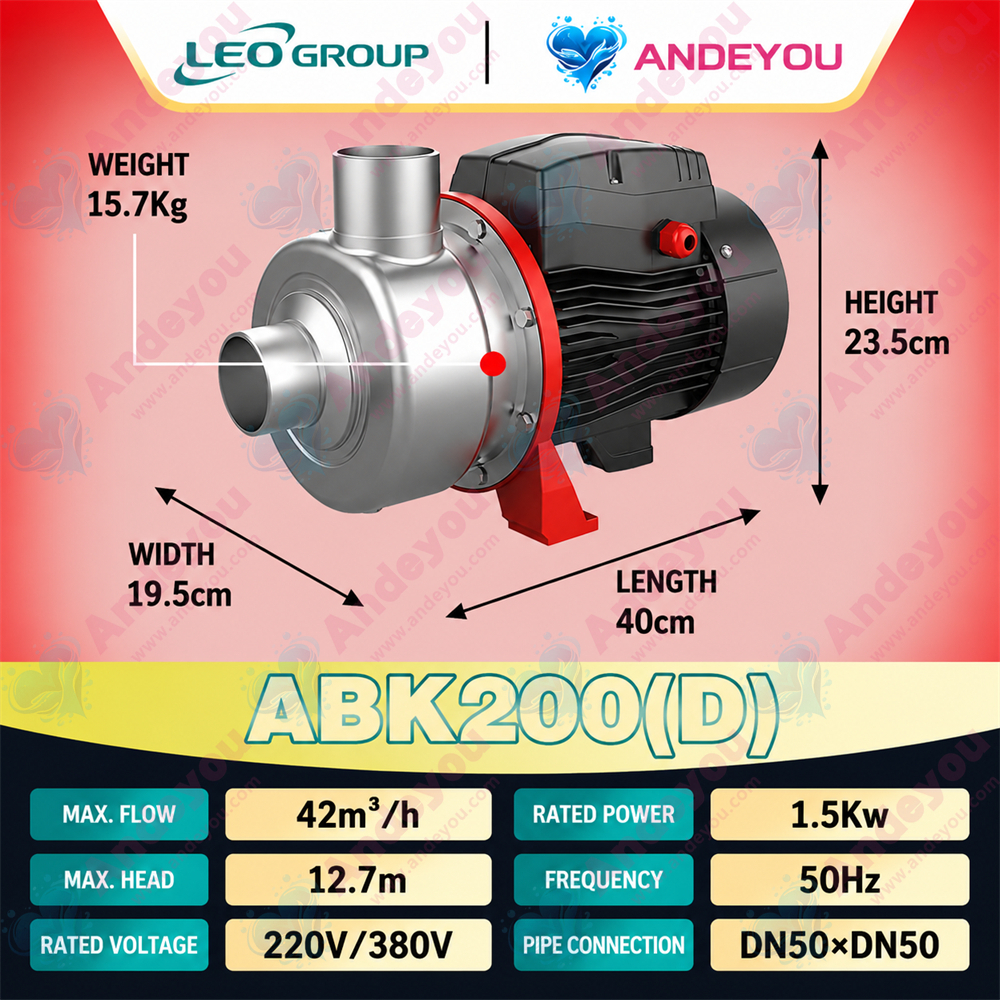

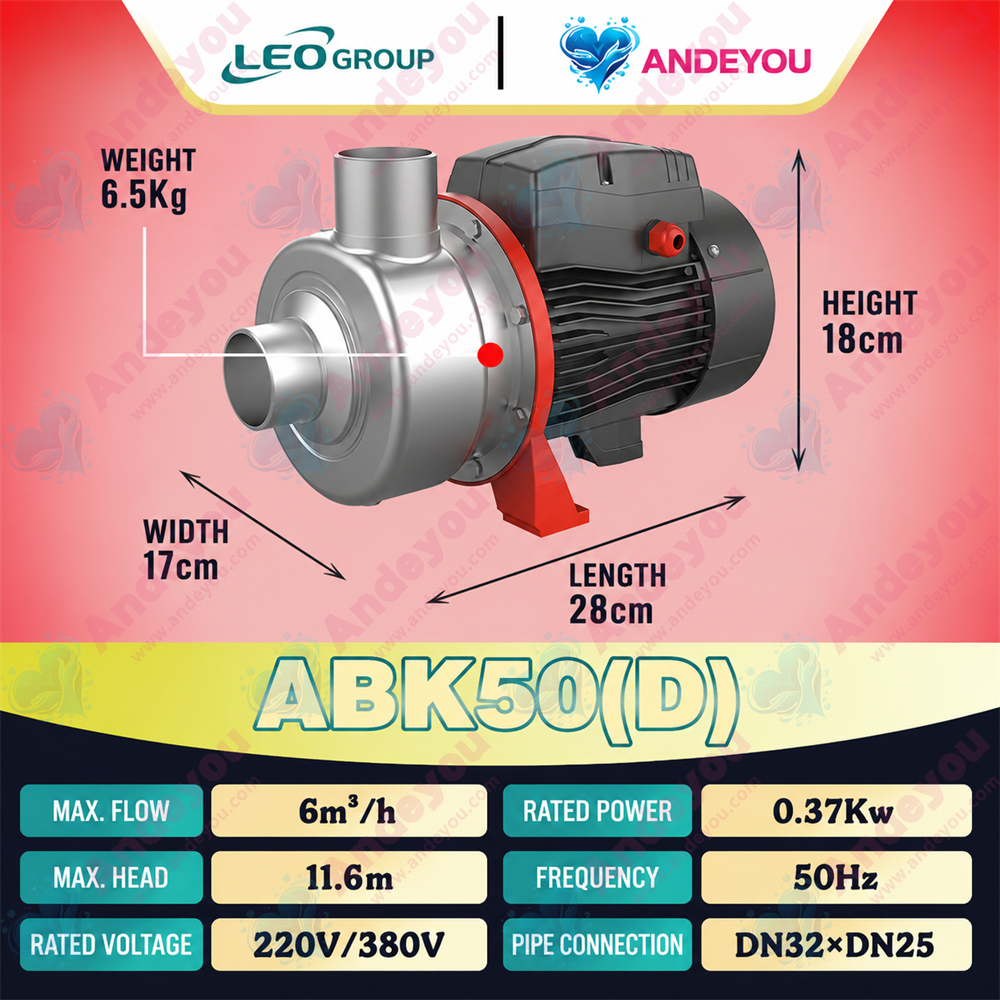

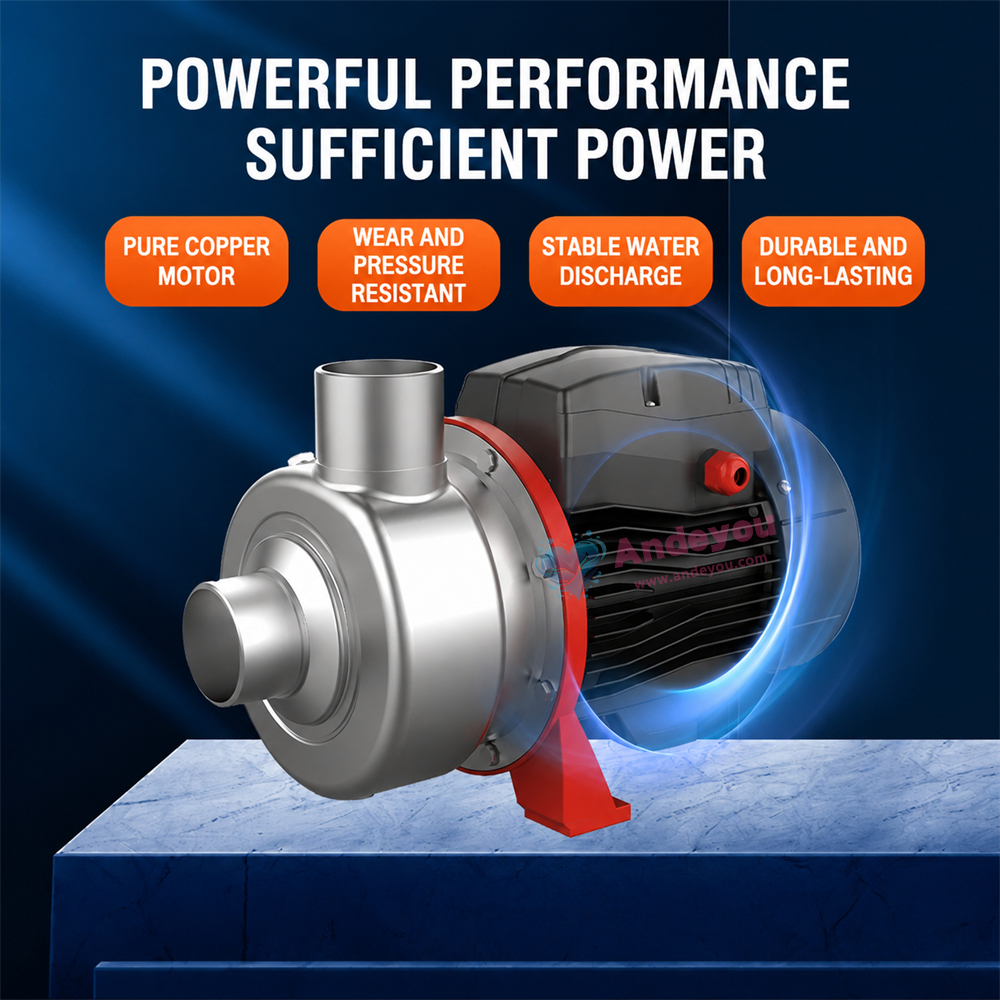

ABK Semi-Open Impeller Stainless Steel Centrifugal Pump

Features a compact size, simple structure, ease of operation, low operating costs, and resistance to corrosion, acids, and alkalis;
Uses all-copper enameled wire for superior power without compromising quality; includes a built-in thermal protection device to extend motor lifespan;
Equipped with high-precision, finely crafted bearings that ensure low noise, long service life, high load capacity, and excellent dust resistance;
Features a 304 stainless steel pump head that is durable, rust-proof, and boasts a sophisticated, high-end appearance;
High-efficiency motor: The ABK stainless steel centrifugal pump utilizes a single-phase motor with built-in thermal protection; it supports an ambient temperature of up to 40°C, features a simple, low-noise design, and is easy to use and maintain;
AISI 304 stainless steel welded shaft offers high hardness and excellent wear resistance, significantly extending the pump's service life.

Application Scenarios:

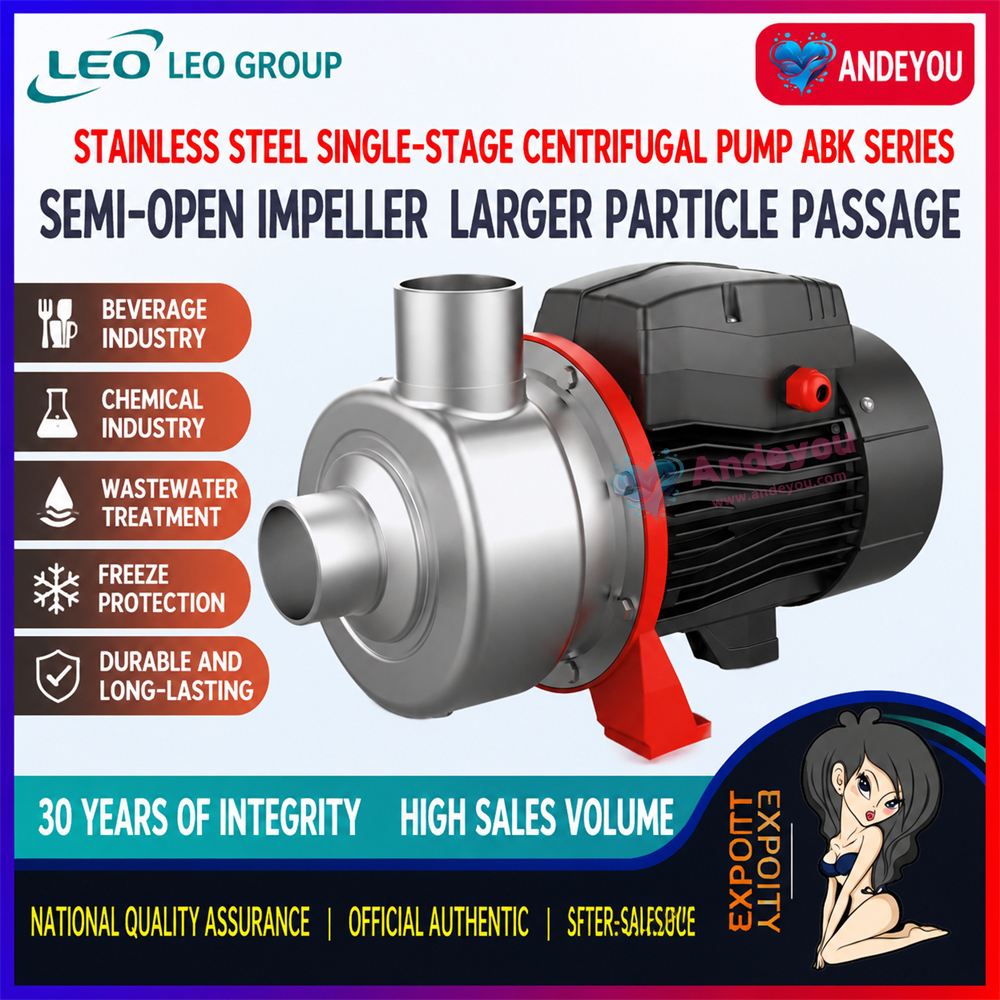

Circulating cleaning systems for various production lines and the transport of media containing impurities.

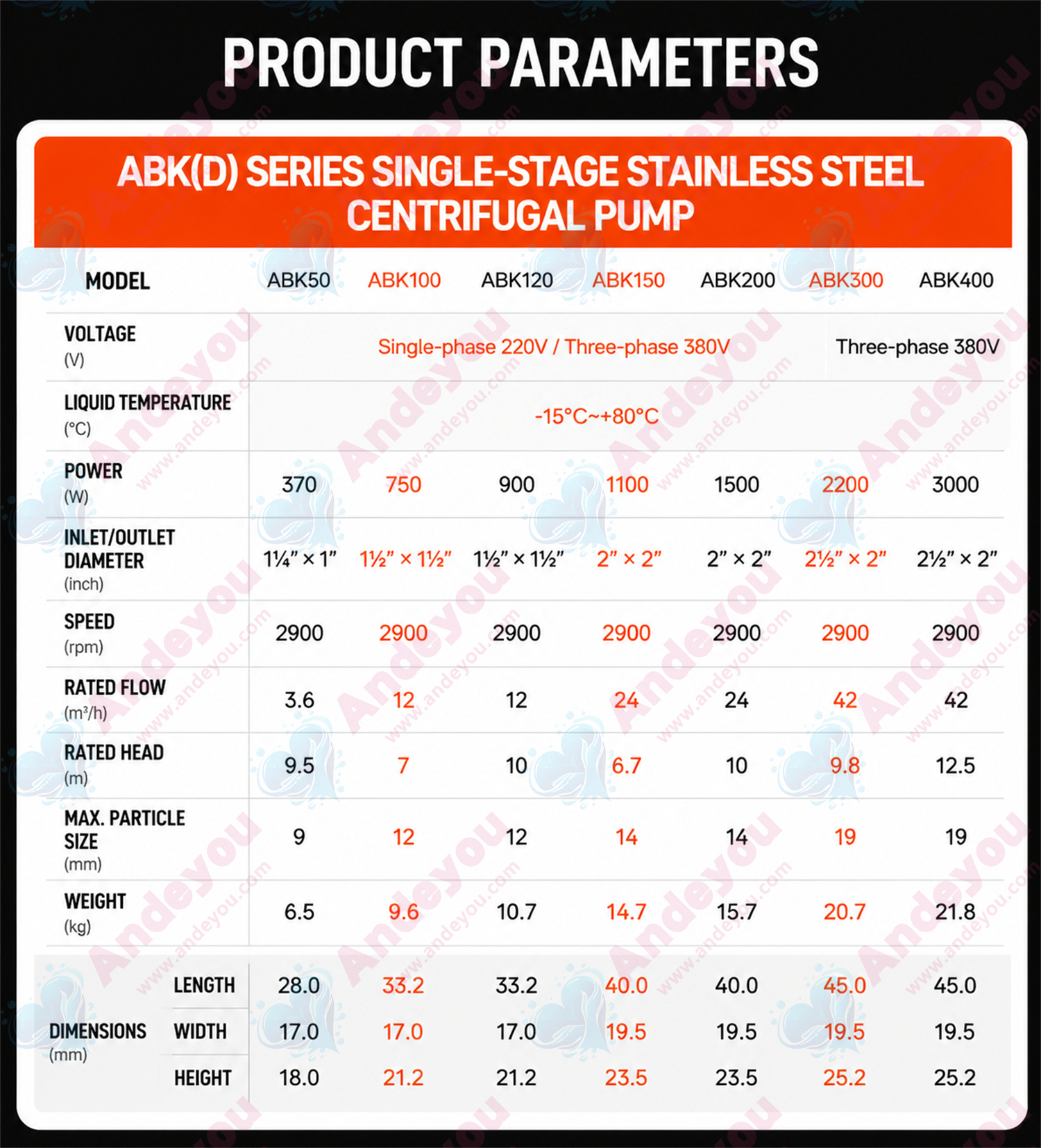

Pump Features:

1. Transported media must be low-viscosity, non-flammable, non-explosive, non-vaporizing, and fiber-free; the medium must not react chemically with pump materials; allows passage of particles with a maximum diameter of 19mm;

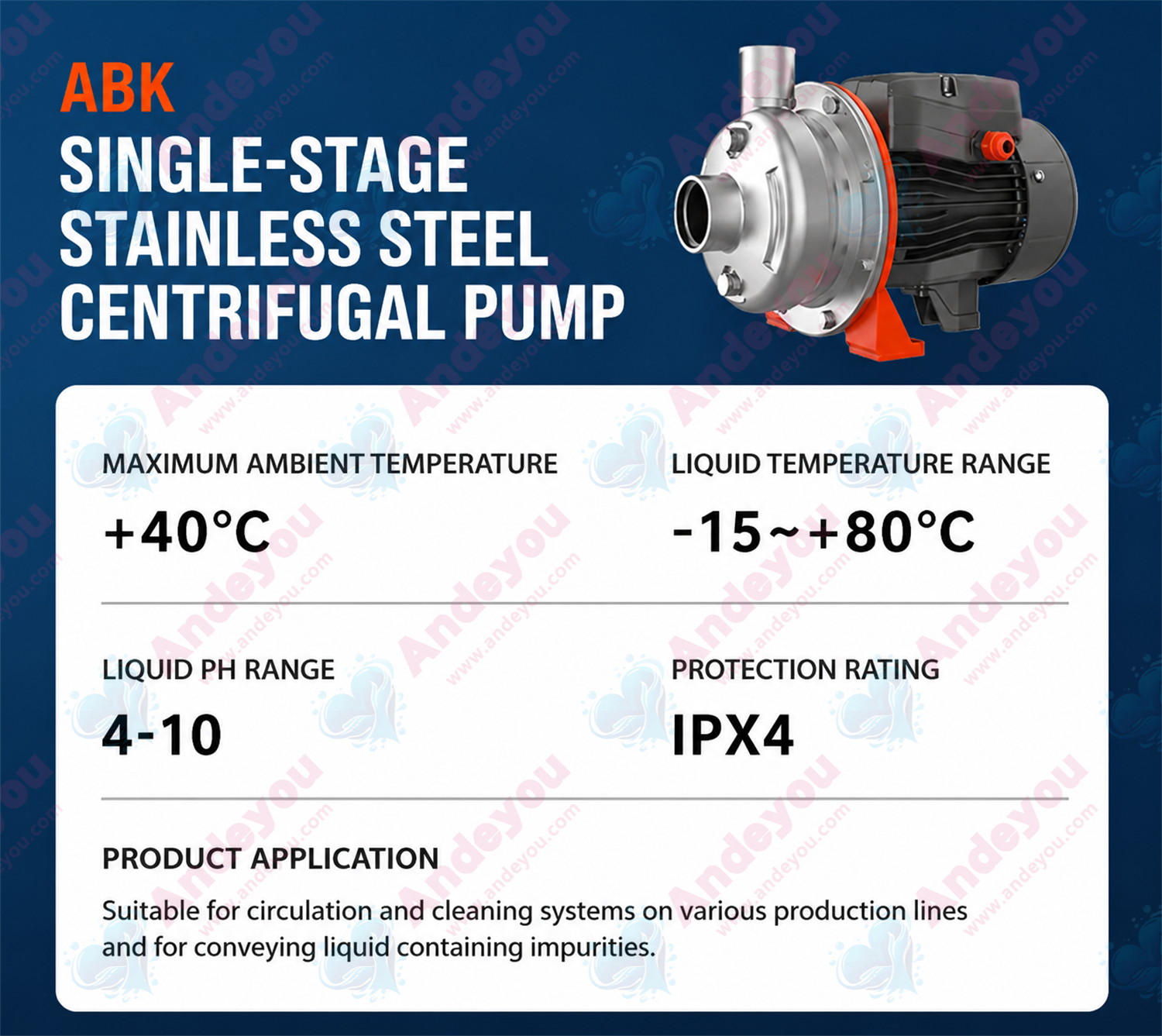

2. Medium temperature: -15°C to +80°C

3. Maximum ambient temperature: +40°C

4. Medium pH value: 4–10

5. Maximum working pressure: 8 bar

6. Pump equipped with a totally enclosed, fan-cooled, squirrel-cage motor

7. Insulation class: F

8. Protection class: IPX4

9. Single-phase motor with built-in thermal protector
