Product Introduction:

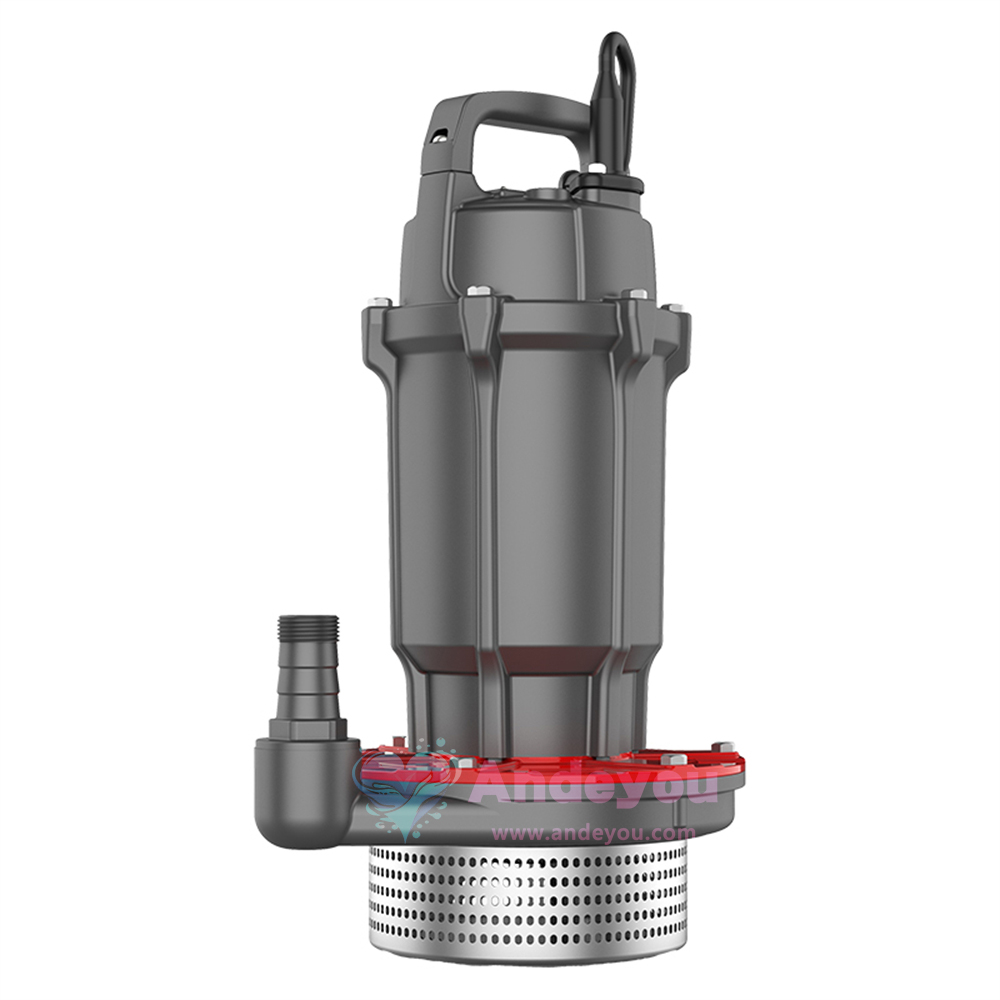

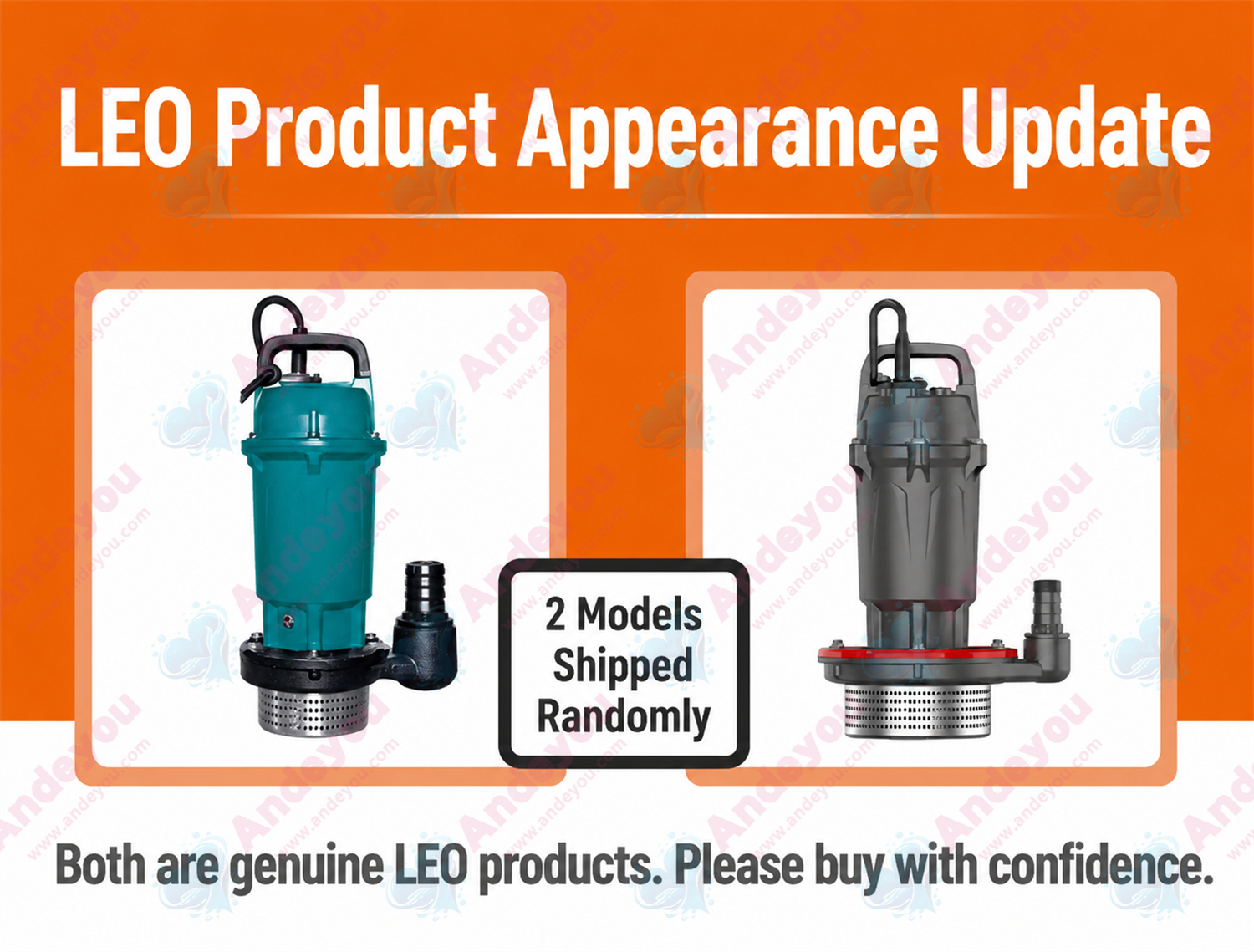

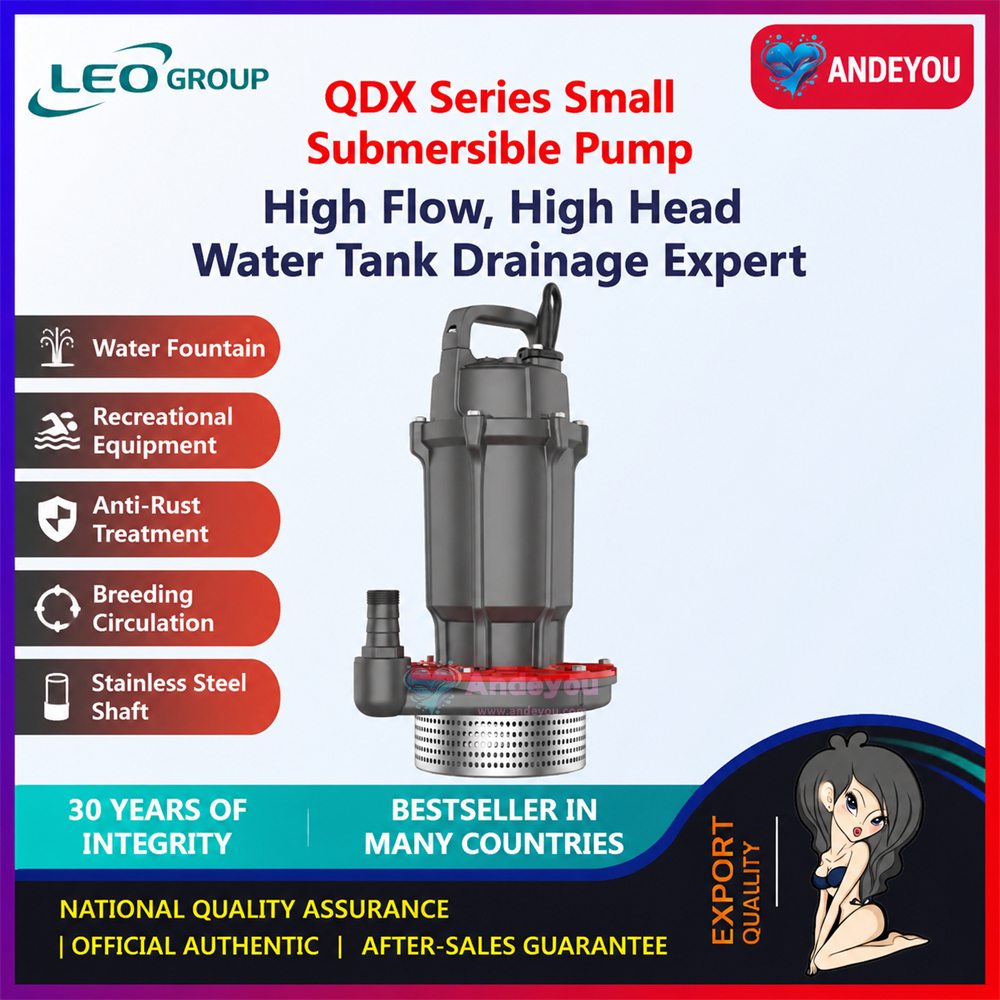

QDX Small Submersible Pump

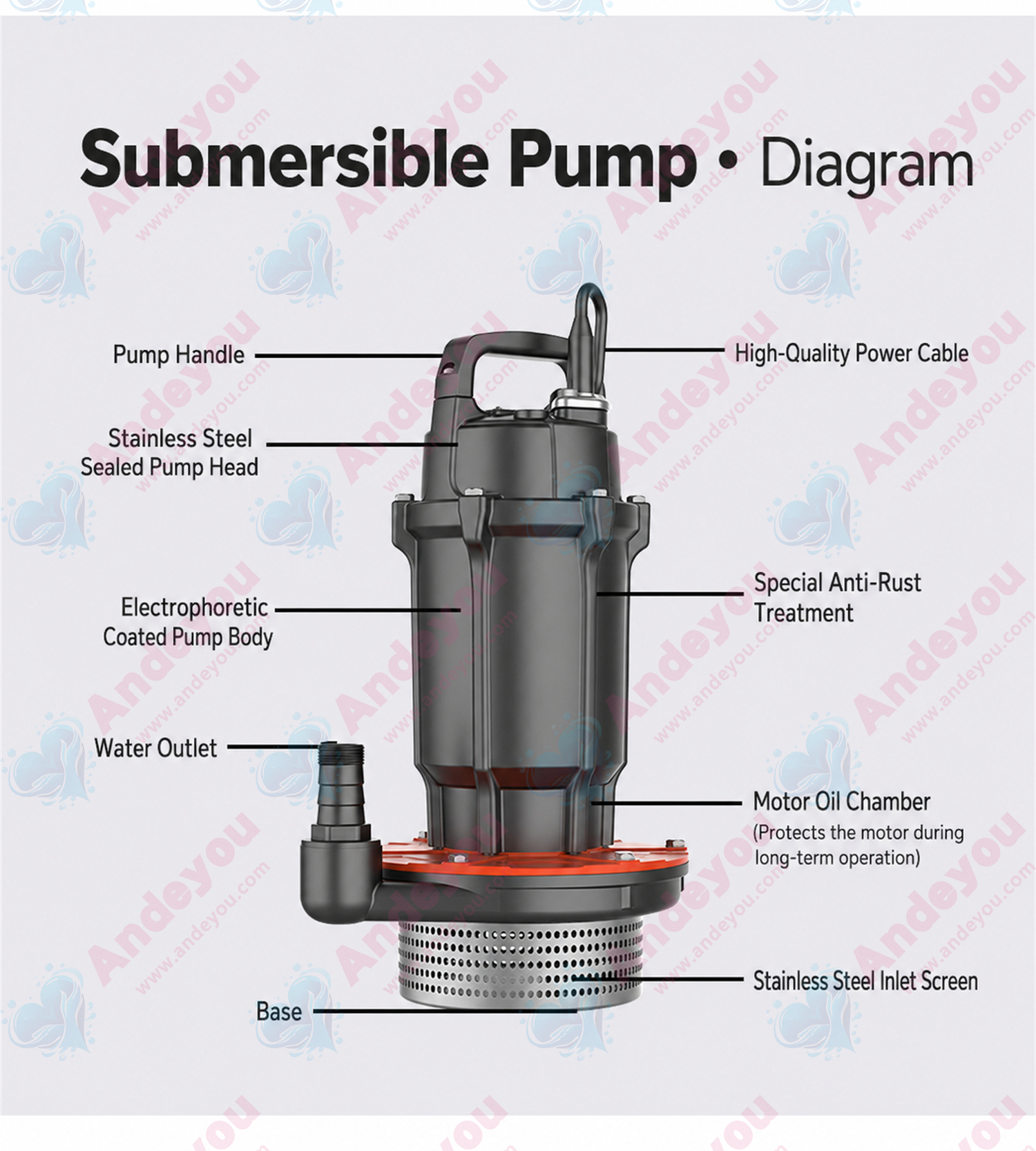

Directly coupled pump and motor; compact structure and easy portability;

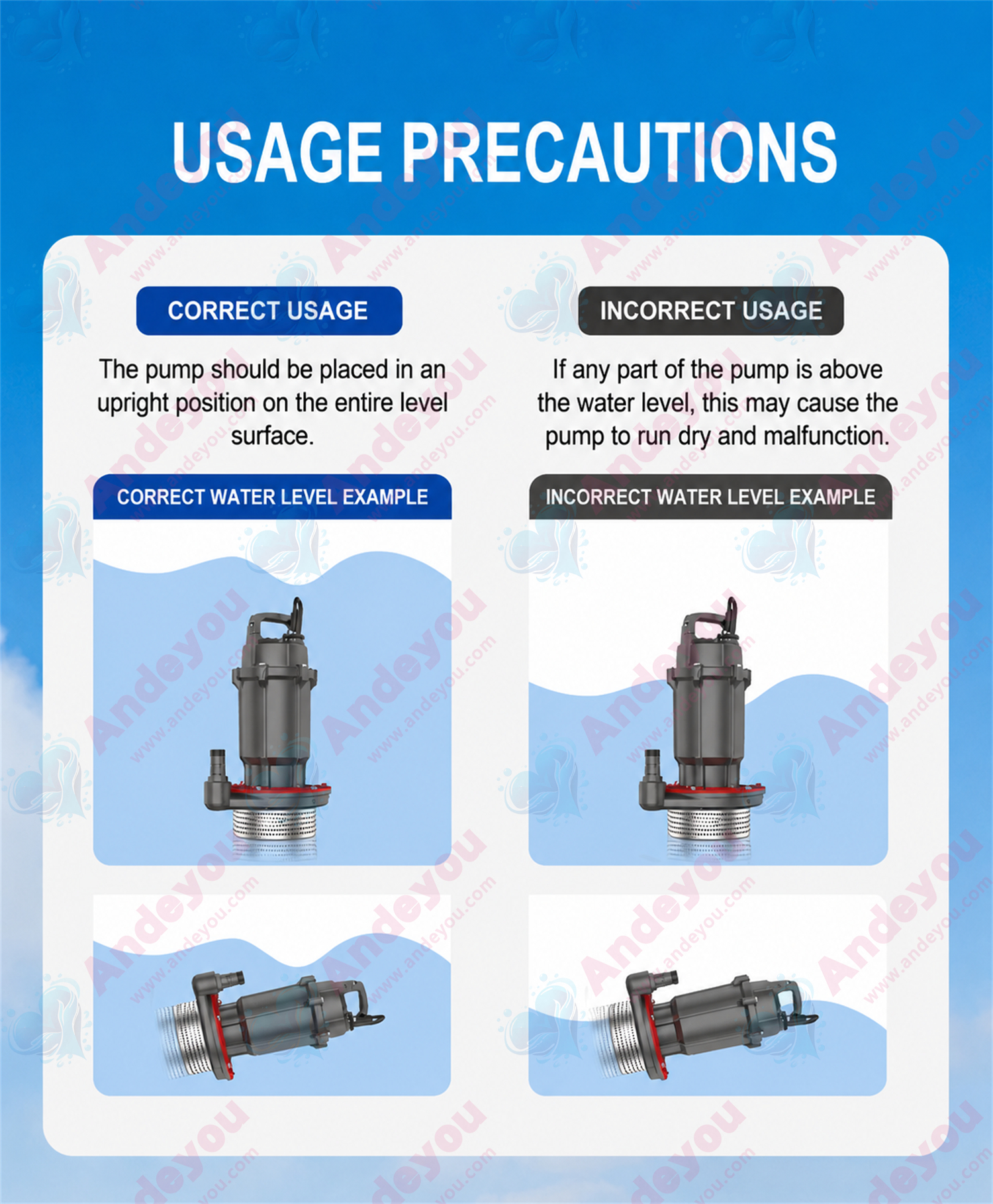

Maximum submersion depth: 5m;
Suitable for clean water at ambient temperature (non-corrosive, such as well, river, or lake water) with a pH value between 6.5 and 8.5;

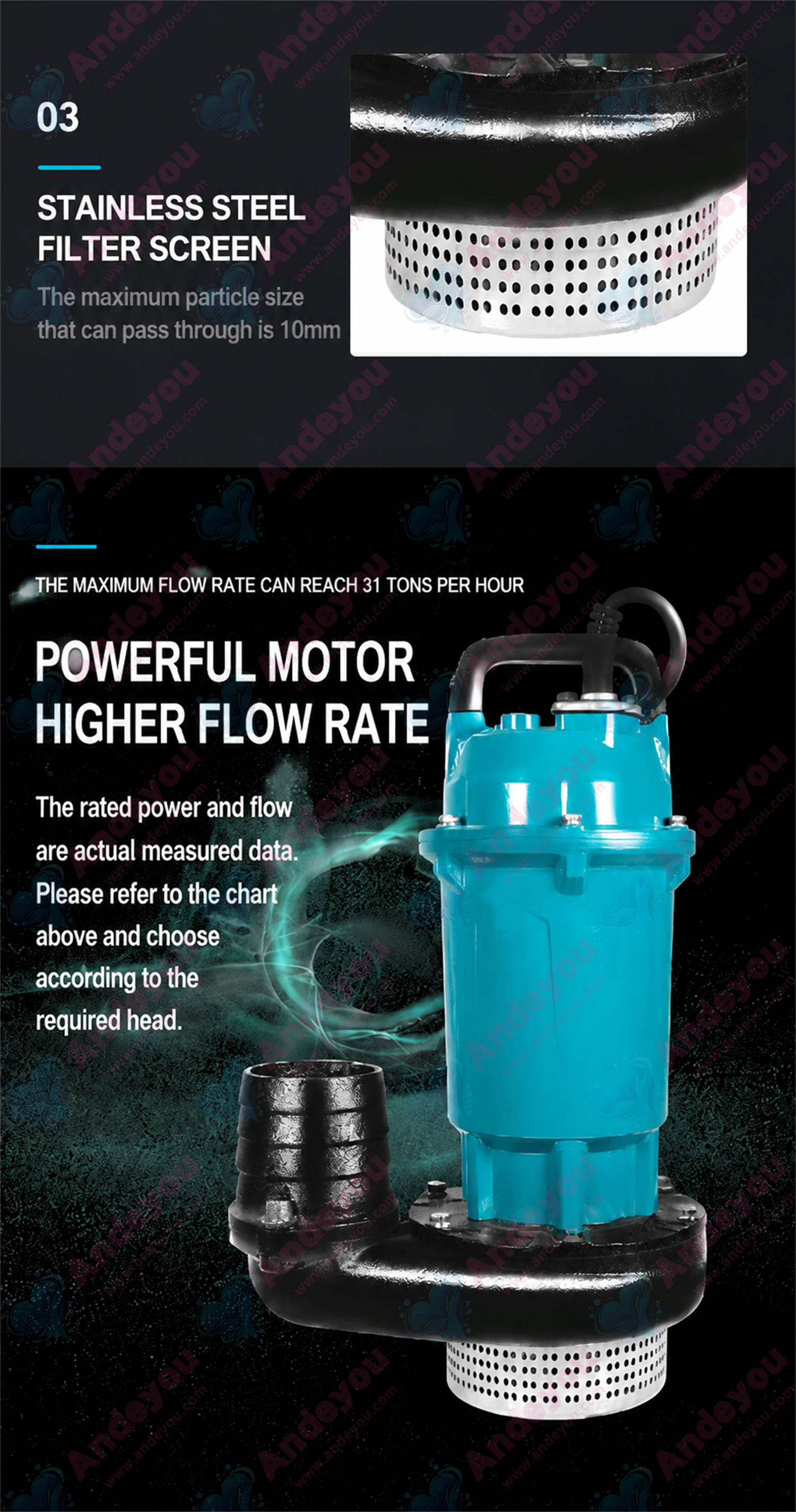

Sand content or volume ratio of water-insoluble solid particles ≤ 0.1%; particle diameter < 0.2mm;
Copper-wound motor;
Built-in overload and overcurrent protection.

Applications:

Well pumping in rural areas, farmland irrigation and drainage, garden watering, and domestic water supply; also suitable for industrial water removal, construction site water supply and drainage, aquaculture, etc.

Pump Features:

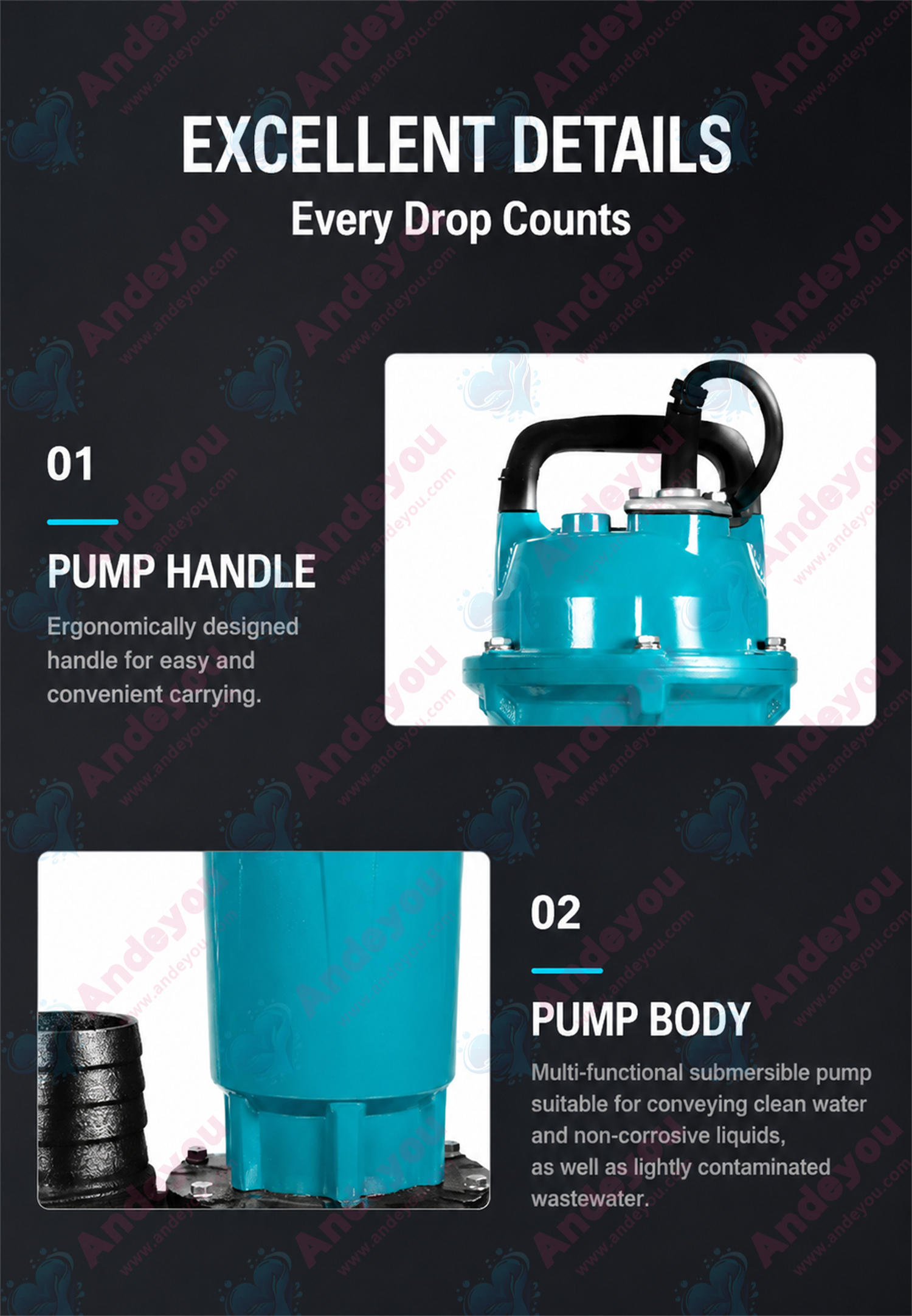

1. Directly coupled pump and motor; compact structure and easy portability

2. Maximum submersion depth: 5m

3. Suitable for clean water at ambient temperature (non-corrosive, such as well, river, or lake water) with a pH value between 6.5 and 8.5

4. Sand content or volume ratio of water-insoluble solid particles ≤ 0.1%; particle diameter < 0.2mm

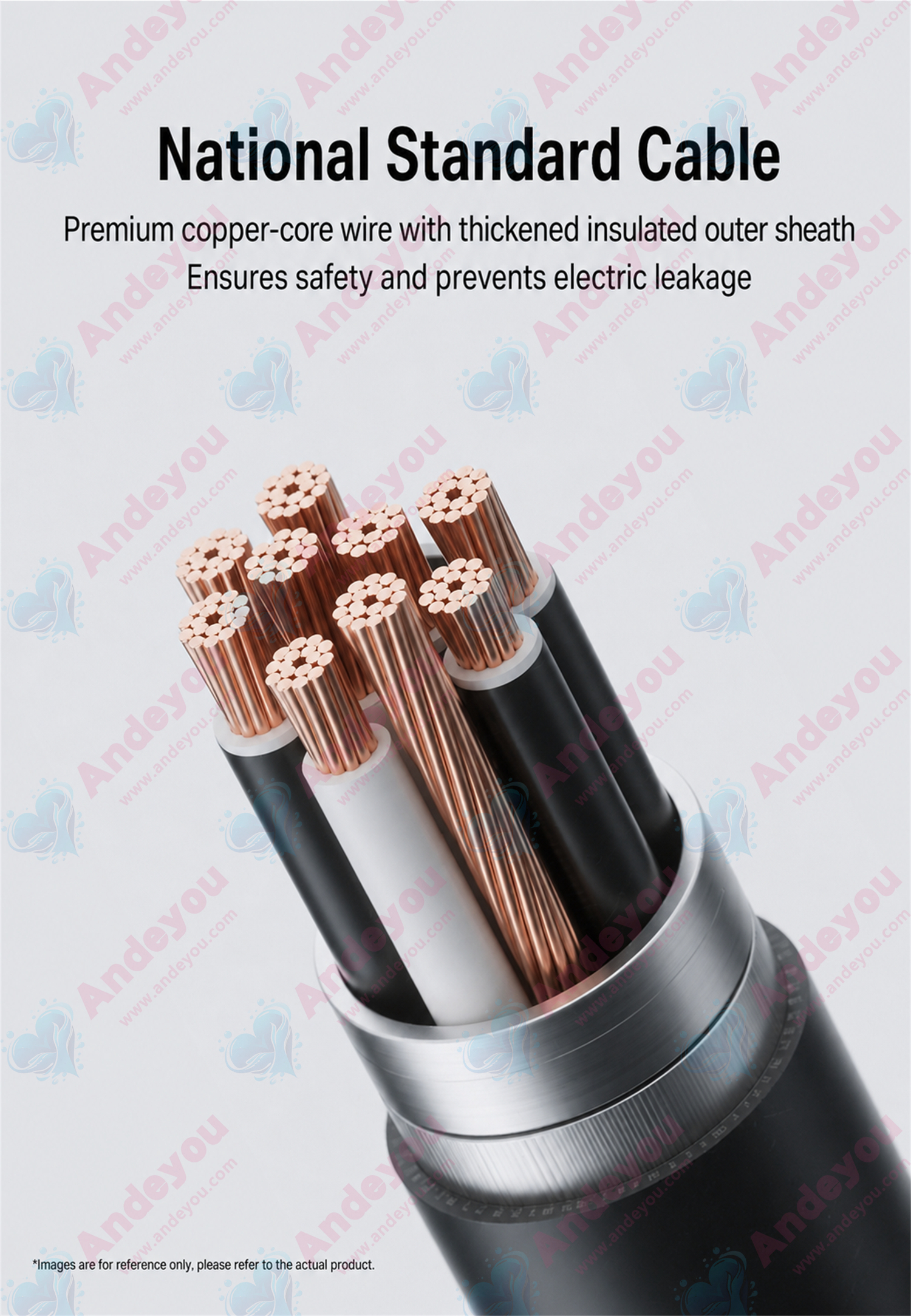

5. CCC-certified YZW medium-duty rubber-sheathed flexible cable

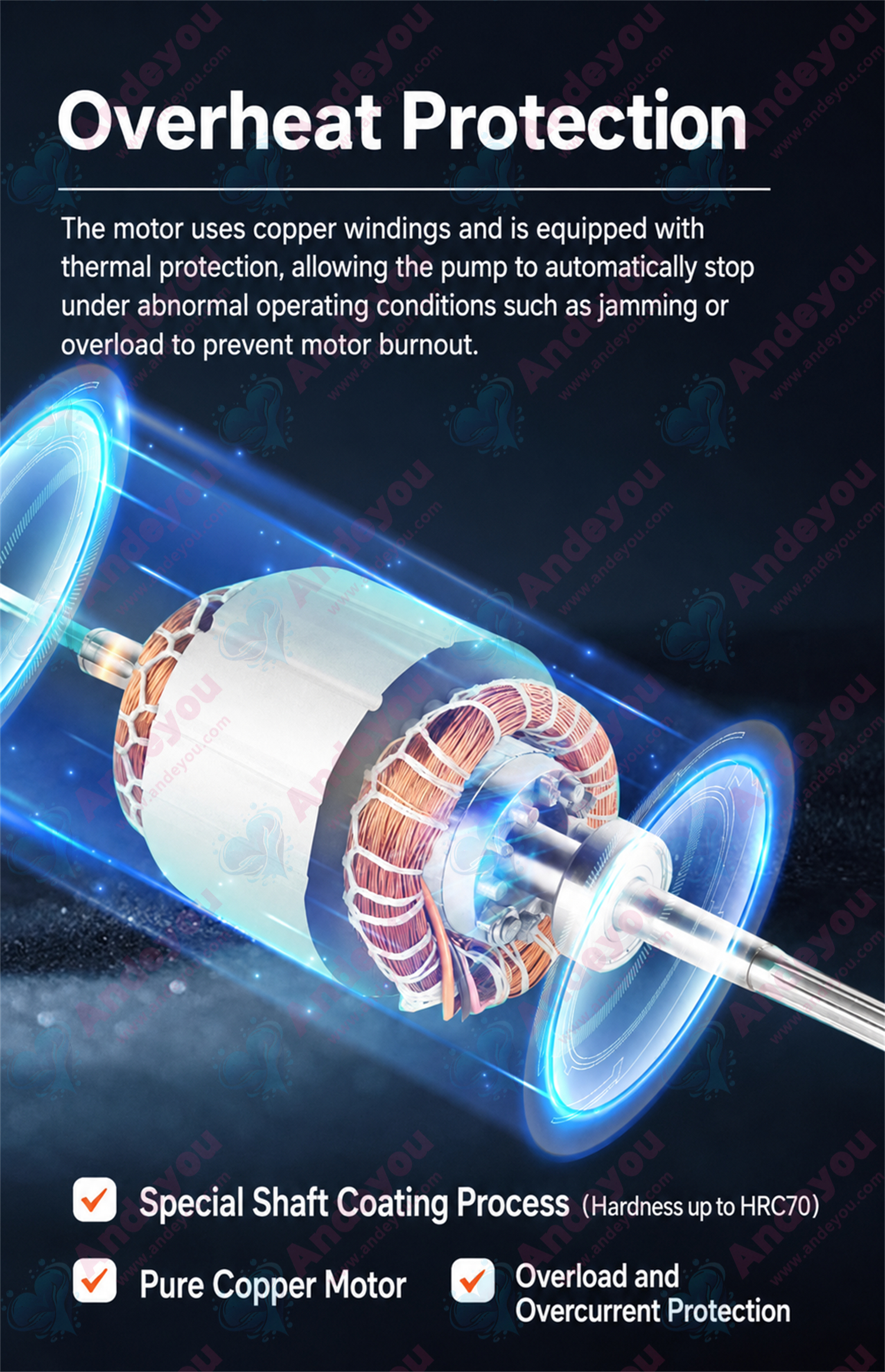

6. Copper-wound motor

7. Built-in overload and overcurrent protection

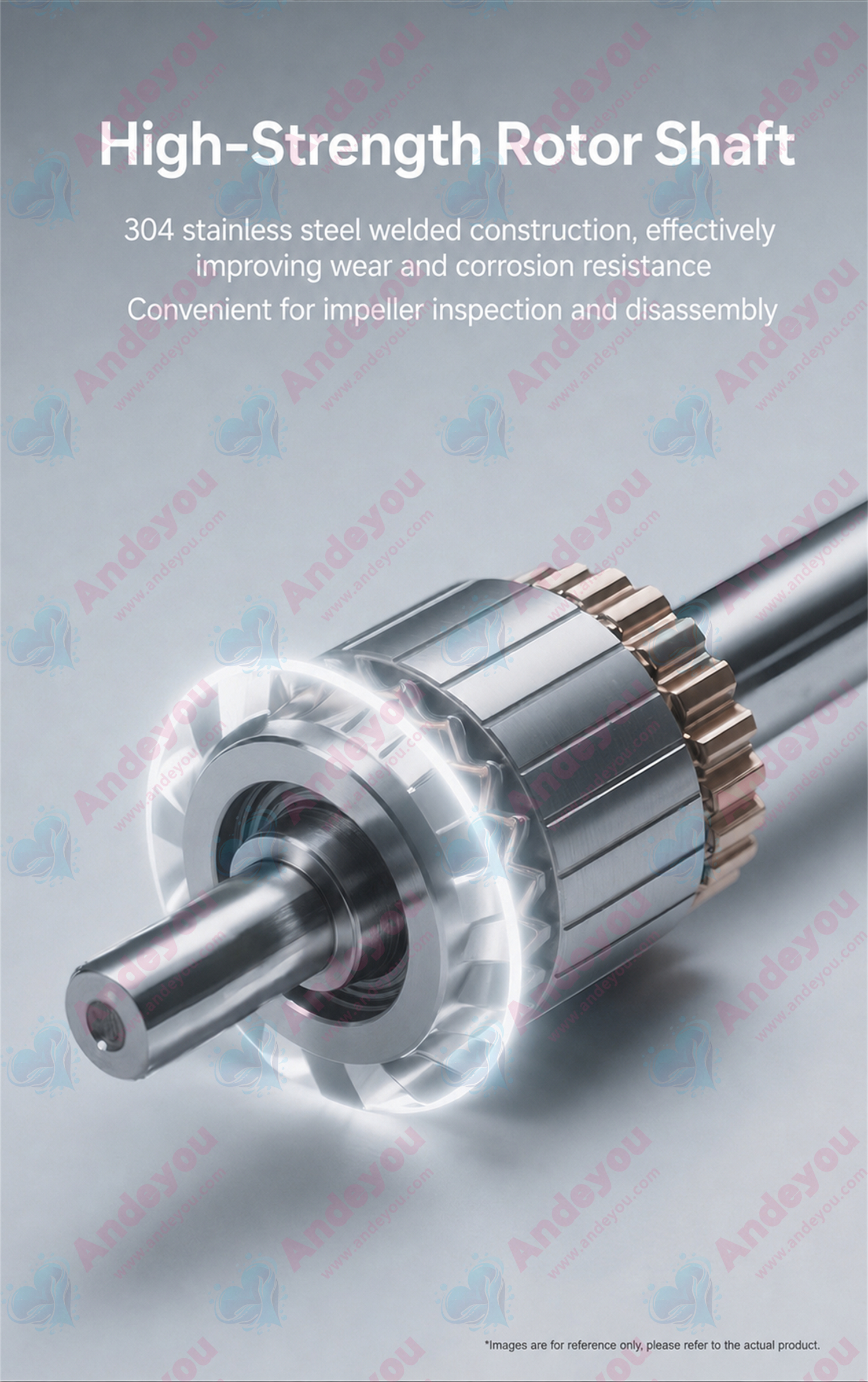

8. AISI 304 stainless steel welded shaft

9. Insulation class: F

10. Protection class: IPX8
