LEO LKS Stainless Steel Submersible Pump

LKS-558SW|LKS-758SW|LKS-1008SW

LEO LKS Series Stainless Steel Submersible Sewage Pumps—suitable for sewage drainage and transfer; groundwater pumping; draining surface water from gutters,pits,tunnels,and sumps; emptying swimming pools,ponds,fountains,and tanks; draining building cellars and basements; agricultural and horticultural pumping applications; industrial discharge of wastewater free from fibrous materials; and domestic wastewater (excluding toilet waste)
Function
Parameters
Size
Video Introduction

Function

This product has been discontinued by the manufacturer; only existing stock remains available.


Product Introduction:

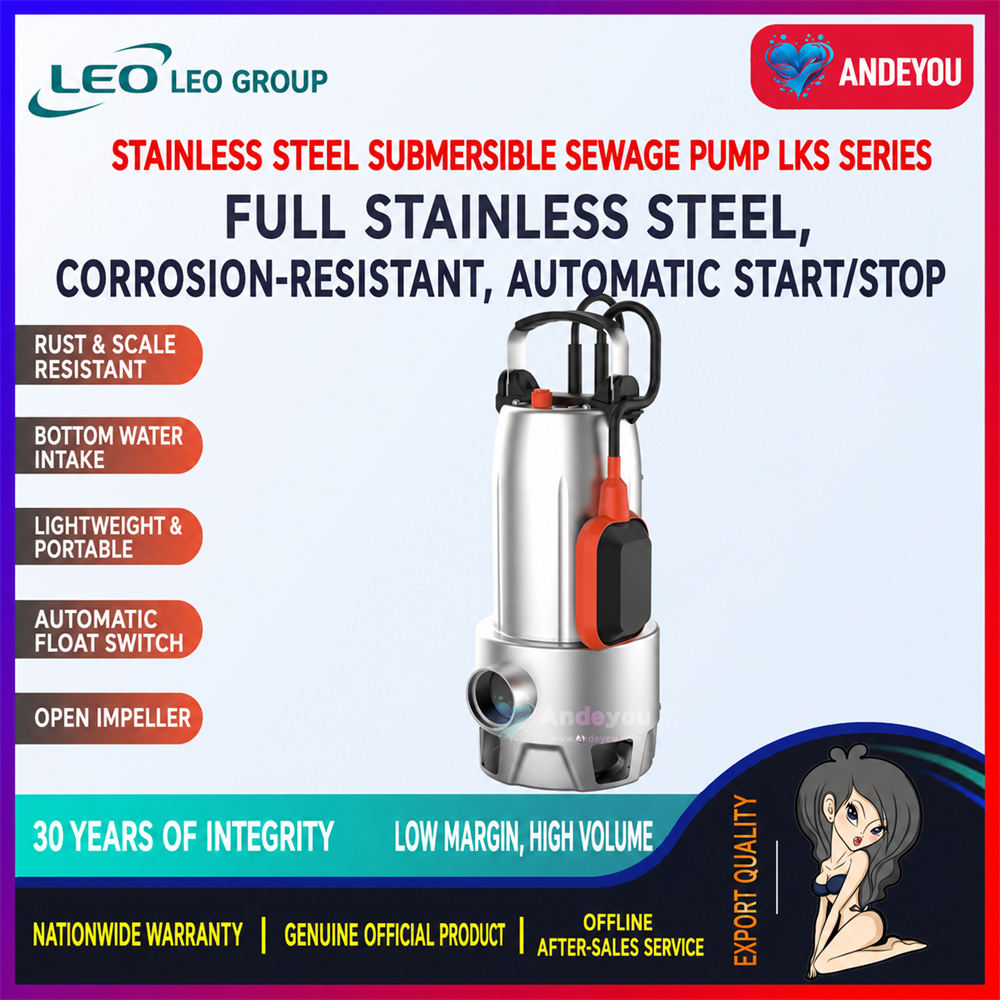

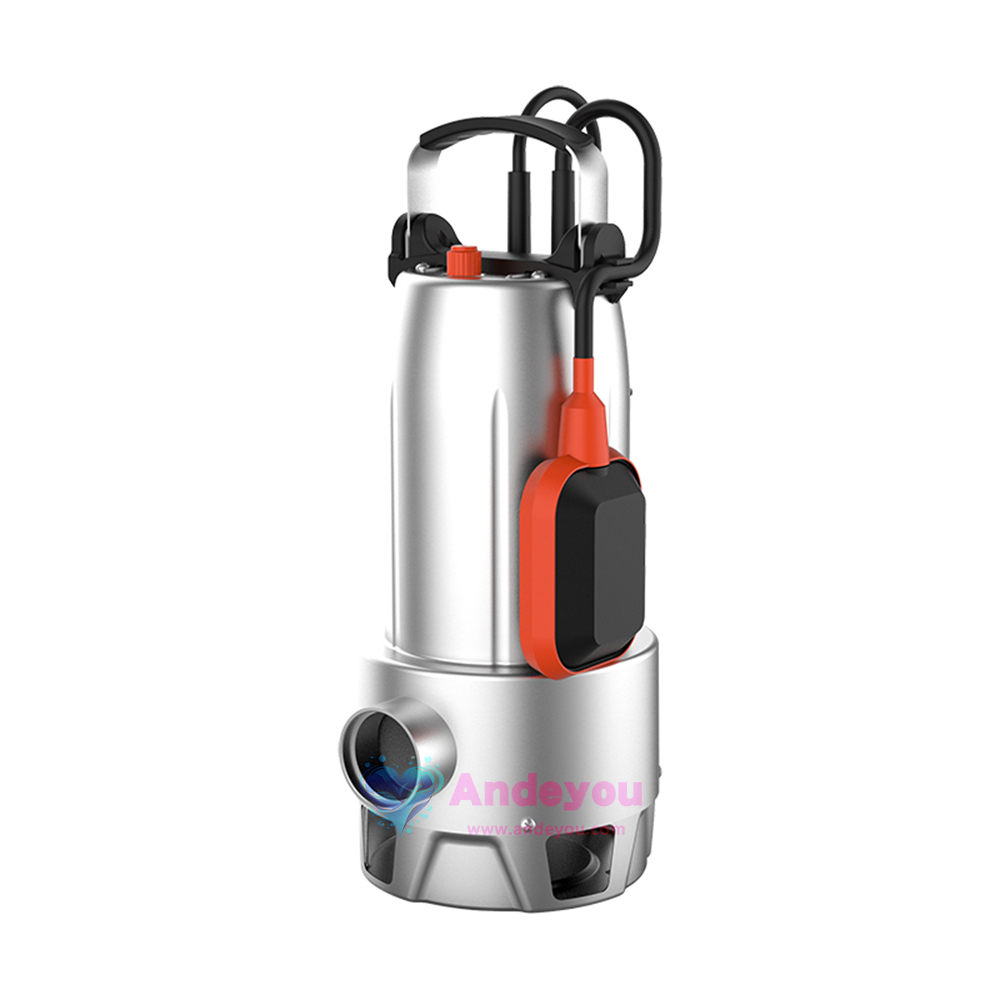

LKS Stainless Steel Submersible Pump

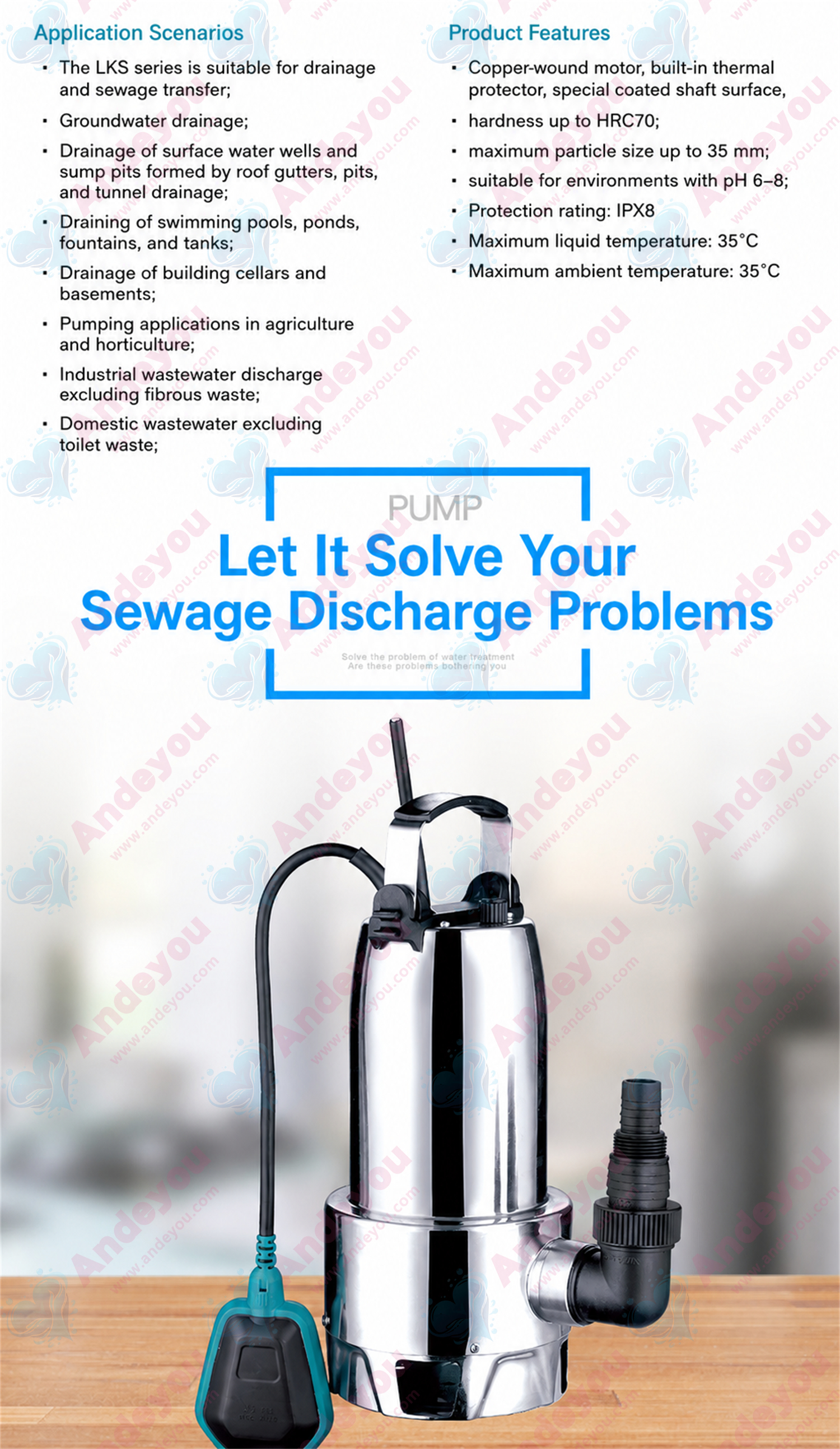

The LKS series comprises vertical, single-stage, submersible sewage pumps equipped with a float switch. They offer convenient automatic operation and a long, trouble-free service life. Designed for drainage or sewage transfer, they feature horizontal or vertical discharge outlets and are suitable for fixed or sump installations.

Applications:

LKS series pumps are suitable for drainage and sewage transfer;

Groundwater pumping and drainage;

Draining surface water from gutters, pits, tunnels, sumps, and collection wells;

Emptying swimming pools, ponds, irrigation systems, and tanks;

Draining building cellars and basements;

Agricultural and horticultural pumping applications;

Industrial wastewater discharge (excluding fibrous materials);

Domestic sewage (excluding toilet waste);

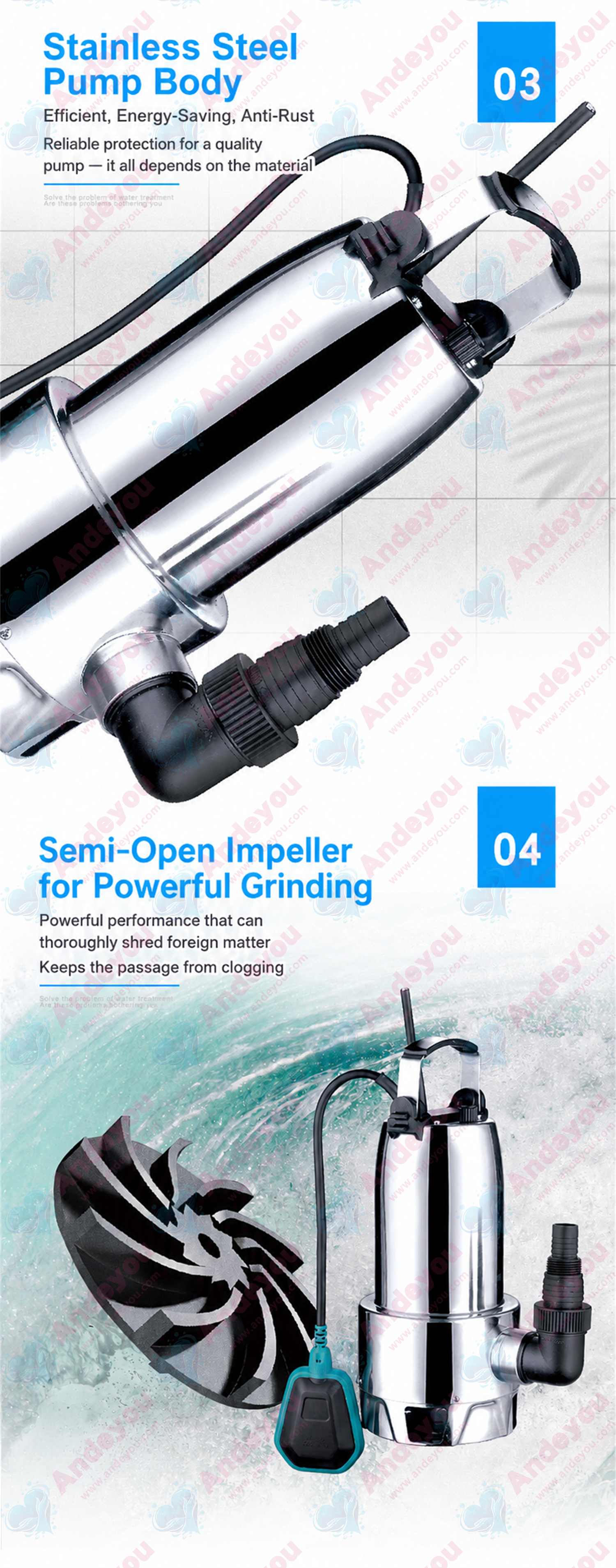

Pump Features:

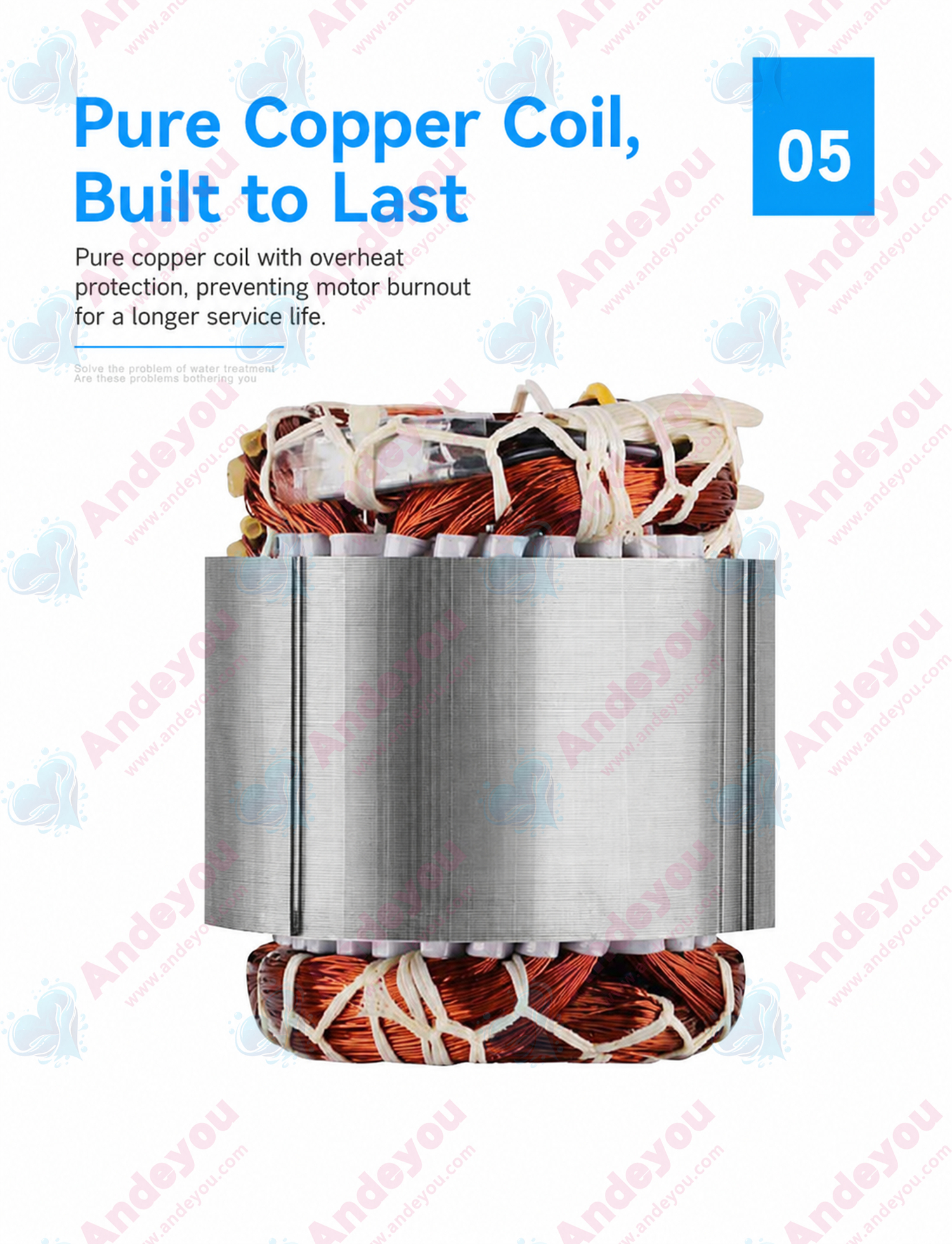

1. Copper-wound motor with built-in thermal protection; motor shaft features a special surface coating with a hardness rating of up to HRC70;

2. Maximum solid particle passage: 35mm;

3. Suitable for environments with a pH range of 6–8;

4. Protection class: IPX8;

5. Maximum liquid temperature: 35°C;

6. Maximum ambient temperature: 35°C.

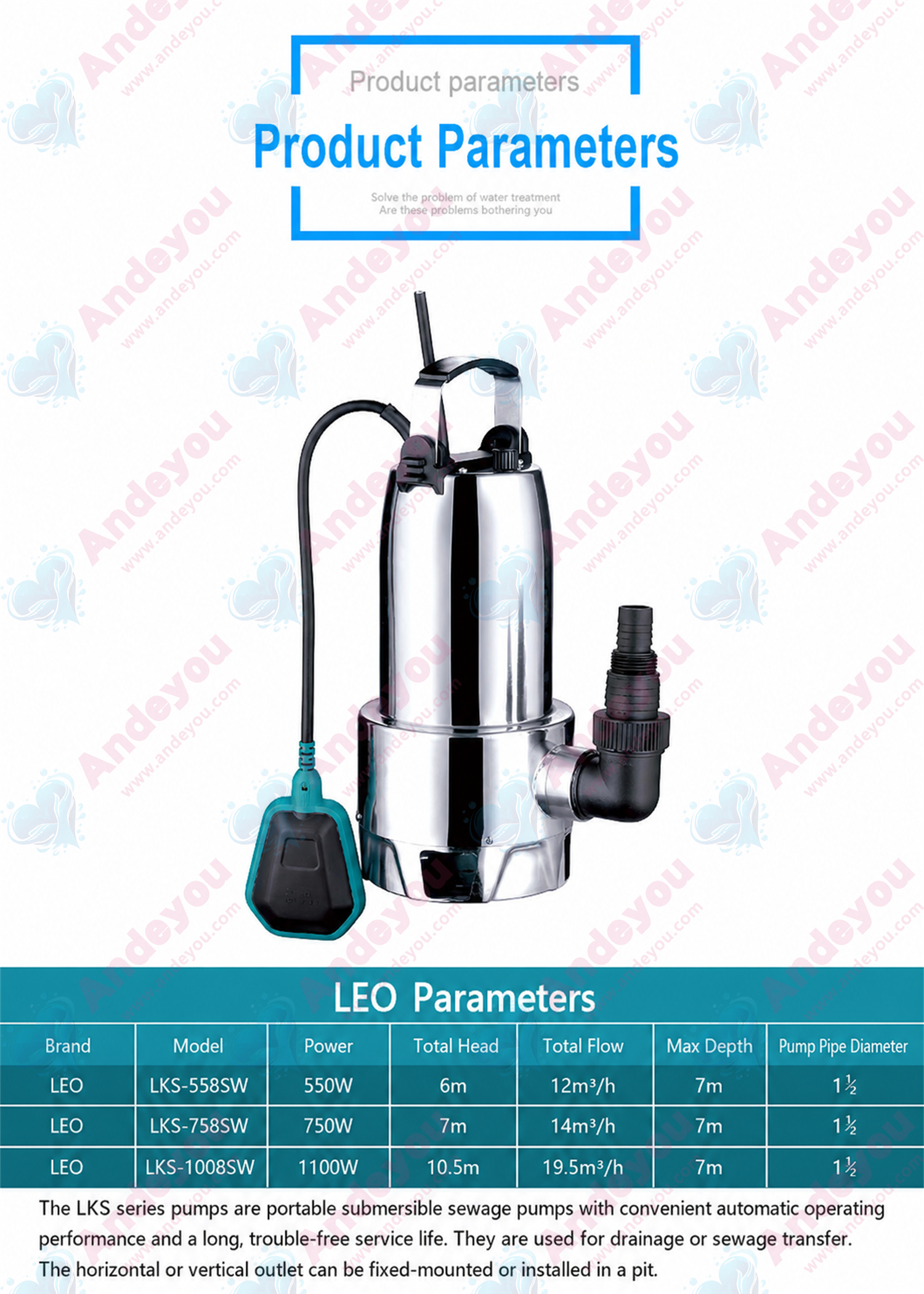

Parameters

model Voltage/Frequency Maximum flow rate
(m³/h)
Maximum Head
(m)
Power (kW) Inlet and outlet diameters
LKS-558SW 220V/50Hz 12 6 0.55 40

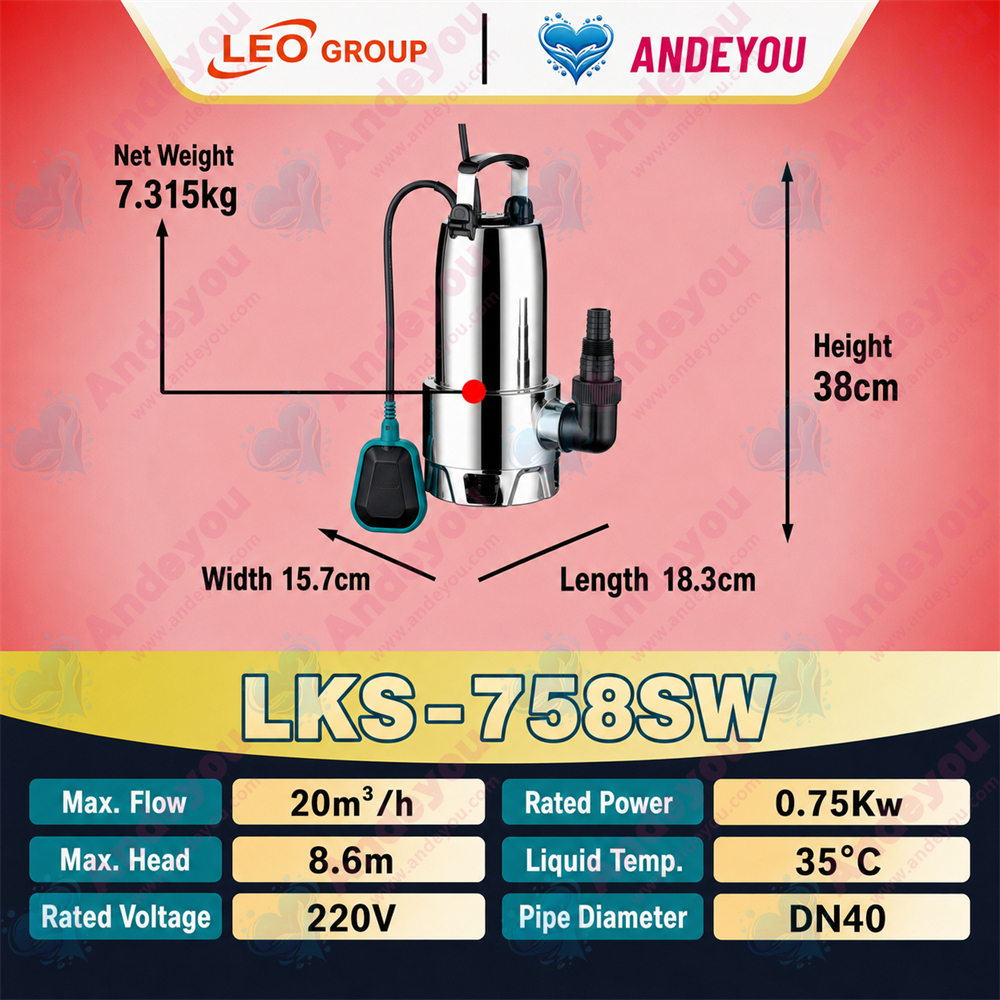

LKS-758SW 220V/50Hz 14 7 0.75 40

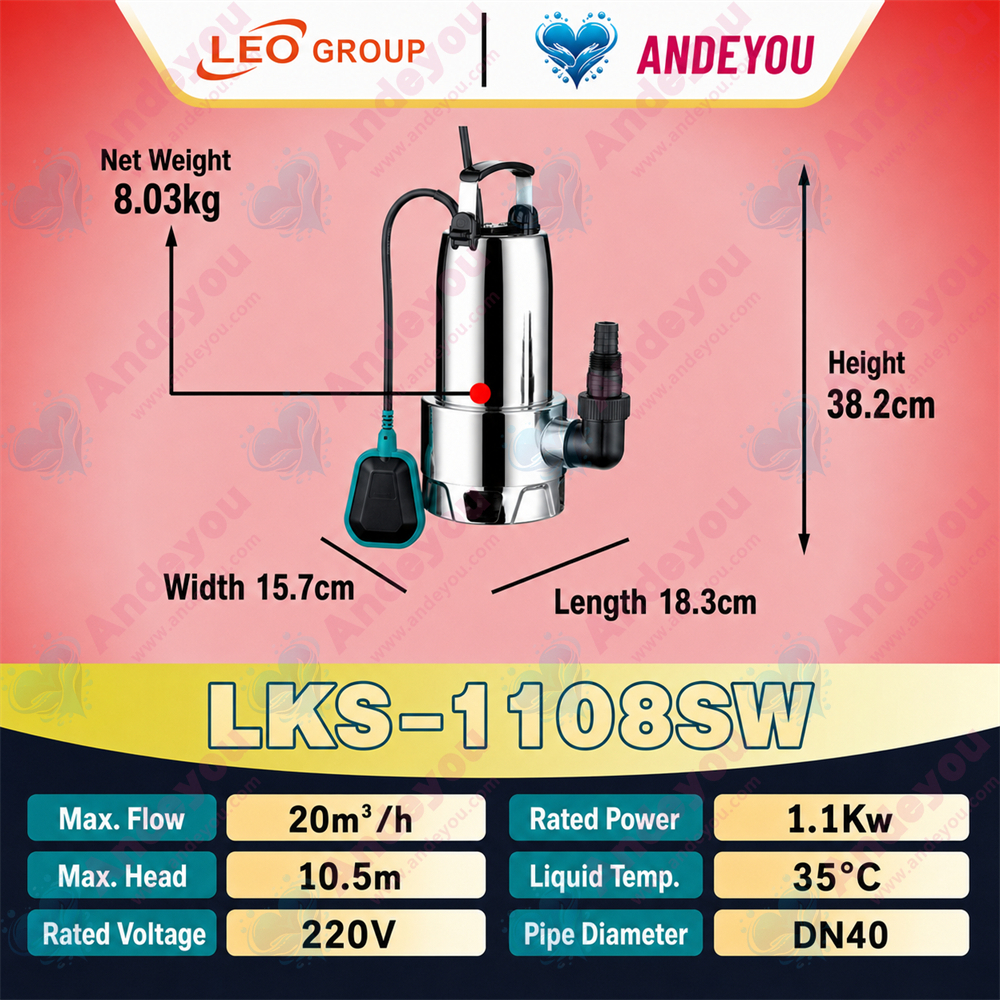

LKS-1008SW 220V/50Hz 19.5 10.5 1.1 40

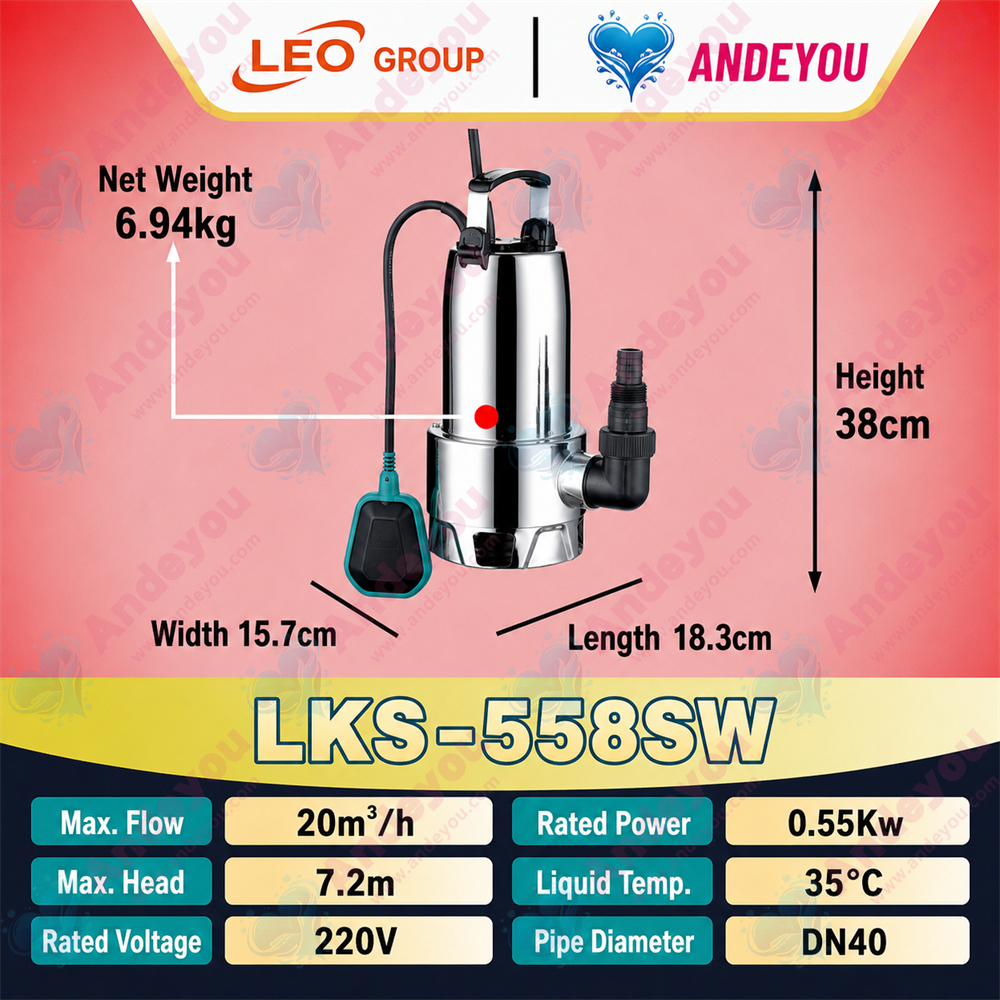

Size
