LEO LRP Hot Water Circulation Canned Pump

LRP15-40/130|LRP15-40B/130|LRP20-40/130|LRP25-40/130|LRP25-40/180|LRP32-40/180|LRP15-50/130|LRP15-50B/130|LRP20-50/130|LRP25-50/130|LRP25-50/180|LRP32-50/180|LRP15-60/130|LRP15-60B/130|LRP20-60/130

LEO LRP Series Canned Motor Hot Water Circulating Pumps – This series is designed for applications such as HVAC hot water circulation,domestic hot and cold water boosting,underfloor heating systems,air-source heat pump systems,solar water supply systems,cooling systems,and air conditioning systems.Features include a canned motor for low-noise,leak-free operation; a high-strength,wear-resistant,and heat-resistant engineering plastic impeller; and multi-speed settings to suit various user needs

Product Consultation By telephone

Function

Parameters

Size

Video Introduction

Function

Product Introduction:

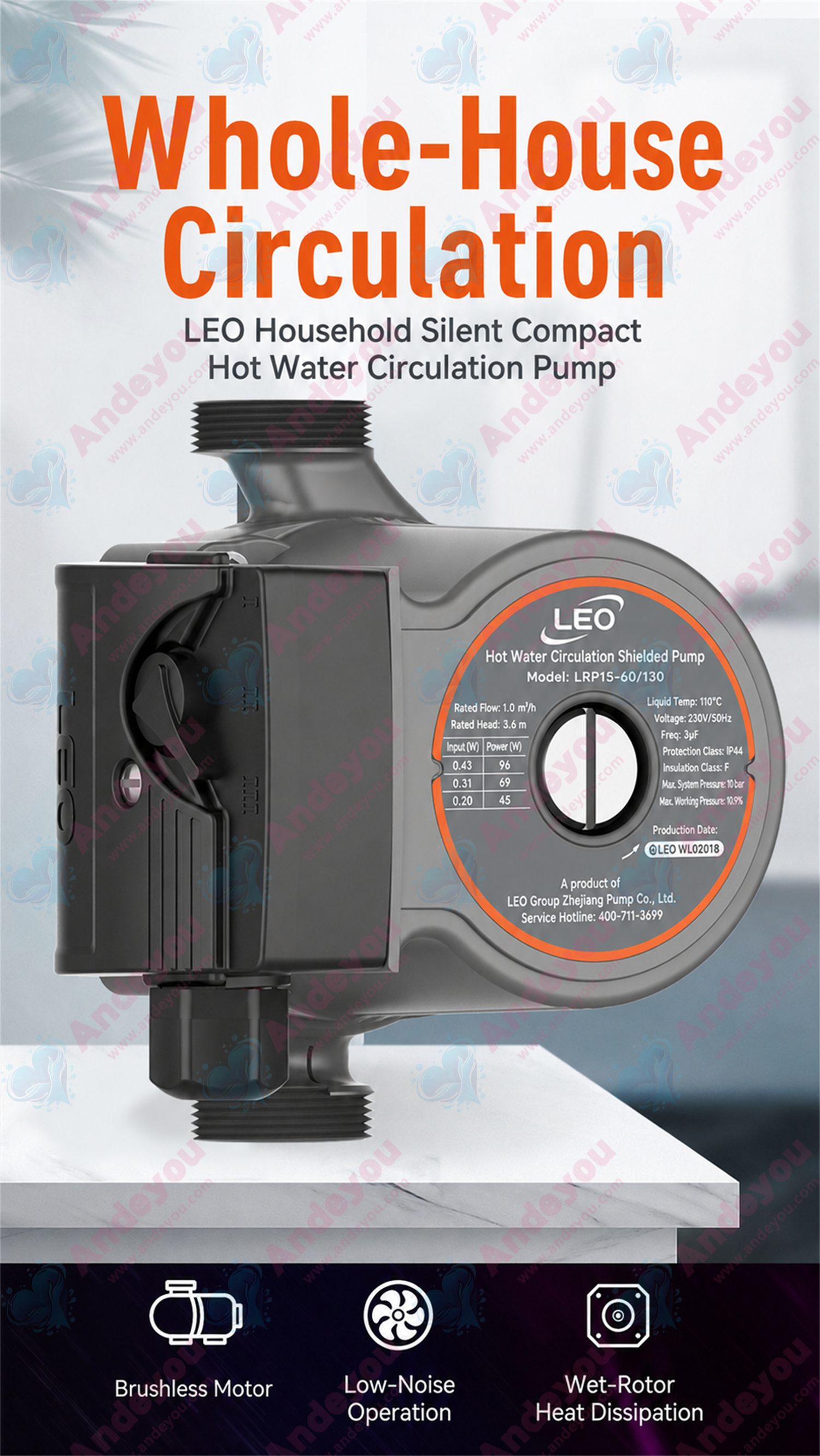

LRP Hot Water Circulation Canned Pump

The LEO LRP series is a high-efficiency, quiet, canned-rotor circulation pump. It features high energy efficiency, low noise, zero leakage, easy installation, and a long service life.

Applications:

Widely used in HVAC hot water circulation systems, domestic hot and cold water boosting, residential underfloor heating systems, air-source heat pump systems, solar water supply systems, cooling systems, and air conditioning systems.

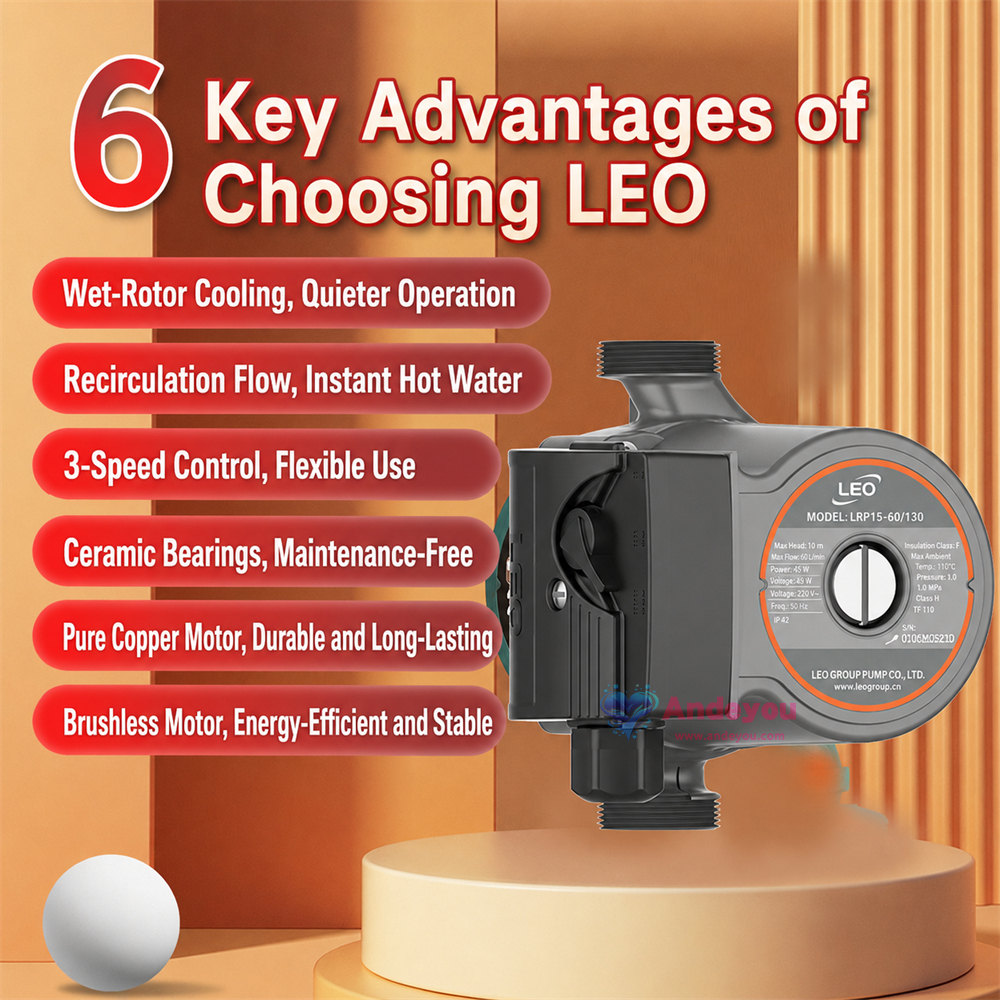

Pump Features:

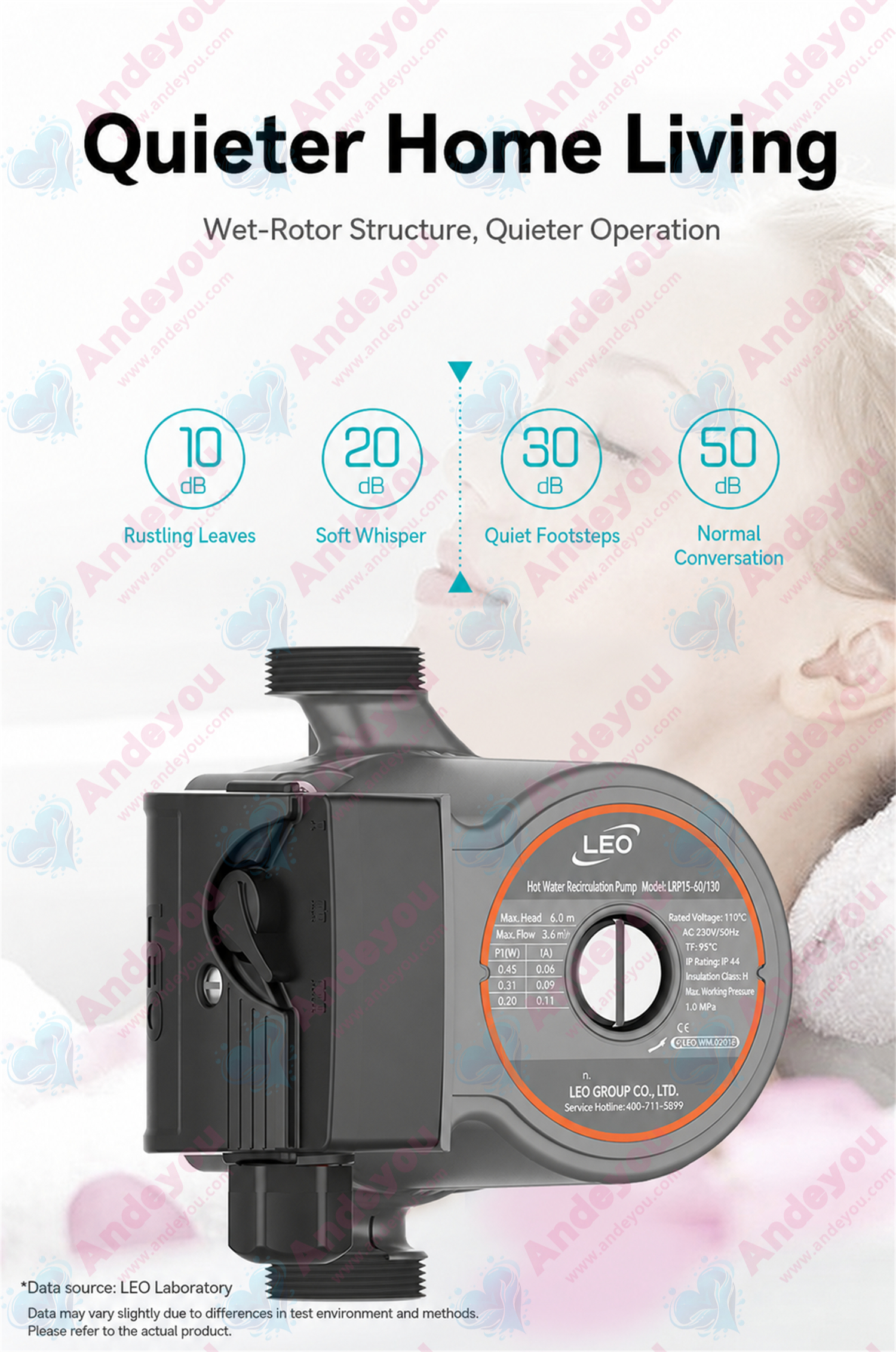

1. Canned-rotor motor: low noise, zero leakage

2. High-strength, wear-resistant, and high-temperature resistant engineering plastic impeller

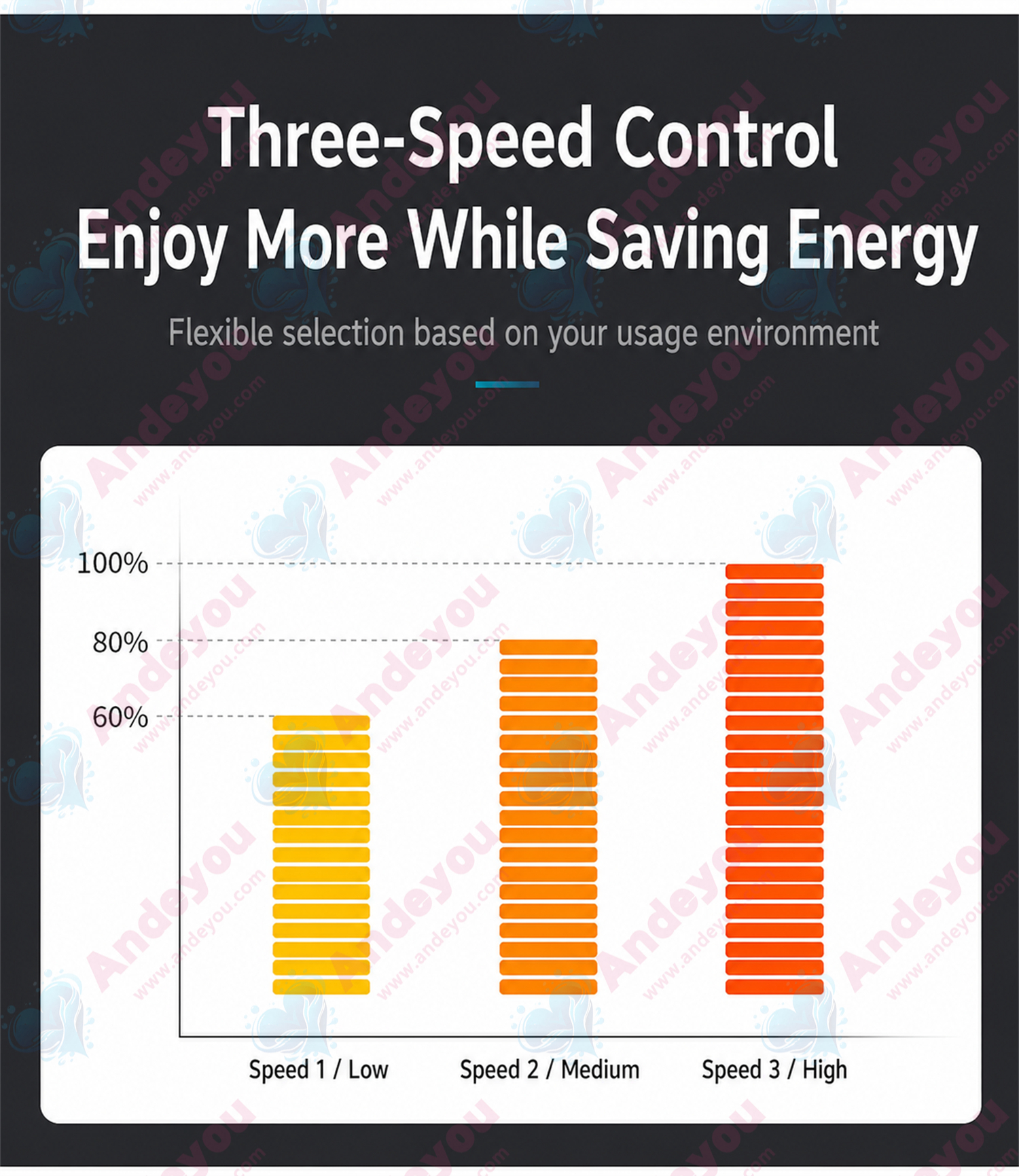

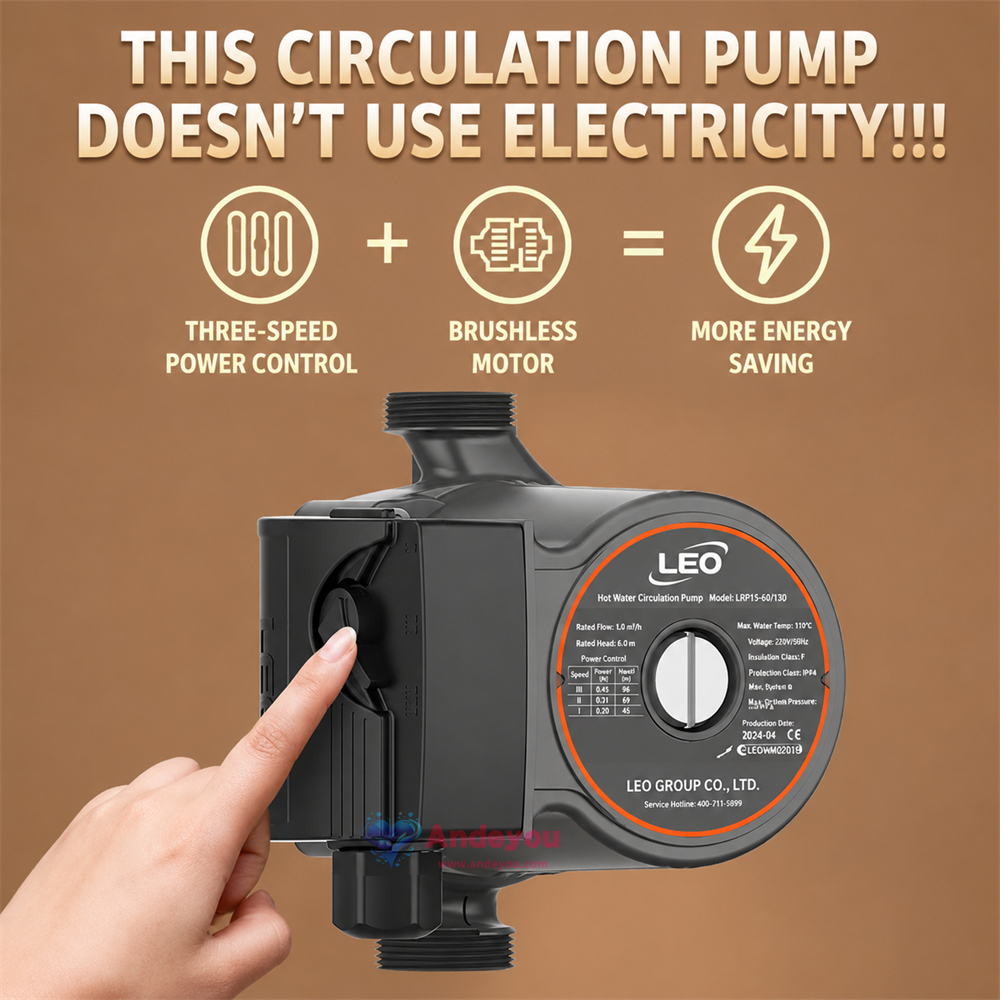

3. Multi-speed adjustment options; Insulation Class: H

4. High efficiency, energy saving, eco-friendly, stable performance, and long service life

5. Standard connection method with high interchangeability

6. Single-phase AC power: 220V/50Hz

7. Temperature range: 0°C–110°C

8. Maximum system pressure: 1.0 MPa

9. Pumped medium: Low-viscosity, clean, non-corrosive, non-flammable, and non-explosive liquids free from solid particles, fibers, or mineral oils.

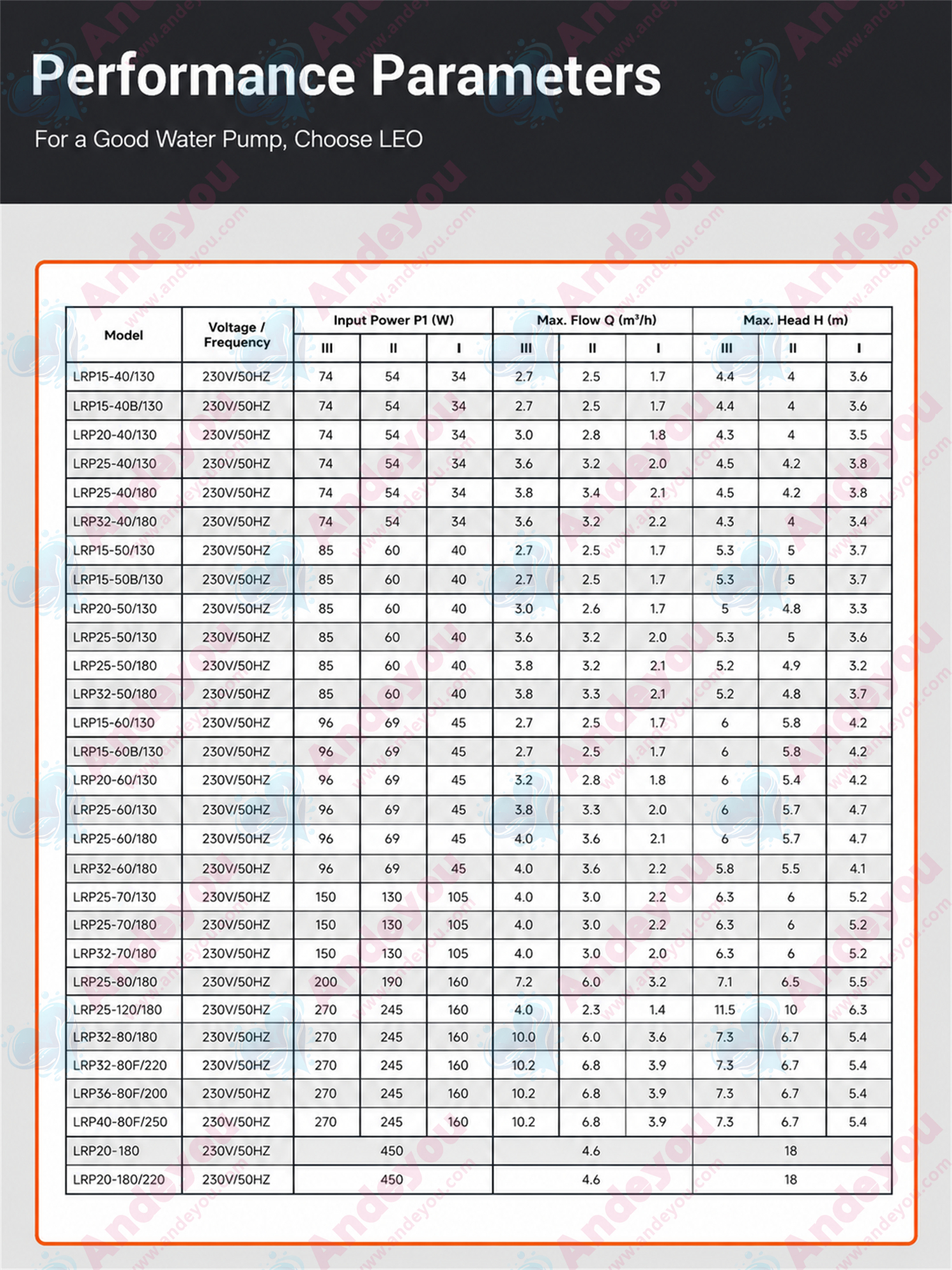

Parameters

model	Voltage/Frequency	Maximum flow rate (L/min)	Maximum Head (m)	Power (W)
LRP15-40/130	220V/50Hz	45/42/28	4.4/4/3.6	74/54/34
LRP15-40B/130	220V/50Hz	45/42/28	4.4/4/3.6	74/54/34
LRP20-40/130	220V/50Hz	50/47/30	4.3/4/3.5	74/54/34
LRP25-40/130	220V/50Hz	60/53/33	4.5/4.2/3.8	74/54/34
LRP25-40/180	220V/50Hz	63/57/35	4.5/4.2/3.8	74/54/34
LRP32-40/180	220V/50Hz	60/53/37	4.3/4/3.4	74/54/34
LRP15-50/130	220V/50Hz	45/42/28	5.3/5/3.7	85/60/40
LRP15-50B/130	220V/50Hz	45/42/28	5.3/5/3.7	85/60/40
LRP20-50/130	220V/50Hz	50/43/28	5/4.8/3.3	85/60/40
LRP25-50/130	220V/50Hz	60/53/33	5.3/5/3.6	85/60/40
LRP25-50/180	220V/50Hz	63/53/35	5.2/4.9/3.2	85/60/40
LRP32-50/180	220V/50Hz	63/55/35	5.2/4.8/3.7	85/60/40
LRP15-60/130	220V/50Hz	23/32/40	2.8/4.5/5.5	45/69/96
LRP15-60B/130	220V/50Hz	45/42/28	6/5.8/4.2	96/69/45
LRP20-60/130	220V/50Hz	25/37/53	2.8/4.5/5.5	45/69/96
LRP25-60/130	220V/50Hz	28/43/58	2.8/4.5/5.5	45/69/96
LRP25-60/180	220V/50Hz	32/47/66	2.8/4.5/5.5	45/69/96
LRP32-60/180	220V/50Hz	32/47/66	2.8/4.5/5.5	45/69/96
LRP25-70/130	220V/50Hz	67/50/37	6.3/6.0/5.2	150/130/105
LRP25-70/180	220V/50Hz	67/50/37	6.3/6/5.2	150/130/105
LRP32-70/180	220V/50Hz	67/50/34	6.3/6/5.2	150/130/105
LRP25-80/180	220V/50Hz	120/100/60	7.1/6.5/5.5	200/190/160
LRP32-80/180	220V/50Hz	167/100/60	7.3/6.8/5.4	270/245/160
LRP32-80F/220	220V/50Hz	170/113/65	7.3/6.7/5.4	270/245/160
LRP32-80F/200	220V/50Hz	170/113/65	7.3/6.7/5.4	270/245/160
LRP40-80F/250	220V/50Hz	170/113/65	7.3/6.7/5.4	270/245/160
LRP25-120/180	220V/50Hz	65/38/22.5	11.5/10/6.3	270/245/160
LRP25-120A/180	220V/50Hz	67/38/22.5	11.5/10/6.5	270/245/160

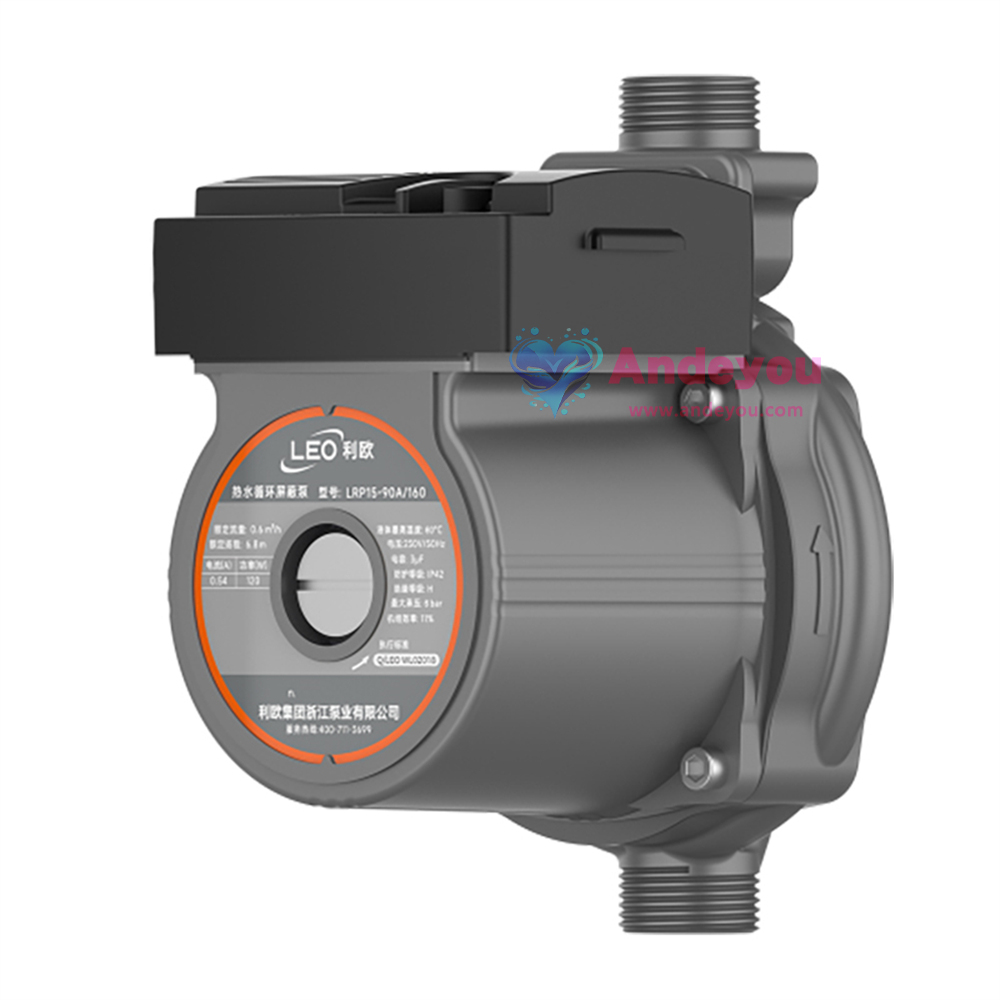

LRP15-90A/160	220V/50Hz	25	9	120
LRP20-180	220V/50Hz	92	18	470
LRP20-180/220	220V/50Hz	92	18	470
