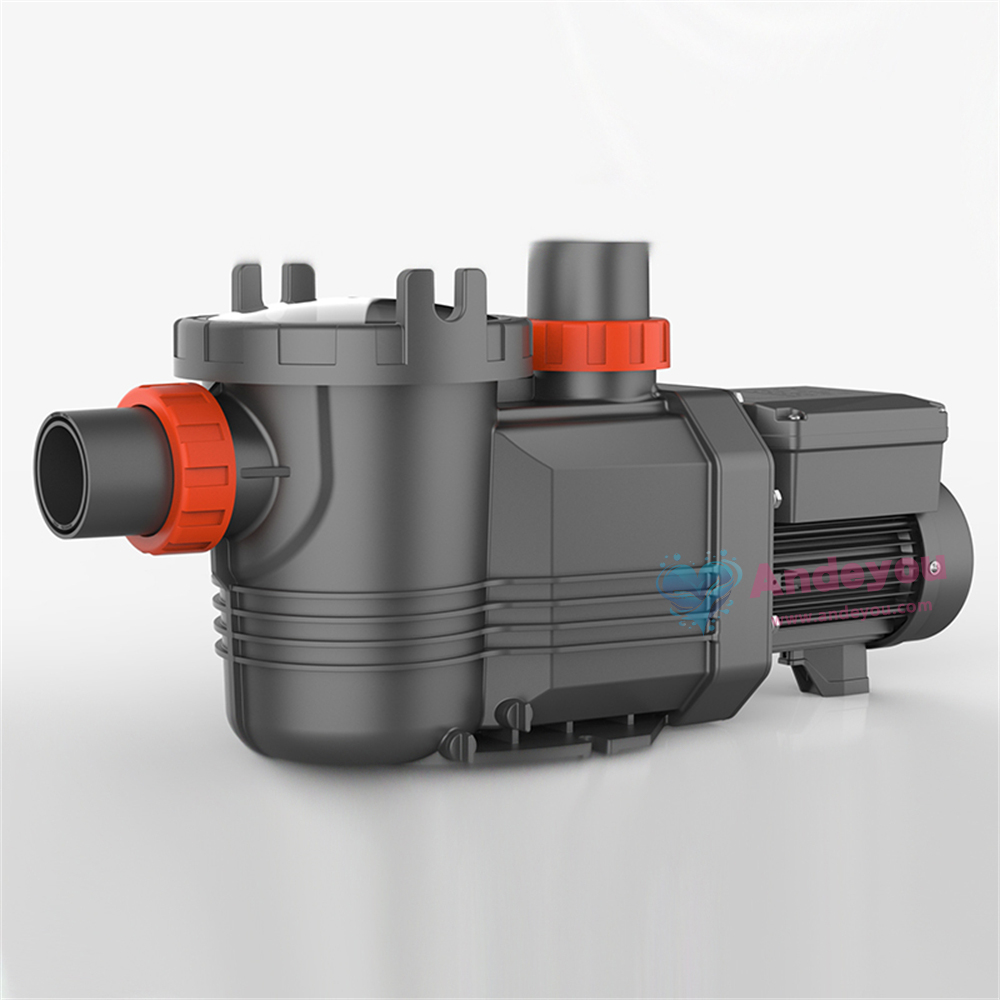

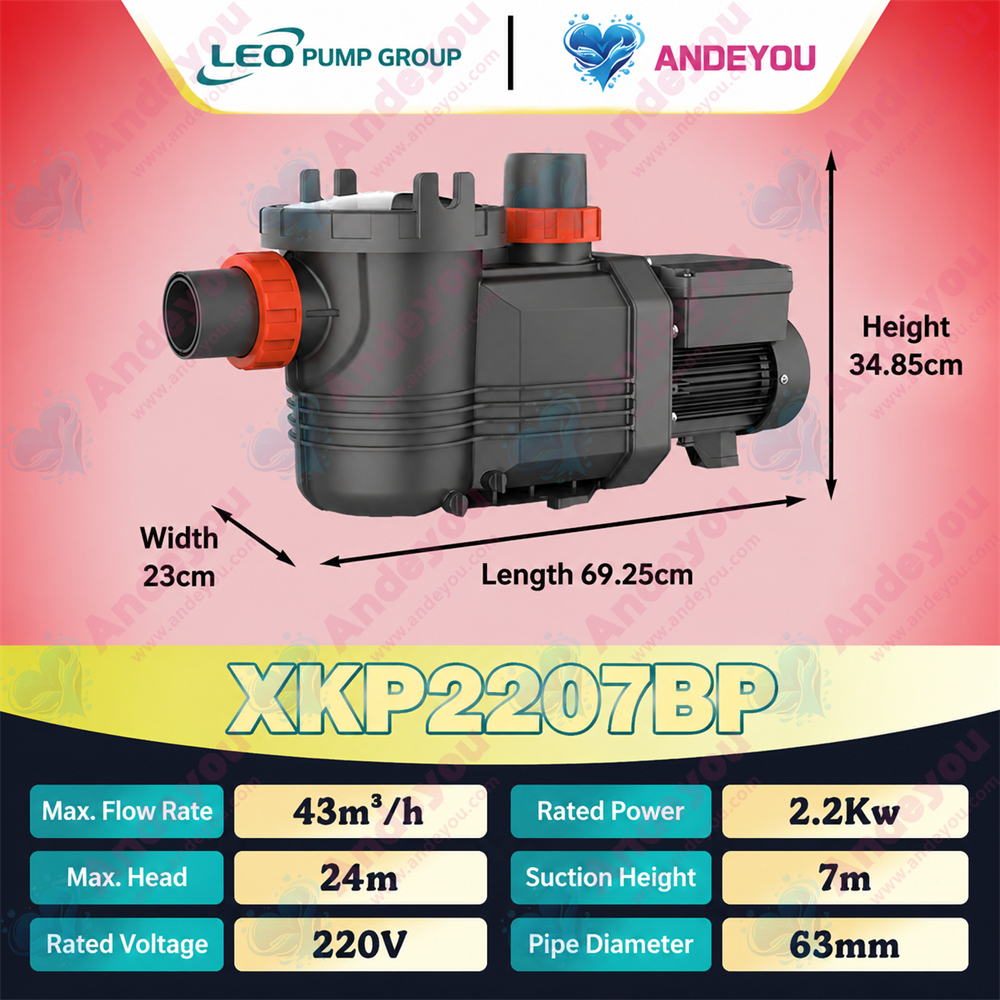

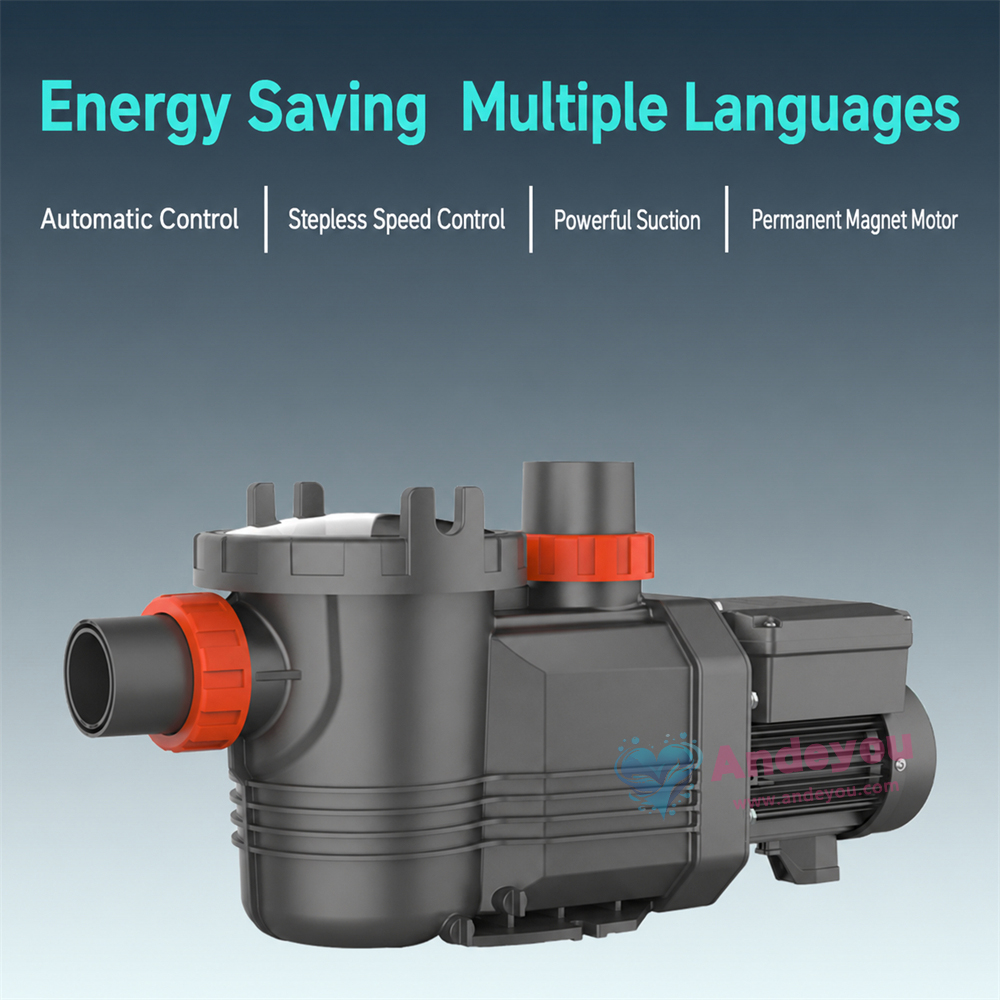

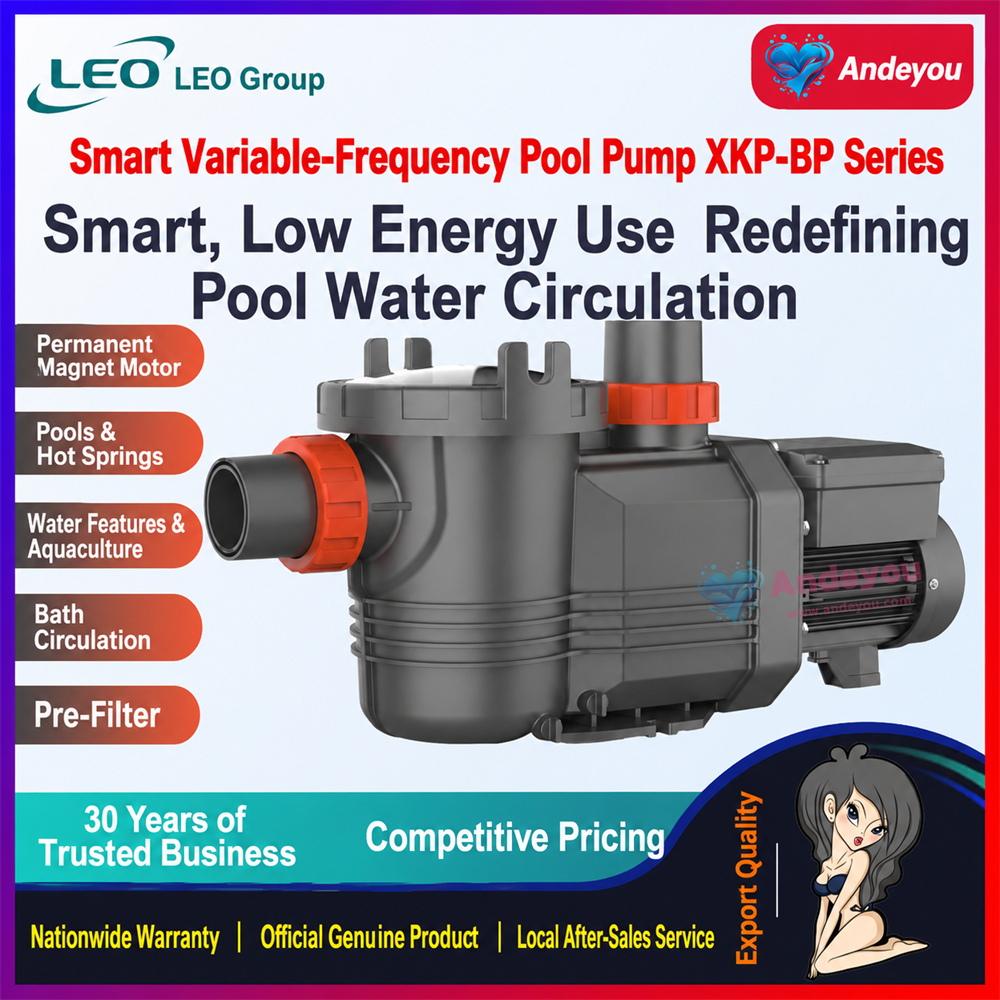

LEO XKP-BP Permanent Magnet Variable Frequency Pool Pump

XKP757BP|XKP1107BP|XKP1307BP|XKP1607BP|XKP1807BP|XKP2207BP

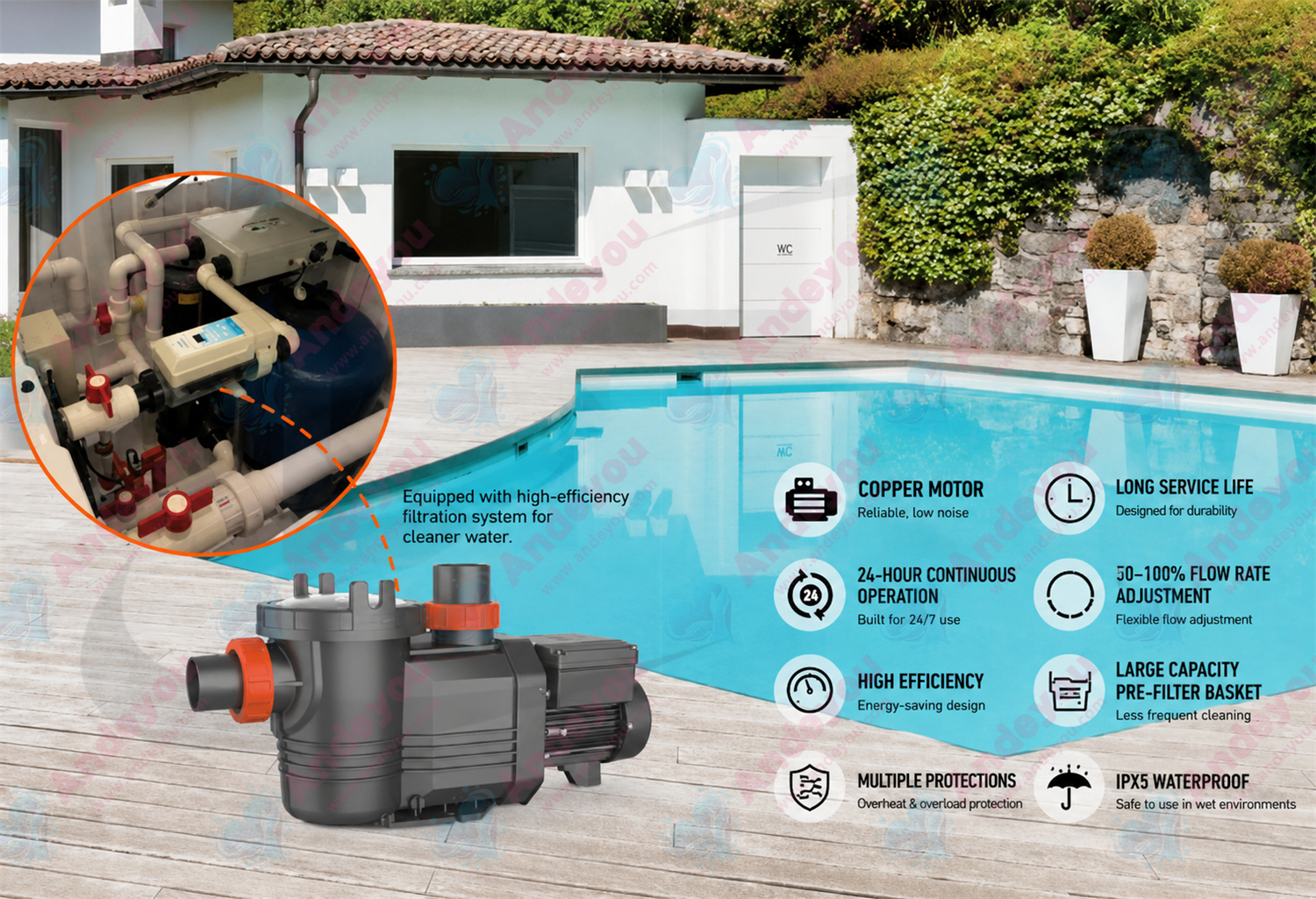

The Leo XKP pool pump combines powerful performance with exceptional durability.Suitable for pumping both fresh water and seawater,it meets the diverse needs of various customer groups and is ideal for applications such as swimming pools,decorative water features,competition pools,hot springs,spas,saunas,high-end clubs,and aquaculture.
Function
Parameters
Size
Video Introduction

Function

Product Applications:

Suitable for water circulation and filtration systems in swimming pools, water features, hot springs, saunas, bathhouses, aquaculture facilities, and more.

Product Features:

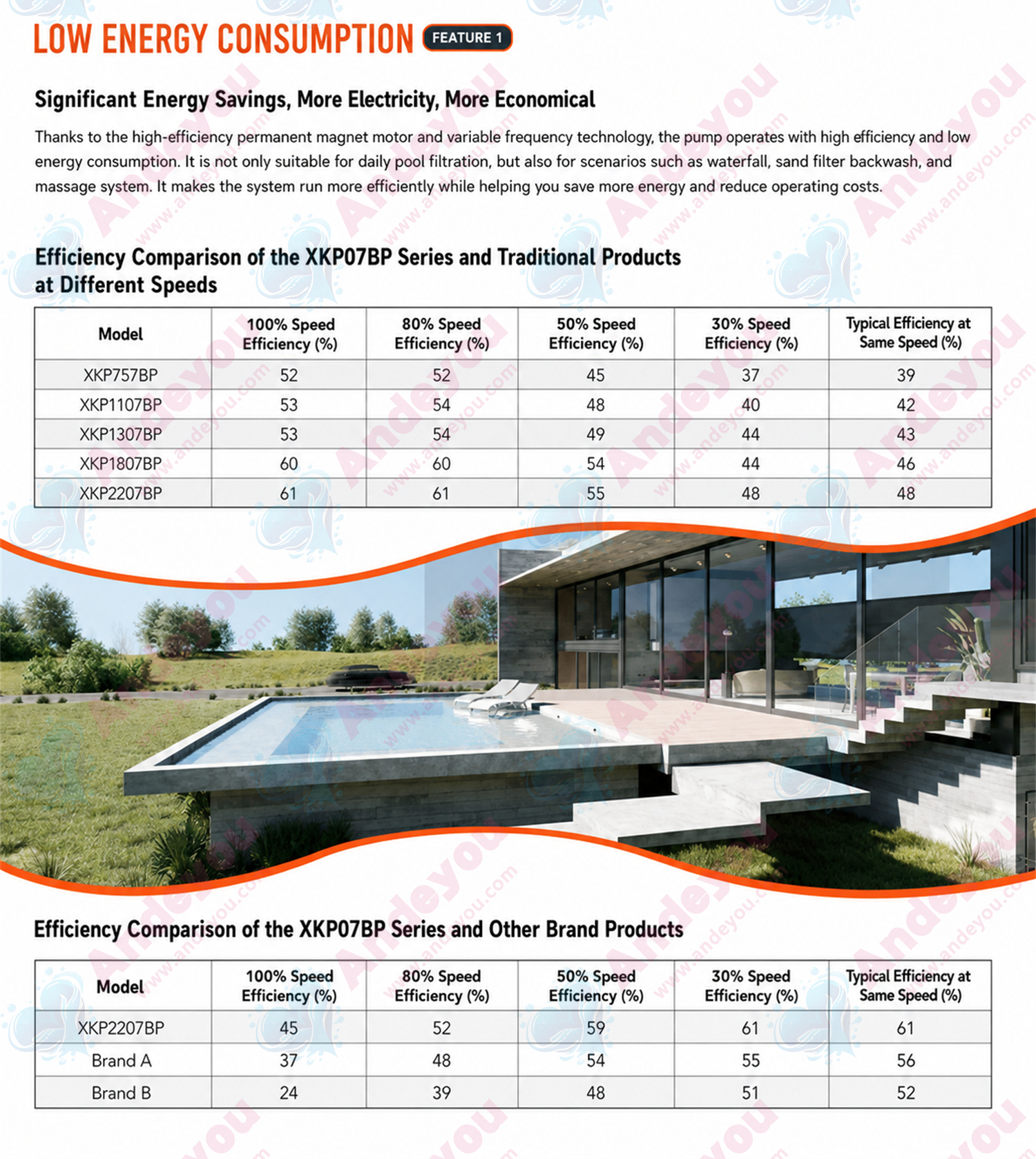

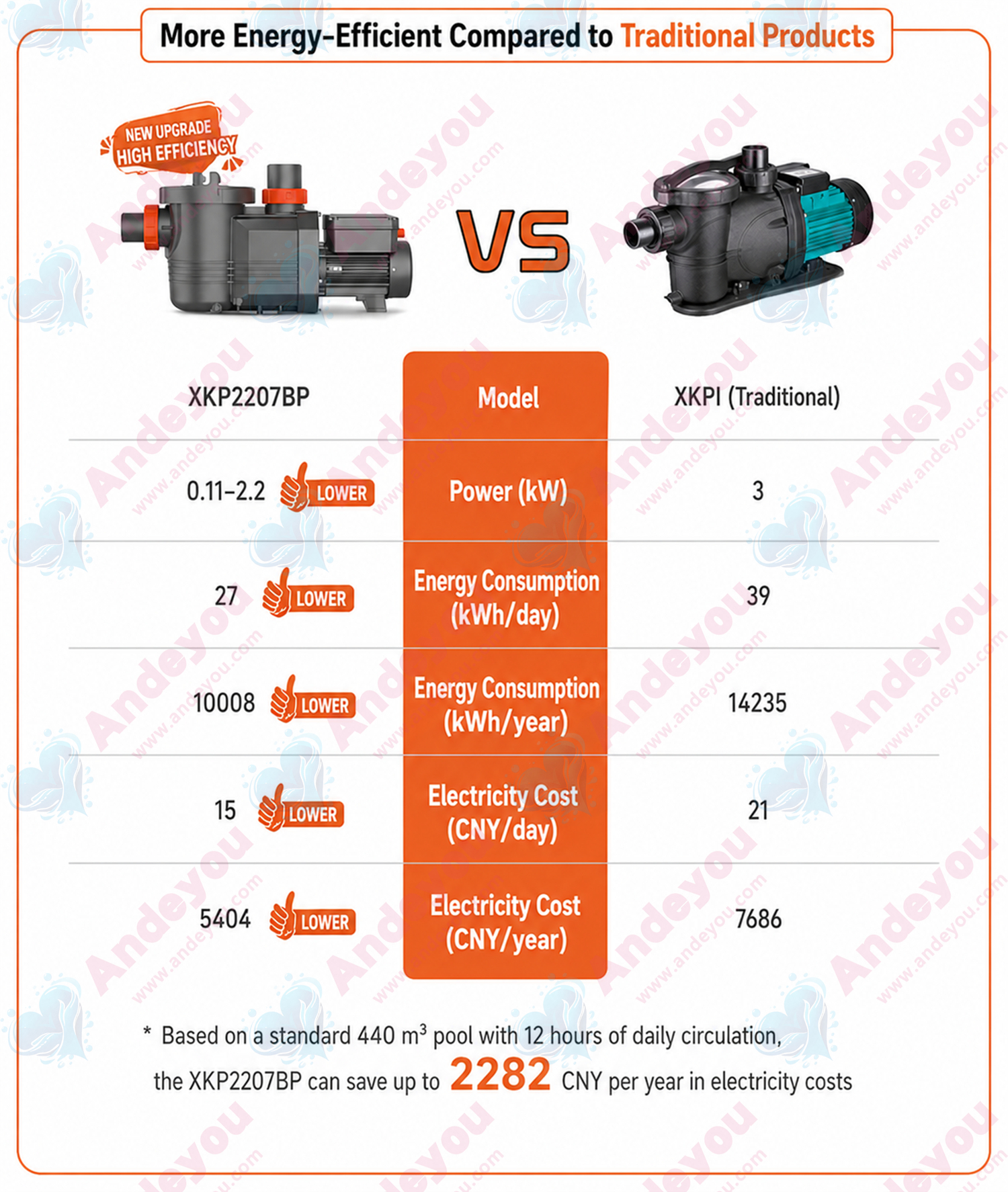

Energy-Efficient: Features a high-efficiency permanent magnet motor and variable frequency technology for smarter, more energy-efficient, and cost-effective operation;

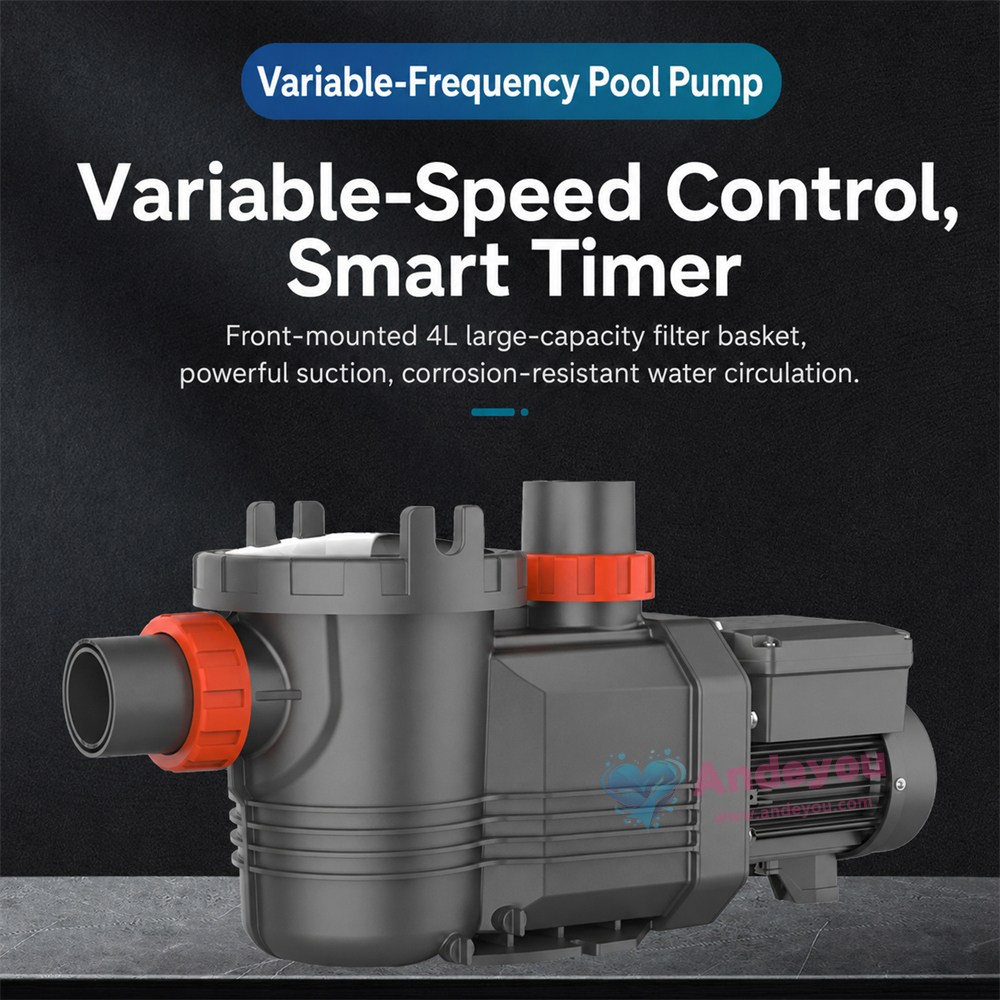

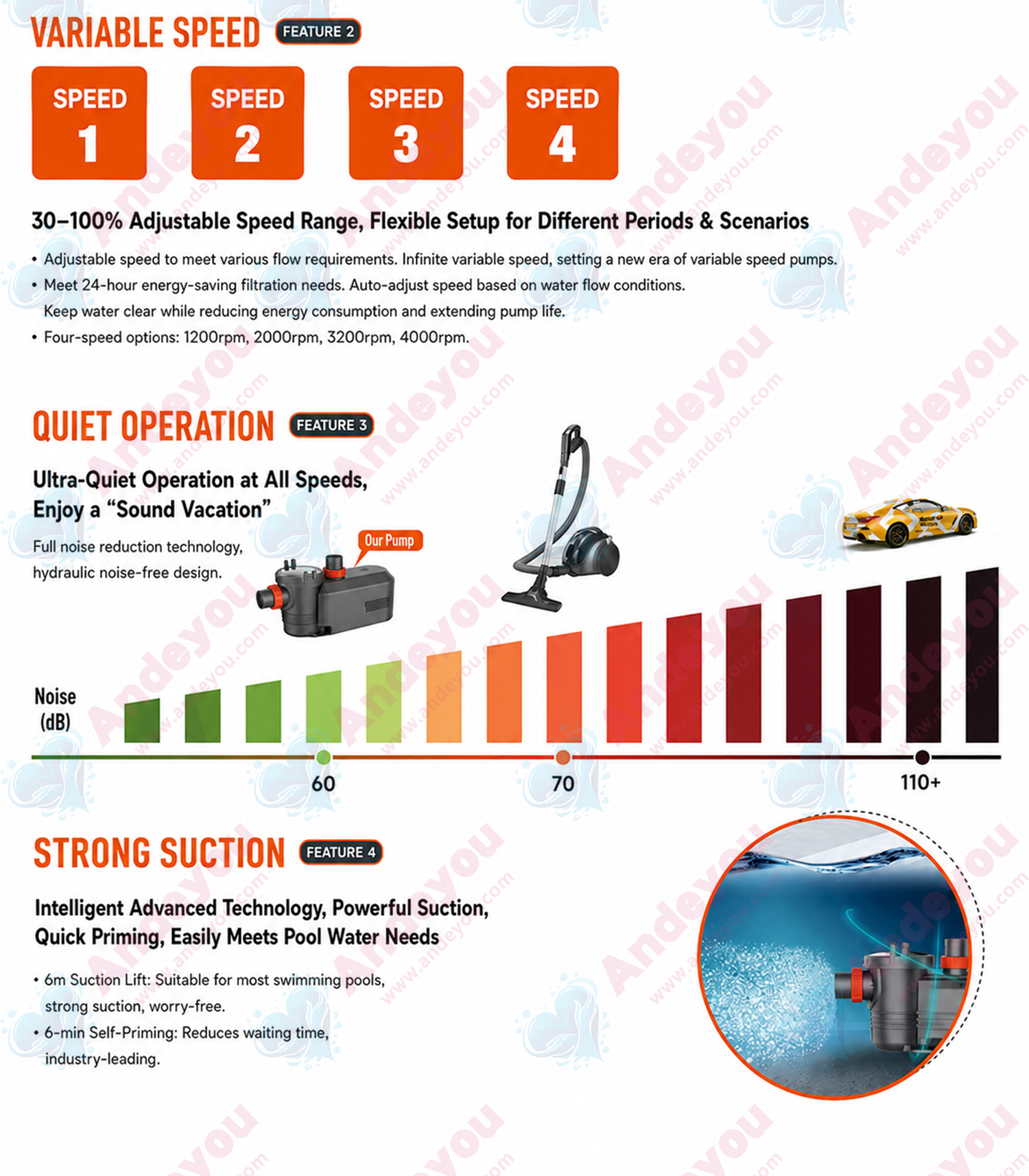

Stepless Speed ​​Control: Adjustable speed (30–100% range) to suit specific time periods and usage scenarios;

Quiet Operation: Full-spectrum noise reduction technology ensures smooth, silent water flow;

Smart Timer: 24-hour programmable start/stop cycles for worry-free, unattended operation;

Powerful Suction: 6m suction lift—far exceeding standard pool depths—eliminates suction concerns; 6-minute self-priming time minimizes waiting—an industry-leading performance;

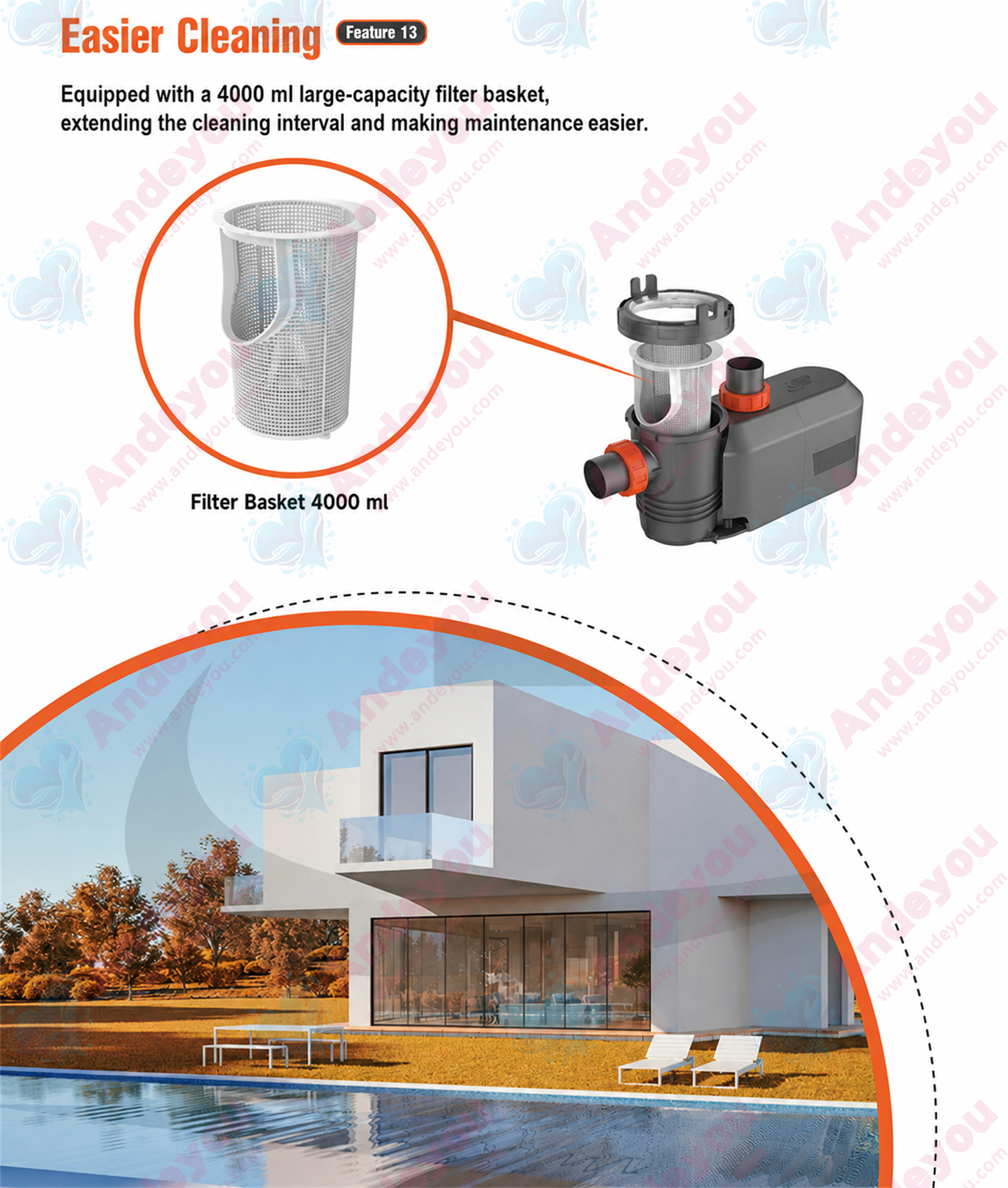

Convenient Maintenance: Large 4000ml capacity filter extends cleaning intervals and simplifies upkeep;

Versatile Functionality: High-resolution LED display offers flexible operation and a wide range of settings;

Operating Conditions:

Medium Temperature: 5°C–50°C

pH Value: 6.5–8.5

Ambient Temperature: 40°C

Max. Suction Lift: 6m

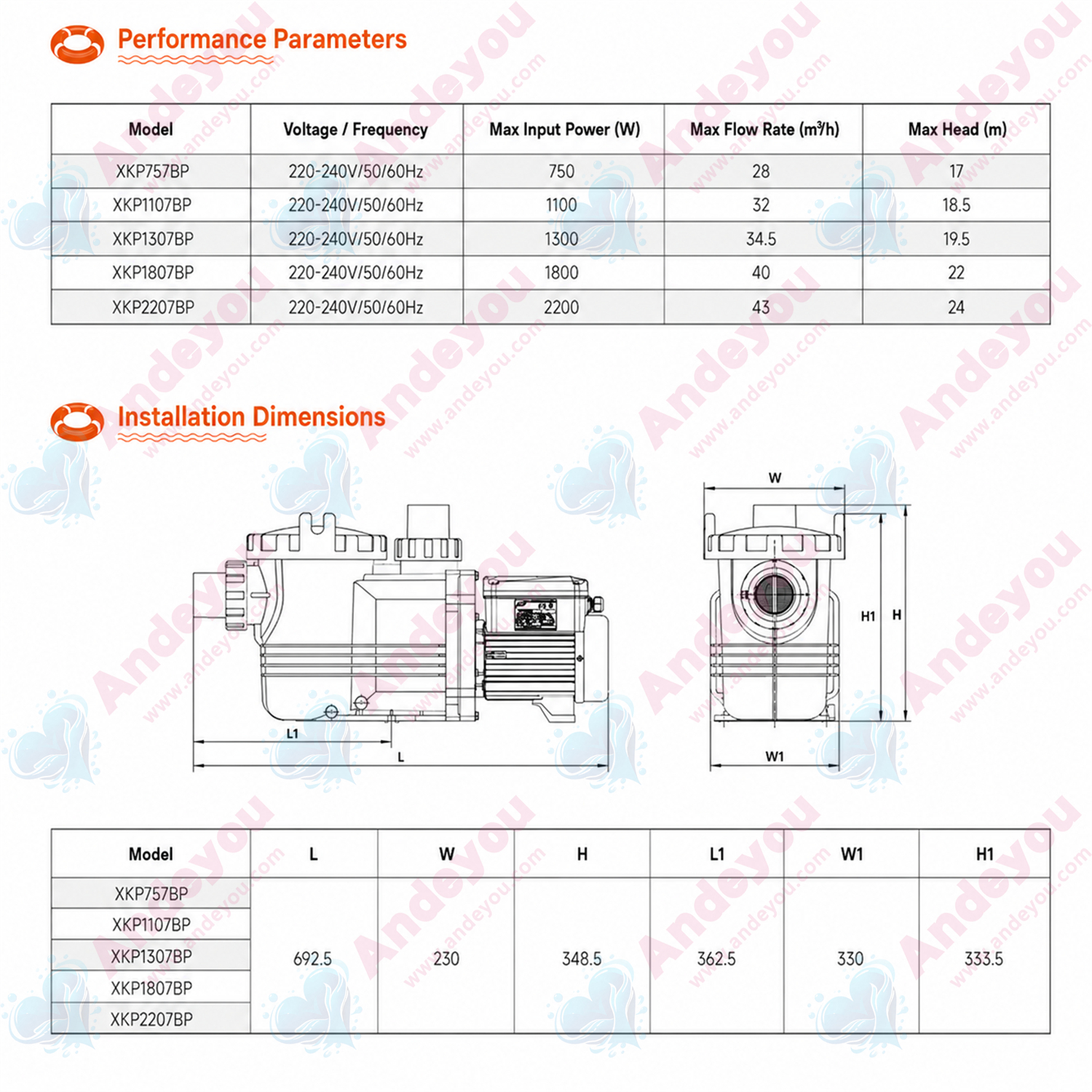

Parameters

model Voltage/Frequency Flow rate (m³/h) Rated head (m) Power (kW) caliber

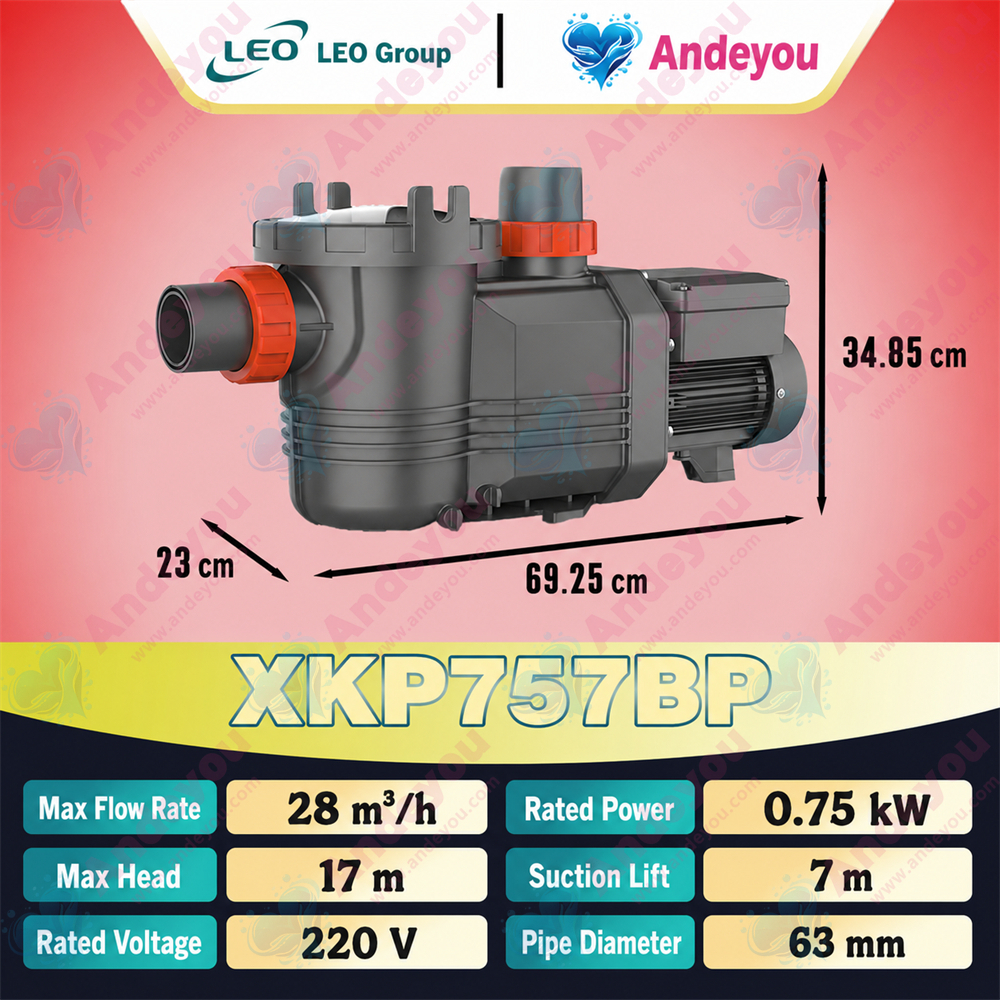

XKP757BP 220V/50Hz 28 17 0.75 63

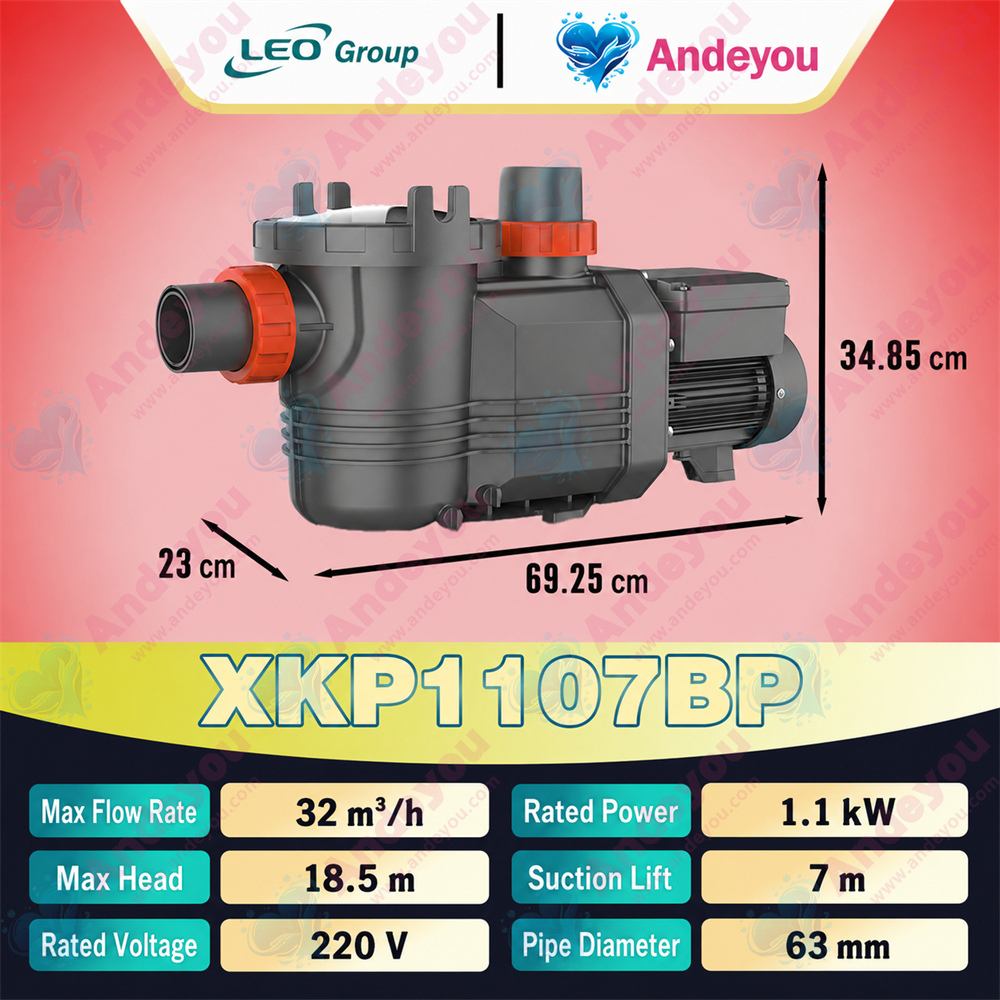

XKP1107BP 220V/50Hz 32 18.5 1.1 63

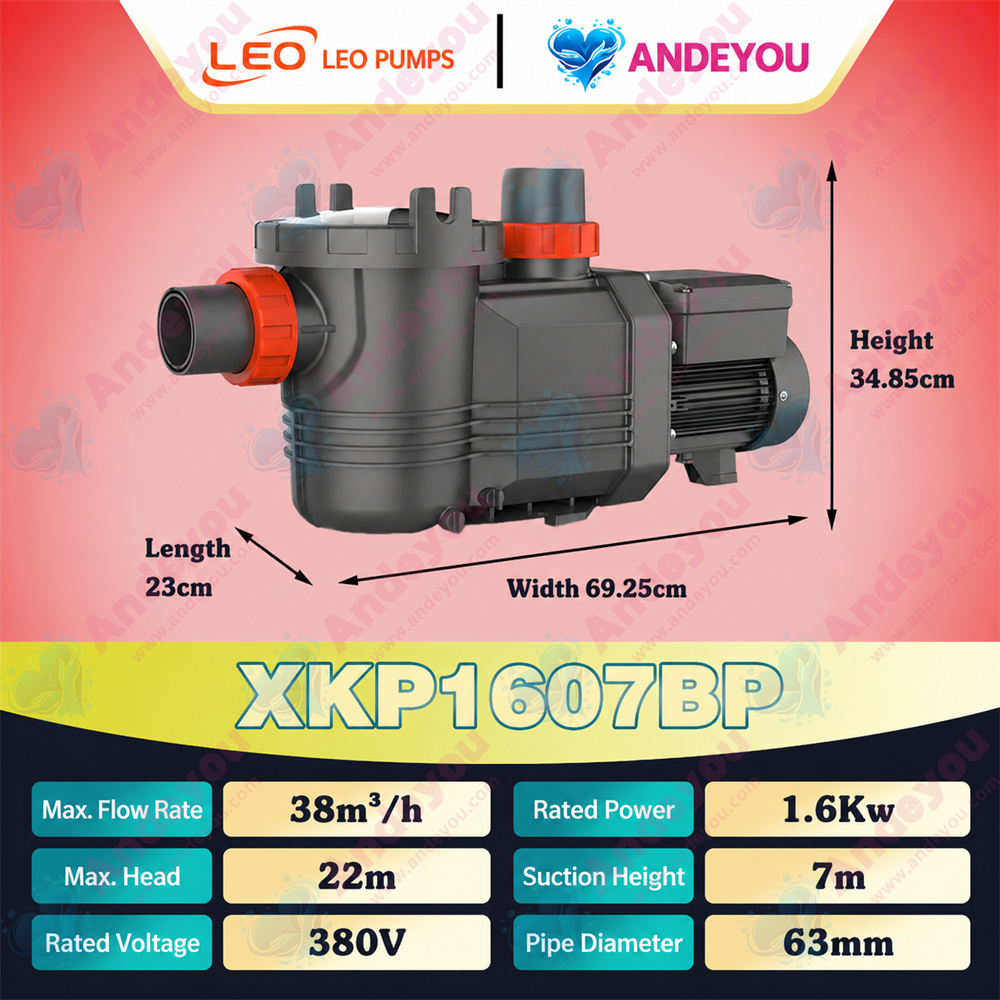

XKP1607BP 220V/50Hz 38 22 1.6 63

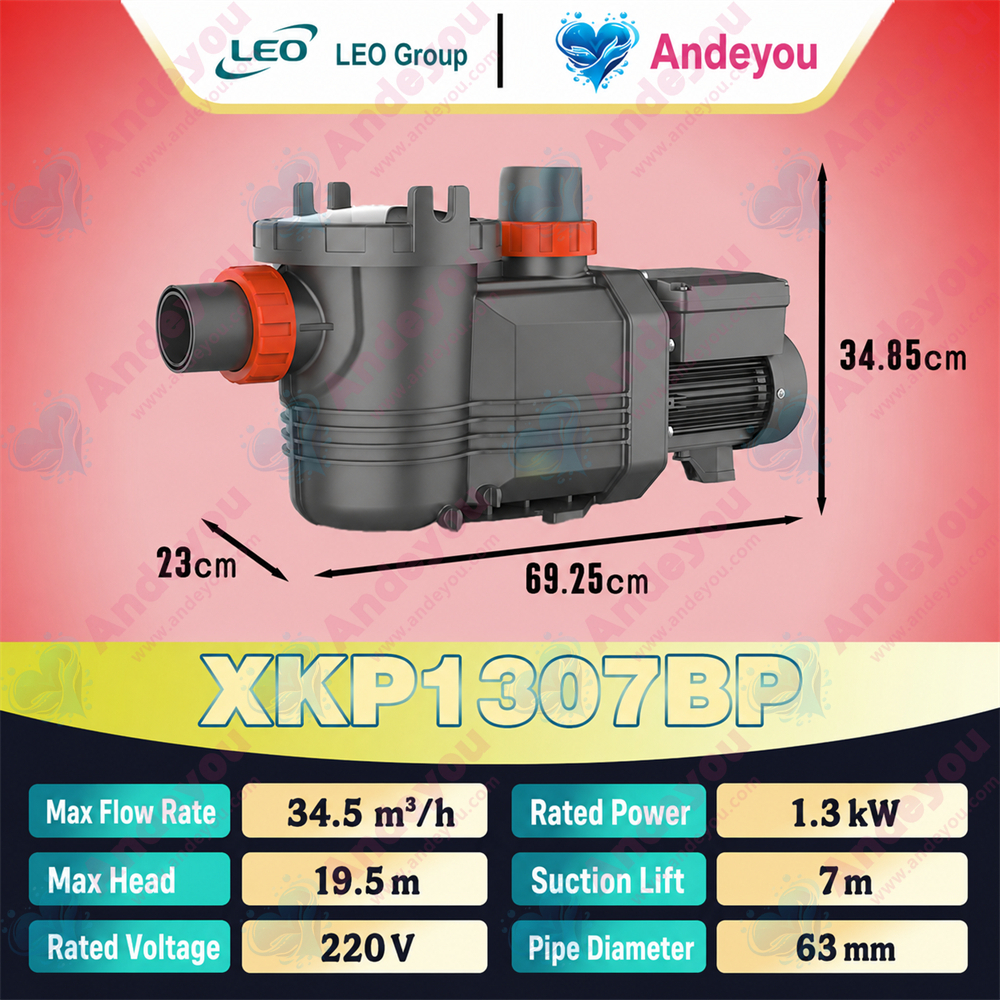

XKP1307BP 220V/50Hz 34.5 19.5 1.3 63

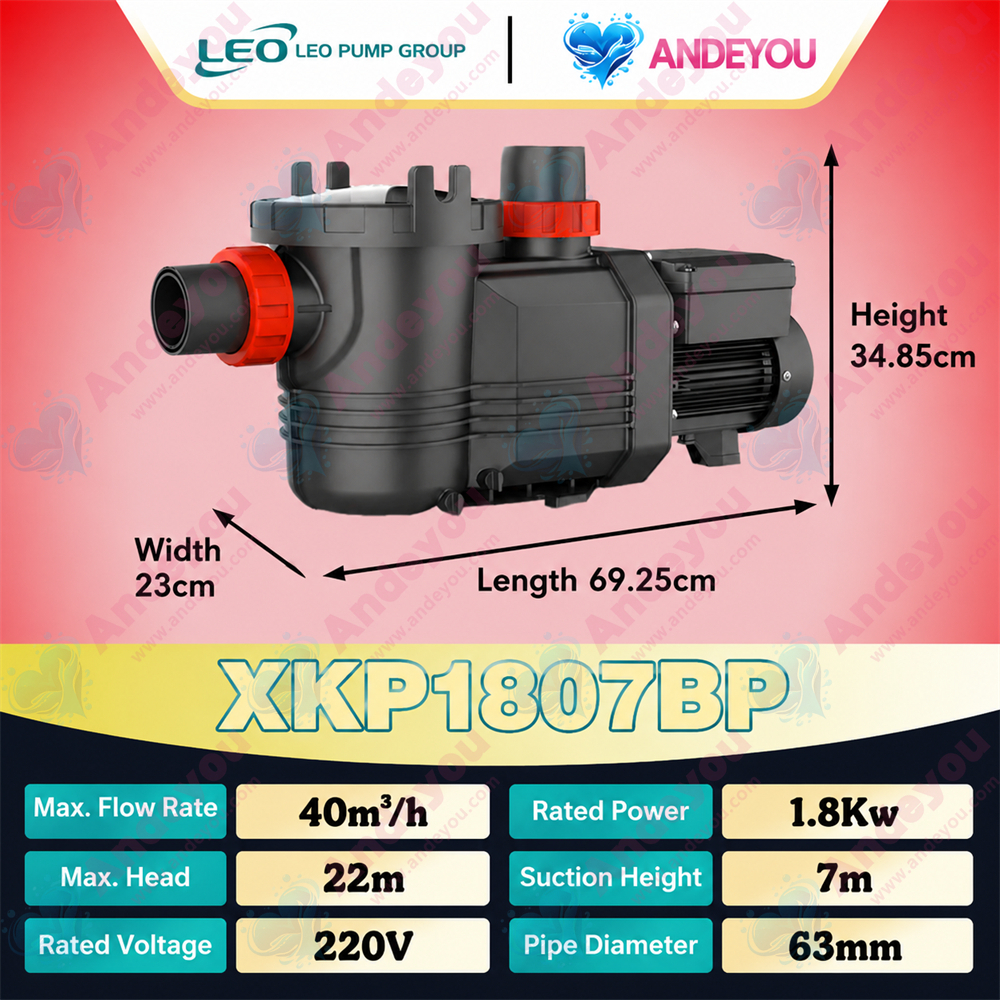

XKP1807BP 220V/50Hz 40 22 1.8 63
XKP2207BP 220V/50Hz 43 24 2.2 63
