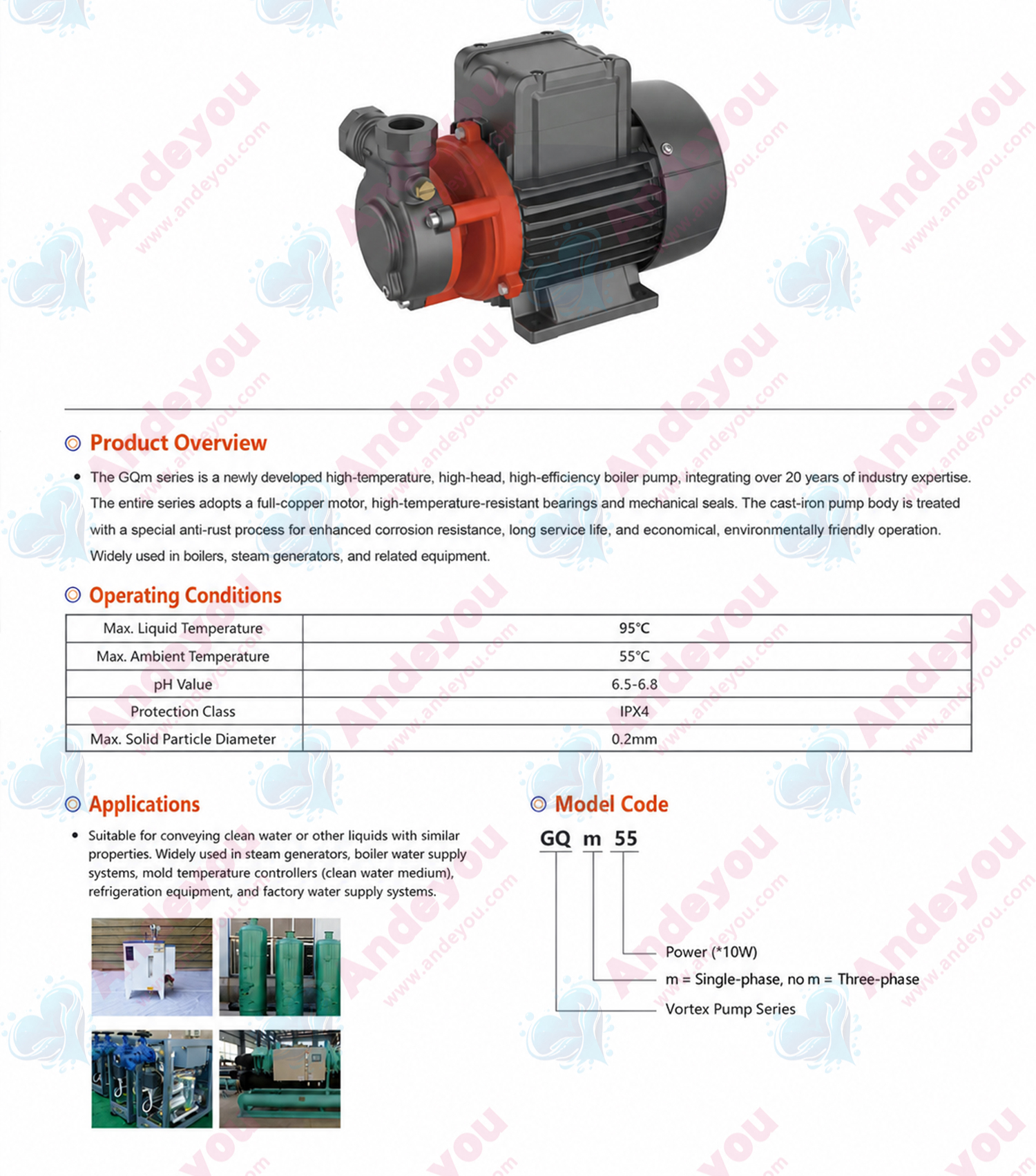

Product Overview:

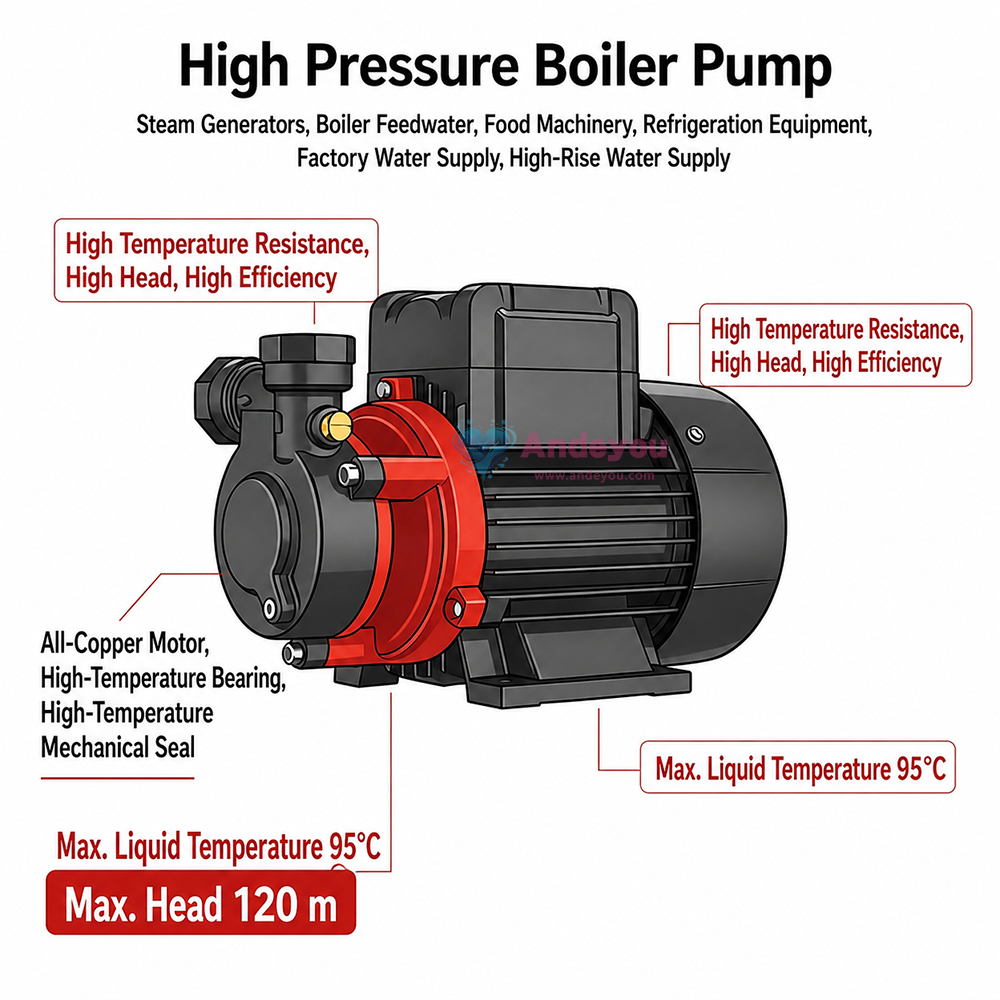

The GQm series is a high-pressure boiler pump engineered by combining over 20 years of expertise from top industry technical specialists. It is designed for high-temperature resilience, high lift, and efficient operation. The entire series features premium components, including all-copper motors, high-temperature bearings, and high-temperature mechanical seals. The cast-iron pump body undergoes a special anti-rust treatment to enhance corrosion resistance, ensuring a long service life while remaining economical and eco-friendly.

Key Applications:

Steam generators, boiler feed water systems, food processing machinery, refrigeration equipment, and water supply for factories and high-rise buildings.

Operating Conditions:

Max. liquid temperature: 95°C
Max. ambient temperature: 55°C
pH value: 6.5–6.8
Protection class: IPX4
Max. solid particle diameter: 0.2mm

Product Features:

1. High-Temperature Handling: Utilizes advanced high-temperature processing and premium materials—such as high-temperature mechanical seals and bearings—to transport hot water up to 95°C with ease.

2. High Lift (Up to 100m): Optimized hydraulic structure via ANSYS integrated structural and fluid simulation software; delivers a lift of up to 100 meters while maintaining ample flow, setting a new industry benchmark for performance.

3. Compact Size: Small footprint facilitates easy handling and installation while reducing transport costs; horizontal mounting saves space and perfectly suits steam generator installation requirements.

4. Corrosion Resistance: Cast-iron pump body treated with a special anti-rust process for superior corrosion resistance; resists rusting to ensure a long, stable, and safe service life.

5. Leakage Prevention: 90° inlet/outlet design minimizes leakage risks compared to traditional configurations.

6. All-Copper Motor: Powerful, efficient, and quiet operation; features pure copper windings for high energy efficiency, low resistance, and reduced heat generation.

7. Low-Noise Operation: Advanced noise-reduction technology comprehensively minimizes aerodynamic, mechanical, and electromagnetic noise; triple noise-reduction measures ensure quieter operation.

8. IPX4 Protection: High-level water resistance, making it suitable for operation in humid environments such as factories.
