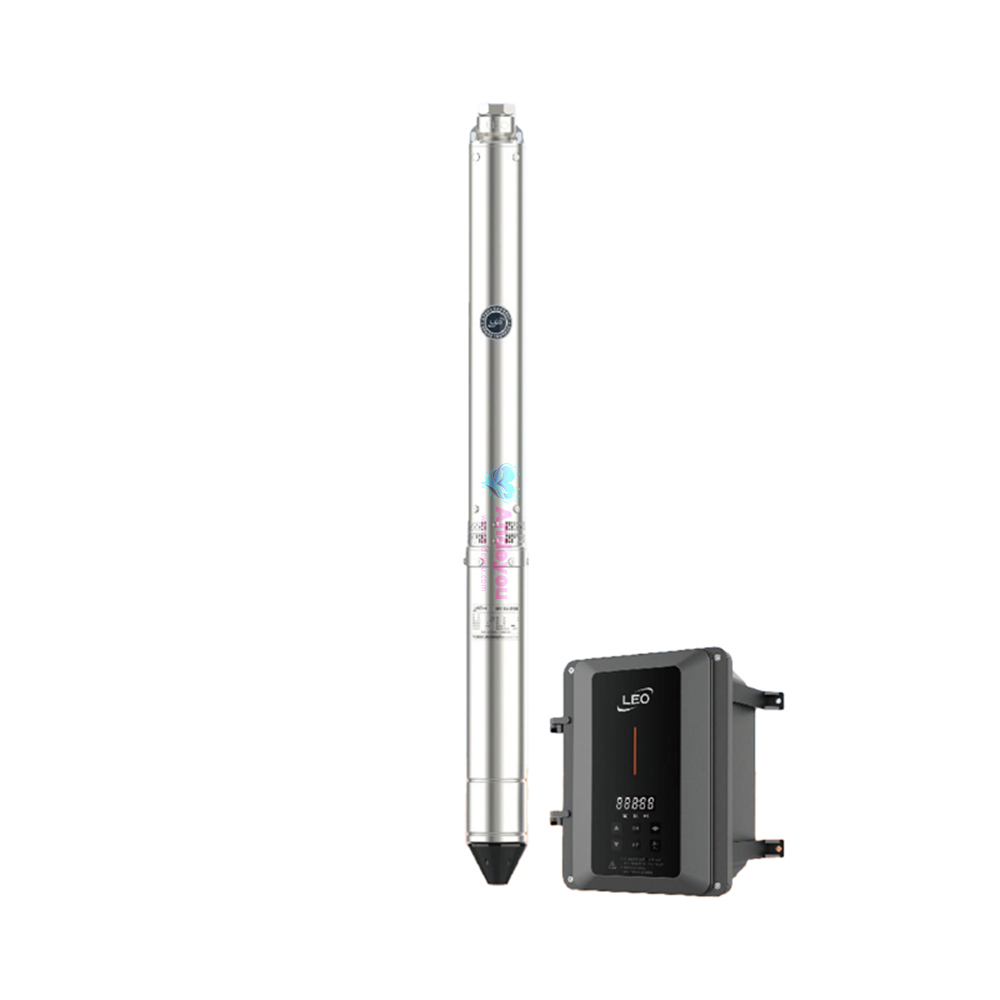

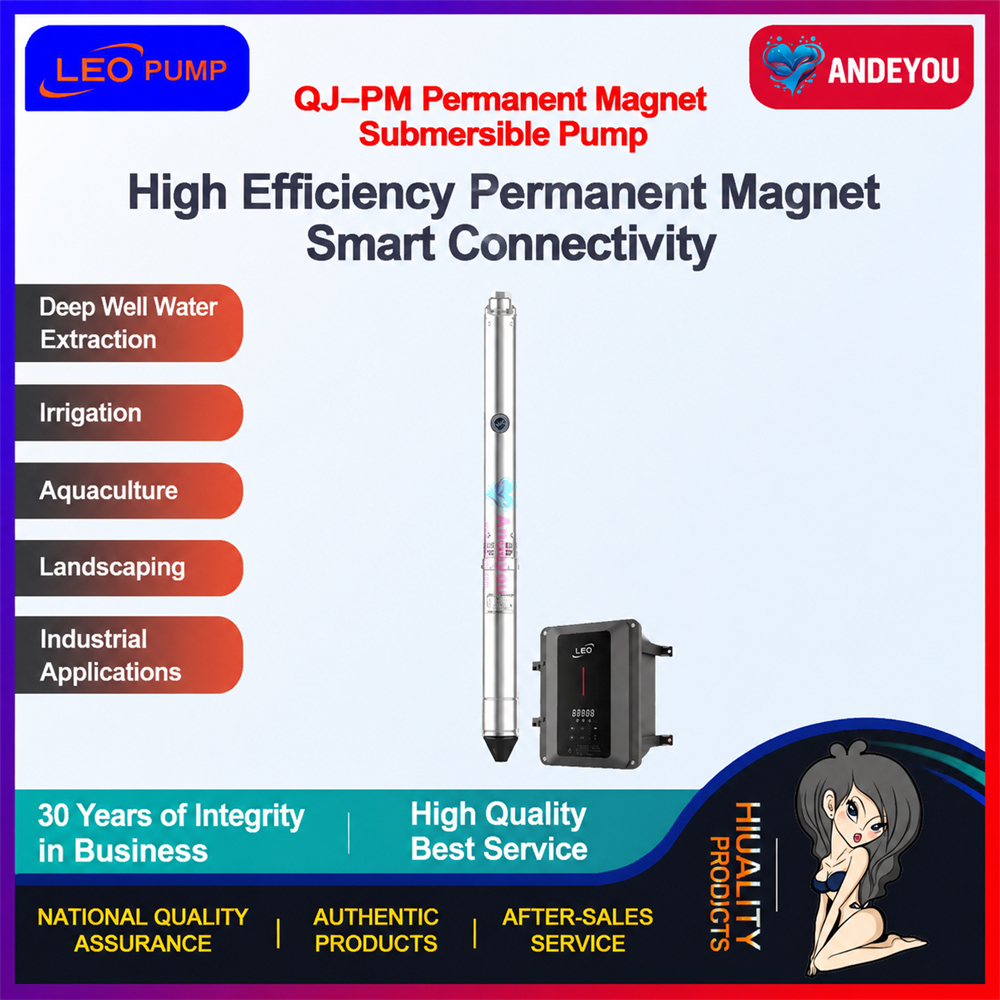

Product Overview:

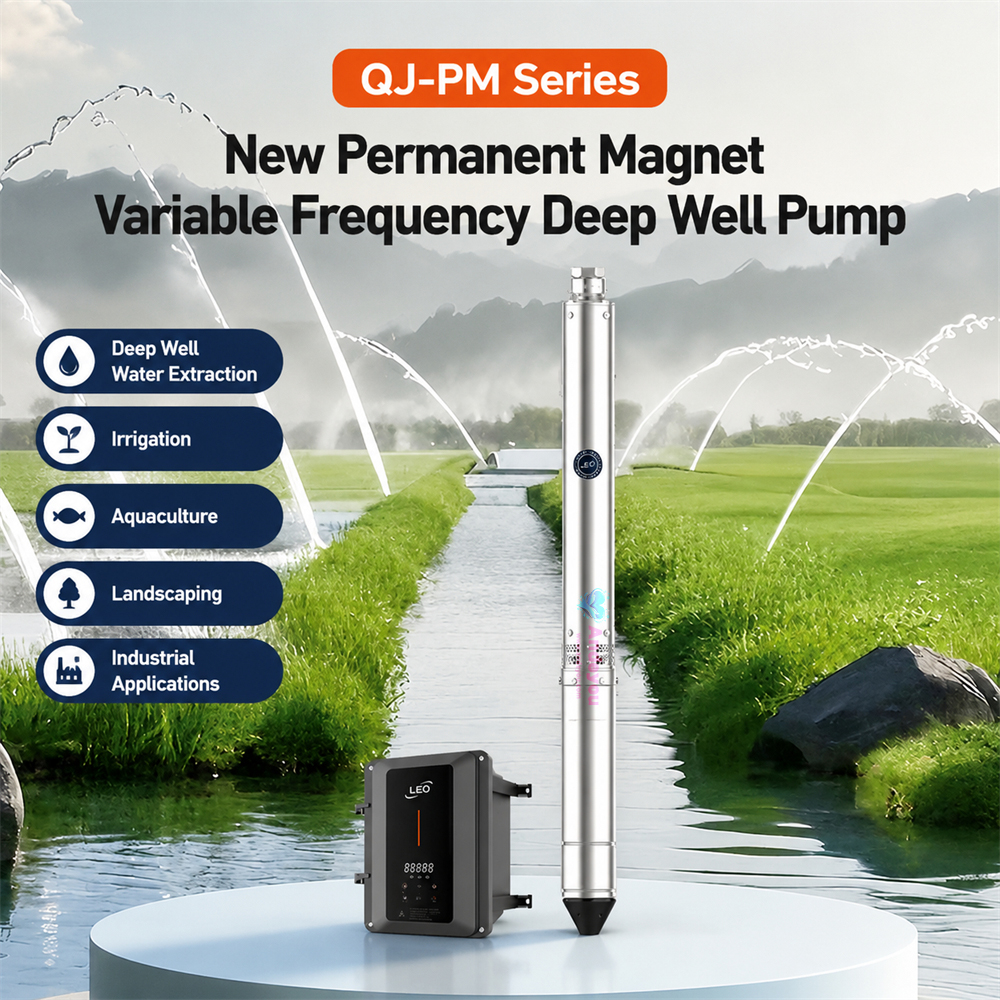

LEO’s new permanent magnet deep-well pump features an optimal combination of a high-efficiency permanent magnet motor, a high-efficiency controller, and a high-efficiency pump body. Characterized by ease of installation, wide voltage compatibility, high head, stable performance, and intelligent features, it is widely used for deep-well water extraction, agricultural irrigation, aquaculture, industrial production, urban landscaping, and other clean water transfer applications.
Product Applications:
Widely used for deep-well water extraction, agricultural irrigation, aquaculture, industrial production, urban landscaping, and other clean water transfer applications.
Operating Conditions:
Medium temperature: ≤40°C
Medium pH value: 6.5–8.5
Controller input voltage: Single-phase 100–240V; Three-phase 180–460V
Recommended submersion depth: Max. 150m
Medium density requirements: Solid impurity mass ratio ≤0.01%; particle size ≤0.2mm
Product Features:

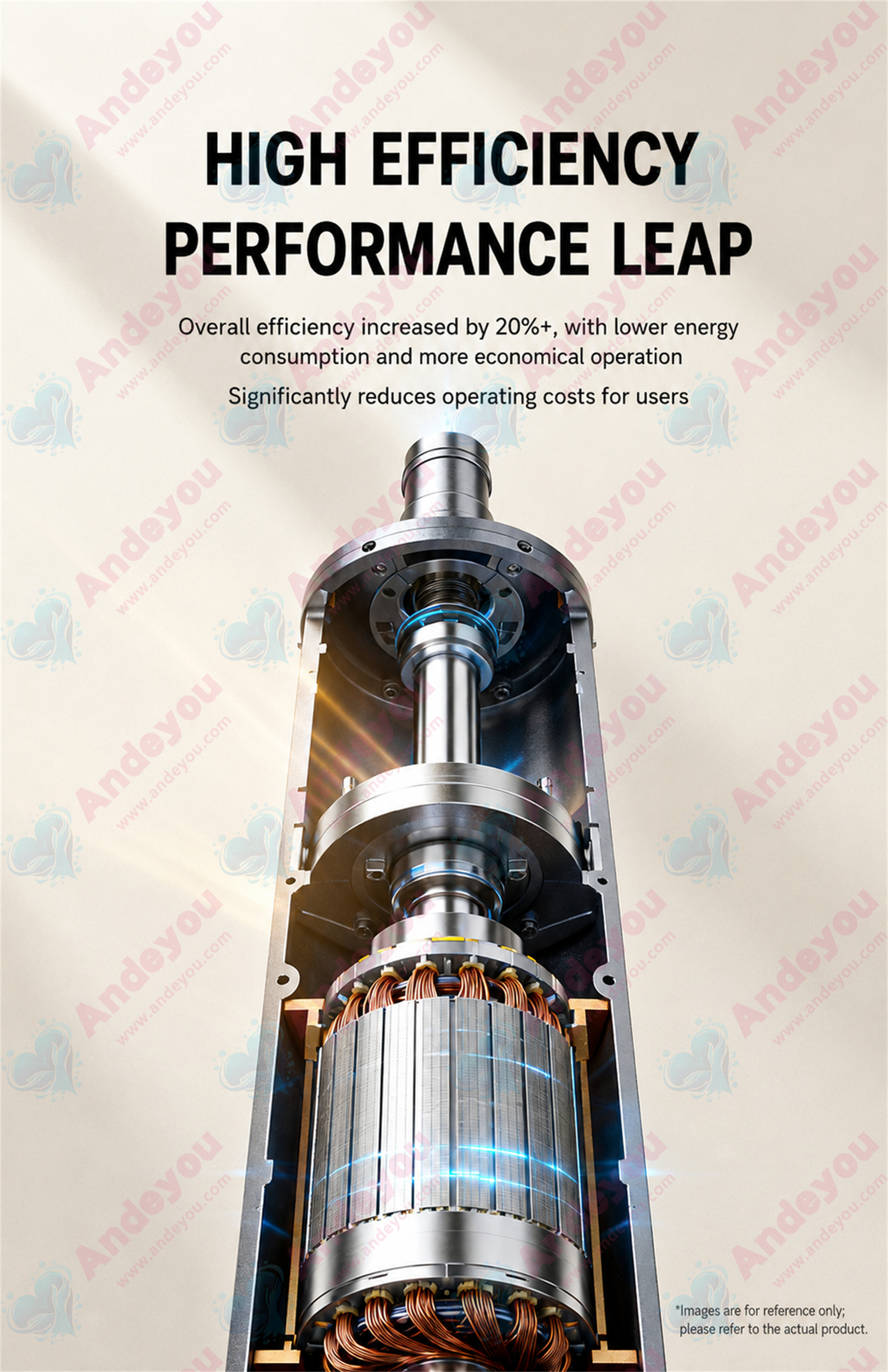

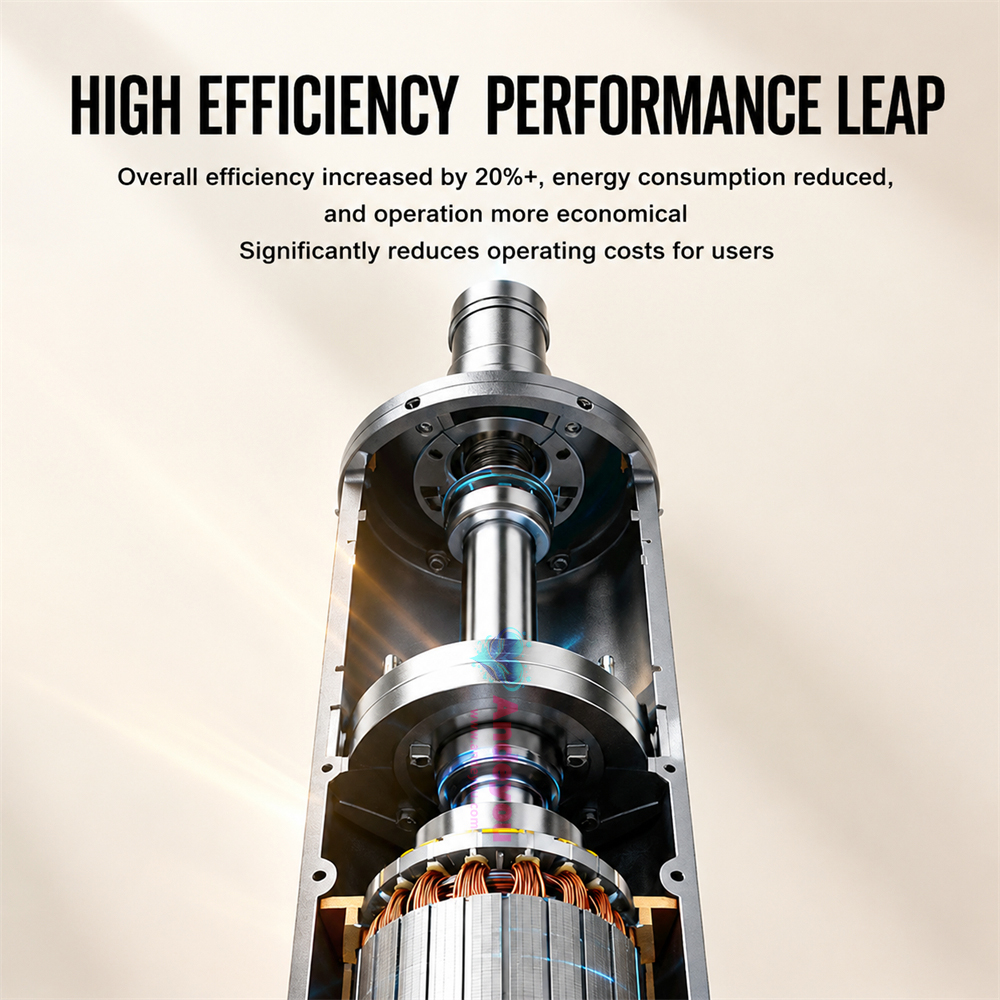

High efficiency and energy savings: Overall system efficiency increased by over 20%, resulting in lower energy consumption and more economical operation, significantly reducing operating costs for users.

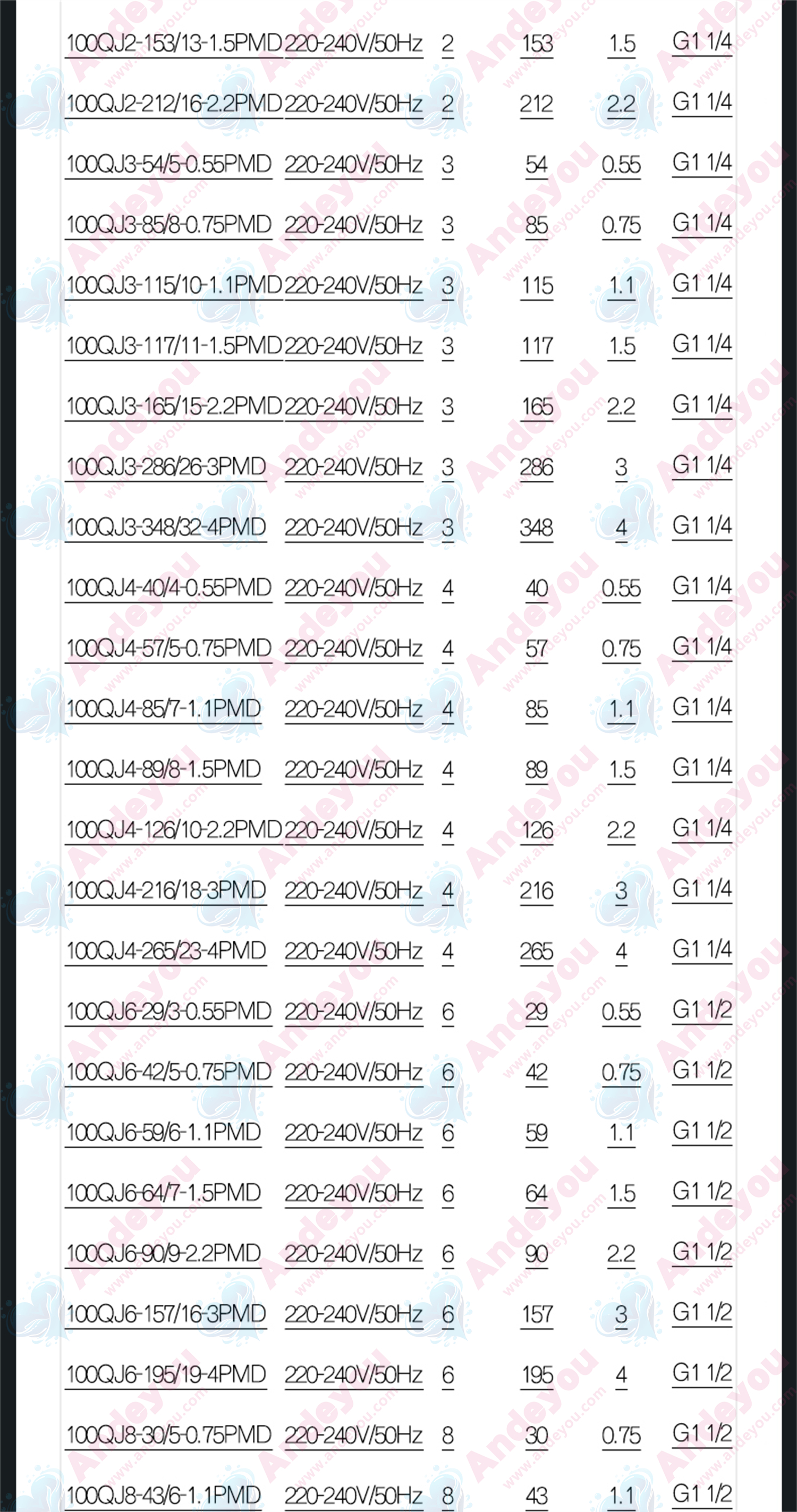

Powerful performance: Achieves new heights in delivery head; for example, the 2.2kW/2m³ model reaches a head of up to 212 meters, easily meeting requirements for high-lift and long-distance water transfer.
Intelligent protection: Features an industry-first water shortage alarm and advanced protections against short circuits, rotor locking, overloads, over/under-voltage, and phase loss, ensuring safe operation and extending service life.
Wide voltage adaptability: Supports low-voltage environments (single-phase <140V), making it suitable for remote areas or locations with unstable voltage, ensuring reliable operation.

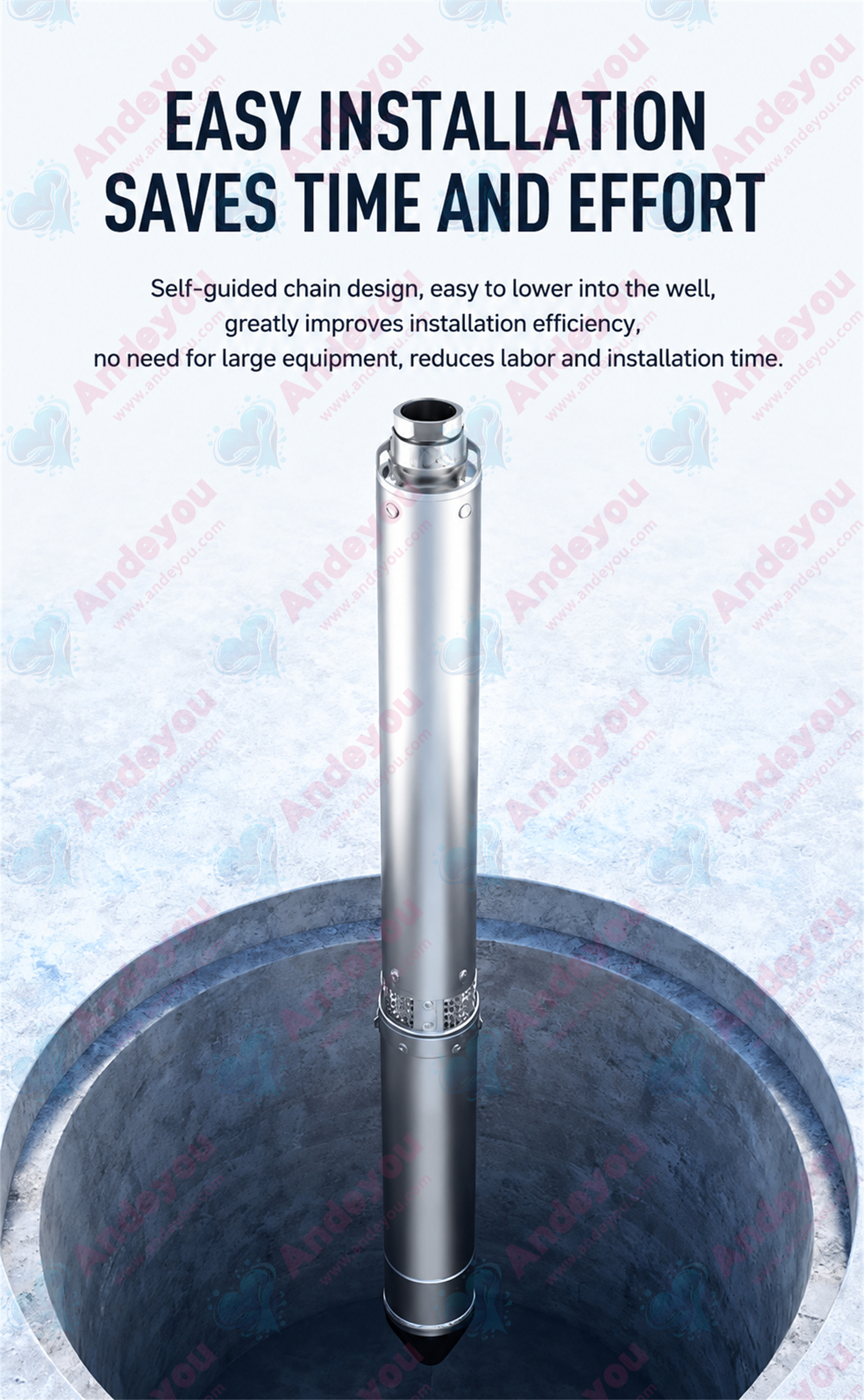

Easy installation: Designed with an integrated guide cone for effortless well insertion and significantly improved installation efficiency; eliminates the need for heavy machinery, saving labor and time.

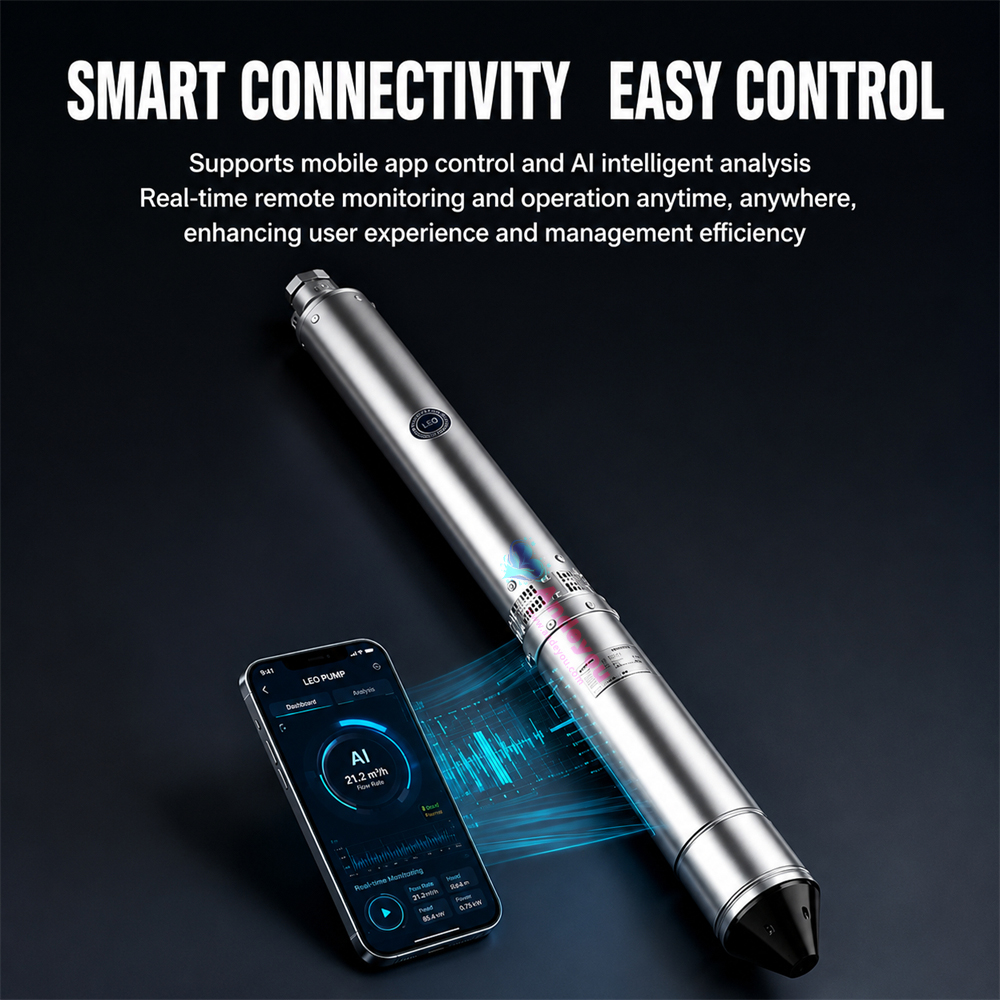

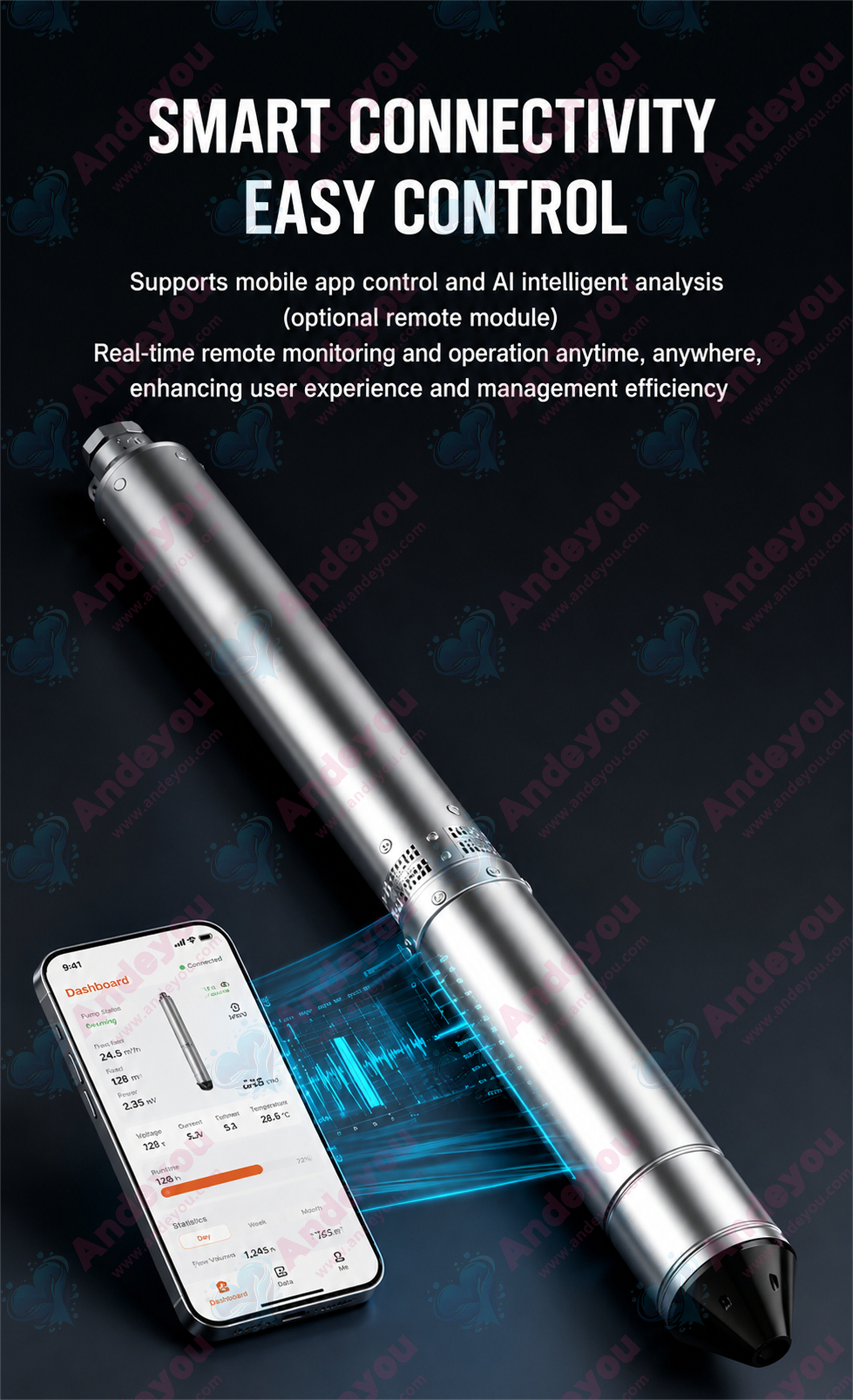

Smart connectivity and control: Supports smartphone control and AI analysis, enabling remote monitoring and operation from anywhere, enhancing user experience and management efficiency.
