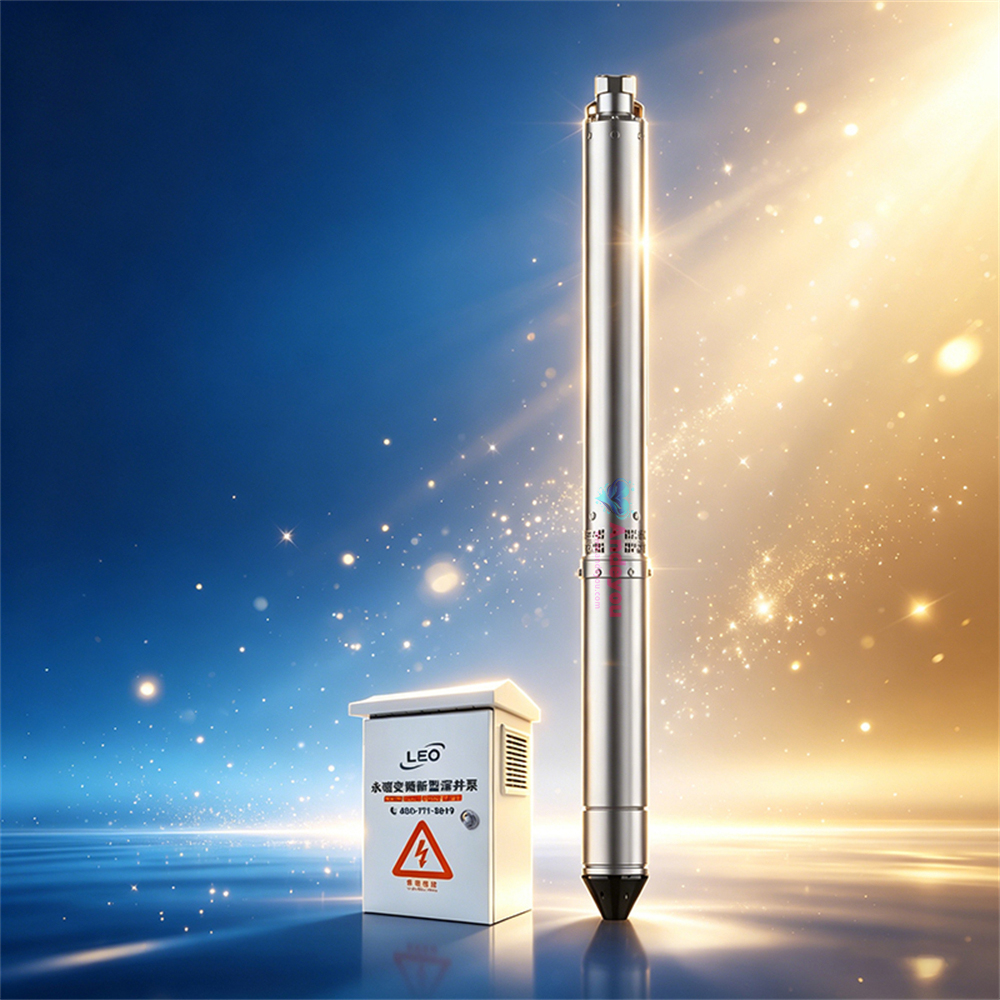

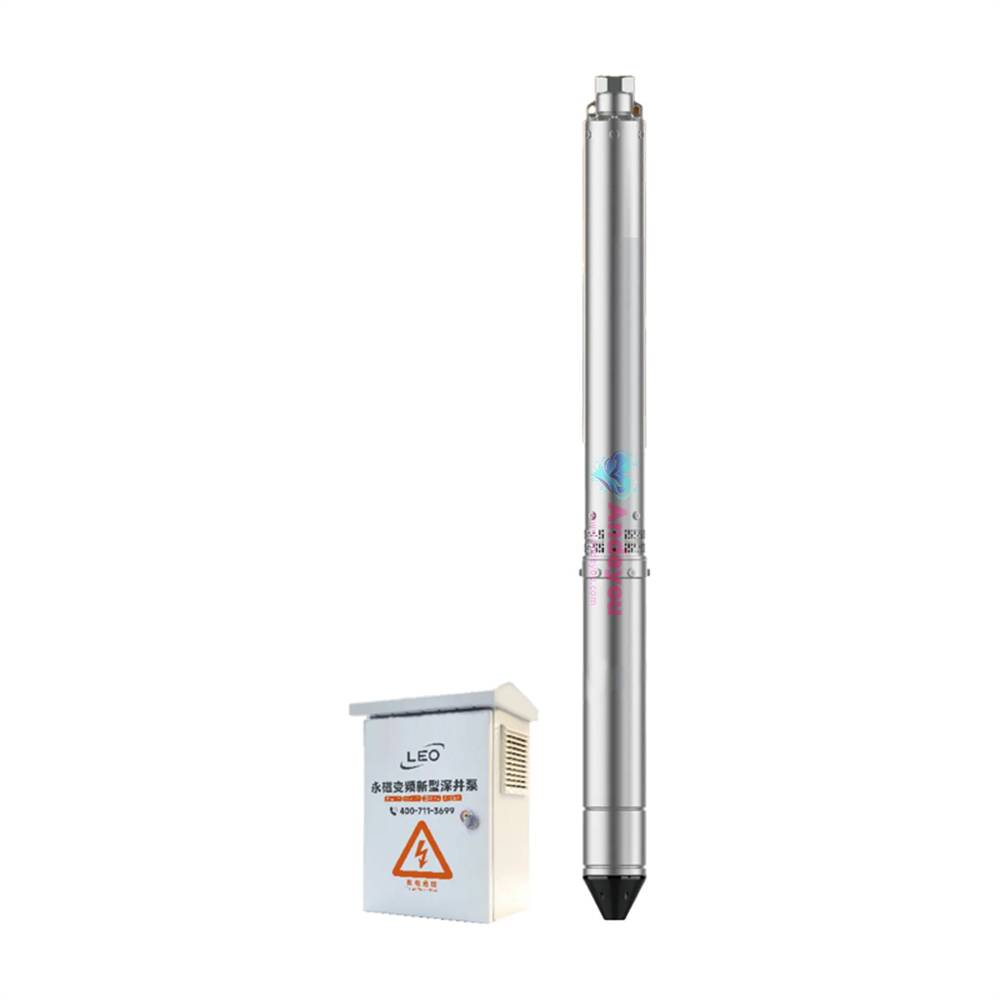

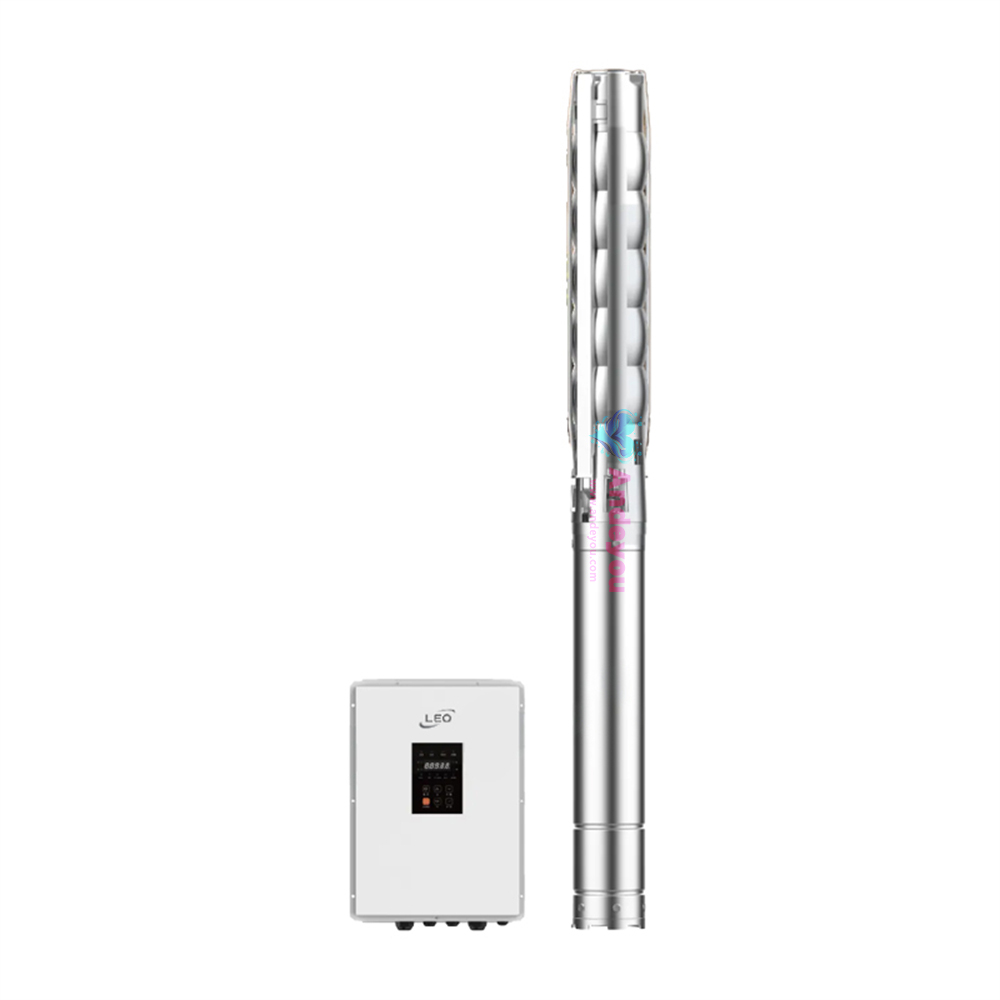

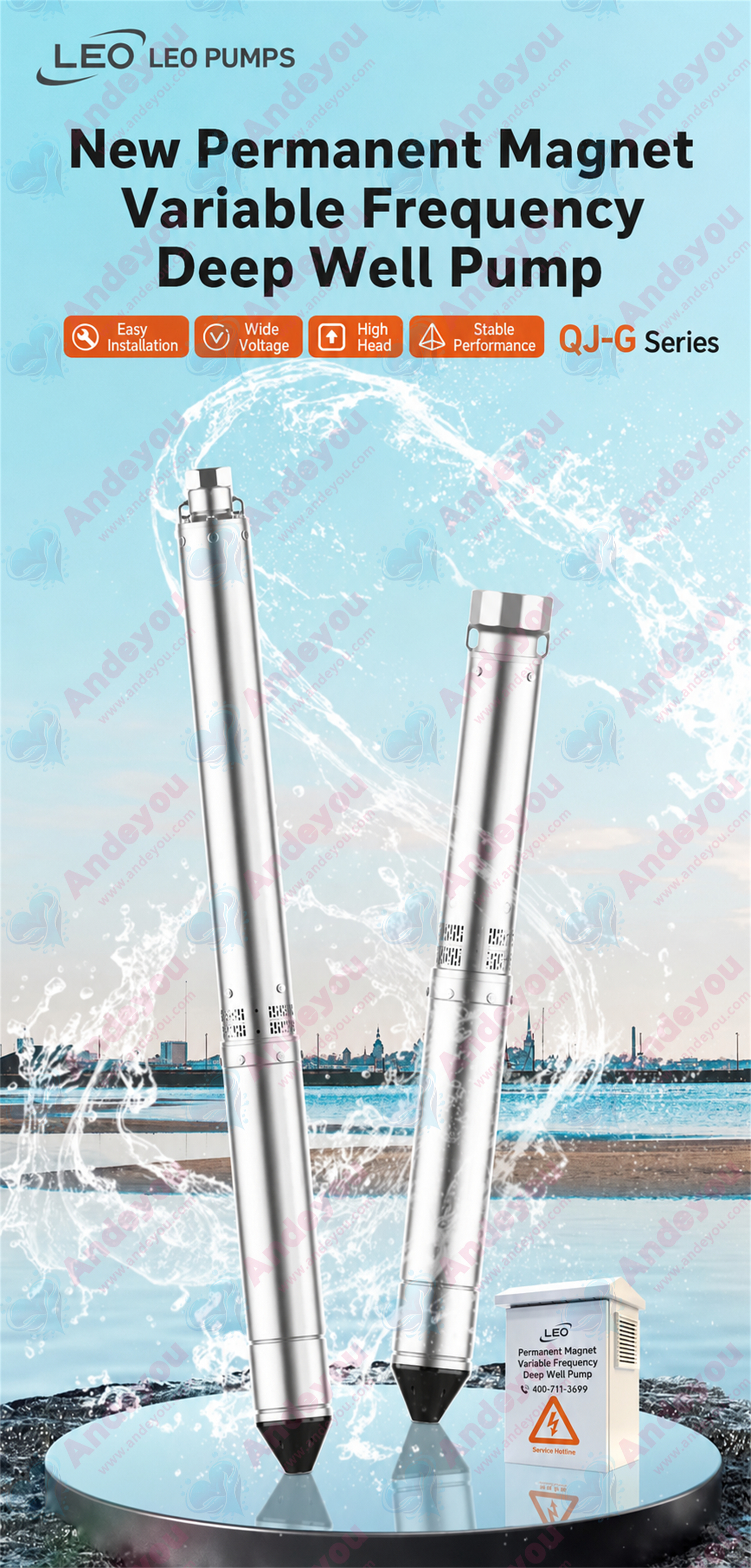

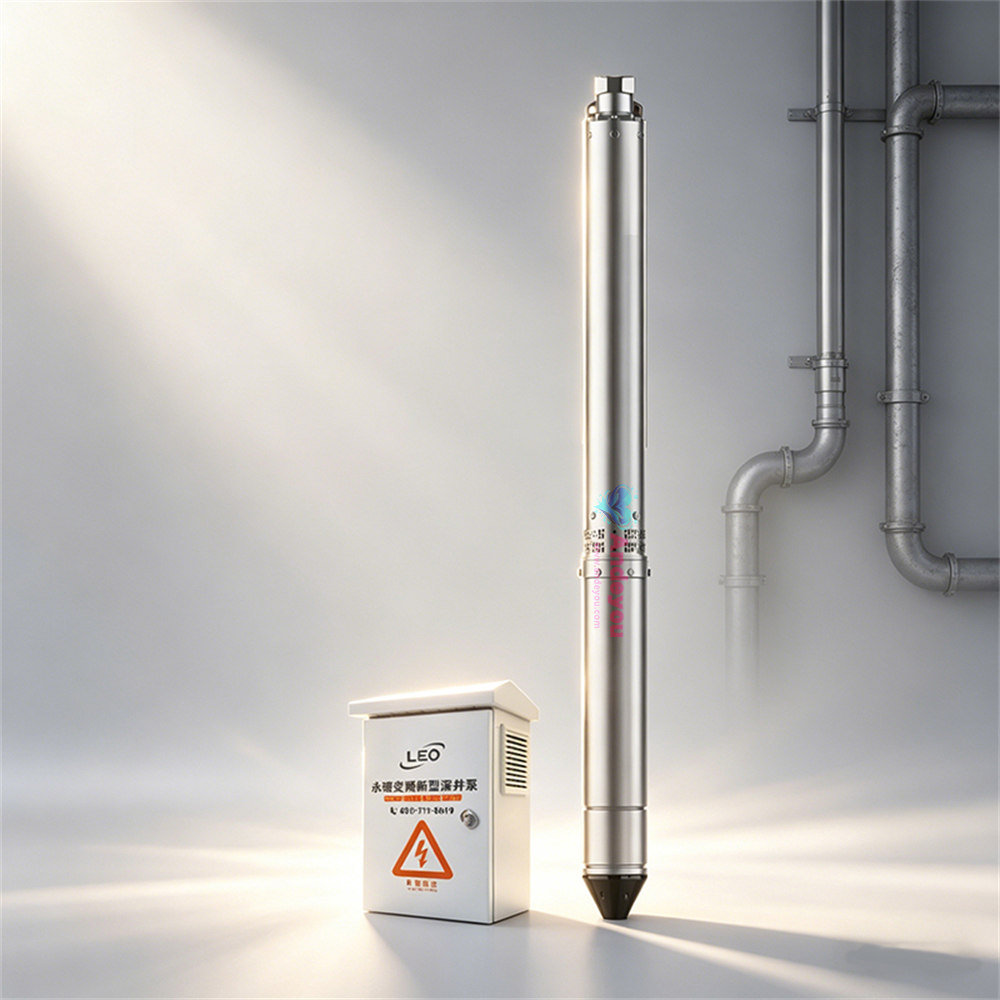

Product Overview:

LEO’s new deep-well pump features an optimal combination of a high-efficiency permanent magnet motor, a high-efficiency controller, and a high-efficiency pump body. Characterized by ease of installation, wide voltage compatibility, high head, and stable performance, it is widely used for deep-well water extraction, agricultural irrigation, aquaculture, industrial production, urban landscaping, and other clean water transport applications.

Operating Conditions:

1. Pumped medium temperature: ≤ 40°C;

2. pH value of pumped medium: 6.5–8.5;

3. Controller input voltage range: 190V–530V;

4. Recommended submersion depth: Max. 150m;

5. Solid impurity content in pumped medium: ≤ 0.01% by mass; particle size: ≤ 0.2mm;

Product Features:

1. High-efficiency permanent magnet motor (efficiency up to 88%);

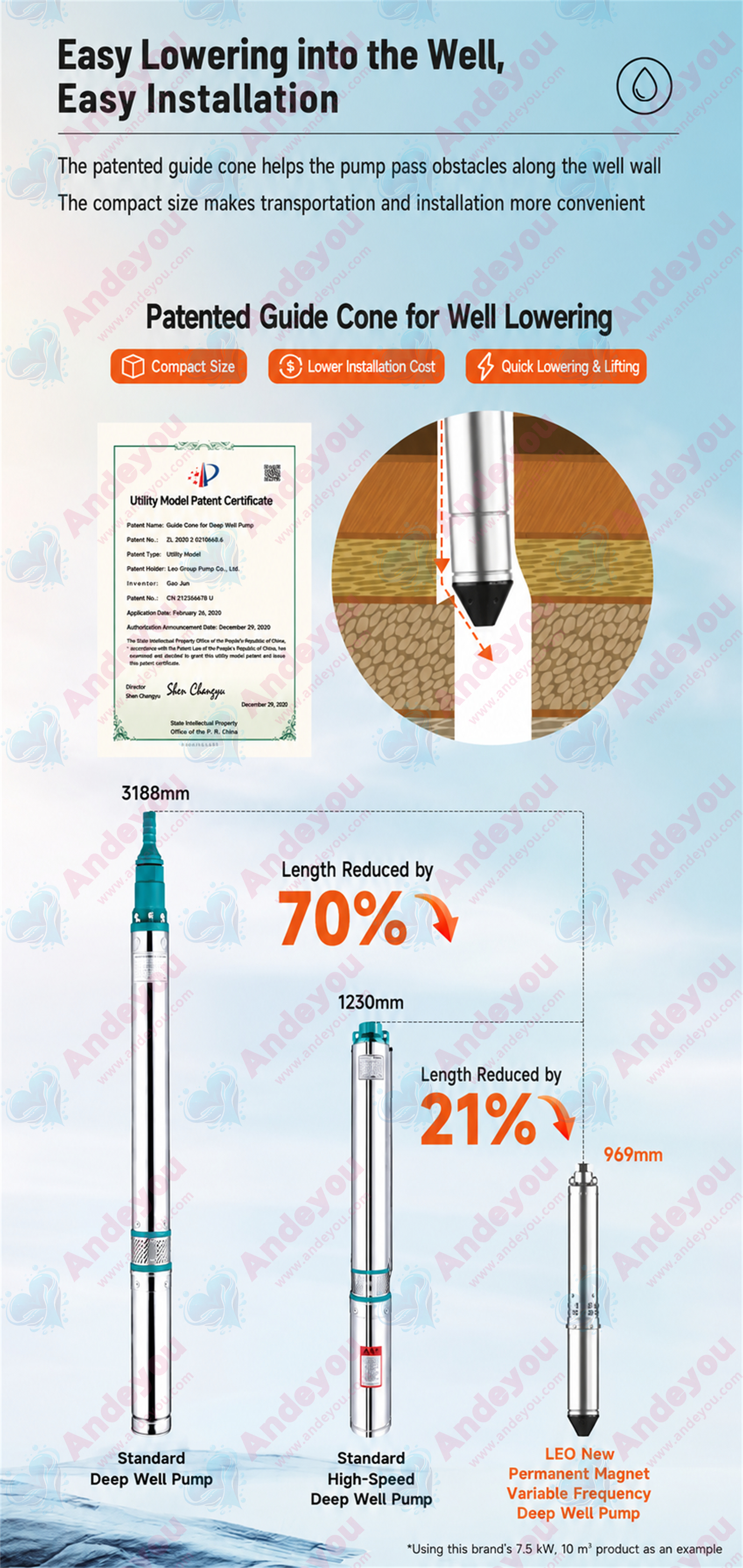

2. Patented installation cone reduces total unit length by 20%, facilitating installation and saving costs;

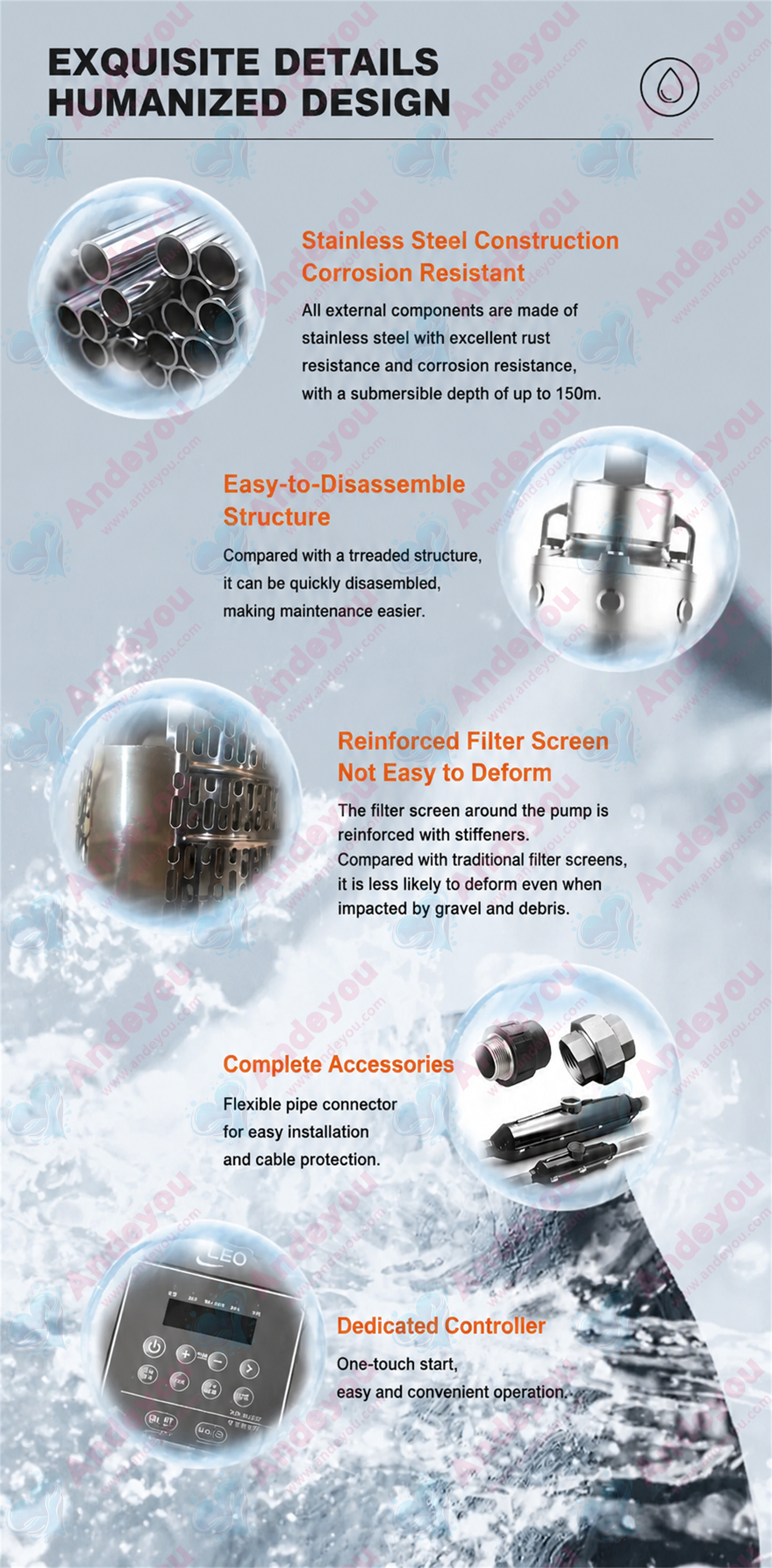

3. All-stainless steel construction ensures rust resistance, corrosion resistance, and durability;

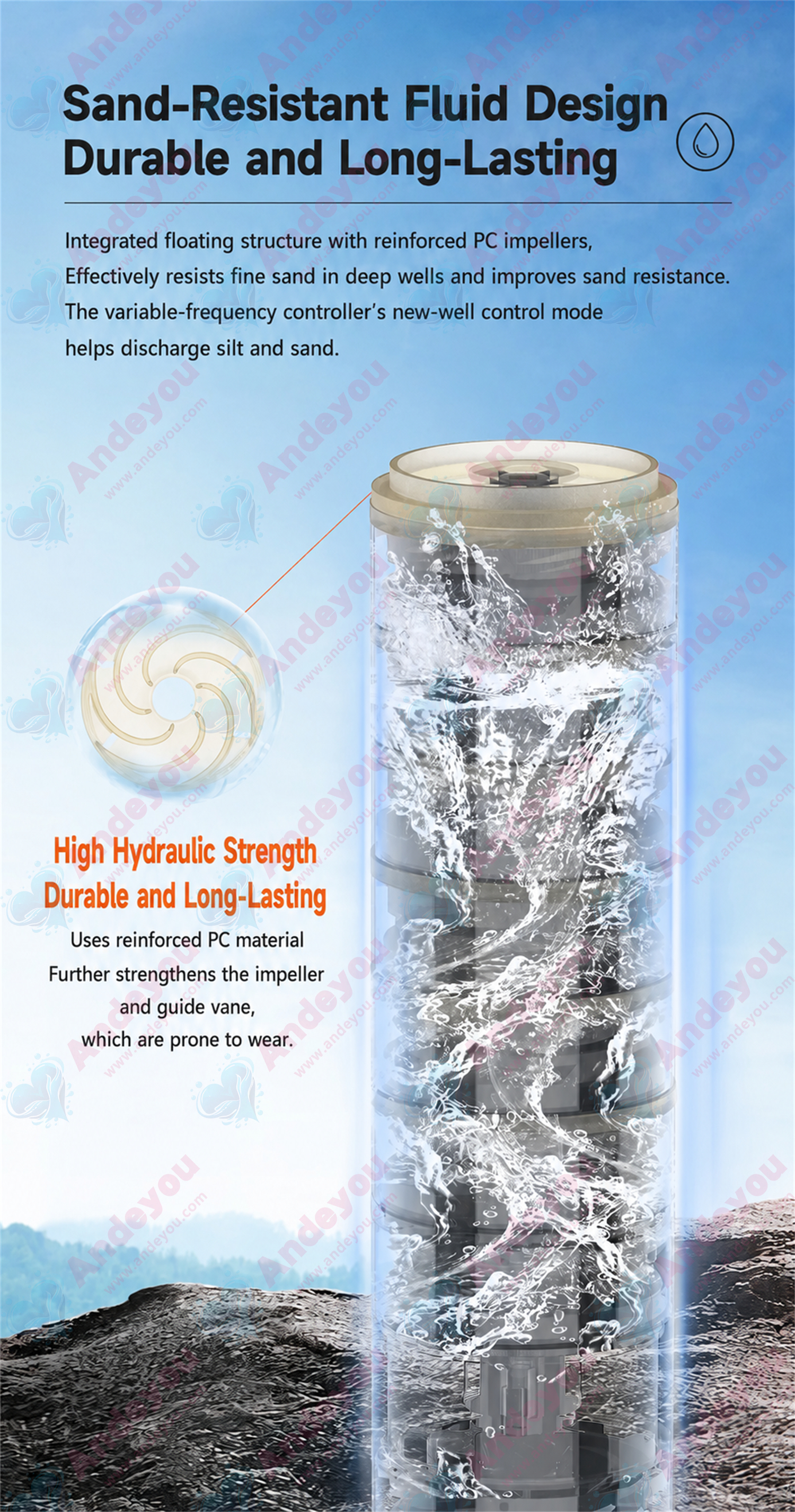

4. Sand-resistant design with floating structure and reinforced impellers; suitable for new wells;

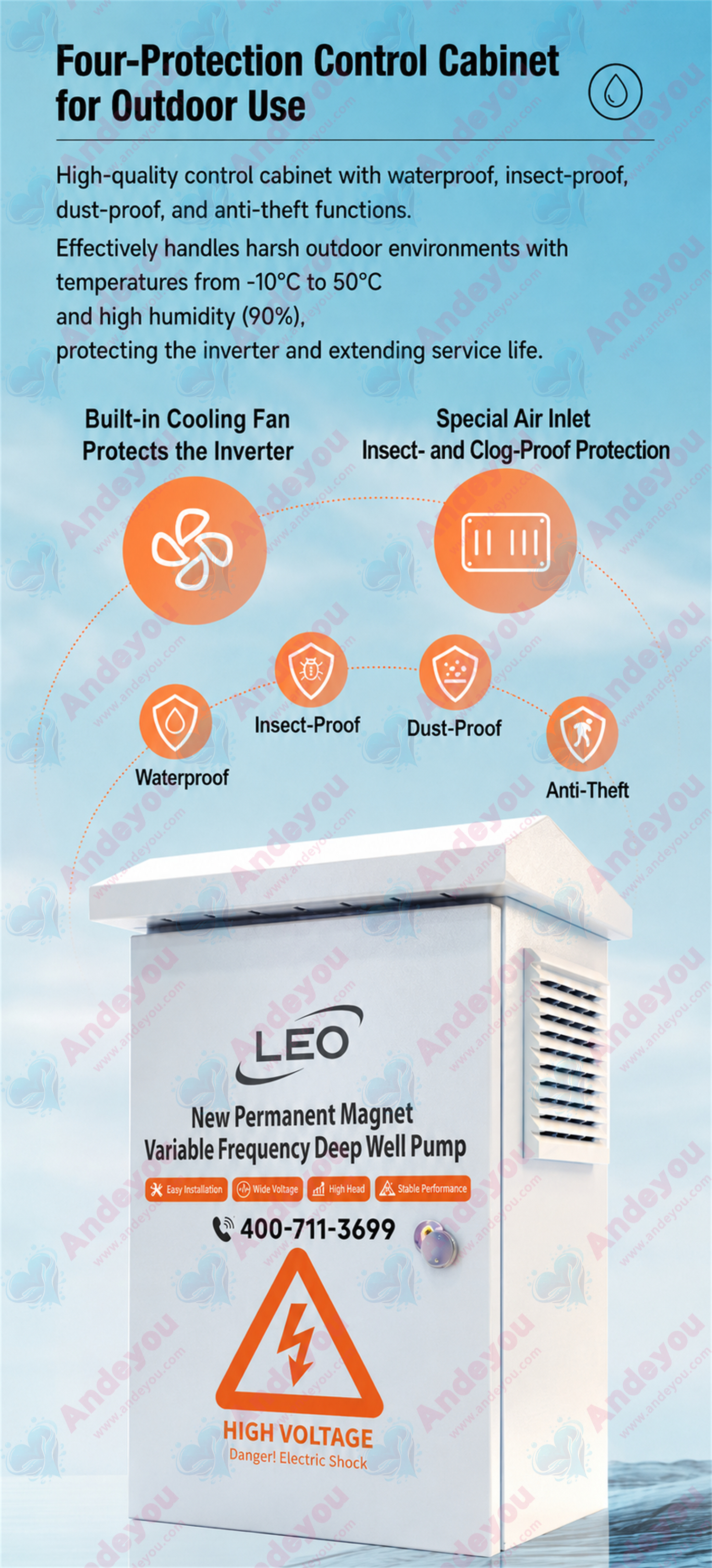

5. Control cabinet offers multi-layer protection (against insects, moisture, high temperatures, and theft) to safeguard the VFD;

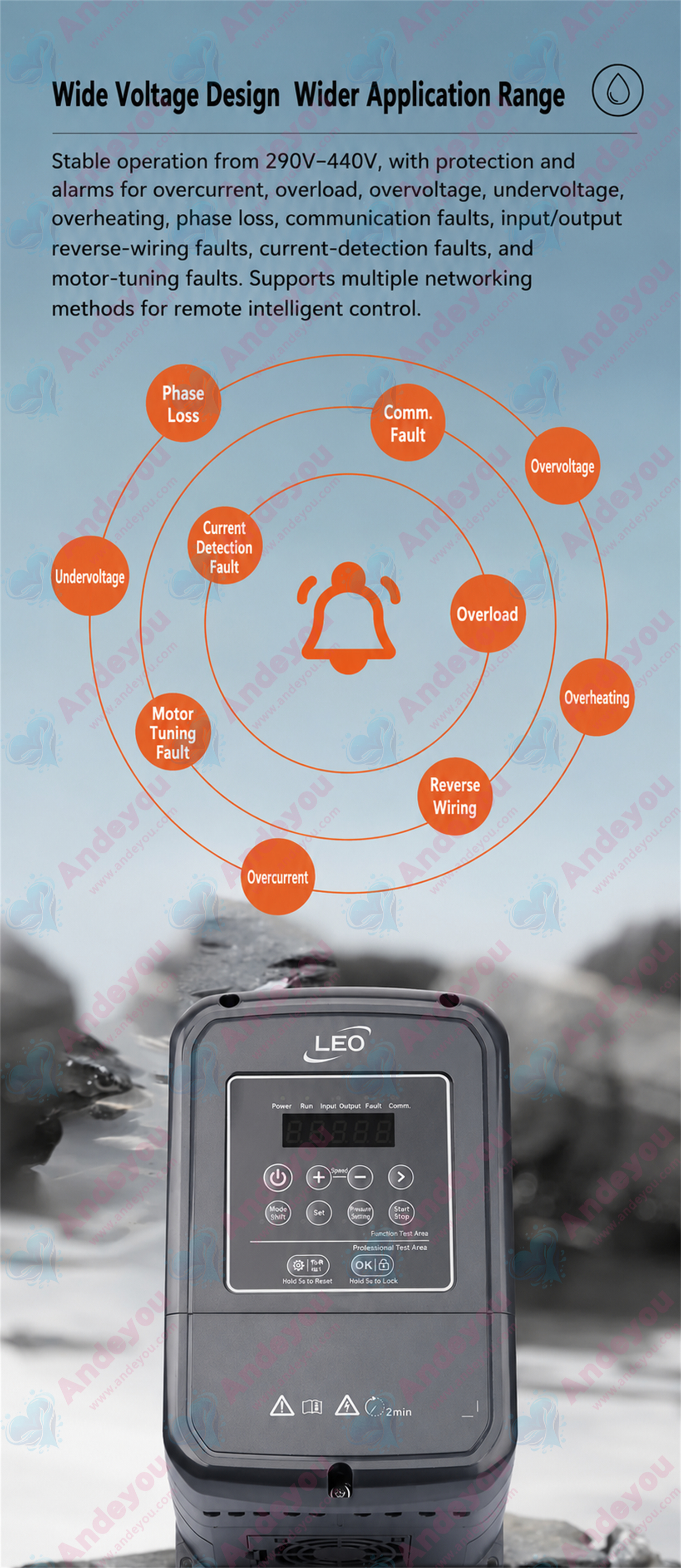

6. Comprehensive nine-point protection system (including dry-run, locked-rotor, and phase-loss protection);

7. One-touch start for easy operation; supports constant pressure and variable frequency output;

8. Dedicated controller supports operation with cable lengths up to 300m;

9. Supports networking for remote intelligent operation;

10. Wide voltage operation (190V–530V).
