LEO XST Standard Centrifugal Pump

XST32-125/7|XST32-125/11|XST32-160/15|XST32-160/22|XST32-160/30|XST32-200/30|XST32-200/40*|XST32-250/55|XST32-250/75|XST40-125/11|XST40-125/15|XST40-125/22|XST40-160/30|XST40-160/40|XST40-20

LEO XST Series Horizontal Inline Centrifugal Pumps – Applications: Water Supply (water plant filtration and transport,main pipeline boosting,pressure boosting for high-rise buildings and hotels); Industry (washing and cleaning systems,boiler feed,cooling water circulation,water treatment systems,equipment integration)

Product Consultation By telephone

Function

Parameters

Size

Video Introduction

Function

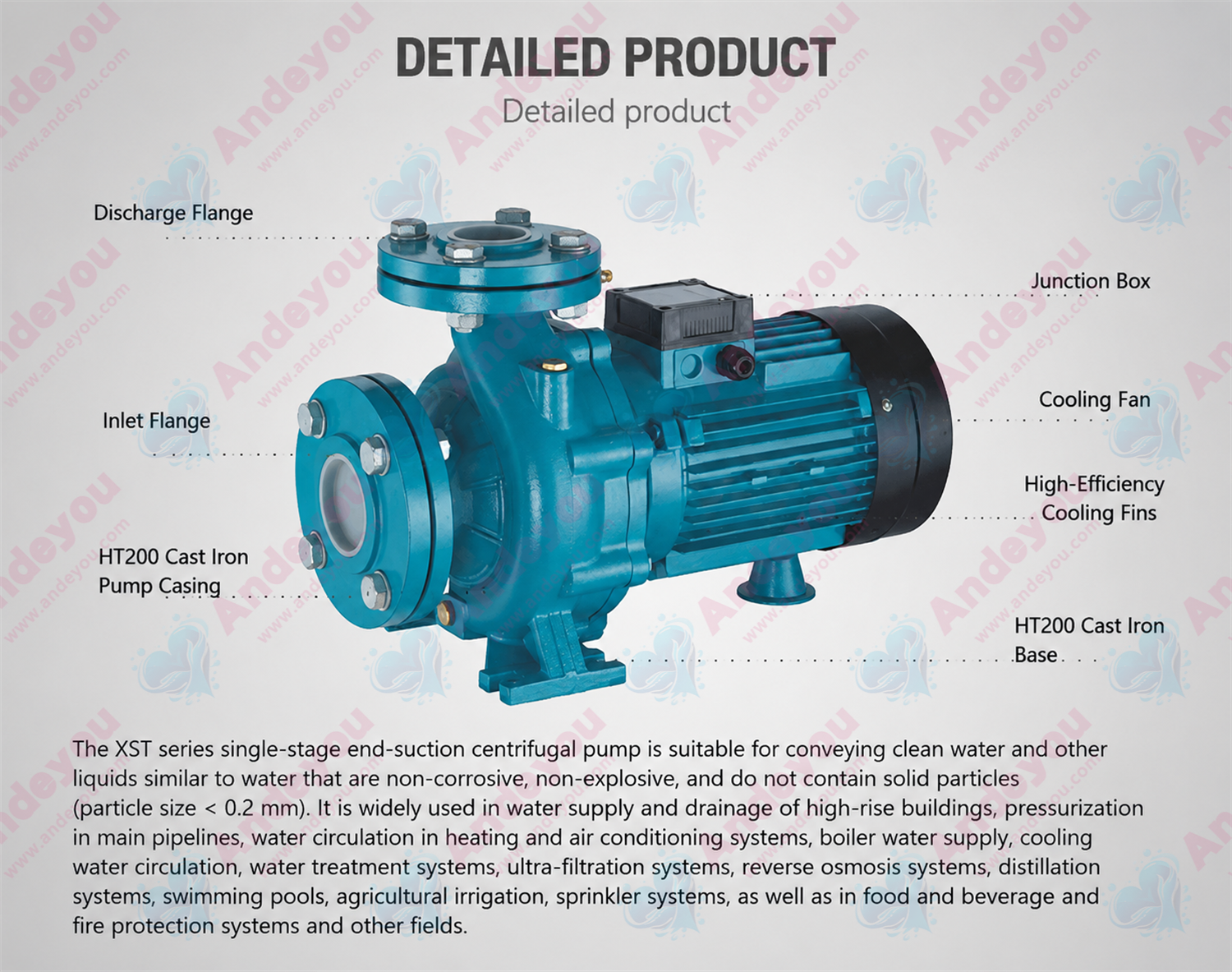

Product Introduction:

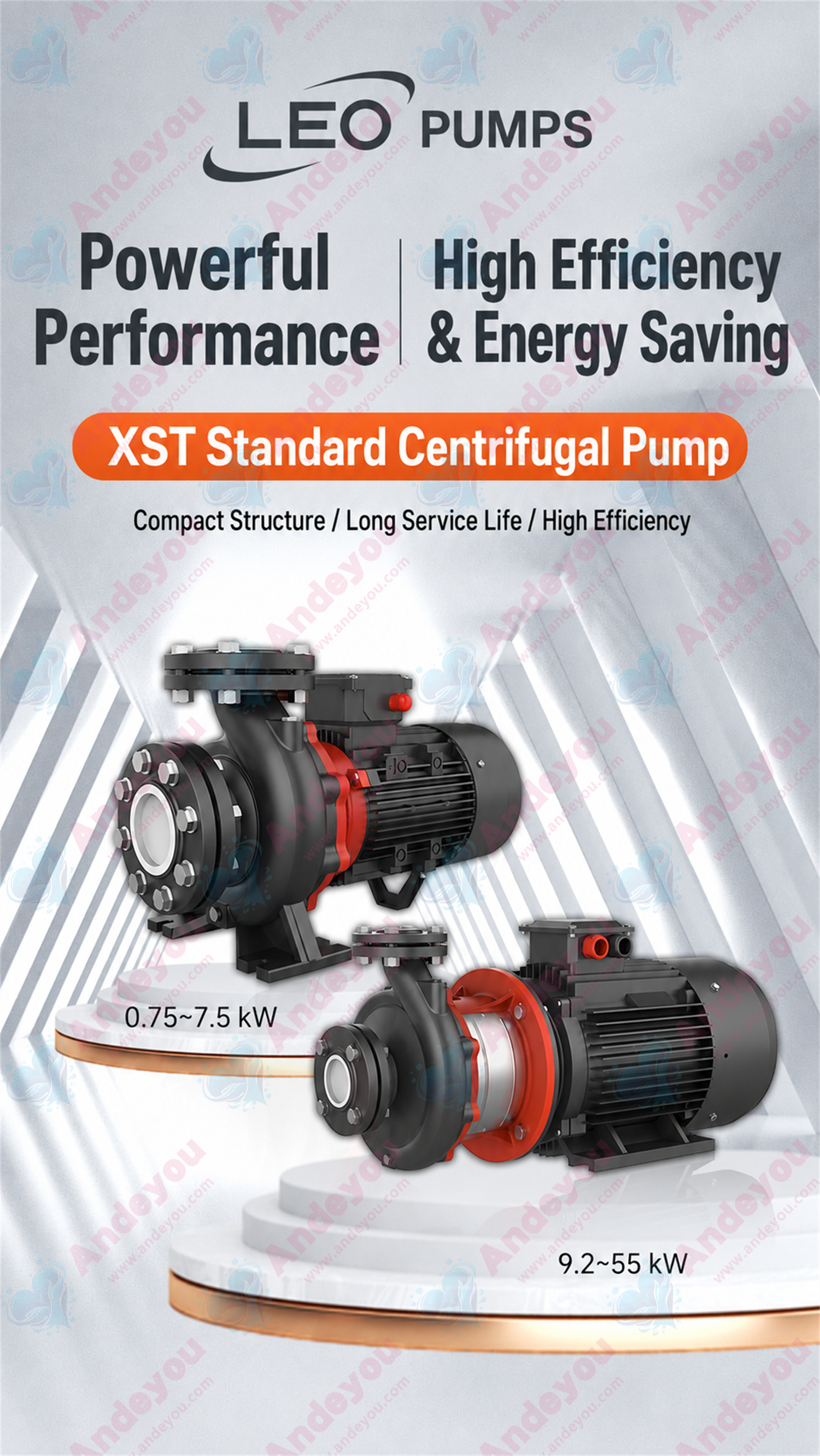

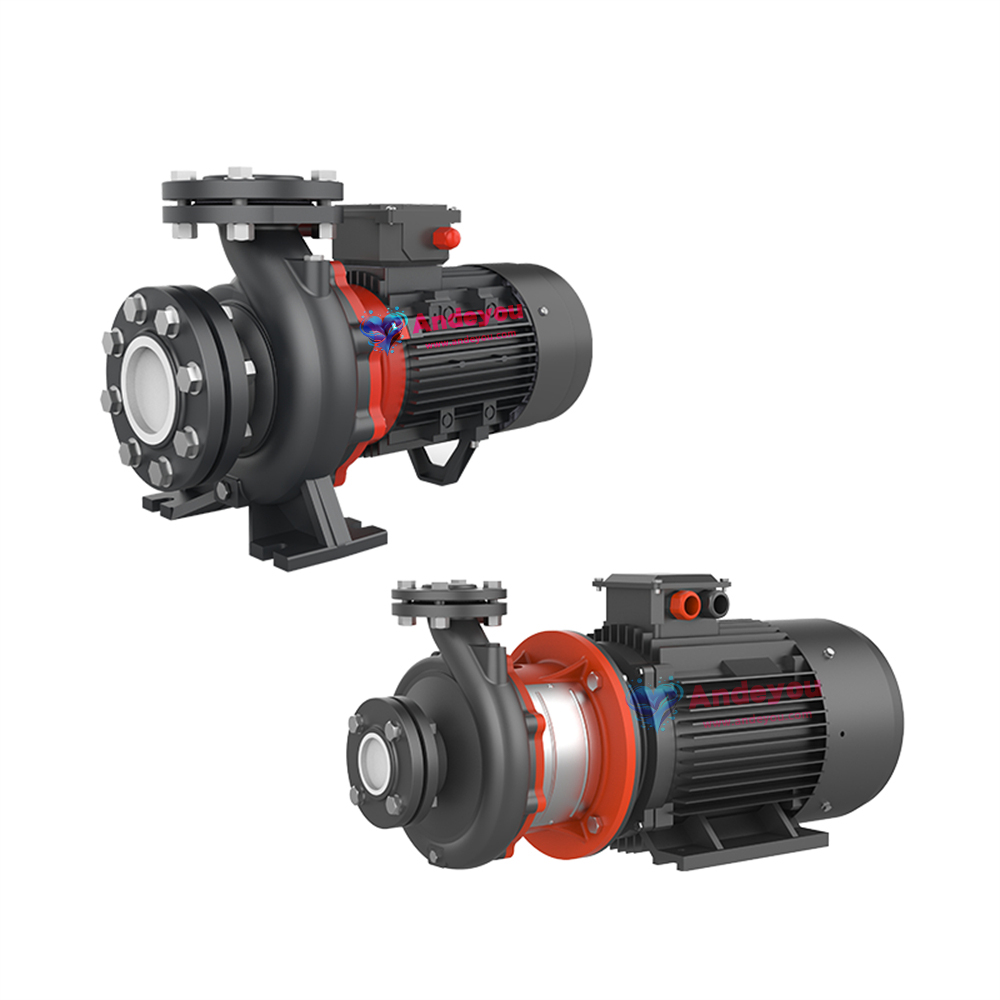

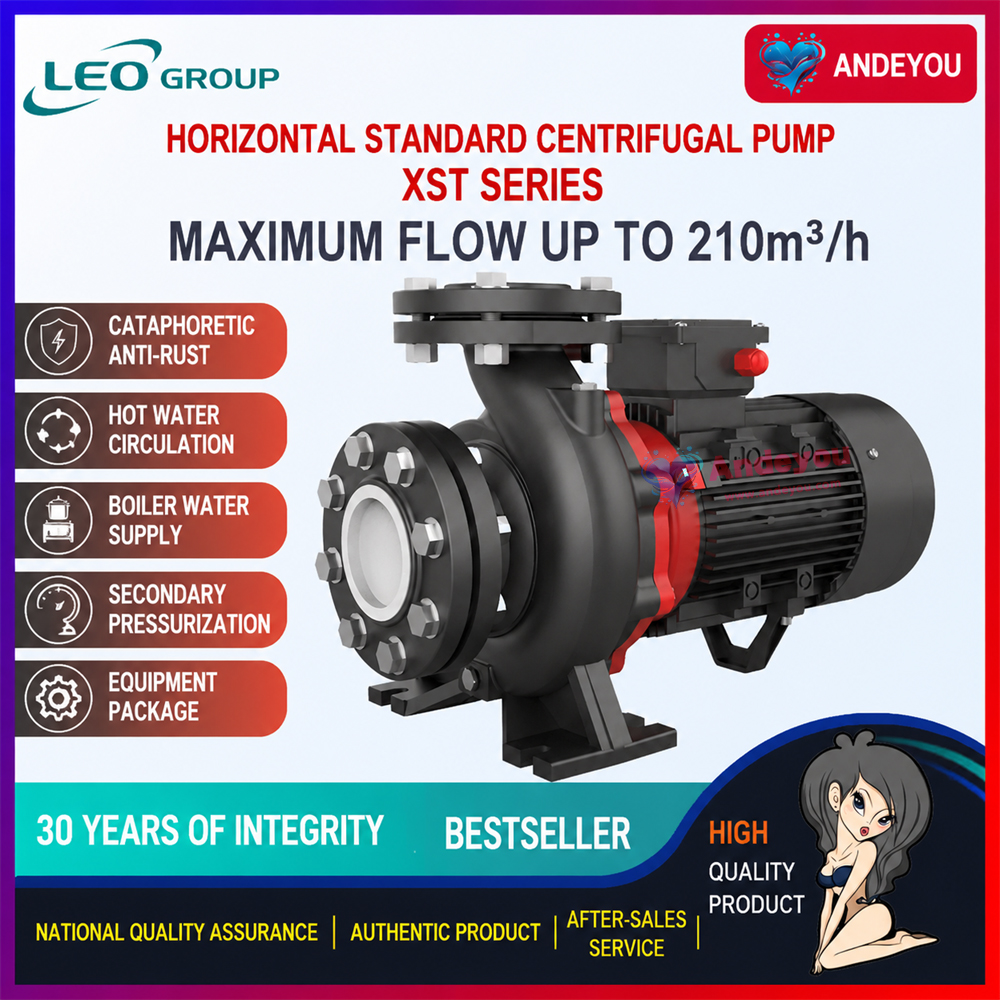

XST Standard Centrifugal Pump

Axial suction, radial discharge
Inlet and outlet ports comply with EN733 standards
Flanges conform to UNI 2236 and DIN 2532 standards

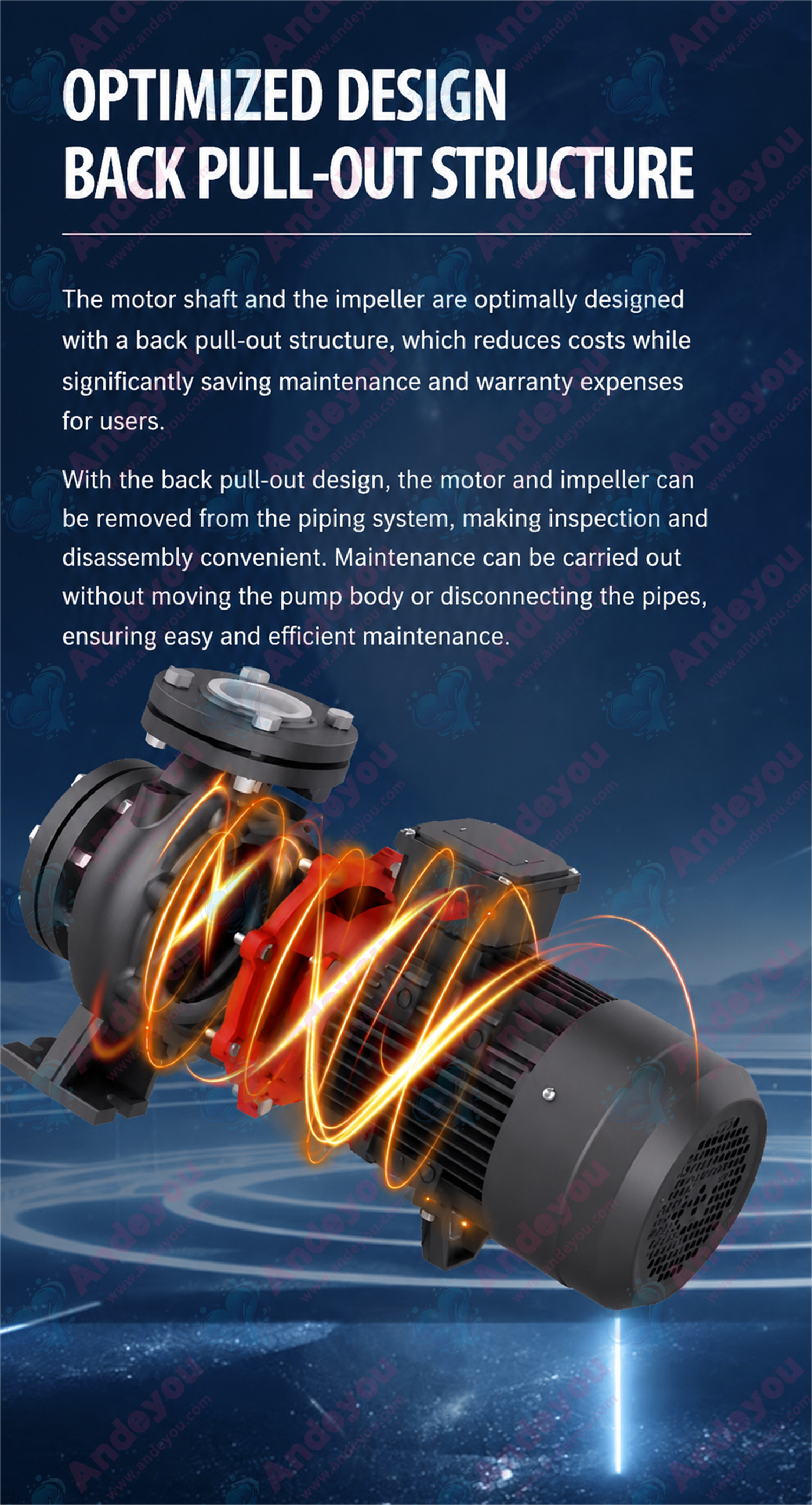

Back-pull-out design (impeller and motor can be removed without disconnecting the pump casing from the piping)

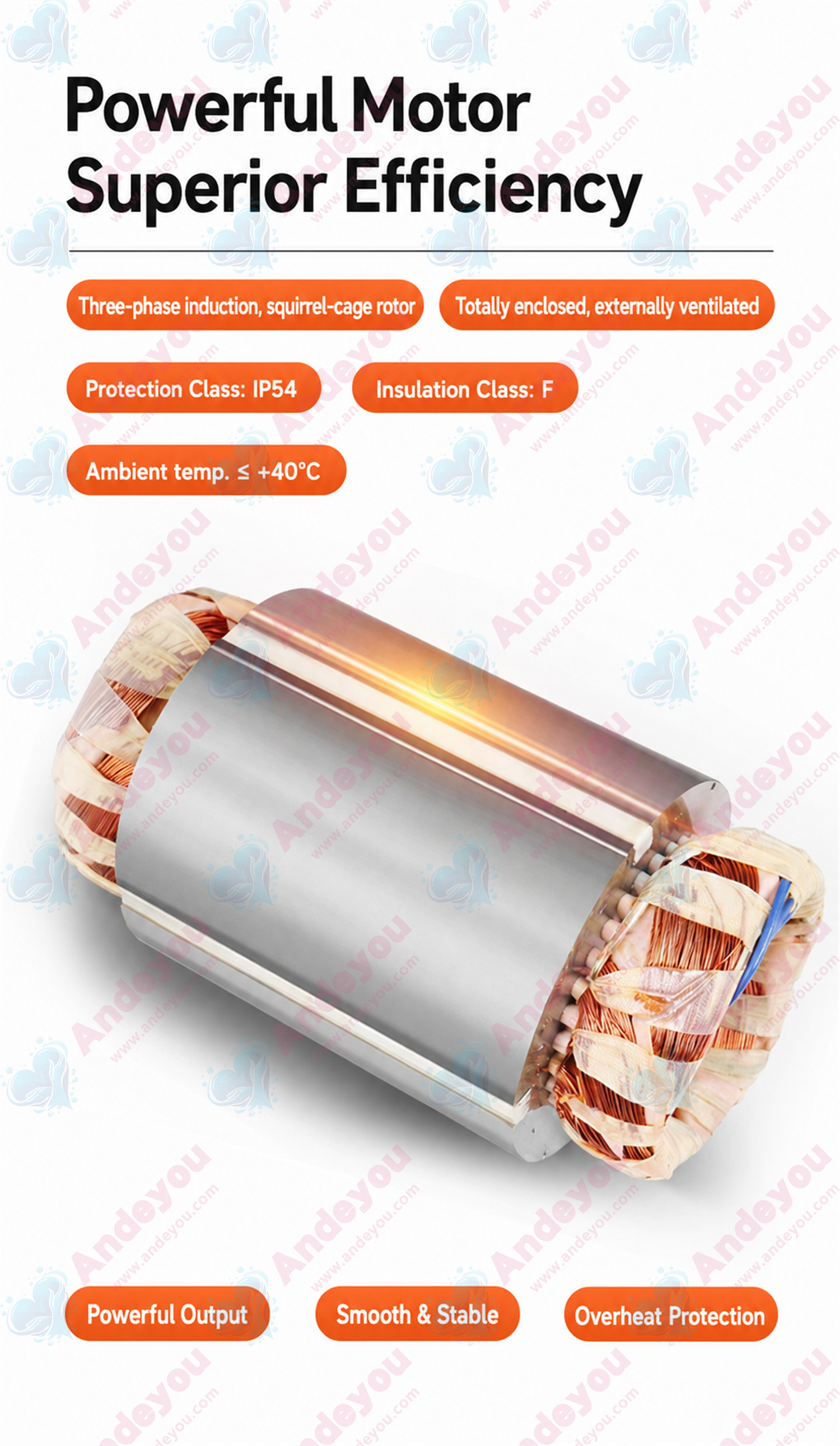

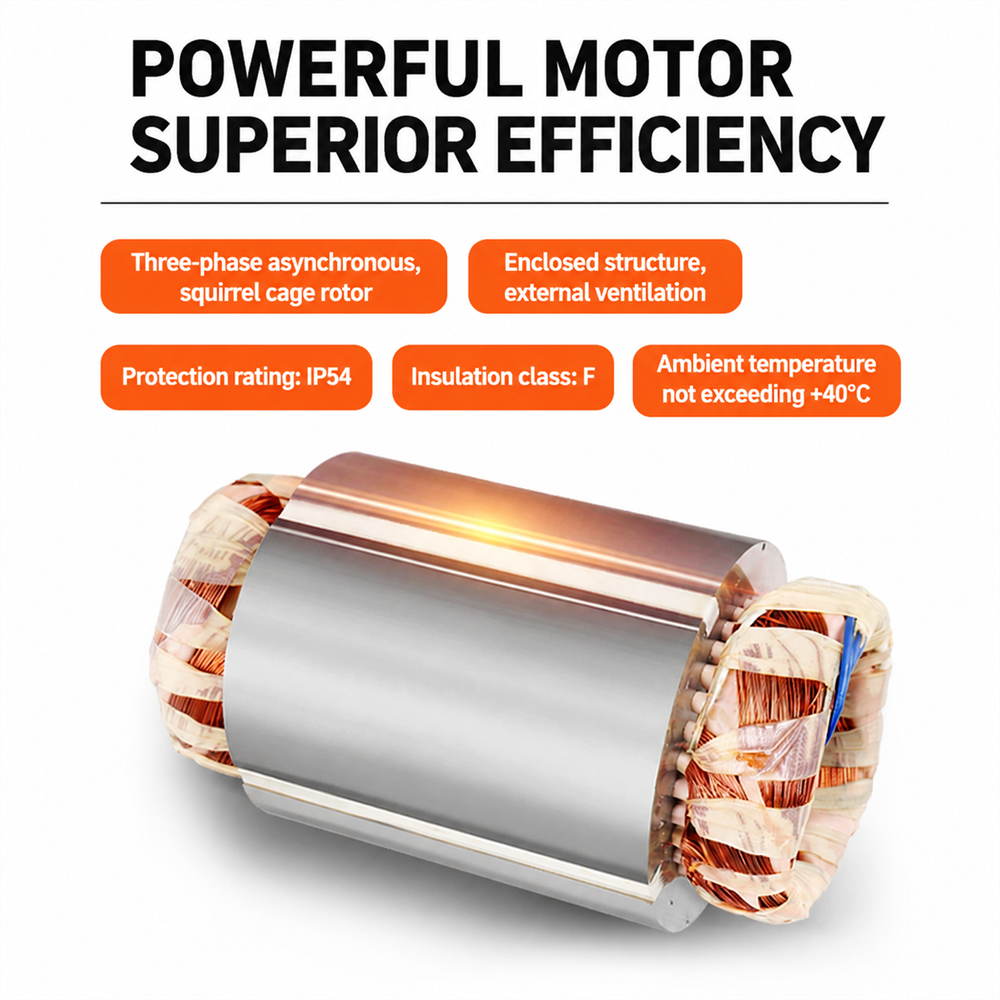

Three-phase asynchronous motor with squirrel-cage rotor
Totally enclosed, externally ventilated
Protection class: IP54
Insulation class: F
Ambient temperature up to +40°C

Applications:

Water Supply: Waterworks filtration and distribution, main pipeline boosting, pressure boosting for high-rise buildings and hotels, etc.
Industry: Washing and cleaning systems, boiler feed water, cooling water circulation, water treatment systems, auxiliary equipment systems.
Water Treatment: Ultrafiltration systems, reverse osmosis systems, distillation systems, separators, swimming pools, HVAC systems, heating systems, agricultural irrigation, fire-fighting systems.

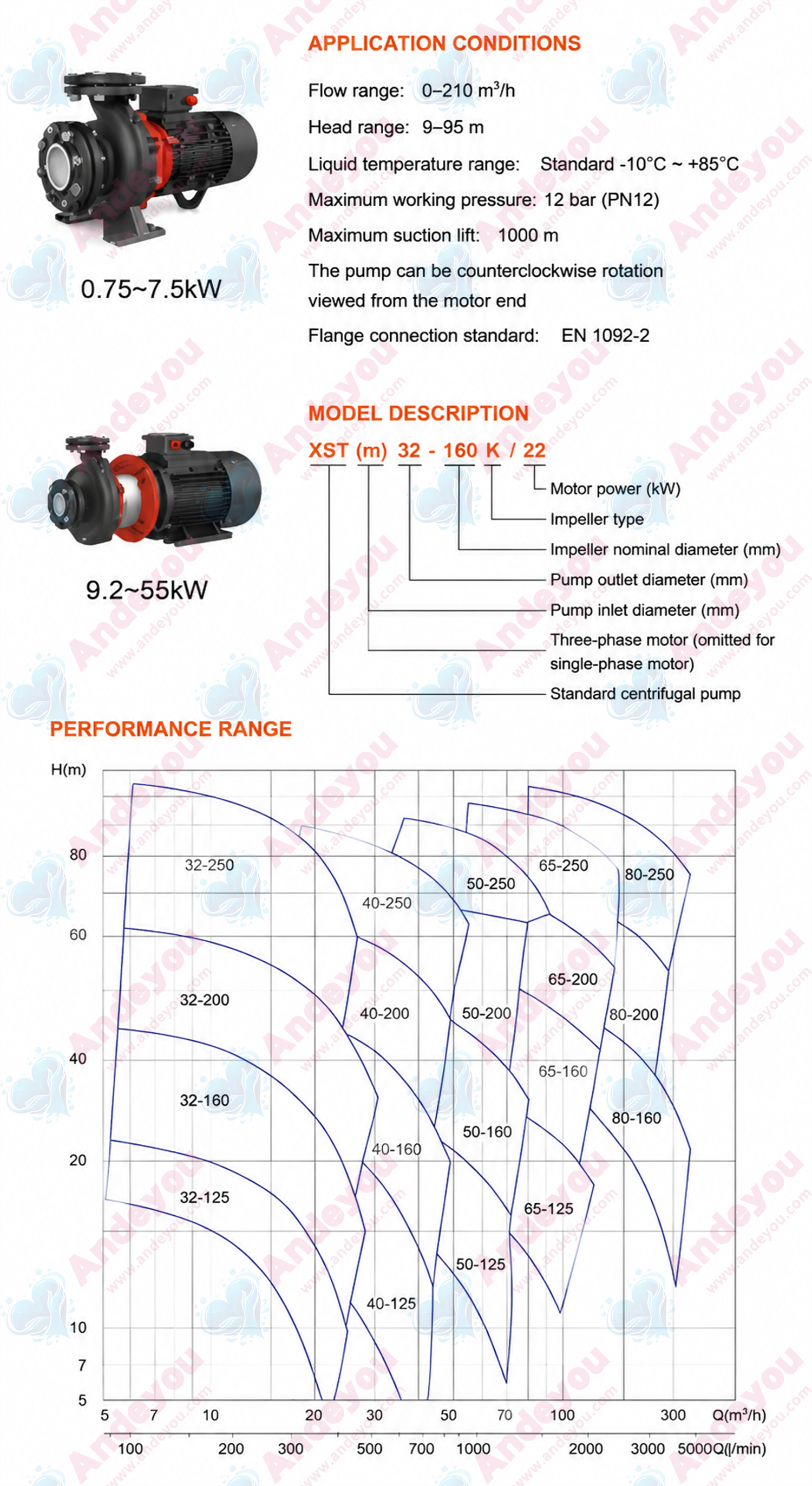

Pump Features:

1. Flow rate up to 210 m³/h

2. Head up to 95 m

3. Liquid temperature: Standard -10°C to 85°C

4. Maximum working pressure: 12 bar (PN12)

5. Maximum altitude: 1000 m

6. Counter-clockwise rotation (viewed from the suction inlet)

7. Mating flanges included

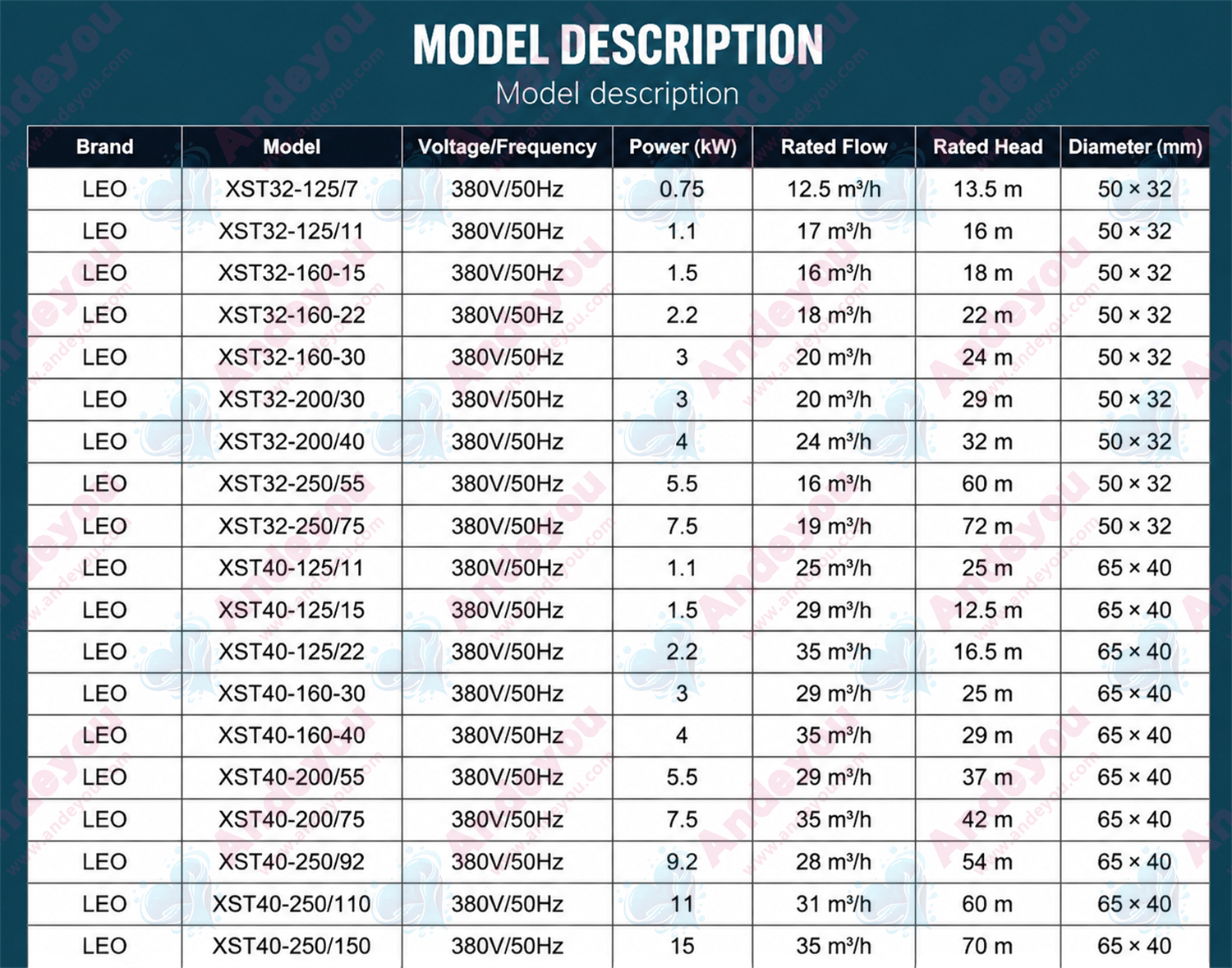

Parameters

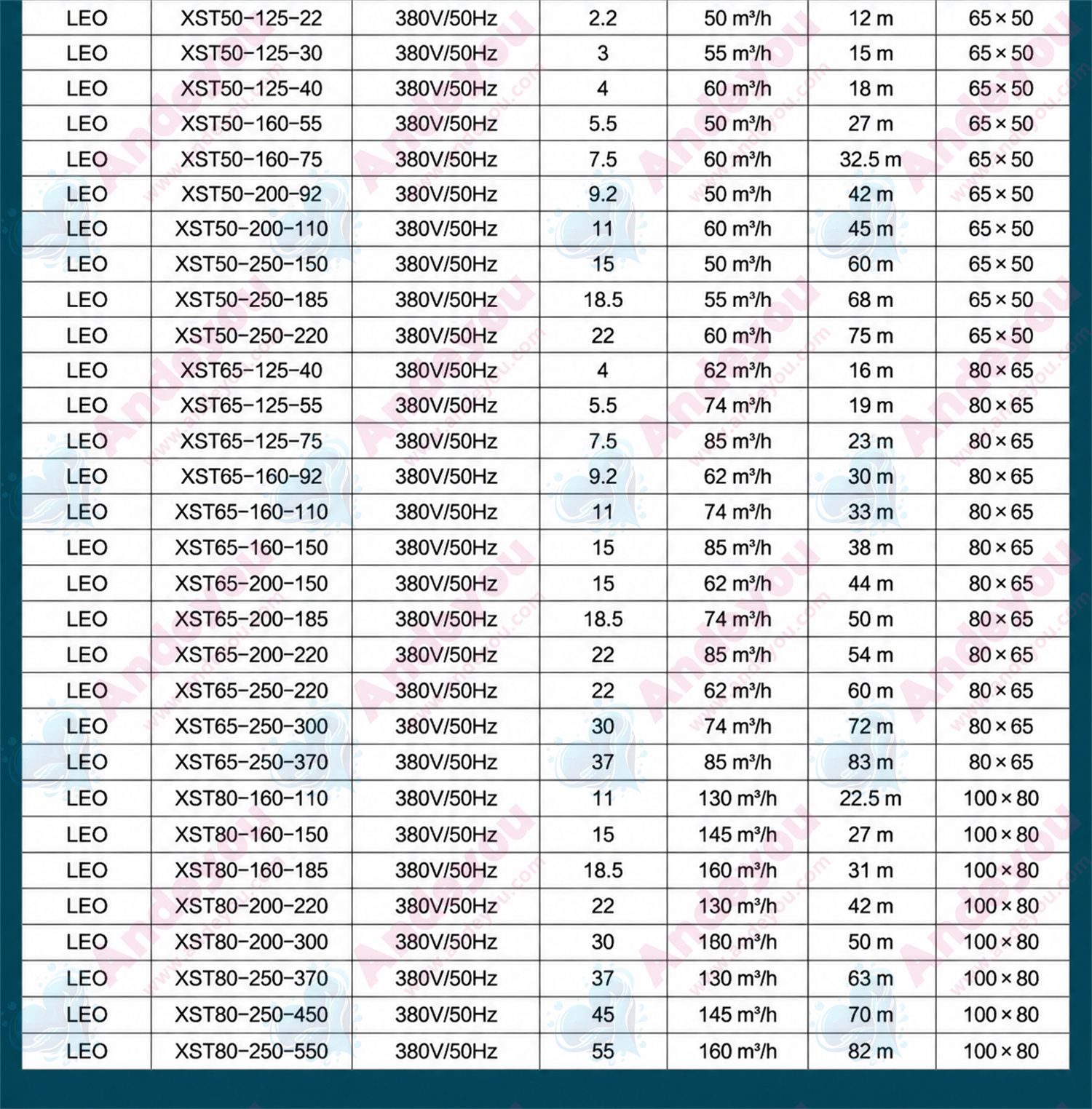

model	Voltage/Frequency	Rated flow rate (m³/h)	Rated Head (m)	Power (kW)	Inlet and outlet diameters
XST32-125/7*	380V/50Hz	12.5	13.5	0.75	50×32
XST32-125/11*	380V/50Hz	17	16	1.1	50×32
XST32-160/15*	380V/50Hz	16	18	1.5	50×32
XST32-160/22*	380V/50Hz	18	22	2.2	50×32
XST32-160/30*	380V/50Hz	20	24	3	50×32
XST32-200/30*	380V/50Hz	20	29	3	50×32
XST32-200/40*	380V/50Hz	24	32	4	50×32
XST32-250/55**	380V/50Hz	16	60	5.5	50×32
XST32-250/75**	380V/50Hz	19	72	7.5	50×32
XST40-125/11	380V/50Hz	25	11	1.1	65×40
XST40-125/15	380V/50Hz	29	12.5	1.5	65×40
XST40-125/22	380V/50Hz	35	16.5	2.2	65×40
XST40-160/30	380V/50Hz	29	25	3	65×40
XST40-160/40	380V/50Hz	35	29	4	65×40
XST40-200/55*	380V/50Hz	29	37	5.5	65×40
XST40-200/75*	380V/50Hz	35	42	7.5	65×40
XST40-250/92*	380V/50Hz	28	54	9.2	65×40
XST40-250/110*	380V/50Hz	31	60	11	65×40
XST40-250/150*	380V/50Hz	35	70	15	65×40
XST50-125/22	380V/50Hz	50	12	2.2	65×50
XST50-125/30	380V/50Hz	55	15	3	65×50
XST50-125/40	380V/50Hz	60	18	4	65×50
XST50-160/55	380V/50Hz	50	27	5.5	65×50
XST50-160/75	380V/50Hz	60	32.5	7.5	65×50
XST50-200/92*	380V/50Hz	50	42	9.2	65×50
XST50-200/110*	380V/50Hz	60	45	11	65×50
XST50-250/150*	380V/50Hz	50	60	15	65×50
XST50-250/185*	380V/50Hz	55	68	18.5	65×50
XST50-250/220*	380V/50Hz	60	75	22	65×50
XST65-125/40	380V/50Hz	62	16	4	80×65
XST65-125/55	380V/50Hz	74	19	5.5	80×65
XST65-125/75	380V/50Hz	85	23	7.5	80×65
XST65-160/92	380V/50Hz	62	30	9.2	80×65
XST65-160/110	380V/50Hz	74	33	11	80×65
XST65-160/150	380V/50Hz	85	38	15	80×65
XST65-200/150	380V/50Hz	62	44	15	80×65
XST65-200/185	380V/50Hz	74	50	18.5	80×65
XST65-200/220	380V/50Hz	85	54	22	80×65
XST65-200K/185	380V/50Hz	110	39	18.5	80×65
XST65-200K/220	380V/50Hz	120	44	22	80×65
XST65-200K/300	380V/50Hz	130	55	30	80×65
XST65-250/220	380V/50Hz	62	60	22	80×65
XST65-250/300	380V/50Hz	74	72	30	80×65
XST65-250/370	380V/50Hz	85	83	37	80×65
XST80-160/110	380V/50Hz	130	22.5	11	100×80
XST80-160/150	380V/50Hz	145	27	15	100×80
XST80-160/185	380V/50Hz	160	31	18.5	100×80
XST80-200/220	380V/50Hz	130	42	22	100×80
XST80-200/300	380V/50Hz	160	50	30	100×80
XST80-250/370	380V/50Hz	130	42	22	100×80
XST80-250/450	380V/50Hz	145	70	45	100×80
XST80-250/550	380V/50Hz	160	82	55	100×80
