Product Introduction:

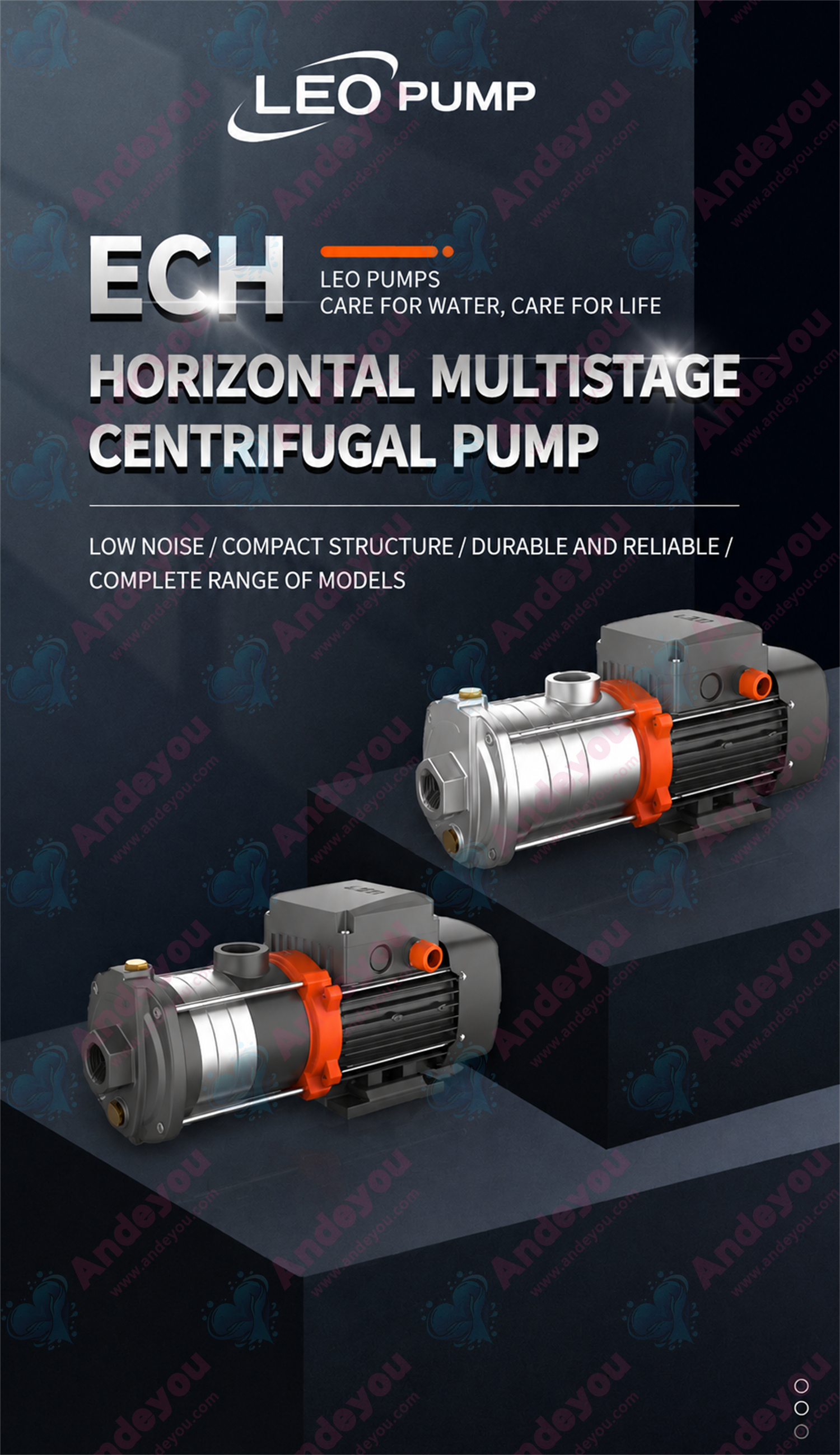

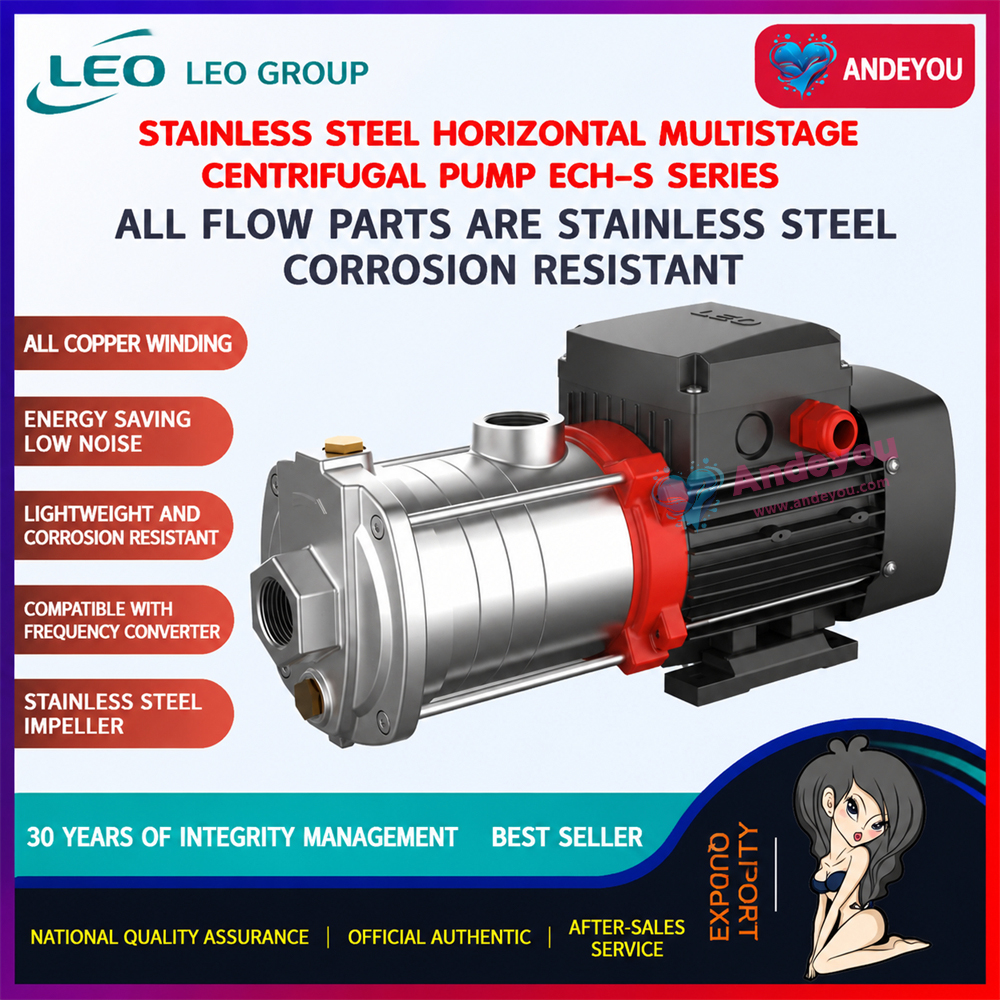

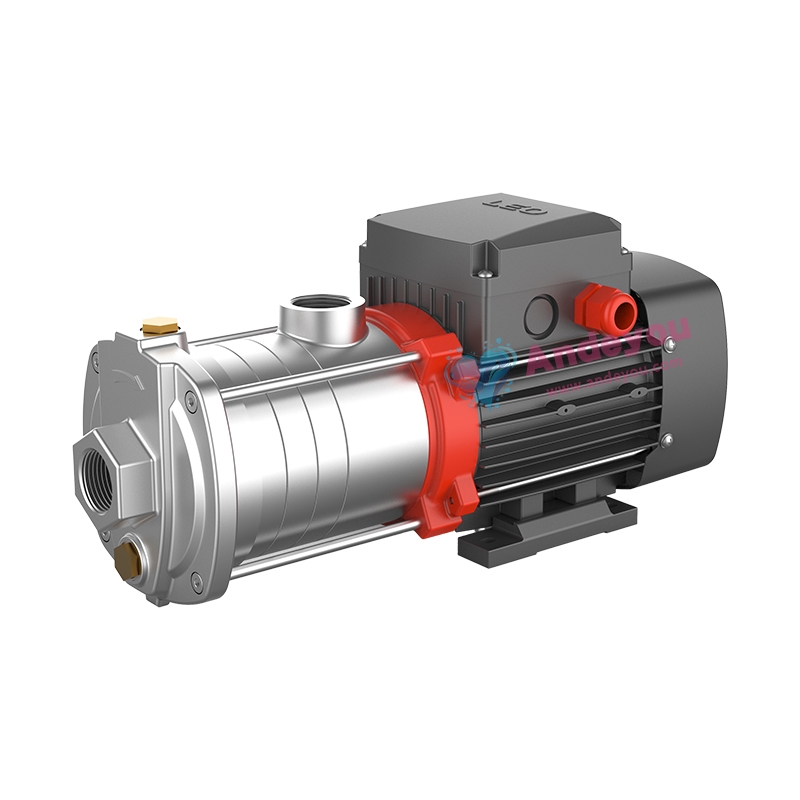

ECH-S Horizontal Stainless Steel Multistage Centrifugal Pump

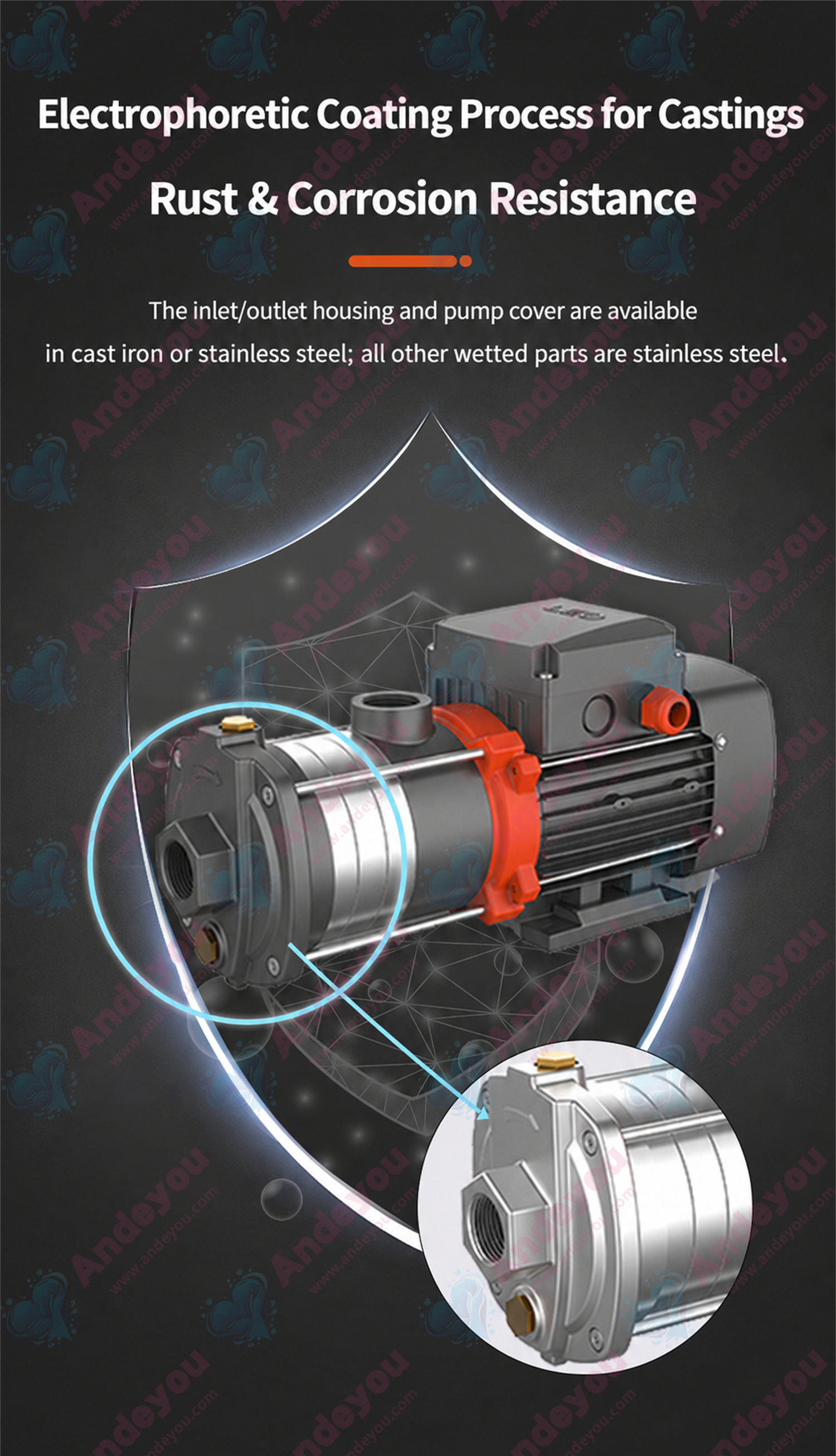

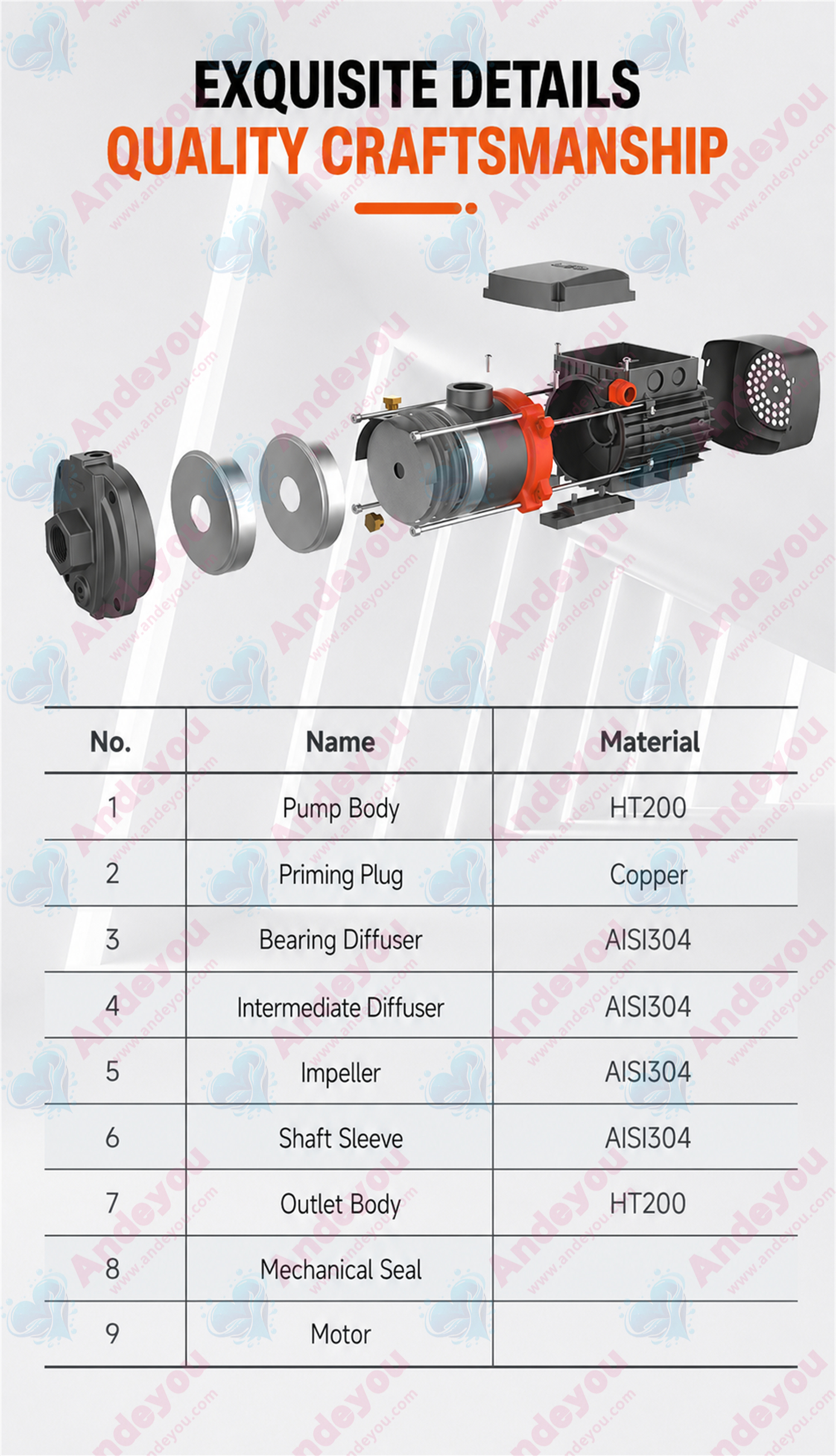

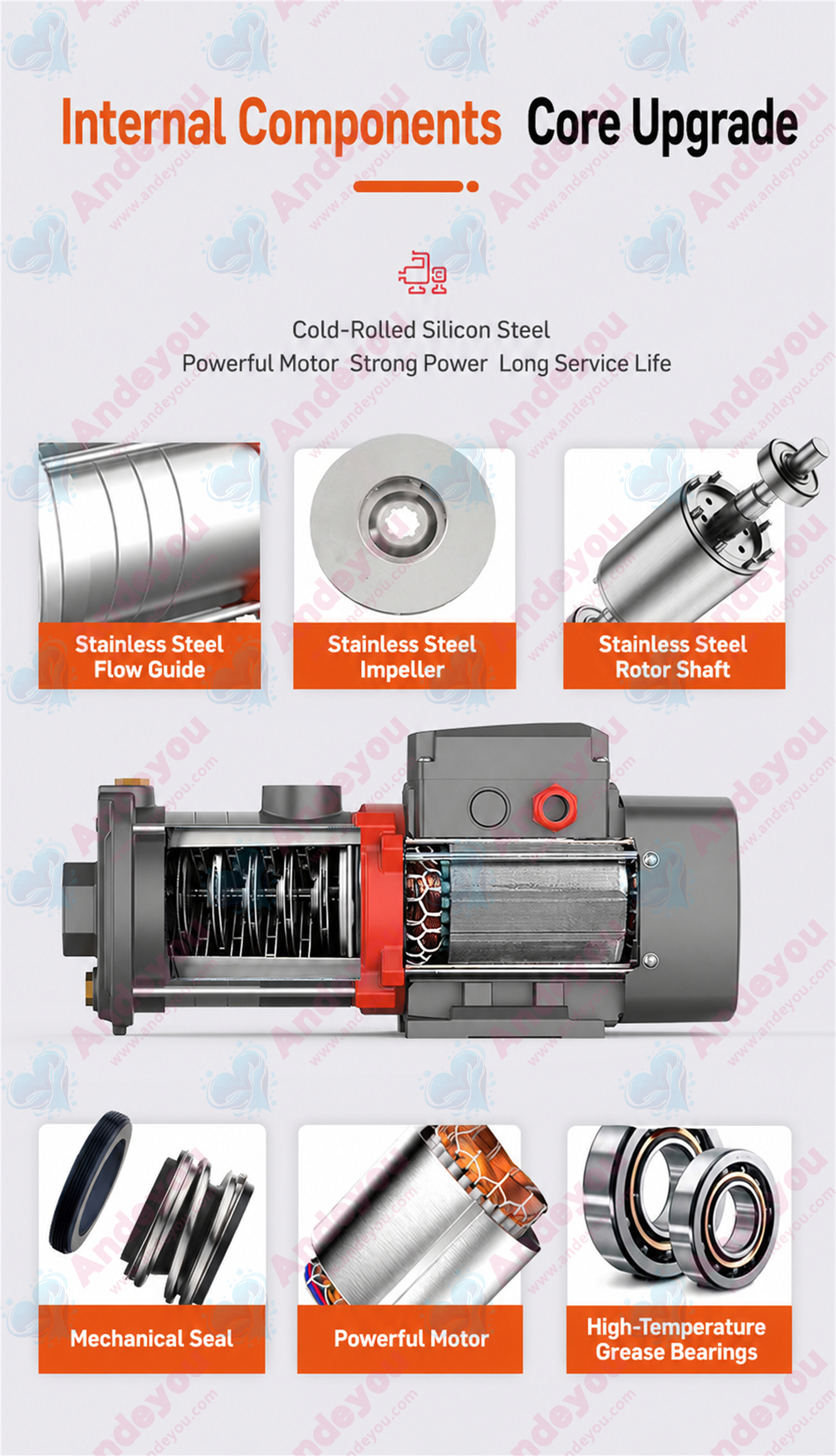

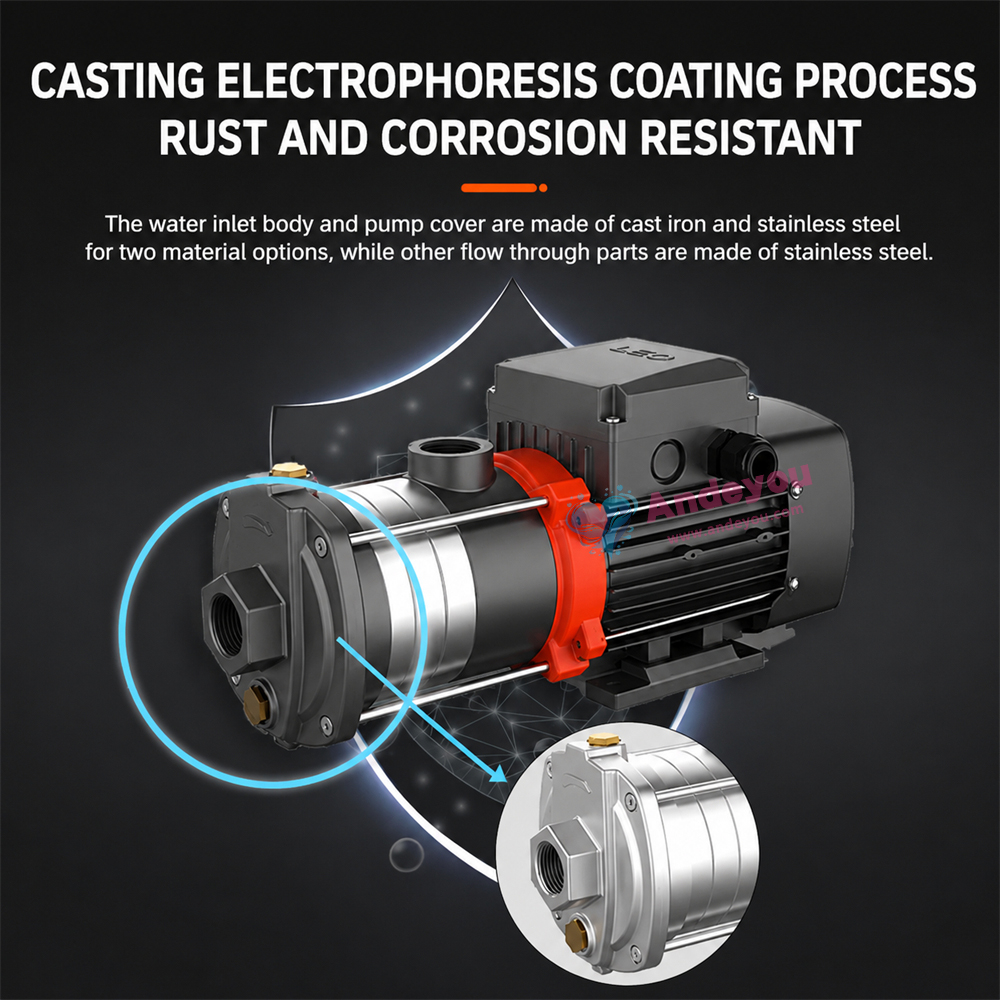

The ECH-S series features horizontal stainless steel multistage pumps; all wetted parts are made of 304 stainless steel, ensuring superior corrosion resistance and water purity.
Equipped with IPX4 protection and Class F insulation, the pump guarantees safety and reliability.
It ensures high flow rates across various operating conditions, providing worry-free water usage.
Standard motor configuration delivers powerful performance with lower energy consumption.

Suitable for liquids that are thin, clean, non-corrosive, non-flammable, and non-explosive, and free from solid particles or fibers.

If the density of the pumped medium exceeds that of clean water, a higher-power motor is required.

Applications:

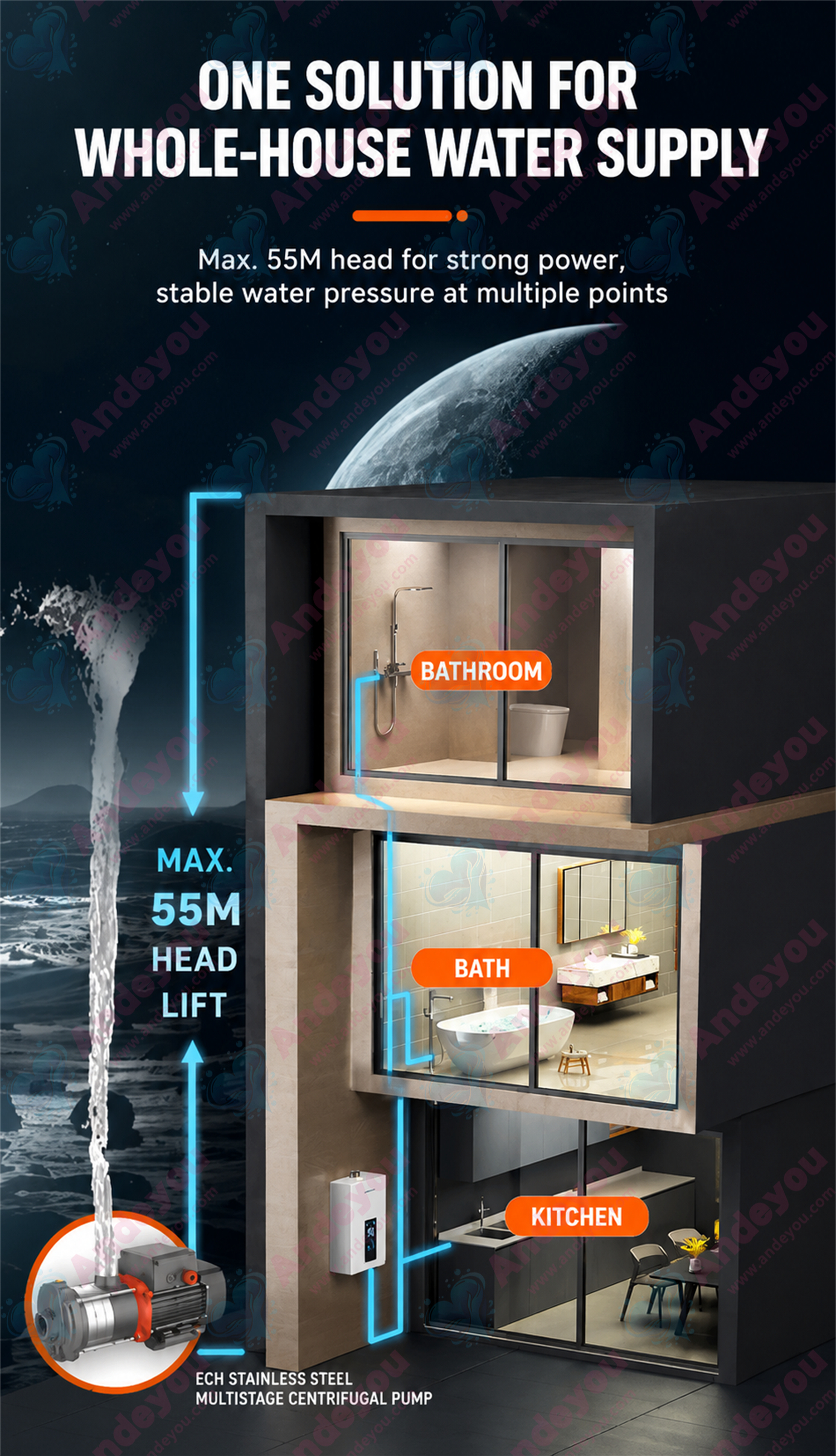

Liquid transfer and circulation in light industry, pressure boosting, and domestic water supply; also widely used in cooling and air-conditioning systems.

Pump Features:

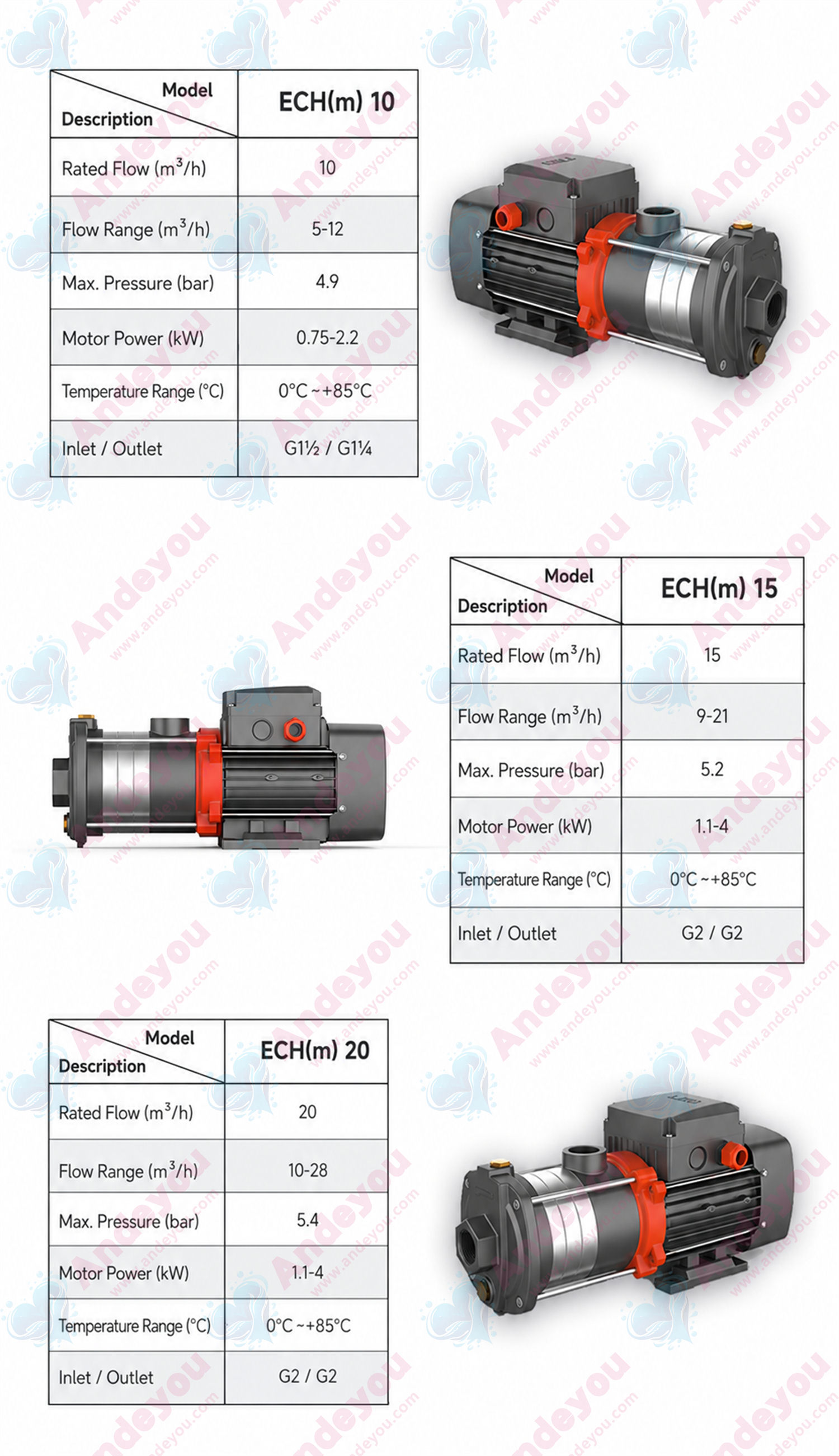

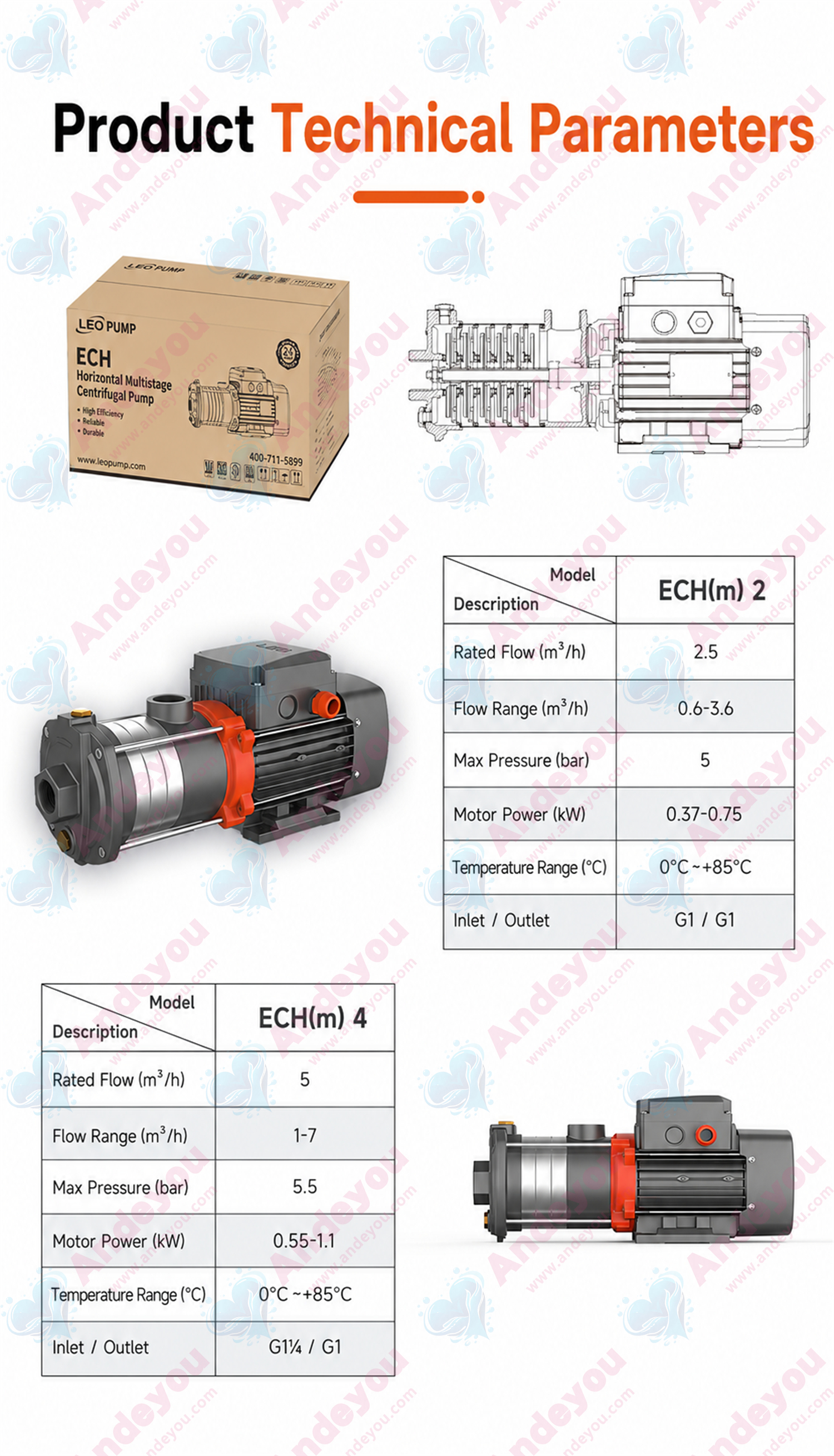

1. Liquid temperature range: 0°C to 85°C

2. Maximum ambient temperature: +40°C

3. Maximum suction lift: Depends on factors such as the pump's NPSH (Net Positive Suction Head), medium temperature, installation altitude, and inlet piping losses.

4. Maximum operating pressure: 10 bar

5. Maximum inlet pressure: Limited by the maximum operating pressure

6. Pump equipped with a totally enclosed, fan-cooled, squirrel-cage motor

7. Protection class: IP55

8. Insulation class: F

9. Standard voltage: Single-phase 220-240V/50Hz; Three-phase 380-415V/50Hz

10. Single-phase motors feature built-in thermal overload protection; three-phase motors must be connected to a motor starter in accordance with local regulations.
