LEO ECH-F Horizontal Stainless Steel Multistage Centrifugal Pump

ECH15-30-F|ECH15-40-F|ECH20-30-F|ECH20-40-F|ECHm2-20-F|ECHm2-30-F|ECHm2-40-F|ECHm2-50-F|ECHm2-60-F|ECHm4-20-F|ECHm4-30-F|ECHm4-40-F|ECHm4-50-F|ECHm4-60-F|ECHm10-10-F|ECHm10-20-F|ECHm10-30-F

The Leo ECH-F series horizontal stainless steel multistage centrifugal pump is widely used in residential water supply,industrial applications,and the construction sector.It is suitable for HVAC systems; building water supply and pipeline pressurization; industrial equipment integration (such as cooling water transport and circulation for chillers,coal-to-electric HVAC systems,and air-source heat pump systems); and water treatment systems.

Product Consultation By telephone

Function

Parameters

Size

Video Introduction

Function

The ECH-F model has been discontinued by the manufacturer; please purchase the ECH model instead.

Product Introduction:

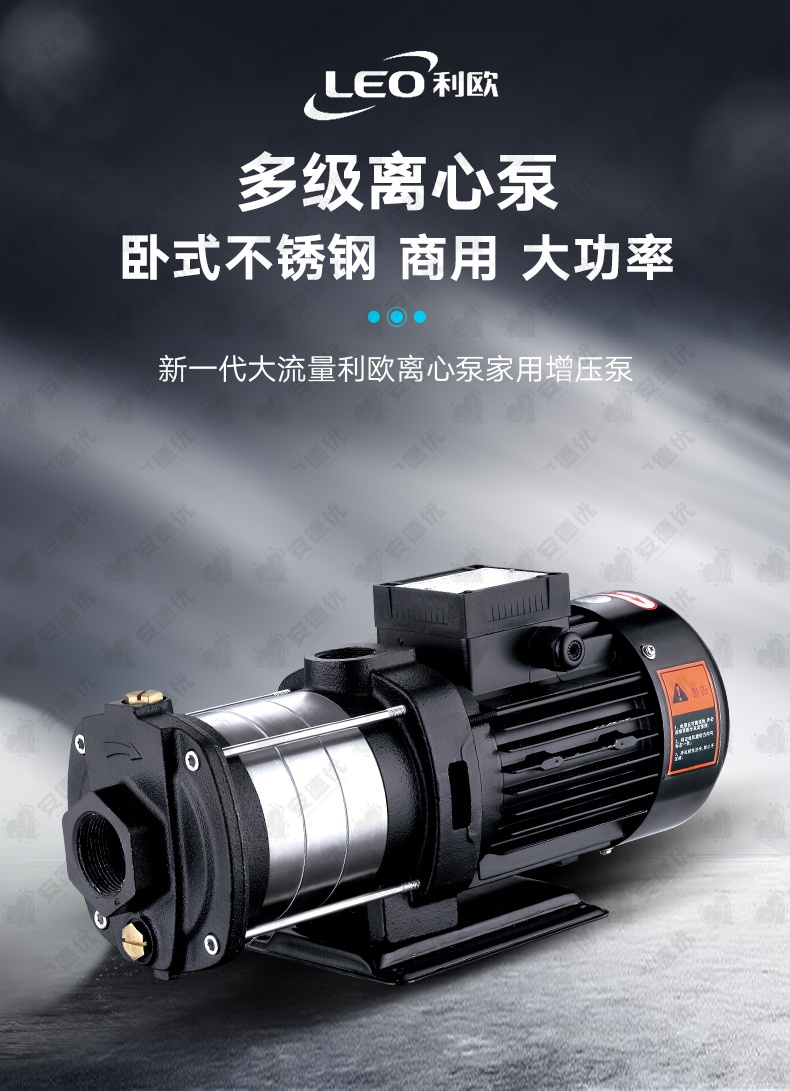

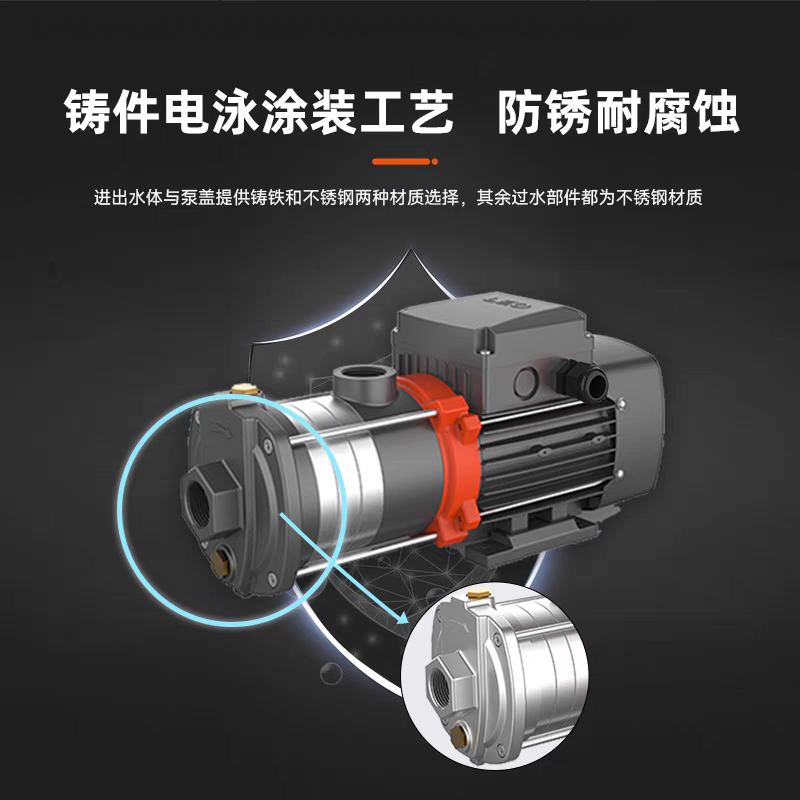

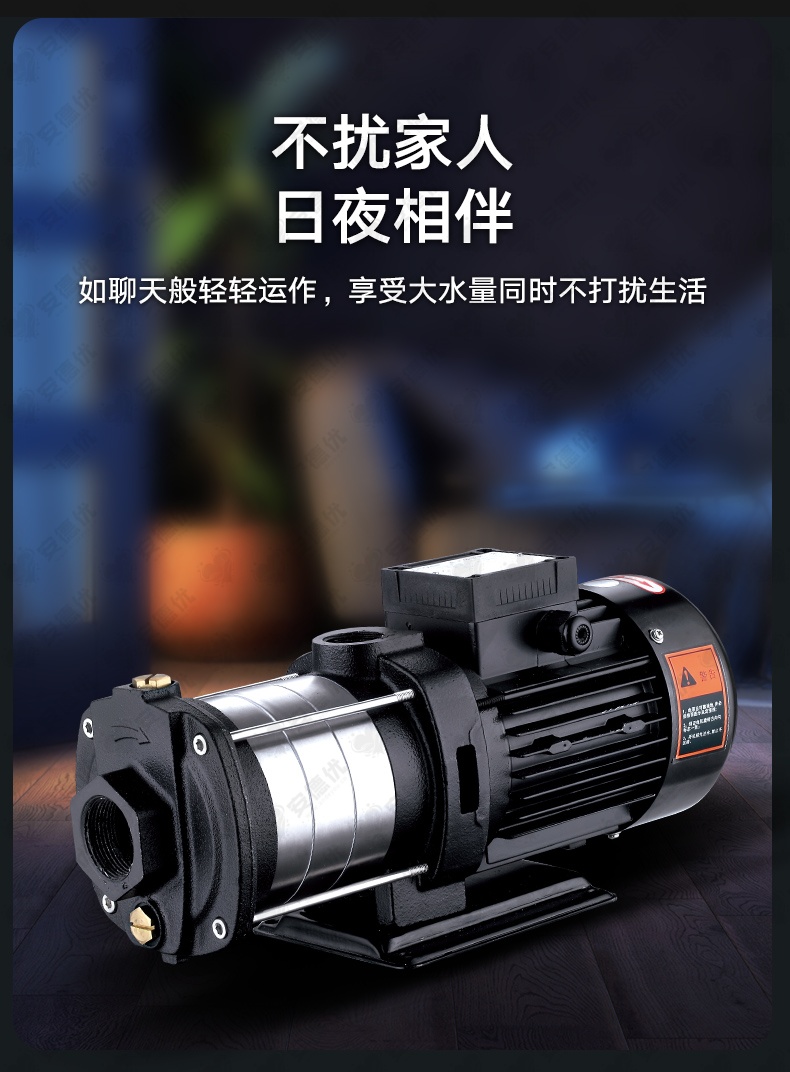

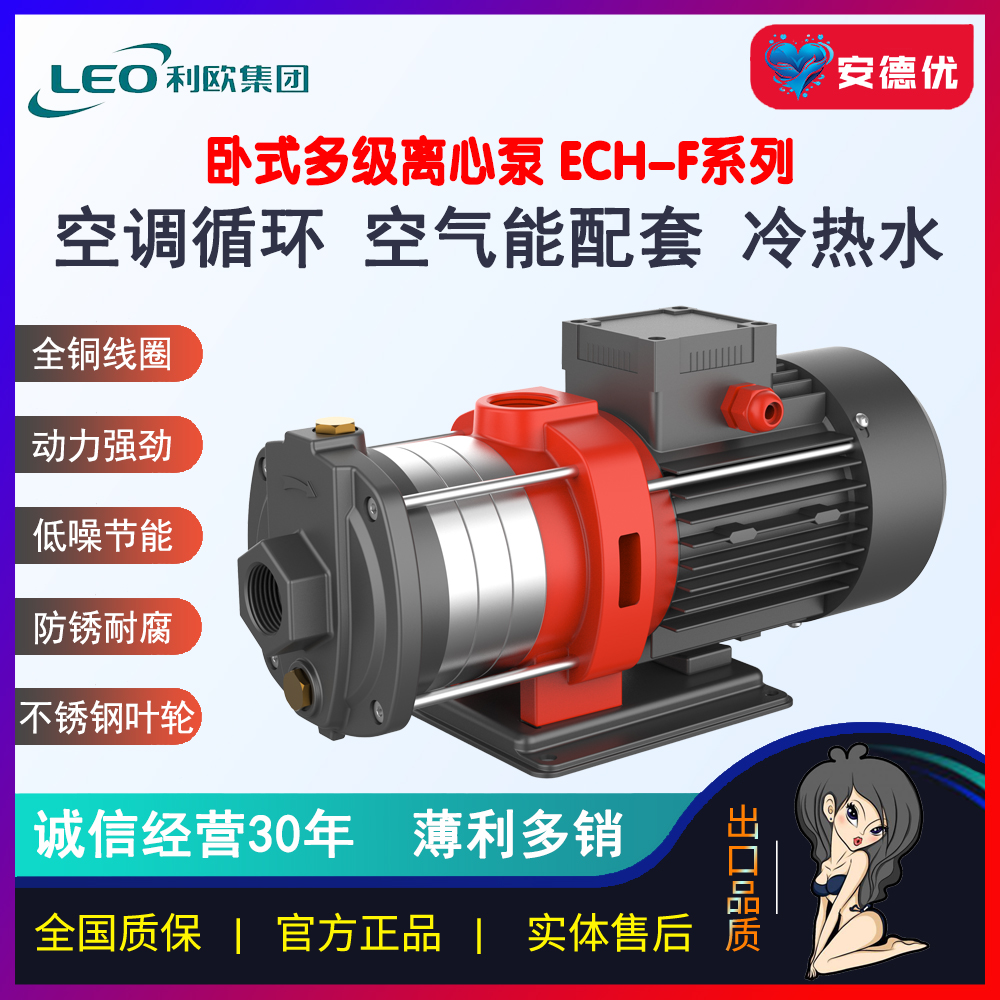

ECH-F Horizontal Stainless Steel Multistage Centrifugal Pump

Compact structure, space-saving, safe, and reliable;
Commercial-grade, high-power performance;
Stainless steel impeller: corrosion-resistant, rust-resistant, and durable;
Stainless steel outlet: safe and hygienic;
Leakage protection; automatically compensates pressure to the set pipeline level when pressure drops to the startup threshold.

Applications:

Liquid transfer and circulation in light industry; domestic water supply boosting, solar/electric water heater pressurization, villa water supply, and centralized water supply for multi-unit buildings; also widely used in cooling and air conditioning systems.

The ECH-F series consists of horizontal stainless steel multistage pumps with a wide range of applications in domestic water supply, industry, and construction. Suitable for: HVAC systems; building water supply and pipeline pressurization; industrial equipment integration; cooling water transfer and circulation (chillers, coal-to-electric AC systems, air-source heat pumps, etc.); and water treatment system integration.

Pump Features:

1. The pumped medium must be low-viscosity, non-flammable, non-explosive, non-vaporizing, and free of solid particles (particle size ≤ 0.2 mm) or fibers; the medium must not chemically react with the pump materials. 2. If the density of the pumped medium exceeds that of clean water, a higher-power motor is required.

3. Liquid temperature range: 0°C to 60°C

4. Maximum ambient temperature: +40°C

5. Maximum installation altitude: Depends on factors such as the pump's NPSH (Net Positive Suction Head), medium temperature, installation site elevation, and inlet piping losses.

6. Maximum operating pressure: 10 bar

7. Maximum inlet pressure: Limited by the maximum operating pressure.

8. Pump equipped with a totally enclosed, fan-cooled, squirrel-cage motor.

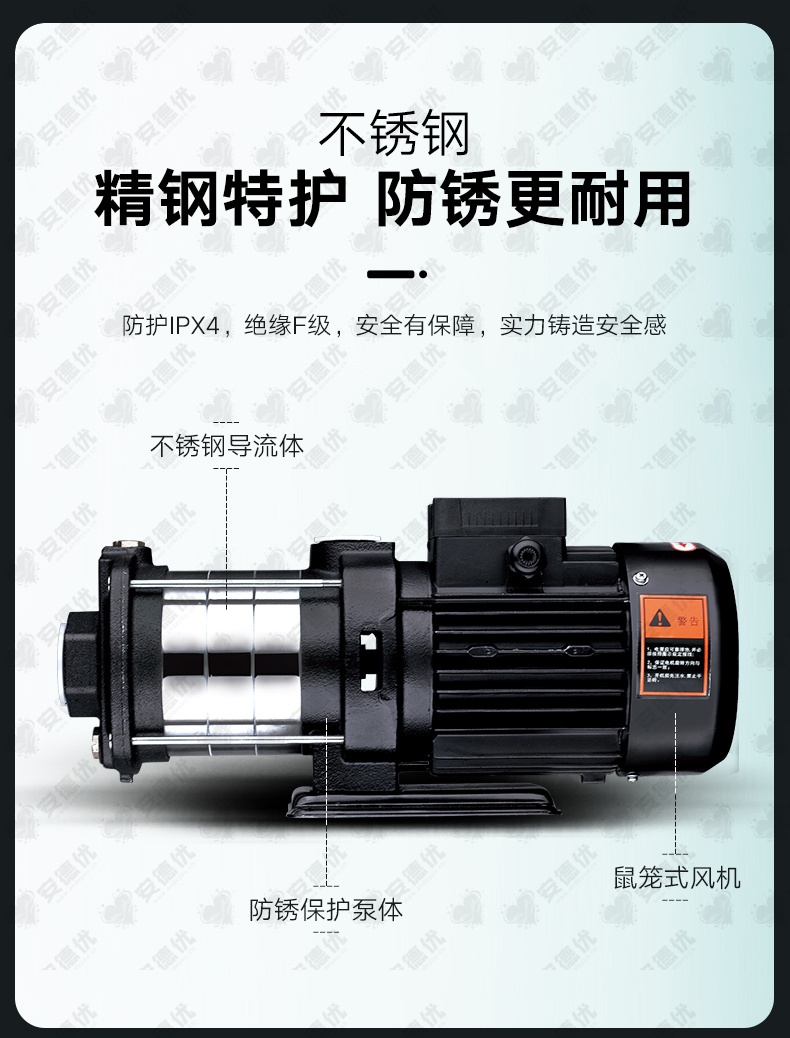

9. Protection class: IPX4

10. Insulation class: F

11. Standard voltage: Single-phase 220–240 V/50 Hz; Three-phase 380–415 V/50 Hz

12. Single-phase motors feature built-in thermal overload protection; three-phase motors must be connected to a motor starter in accordance with local regulations.

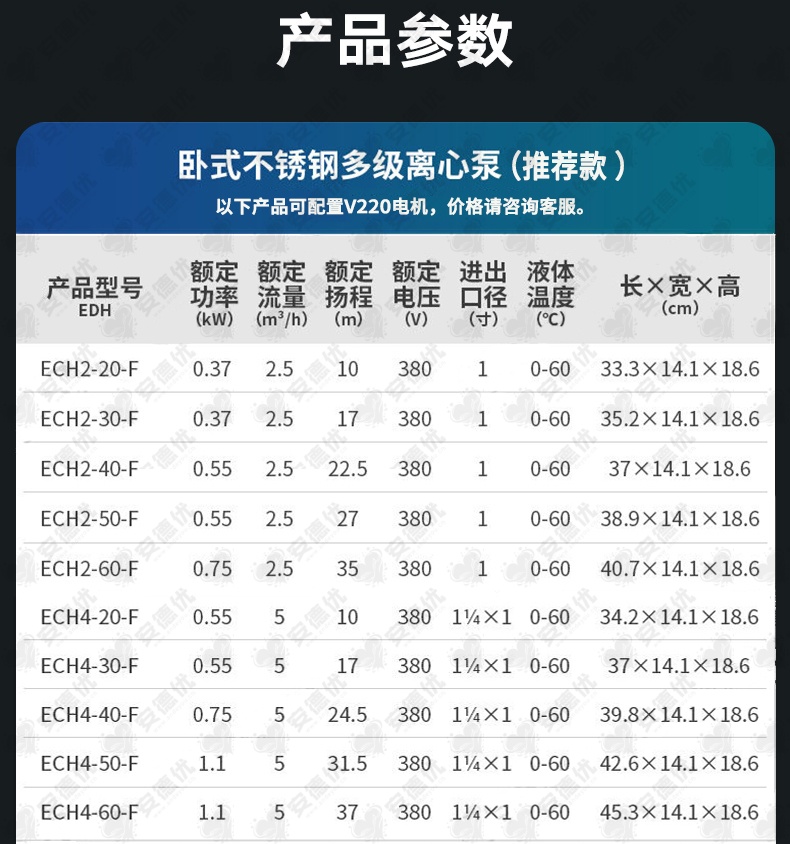

Parameters

model	Voltage/Frequency	Rated flow rate (m³/h)	Rated Head (m)	Power (kW)	Inlet and outlet diameters
ECH2-20-F	380V/50Hz	2.5	10	0.37	25×25
ECH2-30-F	380V/50Hz	2.5	17	0.37	25×25
ECH2-40-F	380V/50Hz	2.5	22.5	0.55	25×25
ECH2-50-F	380V/50Hz	2.5	27	0.55	25×25
ECH2-60-F	380V/50Hz	2.5	35	0.75	25×25
ECH4-20-F	380V/50Hz	5	10	0.55	32×25
ECH4-30-F	380V/50Hz	5	17	0.55	32×25
ECH4-40-F	380V/50Hz	5	24.5	0.75	32×25
ECH4-50-F	380V/50Hz	5	31.5	1.1	32×25
ECH4-60-F	380V/50Hz	5	37	1.1	32×25
ECH10-10-F	380V/50Hz	10	6.4	0.75	40×32
ECH10-20-F	380V/50Hz	10	14	0.75	40×32
ECH10-30-F	380V/50Hz	10	21.4	1.1	40×32
ECH10-40-F	380V/50Hz	10	31.2	1.5	40×32
ECH10-50-F	380V/50Hz	10	39.5	2.2	40×32
ECH15-10-F	380V/50Hz	15	10.5	1.1	50×50
ECH15-20-F	380V/50Hz	15	22.5	2.2	50×50
ECH15-30-F	380V/50Hz	15	34.5	3	50×50
ECH15-40-F	380V/50Hz	15	46.5	4	50×50
ECH20-10-F	380V/50Hz	20	9.5	1.1	50×50
ECH20-20-F	380V/50Hz	20	22	2.2	50×50
ECH20-30-F	380V/50Hz	20	35.5	4	50×50
ECH20-40-F	380V/50Hz	20	45.5	4	50×50
ECHm2-20-F	220V/50Hz	2.5	10	0.37	25×25
ECHm2-30-F	220V/50Hz	2.5	17	0.37	25×25
ECHm2-40-F	220V/50Hz	2.5	22.5	0.55	25×25
ECHm2-50-F	220V/50Hz	2.5	27	0.55	25×25
ECHm2-60-F	220V/50Hz	2.5	35	0.75	25×25
ECHm4-20-F	220V/50Hz	5	10	0.55	32×25
ECHm4-30-F	220V/50Hz	5	17	0.55	32×25
ECHm4-40-F	220V/50Hz	5	24.5	0.75	32×25
ECHm4-50-F	220V/50Hz	5	31.5	1.1	32×25
ECHm4-60-F	220V/50Hz	5	37	1.1	32×25
ECHm10-10-F	220V/50Hz	10	6.5	0.75	40×32
ECHm10-20-F	220V/50Hz	10	14	0.75	40×32
ECHm10-30-F	220V/50Hz	10	21.4	1.1	40×32
ECHm10-40-F	220V/50Hz	10	31.2	1.5	40×32
ECHm10-50-F	220V/50Hz	10	39.5	2.2	40×32
ECHm15-10-F	220V/50Hz	15	10.5	1.1	50×50
ECHm15-20-F	220V/50Hz	15	22.5	2.2	50×50
ECHm20-10-F	220V/50Hz	20	9.5	1.1	50×50
ECHm20-20-F	220V/50Hz	20	22	2.2	50×50
