LEO EDH-F Horizontal Stainless Steel Multistage Centrifugal Pump

EDH2-20-F|EDH2-30-F|EDH2-40-F|EDH2-50-F|EDH2-60-F|EDH4-20-F|EDH4-30-F|EDH4-40-F|EDH4-50-F|EDH4-60-F|EDH10-10-F|EDH10-20-F|EDH10-30-F|EDH10-40-F|EDH10-50-F|EDH15-10-F|EDH15-20-F|EDH15-30-F|EDH20-10-F

The Leo EDH-F series is a horizontal stainless steel multistage centrifugal pump widely used in residential water supply,industrial applications,and the construction sector.It is suitable for HVAC systems; building water supply and pipeline boosting; industrial equipment integration (such as cooling water transport and circulation for chillers,coal-to-electric HVAC systems,and air-source heat pumps); and water treatment systems

Product Consultation By telephone

Function

Parameters

Size

Video Introduction

Function

Product Introduction:

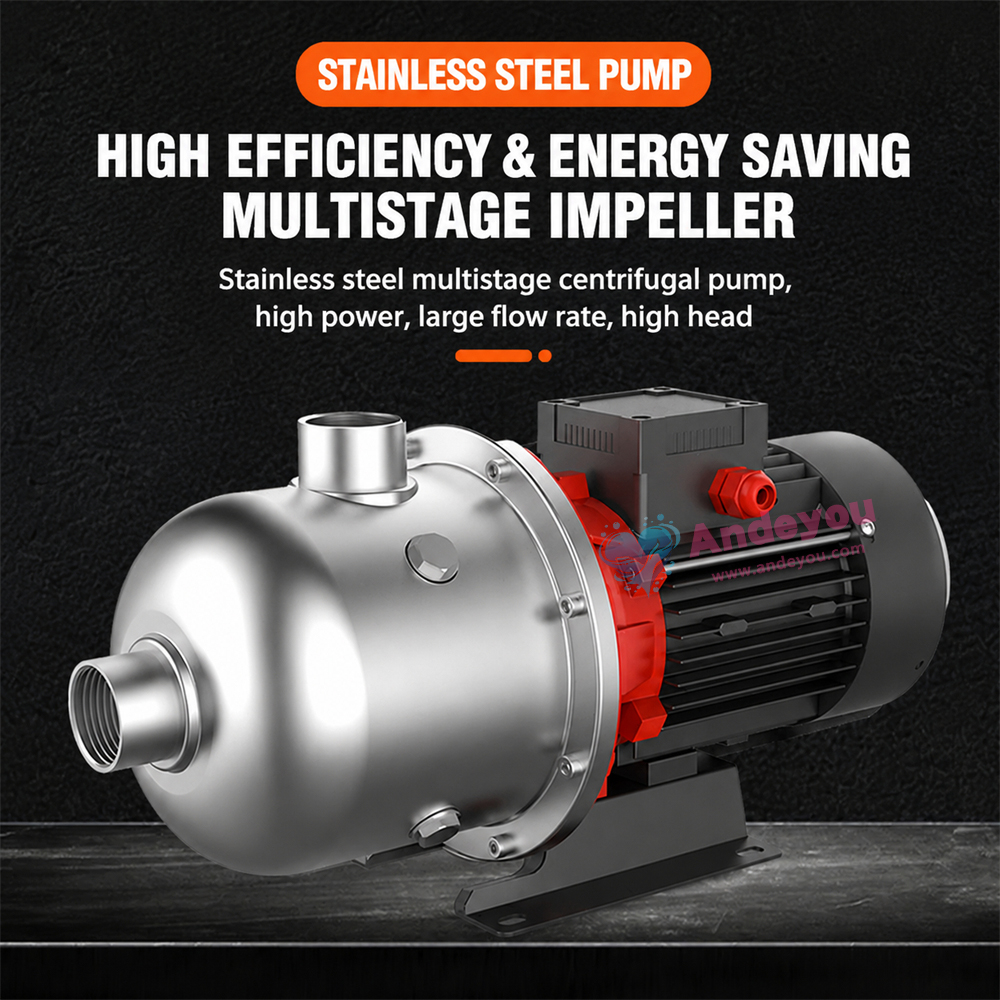

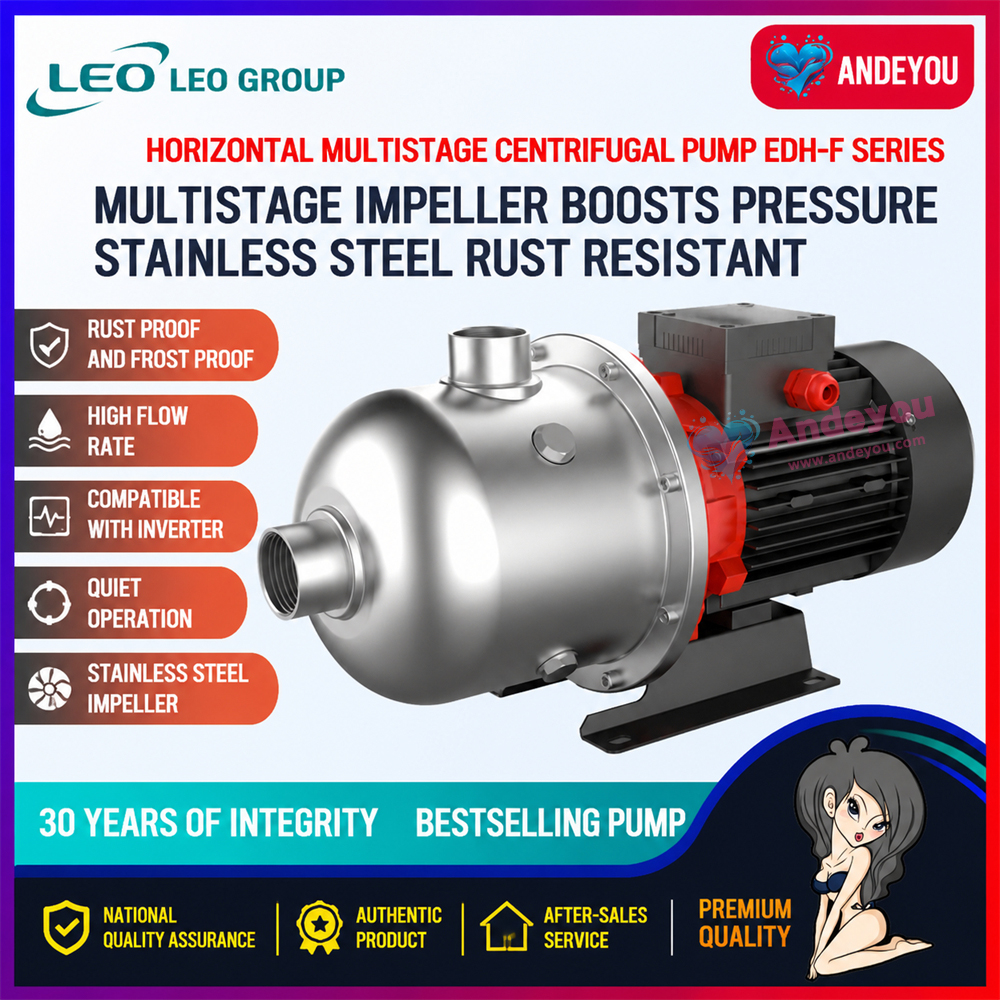

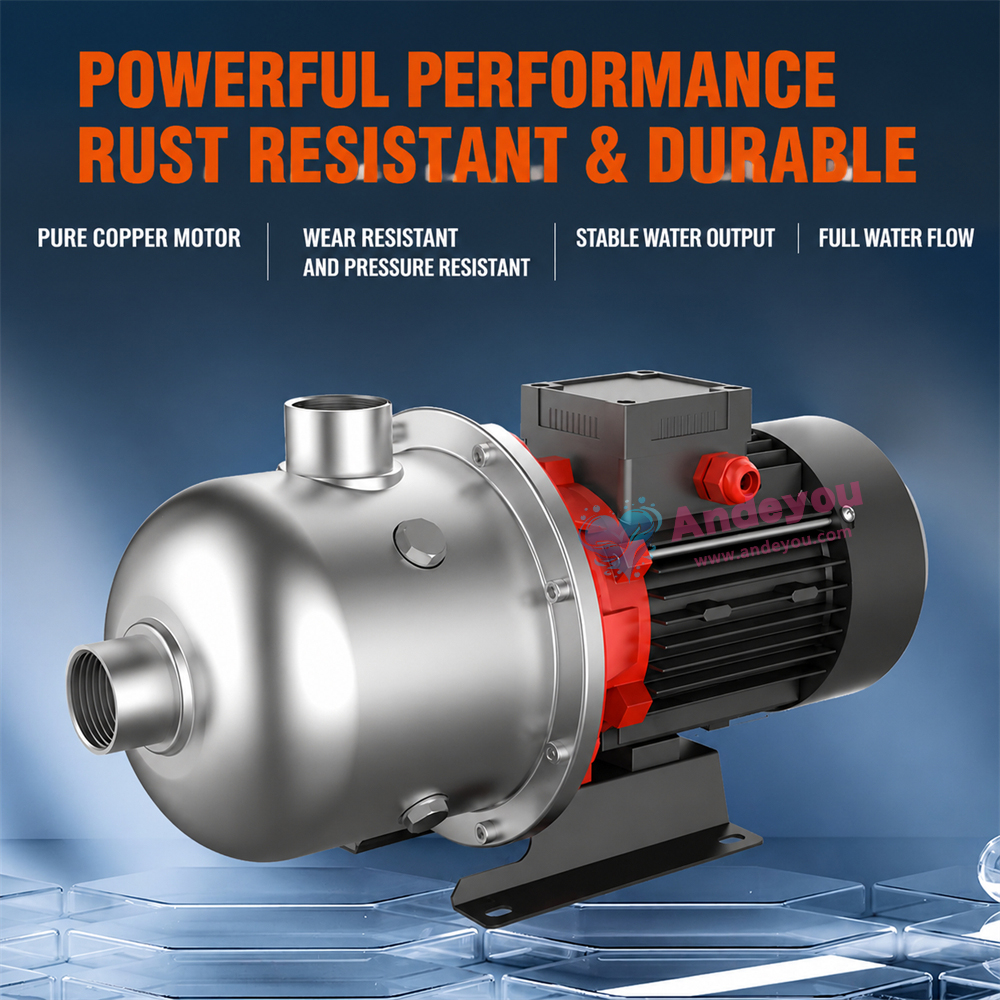

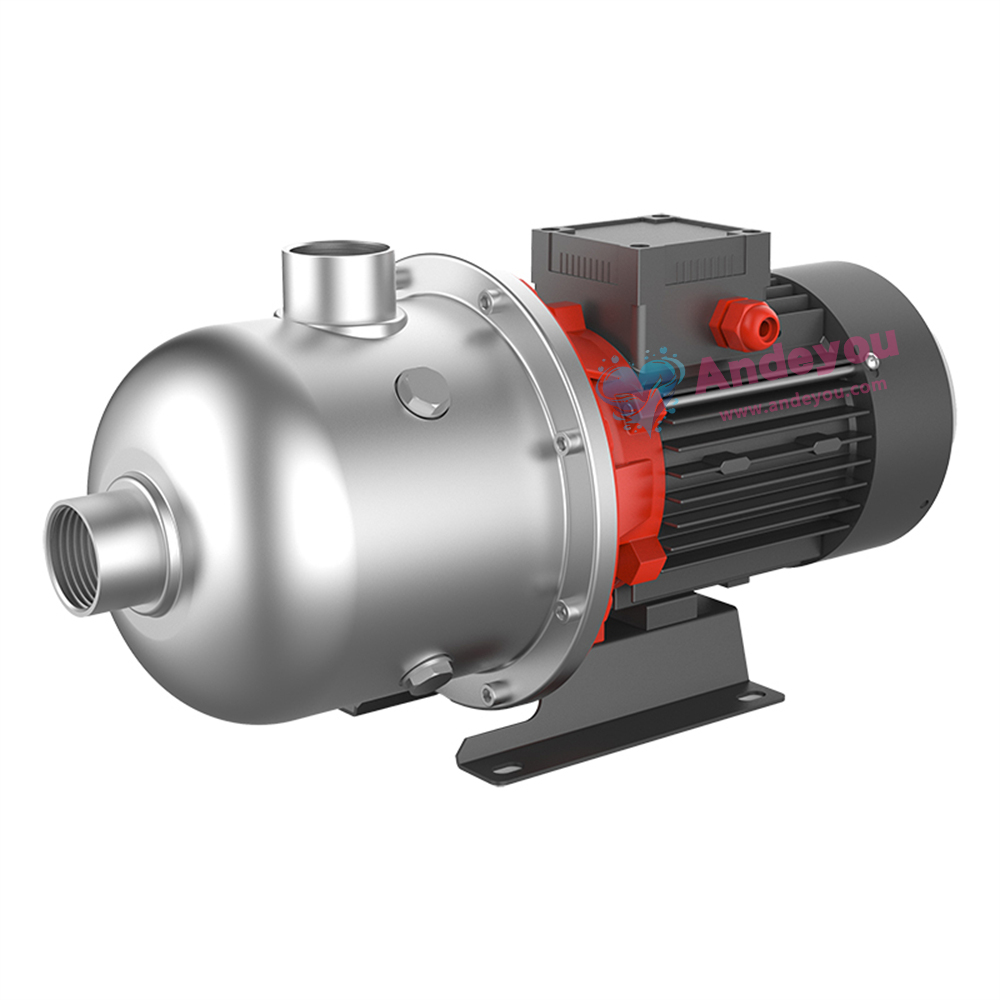

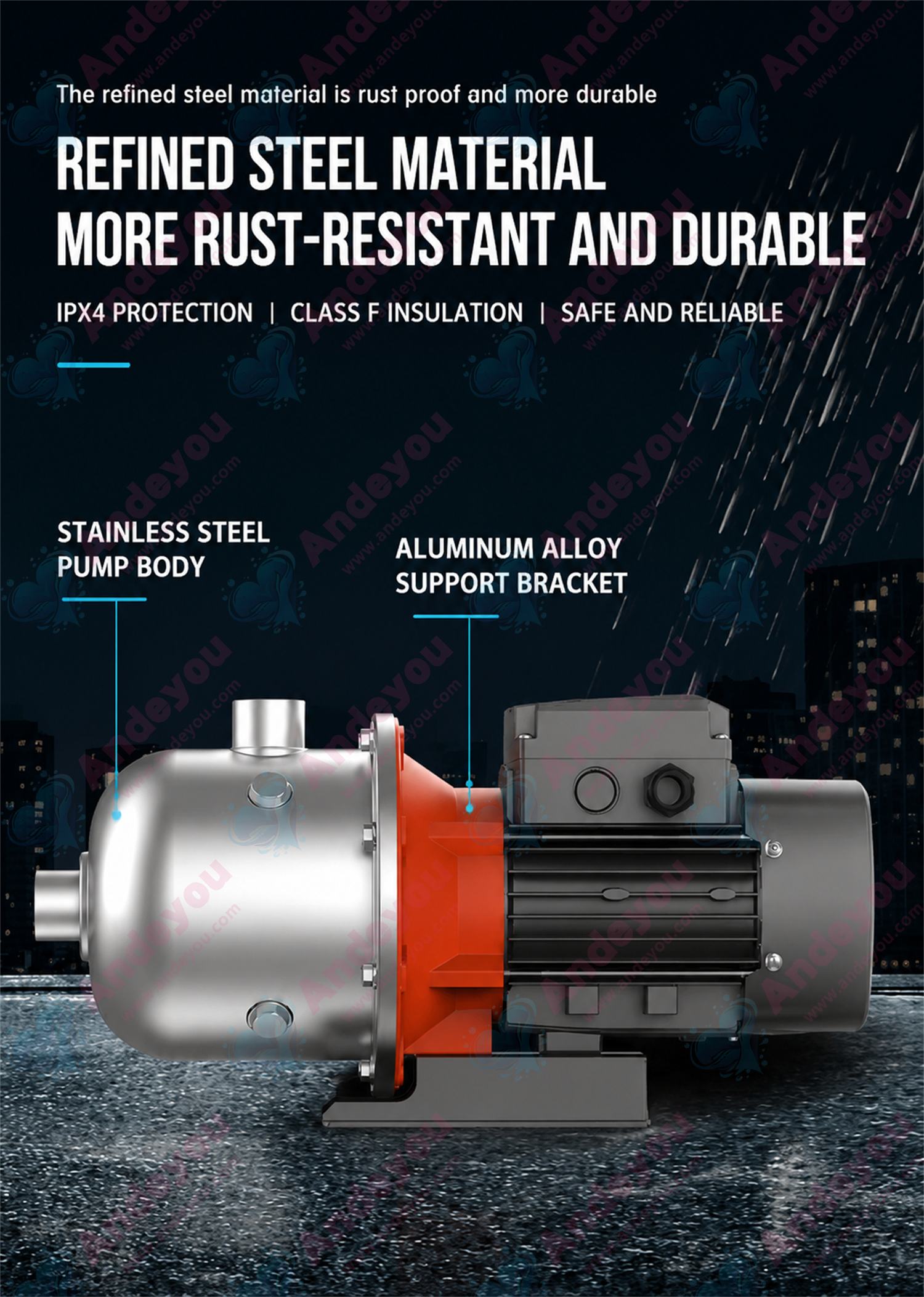

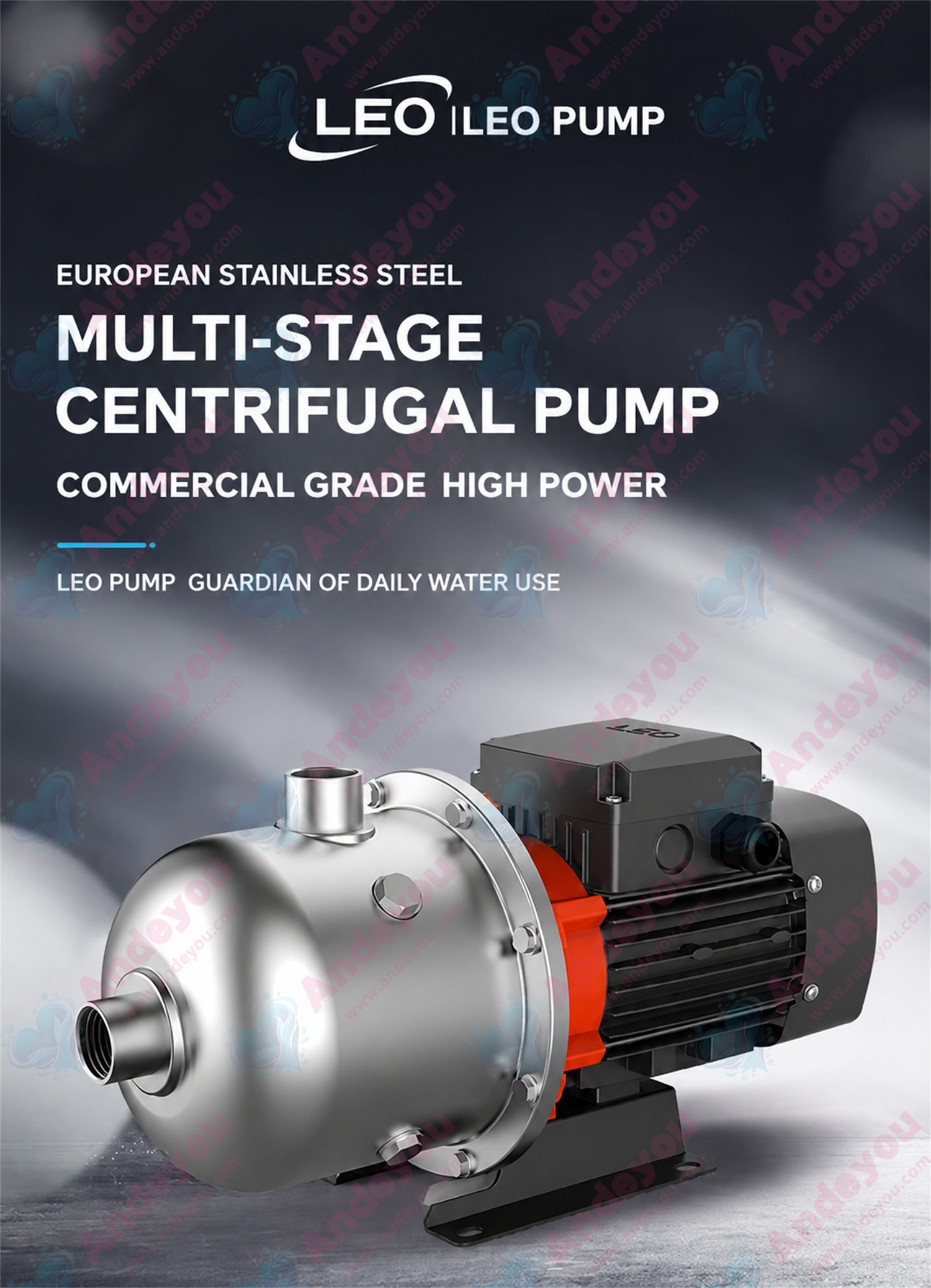

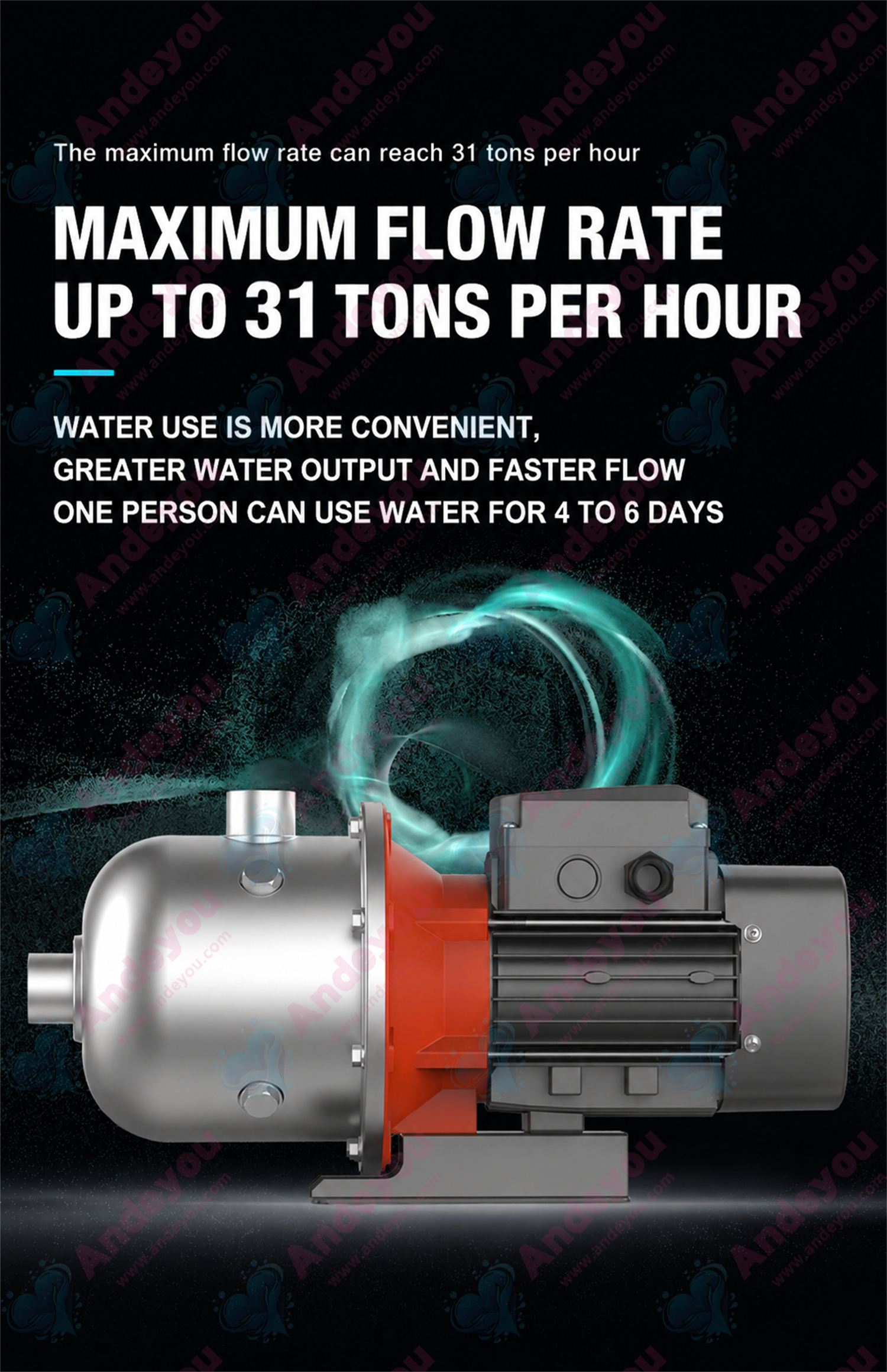

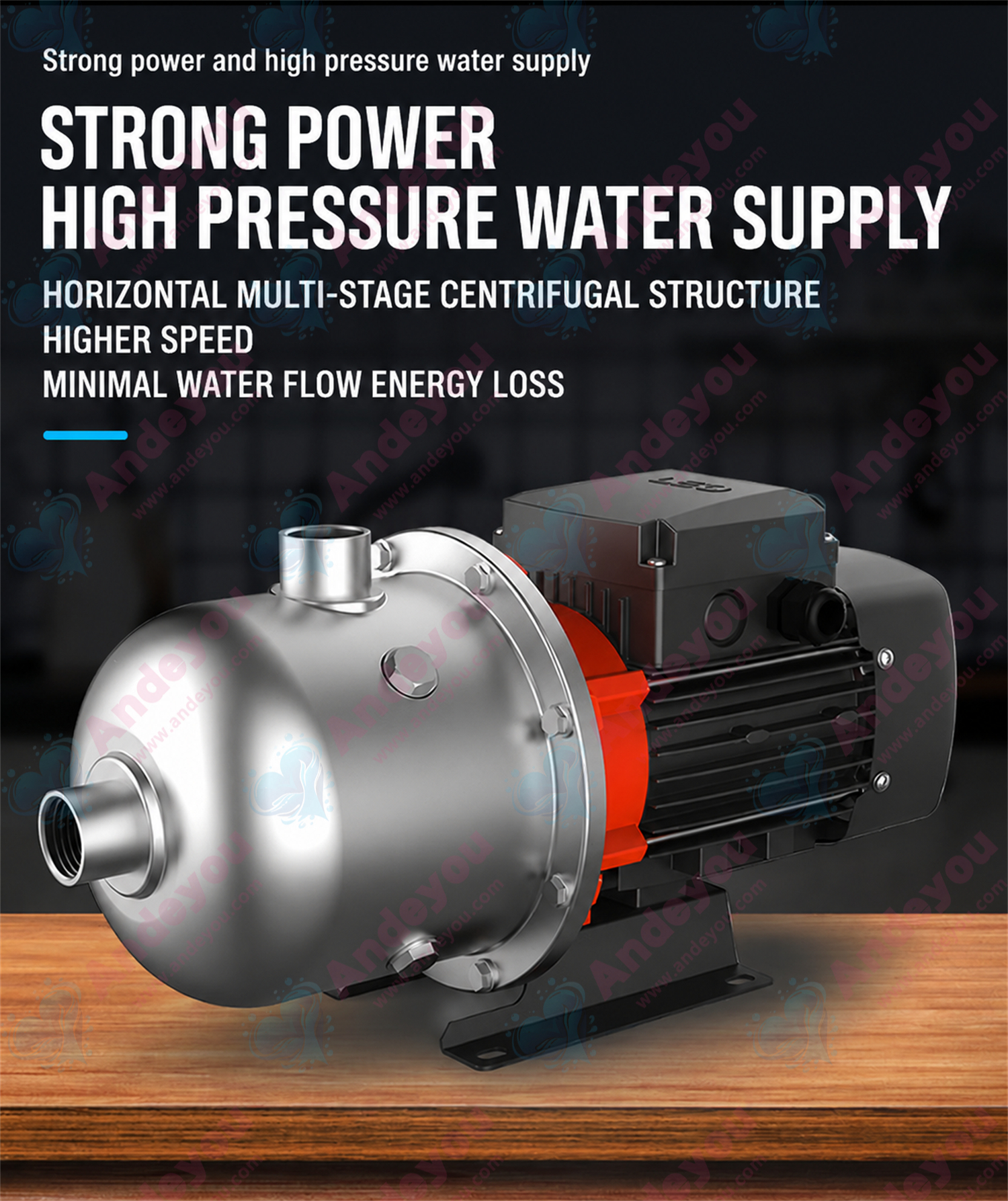

EDH-F Horizontal Stainless Steel Multistage Centrifugal Pump

The EDH-F series consists of horizontal stainless steel multistage pumps suitable for a wide range of applications in domestic water supply, industry, and construction.

The pumped medium must be of low viscosity, non-flammable, non-explosive, and non-volatile; it must be free of solid particles (particle size ≤ 0.2mm) and fibers, and must not chemically react with the pump materials.

If the density of the pumped medium exceeds that of clean water, a higher-power motor is required.

Application Scenarios:

Suitable for: Liquid transfer and circulation in light industry.

HVAC systems; building water supply and pipeline boosting; industrial equipment integration; cooling water transfer and circulation (chillers, coal-to-electric HVAC systems, air-source heat pumps, etc.); water treatment system integration.

Pressure boosting and domestic water supply; also widely used in cooling and air conditioning systems.

Pump Features:

1. Liquid temperature range: 0°C to 60°C

2. Maximum ambient temperature: +40°C

3. Maximum installation altitude: Depends on factors such as pump NPSH (Net Positive Suction Head), medium temperature, installation elevation above sea level, and inlet pipeline losses.

4. Maximum operating pressure: 10 bar

5. Maximum inlet pressure: Limited by the maximum operating pressure

6. Equipped with a totally enclosed, fan-cooled, squirrel-cage motor

7. Protection class: IPX4

8. Insulation class: F

9. Standard voltage: Single-phase 220-240V/50Hz; Three-phase 380-415V/50Hz

10. Single-phase motors feature built-in thermal protection; three-phase motors must be connected to a motor starter in accordance with local regulations.

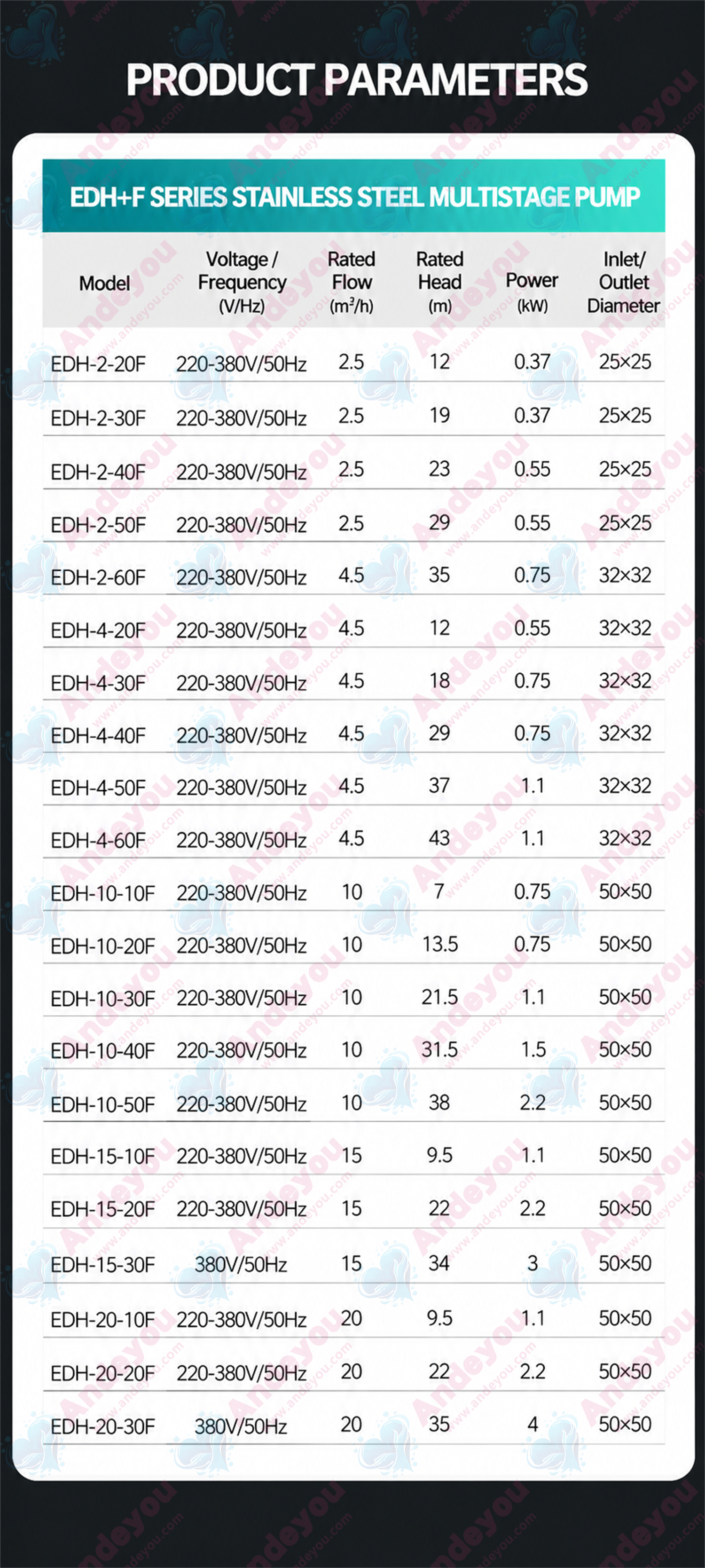

Parameters

model	Voltage/Frequency	Rated flow rate (m³/h)	Rated Head (m)	Power (kW)	Inlet and outlet diameters
EDH2-20-F	380V/50Hz	2.5	12	0.37	25×25
EDH2-30-F	380V/50Hz	2.5	19	0.37	25×25
EDH2-40-F	380V/50Hz	2.5	23	0.55	25×25
EDH2-50-F	380V/50Hz	2.5	29	0.55	25×25
EDH2-60-F	380V/50Hz	2.5	35	0.75	25×25
EDH4-20-F	380V/50Hz	4.5	12	0.55	32×32
EDH4-30-F	380V/50Hz	4.5	18	0.55	32×32
EDH4-40-F	380V/50Hz	4.5	29	0.75	32×32
EDH4-50-F	380V/50Hz	4.5	37	1.1	32×32
EDH4-60-F	380V/50Hz	4.5	43	1.1	32×32
EDH10-10-F	380V/50Hz	10	7	0.75	50×50
EDH10-20-F	380V/50Hz	10	13.5	0.75	50×50
EDH10-30-F	380V/50Hz	10	21.5	0.75	50×50
EDH10-40-F	380V/50Hz	10	31.5	1.5	50×50
EDH10-50-F	380V/50Hz	10	38	2.2	50×50
EDH15-10-F	380V/50Hz	15	9.5	1.1	50×50
EDH15-20-F	380V/50Hz	15	22	2.2	50×50
EDH15-30-F	380V/50Hz	15	34	3	50×50
EDH20-10-F	380V/50Hz	20	9.5	1.1	50×50
EDH20-20-F	380V/50Hz	20	22	2.2	50×50
EDH20-30-F	380V/50Hz	20	35	4	50×50
EDHm2-20-F	220V/50Hz	2.5	12	0.37	25×25
EDHm2-30-F	220V/50Hz	2.5	19	0.37	25×25
EDHm2-40-F	220V/50Hz	2.5	23	0.55	25×25
EDHm2-50-F	220V/50Hz	2.5	29	0.55	25×25
EDHm2-60-F	220V/50Hz	2.5	35	0.75	25×25
EDHm4-20-F	220V/50Hz	4.5	12	0.55	32×32
EDHm4-30-F	220V/50Hz	4.5	18	0.55	32×32
EDHm4-40-F	220V/50Hz	4.5	29	0.75	32×32
EDHm4-50-F	220V/50Hz	4.5	37	1.1	32×32
EDHm4-60-F	220V/50Hz	4.5	43	1.1	32×32
EDHm10-10-F	220V/50Hz	10	7	0.75	50×50
EDHm10-20-F	220V/50Hz	10	13.5	0.75	50×50
EDHm10-30-F	220V/50Hz	10	21.5	1.1	50×50
EDHm10-40-F	220V/50Hz	10	31.5	1.5	50×50
EDHm10-50-F	220V/50Hz	10	38	2.2	50×50
EDHm15-10-F	220V/50Hz	15	9.5	1.1	50×50
EDHm15-20-F	220V/50Hz	15	22	2.2	50×50
EDHm20-10-F	220V/50Hz	20	9.5	1.1	50×50
EDHm20-20-F	220V/50Hz	20	22	2.2	50×50
