Product Introduction:

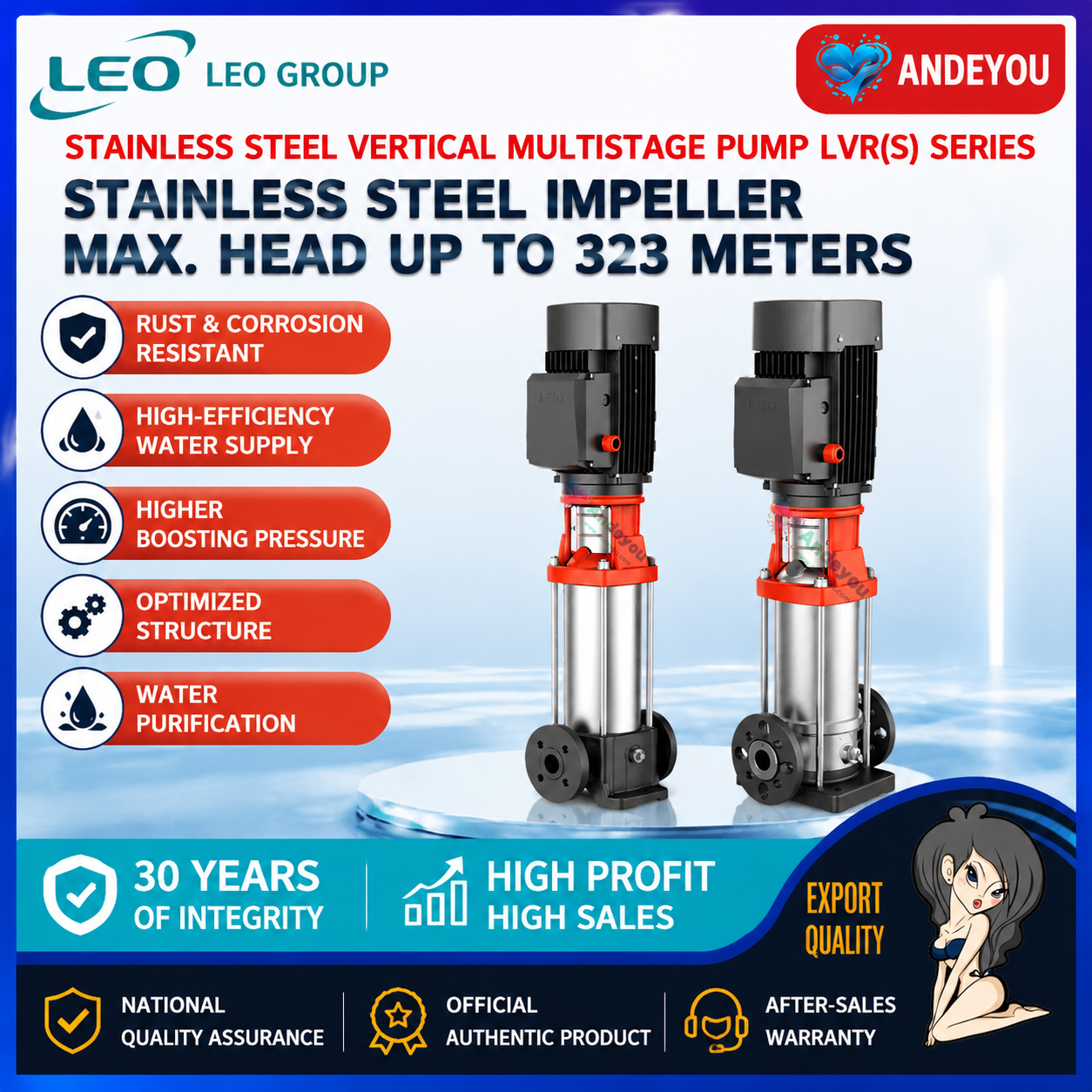

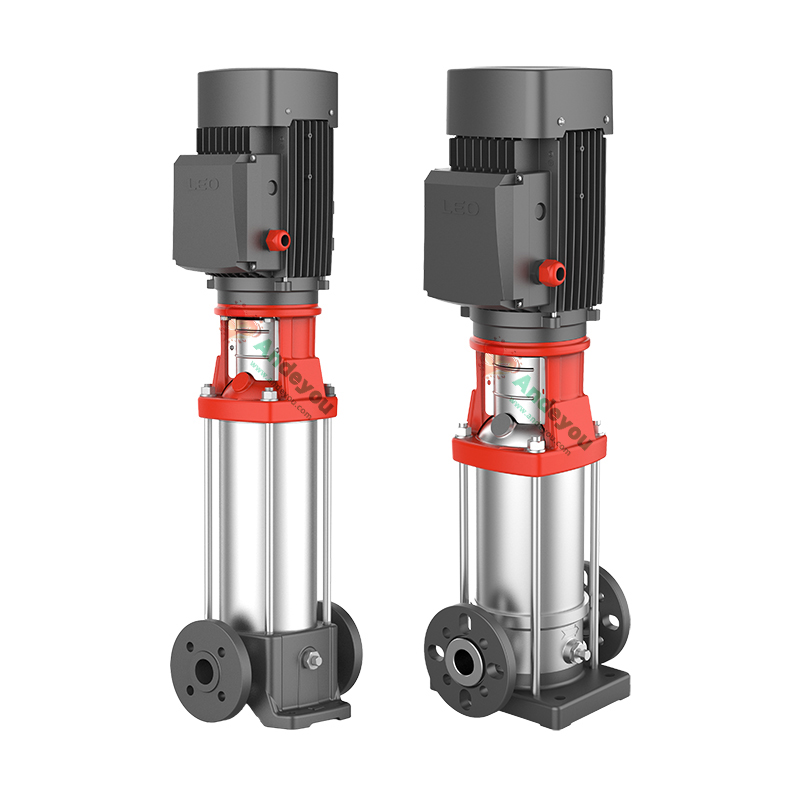

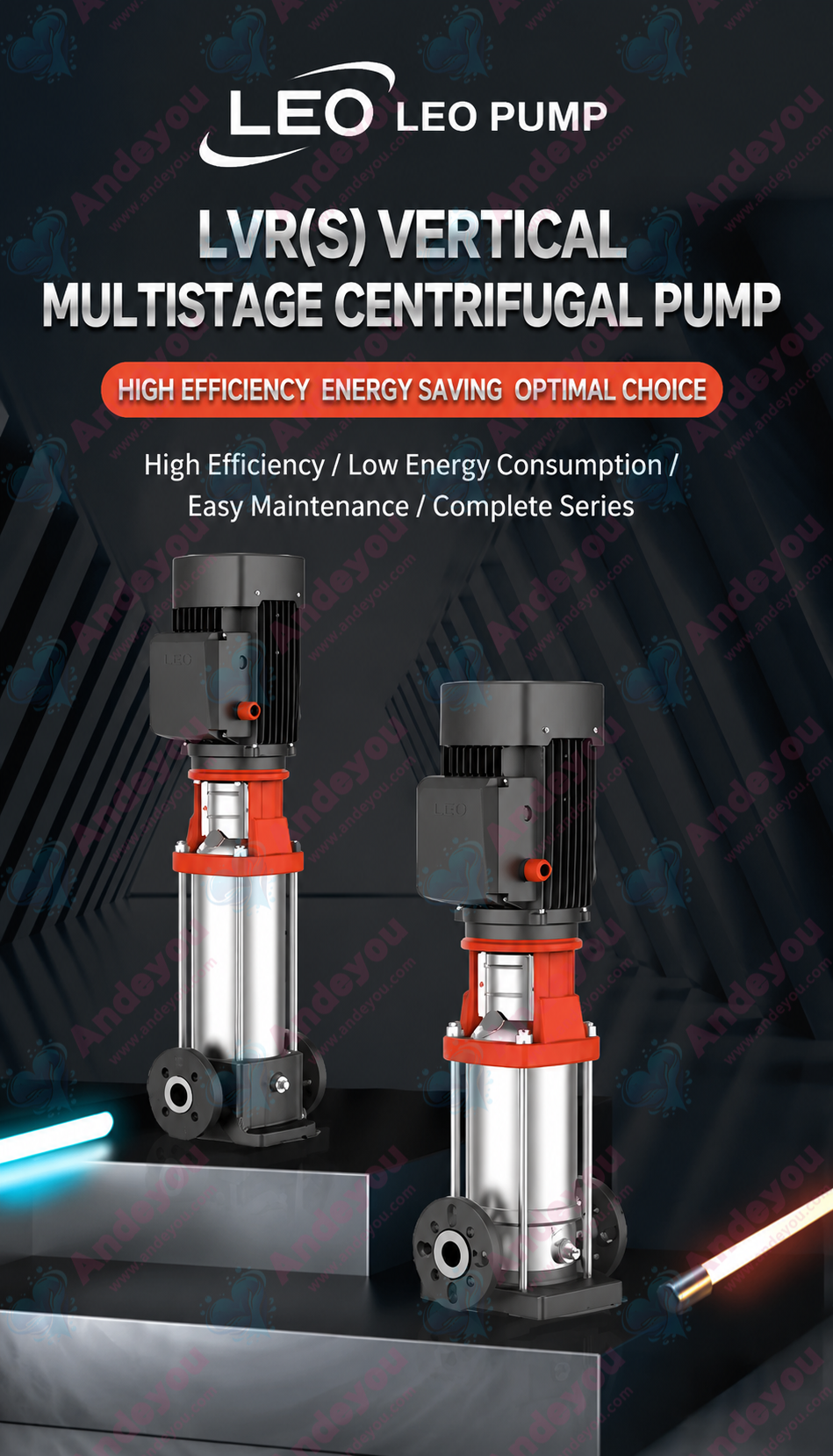

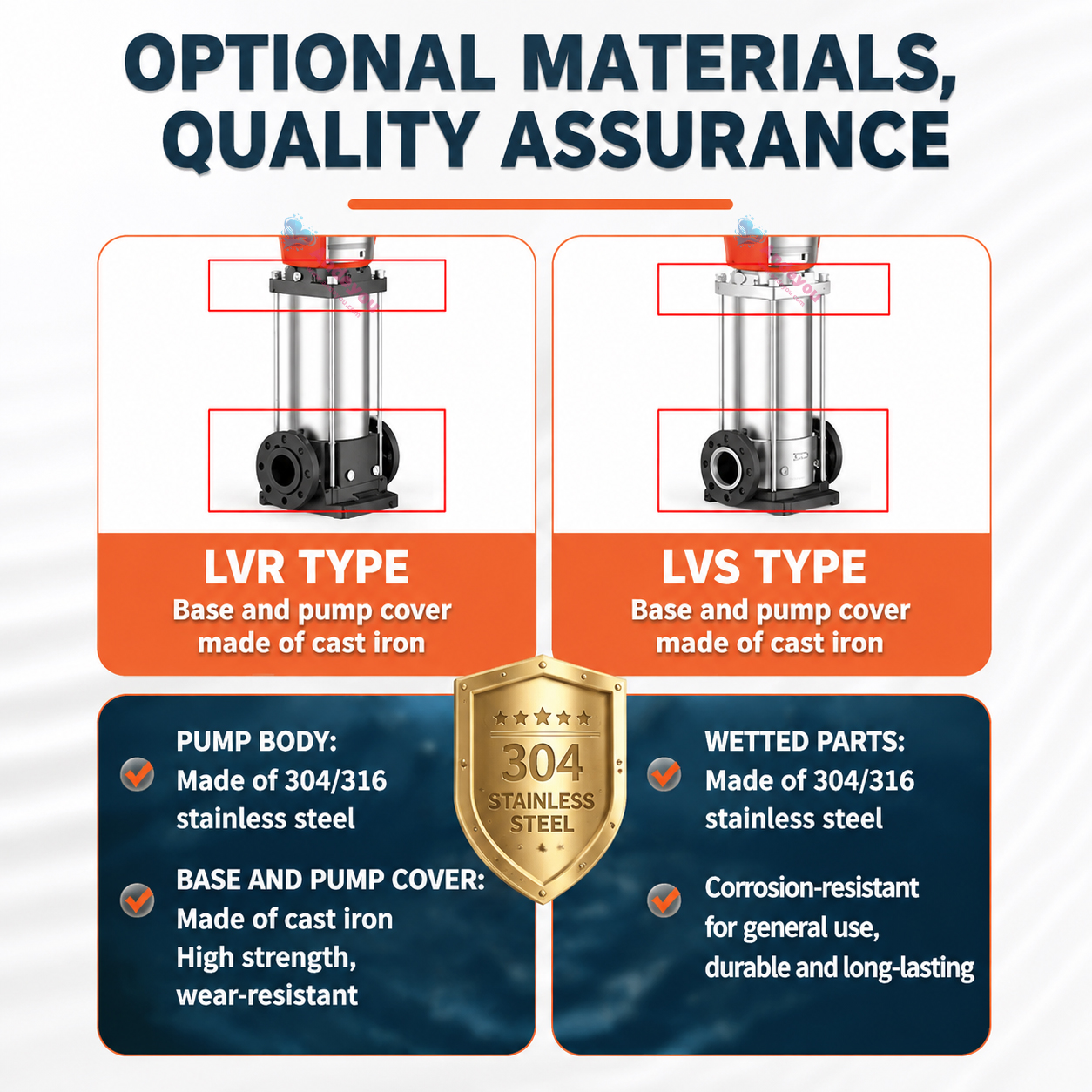

LVR(S) Vertical Multistage Centrifugal Pump

The LVR(S) series vertical multistage centrifugal pump is designed for transporting low-viscosity liquids that are non-flammable, non-explosive, and non-vaporizing, and which are free from solid particles (larger than 0.2 mm) and fibers.

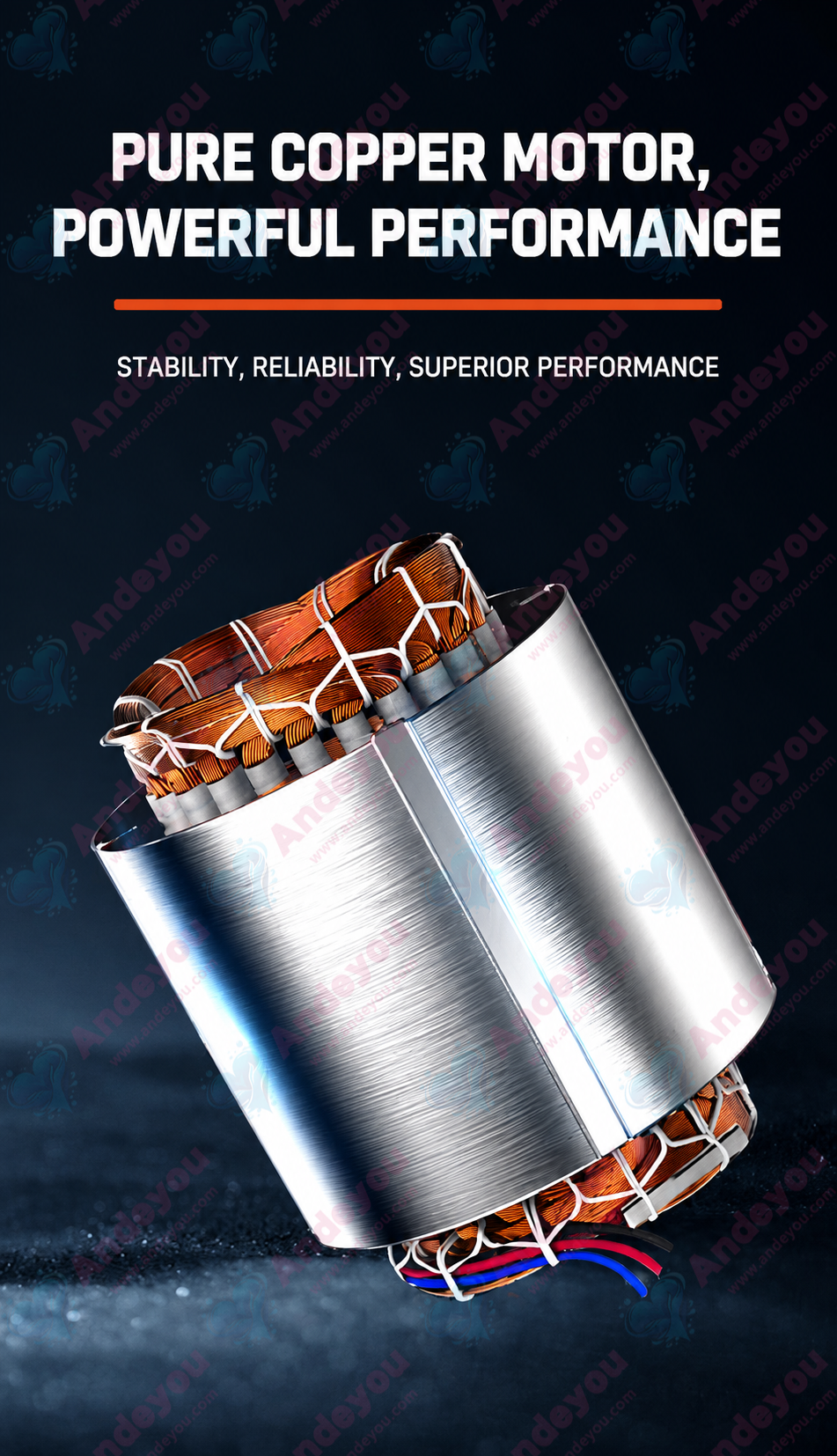

Equipped with a totally enclosed, standard air-cooled, 2-pole motor.

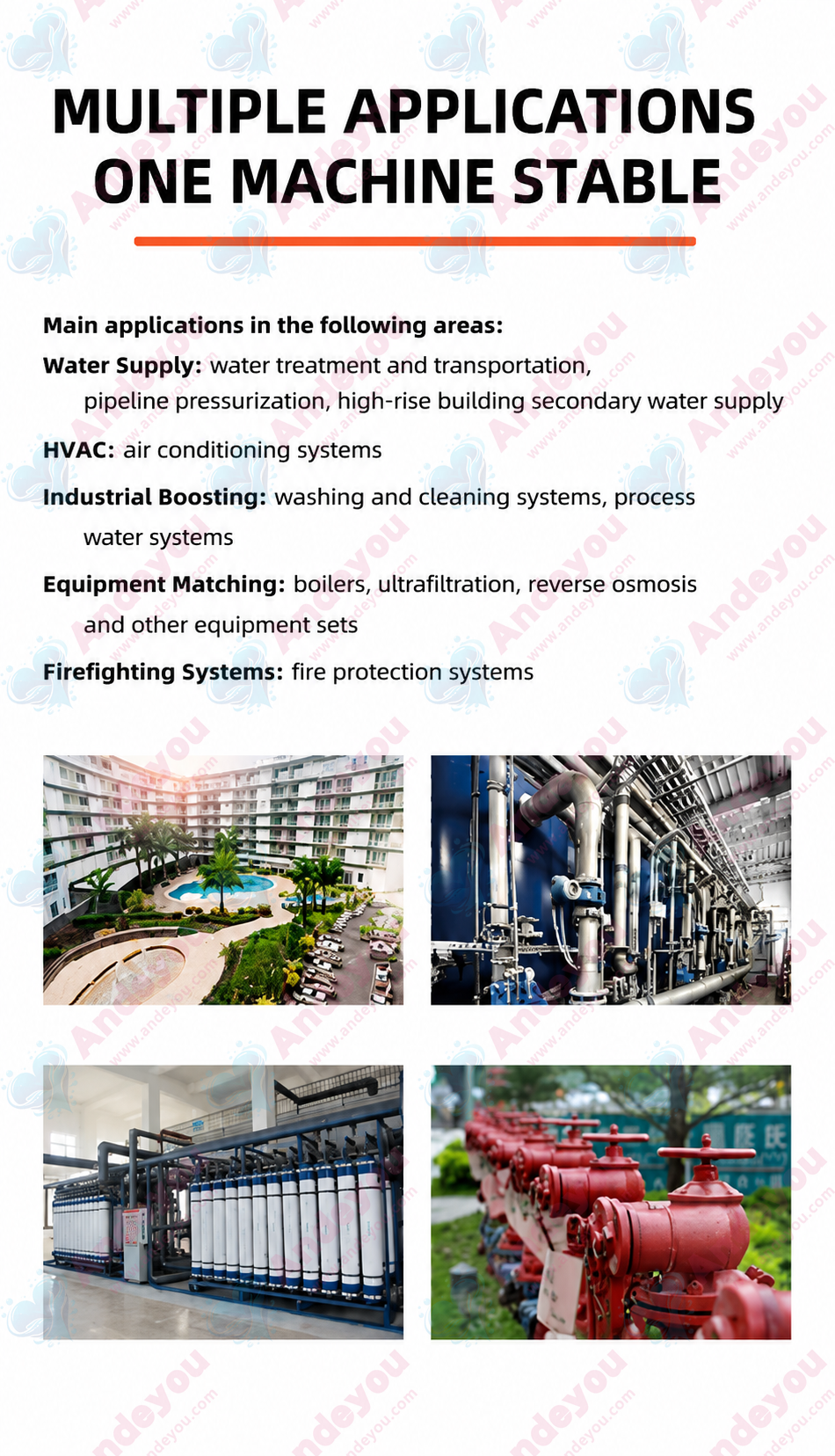

Applications:

Water supply and drainage for high-rise buildings, filtration and transport in waterworks, pipeline boosting, etc.;
Washing and cleaning systems, boiler feed water, cooling water circulation, water treatment systems, and other auxiliary equipment systems;
Water treatment environments such as ultrafiltration systems, reverse osmosis systems, distillation systems, separators, and swimming pools;
Agricultural irrigation systems (sprinkler irrigation, drip irrigation, etc.);
Food and beverage processing, and fire-fighting systems.

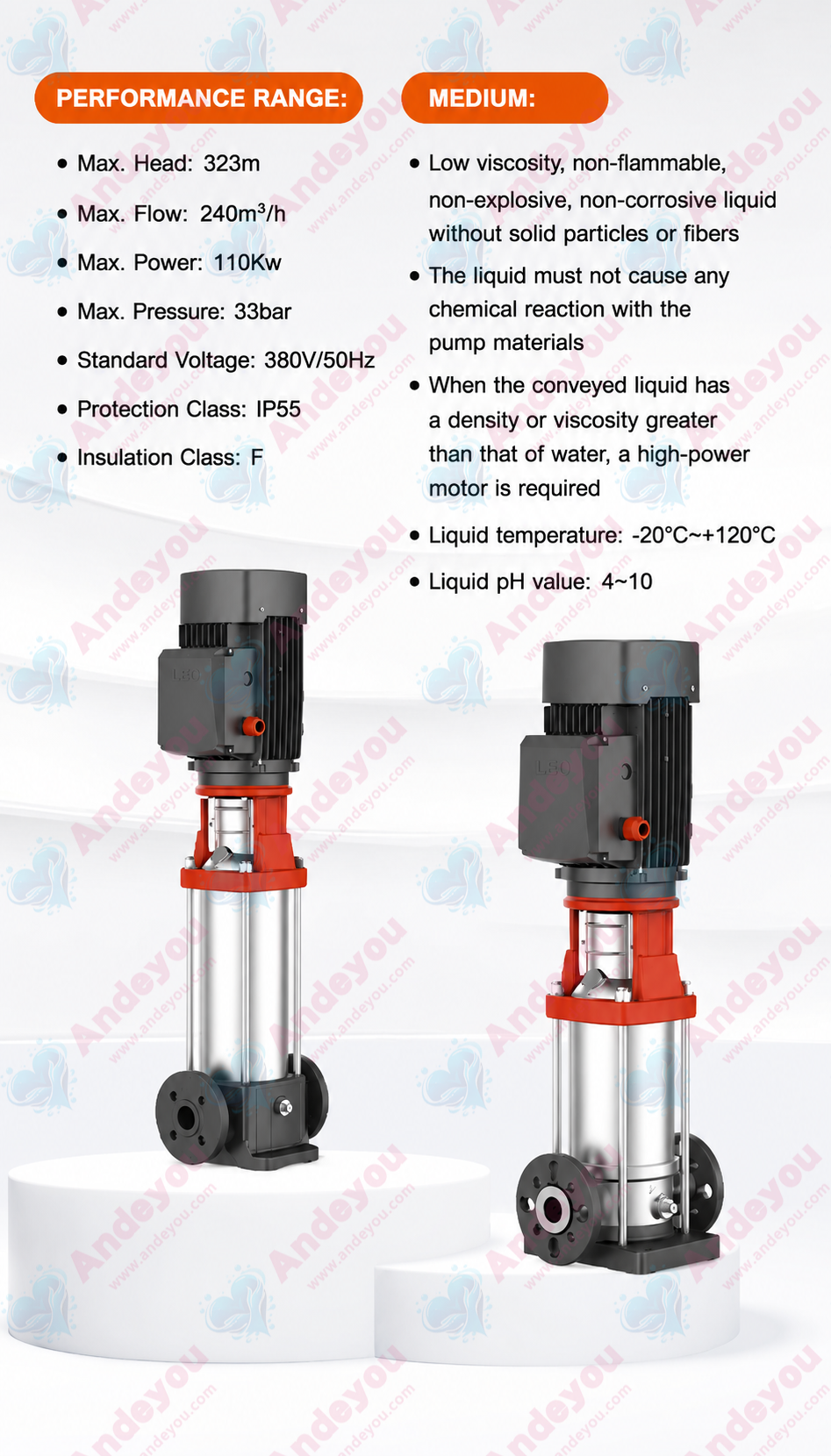

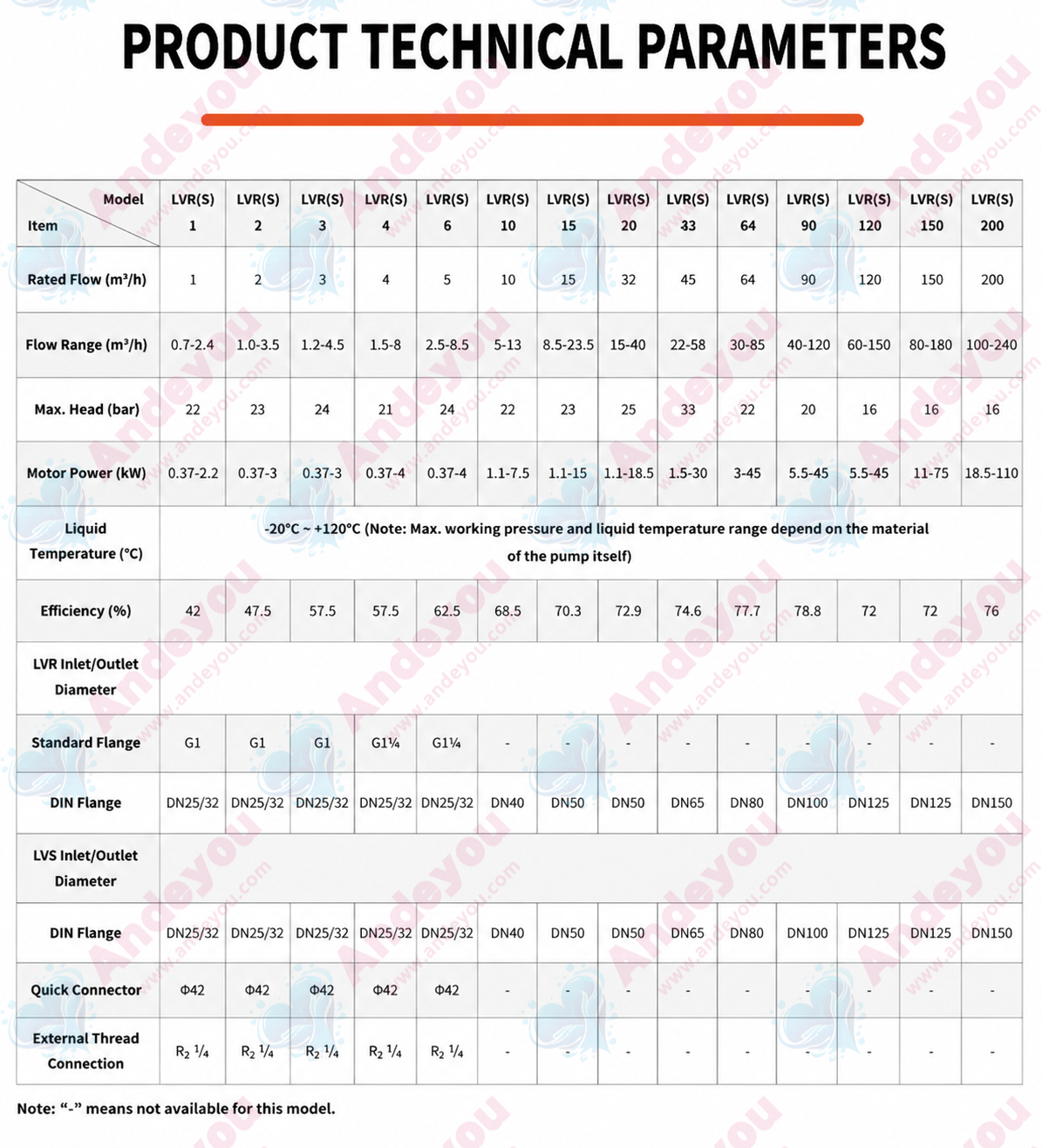

Pump Features:

1. Liquid temperature: -20°C to +120°C

2. Flow rate range: 0.7–240 m³/h

3. Medium pH value: 4–10

4. Maximum ambient temperature: +40°C

5. Maximum working pressure: 33 bar

6. Maximum altitude: 1000 m

7. Totally enclosed, standard air-cooled, 2-pole motor

8. Protection class: IP55

9. Insulation class: F
