Product Introduction:

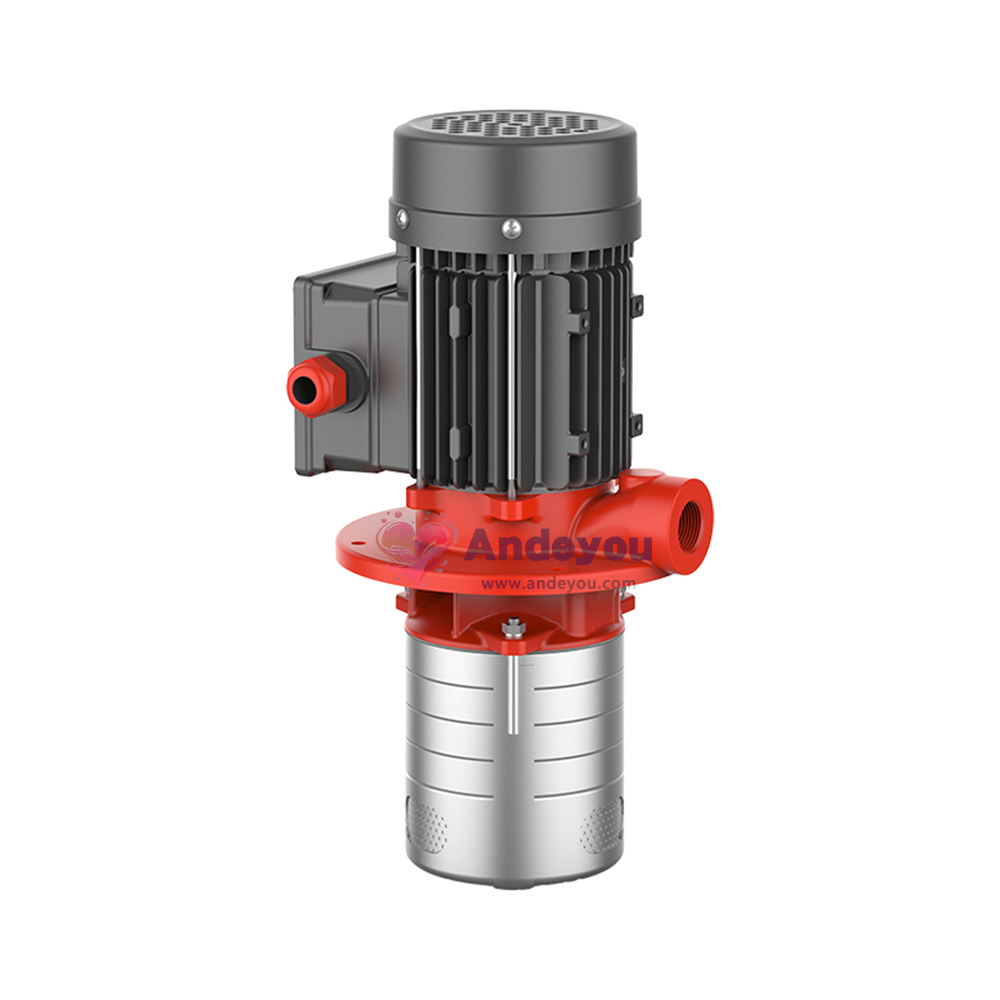

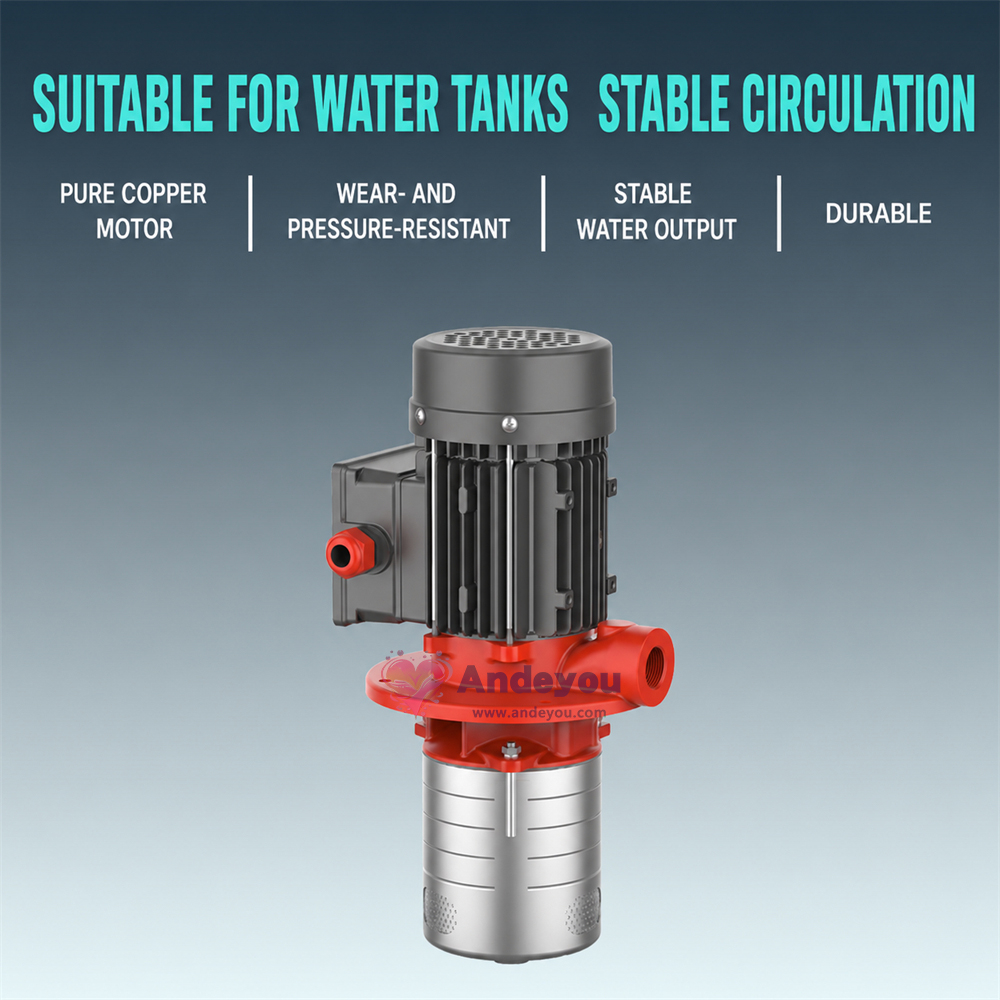

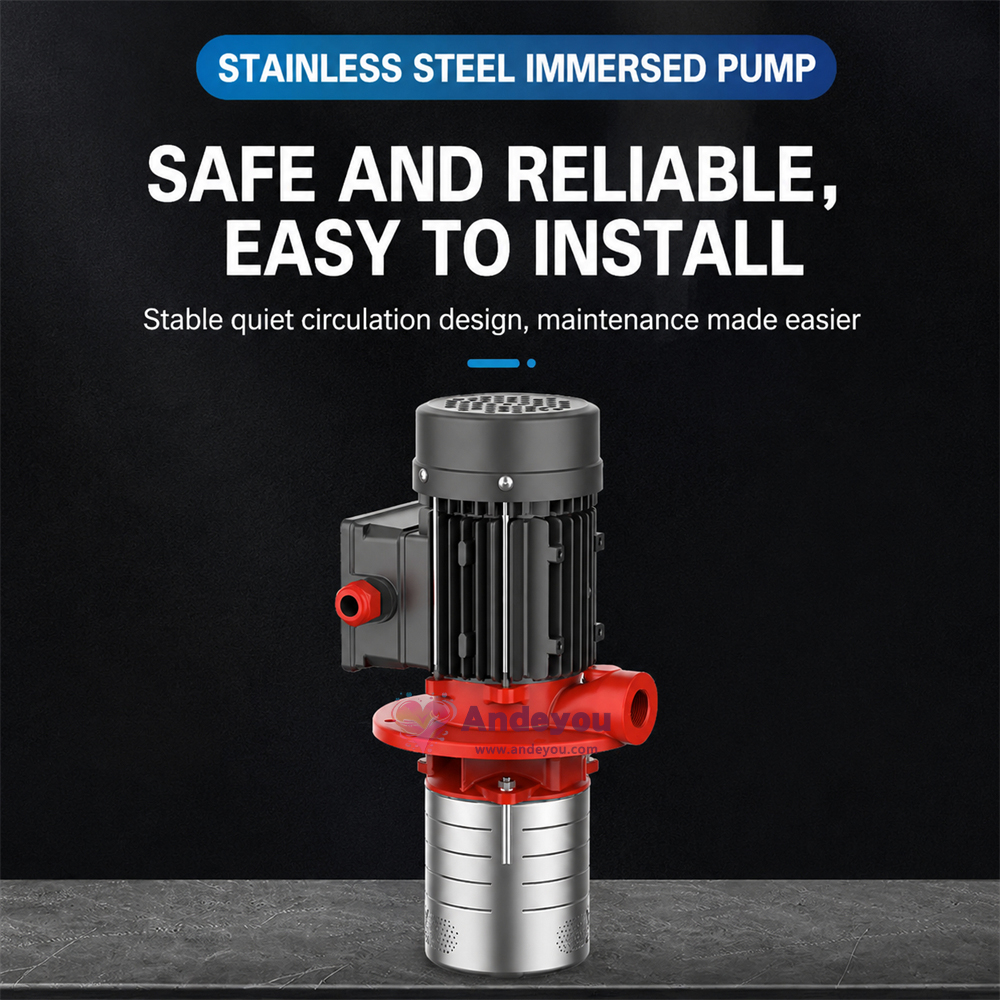

LIC Series Immersible Multistage Centrifugal Pump

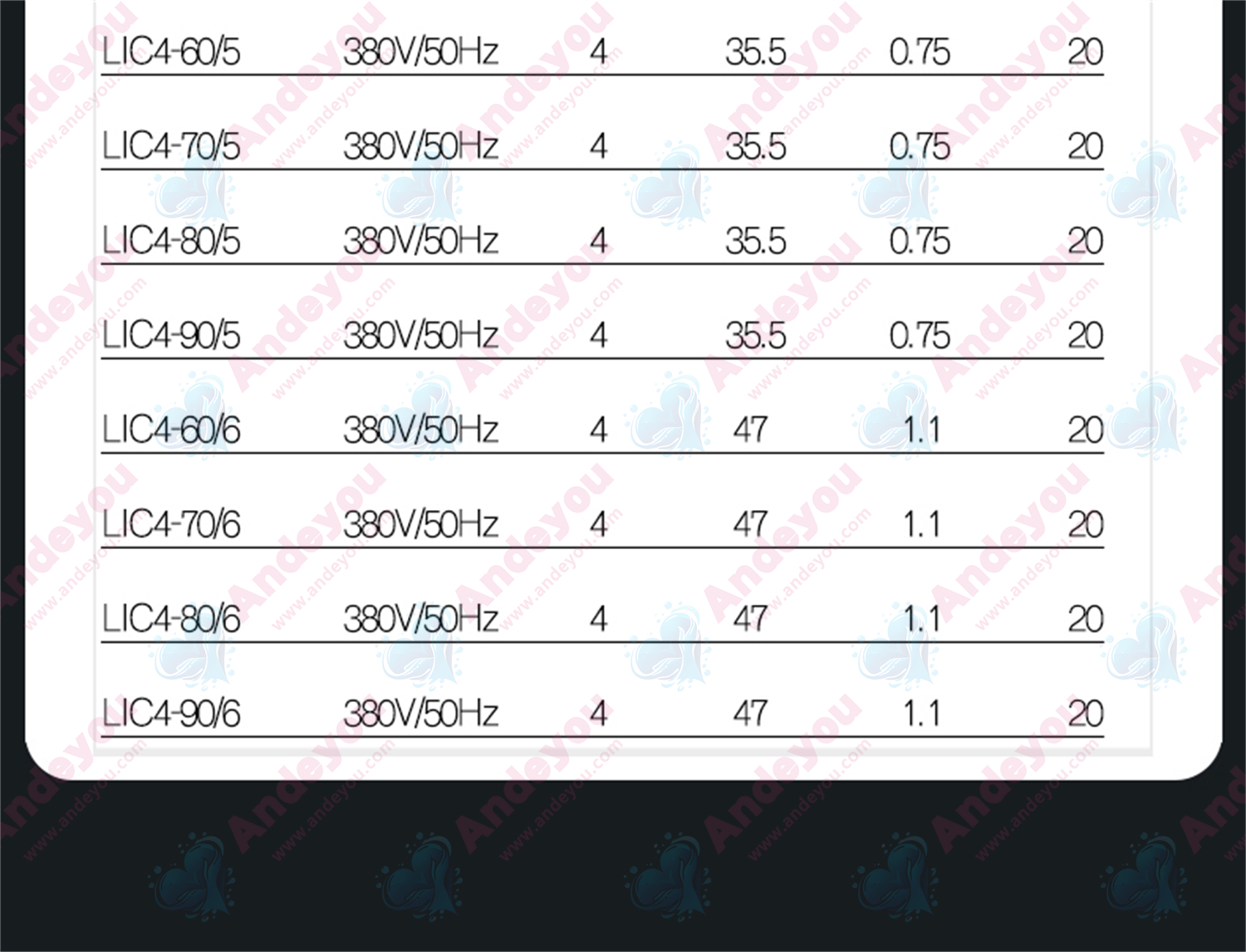

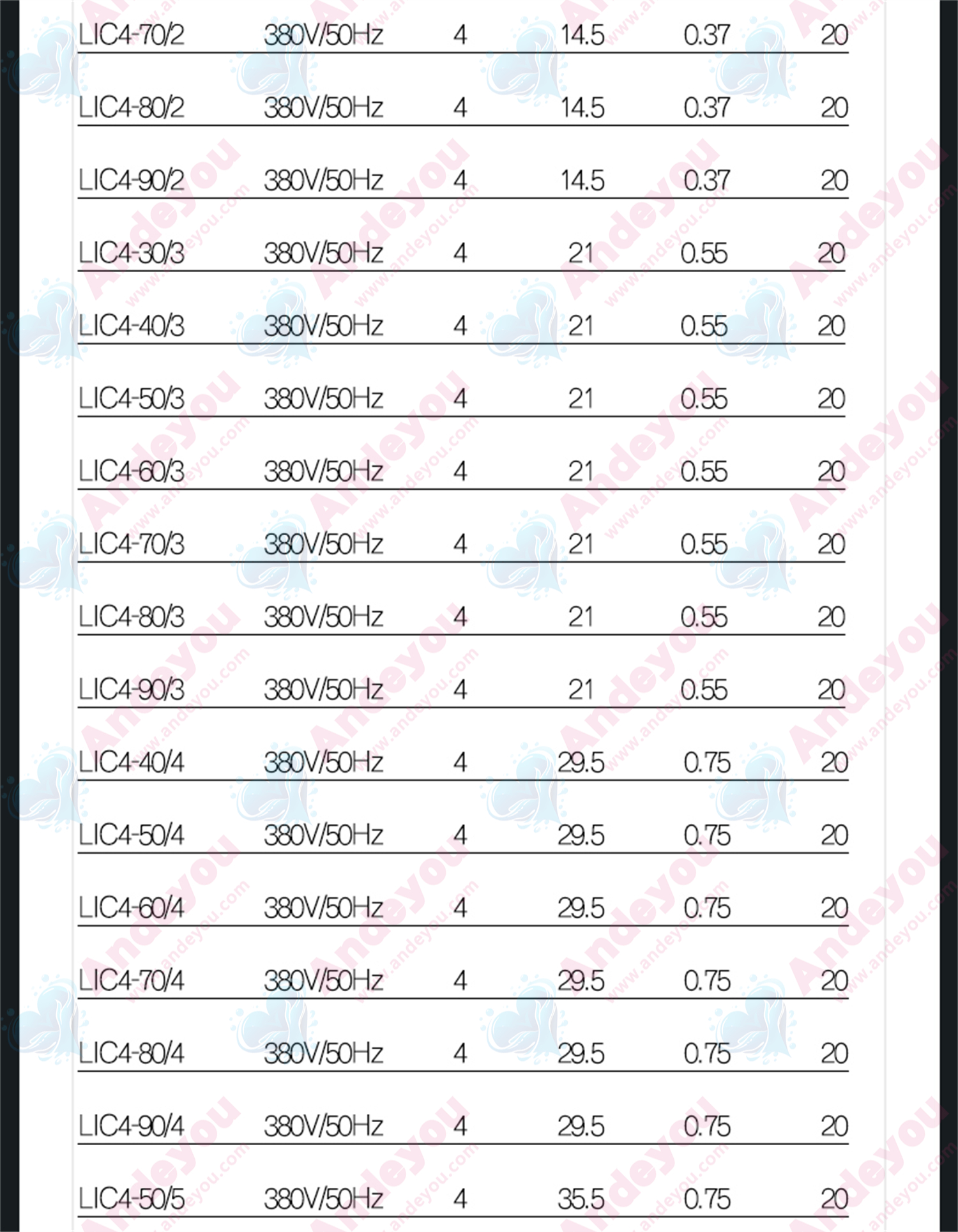

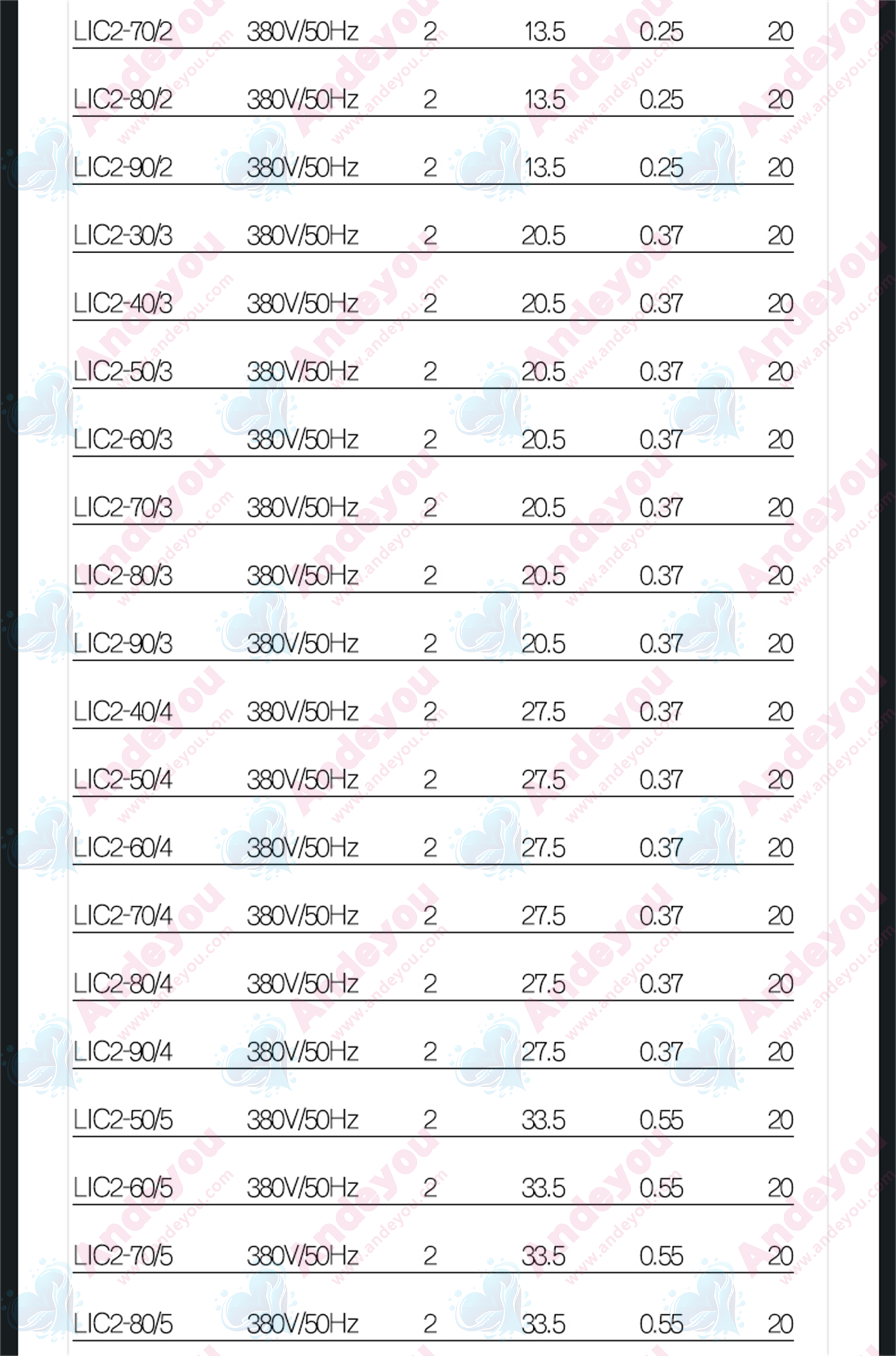

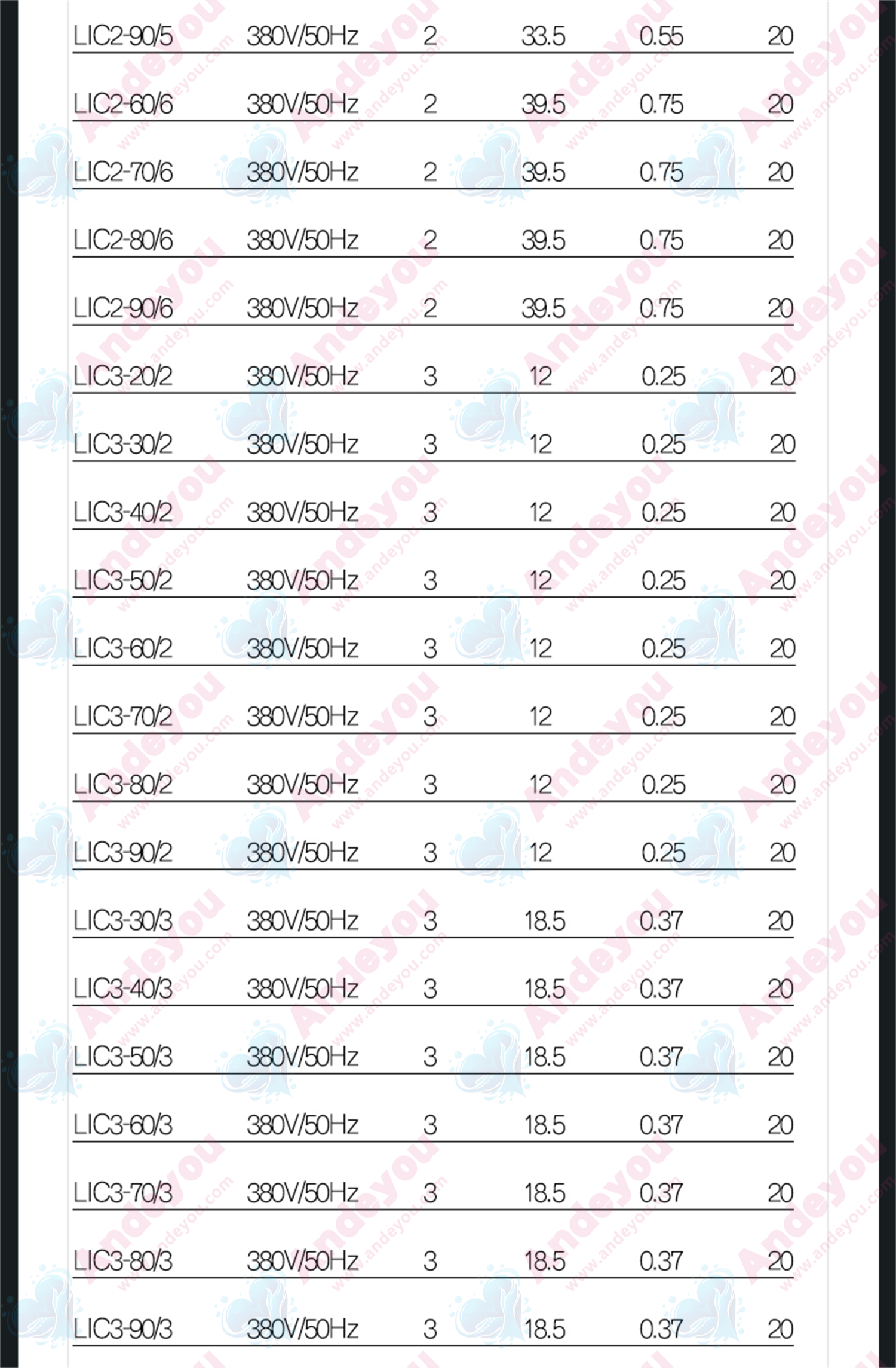

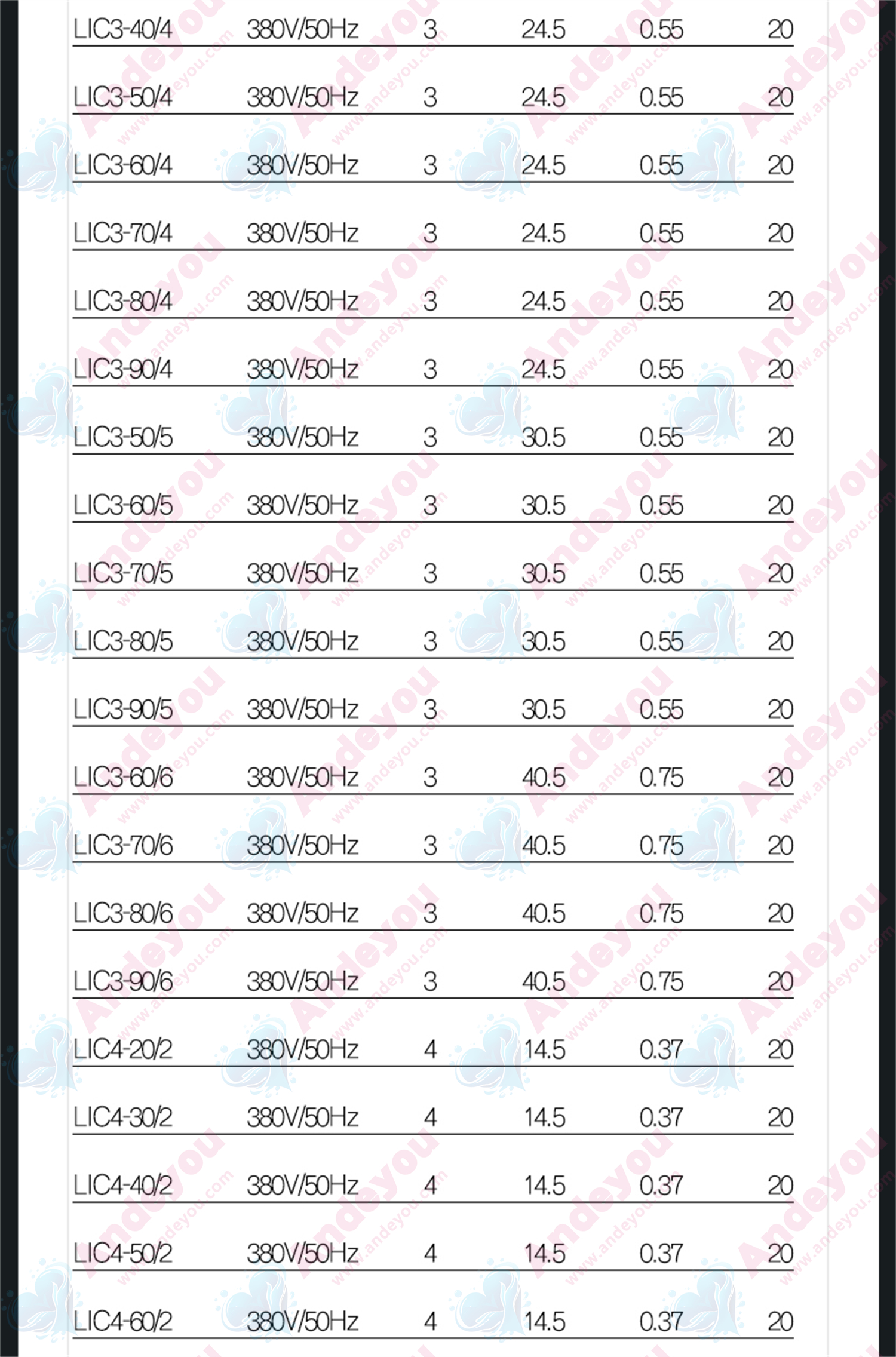

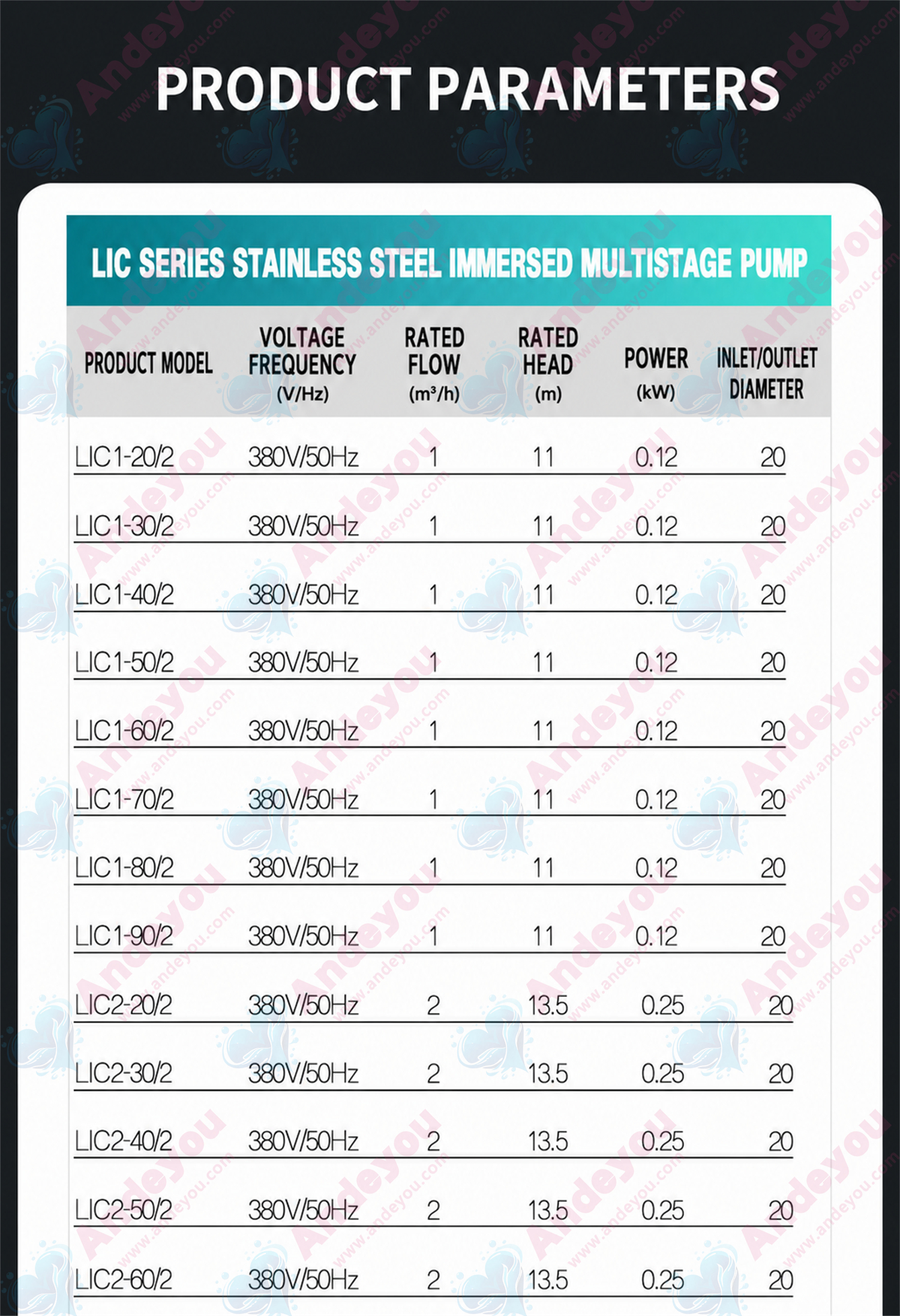

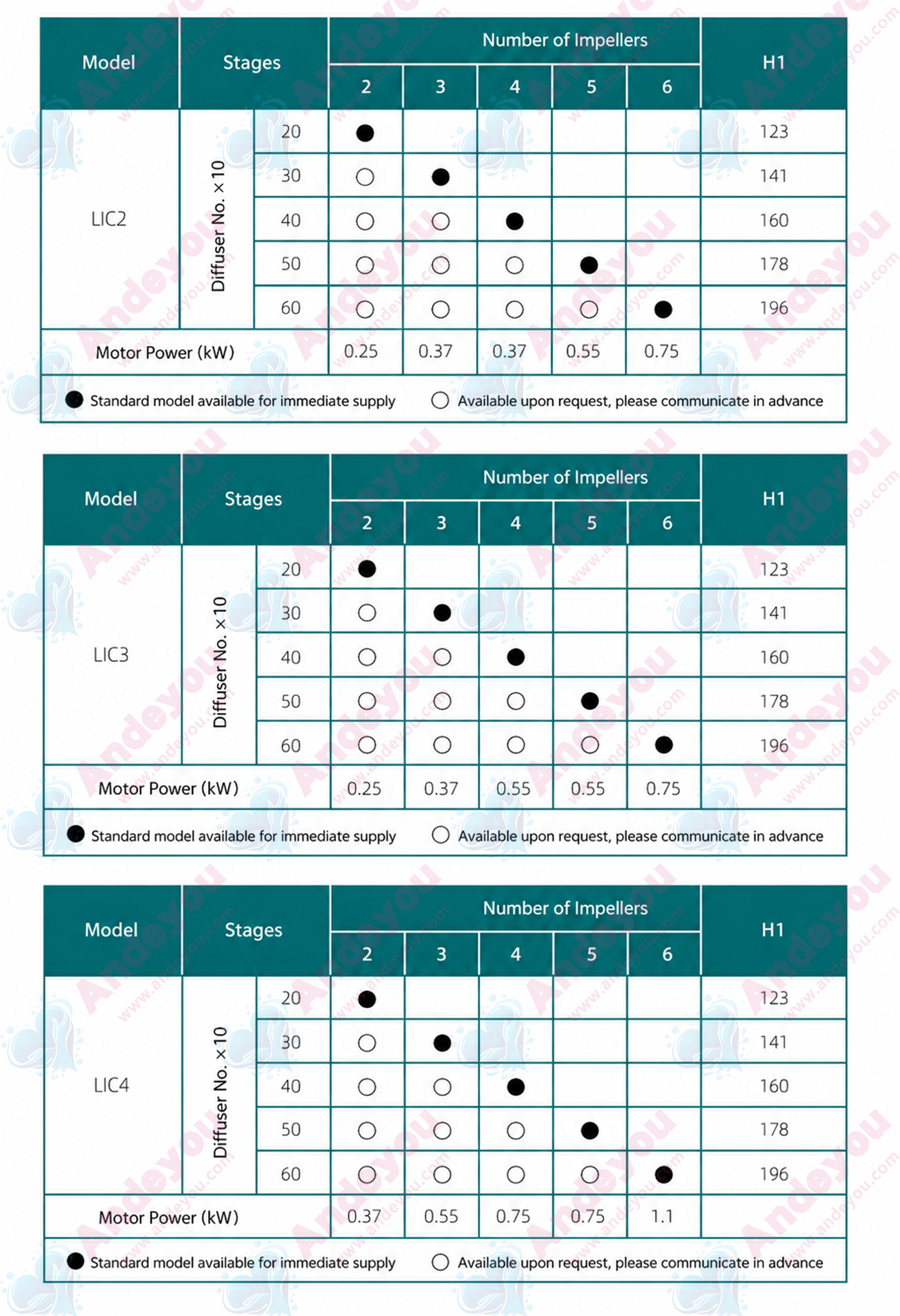

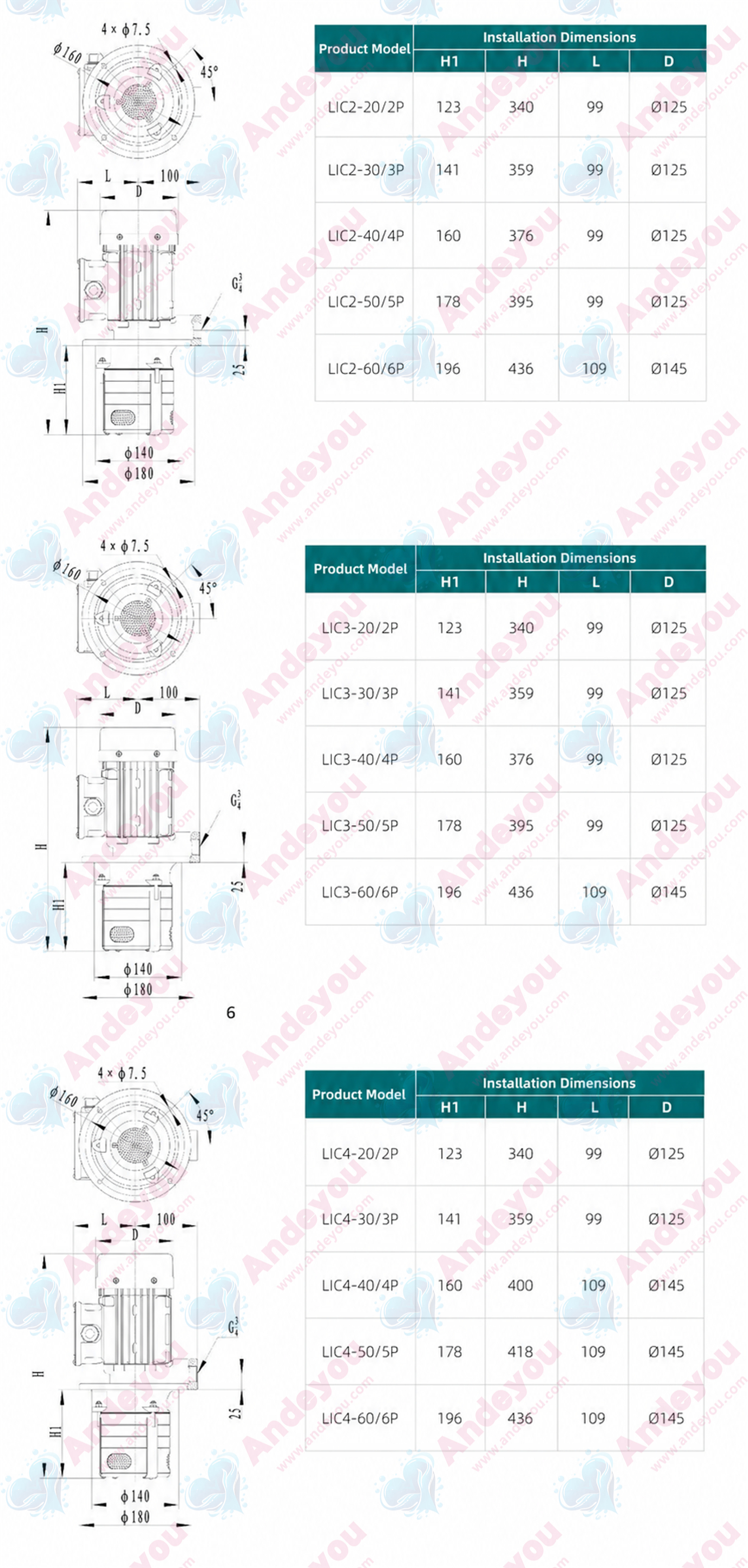

The LIC series consists of immersible multistage centrifugal pumps with integrated motors. Designed for mounting atop tanks or vessels, the pump inlet is submerged in the liquid to facilitate extraction and transfer. The immersion depth can be customized to suit specific tank or vessel requirements; please refer to the product range specifications for immersion depths corresponding to different pump stages.

This product is designed to transport non-explosive liquids that are free of solid particles and fibers and do not chemically corrode the pump materials. Common applications include pumping water and machine tool coolants. Please contact the manufacturer for technical verification if transporting other liquids or liquids with density or viscosity higher than that of water.

Applications:

Machine tool processing, EDM (Electrical Discharge Machining), lathes, grinders, machining centers, cooling units, industrial cleaning equipment, filtration systems, and industrial circulation systems.

Pump Features:

1. Cast iron models feature a built-in inducer, enabling operation and fluid discharge at lower liquid levels.

2. Modular diffuser structure allows for customizable immersion depths.

3. Self-recirculating design prevents external leakage of the pumped medium.

4. Stainless steel strainer base prevents pipeline clogging.

5. Integrated shaft design ensures a compact structure with a small footprint, facilitating easy installation and handling.

6. Stainless steel impellers and diffusers ensure rust resistance and durability.

7. All-metal housing ensures robustness and reliability.

8. Totally enclosed, air-cooled motor.

9. Protection class: IPX5

10. Insulation class: F

11. Voltage/Frequency: 50Hz: 3×220V/380V; 60Hz: 3×220–250V/380–440V
