Product Introduction:

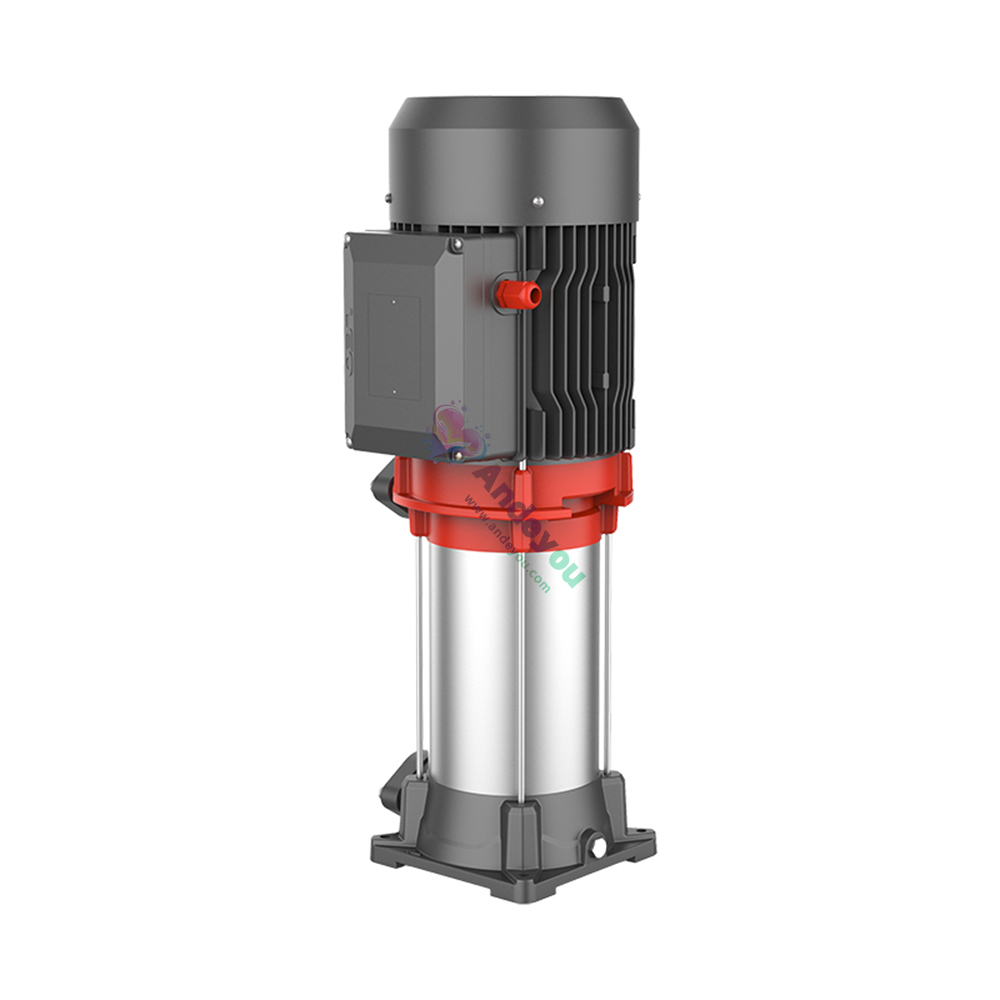

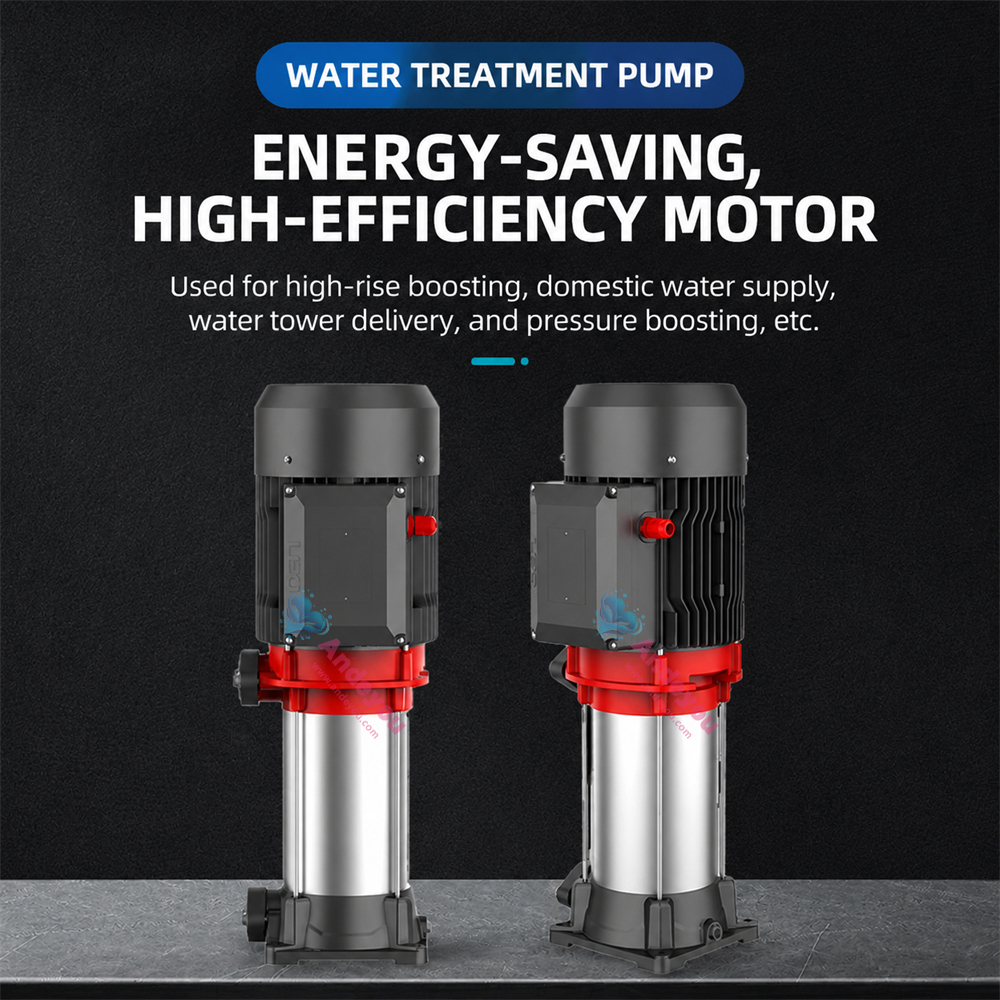

EVP Pump for Water Treatment

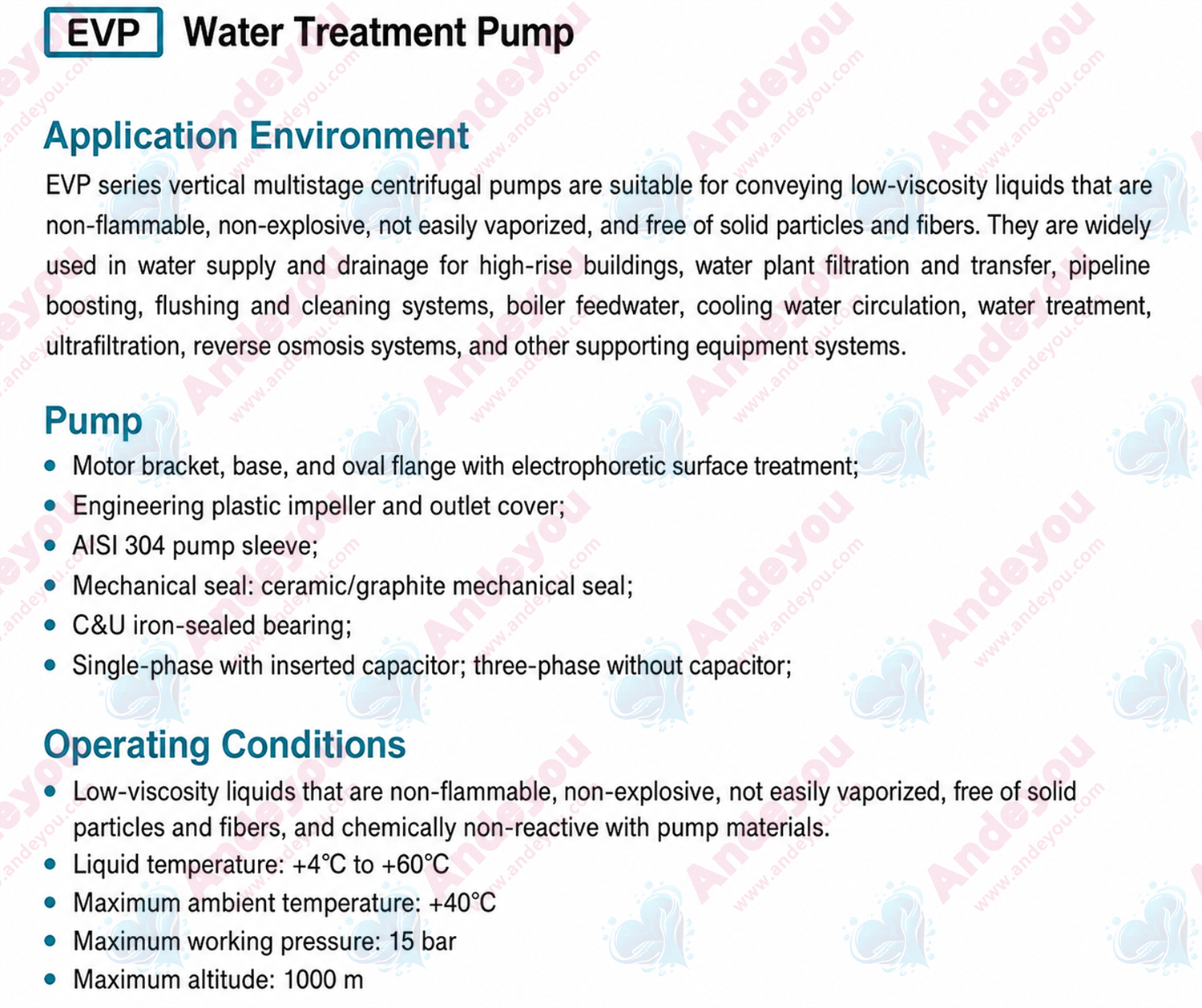

The EVP series vertical multistage centrifugal pump is designed for transporting liquids that are low-viscosity, non-flammable, non-explosive, non-vaporizing, and free of solid particles or fibers.
Electrophoretic coating on motor bracket, base, and oval flange surfaces;
Engineering plastic impeller and discharge cover;
AISI 304 pump casing;
Mechanical seal: Ceramic-to-graphite;
NSK bearings;
Single-phase with insert-type capacitor; three-phase without capacitor;
Protection class: IP55;
Insulation class: F.

Applications:

Water supply and drainage for high-rise buildings, filtration and transport in waterworks, pipeline boosting, etc.

Rinsing and cleaning systems, boiler feed water, cooling water circulation, water treatment, ultrafiltration, reverse osmosis systems, and other equipment-integrated systems.

Pump Features:

1. Voltage/Frequency: Three-phase 380V–415V/50Hz; Single-phase 220V/50Hz

2. Protection class: IP55

3. Insulation class: F

4. Speed: 2900 r/min

5. Suitable for low-viscosity liquids that are non-flammable, non-explosive, non-vaporizing, and free of solid particles or fibers; the liquid must not chemically react with the pump materials.

6. Liquid temperature: +4°C to +60°C

7. Maximum ambient temperature: +40°C

8. pH range: 6.5–8.5

9. Maximum working pressure: 15 bar

10. Maximum altitude: 1000 m
