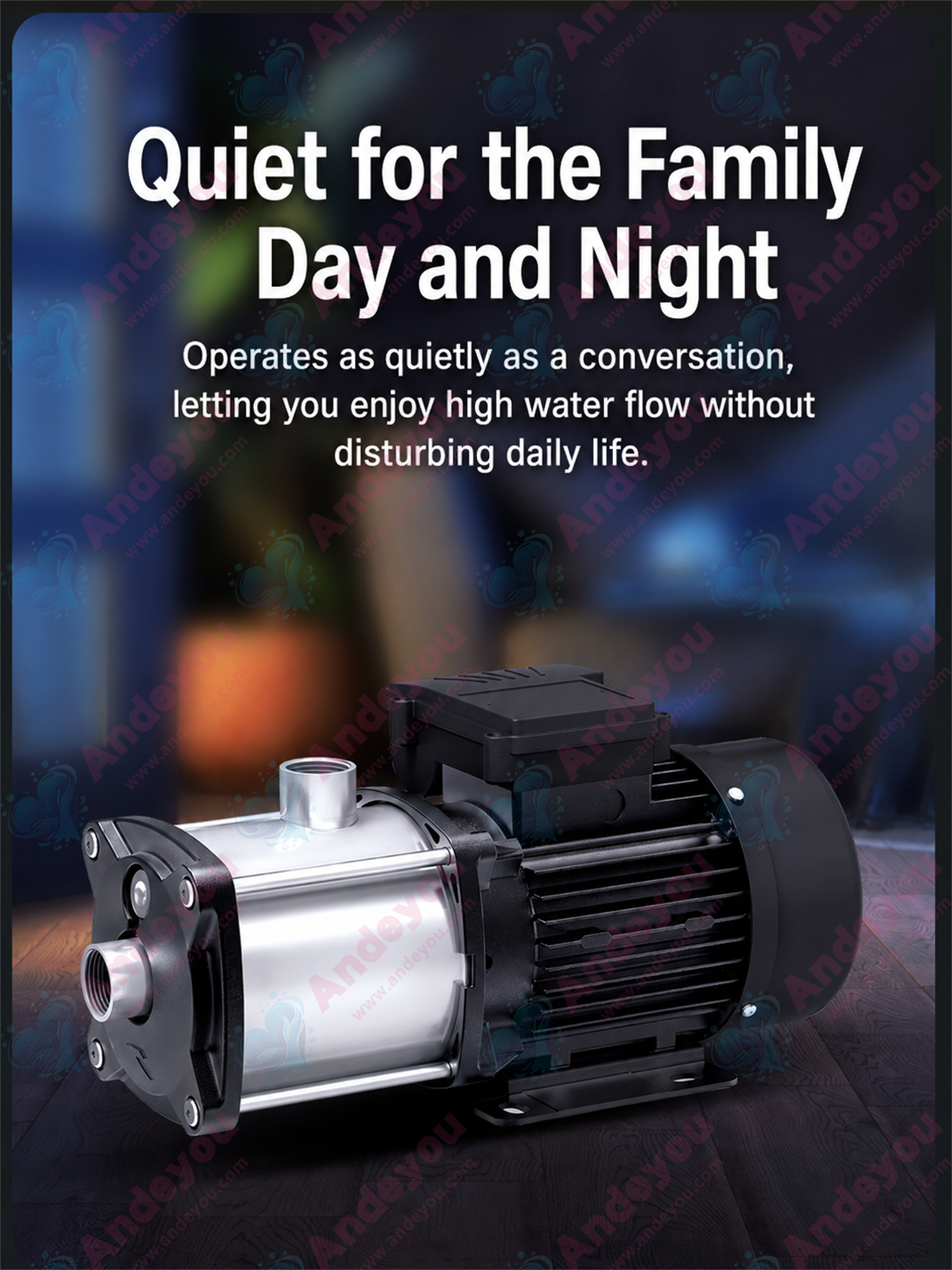

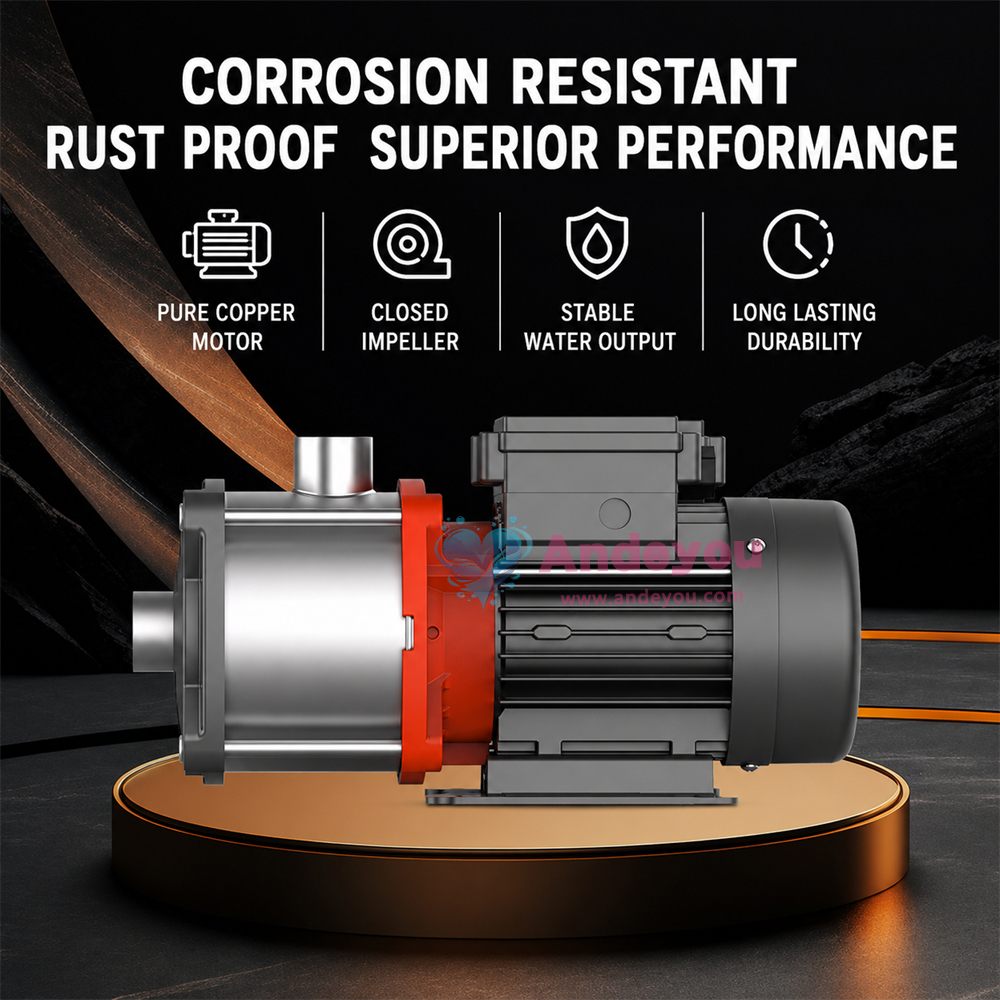

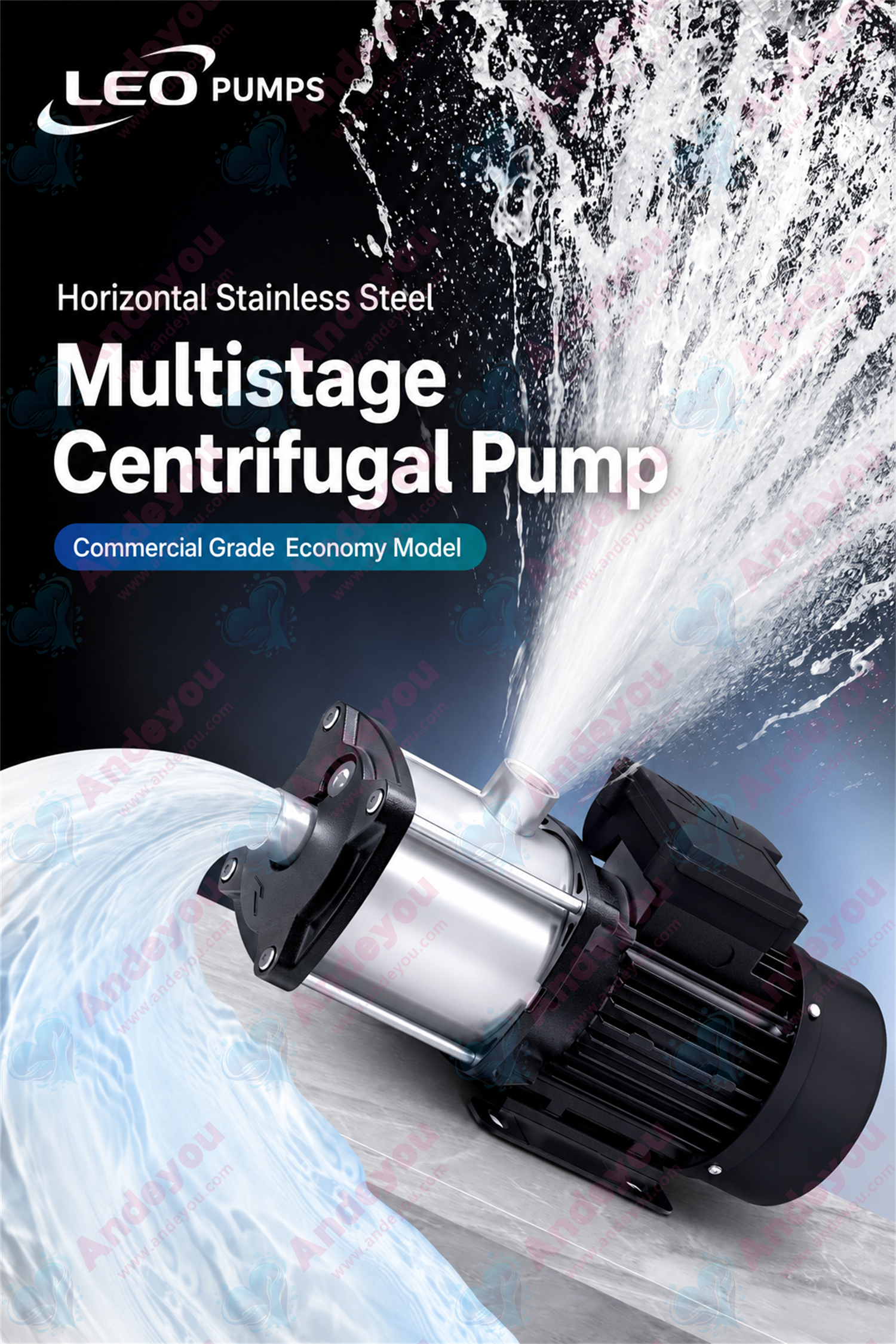

LEO EMH Horizontal Stainless Steel Multistage Centrifugal Pump

EMHm2-2/50Hz|EMHm2-3/50Hz|EMHm2-4/50Hz|EMHm2-5/50Hz|EMHm2-6/50Hz|EMHm3-2/50Hz|EMHm3-3/50Hz|EMHm3-4/50Hz|EMHm3-5/50Hz|EMHm3-6/50Hz|EMHm3-7/50Hz|EMHm4-2/50Hz|EMHm4-3/50Hz|EMHm4-4/50Hz|EMHm4-5/50Hz|EMHm4

The LEO EMH series consists of horizontal stainless steel multistage centrifugal pumps designed for a wide range of applications in domestic water supply,industry,and construction.They are suitable for liquid transfer and circulation in light industry,pressure boosting,and domestic water supply,as well as for use in cooling and air conditioning systems.Components include the pump cover,pump body,first-stage diffuser,impeller,intermediate diffuser,diffuser,mechanical seal,seal housing

Product Consultation By telephone

Function

Parameters

Size

Video Introduction

Function

Product Introduction:

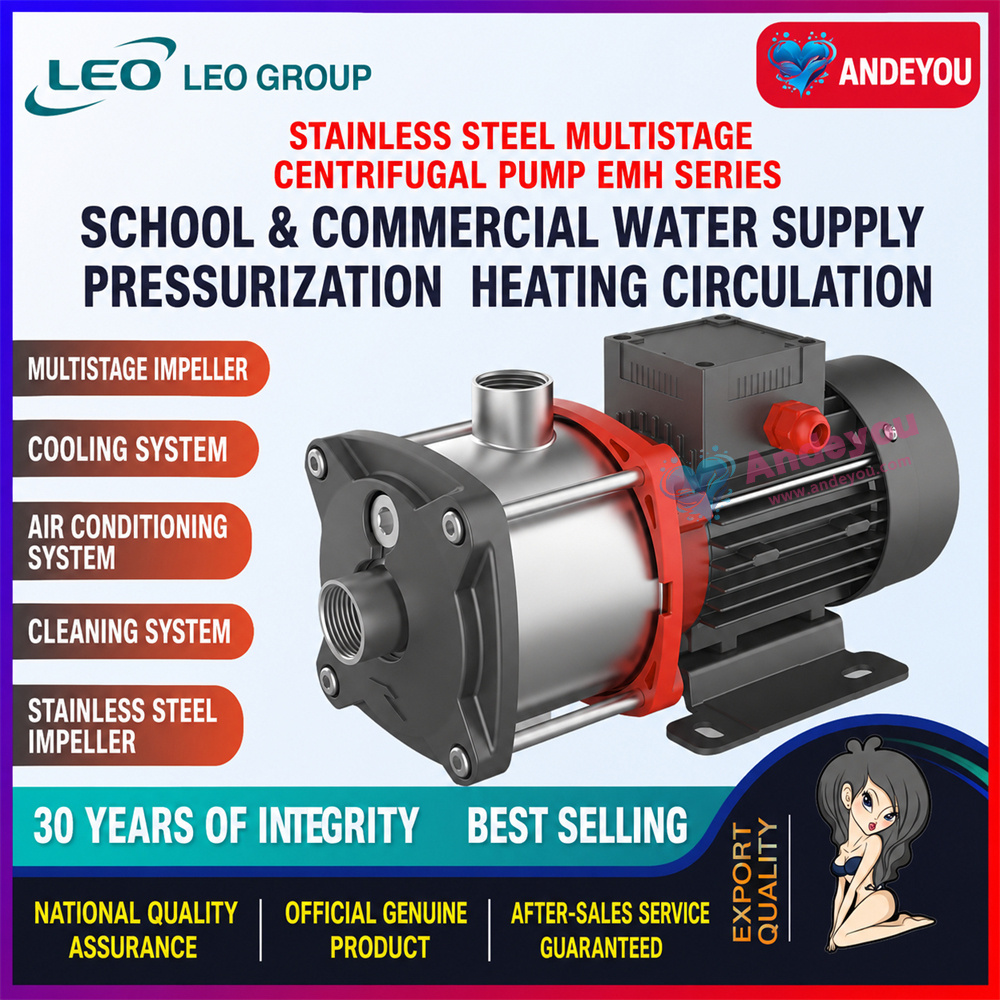

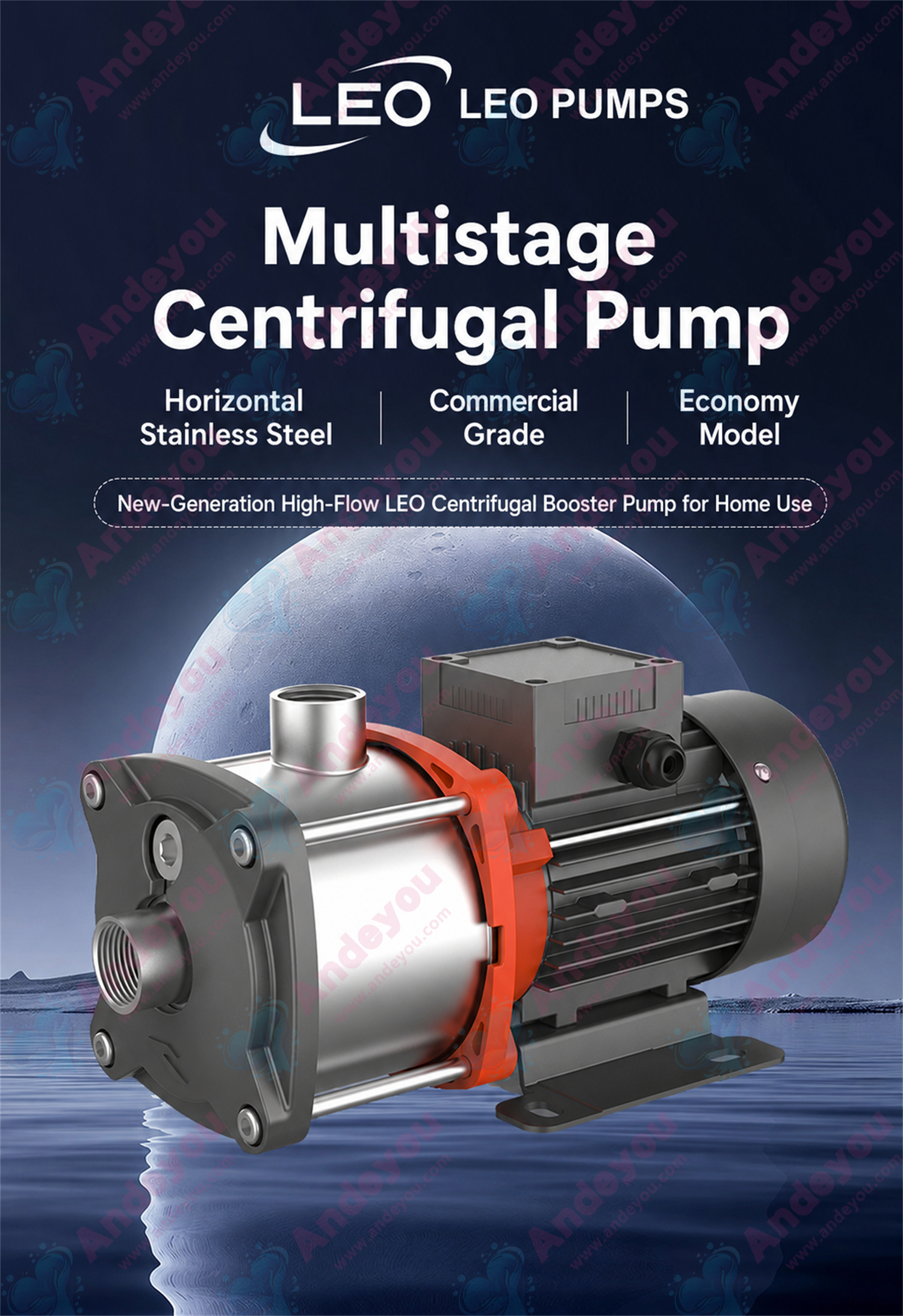

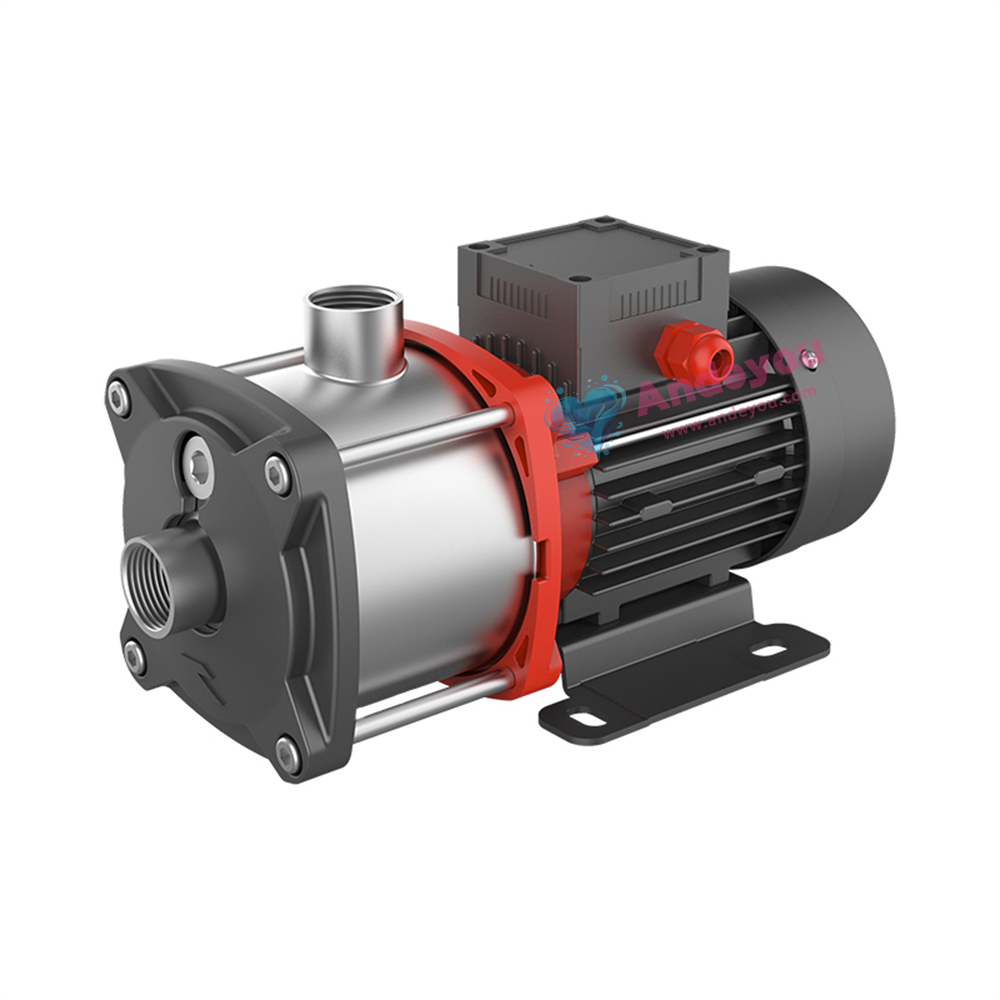

EMH Horizontal Stainless Steel Multistage Centrifugal Pump

Suitable for thin, clean, non-flammable, and non-explosive liquids that are chemically compatible with the pump materials and free of solid particles or fibers.

If the density of the pumped medium exceeds that of water, a higher-power motor is required.

Single-phase motors feature built-in thermal overload protection; three-phase motors must be connected to a motor starter in accordance with local regulations.

Applications:

The EMH series consists of horizontal stainless steel multistage pumps widely used in domestic water supply, industry, and construction. They are suitable for liquid transfer and circulation in light industry, pressure boosting, and domestic water supply, as well as for cooling and air conditioning systems.

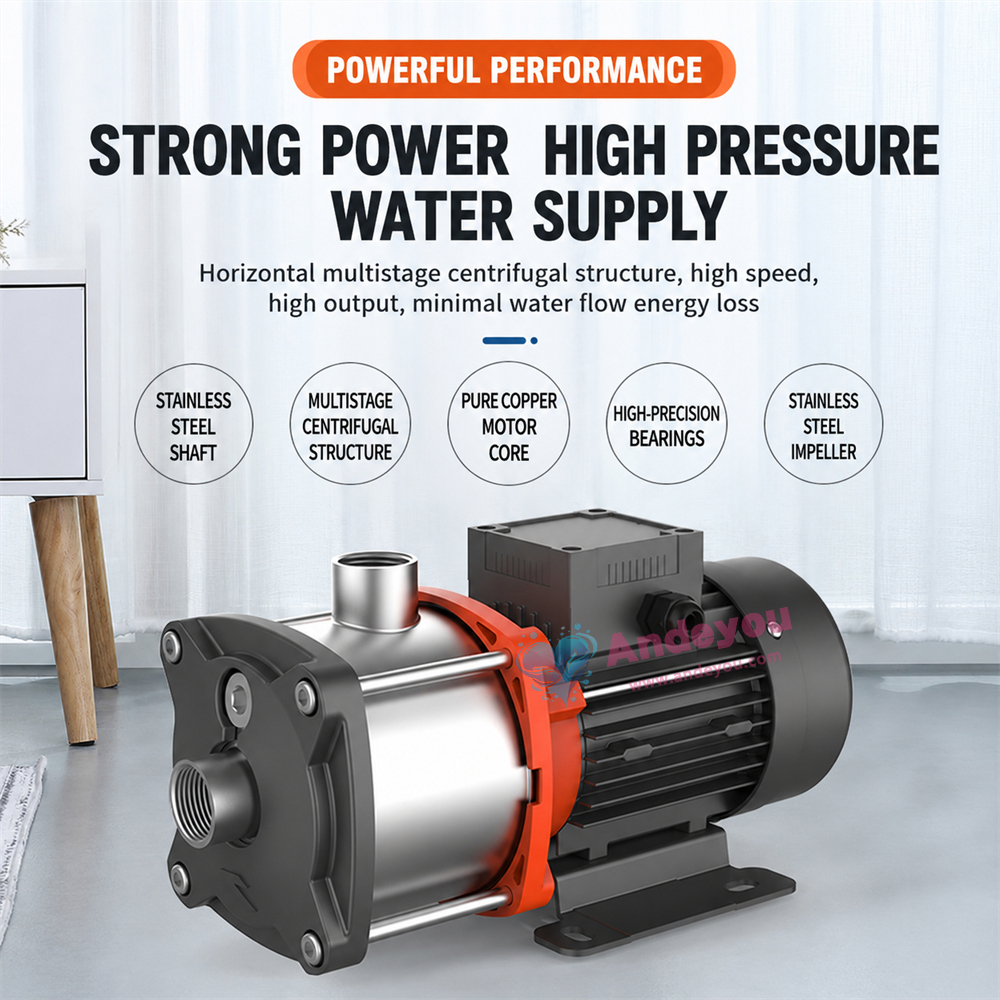

Pump Features:

1. Liquid temperature range: 0°C to 60°C
2. Maximum ambient temperature: +40°C
3. Maximum operating pressure: 10 bar

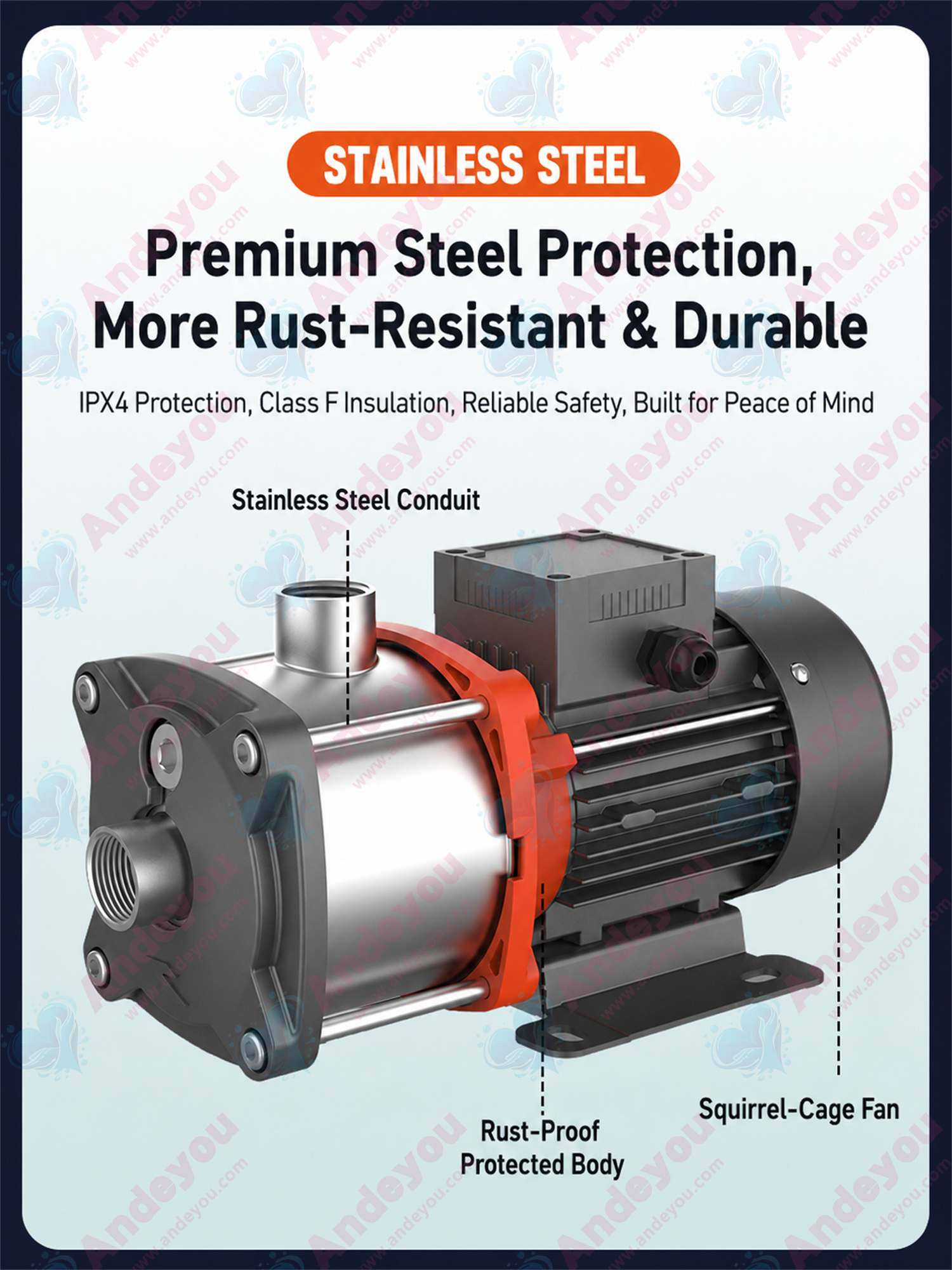

4. Equipped with a totally enclosed, fan-cooled, squirrel-cage motor
5. Protection class: IPX4
6. Insulation class: F

7. Standard voltage: Single-phase 220V/50Hz; Three-phase 380V/50Hz

8. Maximum installation altitude: Depends on factors such as the pump's NPSH (Net Positive Suction Head), medium temperature, installation elevation above sea level, and inlet piping losses.

9. Maximum inlet pressure: Limited by the maximum operating pressure.

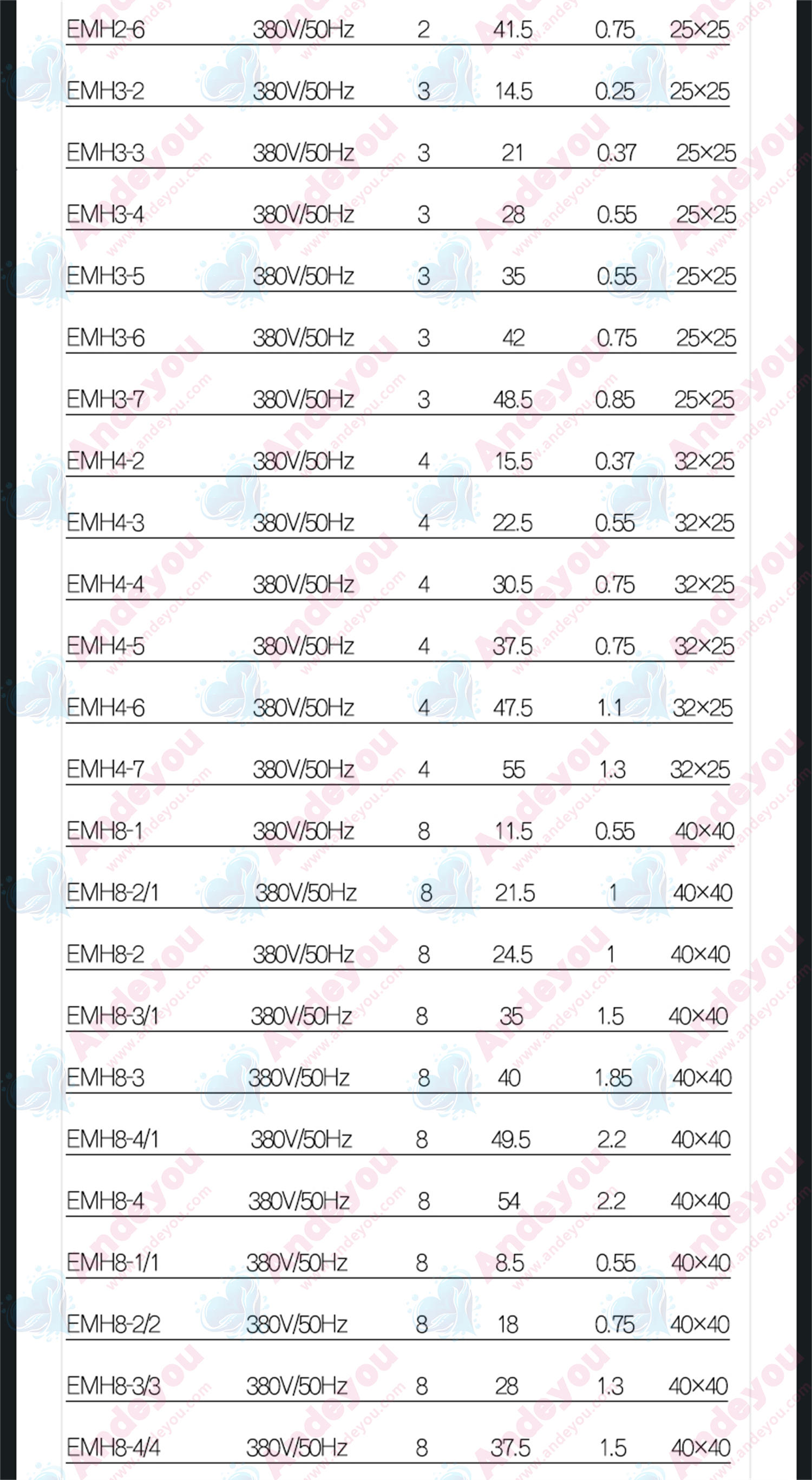

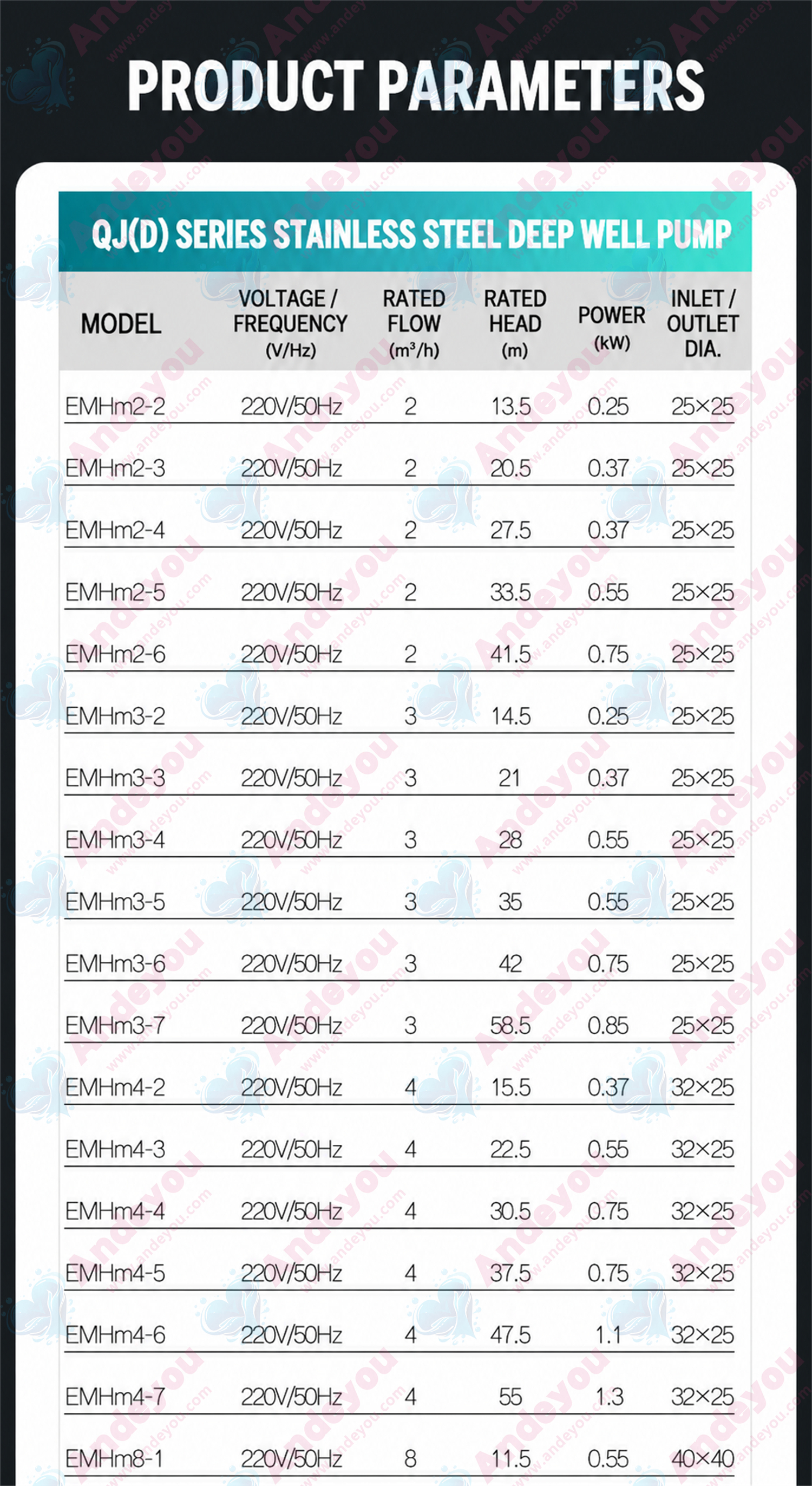

Parameters

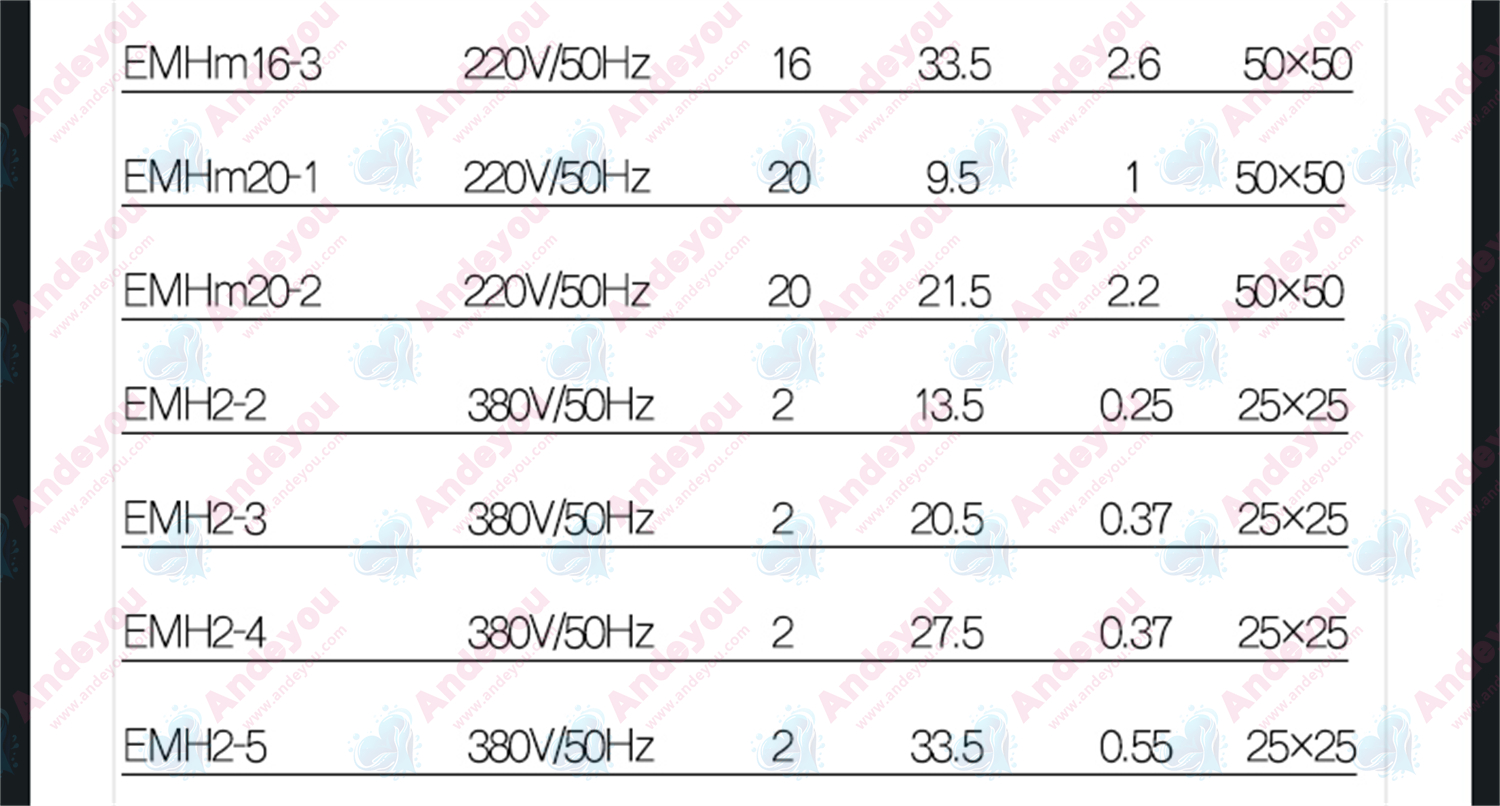

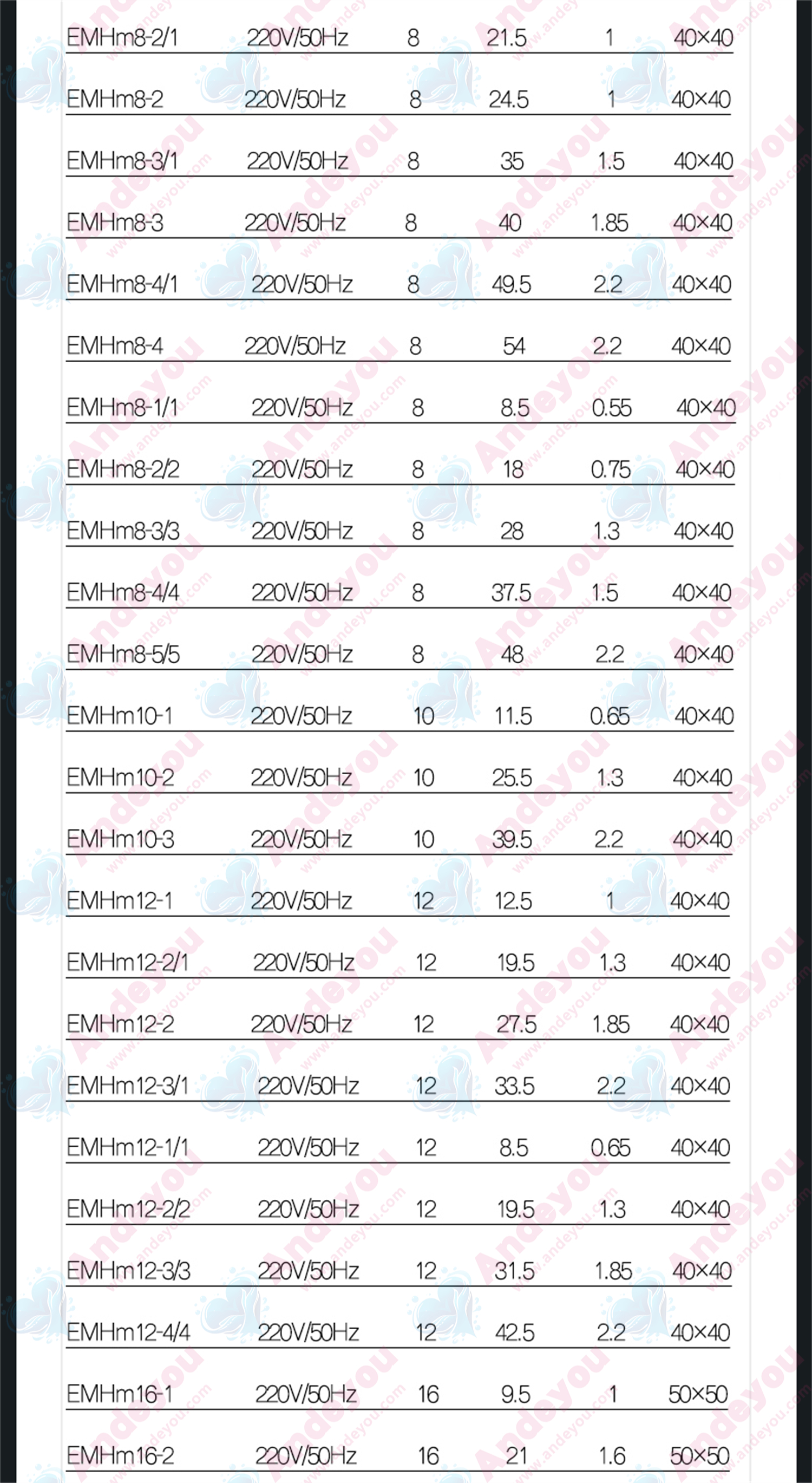

model	Voltage/Frequency	Rated flow rate (m³/h)	Rated head (m)	Power (kW)	Inlet and outlet diameters
EMHm2-2	220V/50Hz	2	13.5	0.25	25×25
EMHm2-3	220V/50Hz	2	20.5	0.37	25×25
EMHm2-4	220V/50Hz	2	27.5	0.37	25×25
EMHm2-5	220V/50Hz	2	33.5	0.55	25×25
EMHm2-6	220V/50Hz	2	41.5	0.75	25×25
EMHm2-7	220V/50Hz	2	51	0.75	25×25
EMHm3-2	220V/50Hz	3	14.5	0.25	25×25
EMHm3-3	220V/50Hz	3	21	0.37	25×25
EMHm3-4	220V/50Hz	3	28	0.55	25×25
EMHm3-5	220V/50Hz	3	35	0.55	25×25
EMHm3-6	220V/50Hz	3	42	0.75	25×25
EMHm3-7	220V/50Hz	4	58.5	0.85	25×25
EMHm4-2	220V/50Hz	4	15.5	0.37	32×25
EMHm4-3	220V/50Hz	4	22.5	0.55	32×25
EMHm4-4	220V/50Hz	4	30.5	0.75	32×25
EMHm4-5	220V/50Hz	4	37.5	0.75	32×25
EMHm4-6	220V/50Hz	4	47.5	1.1	32×25
EMHm4-7	220V/50Hz	4	55	1.3	32×25
EMHm8-1	220V/50Hz	8	11.5	0.55	40×40
EMHm8-2/1	220V/50Hz	8	21.5	1	40×40
EMHm8-2	220V/50Hz	8	24.5	1	40×40
EMHm8-3/1	220V/50Hz	8	35	1.5	40×40
EMHm8-3	220V/50Hz	8	40	1.85	40×40
EMHm8-4/1	220V/50Hz	8	49.5	2.2	40×40
EMHm8-4	220V/50Hz	8	54	2.2	40×40
EMHm8-1/1	220V/50Hz	8	8.5	0.55	40×40
EMHm8-2/2	220V/50Hz	8	18	0.75	40×40
EMHm8-3/3	220V/50Hz	8	28	1.3	40×40
EMHm8-4/4	220V/50Hz	8	37.5	1.5	40×40
EMHm8-5/5	220V/50Hz	8	48	2.2	40×40
EMHm10-1	220V/50Hz	10	11.5	0.65	40×40
EMHm10-2	220V/50Hz	10	25.5	1.3	40×40
EMHm10-3	220V/50Hz	10	39.5	2.2	40×40
EMHm12-1	220V/50Hz	12	12.5	1	40×40
EMHm12-2/1	220V/50Hz	12	19.5	1.3	40×40
EMHm12-2	220V/50Hz	12	27.5	1.85	40×40
EMHm12-3/1	220V/50Hz	12	33.5	2.2	40×40
EMHm12-1/1	220V/50Hz	12	8.5	0.65	40×40
EMHm12-2/2	220V/50Hz	12	19.5	1.3	40×40
EMHm12-3/3	220V/50Hz	12	31.5	1.85	40×40
EMHm12-4/4	220V/50Hz	12	42.5	2.2	40×40
EMHm16-1	220V/50Hz	16	9.5	1	50×50
EMHm16-2	220V/50Hz	16	21	1.6	50×50
EMHm16-3	220V/50Hz	16	33.5	2.6	50×50
EMHm20-1	220V/50Hz	20	9.5	1	50×50
EMHm20-2	220V/50Hz	20	21.5	2.2	50×50
EMH2-2	380V/50Hz	2	13.5	0.25	25×25
EMH2-3	380V/50Hz	2	20.5	0.37	25×25
EMH2-4	380V/50Hz	2	27.5	0.37	25×25
EMH2-5	380V/50Hz	2	33.5	0.55	25×25
EMH2-6	380V/50Hz	2	41.5	0.75	25×25
EMH2-7	380V/50Hz	2	51	0.75	25×25
EMH3-2	380V/50Hz	3	14.5	0.25	25×25
EMH3-3	380V/50Hz	3	21	0.37	25×25
EMH3-4	380V/50Hz	3	28	0.55	25×25
EMH3-5	380V/50Hz	3	35	0.55	25×25
EMH3-6	380V/50Hz	3	42	0.75	25×25
EMH3-7	380V/50Hz	3	48.5	0.85	25×25
EMH4-2	380V/50Hz	4	15.5	0.37	32×25
EMH4-3	380V/50Hz	4	22.5	0.55	32×25
EMH4-4	380V/50Hz	4	30.5	0.75	32×25
EMH4-6	380V/50Hz	4	47.5	1.1	32×25
EMH4-7	380V/50Hz	4	55	1.3	32×25
EMH8-1	380V/50Hz	8	11.5	0.55	40×40
EMH8-2/1	380V/50Hz	8	21.5	1	40×40
EMH8-2	380V/50Hz	8	24.5	1	40×40
EMH8-3/1	380V/50Hz	8	35	1.5	40×40
EMH8-3	380V/50Hz	8	40	1.85	40×40
EMH8-4/1	380V/50Hz	8	49.5	2.2	40×40
EMH8-4	380V/50Hz	8	54	2.2	40×40
EMH8-1/1	380V/50Hz	8	8.5	0.55	40×40
EMH8-2/2	380V/50Hz	8	18	0.75	40×40
EMH8-3/3	380V/50Hz	8	28	1.3	40×40
EMH8-4/4	380V/50Hz	8	37.5	1.5	40×40

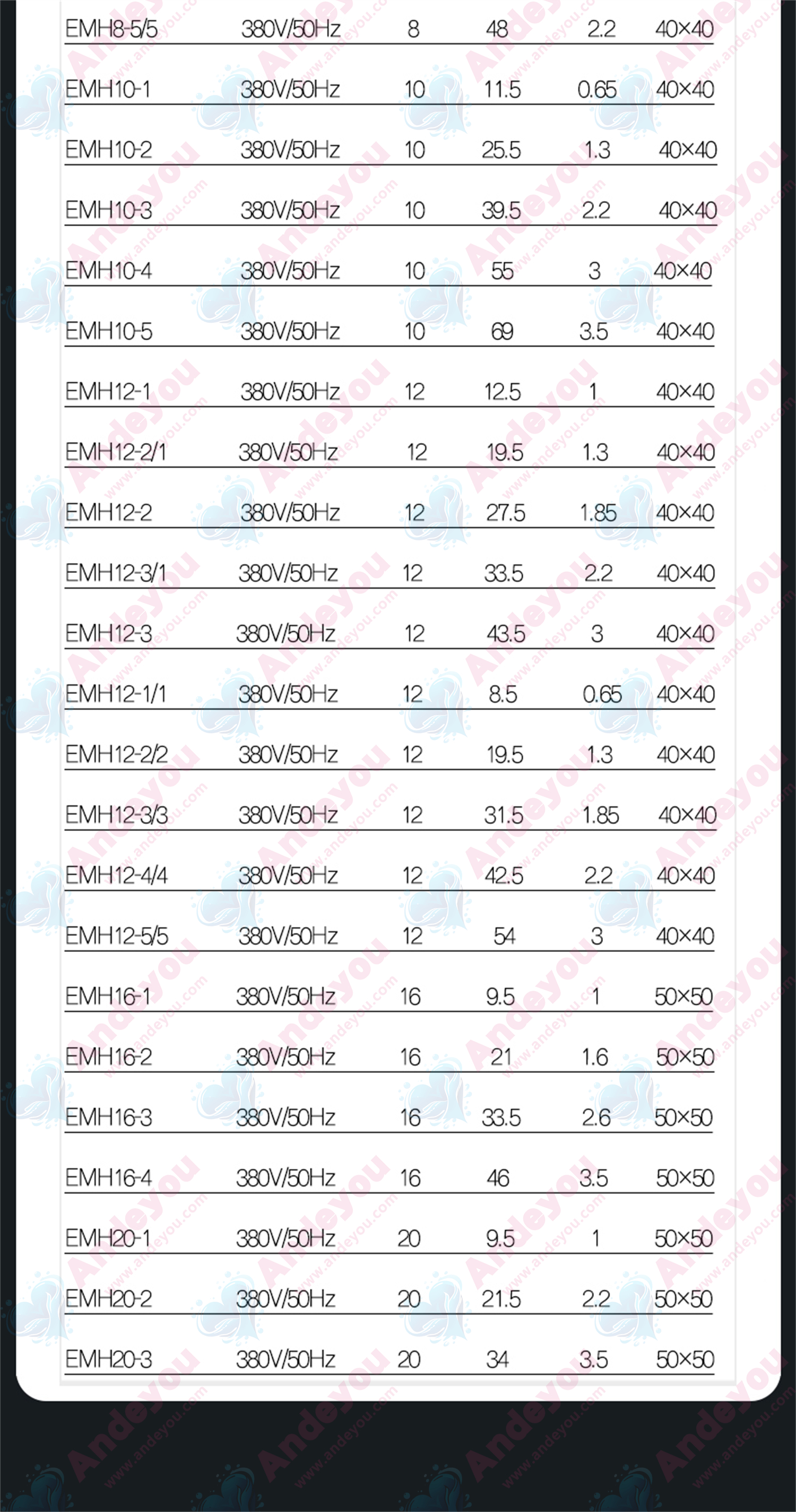

EMH8-5/5	380V/50Hz	8	48	2.2	40×40
EMH10-1	380V/50Hz	10	11.5	0.65	40×40
EMH10-2	380V/50Hz	10	25.5	1.3	40×40
EMH10-3	380V/50Hz	10	39.5	2.2	40×40
EMH10-4	380V/50Hz	10	55	3	40×40
EMH10-5	380V/50Hz	10	69	3.5	40×40
EMH12-1	380V/50Hz	12	12.5	1	40×40
EMH12-2/1	380V/50Hz	12	19.5	1.3	40×40
EMH12-2	380V/50Hz	12	27.5	1.85	40×40
EMH12-3/1	380V/50Hz	12	33.5	2.2	40×40
EMH12-3	380V/50Hz	12	43.5	3	40×40
EMH12-5	380V/50Hz	12	74	4	40×40
EMH12-1/1	380V/50Hz	12	8.5	0.65	40×40
EMH12-2/2	380V/50Hz	12	19.5	1.3	40×40
EMH12-3/3	380V/50Hz	12	31.5	1.85	40×40
EMH12-4/4	380V/50Hz	12	42.5	2.2	40×40
EMH12-5/5	380V/50Hz	12	54	3	40×40
EMH16-1	380V/50Hz	16	9.5	1	50×50
EMH16-2	380V/50Hz	16	21	1.6	50×50
EMH16-3	380V/50Hz	16	33.5	2.6	50×50
EMH16-4	380V/50Hz	16	46	3.5	50×50
EMH16-5	380V/50Hz	16	58	4	50×50
EMH20-1	380V/50Hz	20	9.5	1	50×50
EMH20-2	380V/50Hz	20	21.5	2.2	50×50
EMH20-3	380V/50Hz	20	34	3.5	50×50
EMH20-4	380V/50Hz	20	44.5	4	50×50
EMH20-5	380V/50Hz	20	55	5.5	50×50
EMH20-6	380V/50Hz	20	67	7.5	50×50
EMH25-1	380V/50Hz	25	8	1	50×50
EMH25-2	380V/50Hz	25	18.5	2.2	50×50
EMH25-3	380V/50Hz	25	29	3.5	50×50
EMH25-4	380V/50Hz	25	40	4	50×50
EMHm2-2	220V/60Hz	2	22	0.37	25×25
EMHm2-3	220V/60Hz	2	32.5	0.6	25×25
EMHm2-4	220V/60Hz	2	43	0.75	25×25
EMHm2-5	220V/60Hz	2	53.5	1	25×25
EMHm2-6	220V/60Hz	2	65	1	25×25
EMHm3-2	220V/60Hz	3	23	0.37	25×25
EMHm3-3	220V/60Hz	3	33.5	0.6	25×25
EMHm3-4	220V/60Hz	3	46	1	25×25
EMHm3-5	220V/60Hz	3	57	1	25×25
EMHm3-6	220V/60Hz	3	69	1.3	25×25
EMHm4-2	220V/60Hz	4	24	0.75	32×25
EMHm4-3	220V/60Hz	4	36	1	32×25
EMHm4-4	220V/60Hz	4	48	1	32×25
EMHm4-5	220V/60Hz	4	60	1.5	32×25
EMHm4-6	220V/60Hz	4	74.5	1.8	32×25
EMH2-2	380V/60Hz	2	22	0.37	25×25
EMH2-3	380V/60Hz	2	32.5	0.6	25×25
EMH2-4	380V/60Hz	2	43	0.75	25×25
EMH2-5	380V/60Hz	2	53.5	1	25×25
EMH2-6	380V/60Hz	2	65	1	25×25
EMH3-2	380V/60Hz	3	23	0.37	25×25
EMH3-3	380V/60Hz	3	33.5	0.6	25×25
EMH3-4	380V/60Hz	3	46	1	25×25
EMH3-5	380V/60Hz	3	57	1	25×25
EMH3-6	380V/60Hz	3	69	1.3	25×25
EMH4-2	380V/60Hz	4	24	0.75	32×25
EMH4-3	380V/60Hz	4	36	1	32×25
EMH4-4	380V/60Hz	4	48	1	32×25
EMH4-5	380V/60Hz	4	60	1.5	32×25
EMH4-6	380V/60Hz	4	74.5	1.8	32×25
