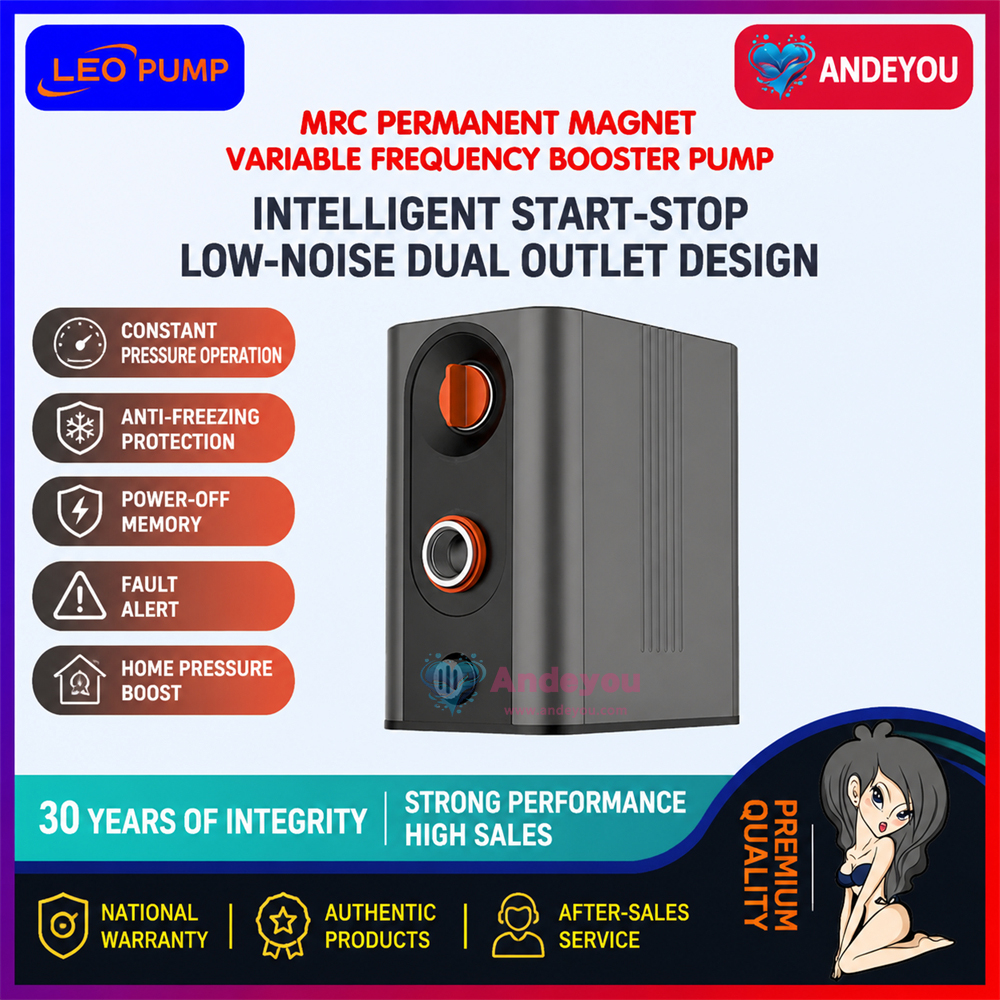

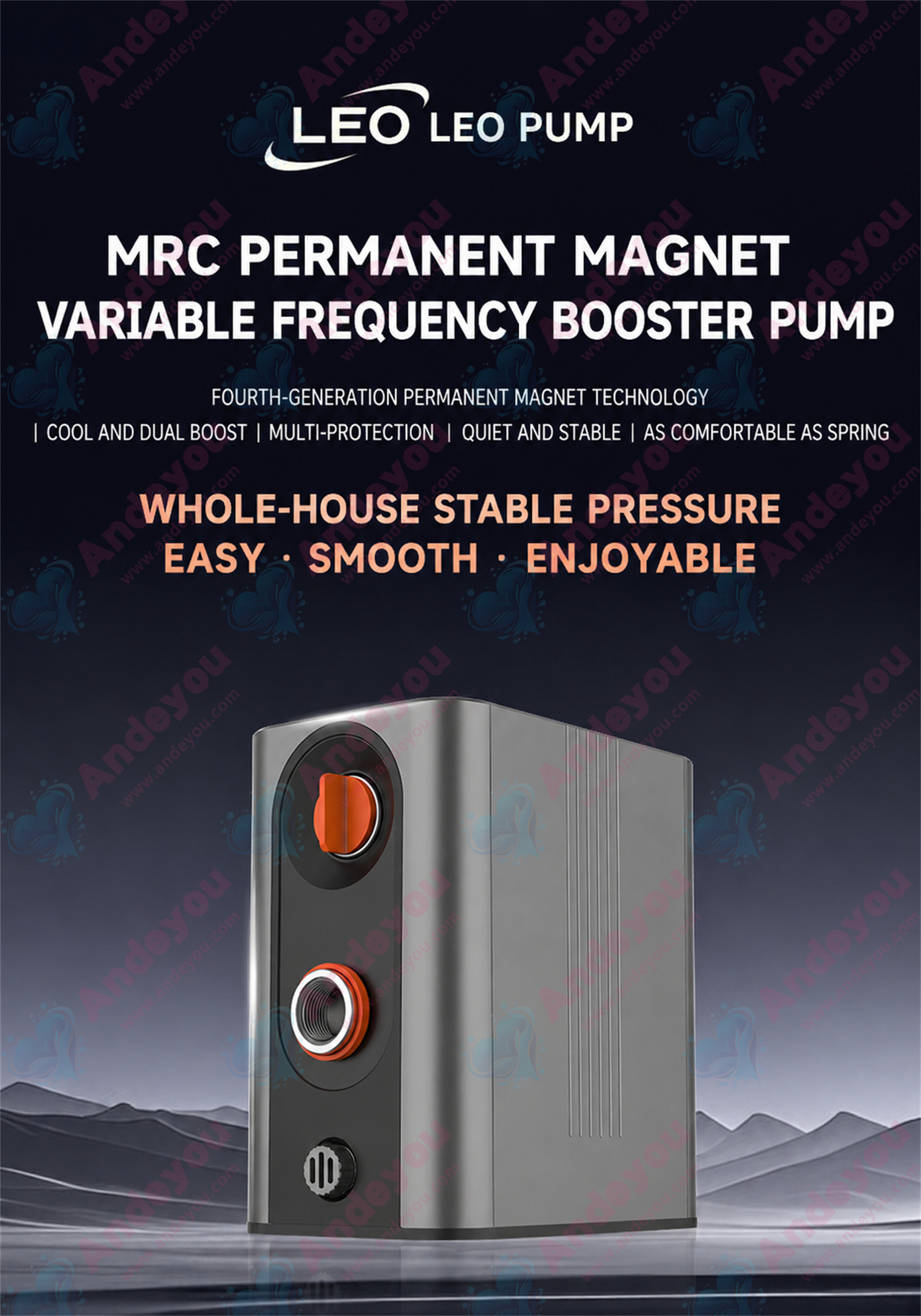

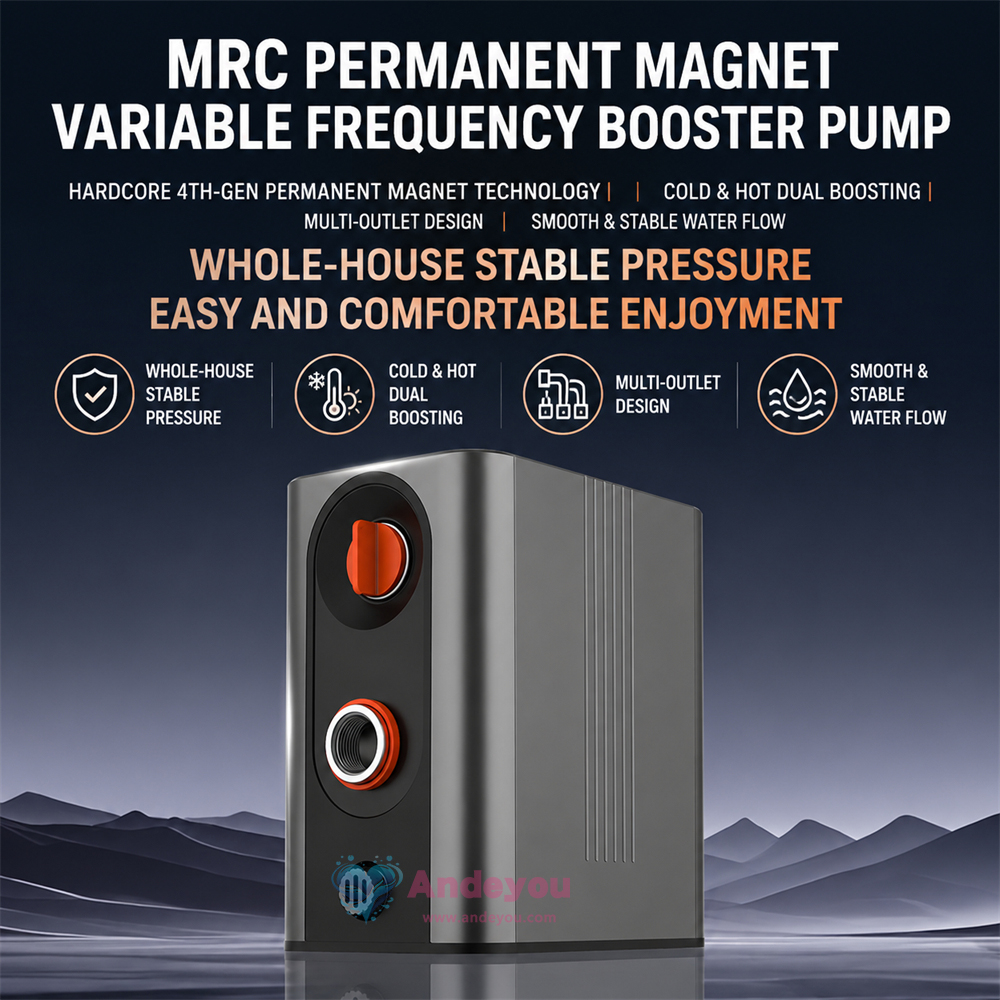

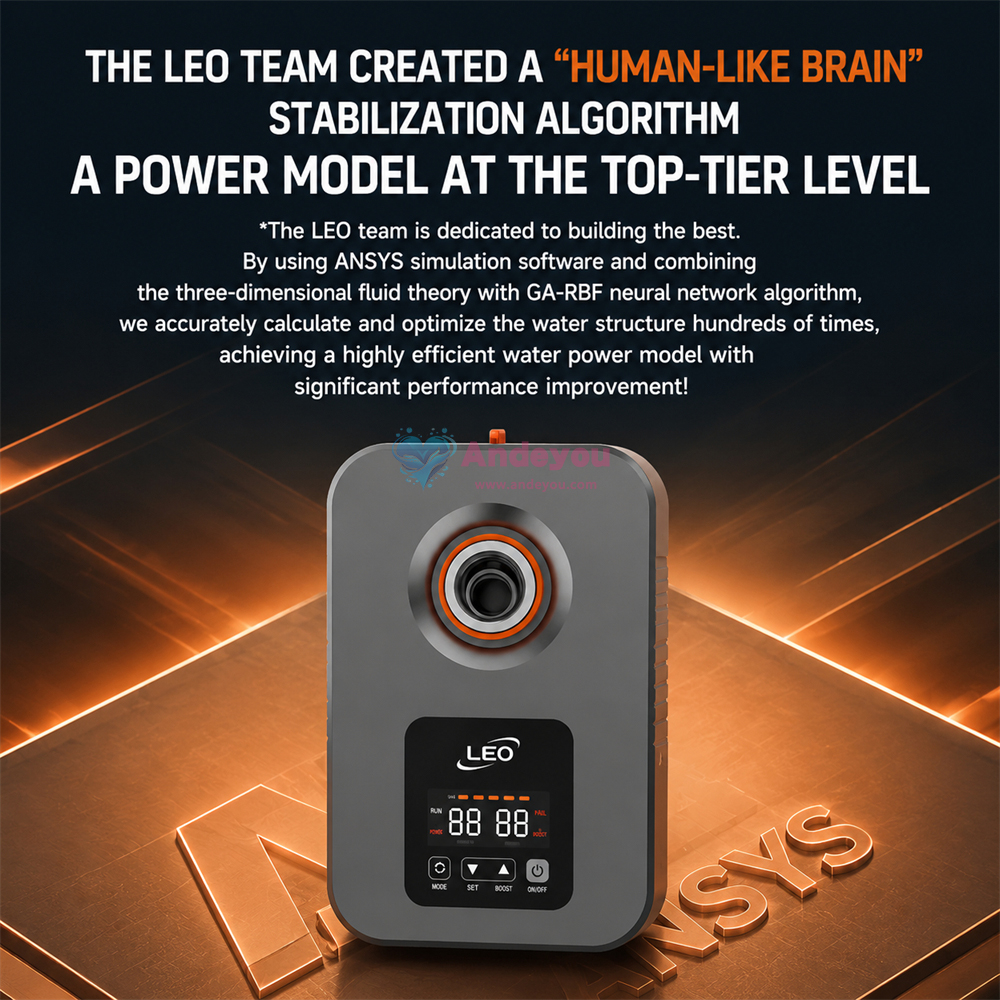

LEO MRC Permanent Magnet Variable Frequency Booster Pump

MRC37、MRC55、MRC75

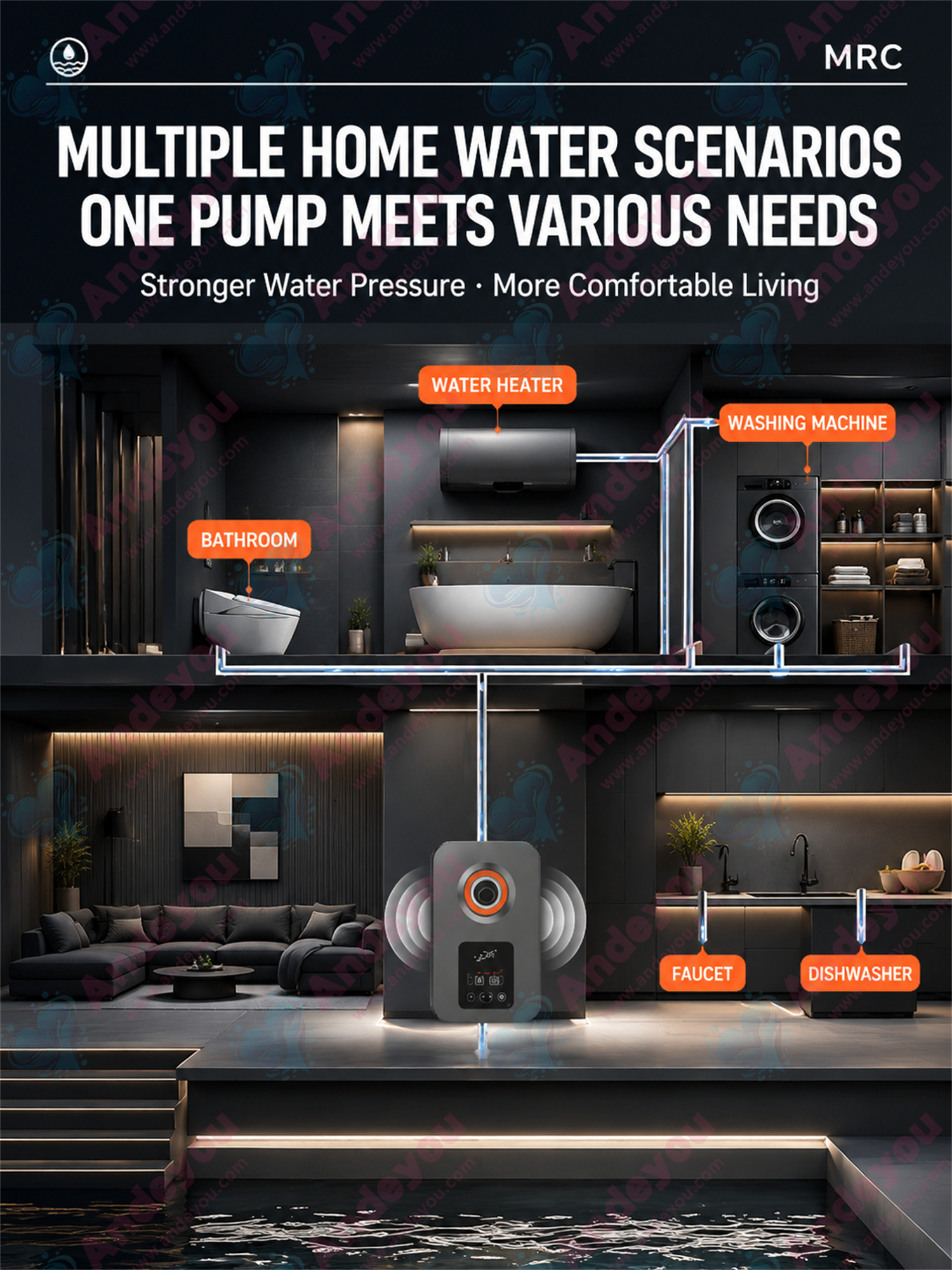

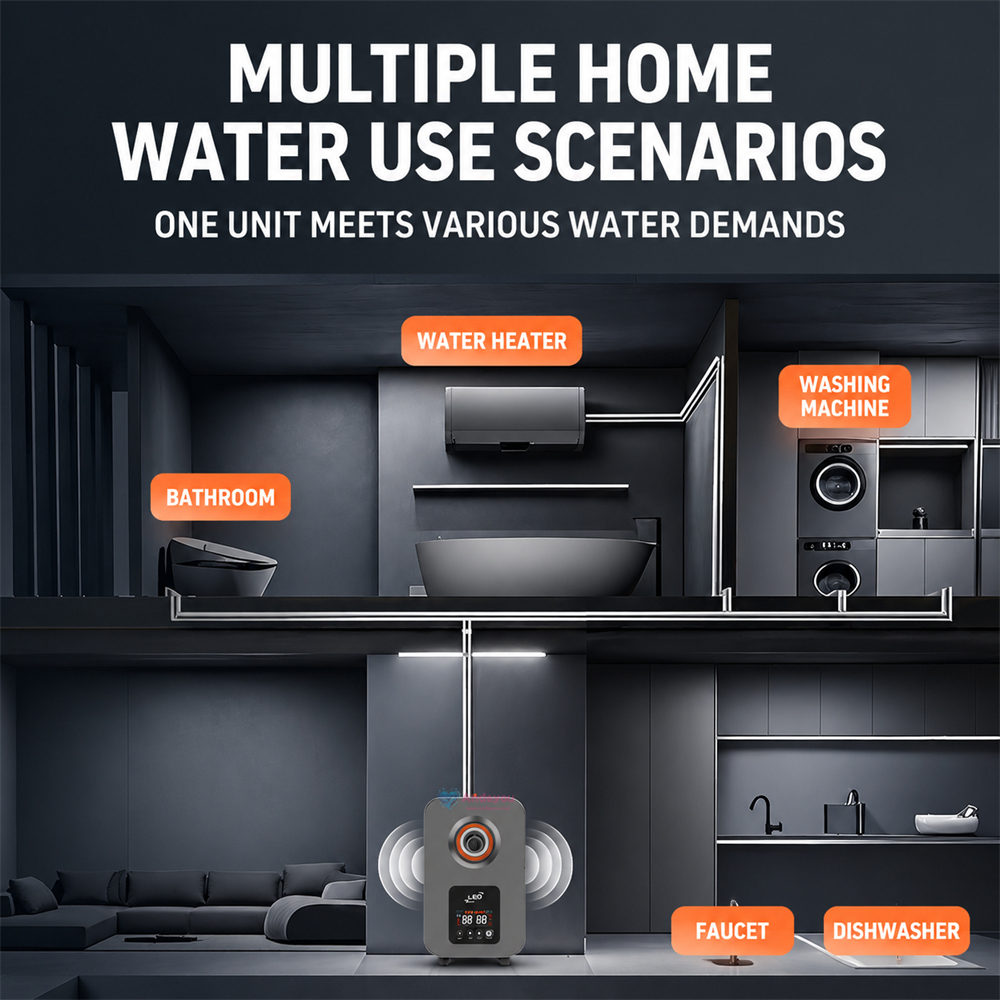

The LEO MRC permanent-magnet variable-frequency booster pump is designed for whole-house constant-pressure water supply.It features a high-efficiency permanent-magnet motor that offers energy savings,noise reduction,and smooth,quiet operation.With intelligent,fully automatic start/stop functionality and constant pressure output,it is suitable for high-rise apartments,self-built homes,villas,and applications involving water heaters and whole-house pressure boosting
Function
Parameters
Size
Video Introduction

Function

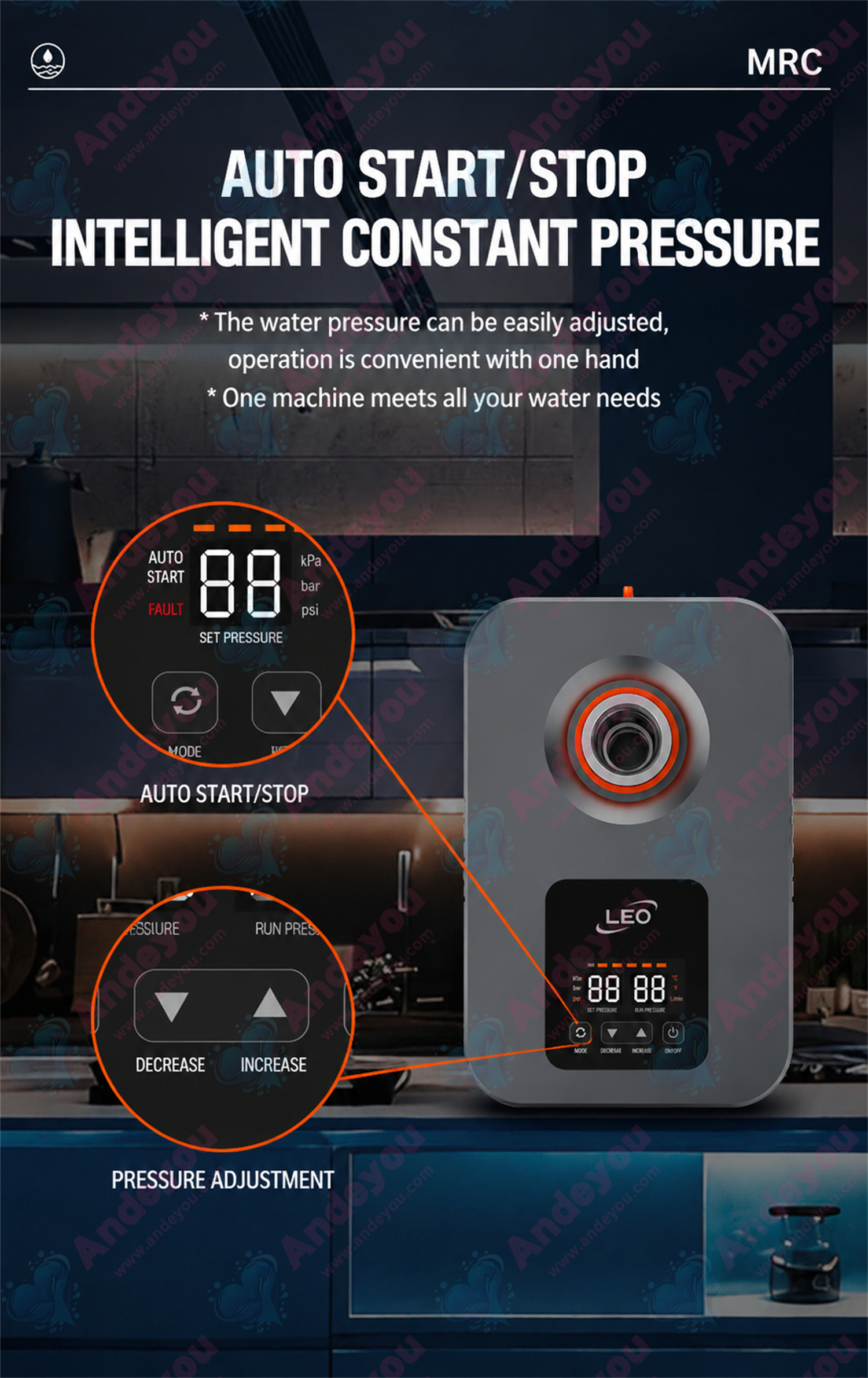

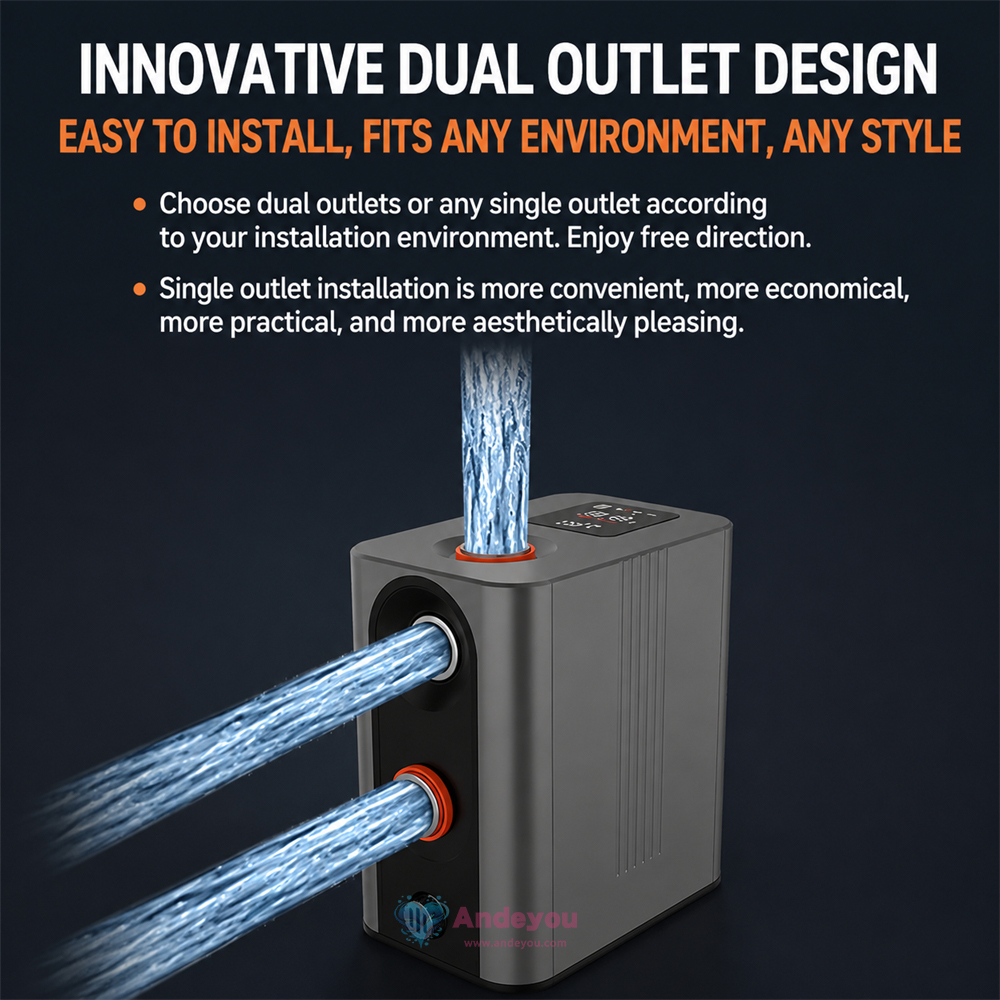

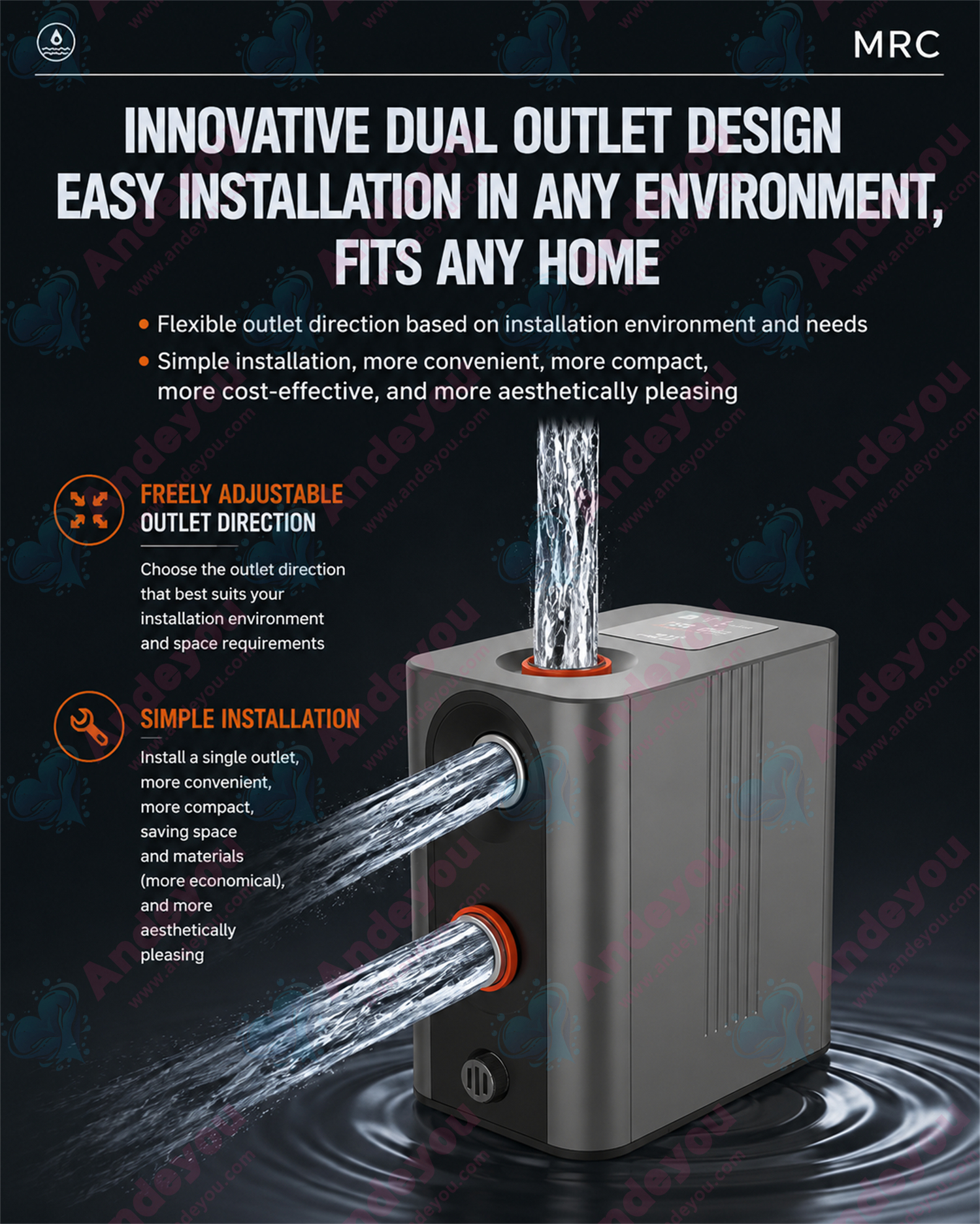

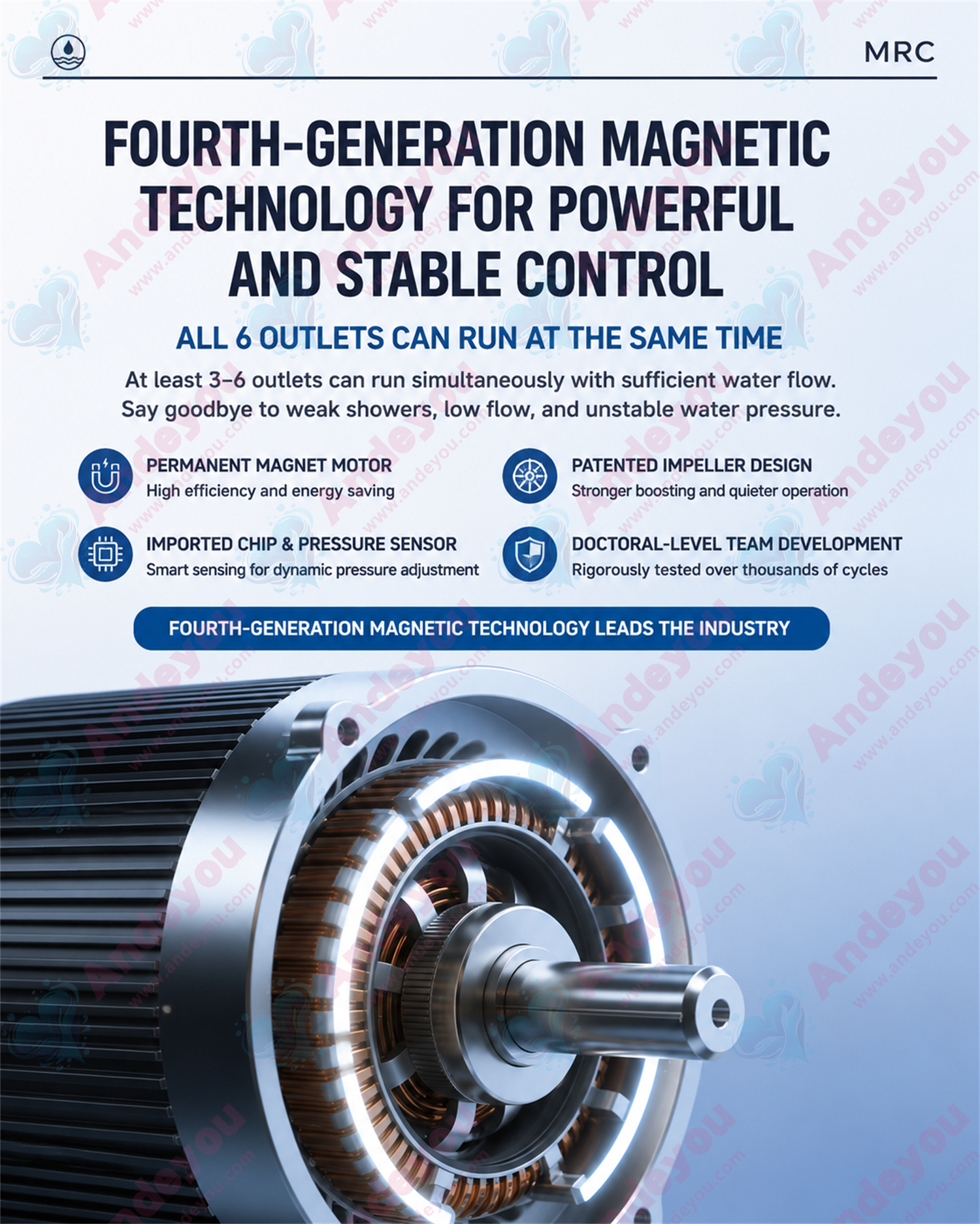

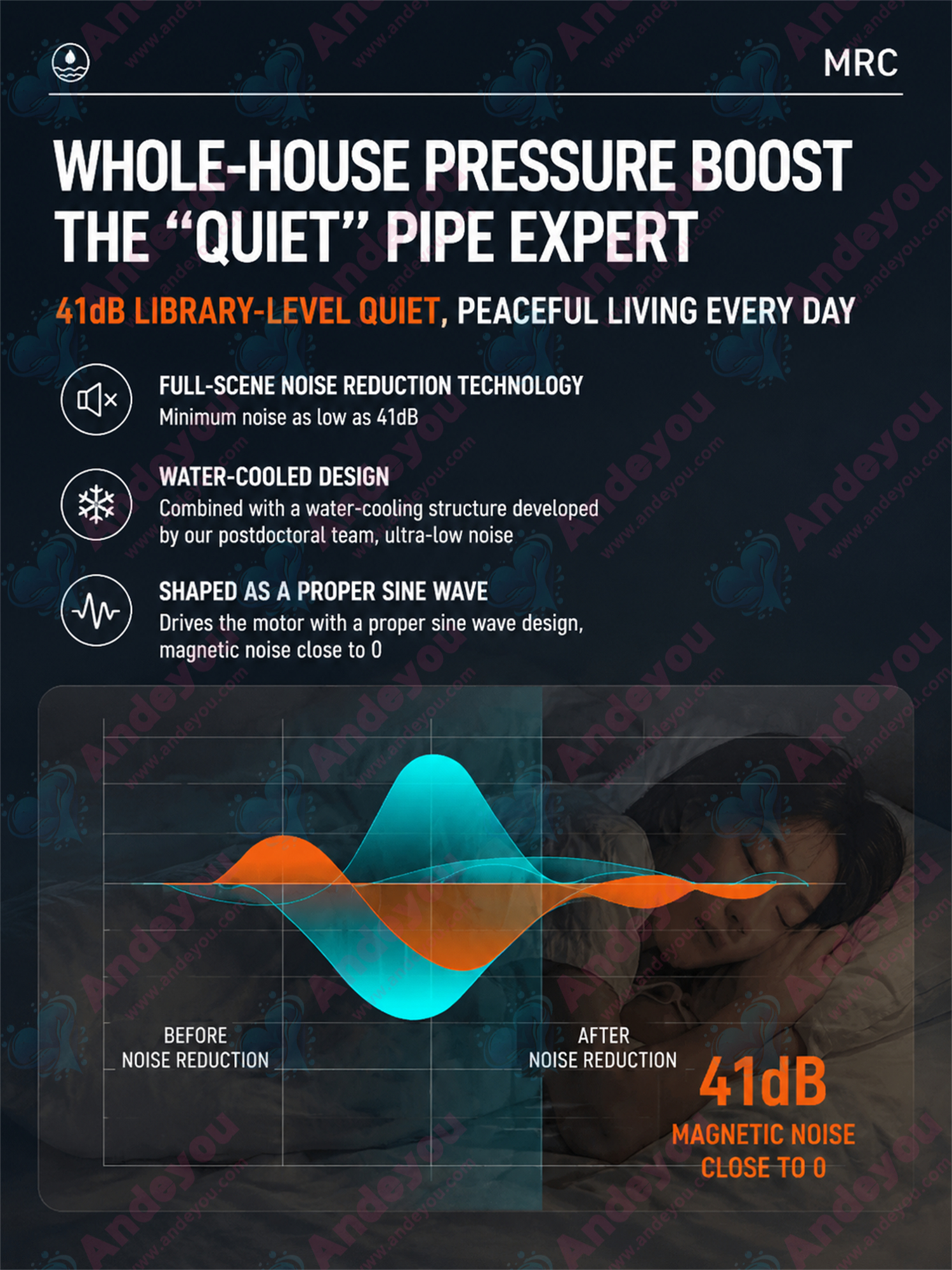

4th-generation permanent magnet technology; dual-boost capability for hot and cold water; innovative dual-outlet design; quiet, undisturbed operation; automatic start/stop; intelligent constant pressure control; fully adjustable settings.

Features: Constant pressure protection, voltage protection, freeze protection, locked-rotor protection, leakage protection, power-loss memory, dry-run protection, pressure fault alerts, no-water protection, and controller fault alerts.

Fluid temperature: 4–35°C
Ambient temperature: 4–40°C
pH value: 6.5–8.5
Protection rating: IPX4
Fluid type: Clean water and other low-viscosity, non-corrosive liquids.

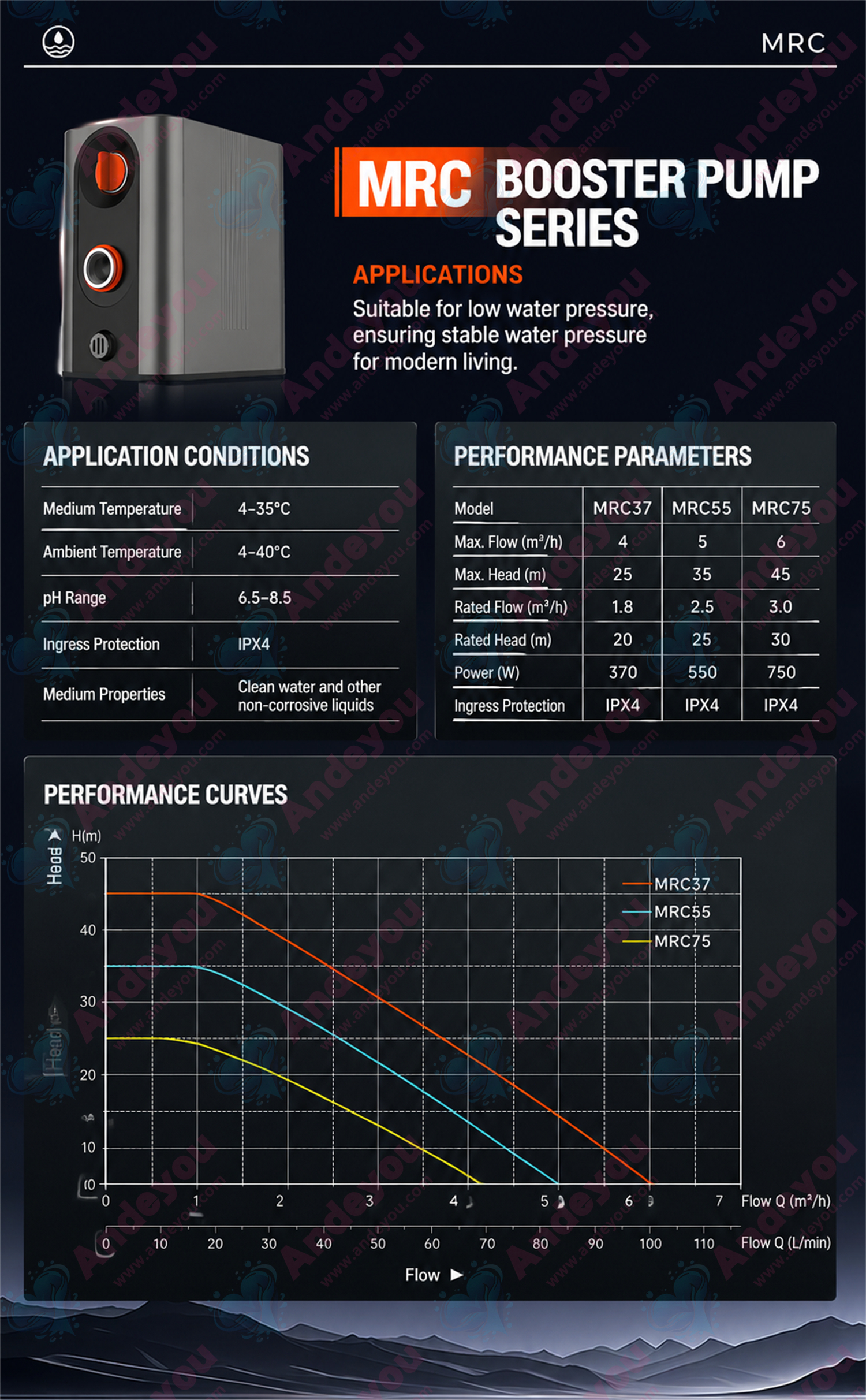

Parameters

model

Voltage/

Frequency

Rated flow rate
(m³/h)
Maximum flow rate
(m³/h)
Rated Head
(m)
Maximum Head
(m)
Power
(kW)
caliber

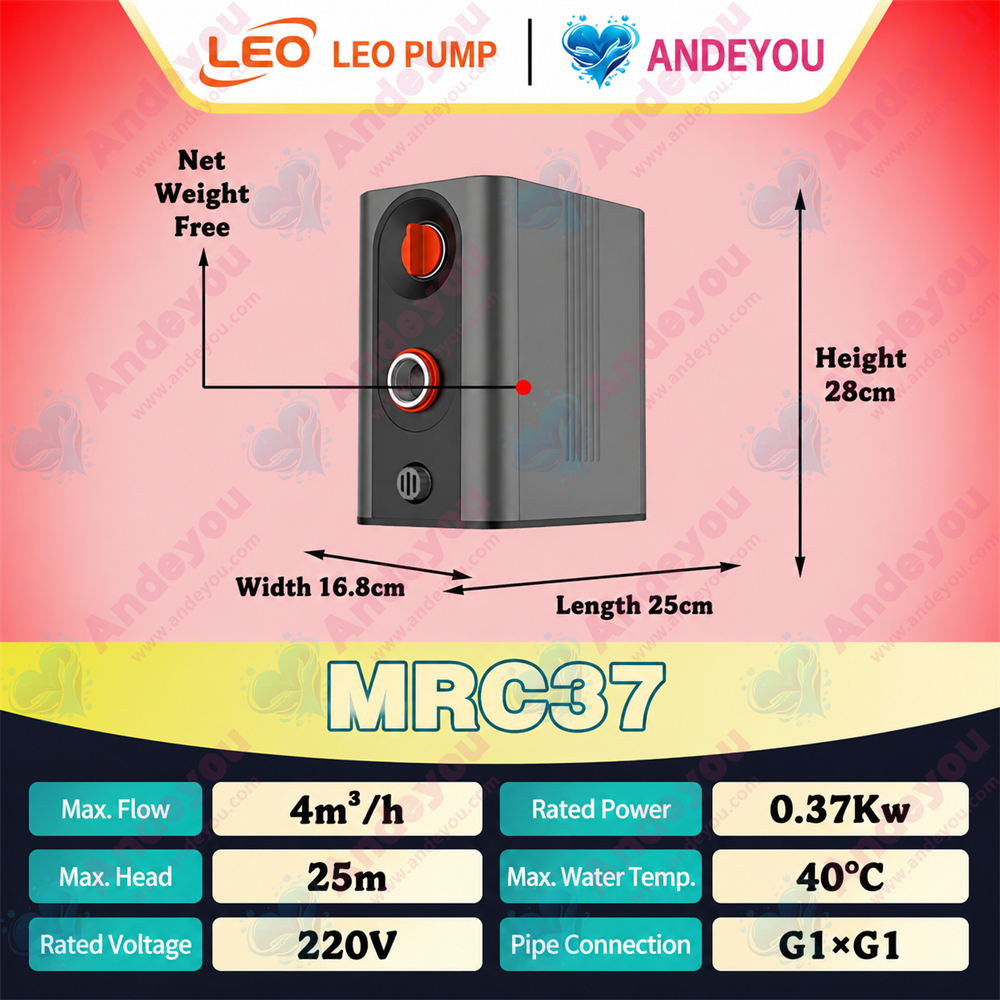

MRC37 220V/50Hz 1.8 4 20 28 0.37 G1×G1

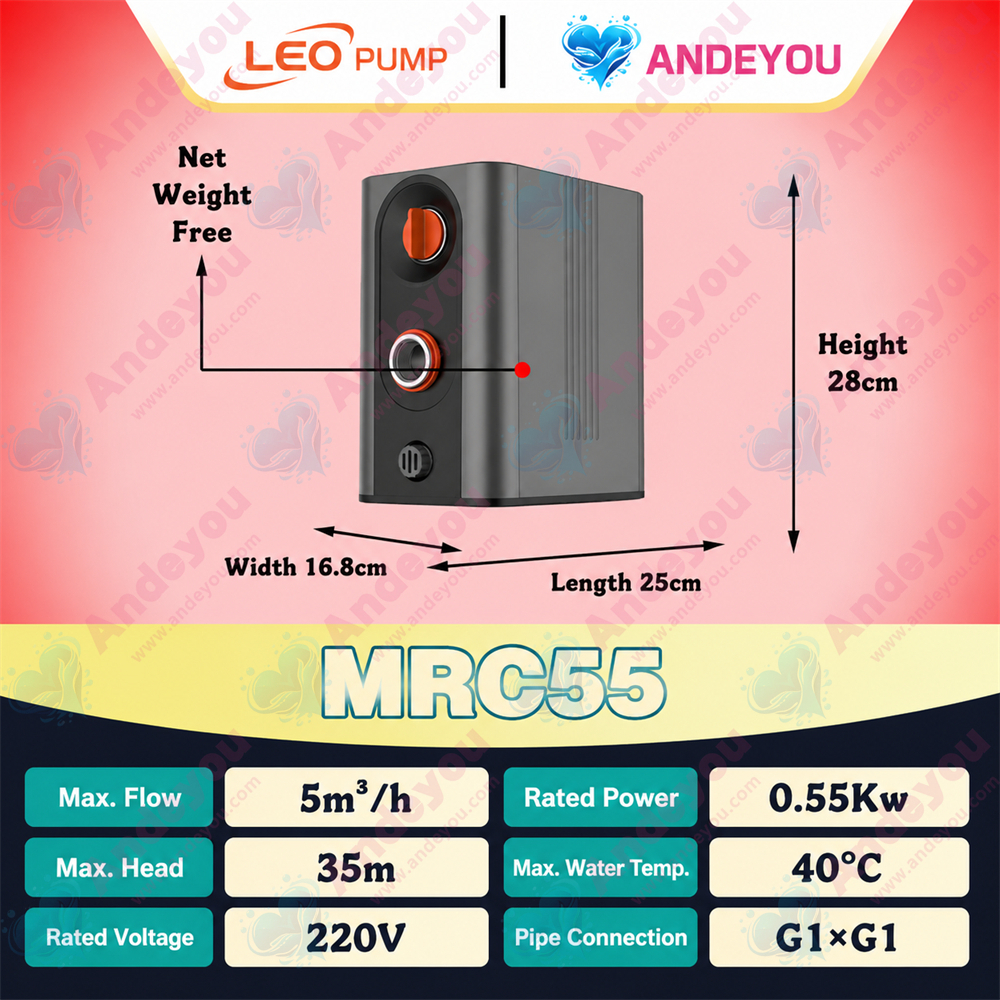

MRC55 220V/50Hz 2.5 5 25 35 0.55 G1×G1

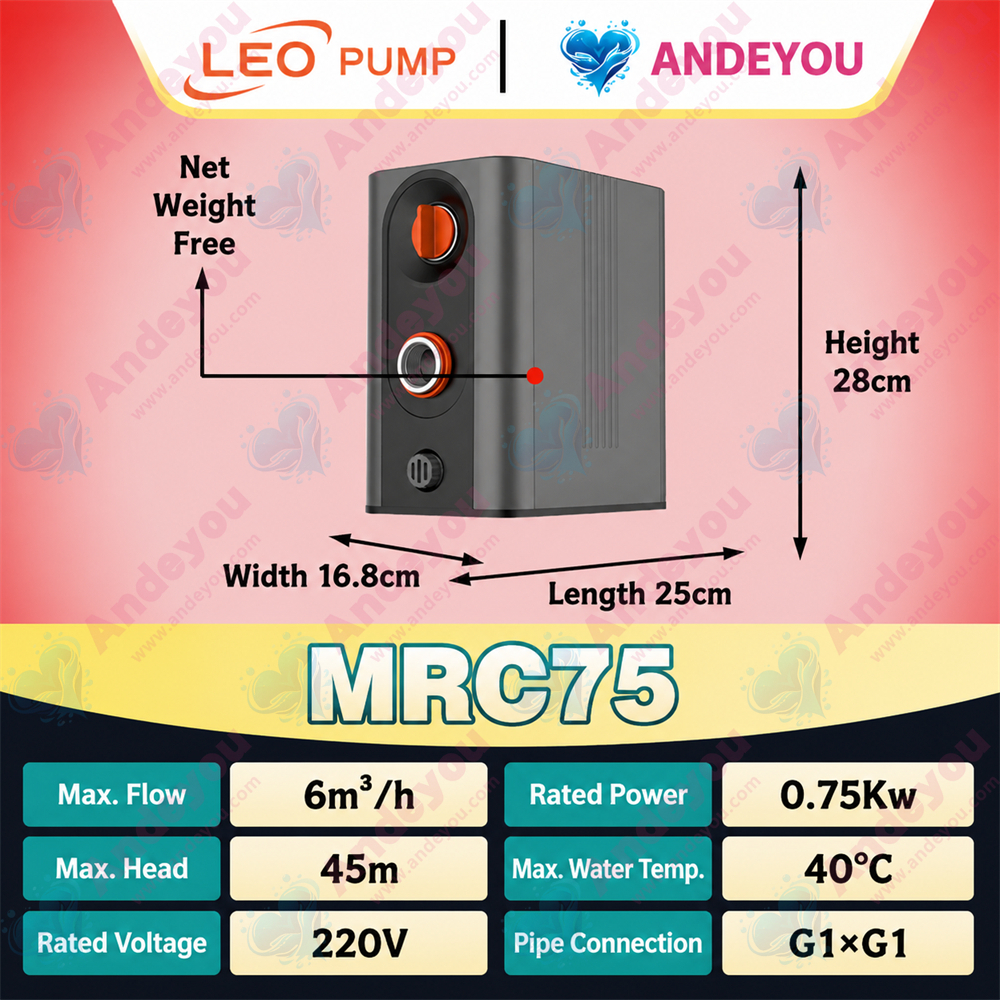

MRC75 220V/50Hz 3 6 30 45 0.75 G1×G1

Size

Video Introduction
