Product Overview:
The WT series sewage lifting unit is an all-in-one system designed as a highly efficient, energy-saving solution for handling sewage that cannot drain by gravity into municipal sewer lines. It is primarily used to collect and lift sewage from underground spaces in residential complexes, villa communities, subway stations, civil buildings, hotels, and large shopping malls.

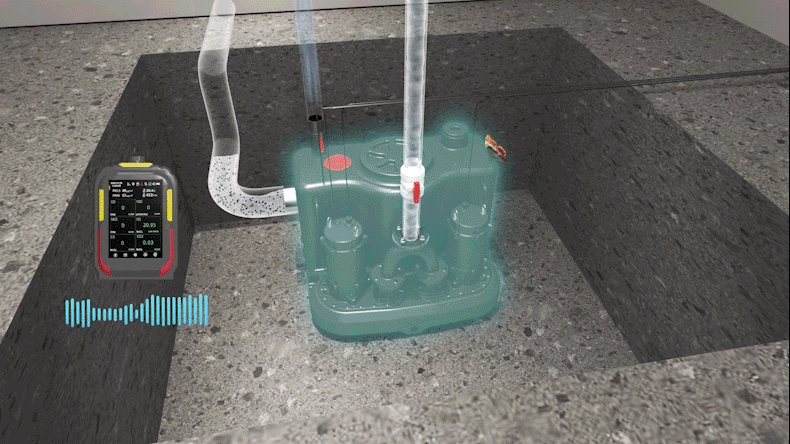

This unit integrates a sewage collection tank, pump, liquid level detection device, intelligent control system, and piping/valves into a single assembly. It features a compact footprint and an aesthetically pleasing design; its enclosed operation prevents sewage leakage, effectively replacing traditional "sewage pit plus pump" setups.
Product Applications:

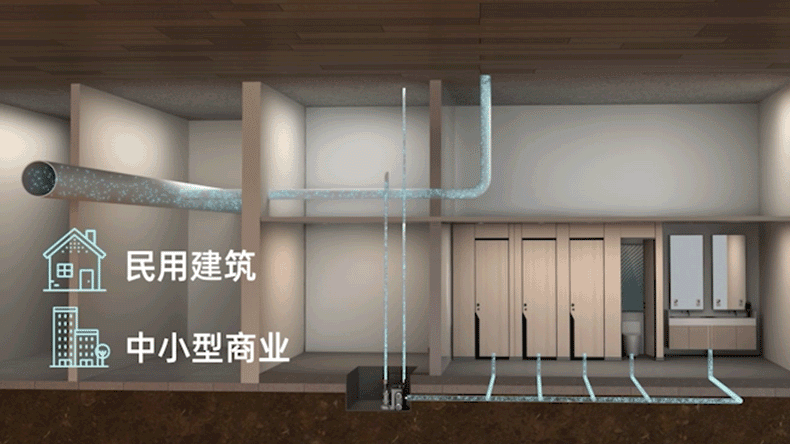

Suitable for sewage from building basements; kitchens and restrooms in basements; subways, stations, and underpasses; underground shopping malls, restaurants, and bathhouses; as well as civil air defense projects and public buildings.
1. Residential kitchens and bathrooms
2. Villa basements
3. Shopping mall sewage drainage
4. Industrial sewage drainage
5. Large office complexes
6. Residential community sewage drainage
Product Features:

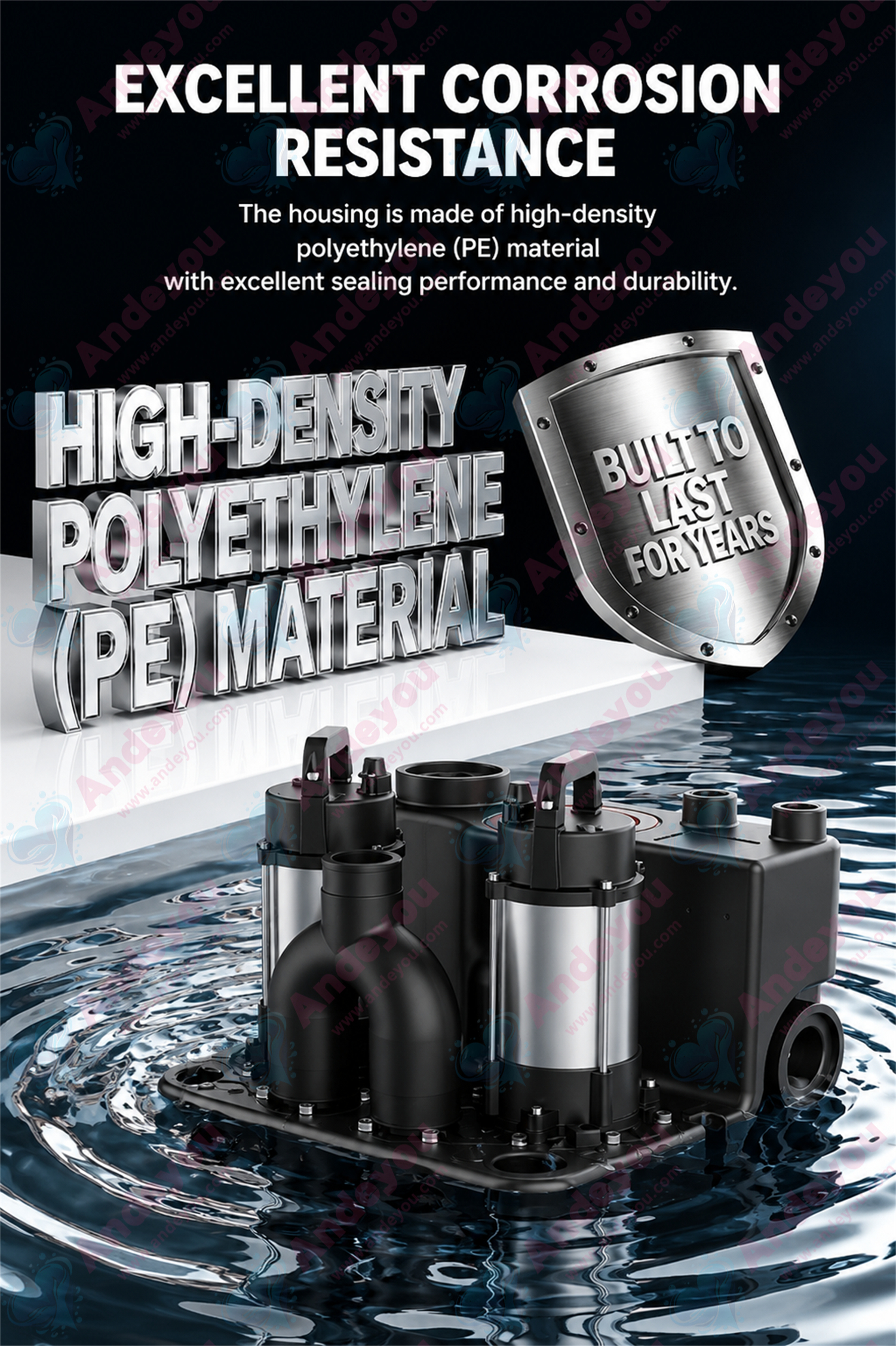

Corrosion Resistance: The tank is made of high-density polyethylene (PE), offering excellent sealing and durability.
Intelligent Controller: Features multiple protections—including anti-jamming, over-current, and overload safeguards—and supports remote control.

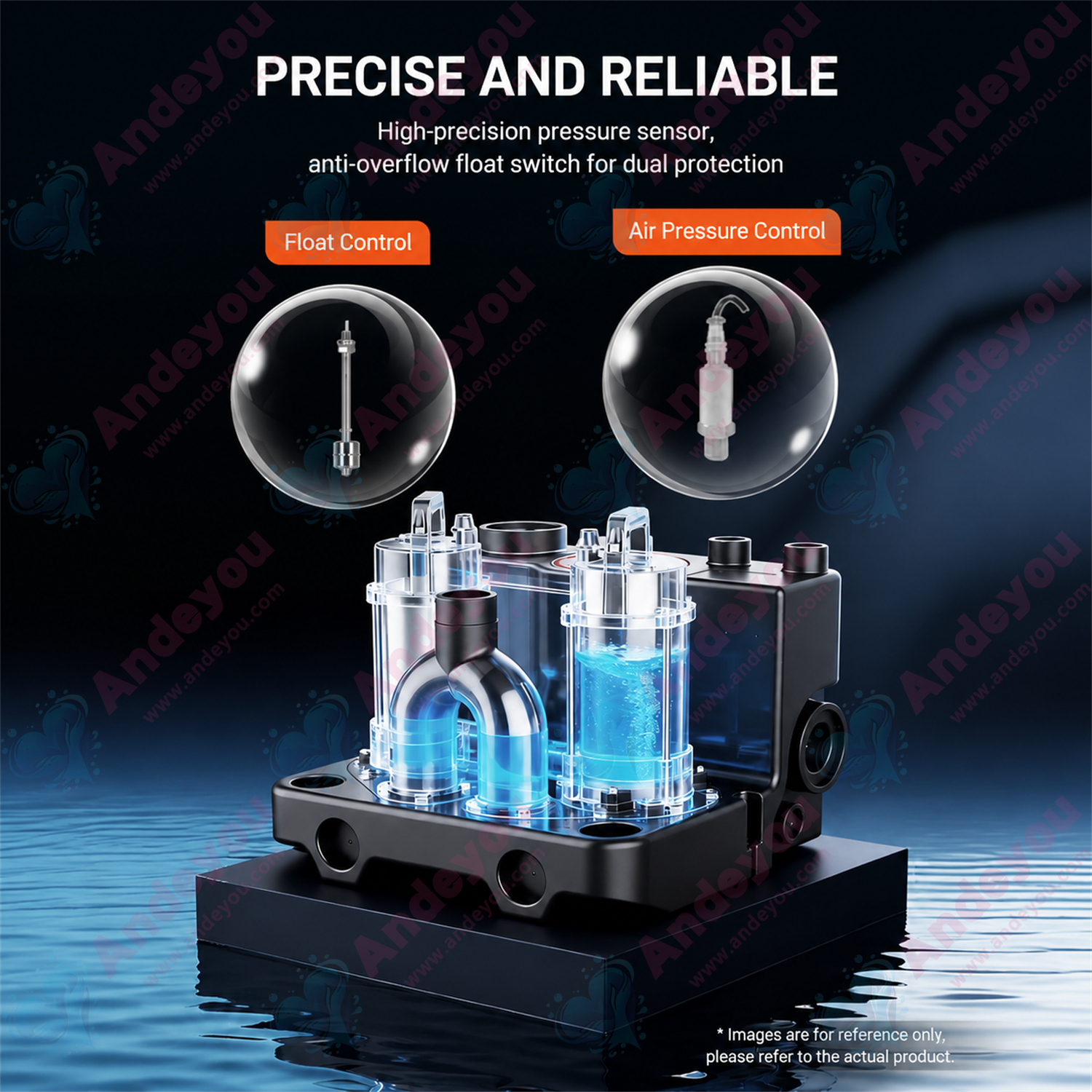

Reliability: Dual-protection system utilizing a high-precision pressure sensor and an overflow float switch.
Long Service Life: Equipped with a corrosion-resistant stainless steel vortex impeller.

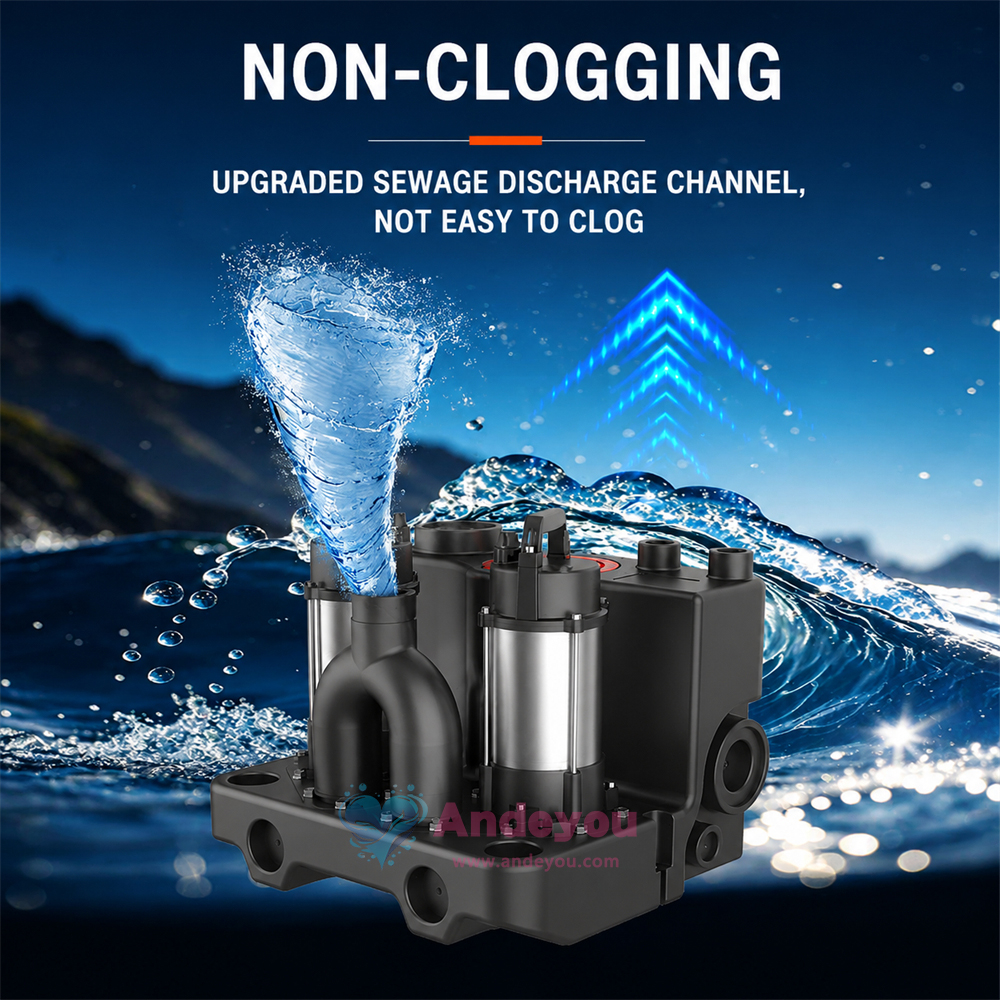

Non-Clogging: Upgraded large-passage design minimizes the risk of clogging.

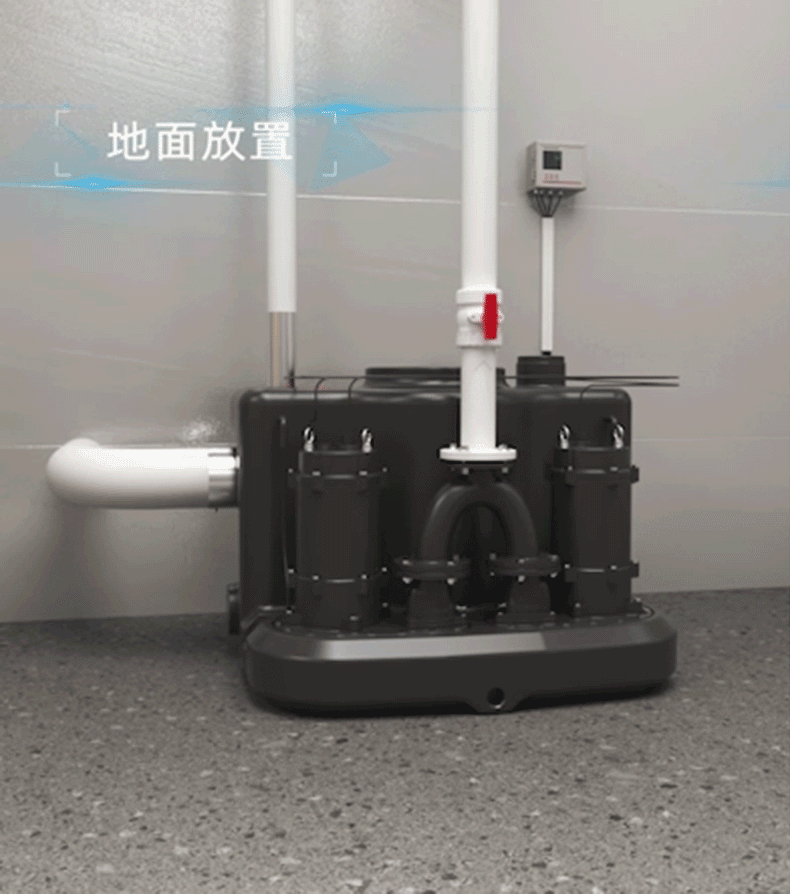

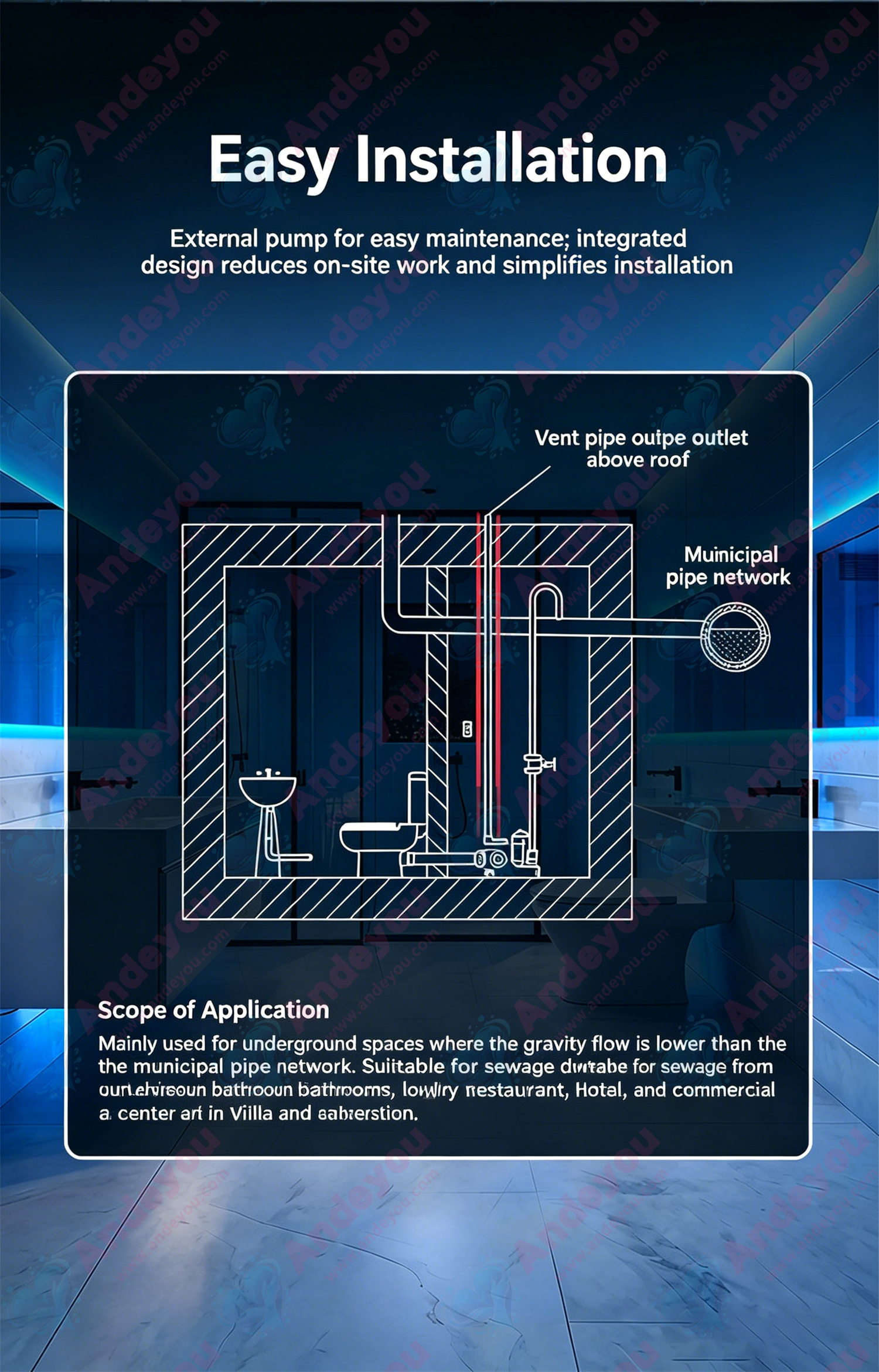

Easy Installation: External pump placement facilitates maintenance; the integrated design reduces the need for extensive civil engineering work.

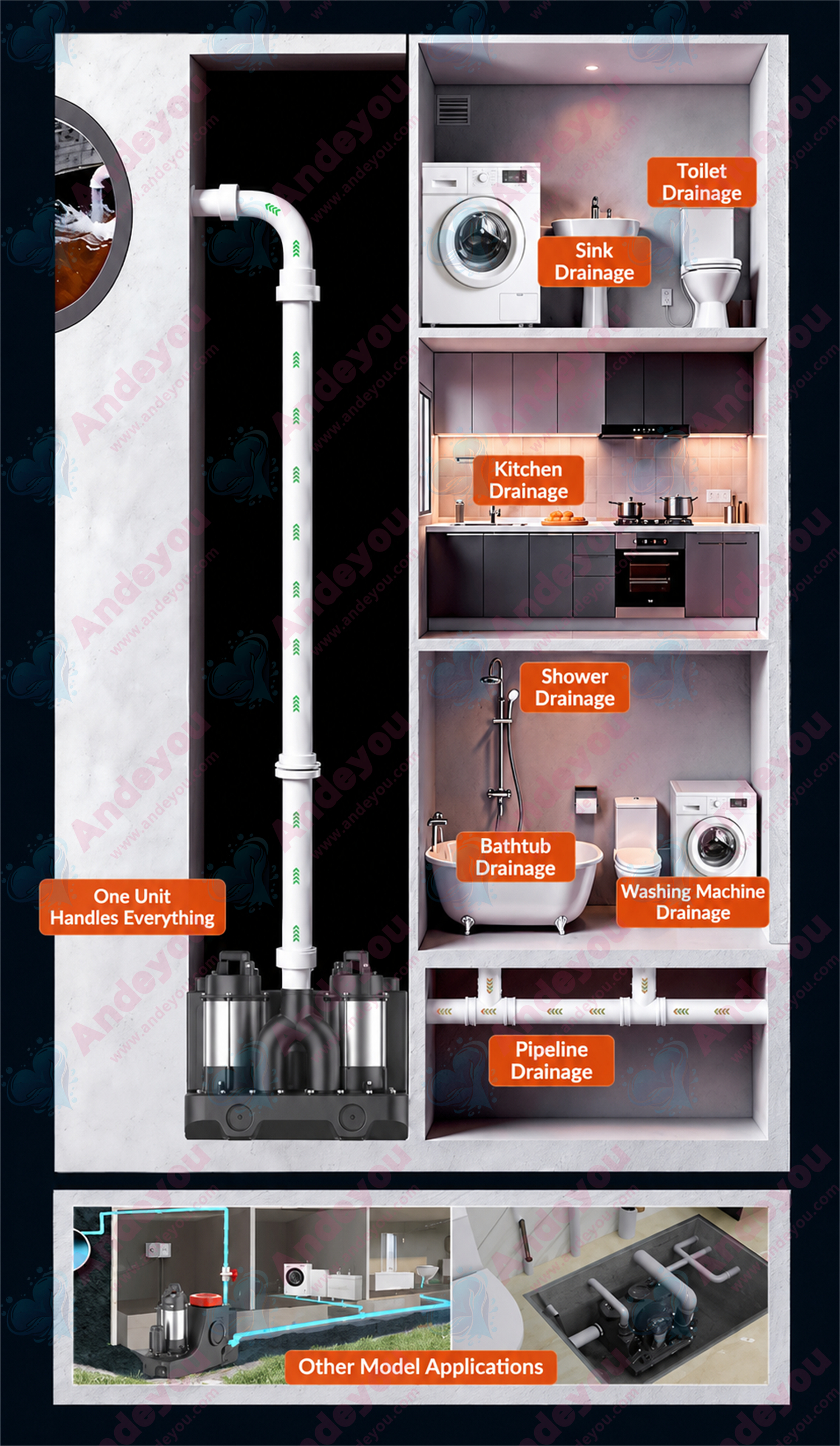

Handles everything in one unit: kitchen waste, general piping drainage, washing machine discharge, sink drainage, toilet waste, and shower/bathtub drainage.
