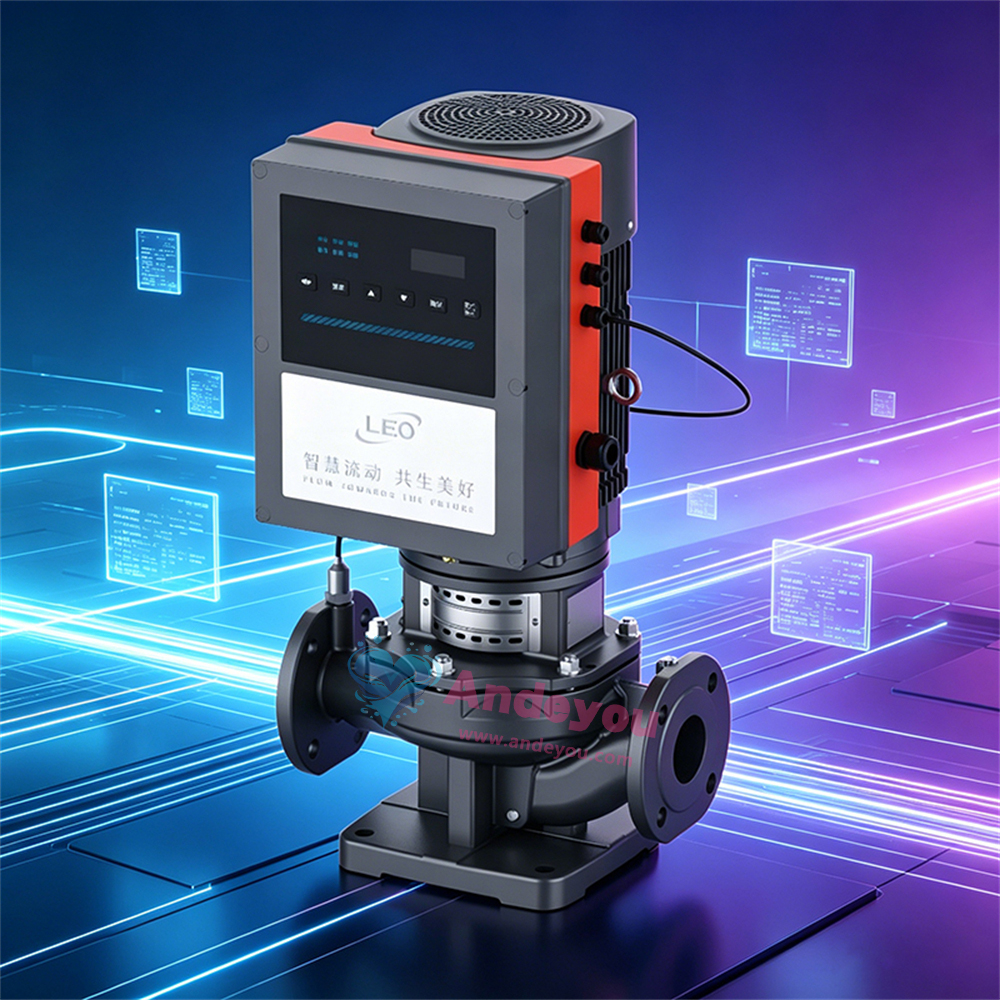

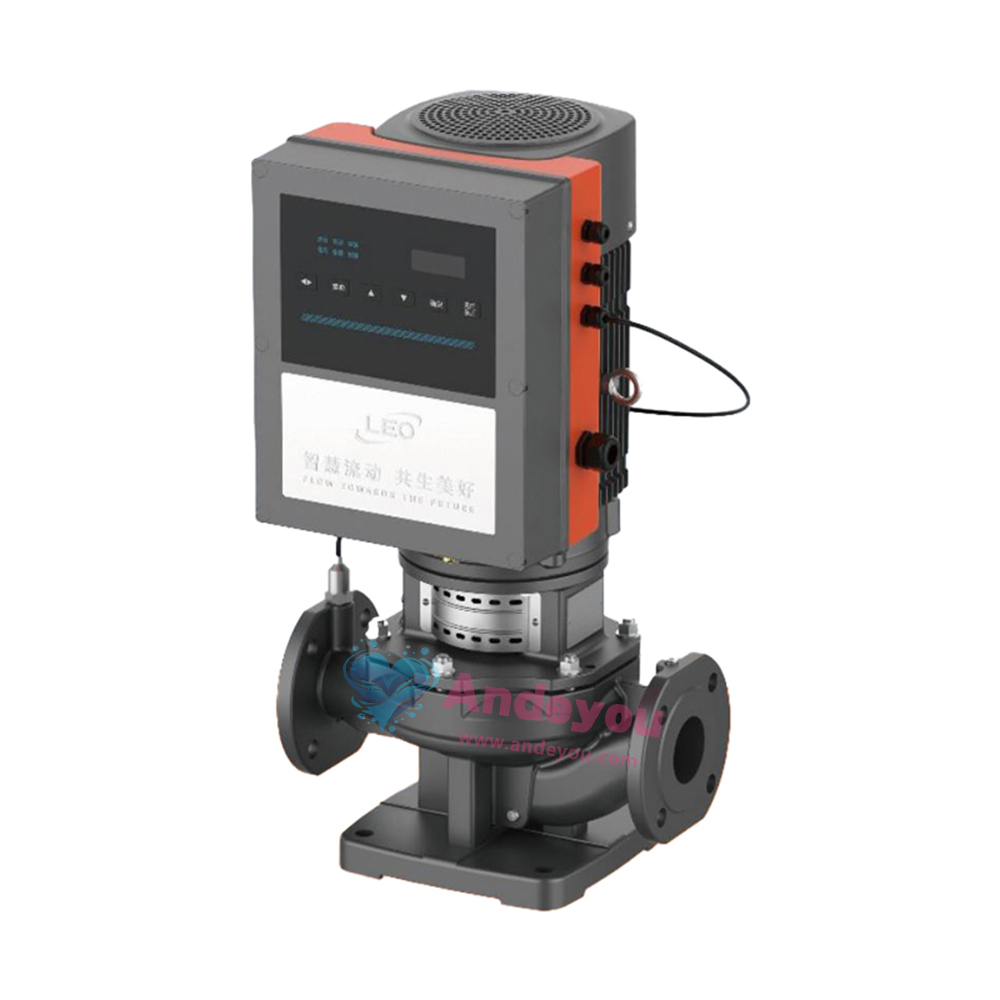

LEO PM5-LPP Permanent Magnet Variable Frequency Vertical In-line Pump

PM5-LPP32-8-0.37/2、PM5-LPP40-13-0.75/2、PM5-LPP32-16-1.1/2、PM5-LPP40-17.5-1.1/2、PM5-LPP50-12-1.1/2、PM5-LPP32-21-1.5/2、PM5-LPP40-20.5-1.5/2、PM5-LPP50-16-1.5/2、PM5-LPP80-8.5-1.5/2、PM5-LPP32-26-2.2/2、PM5-LPP40-20.5-2.2/2、PM5-LPP50-21-2.2/2、PM5-LPP80-10.5-2.2/2、PM5-LPP65-14-2.2/2、PM5-LPP32-31-3/2、PM5-LPP40-24.5-3/2、PM5-LPP50-24-3/2、PM5-LPP50-35-3/2、PM5-LPP65-17-3/2、PM5-LPP80-14-3/2、PM5-LPP32-40-4/2、PM5-LPP40-31-4/2、PM5-LPP50-28-4/2

The Leo PM5-LPP permanent magnet variable-frequency vertical inline pump features a permanent magnet variable-frequency motor,delivering high efficiency,energy savings,and quiet operation.Its vertical design ensures easy installation,while the corrosion-resistant stainless steel pump body and multistage pressurization provide stable water pressure.Suitable for applications such as secondary residential water supply,building pressurization,HVAC circulation

Product Consultation By telephone

Function

Parameters

Size

Video Introduction

Function

Product Overview:

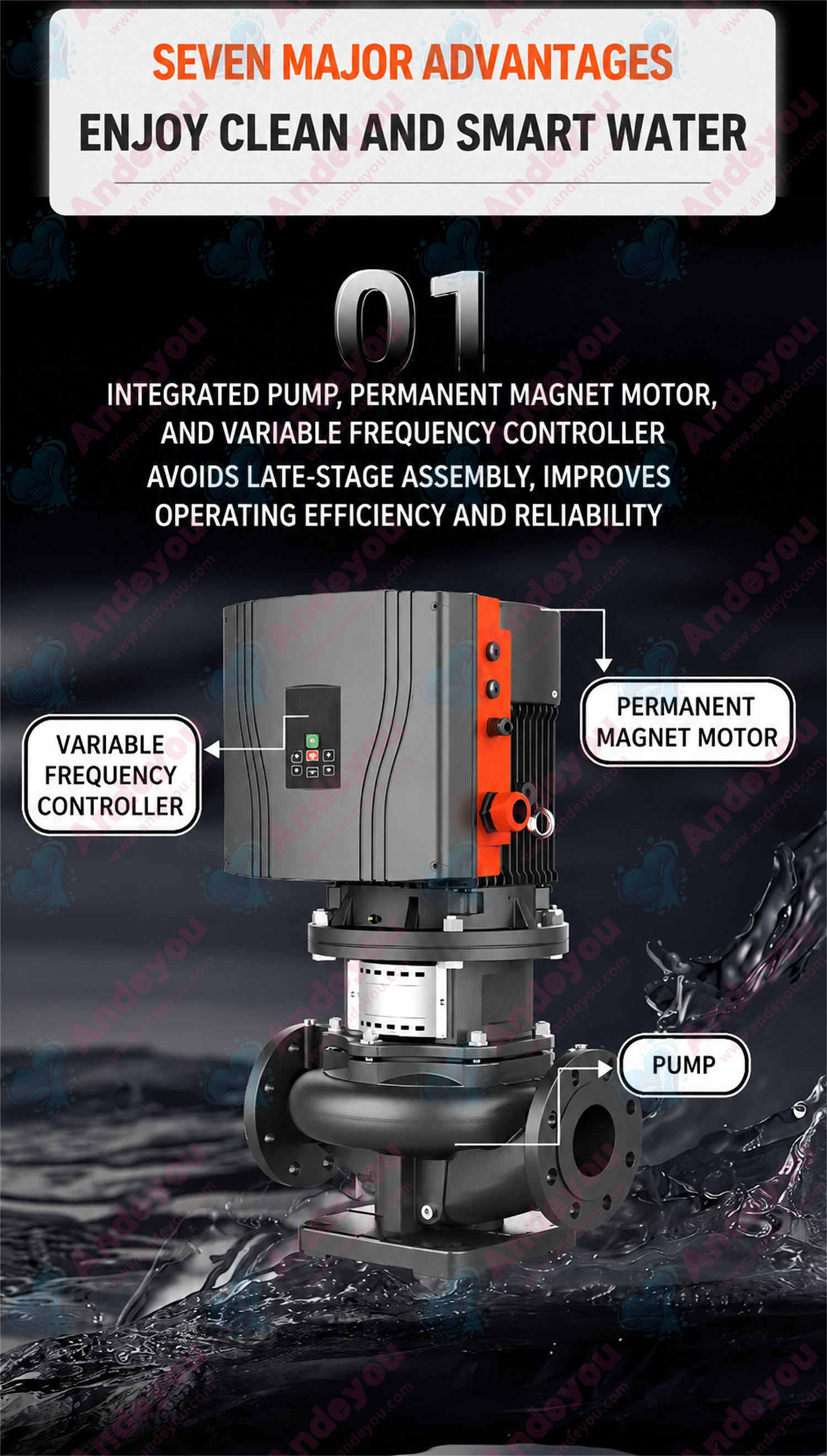

The PM5-LPP series consists of vertical, intelligent, permanent-magnet, single-stage in-line centrifugal pumps. They are designed to transport clean, low-viscosity, non-corrosive, non-flammable, non-explosive, and non-vaporizing liquids that are free from solid particles (particle size ≤0.2mm) and fibers, and which do not chemically react with the pump materials. Equipped with an IE5 permanent-magnet synchronous motor and a perfectly matched controller, these pumps feature specialized software control functions, real-time monitoring, intelligent control, optimized efficiency, energy and cost savings, and ease of maintenance. These features significantly enhance product efficiency and ensure superior service for users.

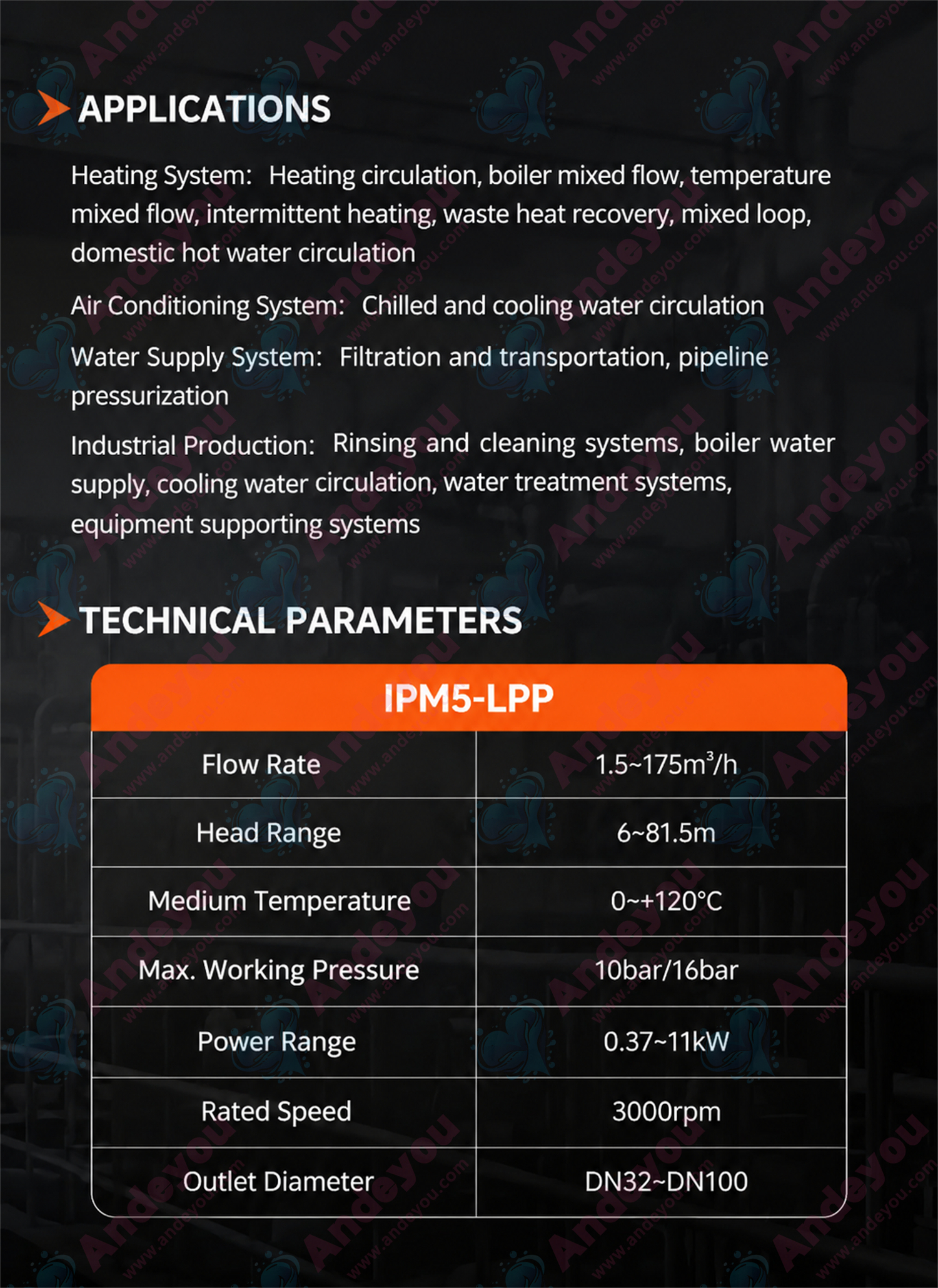

Product Applications:

Heating Systems: Heating circulation, boiler mixing, temperature mixing, intermittent heating, waste heat recovery, mixing circuits, domestic hot water circulation

Air Conditioning Systems: Chilled and cooling water circulation

Water Supply Systems: Filtration and transfer, pipeline boosting

Industrial Production: Rinsing and cleaning systems, boiler feed water, cooling water circulation, water treatment systems, equipment integration systems

Operating Conditions:

Liquid temperature: -15°C to +90°C (optional +120°C high-temperature model available)

Maximum ambient temperature: +40°C

Maximum altitude: 1000m

Maximum working pressure: 10 bar / 16 bar

Motor:

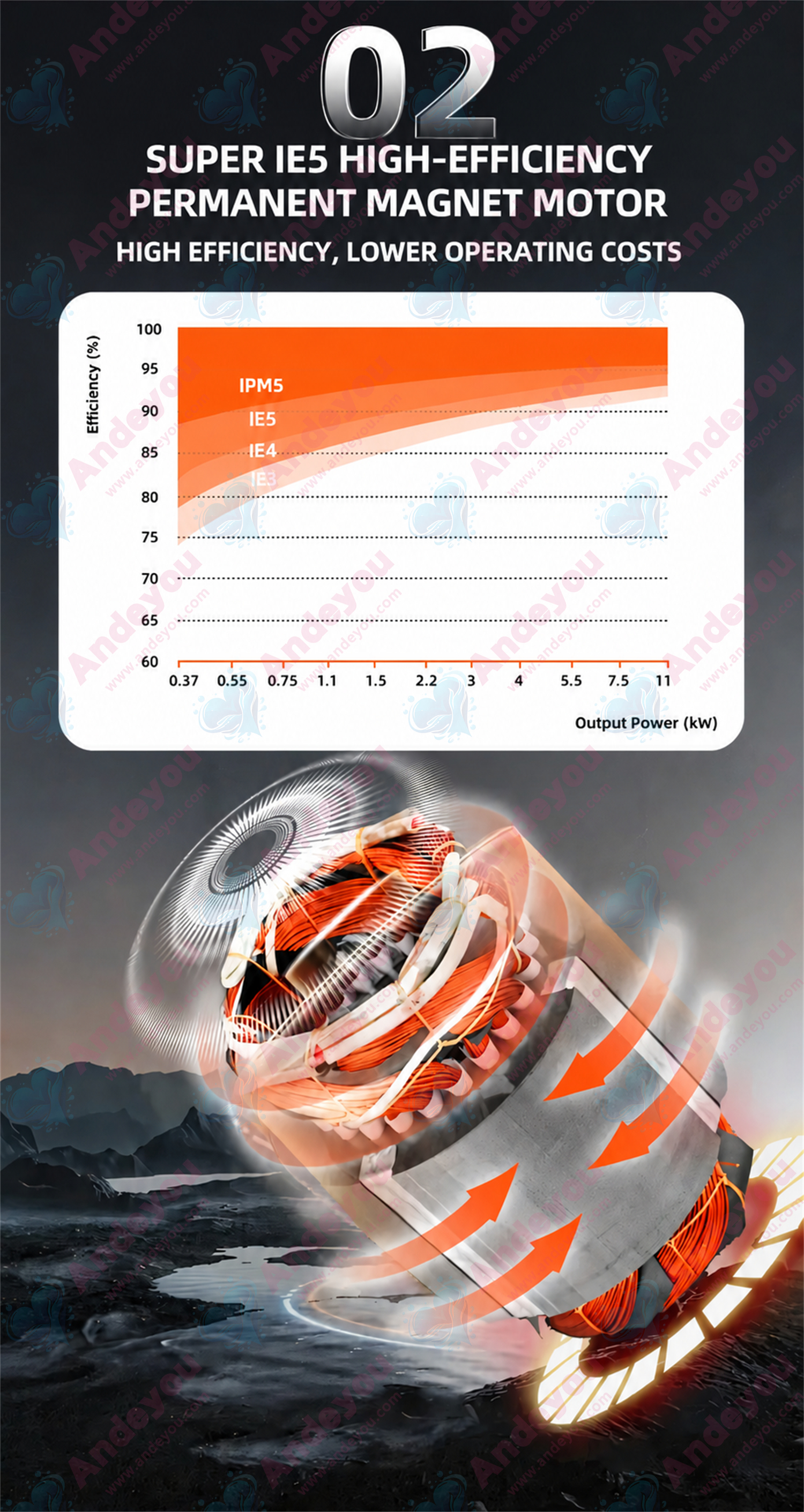

High-efficiency permanent-magnet synchronous motor (exceeding IE5 efficiency standards)

Protection class: IP55

Insulation class: F

Variable Frequency Controller:

Integrated type:

Input power: 380V-480V / 50Hz/60Hz

Protection class: IP55

Remote-mounted type:

Input power: 380V-440V / 50Hz/60Hz

Protection class: IP20

Parameters

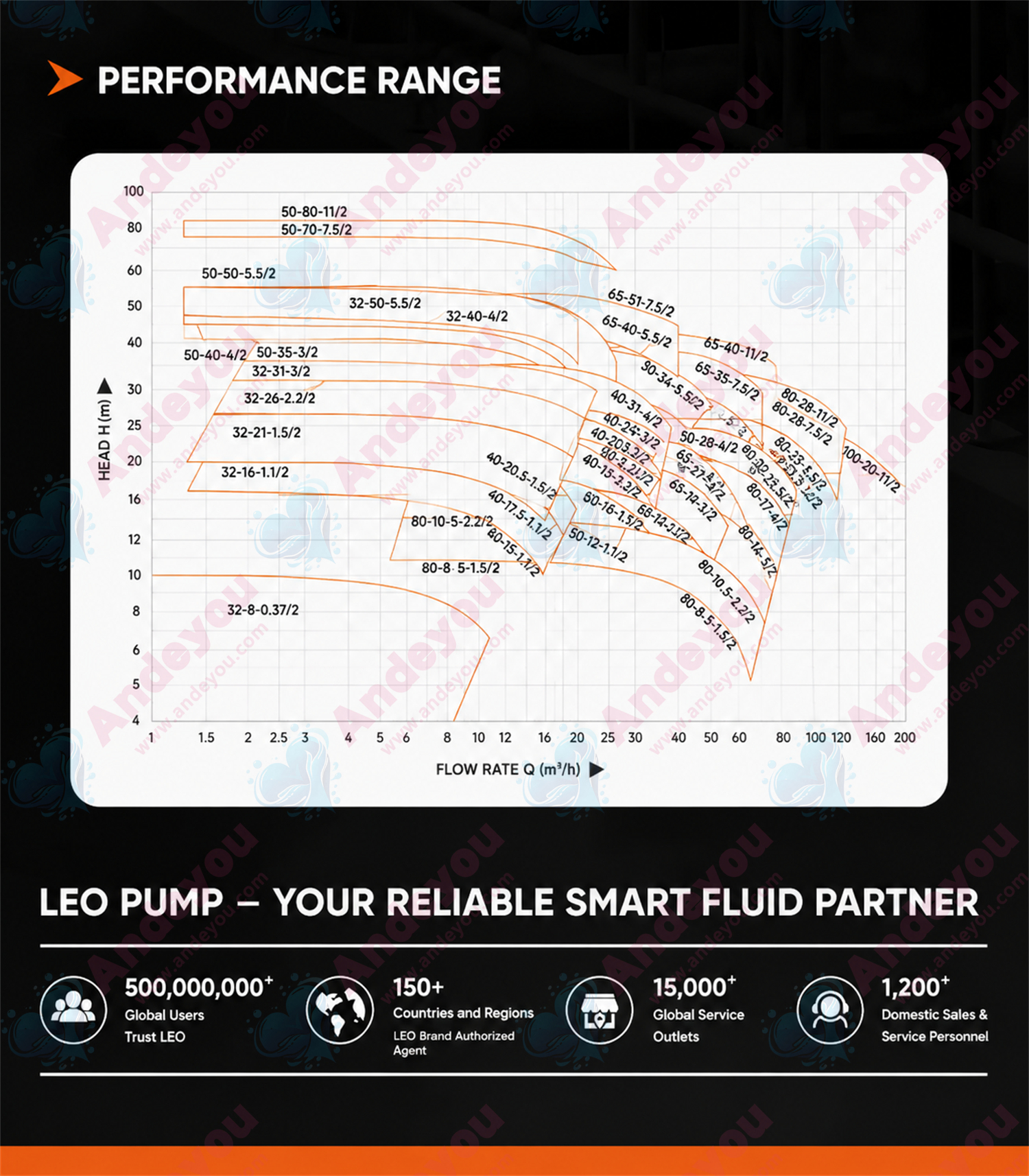

model	Voltage/ Frequency	Flow rate (m³/h)	Head (m)	Power (kW)
PM5-LPP32-8-0.37/2	380V	8.5	8	0.37
PM5-LPP40-13-0.75/2	380V	10	13	0.75
PM5-LPP32-16-1.1/2	380V	12	16	1.1
PM5-LPP40-17.5-1.1/2	380V	12	17.5	1.1
PM5-LPP50-12-1.1/2	380V	20	12	1.1
PM5-LPP32-21-1.5/2	380V	14	21	1.5
PM5-LPP40-20.5-1.5/2	380V	12	20.5	1.5
PM5-LPP50-16-1.5/2	380V	22	16	1.5
PM5-LPP80-8.5-1.5/2	380V	45	8.5	1.5
PM5-LPP32-26-2.2/2	380V	18	26	2.2
PM5-LPP40-20.5-2.2/2	380V	23	20.5	2.2
PM5-LPP50-21-2.2/2	380V	24	21	2.2
PM5-LPP80-10.5-2.2/2	380V	52	10.5	2.2
PM5-LPP65-14-2.2/2	380V	35	14	2.2
PM5-LPP32-31-3/2	380V	20	31	3
PM5-LPP40-24.5-3/2	380V	24	24.5	3
PM5-LPP50-24-3/2	380V	30	24	3
PM5-LPP50-35-3/2	380V	12.5	35	3
PM5-LPP65-17-3/2	380V	40	17	3
PM5-LPP80-14-3/2	380V	55	14	3
PM5-LPP32-40-4/2	380V	12.5	40	4
PM5-LPP40-31-4/2	380V	26	31	4
PM5-LPP50-28-4/2	380V	30	28	4
PM5-LPP50-40-4/2	380V	12.5	40	4
PM5-LPP65-21-4/2	380V	45	21	4
PM5-LPP80-17-4/2	380V	64	17	4
PM5-LPP32-50-5.5/2	380V	12.5	50	5.5
PM5-LPP50-34-5.5/2	380V	35	34	5.5
PM5-LPP50-50-5.5/2	380V	12.5	50	5.5
PM5-LPP65-28-5.5/2	380V	50	28	5.5
PM5-LPP65-40-5.5/2	380V	25	40	5.5
PM5-LPP80-20-5.5/2	380V	70	20	5.5
PM5-LPP100-21.5-7.5/2	380V	90	21.5	7.5
PM5-LPP80-21.5-7.5/2	380V	90	21.5	7.5
PM5-LPP50-60-7.5/2	380V	12.5	60	7.5
PM5-LPP50-70-7.5/2	380V	12.5	70	7.5
PM5-LPP65-35-7.5/2	380V	55	35	7.5
PM5-LPP65-51-7.5/2	380V	25	51	7.5
PM5-LPP65-40-11/2	380V	56	40	11
PM5-LPP50-80-11/2	380V	12.5	80	11
PM5-LPP80-28-11/2	380V	100	28	11
PM5-LPP100-28-11/2	380V	100	28	11
PM5-LPP100-20-11/2	380V	135	20	11
PM5-LPP50-60-15/2	380V	50	60	15
PM5-LPP50-70-18.5/2	380V	50	70	18.5
PM5-LPP50-81-22/2	380V	50	81	22
PM5-LPP65-49-15/2	380V	65	49	15
PM5-LPP65-56-18.5/2	380V	70	56	18.5
PM5-LPP80-35-15/2	380V	110	35	15
PM5-LPP80-60-15/2	380V	40	60	15
PM5-LPP80-70-18.5/2	380V	45	70	18.5
PM5-LPP80-80-22/2	380V	50	80	22
PM5-LPP100-24-15/4	380V	150	24	15
PM5-LPP100-25-15/4	380V	155	25	15
PM5-LPP100-30-18.5/2	380V	160	30	18.5
PM5-LPP100-30-18.5/4	380V	160	30	18.5
PM5-LPP100-32-22/2	380V	170	32	22
PM5-LPP100-32-22/4	380V	170	32	22
PM5-LPP100-35-15/2	380V	110	35	15
PM5-LPP100-38-15/2	380V	85	38	15
PM5-LPP100-44-18.5/2	380V	90	44	18.5
PM5-LPP100-50-22/2	380V	100	50	22
PM5-LPP100-60-22/2	380V	80	60	22
PM5-LPP100-70-30/2	380V	90	70	30
PM5-LPP100-80-37/2	380V	100	80	37
PM5-LPP125-24-15/4	380V	140	24	15
PM5-LPP125-28-18.5/4	380V	155	28	18.5
PM5-LPP125-31-22/4	380V	170	31	22
PM5-LPP125-35-30/4	380V	200	35	30
PM5-LPP125-37.5-22/2	380V	135	37.5	22
PM5-LPP125-44-30/2	380V	150	44	30
PM5-LPP125-50-30/2	380V	160	50	30
PM5-LPP150-17-15/4	380V	200	17	15
PM5-LPP150-21.5-18.5/4	380V	230	21.5	18.5
PM5-LPP150-21-18.5/4	380V	200	21	18.5
PM5-LPP150-24.5-22/4	380V	250	24.5	22
PM5-LPP150-25-22/4	380V	200	55	22
PM5-LPP150-25-30/4	380V	300	55	30
PM5-LPP150-29-30/4	380V	280	29	30
PM5-LPP150-33-30/4	380V	200	33	30
PM5-LPP150-33-37/4	380V	300	33	37
PM5-LPP150-40-37/4	380V	200	40	37
PM5-LPP150-50-45/4	380V	200	50	45
