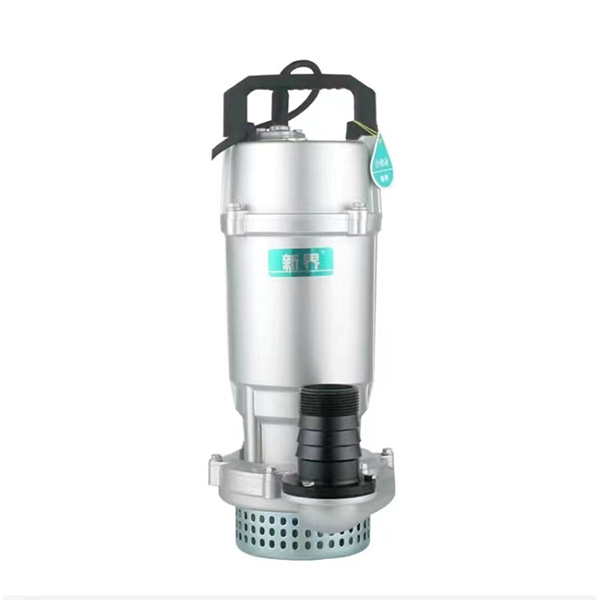

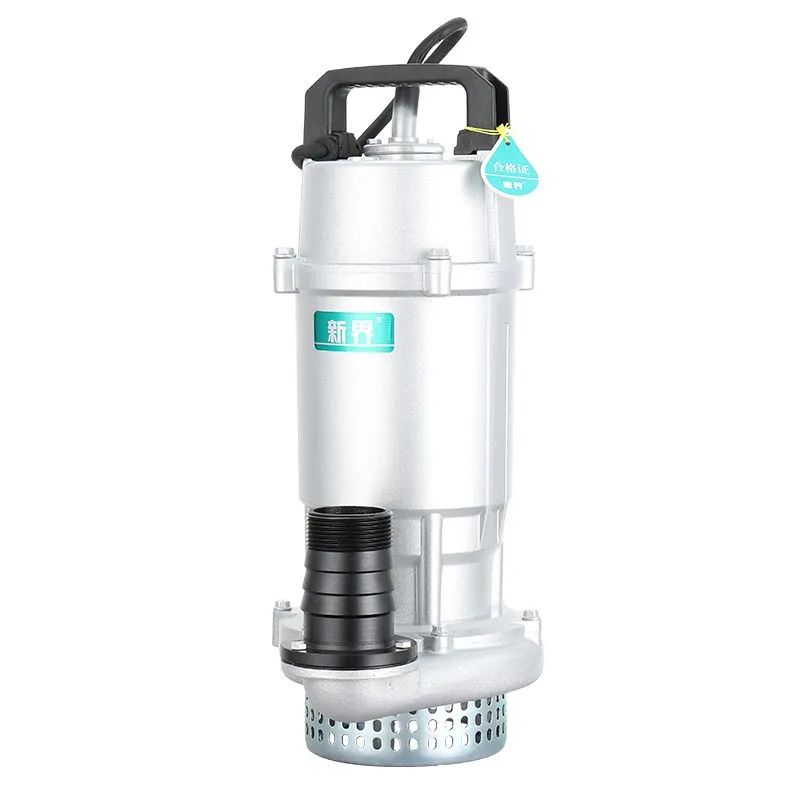

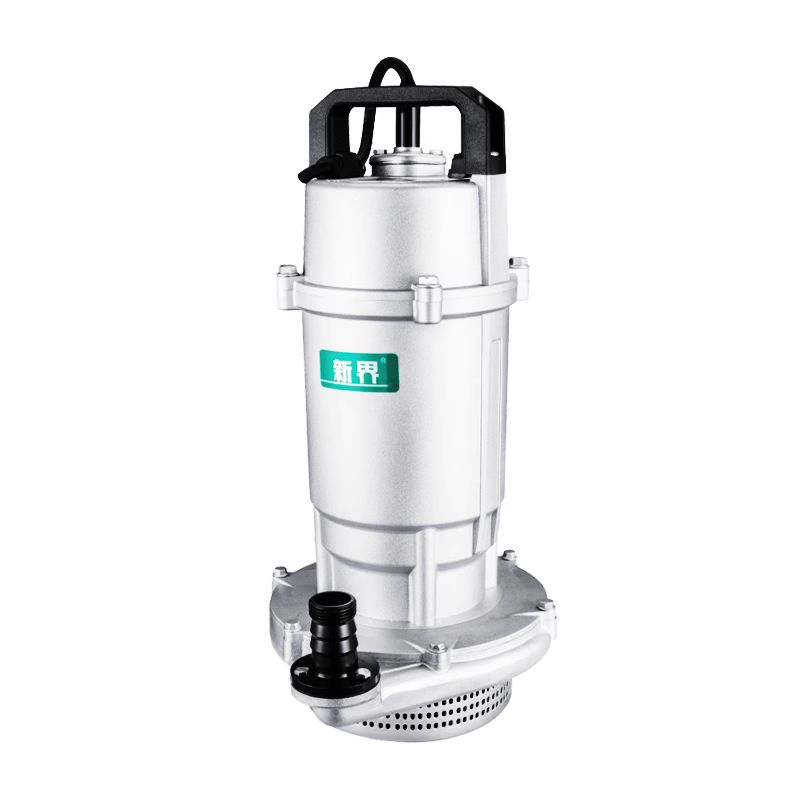

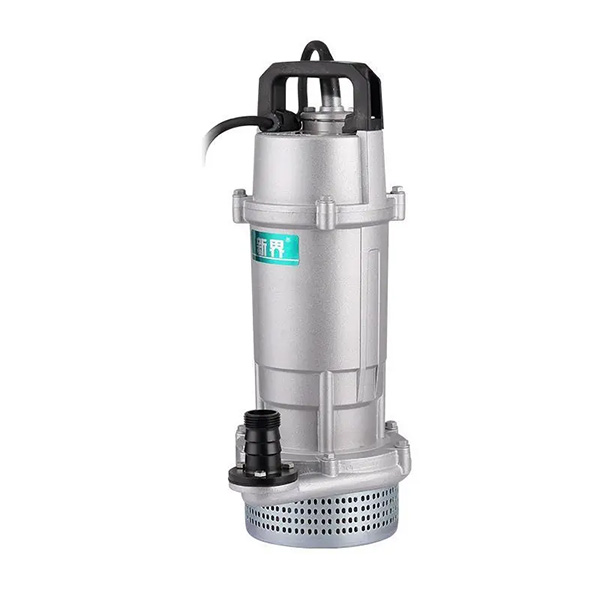

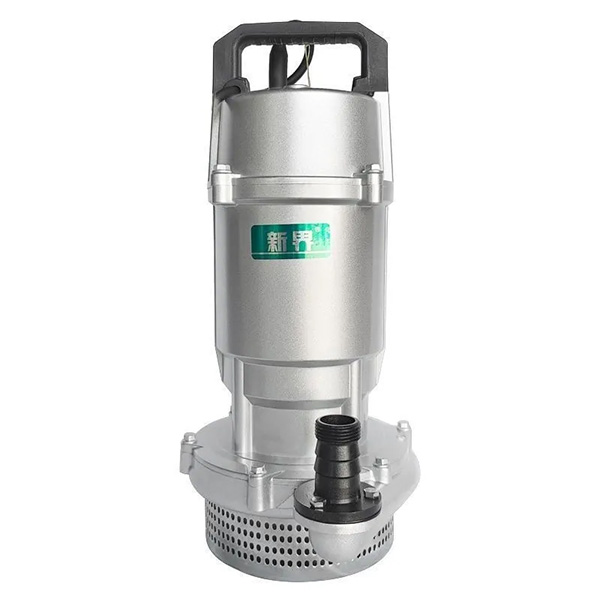

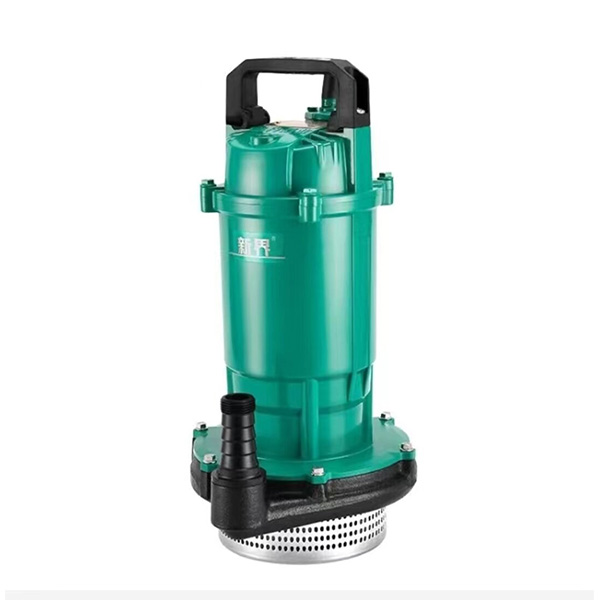

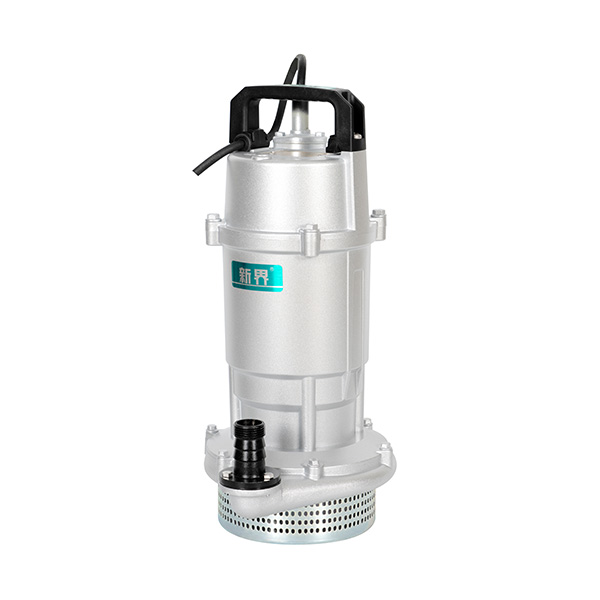

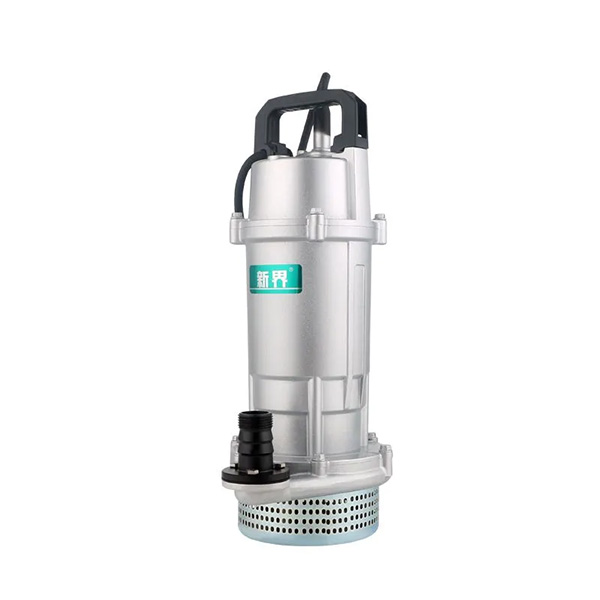

SHIMGE QDX-K3 Small Submersible Pump

QDX1.5-12-0.25K3|QDX1.5-17-0.37K3|QDX1.5-25-0.55K3|QDX3-18-0.55K3|QDX10-12-0.55K3|QDX15-7-0.55K3|QDX1.5-32-0.75K3|QDX3-24-0.75K3|QDX8-18-0.75K3|QDX10-16-0.75K3|QDX15-10-0.75K3|QDX30-6-0.75K3|QDX3-30-1.1K3|QDX6-25-1.1K3|QDX14-16-1.1K3|QDX15-14-1.1K3|QDX40-6-1.1K3|QDX15-18-1.5K3|QDX40-9-1.5K3|QDX50-7-1.5K3|QDX50-7-1.5K3|QX10-12-0.55K3|QX1.5-32-0.75K3|QX3-24-0.75K3|QX8-18-0.75K3|QX10-16-0.75K3|QX30-6-0.75K3

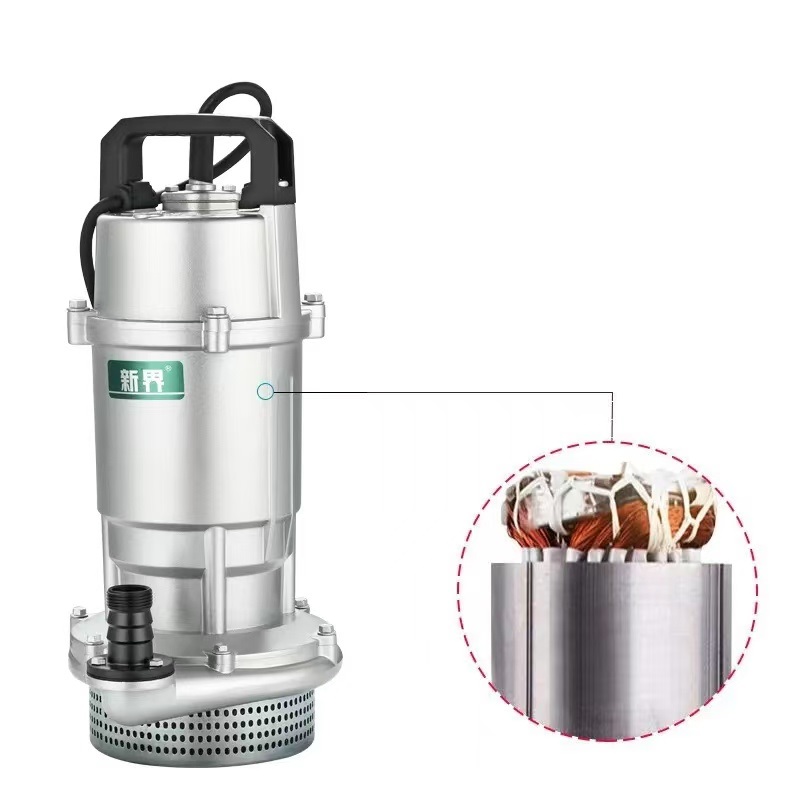

The SHIMGE Pump Industry QDX-K3 submersible pump features a compact structure and excellent performance,making it suitable for a wide range of applications,including agricultural irrigation,domestic water supply,and industrial or mining operations.With a coaxial connection between the motor and the pump,the unit is well-designed,lightweight,durable,safe,and reliable.A variety of models are available to meet diverse flow rate and head requirements.

Product Consultation By telephone

Function

Parameters

Size

Video Introduction

Function

Applications:

Garden irrigation, agricultural irrigation and drainage, domestic water supply, construction site water supply and drainage, musical fountains, water parks, river water extraction, watering flowers and vegetables, landscaping, and aquaculture aeration.

Operating Conditions:

1. Submersion depth: 0.5m to 5m

2. Medium pH value: 6.5 to 8.5

3. Medium temperature: Not exceeding +40°C

4. Impurity content in the medium: Volume ratio not exceeding 0.1%, particle size not exceeding 0.2mm

5. AC power supply: Rated frequency of 50Hz; rated voltage of 220V (single-phase) or 380V (three-phase); voltage fluctuation range within ±10% of the rated value.

Parameters

Specifications and Model	Rated flow rate (m³/h)	Rated Head (m)	Rated Power (kW)	Rated voltage (V)	Current (A)	Pipe diameter (mm)	Overall dimensions (mm)	Net Weight (kg)	Head operating range (m)
QDX1.5-12-0.25K3	1.5	12	0.25	220	2.1	25	179129325	5.5	5-13
QDX1.5-17-0.37K3	1.5	17	0.37	220	2.9	25	190173355	8	7-18
QDX1.5-25-0.55K3	1.5	25	0.55	220	4.1	25	205169366	10	15-26
QDX3-18-0.55K3	3	18	0.55	220	4.1	32	210164367	11	5-21
QDX10-12-0.55K3	10	12	0.55	220	4.1	38	230164370	11	5-16
QDX15-7-0.55K3	15	7	0.55	220	4.1	51	235164370	11	3-9
QDX1.5-32-0.75K3	1.5	32	0.75	220	5.2	25	232188390	12	12-33
QDX3-24-0.75K3	3	24	0.75	220	5.2	32	209170387	12	14-26
QDX8-18-0.75K3	8	18	0.75	220	5.2	38	229164391	13	15-19
QDX10-16-0.75K3	10	16	0.75	220	5.2	51	229164391	13	10-19
QDX15-10-0.75K3	15	10	0.75	220	5.2	64	237164403	13	3-11
QDX30-6-0.75K3	30	6	0.75	220	5.2	76	266188416	16	2-8
QDX3-30-1.1K3	3	30	1.1	220	7.3	25	240189430	14.5	18-32
QDX6-25-1.1K3	6	25	1.1	220	7.3	51	240189430	14.5	8-29
QDX14-16-1.1K3	14	16	1.1	220	7.3	51	239170441	16	9-17
QDX15-14-1.1K3	15	14	1.1	220	7.3	64	239170441	16	9-17
QDX40-6-1.1K3	40	6	1.1	220	7.3	76	300190475	17.5	3-9
QDX15-18-1.5K3	15	18	1.5	220	9.5	64	239170478	19	8-19
QDX40-9-1.5K3	40	9	1.5	220	9.5	76	287217509	21	2-11
QDX50-7-1.5K3	50	7	1.5	220	9.5	76	287217509	21	2-11
QDX50-7-1.5K3	50	7	1.5	220	9.5	102	287217509	21	2-11
QX10-12-0.55K3	10	12	0.55	380	1.6	38	230164370	10	5-16
QX1.5-32-0.75K3	1.5	32	0.75	380	2.2	25	232188390	11	12-33
QX3-24-0.75K3	3	24	0.75	380	2.2	32	209170387	11	14-26
QX8-18-0.75K3	8	18	0.75	380	2.2	38	229164391	12	15-19
QX10-16-0.75K3	10	16	0.75	380	2.2	51	229164391	12	10-19
QX30-6-0.75K3	30	6	0.75	380	2.2	76	266188416	14	2-8
QX3-30-1.1K3	3	30	1.1	380	2.7	25	240189430	13	18-32
QX6-25-1.1K3	6	25	1.1	380	2.7	51	240189430	13	8-29
QX14-16-1.1K3	14	16	1.1	380	2.7	51	239170441	14.5	9-17
QX15-14-1.1K3	15	14	1.1	380	2.7	64	239170441	14.5	9-17
QX40-6-1.1K3	40	6	1.1	380	2.7	76	300190475	17	3-9
QX15-18-1.5K3	15	18	1.5	380	3.6	64	239170458	16.5	8-19
QX40-9-1.5K3	25	12	1.5	380	3.6	64	238168470	16.5	5-15
QX50-7-1.5K3	40	9	1.5	380	3.6	76	287217489	19	2-11
QX50-7-1.5K3	50	7	1.5	380	3.6	102	287217489	19	2-11
