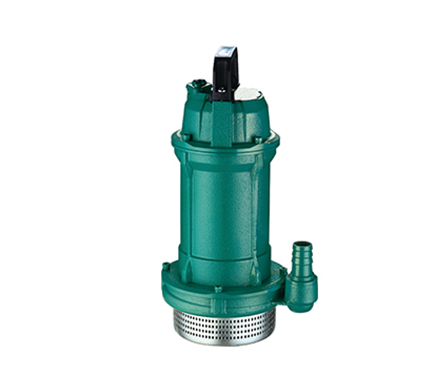

SHIMGE QDX-T2 Small Submersible Pump with Iron Housing

QDX1.5-17-0.37T2|QDX1.5-25-0.55T2|QDX3-18-0.55T2|QDX10-12-0.55T2|QDX15-7-0.55T2|QDX1.5-32-0.75T2|QDX3-24-0.75T2|QDX8-18-0.75T2|QDX10-16-0.75T2|QDX15-10-0.75T2|QDX30-6-0.75T2|QDX6-25-1.1(T)|QX6-25-1.1(T)|QX10-34-2.2(T)|QX12.5-50-4(T)|QX12.5-60-5.5(T)

The SHIMGE Pump QDX-T2 submersible pump with an iron casing is professionally designed for pumping clean water free of impurities.It is suitable for applications such as drawing water from rural wells,agricultural irrigation and drainage,garden watering,and domestic water supply.Designed for an installation depth of up to 5 meters and a fluid temperature of up to 40°C,the pump features high efficiency,energy savings,a compact structure,and a lightweight yet durable build
Product Consultation By telephone
Function
Parameters
Size
Video Introduction

Function

Applications:

1. For pumping clean water free of impurities.

2. Suitable for rural water supply, farmland irrigation and drainage, garden watering, and domestic water use.

3. Suitable for industrial water drainage, construction site dewatering, and aquaculture applications.

Operating Conditions:

1. Installation depth not exceeding 5m.

2. Medium temperature not exceeding +40°C.

3. pH value of the medium between 6.5 and 8.5.

4. Impurity content in the medium not exceeding 0.1% by volume, with particle sizes no larger than 0.2mm.

Parameters

Specifications and Model Rated flow rate
(m³/h)		 Rated Head
(m)		 Rated Power
(kW)		 Rated voltage
(V)		 Current
(A)		 Current
(A)		 Overall dimensions
(mm)		 Net Weight
(kg)		 Head operating range
(m)
QDX1.5-17-0.37T2 1.5 17 0.37 220 2.9 25 340*195 11 4-19
QDX1.5-25-0.55T2 1.5 25 0.55 220 4.1 25 375*220 14 17-26
QDX3-18-0.55T2 3 18 0.55 220 4.1 32 375*210 14 5-21
QDX10-12-0.55T2 10 12 0.55 220 4.1 38 380*230 15 7-15
QDX15-7-0.55T2 15 7 0.55 220 4.1 51 390*235 16 2-9
QDX1.5-32-0.75T2 1.5 32 0.75 220 5.2 25 390*240 16 17-32
QDX3-24-0.75T2 3 24 0.75 220 5.2 32 390*220 16 14-26
QDX8-18-0.75T2 8 18 0.75 220 5.2 38 395*230 16 15-19
QDX10-16-0.75T2 10 16 0.75 220 5.2 51 395*230 16 10-19
QDX15-10-0.75T2 15 10 0.75 220 5.2 64 410*250 17 3-11
QDX30-6-0.75T2 30 6 0.75 220 5.2 76 420*270 18 0-8
QDX6-25-1.1(T) 6 25 1.1 220 7.2 51 240*420 24 13-26
QX6-25-1.1(T) 6 25 1.1 380 2.7 51 240*420 23 13-26
QX10-34-2.2(T) 10 34 2.2 380 5.1 51 282*495 35 18-36
QX12.5-50-4(T) 12.5 50 4 380 8.8 51 320*584 65 35-53
QX12.5-60-5.5(T) 12.5 60 5.5 380 11.7 51 320*630 76 20-61
