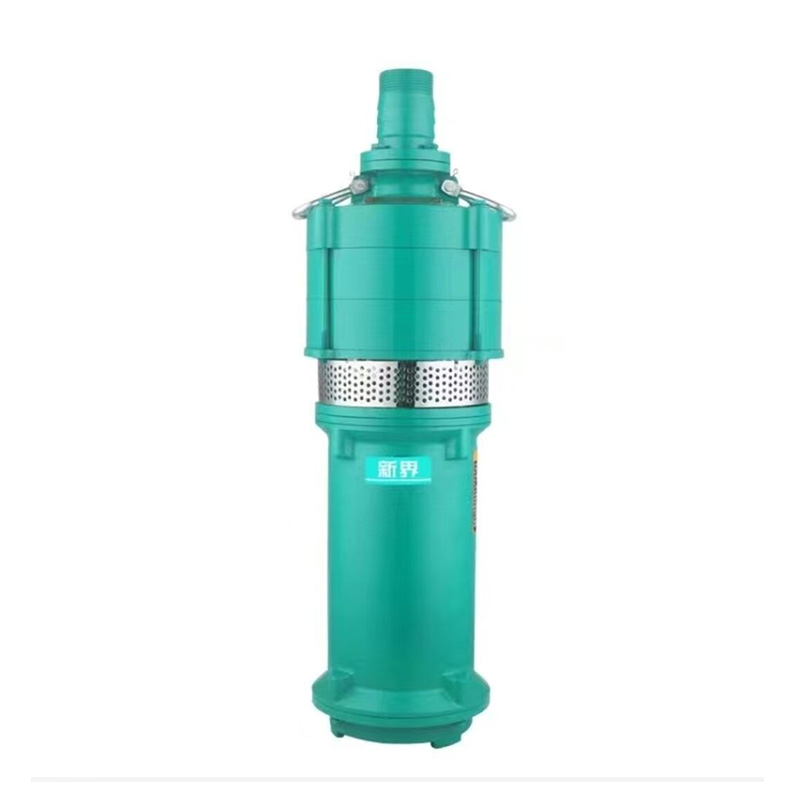

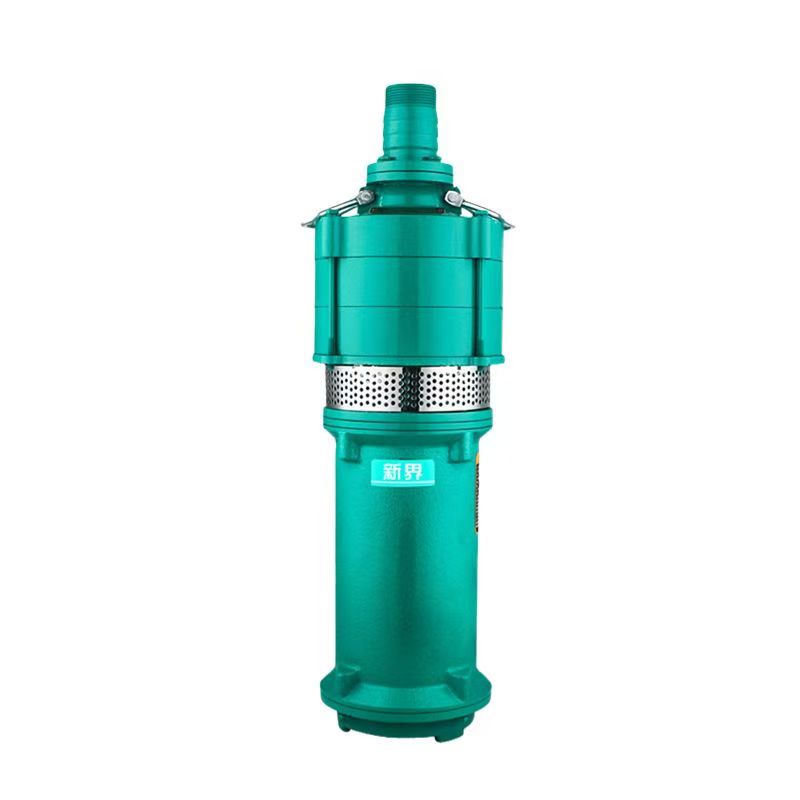

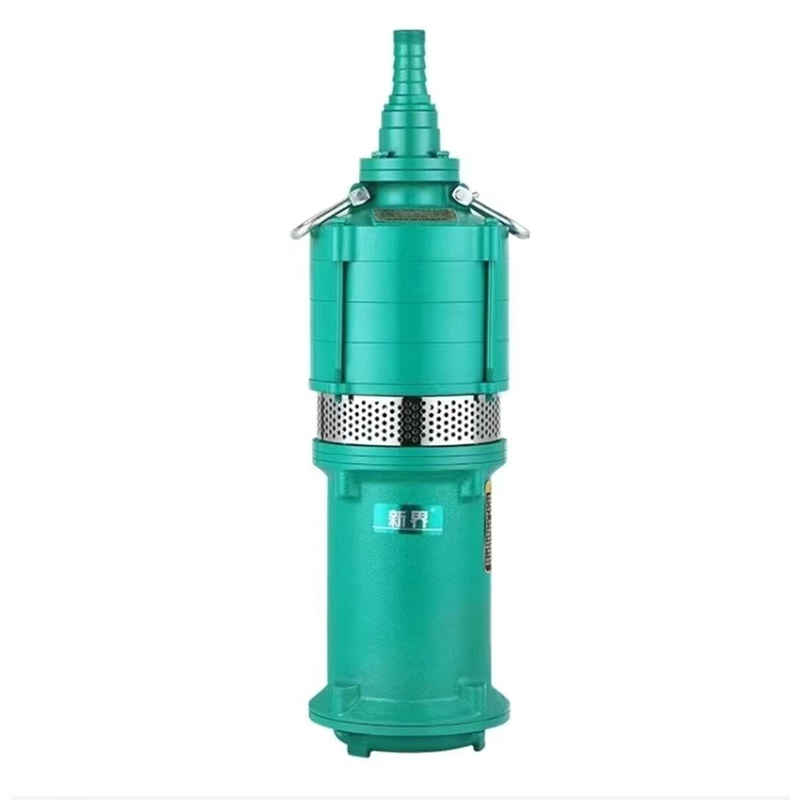

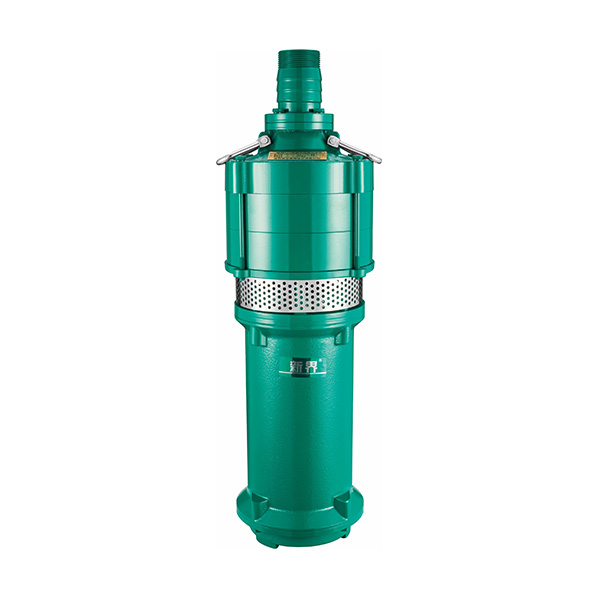

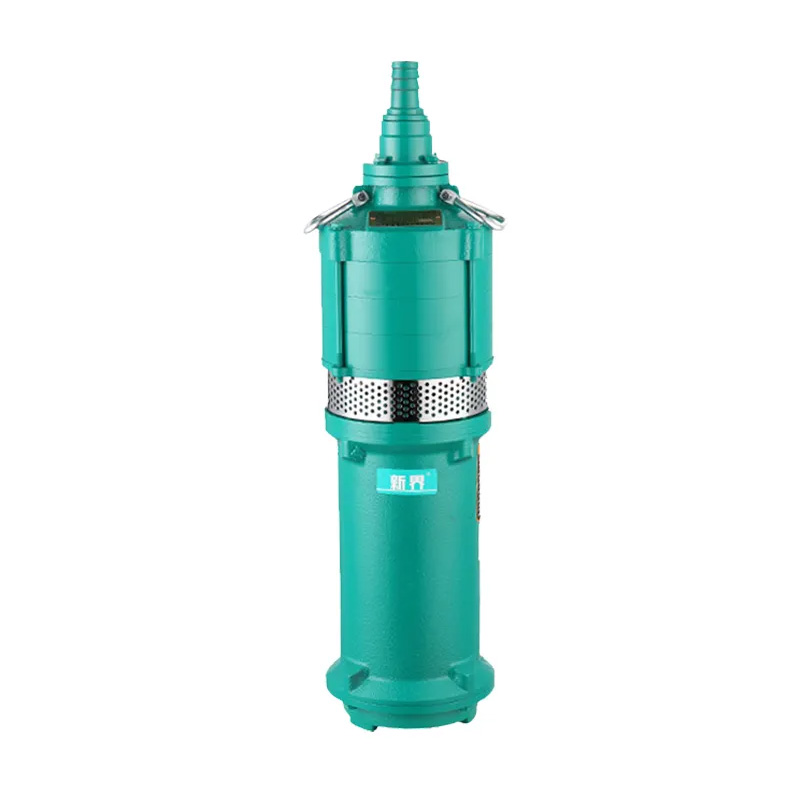

SHIMGE QD Dry-Type Submersible Pump

QD3-34/2-0.75-C|QD3-50/3-1.1J|QD6-34/2-1.1J|QD3-60/4-1.5J|QD10-32/3-1.5J|QD15-20/2-1.5J|QD3-85/5-1.8J|QD12-36/3-1.8J|QD3-98/6-2.2J|QD10-40/3-2.2J|Q3-34/2-0.75-A|Q3-50/3-1.1J|Q6-34/2-1.1J|Q3-60/4-1.5J|Q10-32/3-1.5J|Q15-20/2-1.5J|Q3-85/5-1.8J|Q12-36/3-1.8J|Q3-98/6-2.2J|Q10-40/3-2.2J|Q3-116/7-3J

SHIMGE Pump Industry’s QD dry-type submersible pump is highly efficient and energy-saving,making it suitable for a wide range of applications such as agricultural irrigation and domestic water supply.Equipped with a high-quality motor and impeller,it delivers high head and high flow rates with powerful,durable performance.

Product Consultation By telephone

Function

Parameters

Size

Video Introduction

Function

Applications:

Landscape irrigation, agricultural irrigation and drainage, industrial and mining water supply and drainage, and municipal water supply and drainage.

Operating Conditions:

1. Submergence depth: 0.5 m – 5 m

2. pH value of the medium: 6.5 – 8.5

3. Medium temperature: ≤ +40°C

4. Impurity content in the medium: ≤ 0.1% by volume; particle size: ≤ 0.2 mm

5. AC power supply: Rated frequency of 50 Hz; rated voltage of 220 V (single-phase) or 380 V (three-phase); voltage fluctuation range: ±10% of the rated value.

Parameters

Specifications and Model	Rated flow rate (m³/h)	Rated Head (m)	Rated Power (kW)	Rated voltage (V)	Current (A)	Pipe diameter (mm)	Overall dimensions (mm)	Net Weight (kg)	Head operating range (m)
QD3-34/2-0.75-C	3	34	0.75	220	5.2	25	180*492	22	0-37
QD3-50/3-1.1J	3	50	1.1	220	7.3	25	180*523	25	0-55
QD6-34/2-1.1J	6	34	1.1	220	7.3	38	185*457	25	20-35
QD3-60/4-1.5J	3	60	1.5	220	9.5	25	180*598	30	0-62
QD10-32/3-1.5J	10	32	1.5	220	9.5	51	186*566	30	20-36
QD15-20/2-1.5J	15	20	1.5	220	9.5	64	186*506	29	0-29
QD3-85/5-1.8J	3	85	1.8	220	11.3	25	181*687	37	50-88
QD12-36/3-1.8J	12	36	1.8	220	11.3	51	187*618	34	10-40
QD3-98/6-2.2J	3	98	2.2	220	13.8	25	181*758	41	55-104
QD10-40/3-2.2J	10	40	2.2	220	13.8	51	187*658	36	0-43
Q3-34/2-0.75-A	3	34	0.75	380	2.0	25	180*474	20	0-38
Q3-50/3-1.1J	3	50	1.1	380	2.7	25	180*525	24	0-55
Q6-34/2-1.1J	6	34	1.1	380	2.7	38	185*467	26	20-35
Q3-60/4-1.5J	3	60	1.5	380	3.6	25	180*555	27	0-64
Q10-32/3-1.5J	10	32	1.5	380	3.6	51	186*524	28	20-36
Q15-20/2-1.5J	15	20	1.5	380	3.6	64	186*462	25	0-29
Q3-85/5-1.8J	3	85	1.8	380	4.3	25	180*640	33	50-88
Q12-36/3-1.8J	12	36	1.8	380	4.3	51	187*570	32	10-40
Q3-98/6-2.2J	3	98	2.2	380	5.1	25	187*670	36	55-104
Q10-40/3-2.2J	10	40	2.2	380	5.1	51	187*570	32	0-43
Q3-116/7-3J	3	116	3	380	6.7	25	187*740	42	60-120
