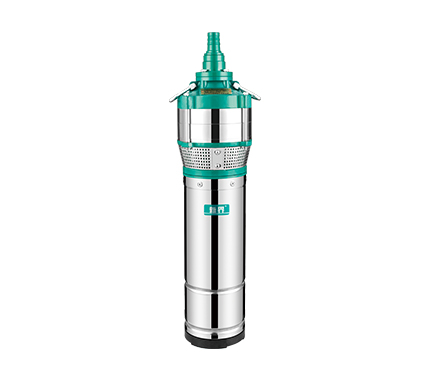

SHIMGE QDY-K2 Oil-Filled Submersible Pump

QDY3-30/2-0.75K2|QDY3-45/3-1.1K2|QDY6-32/3-1.1K2|QDY15-21/3-1.5K2|QDY3-82/5-1.8K2|QDY12-36/4-1.8K2|QDY3-96/6-2.2K2|QDY15-35/4-2.2K2|QY3-30/2-0.75K2|QY3-45/3-1.1K2|QY6-32/3-1.1K2|QY3-55/4-1.5K2|QY15-21/3-1.5K2|QY3-82/5-1.8K2|QY12-36/4-1.8K2|QY3-96/6-2.2K2|QY15-35/4-2.2K2|QY3-112/7-3K2|QY20-36/2-3K1

The SHIMGE Pump Industry QDY-K2 series oil-filled submersible pump integrates the pump,motor,and sealing system into a single unit.Featuring a multi-stage centrifugal impeller design,it offers high head and broad applicability,making it suitable for tasks such as agricultural irrigation,drainage,and well-water extraction.It utilizes a single-phase or three-phase asynchronous motor and incorporates a mechanical seal to ensure long-lasting performance.

Product Consultation By telephone

Function

Parameters

Size

Video Introduction

Function

Applications:

Featuring a multi-stage impeller design that delivers high head and broad applicability, this series of electric pumps serves as essential water-transfer equipment for tasks such as agricultural irrigation and drainage, sprinkler irrigation (including for landscaping), well water extraction, water tower supply, and aquaculture water management.

Operating Conditions:

1. Medium temperature: ≤ 40°C

2. pH value of the medium: 6.5–8.5

3. Solid impurity content: ≤ 0.1% by volume; particle size: ≤ 0.2 mm

4. Power supply: 50 Hz frequency; voltage of 220V (single-phase AC) or 380V (three-phase AC), with a fluctuation range of ±10% of the rated voltage

5. Submersion depth: ≤ 5 m

Parameters

Specifications and Model	Rated flow rate (m³/h)	Rated Head (m)	Rated Power (kW)	Rated voltage (V)	Current (A)	Pipe diameter (mm)	Overall dimensions (mm)	Net Weight (kg)	Head operating range (m)
QDY3-30/2-0.75K2	3	30	0.75	220	4.8	25	185*630	23	5-33
QDY3-45/3-1.1K2	3	45	1.1	220	9.0	25	185*680	26	5-47
QDY6-32/3-1.1K2	6	32	1.1	220	9.0	38	185*650	26	10-45
QDY15-21/3-1.5K2	15	21	1.5	220	11.8	64	185*685	28	10-34
QDY3-82/5-1.8K2	3	82	1.8	220	13.9	25	185*790	32	40-86
QDY12-36/4-1.8K2	12	36	1.8	220	13.9	51	185*760	32	10-48
QDY3-96/6-2.2K2	3	96	2.2	220	16.9	25	185*835	35	45-102
QDY15-35/4-2.2K2	15	35	2.2	220	16.9	64	185*810	35	10-48
QY3-30/2-0.75K2	3	30	0.75	380	2.1	25	185*575	20	5-33
QY3-45/3-1.1K2	3	45	1.1	380	2.9	25	185*630	22	5-47
QY6-32/3-1.1K2	6	32	1.1	380	2.9	38	185*600	22	10-45
QY3-55/4-1.5K2	3	55	1.5	380	3.8	25	185*665	23	5-65
QY15-21/3-1.5K2	15	21	1.5	380	3.8	64	185*625	23	10-34
QY3-82/5-1.8K2	3	82	1.8	380	4.5	25	185*720	27	40-86
QY12-36/4-1.8K2	12	36	1.8	380	4.5	51	185*690	28	10-48
QY3-96/6-2.2K2	3	96	2.2	380	5.4	25	185*770	30	45-120
QY15-35/4-2.2K2	15	35	2.2	380	5.4	64	185*750	28	10-48
QY3-112/7-3K2	3	112	3	380	7.2	25	185*820	32	50-115
QY20-36/2-3K1	20	36	3	380	7.8	64	250*685	32	30-40
