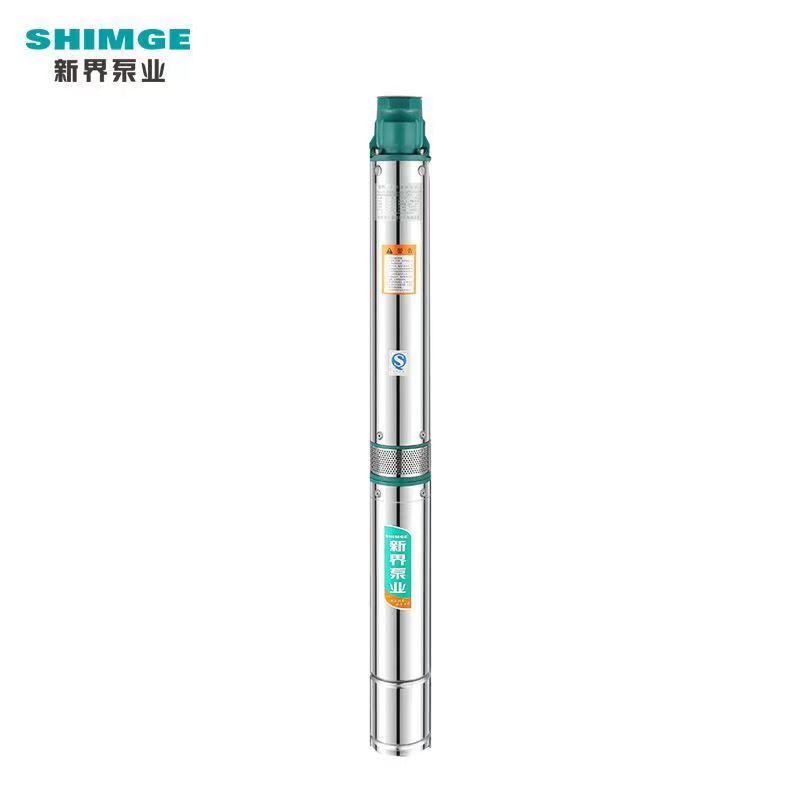

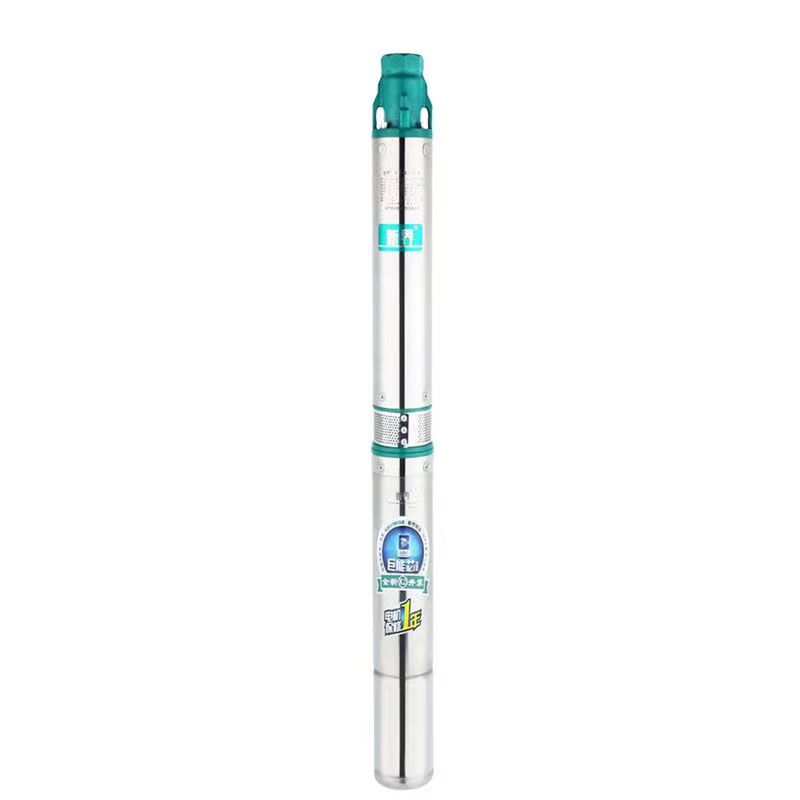

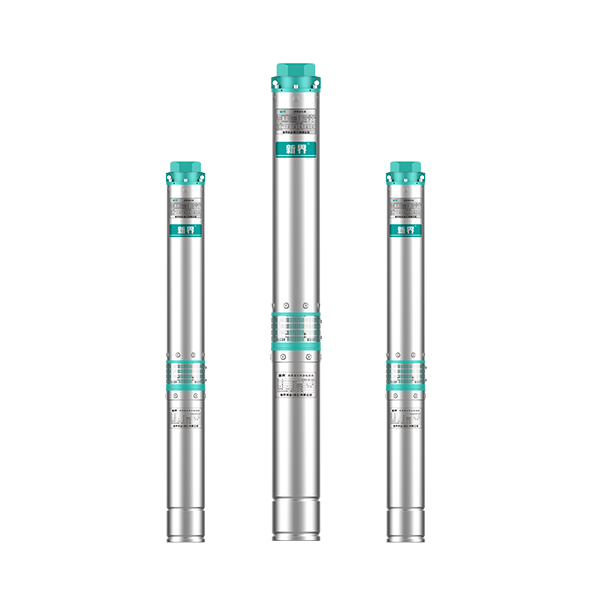

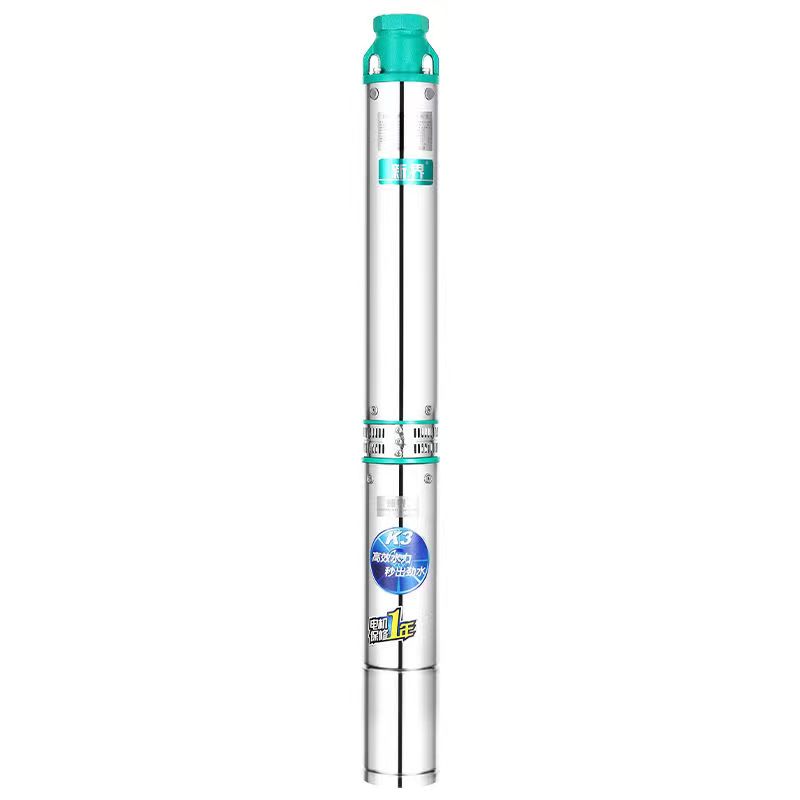

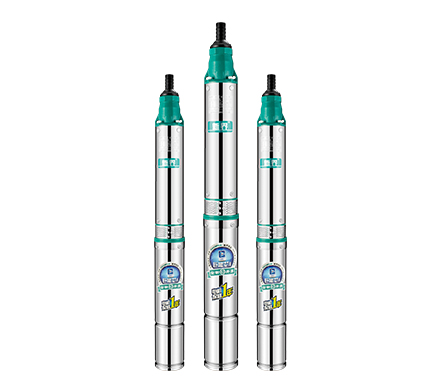

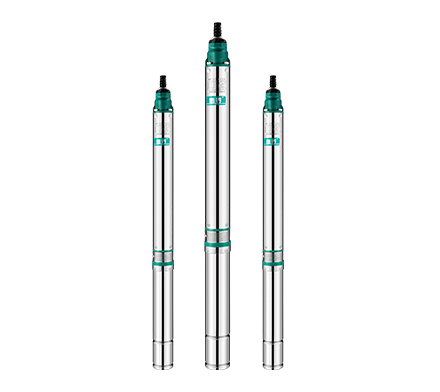

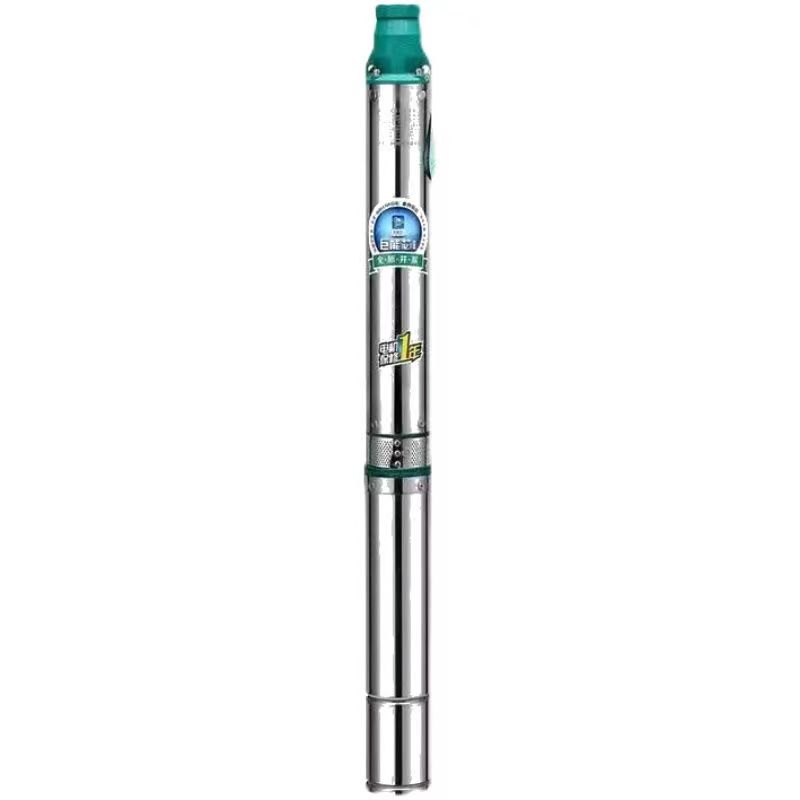

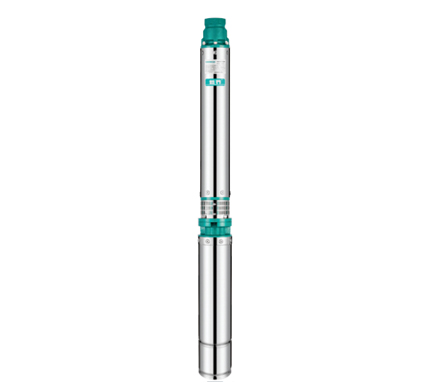

SHIMGE QJDY Stainless Steel Deep Well Pump

80QJDY2-32/8-0.37K1|80QJDY2-40/10-0.55K1|80QJDY2-48/12-0.75K1|80QJDY2-56/14-0.9K1|80QJDY2-72/18-1.1K1|80QJDY2-104/26-1.5K1|80QJDY2-140/32-1.8K1|80QJDY3-27/8-0.37K1|80QJDY3-33/10-0.55K1|80QJDY3-40/12-0.75K1|80QJDY3-48/14-0.9K1|80QJDY3-62/18-1.1K1|80QJDY3-85/25-1.5K1|80QJDY3-100/30-1.8K1|100QJDY2-37/7-0.37K2|100QJDY2-51/9-0.55K2|100QJDY2-63/11-0.75K2|100QJDY2-83/14-1.1K2|100QJDY2-109/18-1.5K2

SHIMGE Pump Industry’s QJDY stainless steel deep-well pump is crafted from high-quality stainless steel,offering excellent corrosion resistance and a long service life.Featuring high head and high flow rate capabilities,it is suitable for agricultural irrigation and pumping water from household wells.Designed for 220V power,it connects directly to standard household circuits for easy installation.

Product Consultation By telephone

Function

Parameters

Size

Video Introduction

Function

Applications:

1. Architectural engineering design and construction departments;

2. Farmers, crop growers, and livestock breeders;

3. Urban landscape planning departments;

4. National agricultural water conservancy departments;

5. General industrial facilities;

Operating Conditions:

1. Maximum ambient temperature: ≤ 40°C;

2. Maximum medium temperature: ≤ 40°C;

3. Solids content (by mass fraction): ≤ 0.01%;

4. Hydrogen sulfide content: ≤ 1.5 mg/L; chloride ion content: ≤ 400 mg/L;

5. pH value of the medium: 6.5–8.5;

6. Maximum submersible depth: ≤ 70 m;

Parameters

Specifications and Model	Cable length	Pipe inner diameter (mm)	Rated flow rate (m³/h)	Maximum flow rate (m³/h)	Rated head (m)	Maximum head (m)	Rated Power (kW)	Rated current (A)
80QJDY2-32/8-0.37K1	18	25	2	4.5	32	42	0.37	3.6
80QJDY2-40/10-0.55K1	18	25	2	4.5	40	53	0.55	4.6
80QJDY2-48/12-0.75K1	18	25	2	4.5	48	63	0.75	5.5
80QJDY2-56/14-0.9K1	18	25	2	4.5	56	74	0.9	6.5
80QJDY2-72/18-1.1K1	18	25	2	4.5	72	95	1.1	7.5
80QJDY2-104/26-1.5K1	18	25	2	4.5	104	137	1.5	10.5
80QJDY2-140/32-1.8K1	18	25	2	4.5	140	168	1.8	11.5
80QJDY3-27/8-0.37K1	18	25	3	7	27	35	0.37	3.6
80QJDY3-33/10-0.55K1	18	25	3	7	33	44	0.55	4.6
80QJDY3-40/12-0.75K1	18	25	3	7	40	53	0.75	5.5
80QJDY3-48/14-0.9K1	18	25	3	7	48	63	0.9	5.5
80QJDY3-62/18-1.1K1	18	25	3	7	62	82	1.1	7.5
80QJDY3-85/25-1.5K1	18	25	3	7	85	108	1.5	10.5
80QJDY3-100/30-1.8K1	18	25	3	7	100	129	1.8	11.5
100QJDY2-37/7-0.37K2	18	25	2	6	37	43	0.37	4.2
100QJDY2-51/9-0.55K2	18	25	2	6	51	58	0.55	5.1
100QJDY2-63/11-0.75K2	18	25	2	6	63	71	0.75	7.2
100QJDY2-83/14-1.1K2	18	25	2	6	82	92	1.1	8.1
100QJDY2-109/18-1.5K2	18	25	2	6	109	120	1.5	10.8
100QJDY2-127/22-1.8K2	18	25	2	6	127	144	1.8	13.2
100QJDY2-152/26-2.2K2	20	25	2	6	152	170	2.2	15.6
100QJDY4-22/5-0.37K2	18	38	4	9	22	29	0.37	4.2
100QJDY4-29/6-0.55K2	18	38	4	9	29	36	0.55	5.1
100QJDY4-39/8-0.75K2	18	38	4	9	39	48	0.75	7.2
100QJDY4-50/10-1.1K2	18	38	4	9	50	60	1.1	8.1
100QJDY4-65/13-1.5K2	18	38	4	9	65	79	1.5	10.8
100QJDY4-80/16-1.8K2	18	38	4	9	80	97	1.8	13.2
100QJDY4-98/20-2.2K2	20	38	4	9	98	120	2.2	15.6
100QJDY6-26/5-0.75K2	18	38	6	13	26	31	0.75	7.2
100QJDY6-32/6-1.1K2	18	38	6	13	32	38	1.1	8.1
100QJDY6-43/8-1.5K2	18	38	6	13	43	51	1.5	10.8
100QJDY6-53/10-1.8K2	18	38	6	13	53	63	1.8	13.2
100QJDY6-68/13-2.2K2	20	38	6	13	68	81	2.2	15.6
100QJDY10-17/5-0.75K2	18	50	10	20	17	26	0.75	7.2
100QJDY10-22/6-1.1K2	18	50	10	20	22	32	1.1	8.1
100QJDY10-26/7-1.5K2	18	50	10	20	26	38	1.5	10.8
100QJDY10-30/8-1.8K2	18	50	10	20	30	44	1.8	13.2
100QJDY10-40/10-2.2K2	20	50	10	20	40	56	2.2	15.6
100QJY2-63/11-0.75K2	18	25	2	6	63	71	0.75	2.7
100QJY2-83/14-1.1K2	18	25	2	6	83	92	1.1	3.3
100QJY2-109/18-1.5K2	18	25	2	6	109	120	1.5	4.3
100QJY2-127/22-1.8K2	18	25	2	6	127	144	1.8	4.7
100QJY2-152/26-2.2K2	18	25	2	6	152	170	2.2	5.8
100QJY4-39/8-0.75K2	18	38	4	9	39	48	0.75	2.7
100QJY4-50/10-1.1K2	18	38	4	9	50	60	1.1	3.3
100QJY4-65/13-1.5K2	18	38	4	9	65	79	1.5	4.3
100QJY4-80/16-1.8K2	18	38	4	9	80	97	1.8	4.7
100QJY4-98/20-2.2K2	18	38	4	9	98	120	2.2	5.8
100QJY6-26/5-0.75K2	18	38	6	13	26	31	0.75	2.7
100QJY6-32/6-1.1K2	18	38	6	13	32	38	1.1	3.3
100QJY6-43/8-1.5K2	18	38	6	13	43	51	1.5	4.3
100QJY6-53/10-1.8K2	18	38	6	13	53	63	1.8	4.7
100QJY6-68/13-2.2K2	18	38	6	13	68	81	2.2	5.8
100QJY10-17/5-0.75K2	18	50	10	20	17	26	0.75	2.7
100QJY10-22/6-1.1K2	18	50	10	20	22	32	1.1	3.3
100QJY10-26/7-1.5K2	18	50	10	20	26	38	1.5	4.3
100QJY10-30/8-1.8K2	18	50	10	20	30	44	1.8	4.7
100QJY10-40/10-2.2K2	18	50	10	20	40	56	2.2	5.8
100QJY2-228/35-3K1	3.3	25	2	5.5	228	257	3	8.8
100QJY2-328/50-4K1	3.3	25	2	5.5	328	385	4	10.4
100QJY2-418/65-5.5K1	3.3	25	2	5.5	418	461	5.5	13.2
100QJY2-518/80-7.5K1	5	25	2	5.5	518	568	7.5	18.4
100QJY4-129/25-3K1	3.3	38	4	8	129	156	3	8.8
100QJY4-188/35-4K1	3.3	38	4	8	188	219	4	10.4
100QJY4-239/45-5.5K1	3.3	38	4	8	239	282	5.5	13.2
100QJY4-320/60-7.5K1	5	38	4	8	320	376	7.5	18.4
100QJY6-84/18-3K1	3.3	38	6	12	84	108	3	8.8
100QJY6-117/25-4K1	3.3	38	6	12	117	150	4	10.4
100QJY6-164/35-5.5K1	3.3	38	6	12	164	210	5.5	13.2
100QJY6-197/42-7.5K1	5	38	6	12	197	252	7.5	18.4
100QJY8-75/14-3K1	3.3	51	8	15	75	92	3	8.8
100QJY8-97/18-4K1	3.3	51	8	15	97	118	4	10.4
100QJY8-157/30-7.5K1	5	51	8	15	157	197	7.5	18.4
100QJY10-57/13-3K1	3.3	51	10	20	57	72	3	8.8
100QJY10-75/17-4K1	3.3	51	10	20	75	94	4	10.4
100QJY10-98/22-5.5K1	3.3	51	10	20	98	121	5.5	13.2
100QJY10-123/28-7.5K1	5	51	10	20	123	154	7.5	18.4
100QJY16-38/11-3K1	3.3	51	16	22	38	66	3	8.8
100QJY16-53/15-4K1	3.3	51	16	22	53	90	4	10.4
100QJY16-70/20-5.5K1	3.3	51	16	22	70	120	5.5	13.2
100QJY16-92/27-7.5K1	5	51	16	22	92	162	7.5	18.4
125QJY8-50/7-1.5K1	2.3	51	8	16	50	65	1.5	4.8
125QJY8-64/9-2.2K1	2.3	51	8	16	64	82	2.2	6.6
125QJY8-86/12-3K1	3.3	51	8	16	86	109	3	8.6
125QJY8-109/15-4K1	3.3	51	8	16	109	140	4	10.7
125QJY8-145/20-5.5K1	2.3	51	8	16	145	183	5.5	14.2
125QJY8-200/28-7.5K1	2.3	51	8	16	200	253	7.5	19.2
125QJY12-35/5-1.5K1	2.3	51	12	21	35	52	1.5	4.8
125QJY12-47/7-2.2K1	2.3	51	12	21	47	72	2.2	6.6
125QJY12-68/10-3K1	3.3	51	12	21	68	102	3	8.6
125QJY12-83/12-4K1	3.3	51	12	21	83	125	4	10.7
125QJY12-112/16-5.5K1	2.3	51	12	21	112	169	5.5	14.2
125QJY12-155/22-7.5K1	2.3	51	12	21	155	231	7.5	19.3
130QJY20-20/3-2.2K1	2.3	64	20	30	20	33	2.2	6.8
130QJY20-31/5-3K1	3.3	64	20	30	31	55	3	9
130QJY20-40/6-4K1	3.3	64	20	30	40	66	4	11.3
130QJY20-55/9-5.5K1	3.3	64	20	30	55	99	5.5	13.3
130QJY20-75/12-7.5K1	3.3	64	20	30	75	132	7.5	17.5
150QJY10-100/10-5.5K1	2.3	64	10	19	100	140	5.5	13
150QJY10-140/14-7.5K1	2.3	64	10	19	140	196	7.5	18
150QJY10-160/16-9.2K1	2.3	64	10	19	160	224	9.2	23
150QJY10-200/20-11K1	2.3	64	10	19	200	280	11	26
150QJY10-220/22-13K1	3.3	64	10	19	220	308	13	33
150QJY10-260/26-15K1	3.3	64	10	19	260	364	15	35
150QJY18-54/6-5.5K1	2.3	64	18	28	54	85	5.5	13
150QJY18-82/9-7.5K1	2.3	64	18	28	82	128	7.5	18
150QJY18-100/11-9.2K1	2.3	64	18	28	100	156	9.2	23
150QJY18-118/13-11K1	2.3	64	18	28	118	186	11	26
150QJY18-135/15-13K1	3.3	64	18	28	135	213	13	33
150QJY18-163/18-15K1	3.3	64	18	28	163	257	15	35
150QJY30-35/5-5.5K1	2.3	64	30	40	35	72	5.5	13
150QJY30-49/7-7.5K1	2.3	64	30	40	49	100	7.5	18
150QJY30-63/9-9.2K1	2.3	64	30	40	63	129	9.2	23
150QJY30-69/10-11K1	2.3	64	30	40	69	143	11	26
150QJY30-76/11-13K1	3.3	64	30	40	76	157	13	33
150QJY30-90/13-15K1	3.3	64	30	40	90	186	15	35
150QJDY5-0.55C×4	18	38	5	12	20	25	0.55	4.5
150QJDY5-0.75×4	18	38	5	12	30	40	0.75	6.6
150QJDY5-1.1×4	18	38	5	12	42	50	1.1	8.9
150QJDY5-1.5×4	18	38	5	12	55	65	1.5	11.3
150QJDY5-2.2×4	18	38	5	12	75	90	2.2	15
150QJDY8-0.75×4	18	51	8	18	20	25	0.75	6.6
150QJDY8-1.1×4	18	51	8	18	30	37	1.1	8.9
150QJDY8-1.5×4	18	51	8	18	40	50	1.5	11.3
150QJDY8-2.2×4	18	51	8	18	50	65	2.2	15
150QJDY15-1.1×4	18	64	15	28	16	22	1.1	8.9
150QJDY15-1.5×4	18	64	15	28	24	32	1.5	11.3
150QJDY15-2.2×4	18	64	15	28	32	42	2.2	15
