Reliable sewage and wastewater pumps for domestic and site drainage systems.

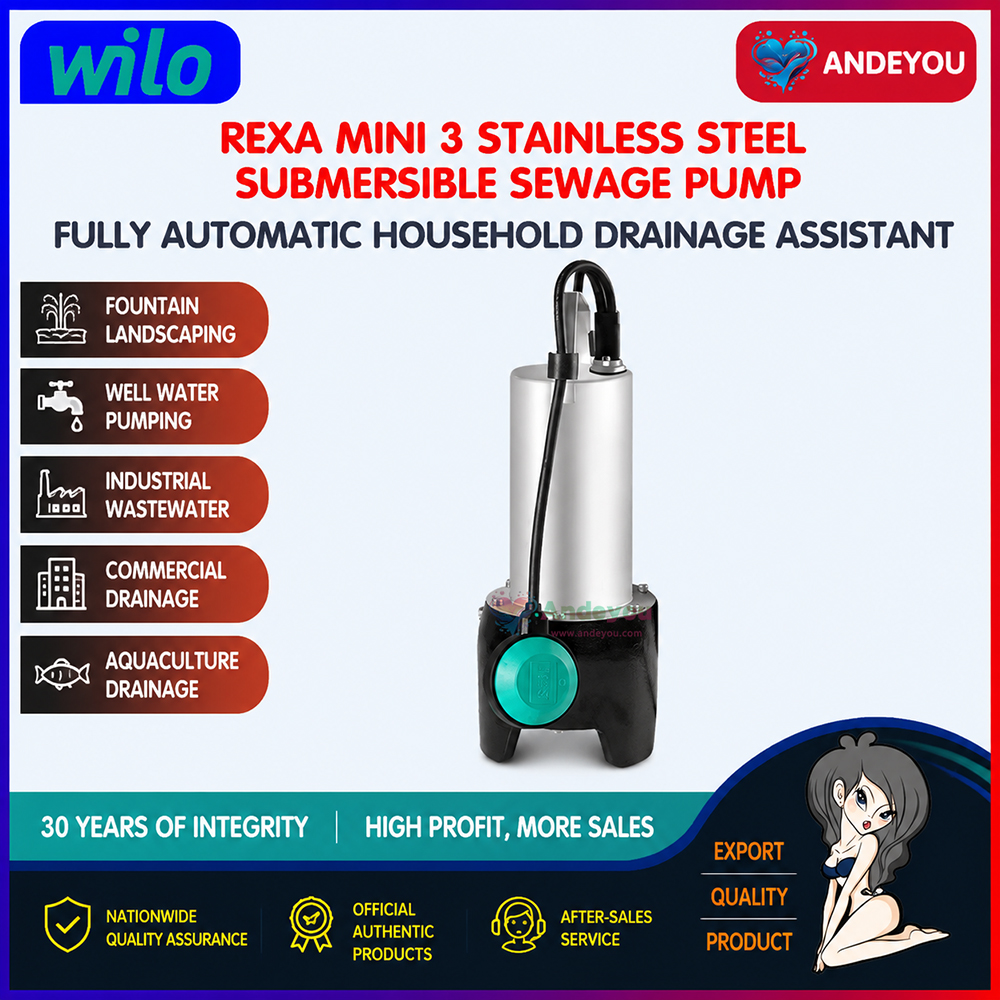

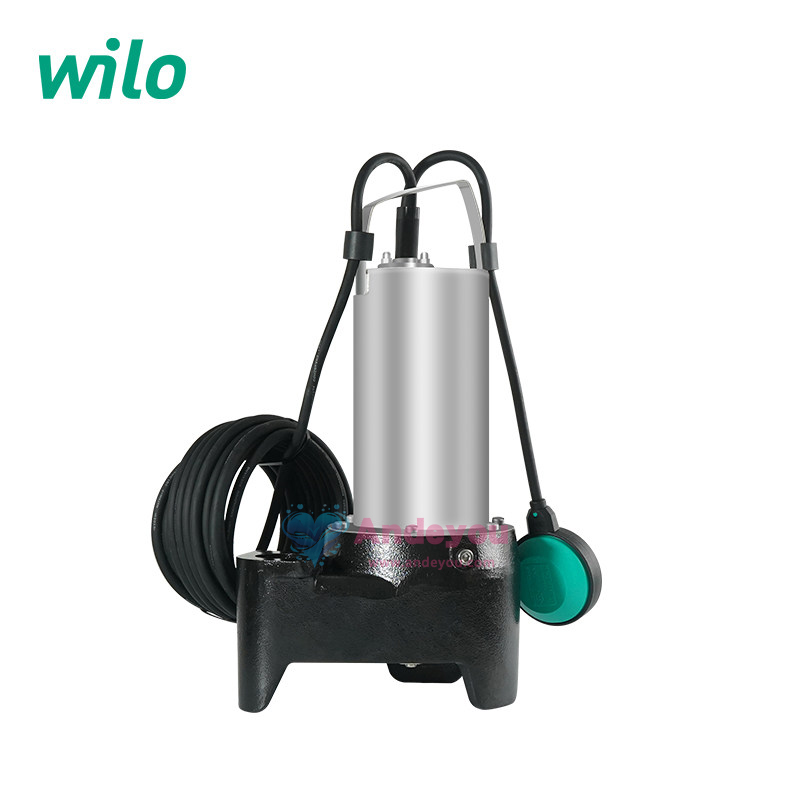

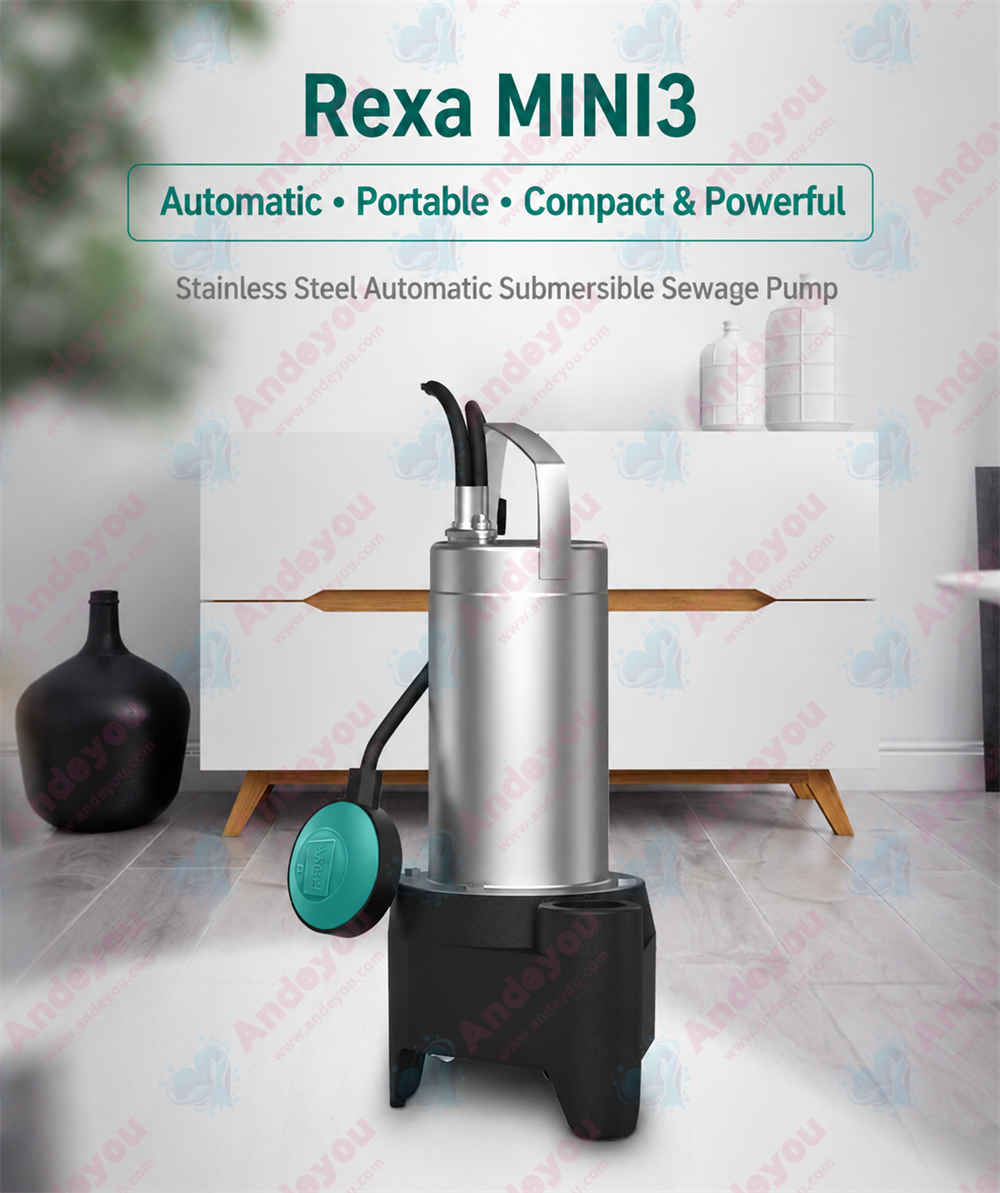

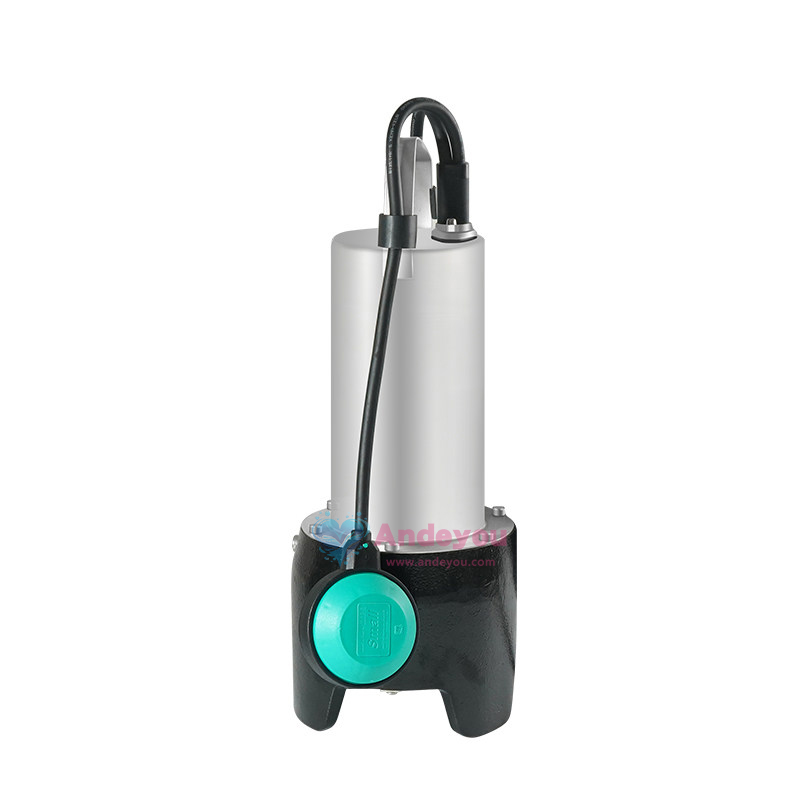

The Wilo-Rexa MINI3 is an ideal standard submersible sewage pump for domestic and site drainage applications. With a 40 mm solids passage, it is perfectly suited for transporting sewage and greywater (wastewater without fecal matter). The pump offers flexible installation options, suitable for both stationary and portable wet-well setups. When installed in the DrainLift WS 50 collection tank, it can handle sewage containing fecal matter, as the system is certified according to EN 12050-1. Optimized hydraulics ensure high reliability for this versatile pump, capable of handling a wide range of fluids. Its compact design allows for easy installation even in narrow drainage sumps. An oil-filled seal chamber and a double seal system ensure extended maintenance intervals. Direct access to key components significantly simplifies maintenance tasks.
Features/Product Advantages
High efficiency and excellent operational reliability thanks to optimized hydraulics.
Lightweight and compact design for easy installation—even in narrow sumps; features an integrated capacitor and a threaded flange with a hose connection.
Reliable operation in various drainage systems due to a corrosion-resistant impeller and sealed cable entry.
Extended maintenance intervals thanks to a high-capacity seal chamber and double seal configuration.
Simplified maintenance due to direct access to the seal chamber.
Environmental Attributes
High-efficiency design with specialized components minimizes weight.
Optimized hydraulics enhance operational reliability and reduce the frequency of unplanned maintenance.
Construction

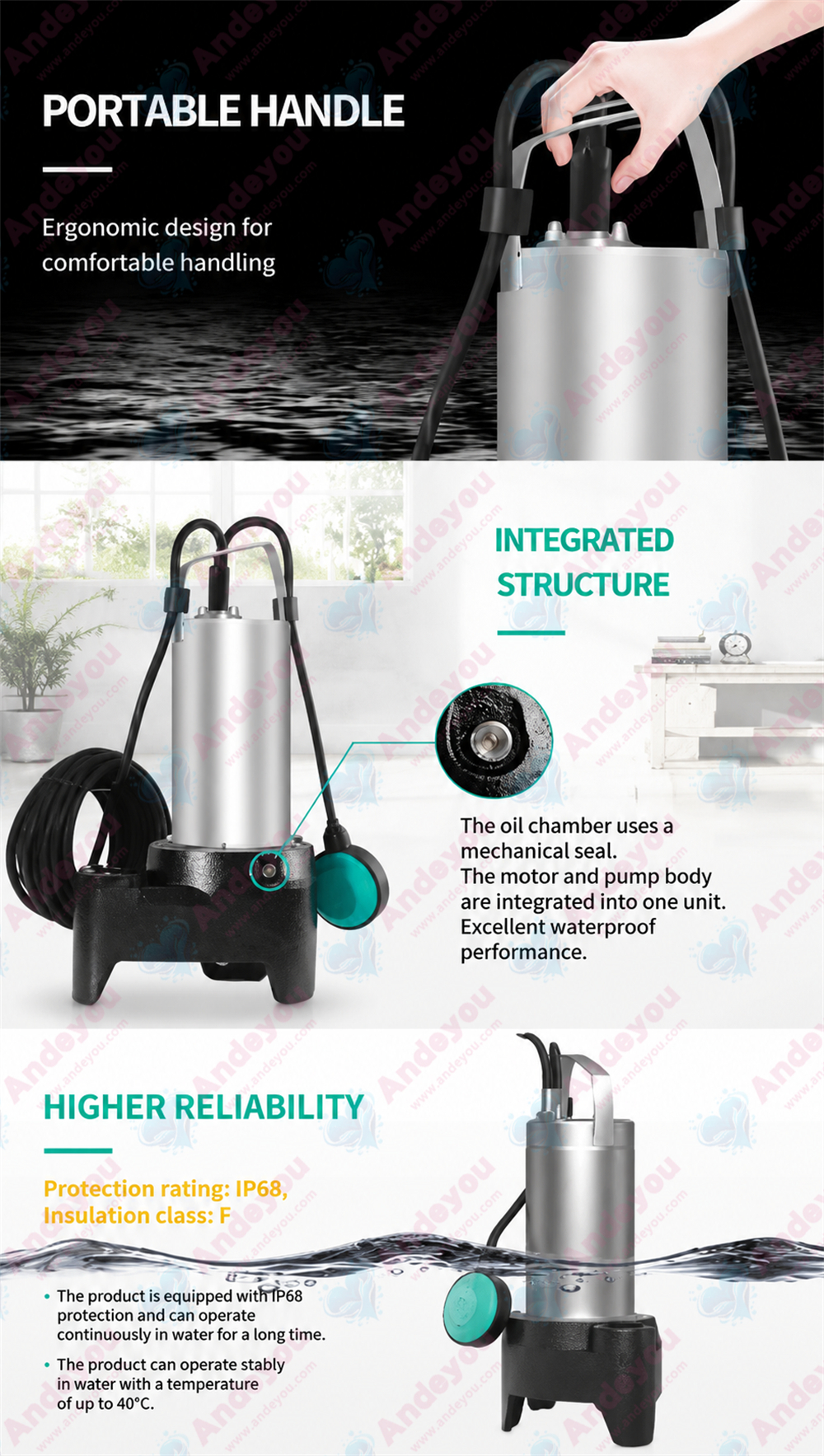

Submersible pump for stationary and portable wet-well installation, designed for intermittent operation.
Applications
Suitable for use both inside and outside buildings.

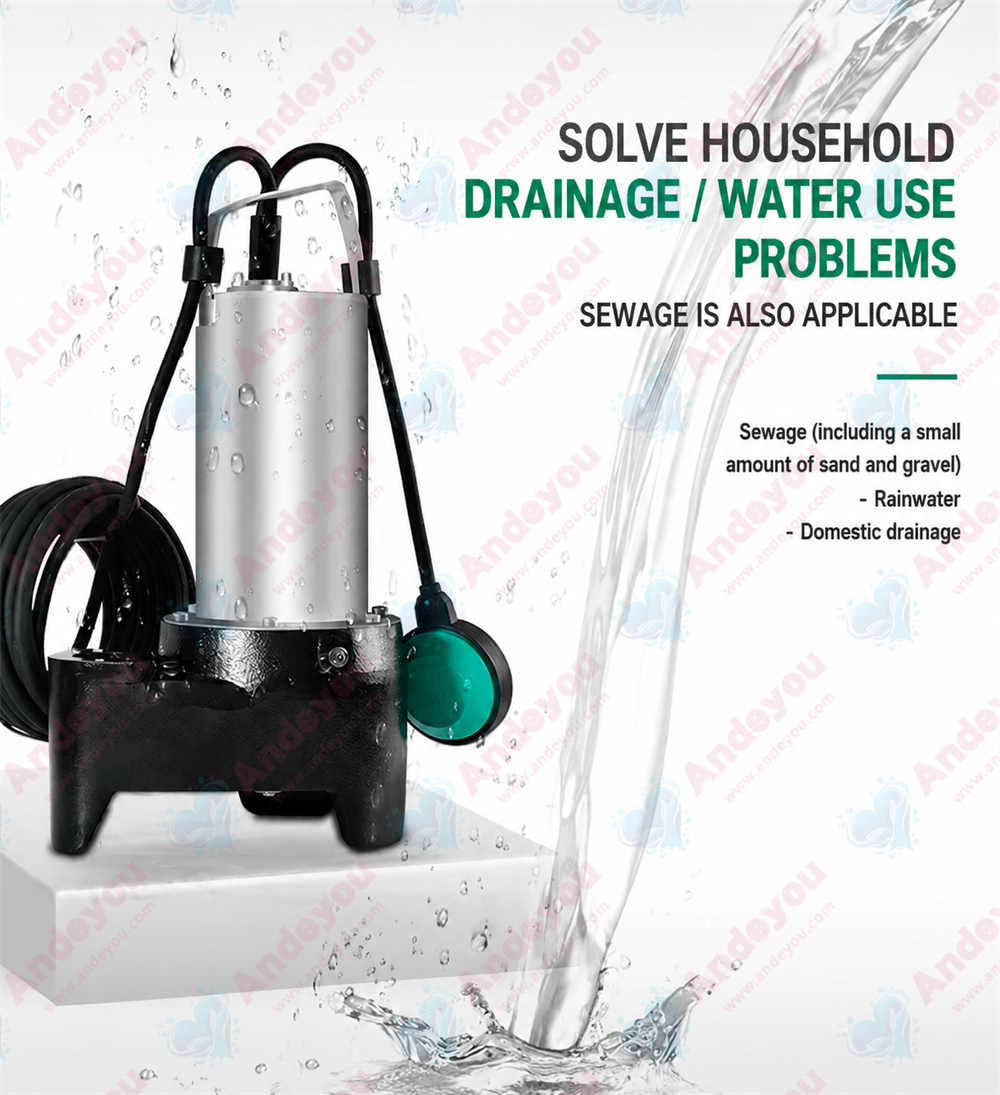

Fluids
Pumping systems for domestic areas:
Sewage free of fecal matter
Wastewater (containing small amounts of sand and gravel)
Equipment/Functions
Self-switching thermal motor monitoring system
Capacitor integrated into the motor

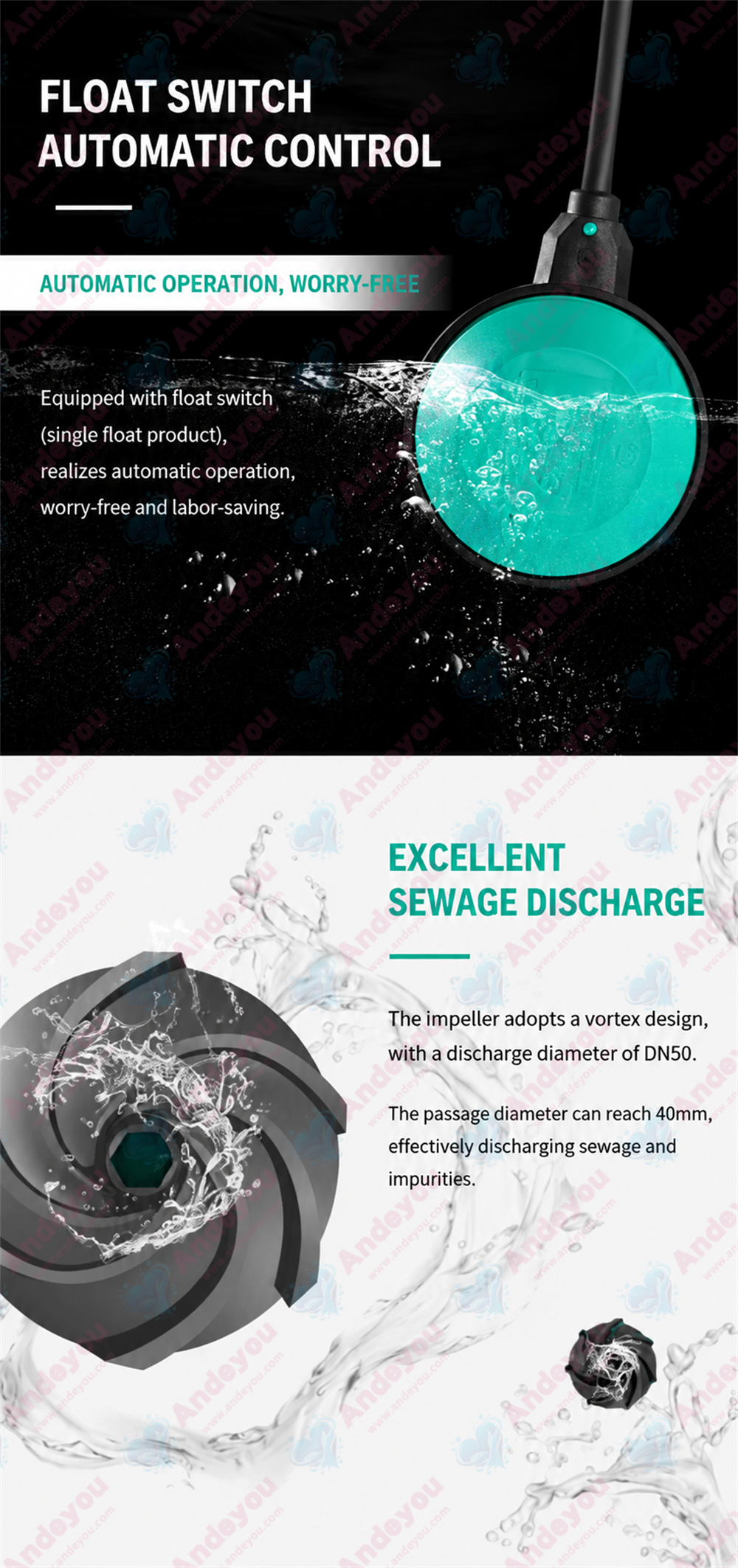

Equipped with a float switch
Model code
|
Example: |
Rexa MINI3-V05.09/M05-524/A-10M-AU |
|
Rexa |
Submersible sewage pump |
|
MINI3 |
series |
|
V |
|
|
05 |
Nominal size of discharge port: G 2 IG |
|
09 |
Maximum conveying height (Unit: meters) |
|
M |
Main power connection type: M = Single-phase AC (1~ AC) |
|
05 |
Dividing the value by 10 yields the rated power P2 (unit: kilowatts). |
|
5 |
Power supply frequency: 5 = 50 Hz |
|
24 |
Rated voltage code: 22 = 220 V |
|
A |
Electrical equipment: P = with plug |
|
10M |
Length of the connecting cable |
|
AU |
Plugin Version: Type I |

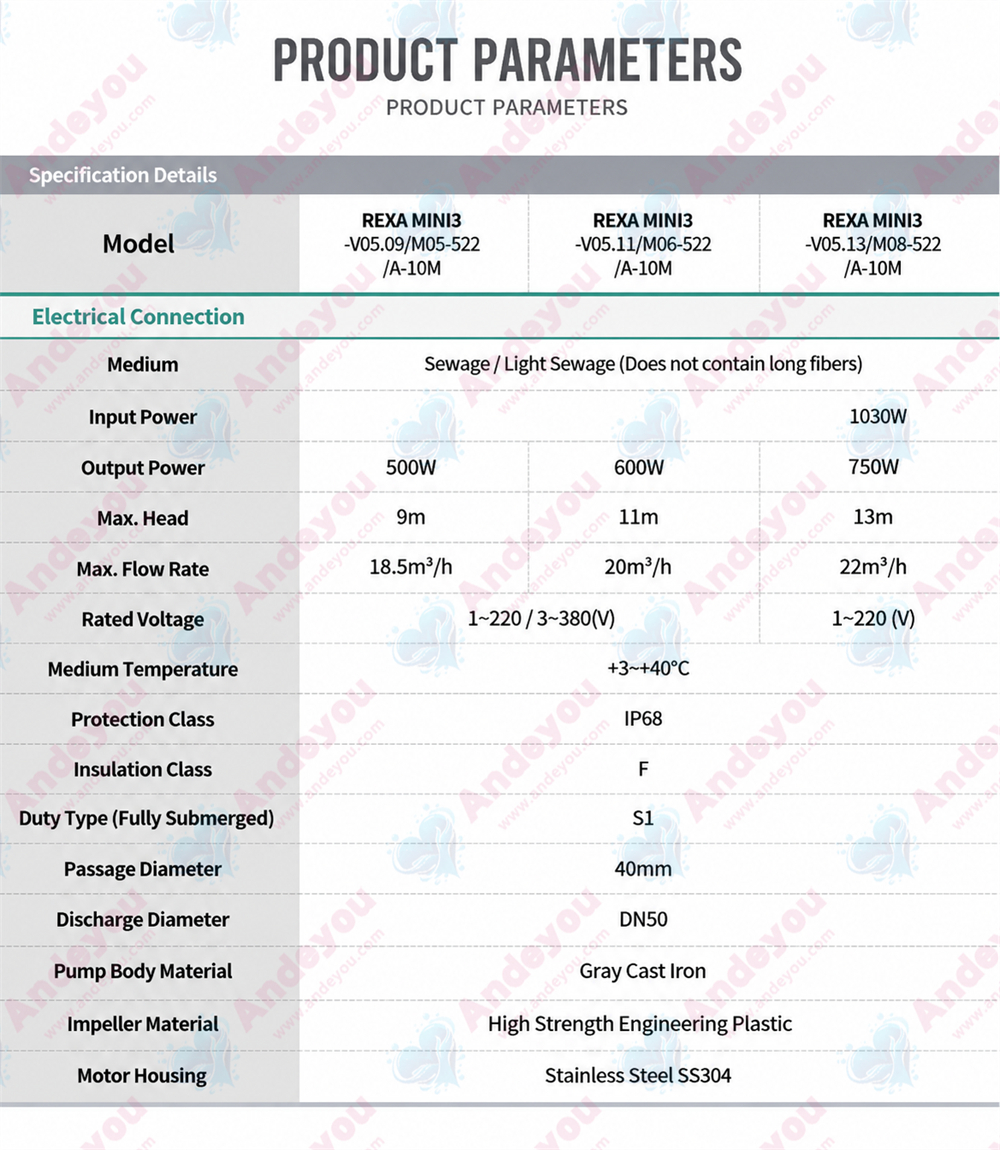

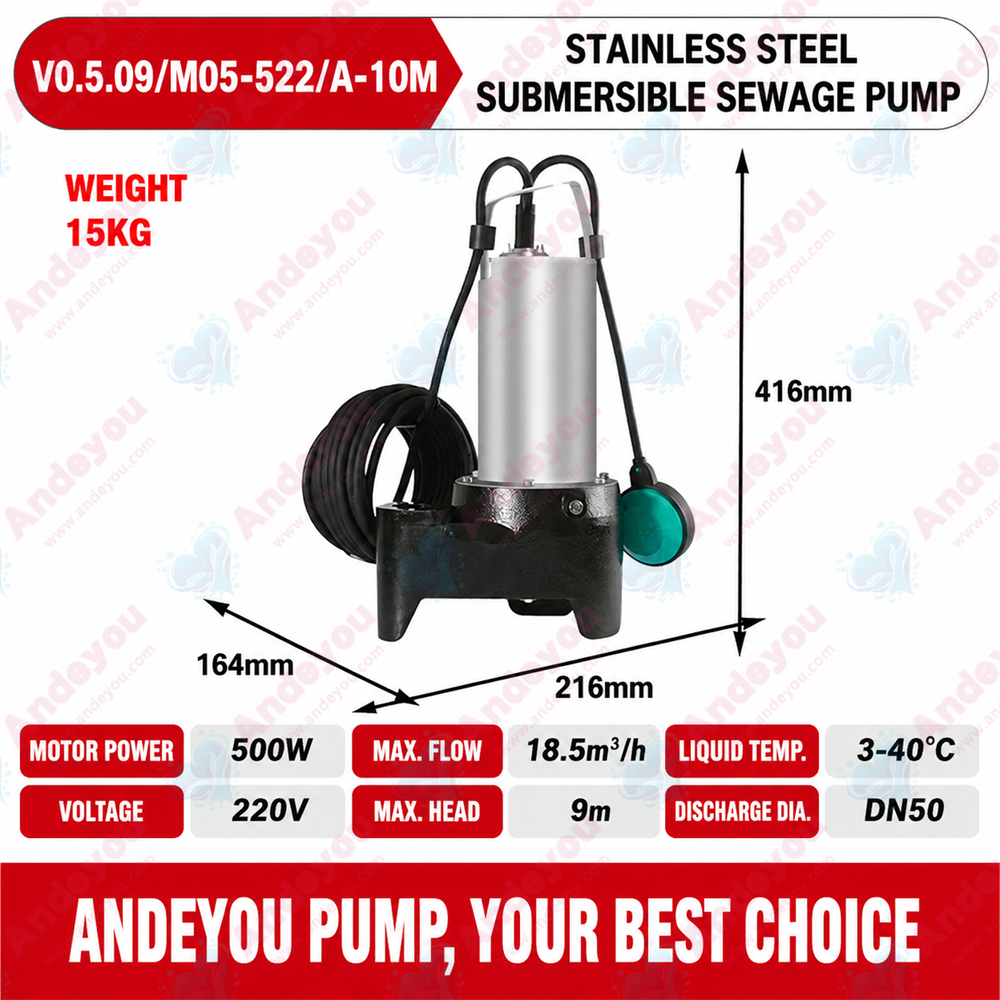

Technical data
Mains connection: 1~240 V, 50 Hz
Submerged operating mode: S1
Non-submerged operating mode: S3 (15% duty cycle)
Protection class: IP68
Insulation class: F
Fluid temperature: +3...+40°C (+37...+104°F)
Materials
Pump housing: Grey cast iron
Impeller: Composite material

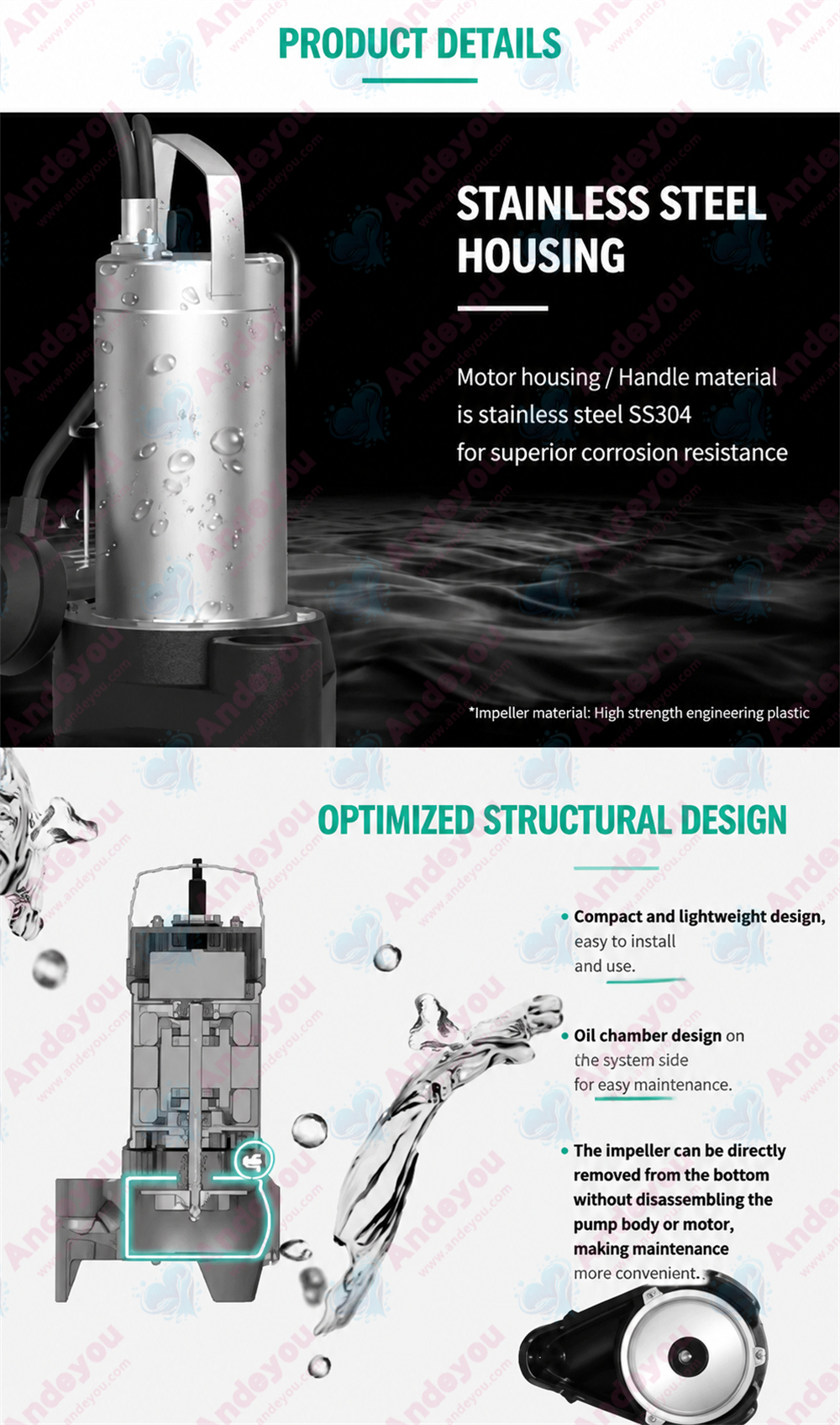

Motor housing: Stainless steel
Seals:
Pump side: SiC/SiC
Motor side: NBR
Static seals: NBR
Shaft: Stainless steel
Type
Sewage pump with vortex impeller. Discharge port equipped with a vertical threaded connection and a pre-installed hose coupling. Pump housing made of grey cast iron; impeller made of plastic. Equipped with a surface-cooled single-phase motor (with integrated start capacitor) featuring automatic thermal protection; motor housing made of stainless steel. Sealing system consists of a double seal: rotary shaft seal on the motor side and mechanical seal on the pump side. Detachable connection cable equipped with a float switch and Type I plug.

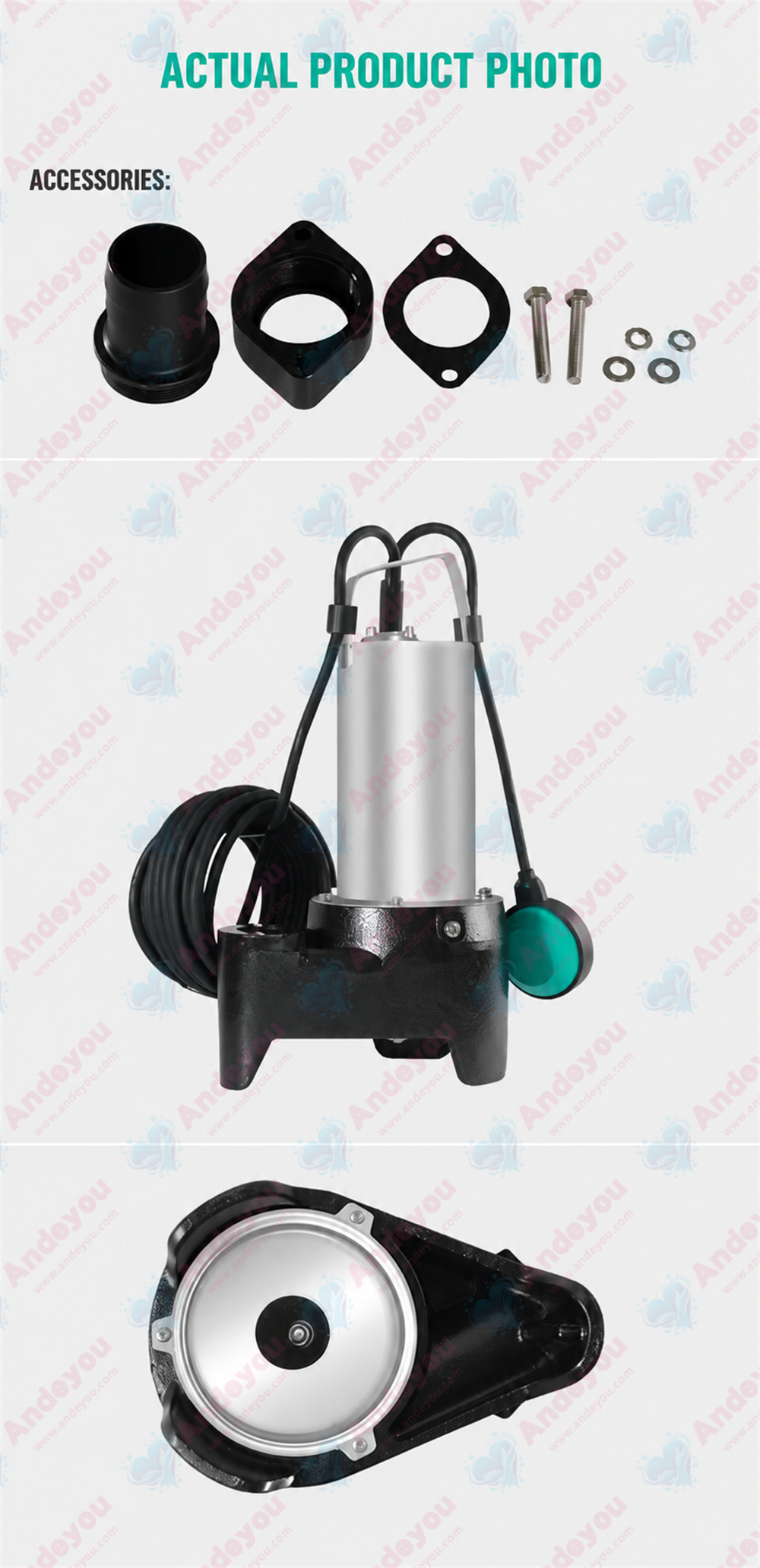

Factory-supplied items
Pump
Hose nozzle (pre-assembled)
Installation and operating instructions
Commissioning
When using the device outdoors, a residual current device (RCD) must be used to ensure the safety of the power connection; the trip current of this device should be 30 mA (in accordance with IEC 60335-2-41).
