Flexible drainage for private homes and properties.

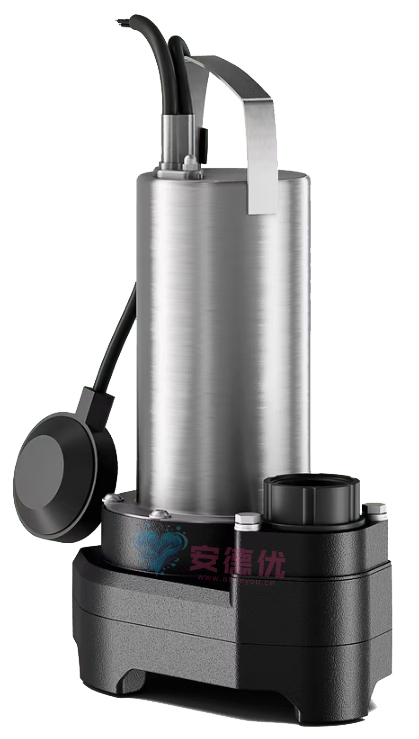

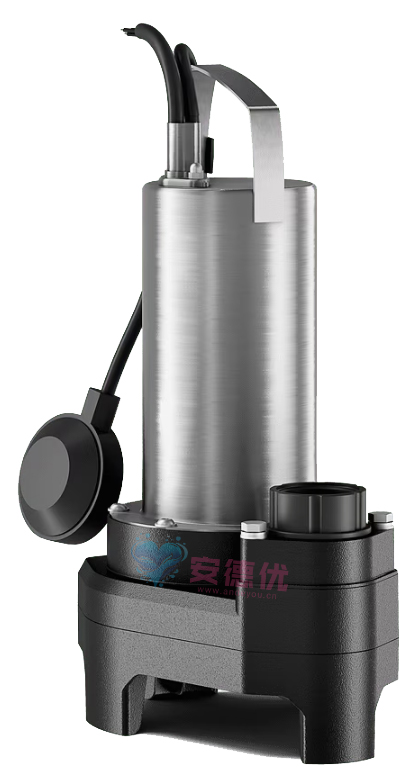

The compact Wilo-Padus MINI3 submersible pump is the ideal choice for wet-well installation in single- and two-family homes and on private properties. It reliably pumps wastewater and sewage (free of fecal matter, in accordance with DIN EN 12050-2) and is suitable for both stationary installation in a pump chamber and portable use. Optimized hydraulics made of composite material allow for use with a wide range of fluids. Two hydraulic options are available: a high-efficiency multi-channel version and a vortex version with a large solids passage.

Its compact design makes installation easy, even in narrow drainage pits. The design enables longer maintenance intervals, while direct access to key components ensures convenient maintenance.

Features/Product Advantages

Optimized hydraulics with enhanced performance
Stainless steel motor housing and composite hydraulics ensure excellent corrosion resistance—even when the motor is not fully submerged—resulting in high operational reliability and a long service life
Easy installation—even in narrow sumps—thanks to a compact design, integrated capacitor, low weight, and threaded connection with a non-return valve
Extended maintenance intervals due to a large-volume sealing chamber and double seal system
Easy maintenance with direct access to the sealing chamber and pump housing

Product Features

Integrated capacitor (single-pump version)
Stainless steel motor housing
G 1½ discharge connection
Double seal system with mechanical seal and rotary shaft seal
Float switch
Multi-channel impeller
10 mm solids passage
Integrated pump feet on the pump housing

Construction

Submersible pump suitable for stationary and portable wet-well installation in intermittent operation.

Liquids

Pumping within living areas:

Wastewater without sewage
Wastewater (containing small amounts of sand and grit)

Equipment/Features

Motor overheat protection with automatic reset
Single-phase AC motor with integrated capacitor
Optional float switch (Version A)

Model Code

Technical Data

Power connection: 1~230 V, 50 Hz or 3~400 V, 50 Hz
Submerged operation mode: S1
Non-submerged operation mode: S3 20%
Protection class: IP68
Insulation class: F
Medium temperature: 3 ... 40 °C (37 ... 104 °F)

Materials

Hydraulic housing: PP-GF30
Impeller: Composite material (PK-GF30)
Motor housing: 1.4301 (AISI 304)
Seals:
Pump side: C/MgSi (BXPFF)
Motor side: NBR
Static: NBR
Shaft end: 1.4301 (AISI 304)

Type

Padus MINI3-V ... -P

Sewage pump with vortex impeller and vertical threaded connection. Hydraulic housing and impeller made of plastic. Surface-cooled single-phase motor with integrated run capacitor and automatic motor thermal protection. Motor housing made of stainless steel. Oil-filled sealing chamber with double seal: shaft seal on the motor side and mechanical seal on the pump side. Detachable power cable with plug (CEE 7/7).

Padus MINI3-V ... -A

Sewage pump with vortex impeller and vertical threaded connection. Hydraulic housing and impeller made of plastic. Surface-cooled single-phase motor with integrated run capacitor and automatic motor thermal protection. Motor housing made of stainless steel. Oil-filled sealing chamber with double seal: shaft seal on the motor side and mechanical seal on the pump side. Detachable power cable with float switch and plug (CEE 7/7).

Padus MINI3-V ... -O

Sewage pump with vortex impeller and vertical threaded connection. Hydraulic housing and impeller made of plastic. Surface-cooled three-phase motor with automatic motor thermal protection. Motor housing made of stainless steel. Oil-filled sealing chamber with double seal: shaft seal on the motor side and mechanical seal on the pump side. Detachable power cable with bare wire ends for connection to an on-site controller. Pump not equipped with float switch or plug!

Padus MINI3-M ... -P

Sewage pump with semi-open multi-channel impeller and vertical threaded connection. Hydraulic housing and impeller made of plastic. Surface-cooled single-phase motor with integrated run capacitor and automatic motor thermal protection. Motor housing made of stainless steel. The oil-filled seal chamber features a double seal: a shaft seal ring on the motor side and a mechanical seal on the pump side. Detachable power cable with plug (CEE 7/7).

Padus MINI3-M ... -A

Sewage pump with semi-open multi-channel impeller and vertical threaded connection. Hydraulic housing and impeller made of plastic. Surface-cooled single-phase motor with integrated run capacitor and automatic motor thermal protection. Motor housing made of stainless steel. Oil-filled seal chamber features a double seal: a shaft seal ring on the motor side and a mechanical seal on the pump side. Detachable power cable with float switch and plug (CEE 7/7).

Padus MINI3-M ... -O

Sewage pump with semi-open multi-channel impeller and vertical threaded connection. Hydraulic housing and impeller made of plastic. Surface-cooled three-phase motor with automatic motor thermal protection. Motor housing made of stainless steel. Oil-filled seal chamber features a double seal: a shaft seal ring on the motor side and a mechanical seal on the pump side. Detachable power cable with bare wire ends for connection to an on-site controller. Pump not equipped with float switch or plug!

As-delivered condition

Pump
Pre-installed non-return valve
Hose connection (attached)
Installation and operating instructions
