Features/Product Advantages
Rugged, durable design ensures a long service life
Suitable for continuous operation and frequent switching; ensures high operational reliability
Connection cable with plug for ease of use
Equipped with a float switch for ease of use (S-model)
Construction

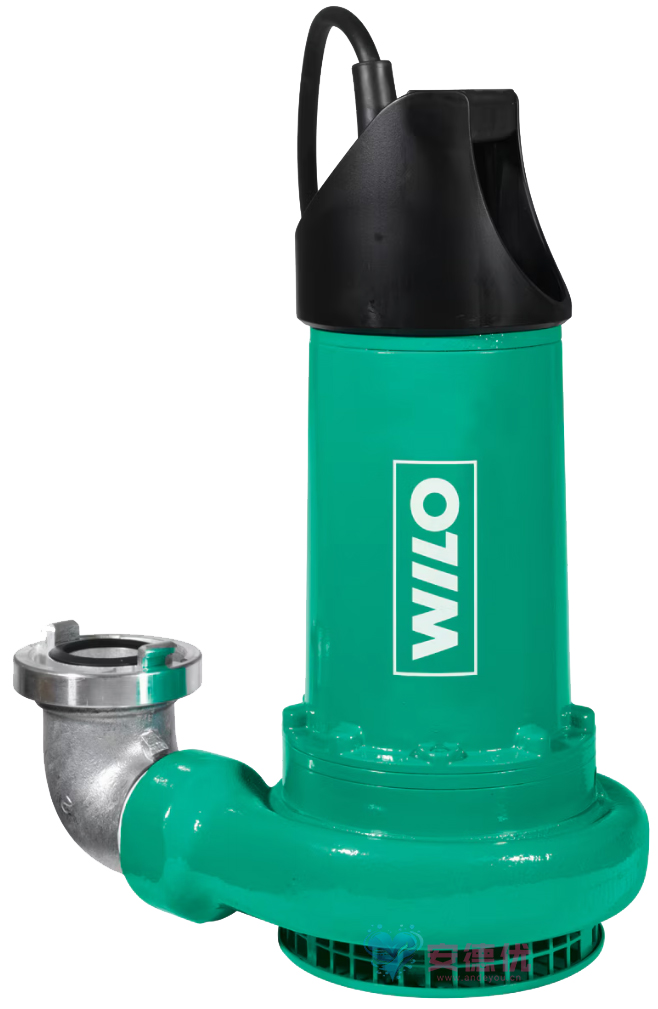

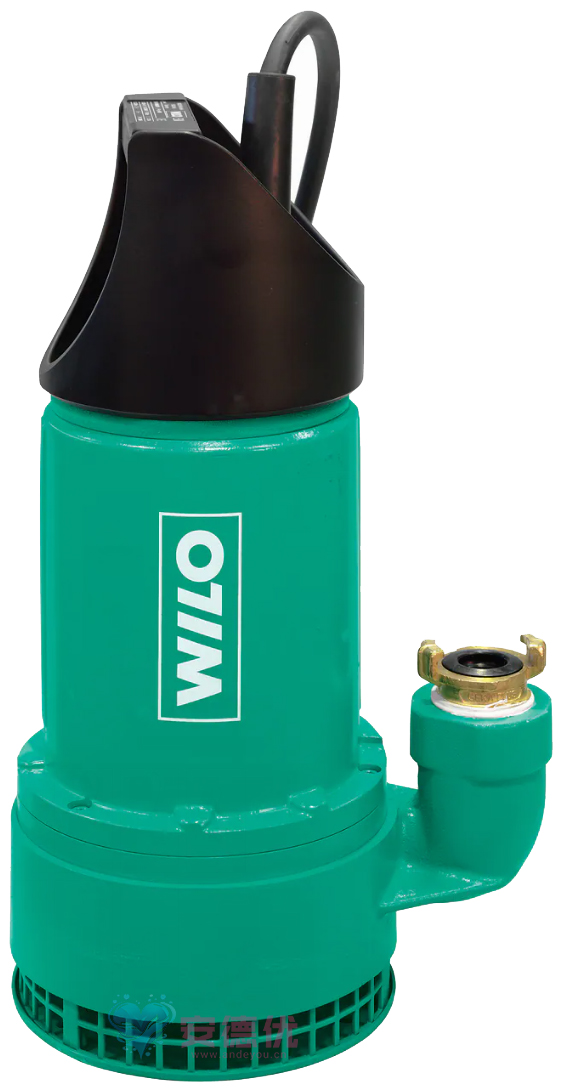

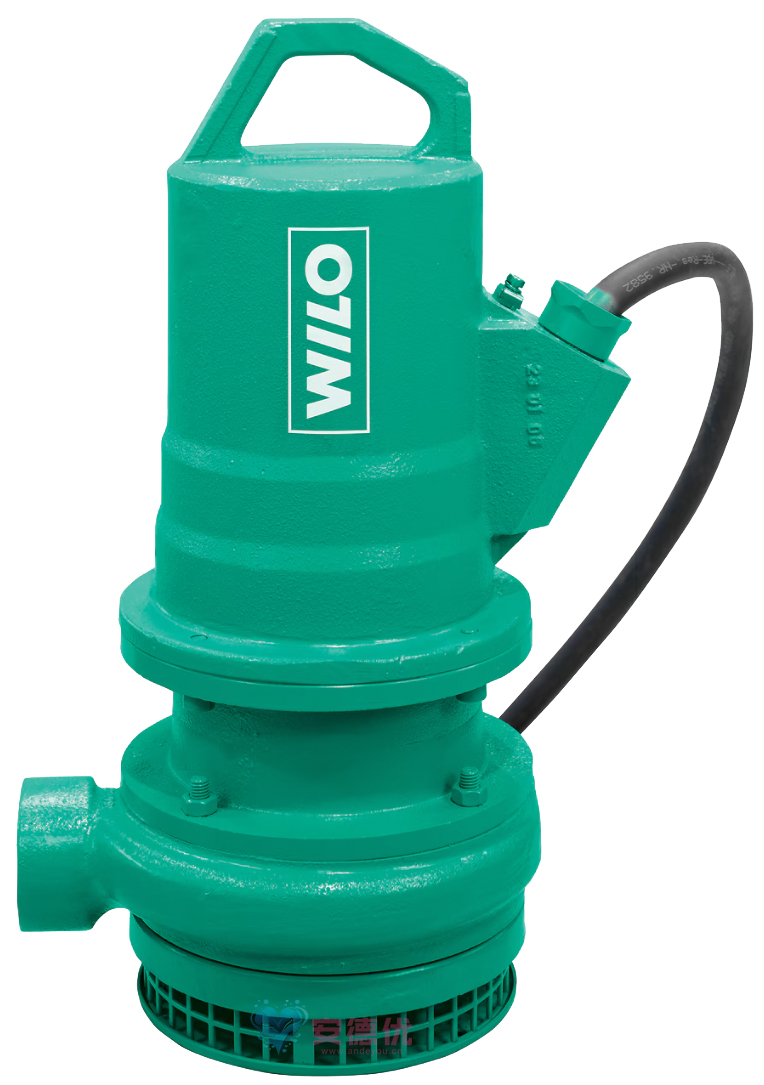

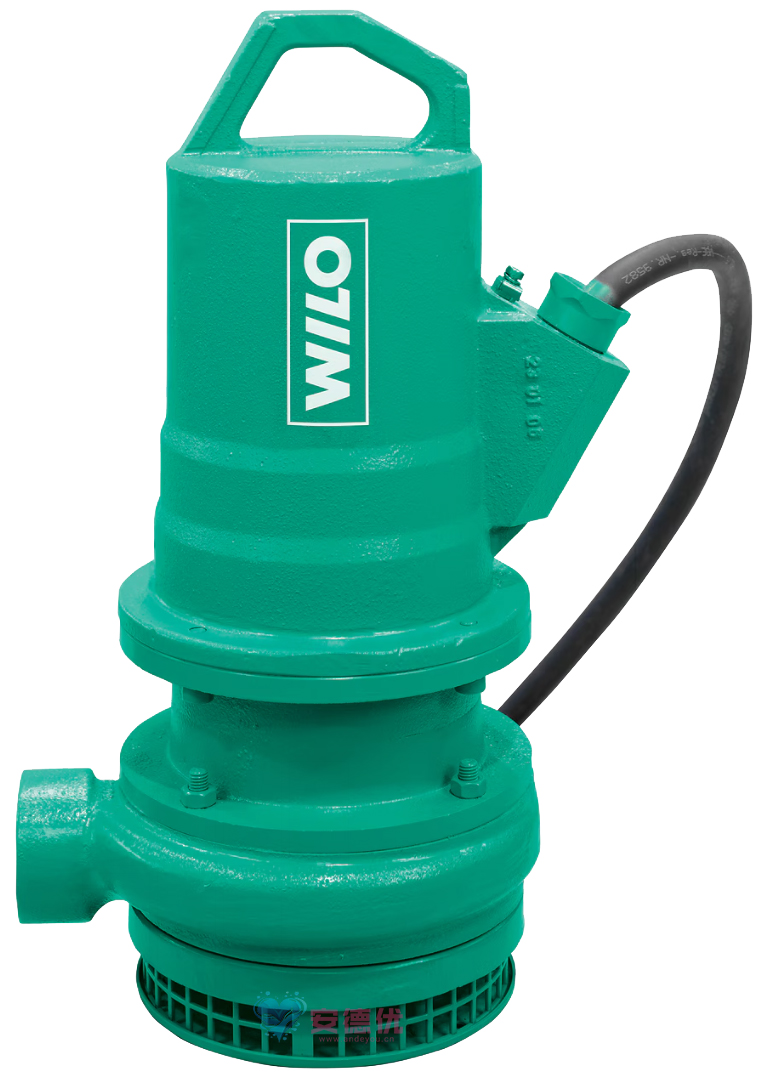

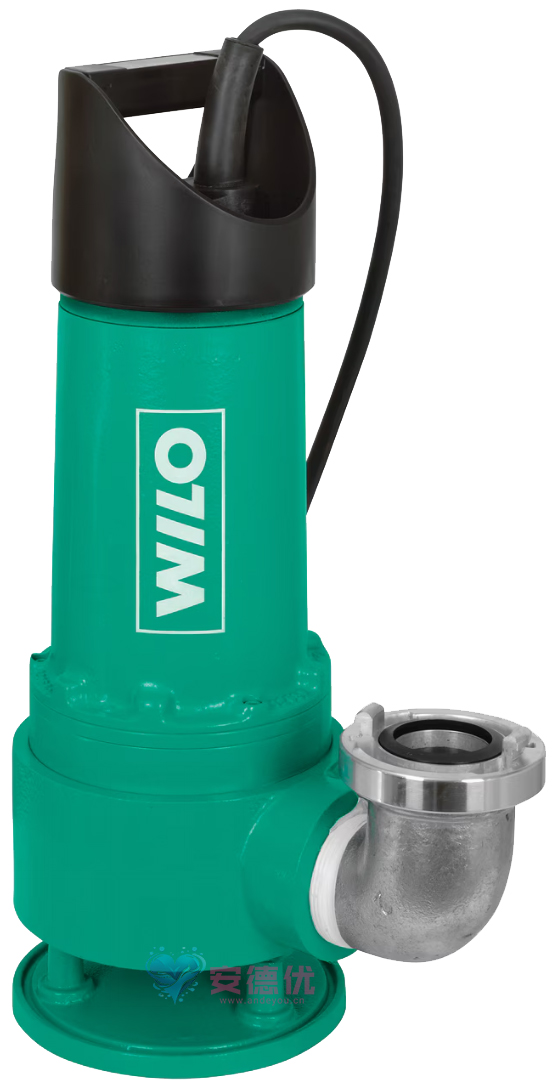

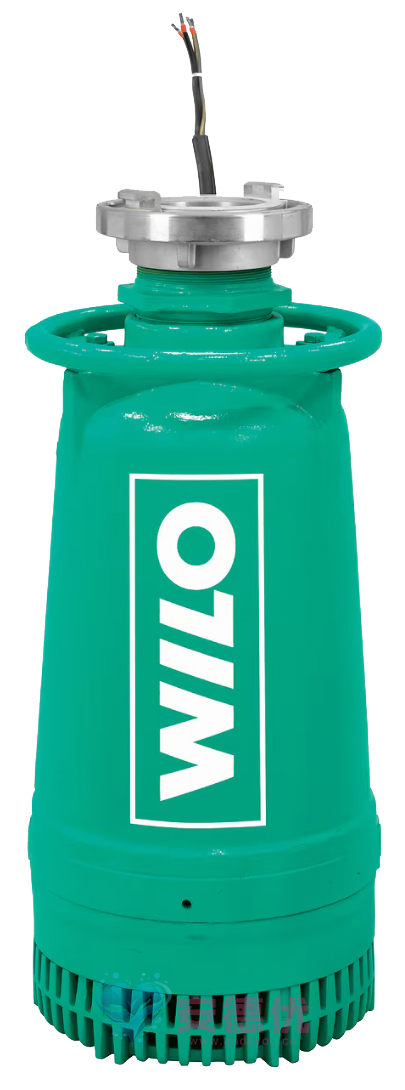

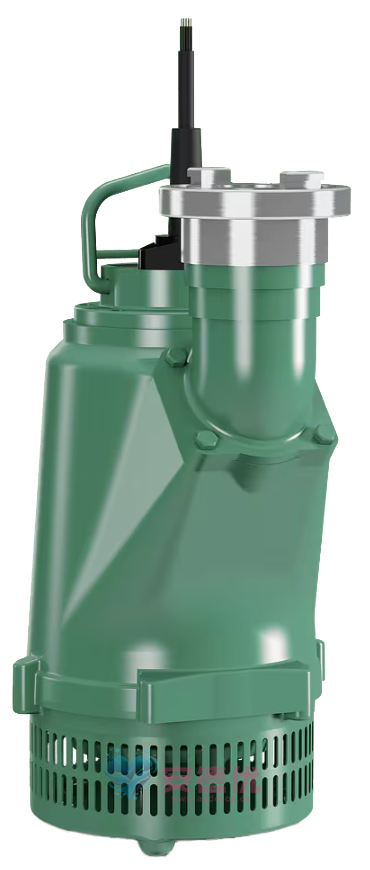

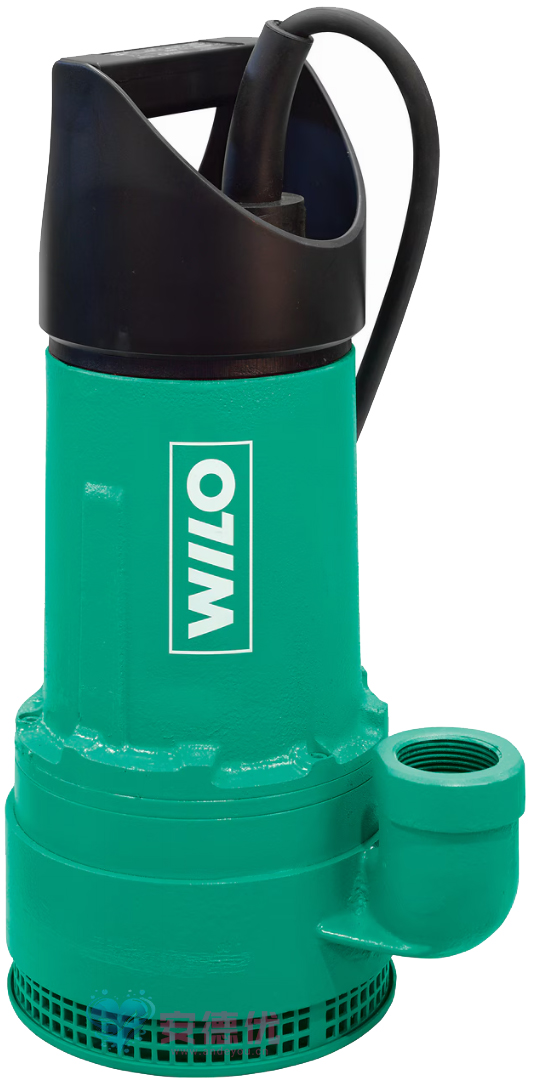

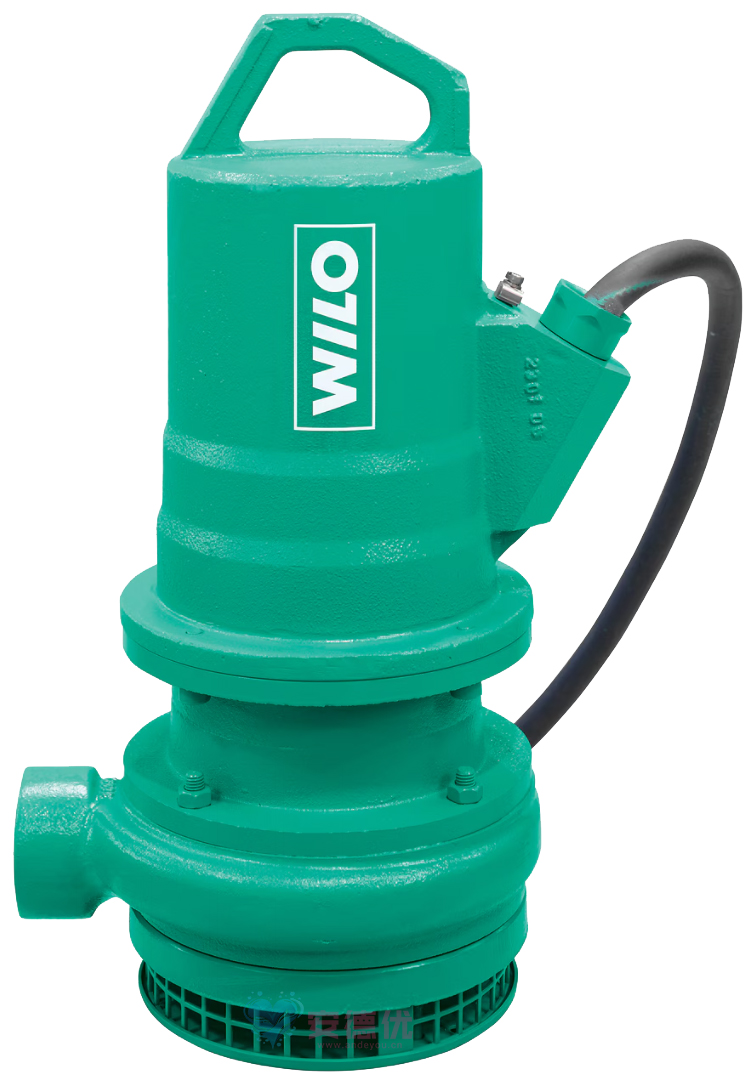

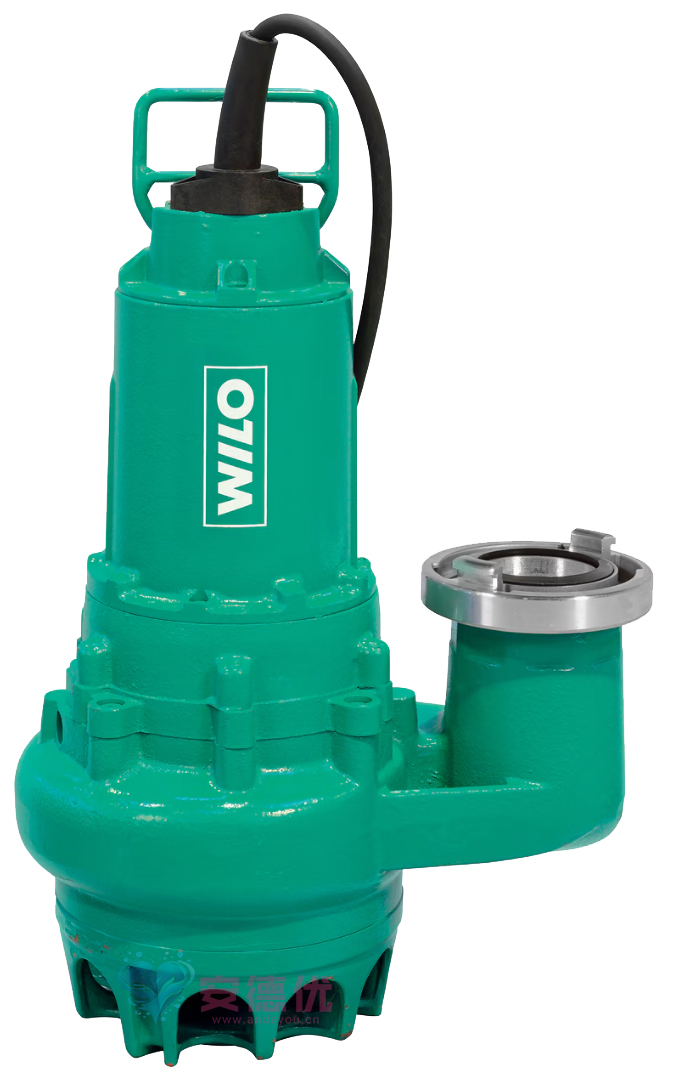

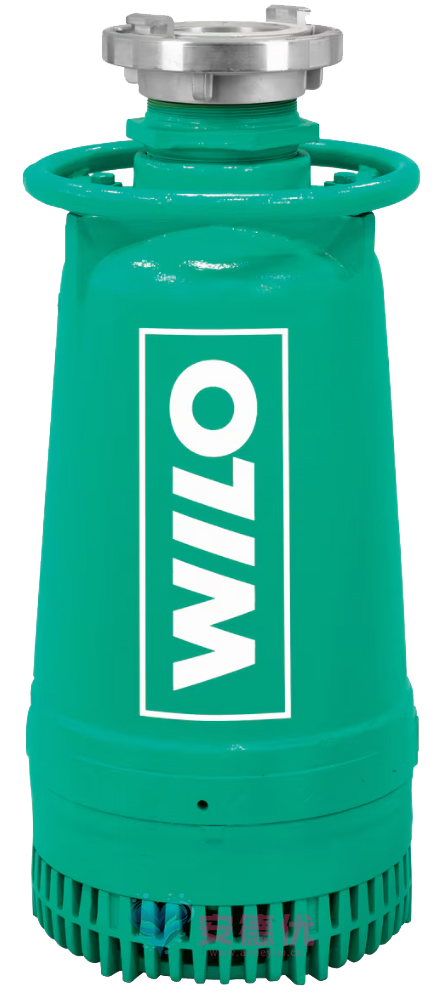

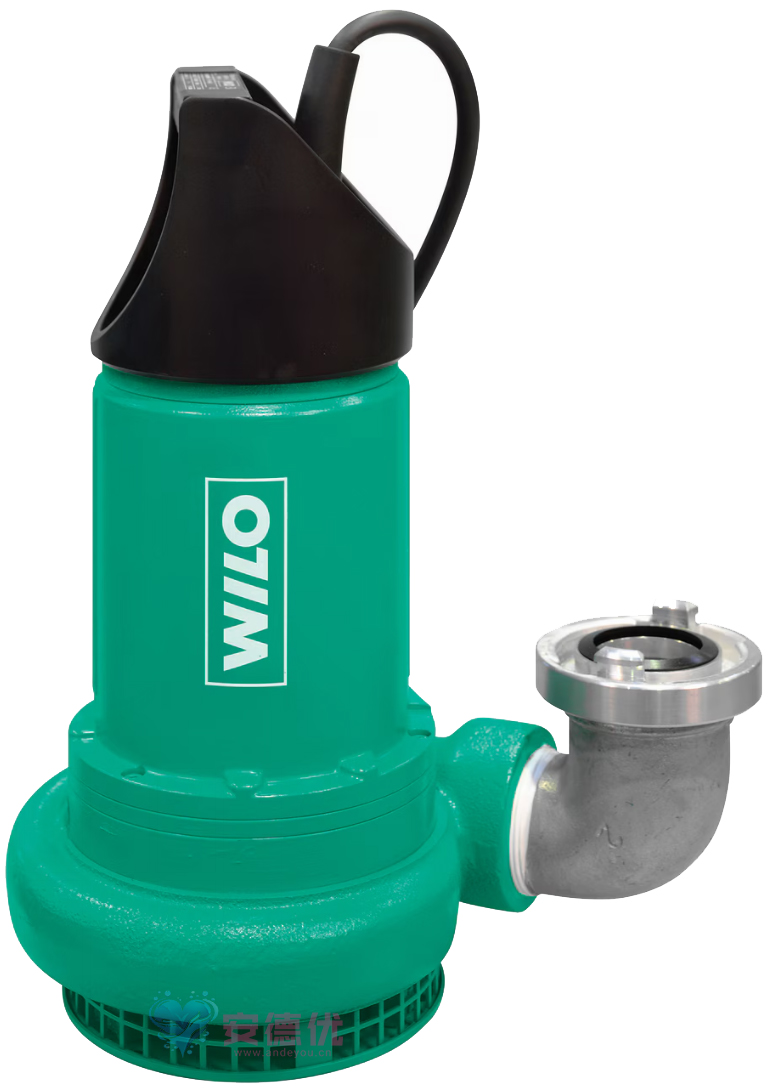

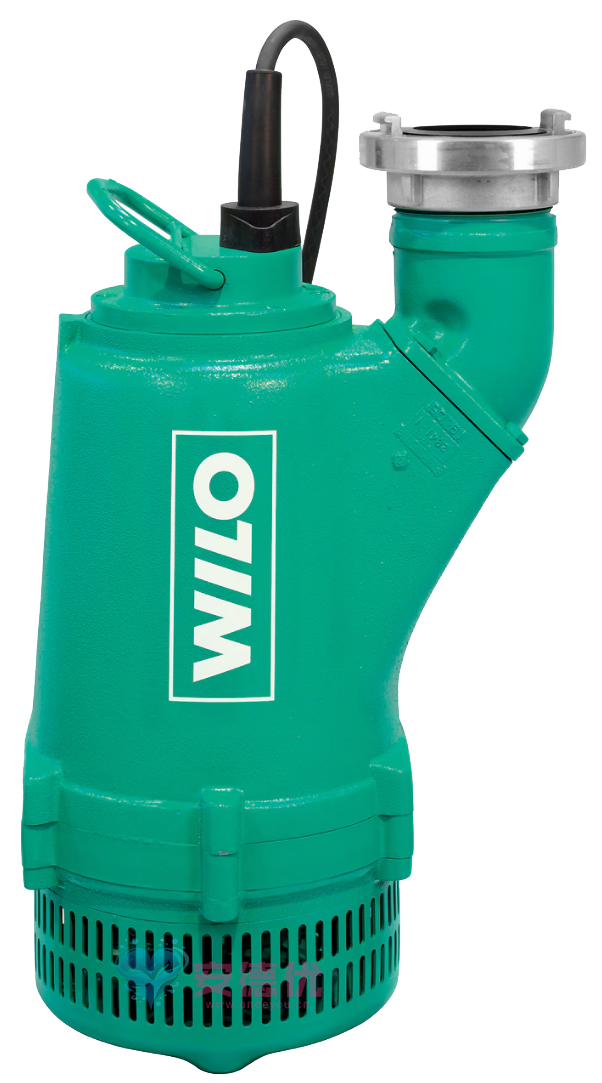

Submersible sewage pump
Applications
Pumping of:
Sewage
Industrial water
Equipment/Functions
Connection cable with plug
S-model equipped with float switch
Oil-cooled motor (sizes up to 20)
Surface cooling via pumped fluid (sizes 24 and above)
Model Code
|
example: |
Wilo-EMU KS 15x |
|
KS |
Submersible sewage pump |
|
15 |
Structural dimensions |
|
x |
Specifications E: Single-phase AC motor |
Technical Data
Mains connection: 1~230 V, 50 Hz or 3~400 V, 50 Hz
Protection class: IP68
Max. submersion depth: 12.5 m
Fluid temperature: 3 … 40 °C
Cable length: 10 m or 20 m
Discharge port: Storz coupling, sizes C to A (depending on model)
Materials
Motor housing: Al or EN-GJL 250 (depending on model)
Pump housing: EN-GJL 250
Impeller: EN-GJL 250
Shaft: 1.4021
Seals:
Motor side: C/Cr or C/Ceramic
Fluid side: SiC/SiC
Static seals: FPM
Type
Submersible sewage pump designed as a complete submersible unit, suitable for portable wet-well installation.
Hydraulics
The discharge outlet features a vertical threaded connection with a Storz coupling. An open-channel impeller is used.
Motor
For sizes up to 20: Self-cooling single-phase or three-phase AC motor. The self-cooling motor is oil-filled. For sizes 24 and above: Surface-cooled three-phase AC motor equipped with thermal motor monitoring and a surface cooling jacket.
Explosion-proof version (KS...): Equipped with a surface-cooled motor without a surface cooling jacket.
All models are capable of continuous operation in both submerged and non-submerged states, allowing for intermittent operation.
A seal chamber prevents fluid from entering the motor. The filling medium used is biodegradable and environmentally friendly.
For sizes up to 20, the power cable is detachable (10 m length). For sizes 24 and above, the power cable is permanently connected (20 m length). All connection cables are fitted with a plug. "S" models are additionally equipped with a float switch. "DMS" models are equipped with a control switch featuring integrated motor protection.
Seals
Sealing on both the fluid side and the motor side is achieved via two bi-directional mechanical seals.
Scope of delivery
Pump with connection cable and plug
"S" models additionally equipped with a float switch
Discharge connection with Storz coupling
Installation and operating instructions
Accessories
Pressure hose kit with Storz coupling
Low-level suction device
Alarm unit
