Features/Product Advantages
Achieves maximum efficiency thanks to an efficiency-optimized single-vane impeller
Reliable operation with a clog-resistant vortex impeller
Proven safety; explosion-proof versions compliant with ATEX standards are standard
Energy-efficient IE3 motor technology available as an option
Design

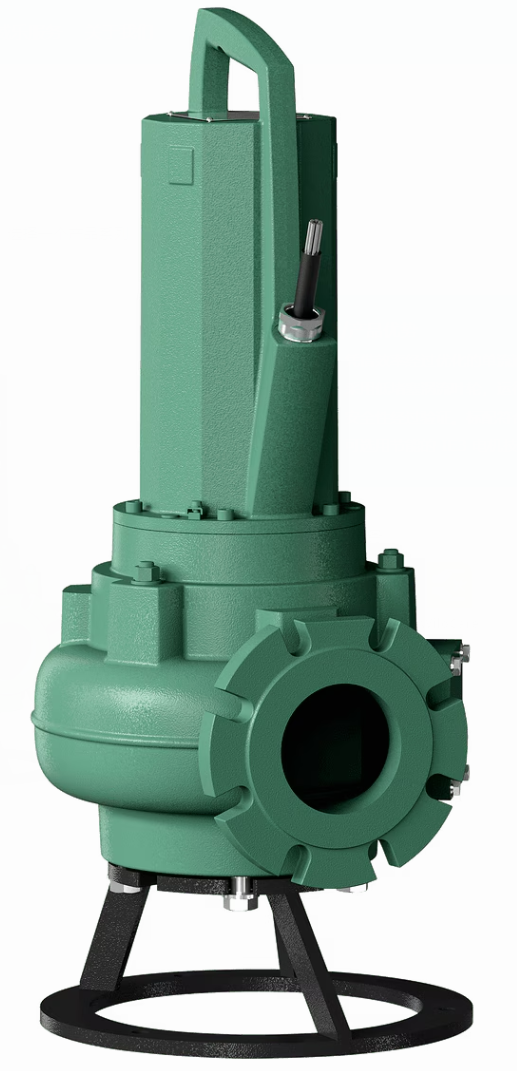

Submersible sewage pump suitable for continuous operation; designed for stationary and portable wet-well installation as well as stationary dry-pit installation.
Applications
Pumping
Raw sewage
Sewage containing faeces
Sewage
Equipment/Functions
Sealing chamber monitoring
Winding temperature monitoring with bimetallic sensors
Optional external rod electrode for sealing chamber monitoring
AC version with capacitor control switch
Model code
|
example: |
Wilo-Rexa PRO V06DA-110/EAD1X2-T0015-540-O |
|
PRO |
Series Name |
|
V |
Impeller type: V = Vortex impeller C = Single-channel impeller |
|
06 |
Nominal diameter of the pressure connection, e.g., DN 65 |
|
D |
Hydraulic component specifications: D = Suction-side drilling to DIN standards N = Suction-side drilling to ANSI standards (North American standards) |
|
A |
Material Specifications for Hydraulic Components |
|
110 |
Definition of hydraulic components |
|
E |
Surface-cooled motor |
|
A |
Motor Material Specifications |
|
D |
The seal assembly features two separate mechanical seals. |
|
1 |
IE energy efficiency class, e.g., 1 = IE1 (according to the IEC 60034-30 standard) |
|
X |
Explosion-proof certification: X = ATEX F = FM C = CSA |
|
2 |
Number of poles |
|
T |
Power connection specifications: M = 1~ T = 3~ |
|
0015 |
Value / 10 = Motor rated power P2, unit: kW |
|
5 |
Frequency (5 = 50 Hz, 6 = 60 Hz) |
|
40 |
Rated voltage code |
|
O |
Additional electrical equipment: O = With bare cable ends F = Float switch with bare cable ends A = Float switch with plug P = With plug |
Technical data
Power connection: 1~230 V, 50 Hz or 3~400 V, 50 Hz
Submerged operation mode: S1
Non-submerged operation mode: S2-30 min; S3 25%
Protection class: IP68
Insulation class: F (H optional)
Fluid temperature: 3…40 °C; up to 60 °C for a maximum of 3 minutes
Max. submersion depth: 20 m
Cable length: 10 m
Materials
Motor housing: EN-GJL-250
Hydraulic housing: EN-GJL-250
Impeller: EN-GJL-250 or EN-GJS-500-7
Static seals: NBR
Pump-side seal: SiC/SiC
Motor-side seal: C/MgSiO4
Shaft end: Stainless steel 1.4021
Type
Submersible sewage pumps designed as complete submersible units, suitable for stationary and portable wet-well installation as well as stationary dry-pit installation.
Hydraulics
Discharge outlet features a horizontal flange connection. Maximum dry matter content: 8% (depending on hydraulics). Vortex impellers and single-channel impellers are used.
Motor
Surface-cooled AC and three-phase AC motors are used. For AC motors, the capacitor is housed in a separate control box. Depending on power output, starting methods include Direct-On-Line (DOL) or Star-Delta.
The motor is cooled by the surrounding fluid (liquid or air). Waste heat is dissipated through the motor housing.
The motor is capable of continuous submerged operation (S1). Depending on motor power, operating modes S1 (continuous), S2 (short-time), or S3 (intermittent) are possible.
Additionally, these motors are equipped with the following monitoring devices:
Motor chamber sealing monitoring: Signals are issued if water enters the motor chamber.
Motor thermal protection: Protects motor windings against overheating. Bimetallic sensors are standard. Additionally, the motor can be equipped with an external electrode to monitor the sealing chamber. This electrode sends a signal if water enters the sealing chamber via the medium-side mechanical seal.
The connection cable comes standard with bare ends, a length of 10 m, and is longitudinally watertight.
Seals
The sealing chamber, containing both medium-side and motor-side seals, is located between the motor and the hydraulic section; it is filled with medical-grade white oil. Sealing on both the medium and motor sides is achieved via two independent mechanical seals.
Standard scope of supply
Submersible sewage pump with 10 m cable
Installation and operating instructions
Options
IE3 motor
PTC sensor for winding protection
FKM static seals
Ceram C0 coating for housing and impeller
Special voltage
Accessories
Suspension device or pump stand
External rod electrode for sealing chamber monitoring
Control switches, relays, and plugs
Mounting kit with anchor bolts
Chain
Commissioning
Wet-well installation with non-submerged motor operation:
The motor is capable of non-submerged operation. Depending on the motor's rated power, the operating time is defined by the parameters for "non-submerged operation mode." These specifications must be strictly observed!
Note on S3 intermittent operation: In S3 mode, the default maximum operating time is 2.5 minutes (S3 25%). If the motor is fully submerged for more than 1 minute before restarting—ensuring adequate motor cooling—the maximum operating time in S3 mode can be extended to 5 minutes (S3 50%)!
Maximum fluid temperature: 40 °C.
Dry-well installation:
Dry-well installation is supported. Depending on the motor's rated power, the operating time is defined by the parameters for "non-submerged operation mode." These specifications must be strictly observed!
Maximum fluid temperature: 40 °C.
Maximum ambient temperature: 40 °C (in accordance with EN 60335-1). Higher ambient temperatures are possible upon request.
Dry-running protection:
The hydraulic housing must remain submerged at all times. If the water level fluctuates, the unit must shut down automatically when the minimum submersion level is reached. Please refer to the dimensional drawing.
Horizontal installation:
Horizontal installation is not supported!
