Efficient system integration.
The Wilo-Medana CH1-LC features a highly robust pump housing and corrosion-resistant components, ensuring high reliability. It is capable of operating in ambient temperatures up to 50°C and is designed for integration into larger systems across a wide range of applications. This non-self-priming multistage pump delivers superior hydraulic performance.
Features/Product Advantages
High hydraulic output ensures excellent efficiency.
High reliability is achieved through the use of pump housing wear rings and a corrosion-resistant, electrophoretically coated lantern.
Suitable for ambient temperatures up to 50°C, expanding its range of applications for system integration.
Complies with UL certification requirements.
Product Characteristics
Compact design facilitates superior system integration.
Electrophoretic coating.
Reinforced pump feet with enclosed mounting holes for vertical installation.
Eco-friendly Attributes
Compact structure allows for better system integration and efficient space utilization.
Long service life thanks to robust stainless steel pump materials and an electrophoretically coated lantern.
High hydraulic output ensures excellent efficiency.
Construction

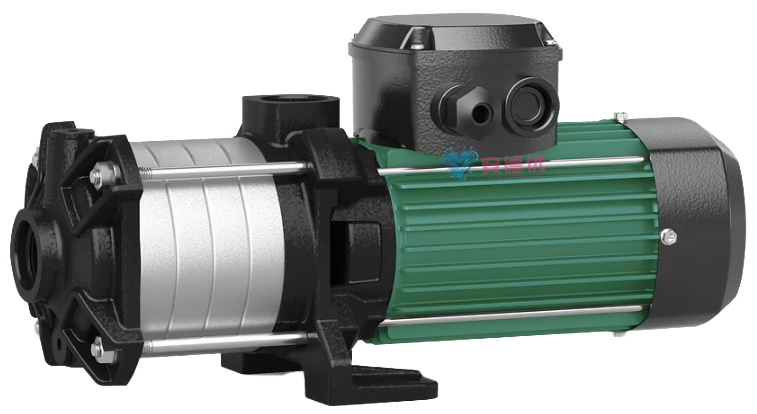

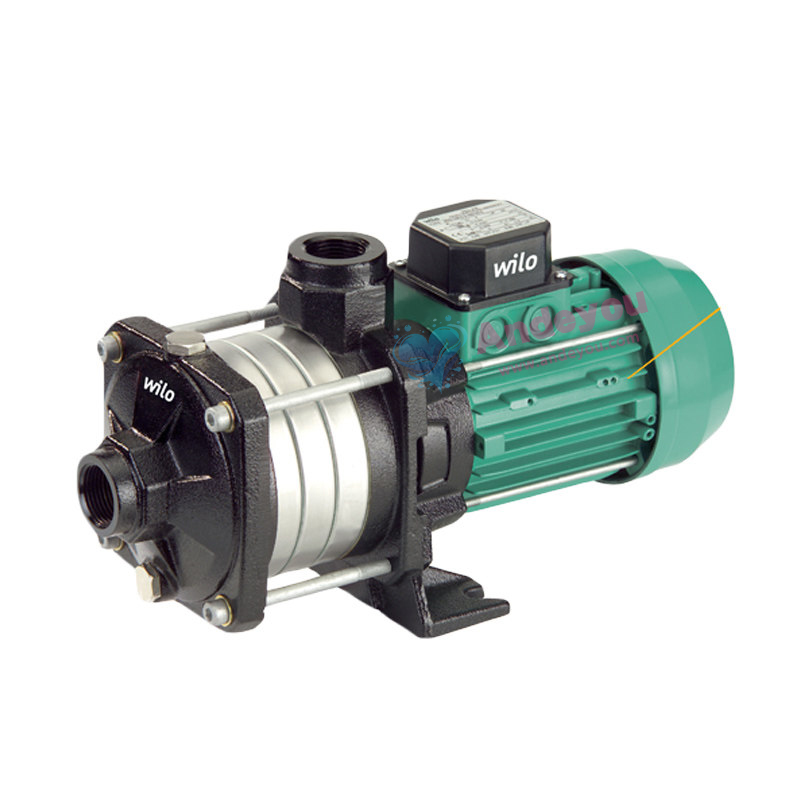

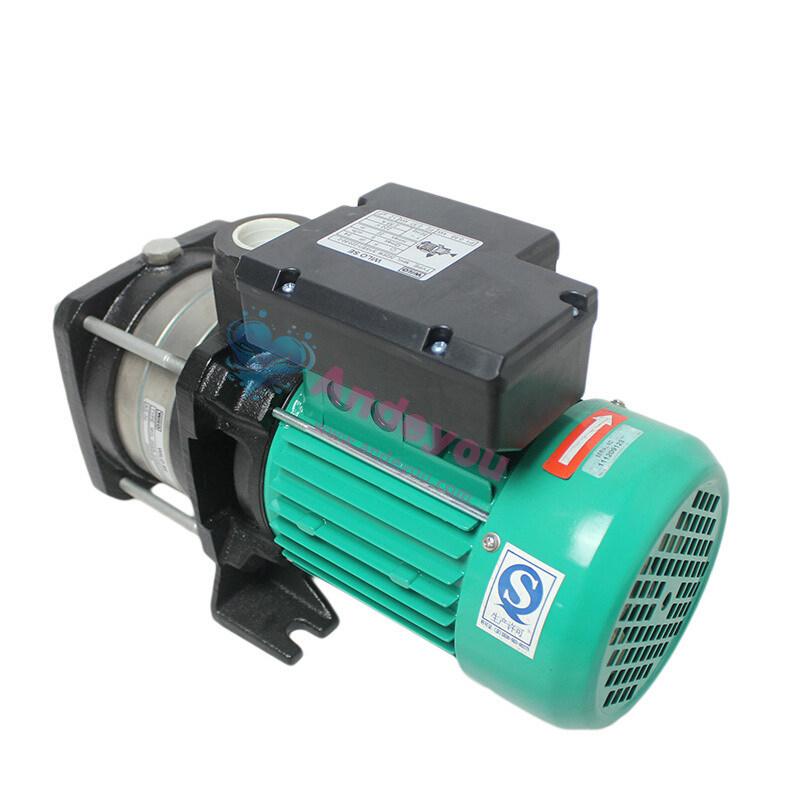

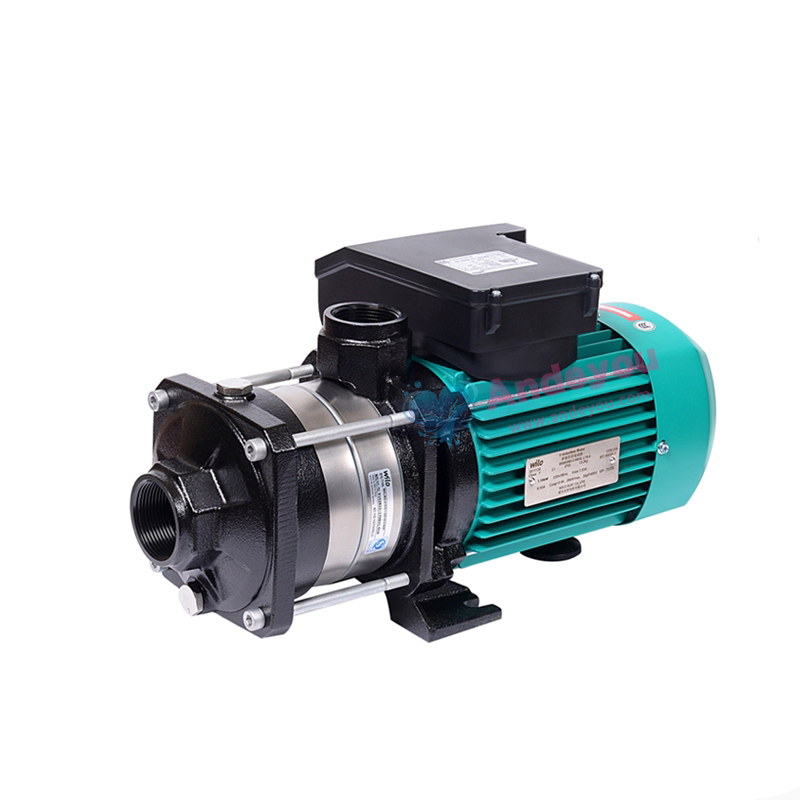

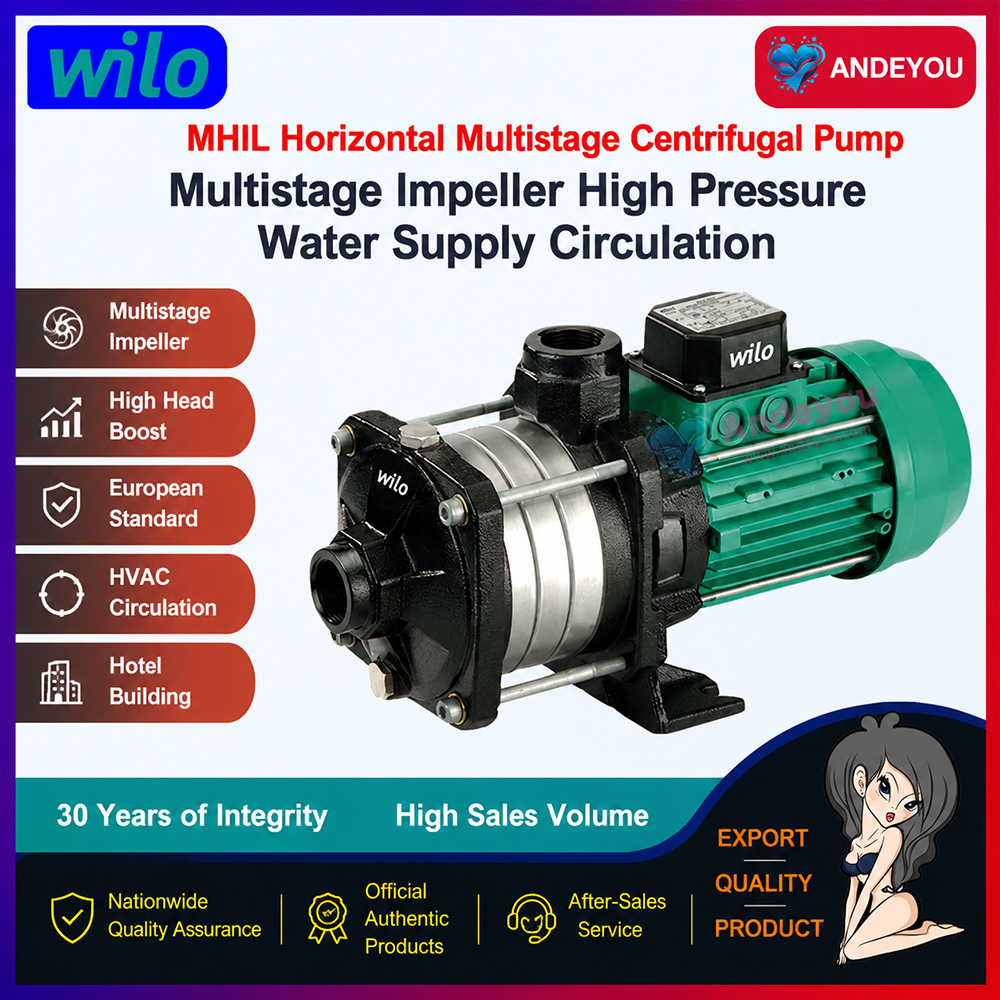

Horizontal, non-self-priming multistage pump.

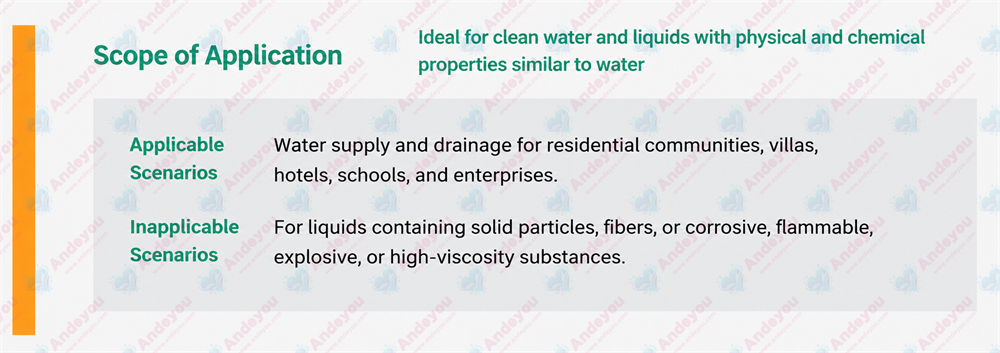

Applications
Irrigation systems
Industrial processes
Equipment/functions
Modular pump design
Threaded connection
Single-phase or three-phase AC motor
Single-phase AC motor with integrated thermal motor protection
Type key
|
Example: |
Wilo-MEDANA CH1-LC404-5/E/A/10T |
|
MEDANA |
Product name of the surface pump |
|
CH |
Commercial Horizontal |
|
1 |
Series Tier (1 = Entry-level, 3 = Standard, 5 = High-end) |
|
LC |
Long-shaft water pump housing made of grey cast iron. |
|
2 |
Rated flow rate of the single-head pump [m³/h] |
|
02 |
Number of single-head pump stages |
|
5 |
GJL250 housing material |
|
E |
E = EPDM Gasket |
|
A |
A = Frequency 50 Hz / Single-phase / 230 V |
|
B = Frequency 60 Hz / Single-phase / 220 V |
|
|
C = Frequency 60 Hz / Single-phase / 230 V |
|
|
D = Frequency 50 Hz / 3-phase / 400 V |
|
|
E = Frequency 50 Hz / 3-phase / 230–400 V |
|
|
F = Frequency 60 Hz / 3-phase / 220–380 V |
|
|
G = Frequency 60 Hz / 3-phase / 265–460 V |
|
|
I = 60 Hz / 3-phase / 460 V |
|
|
10 |
Rated pressure (bar) |
|
T |
T = Threaded connection |
|
P = Victaulic connection |

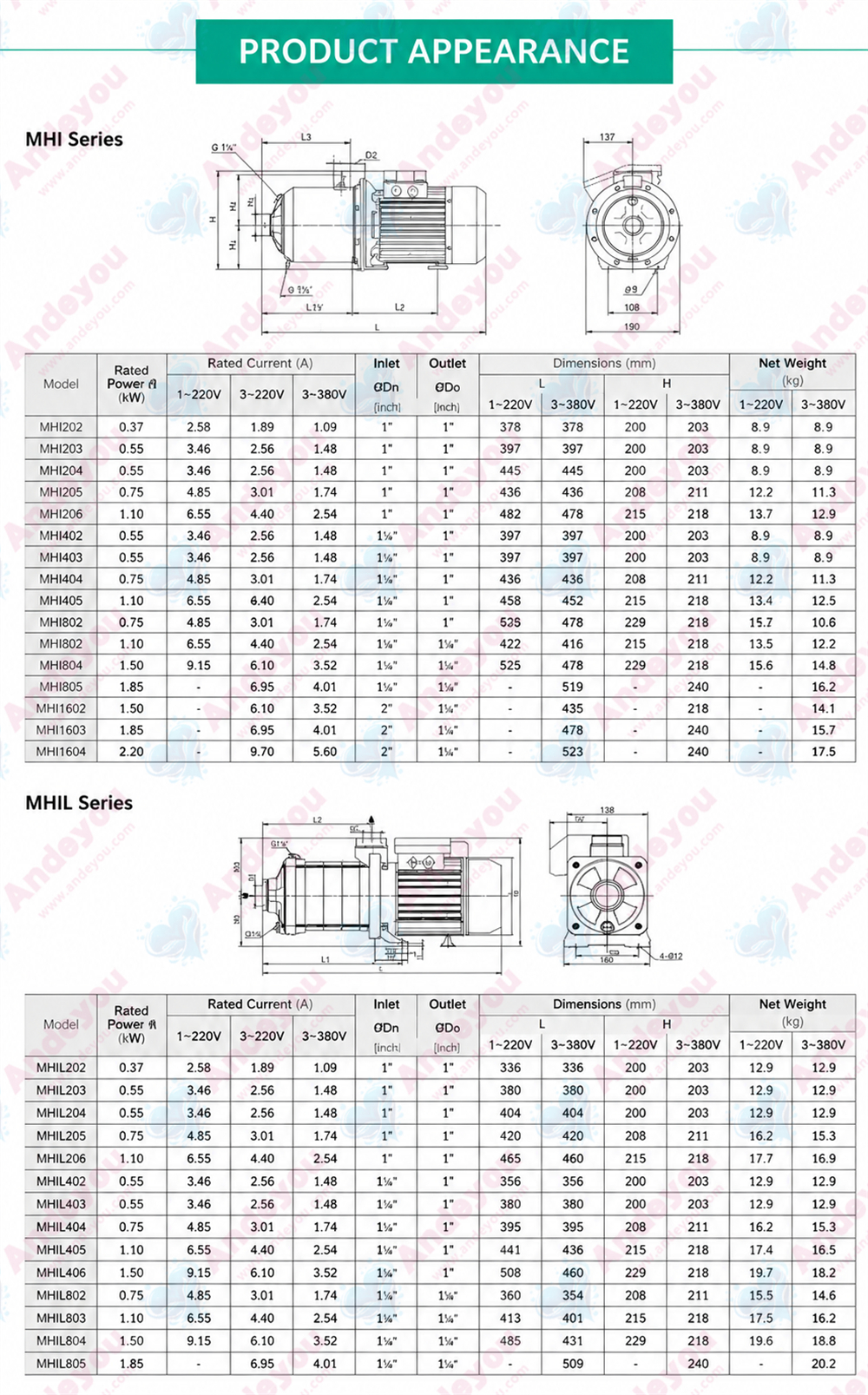

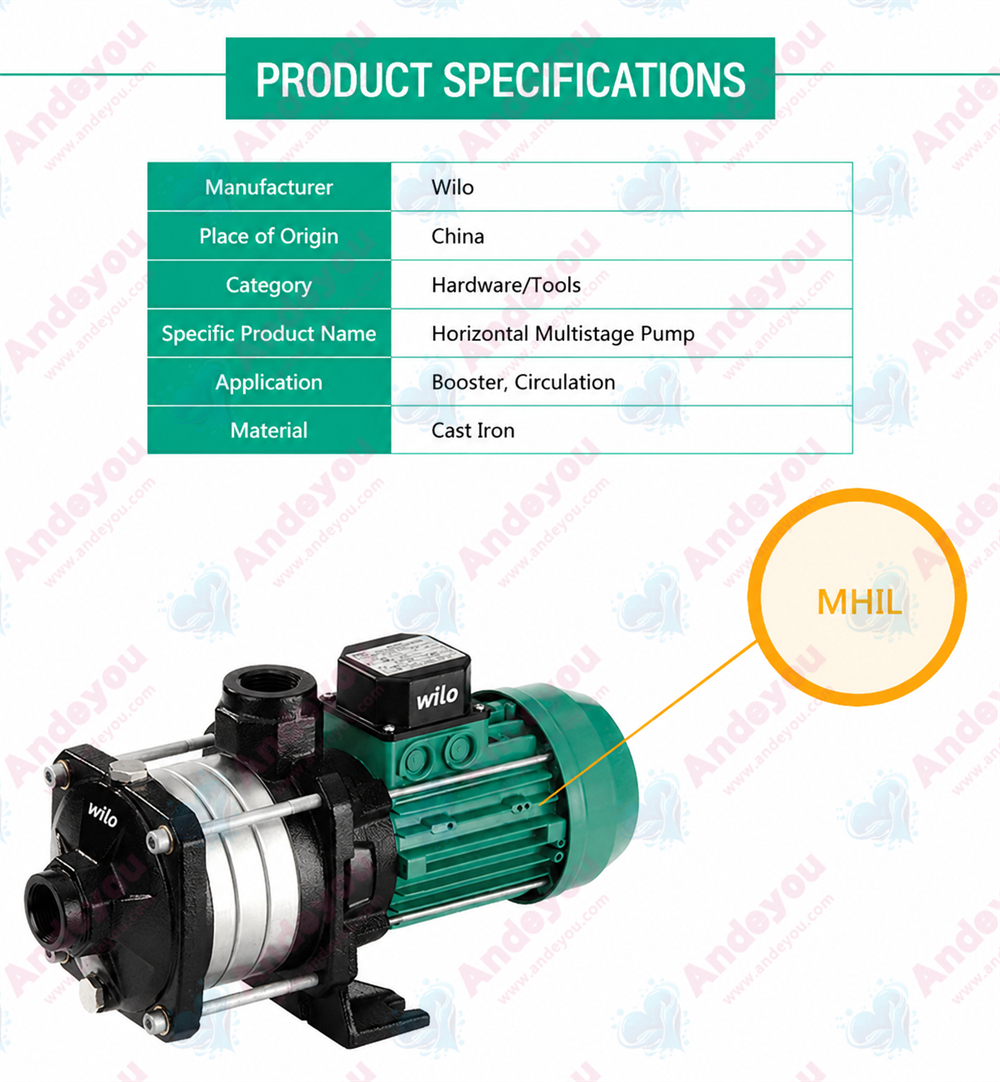

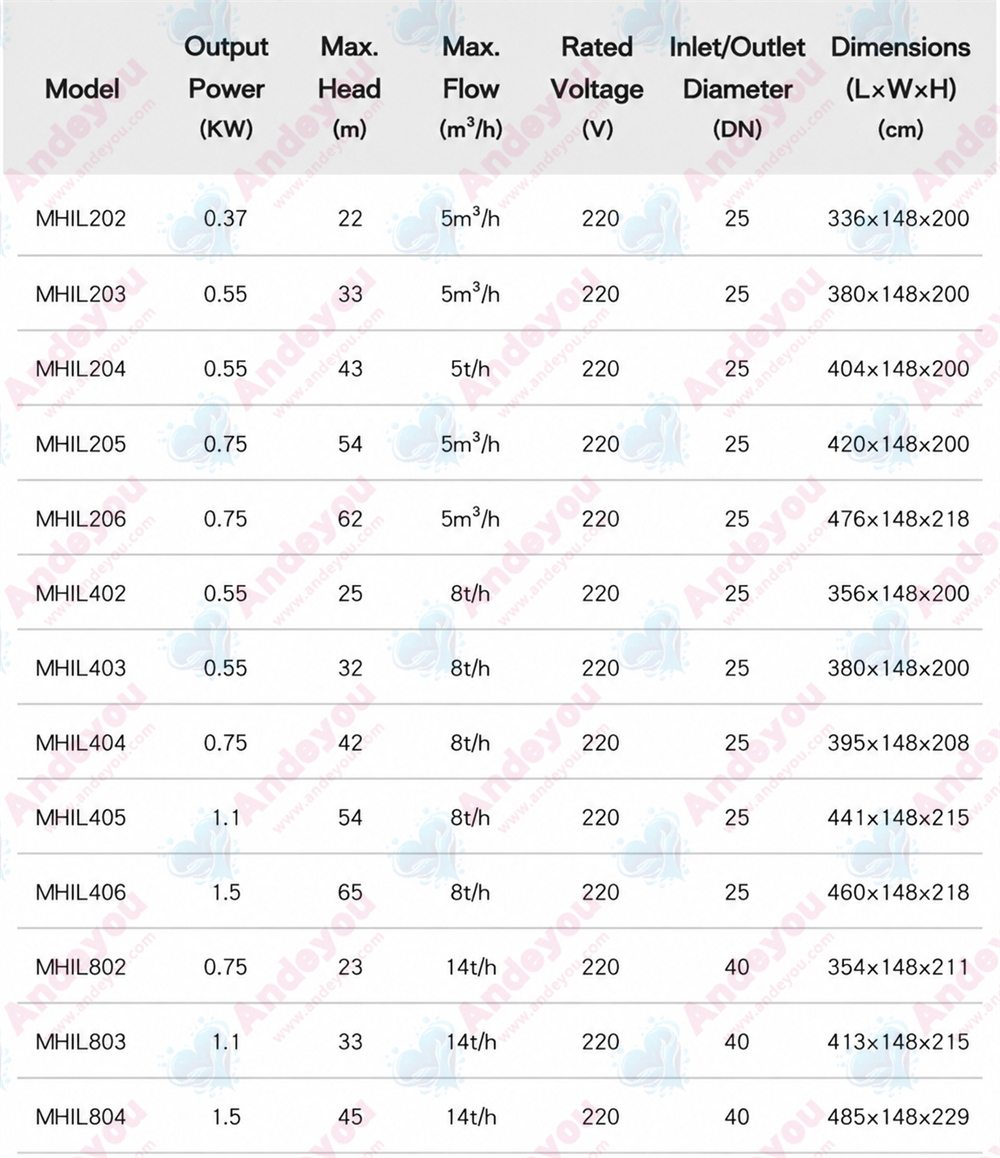

Technical data
Mains connection 1~230 V (± 10%), 50 Hz
Power connection: 3~230 V–400 V (±10%), 50 Hz; 265–460 V (±10%), 60 Hz
Fluid temperature: -20 to +90 °C
Maximum operating pressure: 10 bar
Maximum inlet pressure: 6 bar
Protection class: IP55
Nominal pipe connection diameter: Rp 1″ to Rp 1 1/4″ (depending on model)

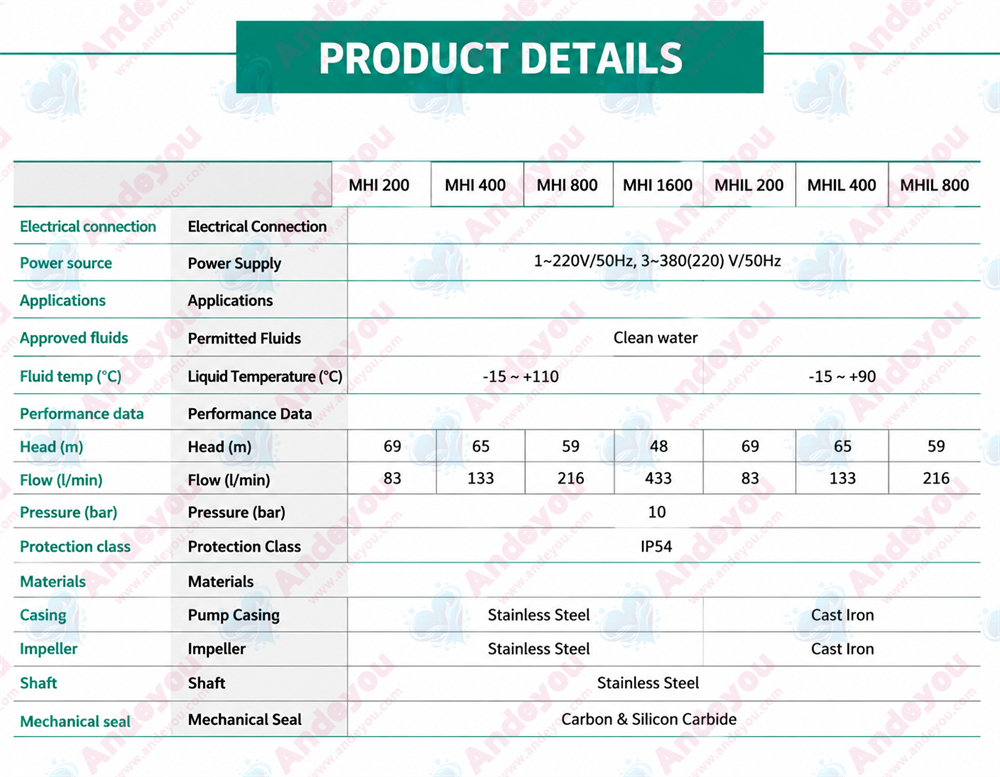

Materials

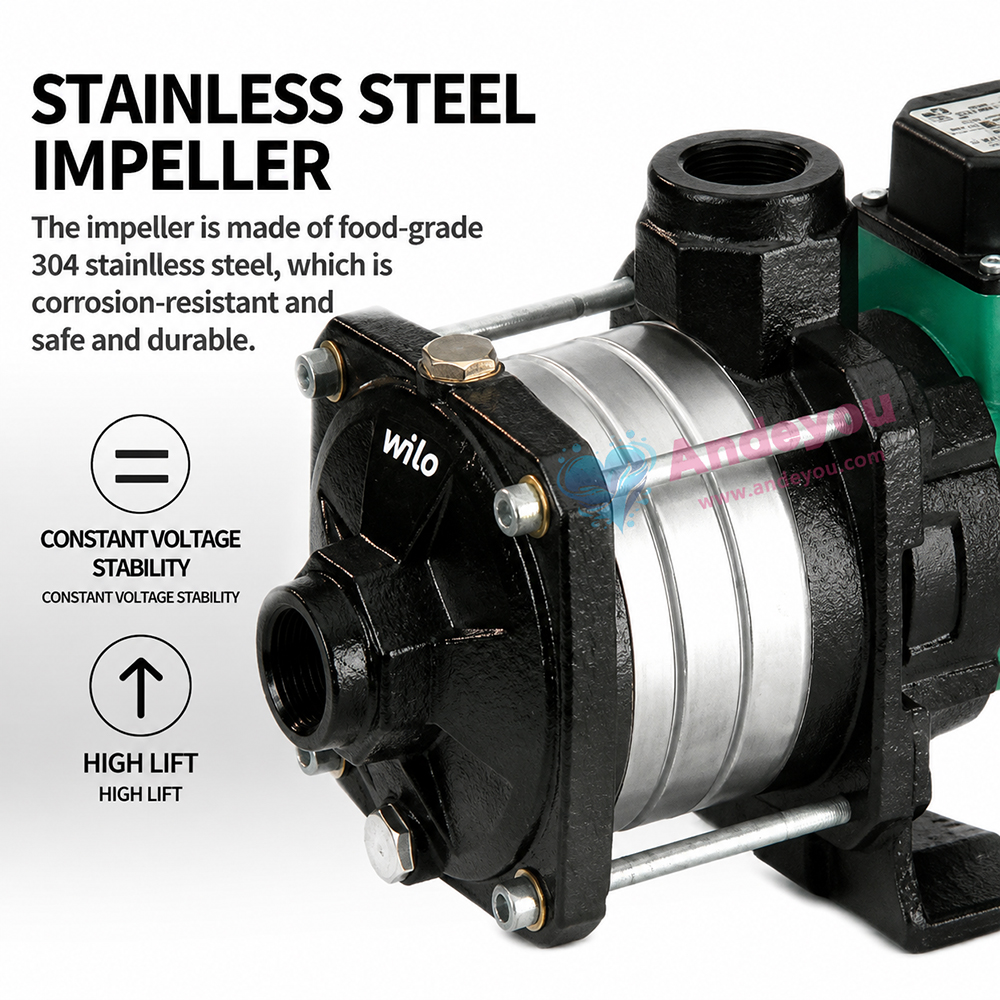

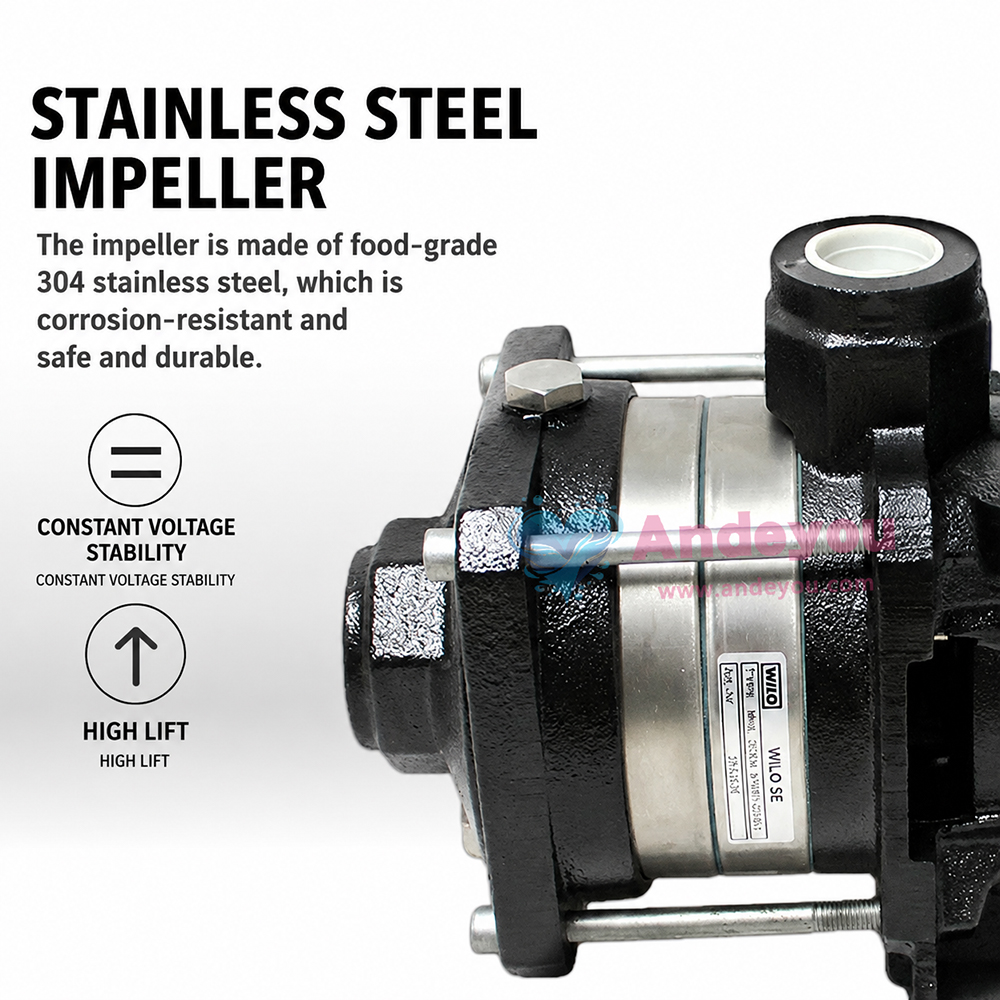

Impeller, stage chambers, and pump housing made of 1.4301/1.4404 stainless steel
Shaft: 1.4301 or 1.4404 stainless steel
EPDM seals
Mechanical seal: EPDM; configuration: B (carbon/silicon carbide)
Bearings: tungsten carbide/aluminium oxide
Pump foot and pump housing: EN-GJL-250
Scope of delivery
Pump
Installation and operating instructions
