Features/Product Advantages
Simple: Plug & Pump system
Efficient: Motor optimization enables high-efficiency hydraulics, low power consumption, and a very compact design
Wilo-HiControl 1 features automatic operation and dry-running protection
Low noise: Noise levels between 56 dB(A) and 64 dB(A)
The HiControl 1 electronic pump control unit can be rotated 360° for easy installation
Construction

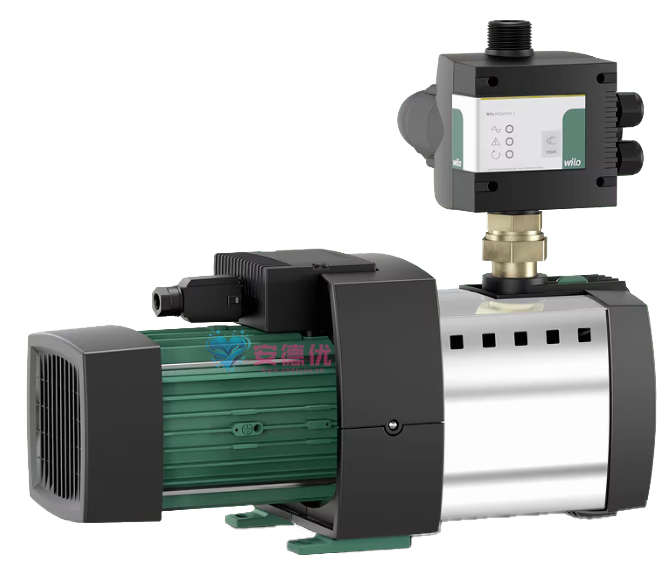

Water supply unit with automatic pump control system; non-self-priming (HiMulti 3 C) or self-priming (HiMulti 3 C P)
Applications
Water supply (ACS certified for drinking water)
Sprinkling
Irrigation and watering
Rainwater harvesting
Equipment/Functions
Directly flanged motor
Connection cable with plug
Thermal motor protection switch
Automatic pump control
Low-water cut-out switch
Model Code
|
Example: |
HiMulti 3 C1-24 P |
|
HiMulti |
Multistage centrifugal pump for domestic water supply (Hi = Home Intelligence) |
|
3 |
Product Tier (1 = Entry-level, 3 = Standard, 5 = High-end) |
|
C1 |
Version with Wilo-HiControl 1 automatic pump control system |
|
2 |
Rated flow rate, unit: m³/h |
|
4 |
Number of impellers |
|
P |
P = Naturally aspirated version (no indication = non-naturally aspirated version) |
Technical Data
Mains connection: 1~230 V, 50 Hz
Permissible fluid temperature: 0 °C to +40 °C (+55 °C for 10 minutes)
Permissible ambient temperature: -15 °C to +40 °C
Permissible storage temperature: -30 °C to +60 °C
Max. permissible operating pressure: 8 bar
Max. permissible inlet pressure: 3 bar
Cut-in pressure: 1.5 bar
Cut-out flow rate: 95 l/h
Protection class: IP54
Suction-side connection: Rp 1
Pressure-side connection: Rp 1
Wilo-HiControl 1 Refer to the documentation for details on automatic operation.
Materials
Pump housing: Technopolymer (ACS, WRAS, and German drinking water regulation certified)
Impeller and stage housing: Modified PPO (30% GF) (ACS, WRAS, and German drinking water regulation certified)
Pump cover and shaft: Stainless steel
Mechanical seal: Ceramic/carbon
Pressure monitoring housing: Modified PPO/PA6 (ACS drinking water certified)
Scope of delivery
Pump
Wilo-HiControl 1 pump control unit
1 plastic connector with seal (for manual connection to the inlet pipe)
Wilo connector (quick electrical connector)
Installation and operating instructions
