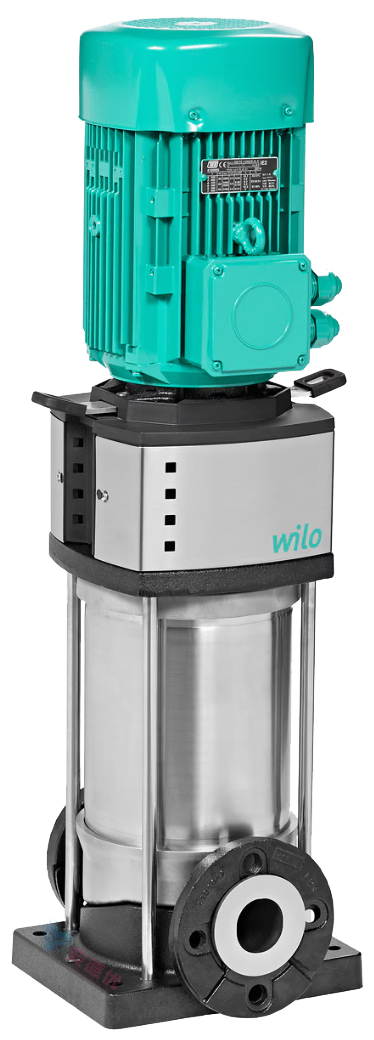

Wilo-Multivert MVI Stainless Steel Vertical Multistage Centrifugal Pump

MVI 7001-3/16/E/3-380-50-2(B-cx)-S、MVI 7001-3/25/E/3-380-50-2(B-cx)-S、MVI 7001/1-3/16/E/3-380-50-2(B-cx)-S、MVI 7001/1-3/25/E/3-380-50-2(B-cx)-S、MVI 7002-3/16/E/3-380-50-2(B-cx)-S、MVI 7002-3/25/E/3-380-50-2(B-cx)-S、MVI 7002/1-3/16/E/3-380-50-2(B-cx)-S、MVI 7002/1-3/25/E/3-380-50-2(B-cx)-S、MVI 7002/2-3/16/E/3-380-50-2(B-cx)-S、MVI 7002/2-3/25/E/3-380-50-2(B-cx)-S

The Wilo-Multivert MVI stainless steel vertical multistage centrifugal pump is engineered to meet high-standard water supply requirements.Featuring key hydraulic components made entirely of stainless steel,it offers exceptional corrosion and contamination resistance,ensuring water purity,it is ideally suited for domestic hot water circulation,HVAC systems,and sectors with strict hygiene standards,such as the food and pharmaceutical industries.Incorporating Wilo’s high-efficiency
Product Consultation By telephone
Function
Parameters
Size
Video Introduction

Function

Features/Product Advantages

Corrosion-resistant impellers, diffusers, and stage housings
All parts in contact with the fluid (EPDM version) are approved for drinking water applications

Design

Vertical, non-self-priming, multistage high-pressure centrifugal pump with an in-line configuration.

Applications

Water supply and pressure boosting
Fire-fighting systems
Boiler feed
Industrial circulation systems
Process engineering
Cooling water circulation systems
Washing and spraying systems

Equipment/Functions

MVI 70.. and 95..: PN 16 and PN 25 models feature round flanges

Model code

Example:

MVI 7002/1-3/16/E/3-400-50-2

MVI

Vertical high-pressure multistage centrifugal pump

70

Flow rate, m³/h

02

Number of impellers

1

Number of machined impellers

3

3 = Pump housing in EN-GJL-250 (electrophoretic coating), hydraulic components in 1.4301 (AISI 304)

16

Flange type 16 = Flange PN 16 (round or oval) 25 = Flange PN 25 (round or oval)

E

Gasket type E = EPDM V = FKM (fluororubber)

3

3 = 3~ (three-phase AC)

400

Connection voltage, V

50

Frequency, Hz

2

Number of poles

Technical data

Electrical connection:
3~400 V (±10%), 50 Hz
≤ 4 kW: 230 V/400 V; Δ/Y
> 4 kW: 400 V/690 V; Δ/Y
Fluid temperature: -15 °C to +120 °C (with EPDM) (-15 °C to +90 °C with FKM)
Max. operating pressure: 16/25 bar
Max. inlet pressure: 10 bar
Protection class: IP55
Flange connection:
MVI 70../95.. PN 16/PN 25: Round flange (DN 100)

Materials

MVI 70../95..:

Impeller made of stainless steel 1.4408 (AISI 316)
Stage chambers made of stainless steel 1.4301 (AISI 304)
Pump housing made of cast iron EN-GJL 250 with electrophoretic coating
Shaft made of stainless steel 1.4057 (AISI 431)
Gaskets made of EPDM
Housing sleeve made of stainless steel 1.4301 (AISI 304)
Housing base made of stainless steel 1.4301 (AISI 304)
Mechanical seal made of Carbon/Tungsten Carbide (B) or SiC/Carbon
Pressure shroud made of stainless steel 1.4301 (AISI 304)
Bearings made of tungsten carbide

As-delivered condition

MVI high-pressure multistage centrifugal pump
Installation and operating instructions

Parameters

model Voltage
(V)		 Flow rate
(m³/h)		 Head
(m)		 Power
(kW)		 Motor energy efficiency caliber
MVI 7001-3/16/E/3-380-50-2(B-cx)-S 380V 70 19 5.5   DN100×DN80
MVI 7001-3/25/E/3-380-50-2(B-cx)-S 380V 70 19 5.5   DN100×DN100
MVI 7001/1-3/16/E/3-380-50-2(B-cx)-S 380V 70 13.2 4   DN100×DN100
MVI 7001/1-3/25/E/3-380-50-2(B-cx)-S 380V 70 13.2 4   DN100×DN100
MVI 7002-3/16/E/3-380-50-2(B-cx)-S 380V 70 40 11   DN100×DN100
MVI 7002-3/25/E/3-380-50-2(B-cx)-S 380V 70 40 11   DN100×DN100
MVI 7002/1-3/16/E/3-380-50-2(B-cx)-S 380V 70 33 11   DN100×DN100
MVI 7002/1-3/25/E/3-380-50-2(B-cx)-S 380V 70 33 11   DN100×DN100
MVI 7002/2-3/16/E/3-380-50-2(B-cx)-S 380V 70 27 7.5   DN100×DN100
MVI 7002/2-3/25/E/3-380-50-2(B-cx)-S 380V 70 27 7.5   DN100×DN100
MVI7002G-1/16/E/K/3-380-50-2(a-dk1) 380V 70 40 11 CL2 DN100×DN100
MVI7002G-2/16/E/K/3-380-50-2(a-dk1) 380V 70 40 11 CL2 DN100×DN100
MVI 7003-3/16/E/3-380-50-2(B-dk1)-S 380V 70 62 18.5 GB3 DN100×DN100
MVI 7003-3/25/E/3-380-50-2(B-dk1)-S 380V 70 62 18.5 GB3 DN100×DN100
MVI 7003/1-3/16/E/3-380-50-2(B-dk1)-S 380V 70 54 15 GB3 DN100×DN100
MVI 7003/1-3/25/E/3-380-50-2(B-dk1)-S 380V 70 54 15 GB3 DN100×DN100
MVI7003/1G-1/16/E/K/3-380-50-2(a-dk1) 380V 70 54 15 GB3 DN100×DN100
MVI7003/1G-2/16/E/K/3-380-50-2(a-dk1) 380V 70 54 15 GB3 DN100×DN100
MVI 7003/2-3/16/E/3-380-50-2(B-dk1)-S 380V 70 47 15 GB3 DN100×DN100
MVI 7003/2-3/25/E/3-380-50-2(B-dk1)-S 380V 70 47 15 GB3 DN100×DN100
MVI7003/2G-1/16/E/K/3-380-50-2(a-dk1) 380V 70 48 15 GB3 DN100×DN100
MVI7003/2G-2/16/E/K/3-380-50-2(a-dk1) 380V 70 48 15 GB3 DN100×DN100
MVI7003G-1/16/E/K/3-380-50-2(a-dk1) 380V 70 63 18.5 GB3 DN100×DN100
MVI7003G-2/16/E/K/3-380-50-2(a-dk1) 380V 70 63 18.5 GB3 DN100×DN100
MVI 7004-3/16/E/3-380-50-2(B-dk1)-S 380V 70 83 22 GB3 DN100×DN100
MVI 7004-3/25/E/3-380-50-2(B-dk1)-S 380V 70 83 22 GB3 DN100×DN100
MVI 7004/1-3/16/E/3-380-50-2(B-dk1)-S 380V 70 76 22 GB3 DN100×DN100
MVI 7004/1-3/25/E/3-380-50-2(B-dk1)-S 380V 70 76 22 GB3 DN100×DN100
MVI 7004/2-3/16/E/3-380-50-2(B-dk1)-S 380V 70 68 18.5 GB3 DN100×DN100
MVI 7004/2-3/25/E/3-380-50-2(B-dk1)-S 380V 70 68 18.5 GB3 DN100×DN100
MVI 7005-3/16/E/3-380-50-2(B-dk1)-S 380V 70 105 30 GB3 DN100×DN100
MVI 7005-3/25/E/3-380-50-2(B-dk1)-S 380V 70 105 30 GB3 DN100×DN100
MVI 7005/1-3/16/E/3-380-50-2(B-dk1)-S 380V 70 98 30 GB3 DN100×DN100
MVI 7005/1-3/25/E/3-380-50-2(B-dk1)-S 380V 70 98 30 GB3 DN100×DN100
MVI 7005/2-3/16/E/3-380-50-2(B-dk1)-S 380V 70 91 30 GB3 DN100×DN100
MVI 7005/2-3/25/E/3-380-50-2(B-dk1)-S 380V 70 91 30 GB3 DN100×DN100
MVI 7006-3/25/E/3-380-50-2(B-dk1)-S 380V 70 126 37 GB3 DN100×DN100
MVI 7006/1-3/25/E/3-380-50-2(B-dk1)-S 380V 70 118 37 GB3 DN100×DN100
MVI 7006/2-3/25/E/3-380-50-2(B-dk1)-S 380V 70 112 30 GB3 DN100×DN100
MVI 7007/1-3/25/E/3-380-50-2(B-dk1)-S 380V 70 138 37 GB3 DN100×DN100
MVI 7007/2-3/25/E/3-380-50-2(B-dk1)-S 380V 70 132 37 GB3 DN100×DN100
MVI7007G-1/25/E/K/3-380-50-2(a-dk1) 380V 70 155 45 CL2 DN100×DN100
MVI7007G-2/25/E/K/3-380-50-2(a-dk1) 380V 70 155 45 CL2 DN100×DN100
MVI 9501-3/16/E/3-380-50-2(B-cx)-S 380V 95 21 11   DN100×DN100
MVI 9501-3/25/E/3-380-50-2(B-cx)-S 380V 95 21 11   DN100×DN100
MVI 9501/1-3/16/E/3-380-50-2(B-cx)-S 380V 95 14 7.5   DN100×DN100
MVI 9501/1-3/25/E/3-380-50-2(B-cx)-S 380V 95 14 7.5   DN100×DN100
MVI 9502-3/16/E/3-380-50-2(B-dk1)-S 380V 95 54 18.5 GB3 DN100×DN100
MVI 9502-3/25/E/3-380-50-2(B-dk1)-S 380V 95 54 18.5 GB3 DN100×DN100
MVI 9502/1-3/16/E/3-380-50-2(B-dk1)-S 380V 95 38 15 GB3 DN100×DN100
MVI 9502/1-3/25/E/3-380-50-2(B-dk1)-S 380V 95 38 15 GB3 DN100×DN100
MVI 9502/2-3/16/E/3-380-50-2(B-dk1)-S 380V 95 43 15 GB3 DN100×DN100
MVI 9502/2-3/25/E/3-380-50-2(B-dk1)-S 380V 95 43 15 GB3 DN100×DN100
MVI9502/2G-1/16/E/K/3-380-50-2(a-dk1) 380V 95 26 11 CL2 DN100×DN100
MVI9502/2G-2/16/E/K/3-380-50-2(a-dk1) 380V 95 26 11 CL2 DN100×DN100
MVI9502G-1/16/E/K/3-380-50-2(a-dk1) 380V 95 39 15 GB3 DN100×DN100
MVI9502G-2/16/E/K/3-380-50-2(a-dk1) 380V 95 39 15 GB3 DN100×DN100
MVI 9503-3/16/E/3-380-50-2(B-dk1)-S 380V 95 68 30 GB3 DN100×DN100
MVI 9503-3/25/E/3-380-50-2(B-dk1)-S 380V 95 68 30 GB3 DN100×DN100
MVI 9503/1-3/16/E/3-380-50-2(B-dk1)-S 380V 95 60 30 GB3 DN100×DN100
MVI 9503/1-3/25/E/3-380-50-2(B-dk1)-S 380V 95 60 30 GB3 DN100×DN100
MVI 9503/2-3/16/E/3-380-50-2(B-dk1)-S 380V 95 54 22 GB3 DN100×DN100
MVI 9503/2-3/25/E/3-380-50-2(B-dk1)-S 380V 95 54 22 GB3 DN100×DN100
MVI9503/2G-2/16/E/K/3-380-50-2(a-dk1) 380V 95 48 18.5 GB3 DN100×DN100
MVI9503G-1/16/E/K/3-380-50-2(a-dk1) 380V 95 61 22 GB3 DN100×DN100
MVI9503G-2/16/E/K/3-380-50-2(a-dk1) 380V 95 61 22 GB3 DN100×DN100
MVI 9504-3/16/E/3-380-50-2(B-dk1)-S 380V 95 110 37 GB3 DN100×DN100
MVI 9504-3/25/E/3-380-50-2(B-dk1)-S 380V 95 110 37 GB3 DN100×DN100
MVI 9504/1-3/16/E/3-380-50-2(B-dk1)-S 380V 95 103 37 GB3 DN100×DN100
MVI 9504/1-3/25/E/3-380-50-2(B-dk1)-S 380V 95 103 37 GB3 DN100×DN100
MVI 9504/2-3/16/E/3-380-50-2(B-dk1)-S 380V 95 78 30 GB3 DN100×DN100
MVI 9504/2-3/25/E/3-380-50-2(B-dk1)-S 380V 95 78 30 GB3 DN100×DN100
MVI9504/2G-1/16/E/K/3-380-50-2(a-dk1) 380V 95 70 30 GB3 DN100×DN100
MVI9504/2G-2/16/E/K/3-380-50-2(a-dk1) 380V 95 70 30 GB3 DN100×DN100
MVI 9505-3/25/E/3-380-50-2(B-dk1)-S 380V 95 116 45 CL2 DN100×DN100
MVI 9505/1-3/25/E/3-380-50-2(B-dk1)-S 380V 95 110 45 CL2 DN100×DN100
MVI 9505/2-3/25/E/3-380-50-2(B-dk1)-S 380V 95 102 45 CL2 DN100×DN100
MVI9505G-1/25/E/K/3-380-50-2(a-dk1) 380V 95 105 37 GB3 DN100×DN100
MVI9505G-2/25/E/K/3-380-50-2(a-dk1) 380V 95 105 37 GB3 DN100×DN100
MVI9506G-1/25/E/K/3-380-50-2(a-dk1) 380V 95 126 45 CL2 DN100×DN100
MVI9506G-2/25/E/K/3-380-50-2(a-dk1) 380V 95 126 45 CL2 DN100×DN100
MVI12001G-1/25/E/K/3-380-50-2(a-dk1) 380V 120 19.7 11 CL2 DN100×DN100
MVI12001G-2/25/E/K/3-380-50-2(a-dk1) 380V 120 19.7 11 CL2 DN125×DN125
MVI12002G-1/25/E/K/3-380-50-2(a-dk1) 380V 120 42 22 CL2 DN125×DN125
MVI12002G-2/25/E/K/3-380-50-2(a-dk1) 380V 120 42 22 CL2 DN125×DN125
MVI12003G-1/25/E/K/3-380-50-2(a-dk1) 380V 120 62 30 GB3 DN125×DN125
MVI12003G-2/25/E/K/3-380-50-2(a-dk1) 380V 120 62 30 GB3 DN125×DN125
MVI12004/1G-1/25/E/K/3-380-50-2(a-dk1) 380V 120 77 37 GB3 DN125×DN125
MVI12004/1G-2/25/E/K/3-380-50-2(a-dk1) 380V 120 77 37 GB3 DN125×DN125
MVI12005/1G-1/25/E/K/3-380-50-2(a-dk1) 380V 120 100 45 CL2 DN125×DN125
MVI12005/1G-2/25/E/K/3-380-50-2(a-dk1) 380V 120 100 45 CL2 DN125×DN125
MVI12006/1G-1/25/E/K/3-380-50-2(a-dk1) 380V 120 120 55 CL2 DN125×DN125
MVI12006/1G-2/25/E/K/3-380-50-2(a-dk1) 380V 120 120 55 CL2 DN125×DN125
MVI12007G-2/25/E/K/3-380-50-2(a-dk1) 380V 120 150 75 CL2 DN125×DN125
MVI12007G-3/25/E/K/3-380-50-2(a-dk1) 380V 120 150 75 CL2 DN125×DN125
MVI15001/1G-1/25/E/K/3-380-50-2(a-dk1) 380V 150 11.2 11 CL2 DN125×DN125
MVI15001/1G-2/25/E/K/3-380-50-2(a-dk1) 380V 150 11.2 11 CL2 DN125×DN125
MVI15001G-1/25/E/K/3-380-50-2(a-dk1) 380V 150 17.4 15 GB3 DN125×DN125
MVI15001G-2/25/E/K/3-380-50-2(a-dk1) 380V 150 17.4 15 GB3 DN125×DN125
MVI15002/1G-2/25/E/K/3-380-50-2(a-dk1) 380V 150 30.5 22 GB3 DN125×DN125
MVI15003/2G-1/25/E/K/3-380-50-2(a-dk1) 380V 150 45 30 GB3 DN125×DN125
MVI15004/1G-1/25/E/K/3-380-50-2(a-dk1) 380V 150 74 45 CL2 DN125×DN125
MVI15004/1G-2/25/E/K/3-380-50-2(a-dk1) 380V 150 74 45 CL2 DN125×DN125
MVI15005/2G-1/25/E/K/3-380-50-2(a-dk1) 380V 150 88 55 CL2 DN125×DN125
MVI15006G-1/25/E/K/3-380-50-2(a-dk1) 380V 150 122 75 CL2 DN125×DN125
MVI15006G-2/25/E/K/3-380-50-2(a-dk1) 380V 150 122 75 CL2 DN125×DN125
