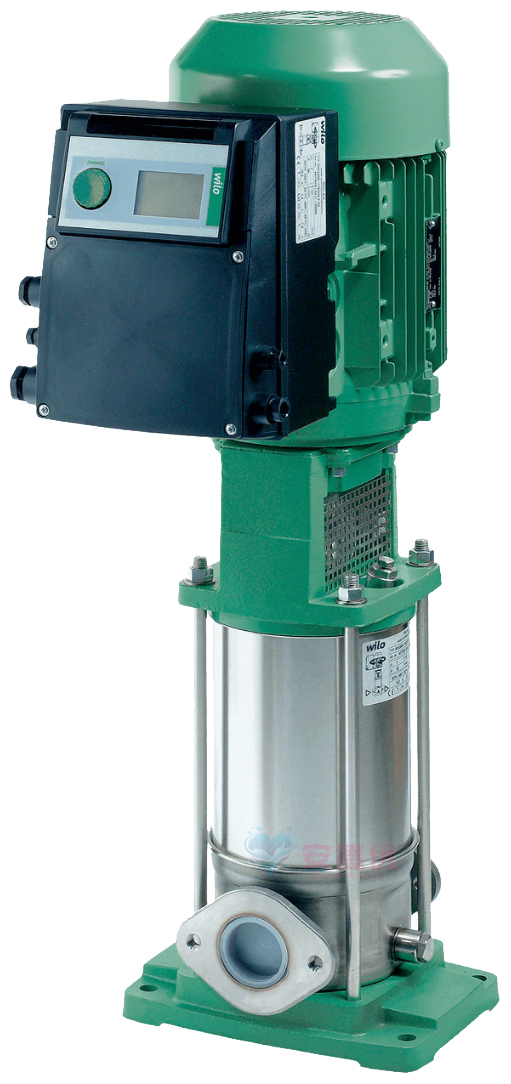

Wilo-Multivert MVIE Stainless Steel Vertical Multistage Centrifugal Pump with Variable Speed ​​Drive (IE4)

MVI2.0-VE7002-3/16/E/3、MVI2.0-VE7002-3/25/E/3、MVI2.0-VE7003/1-3/16/E/3、MVI2.0-VE7003/1-3/25/E/3、MVI2.0-VE7004-3/16/E/3、MVI2.0-VE7004-3/25/E/3、MVI2.0-VE7004/2-3/16/E/3、MVI2.0-VE7004/2-3/25/E/3、MVI2.0-VE9501-3/16/E/3、MVI2.0-VE9501-3/25/E/3、MVI2.0-VE9502-3/16/E/3、MVI2.0-VE9502-3/25/E/3、MVI2.0-VE9502/1-3/16/E/3、MVI2.0-VE9502/1-3/25/E/3、MVI2.0-VE9503/2-3/16/E/3、MVI2.0-VE9503/2-3/25/E/3、MVIE7002-3/16/E/380-50(B-Mj1)、MVIE7002-3/25/E/380-50(B-Mj1)

The Wilo-Multivert MVIE is a stainless steel vertical multistage centrifugal pump featuring advanced variable-frequency control technology and an IE4 ultra-high-efficiency motor,enabling precise flow regulation and energy savings of up to 30%.Its all-stainless-steel flow path design meets hygiene standards for domestic hot water and HVAC systems while remaining suitable for complex industrial process applications requiring dynamic adjustment
Product Consultation By telephone
Function
Parameters
Size
Video Introduction

Function

Features/Product Advantages

Easy commissioning
Integrated frequency converter with a wide control range
Comprehensive motor protection

Construction

Non-self-priming multistage pump with integrated frequency converter

Applications

Water supply and pressure boosting
Industrial circulation systems
Process engineering
Cooling water circulation systems
Washing and spraying systems

Equipment/Functions

Stainless steel pump in in-line design
MVIE 70../95... PN 16/25 with round flanges
IEC standard motor with integrated frequency converter
Three-phase models featuring "Green Button Technology" and an LCD status display
Integrated thermal motor protection

Model Code

Example:

MVIE 7003/1-3/16/E/3-2

MVIE

Vertical high-pressure multistage centrifugal pump

70

Flow rate, m³/h

03

Number of impellers

1

Number of machined impellers

3

Material 1 = 1.4301 (AISI 304); [MVIE 8.. and smaller models only] 2 = 1.4404 (AISI 316L) 3 = Pump housing: EN-GJL-250 (electrophoretic coating); hydraulic components: 1.4301 (AISI 304); [MVIE 70.. and 95.. only]

16

Flange type 16 = Flange PN 16 (round) 25 = Flange PN 25 (round) P = Clamp coupling [MVIE 8 and smaller models only]

E

Gasket type E = EPDM V = FKM (fluororubber)

3

1 = 1~ (AC) 3 = 3~ (Three-phase AC)

2

Number of poles

Technical Data

Mains connection: 3~ 400 V (±10%), 50 Hz (Y) or 400 V (±10%), 60 Hz Hz (Y)
Fluid temperature: -15°C to +120°C (EPDM version)
Maximum operating pressure: 16/25 bar
Maximum inlet pressure: 10 bar
Enclosure class: IP55
Interference emission: Complies with EN 61000-6-3
Interference immunity: Complies with EN 61000-6-2

Materials

Impeller: Stainless steel 1.4408 (AISI 316)
Chamber stack: Stainless steel 1.4301 (AISI 304)
Pump housing: Electrophoretically coated grey cast iron EN-GJL 250
Shaft: Stainless steel 1.4057 (AISI 431)
Gaskets: EPDM
Outer sleeve: Stainless steel 1.4301 (AISI 304)
Base: Stainless steel 1.4301 (AISI 304)
Mechanical seal: Carbon/Tungsten carbide or SiC/Carbon
Pressure cover: Stainless steel 1.4301 (AISI 304)
Bearings: Tungsten carbide

Scope of delivery

MVIE high-pressure multistage centrifugal pump
Installation and operating instructions

Parameters

model Voltage
(V)		 Flow rate
(m³/h)		 Head
(m)		 Power
(kW)		 Motor energy efficiency Rated speed (rpm) caliber
MVI2.0-VE7002-3/16/E/3 380V 70 40 11   3000 DN100×DN100
MVI2.0-VE7002-3/25/E/3 380V 70 40 11   3000 DN100×DN100
MVI2.0-VE7003/1-3/16/E/3 380V 70 55 15   3000 DN100×DN100
MVI2.0-VE7003/1-3/25/E/3 380V 70 55 15   3000 DN100×DN100
MVI2.0-VE7004-3/16/E/3 380V 70 82 22   3000 DN100×DN100
MVI2.0-VE7004-3/25/E/3 380V 70 82 22   3000 DN100×DN100
MVI2.0-VE7004/2-3/16/E/3 380V 70 70 18.5   3000 DN100×DN100
MVI2.0-VE7004/2-3/25/E/3 380V 70 70 18.5   3000 DN100×DN100
MVI2.0-VE9501-3/16/E/3 380V 95 25 11   3000 DN100×DN100
MVI2.0-VE9501-3/25/E/3 380V 95 25 11   3000 DN100×DN100
MVI2.0-VE9502-3/16/E/3 380V 95 51 18.5   3000 DN100×DN100
MVI2.0-VE9502-3/25/E/3 380V 95 51 18.5   3000 DN100×DN100
MVI2.0-VE9502/1-3/16/E/3 380V 95 46 15   3000 DN100×DN100
MVI2.0-VE9502/1-3/25/E/3 380V 95 46 15   3000 DN100×DN100
MVI2.0-VE9503/2-3/16/E/3 380V 95 66 22   3000 DN100×DN100
MVI2.0-VE9503/2-3/25/E/3 380V 95 66 22   3000 DN100×DN100
MVIE7002-3/16/E/380-50(B-Mj1) 380V 70 40 11 IE4 2900 DN100×DN100
MVIE7002-3/25/E/380-50(B-Mj1) 380V 70 40 11 IE4 2900 DN100×DN100
MVIE7003/1-3/16/E/380-50(B-Mj1) 380V 70 55 15 IE4 2900 DN100×DN100
MVIE7003/1-3/25/E/380-50(B-Mj1) 380V 70 55 15 IE4 2900 DN100×DN100
MVIE7004-3/16/E/380-50(B-Mj1) 380V 70 82 22 IE4 2900 DN100×DN100
MVIE7004-3/25/E/380-50(B-Mj1) 380V 70 82 22 IE4 2900 DN100×DN100
MVIE7004/2-3/16/E/380-50(B-Mj1) 380V 70 70 18.5 IE4 2900 DN100×DN100
MVIE7004/2-3/25/E/380-50(B-Mj1) 380V 70 70 18.5 IE4 2900 DN100×DN100
MVIE9501-3/16/E/380-50(B-Mj1) 380V 95 22 11 IE4 2900 DN100×DN100
MVIE9501-3/25/E/380-50(B-Mj1) 380V 95 22 11 IE4 2900 DN100×DN100
MVIE9502-3/16/E/380-50(B-Mj1) 380V 95 46 18.5 IE4 2900 DN100×DN100
MVIE9502-3/25/E/380-50(B-Mj1) 380V 95 46 18.5 IE4 2900 DN100×DN100
MVIE9502/1-3/16/E/380-50(B-Mj1) 380V 95 39 15 IE4 2900 DN100×DN100
MVIE9502/1-3/25/E/380-50(B-Mj1) 380V 95 39 15 IE4 2900 DN100×DN100
MVIE9503/2-3/16/E/380-50(B-Mj1) 380V 95 56 22 IE4 2900 DN100×DN100
MVIE9503/2-3/25/E/380-50(B-Mj1) 380V 95 56 22 IE4 2900 DN100×DN100
