Highly energy-efficient and easy to operate, suitable for cold water applications.

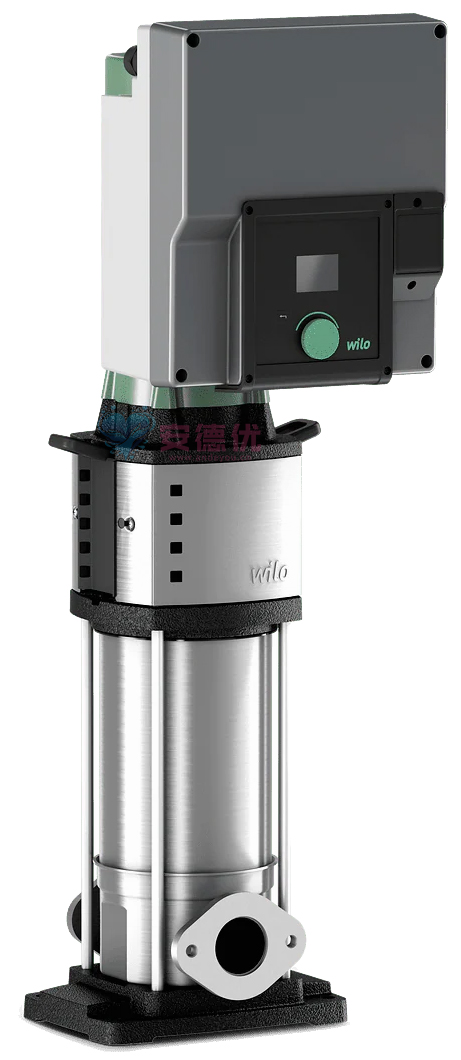

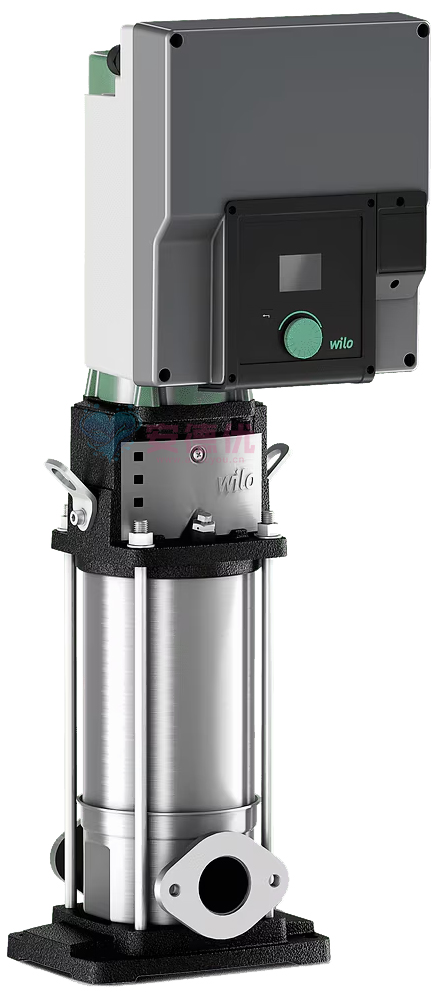

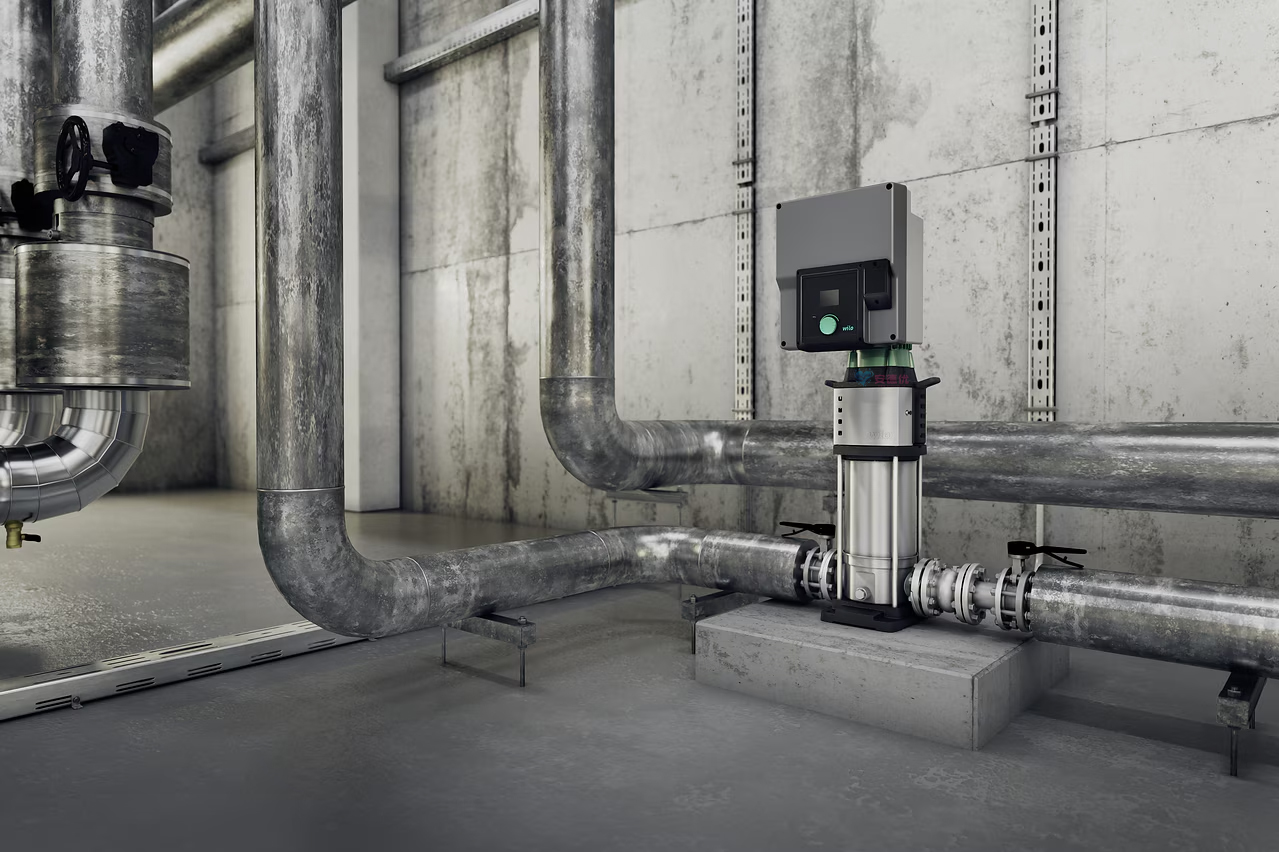

The Wilo-Helix2.0-VE is a versatile, next-generation vertical multistage cold water pump. Its frequency converter offers six control modes and, combined with an IE5 EC motor, adapts to various pressure and volume flow conditions, ensuring high energy efficiency in both closed and open systems. The proven, reliable Helix stainless steel hydraulics also ensure high operational reliability.
A color display with clear, easy-to-read menu navigation, combined with reliable Green Button Technology, makes commissioning and operation simple. Integration into building automation systems is easily achieved via analog and digital interfaces as well as CIF modules.
Features/Product Advantages
High energy efficiency achieved through IE5 EC motors and six integrated control modes (dp-v, dp-c, p-v, p-c, n-const, PID)
High operational reliability thanks to features such as dry-running detection, automatic PWM frequency reduction, programmable pump start-up, and safe operation
Suitable for ambient temperatures up to 50 °C
Simple operation via clear menu navigation on a color display with Green Button Technology
High robustness due to proven stainless steel pump hydraulics
Integration into building automation via analog and digital interfaces and CIF modules
Eco-friendly attributes
High-efficiency pump equipped with an IE5 EC motor and cast or laser-welded 3D impellers
Minimized energy consumption through various control modes
Compact, stackable packaging saves space during transport
Packaging is highly recyclable (over 95% by weight)
Construction
High-efficiency, non-self-priming, vertical high-pressure multistage centrifugal pump in a close-coupled design, equipped with an electronically controlled EC motor (IE5 efficiency class according to IEC 60034-30-2).
Applications
Water supply and pressure boosting
Industrial circulation systems
Process water
Closed cooling circuits
Heating
Washing systems
Irrigation systems
Equipment/Features
2" color LCD display
Wilo Green Button Technology and soft buttons with "back" function for menu navigation and pump settings
Green LED indicating pump status
Blue LED indicating external pump control via an interface
Impeller, diffuser assembly, and pump housing made of corrosion-resistant materials
Operating modes
Constant pressure p-c
Variable pressure p-v
Constant differential pressure ∆p-c
Variable differential pressure ∆p-v
Constant speed n-c
PID control
Analog inputs
IN (AI 1): Input for sensor signals 4…20 mA, 0…10 V, 0…20 mA, or 2…10 V
IN (AI 2): Input for setpoint 0…20 mA, 0…10 V, 4…20 mA, 2…10 V; or input for sensor signals 4…20 mA, 0…10 V, 0…20 mA, or 2…10 V
Digital input IN (DI 1)
External OFF
Dry-running detection via binary input
Functions
Maximum pressure limit detection
Minimum pressure limit detection
Dry-running detection via suction-side sensor
Zero-flow test (open circuit)
No-Flow Stop (closed circuit)
Dry-running detection
Volume flow calculation via differential pressure sensor
Pump start
Fault or warning codes
Overload protection
Access lock
For Wilo CIF modules: PLR, LON, BACnet MS/TP, Modbus RTU, CANopen, Ethernet multiprotocol (Modbus Slots (TCP, BACnet/IP) for connection to building automation systems
Dual-pump management (two single-head pumps)
Main/standby operation
Pump alternation after 24 hours or upon automatic fault-based switchover in main/standby mode
Wired connection via Wilo Net
Model code
|
Example: |
Helix2.0-VE 2204/2-1/16/E/KS/3 |
|
Helix2.0-VE |
Vertical high-pressure multistage centrifugal pump with a series configuration, CNC-machined. |
|
2 |
Volumetric flow rate, unit: m³/h |
|
04 |
Number of impellers |
|
2 |
Number of trimmed impellers (option) |
|
1 |
Water pump material |
|
1 = Pump housing 1.4301 (AISI 304L), hydraulic components 1.4307 (AISI 304L) |
|
|
2 = Pump casing 1.4409 (AISI 316L), hydraulic components 1.4404 (AISI 316L) |
|
|
16 |
Maximum working pressure, unit: bar |
|
16 = 16 bar (PN 16 flange) |
|
|
25 = 25 bar (PN 25 flange) |
|
|
E |
Seal type E = EPDM V = FKM |
|
K |
Cartridge-style mechanical seal |
|
S |
The coupling guard is aligned with the water pump's inlet and outlet. |
|
3 |
1 = 1~ (Single-phase AC) |
Technical data
Electrical connection:
3~ 380 V ... 480 V, ±10%, 50/60 Hz TN, TT, IT
Fluid temperature range:
With EPDM: -30 … 120 °C (up to 130 °C for cartridge versions and pressures below 16 bar)
With FKM: -15 … 90 °C
Max. operating pressure: 16/25 bar
Protection class: IP55
Max. ambient temperature: +50 °C (extended temperature range available upon request)
Available specifications:
Helix VE 2 – 16: PN 16 with oval flanges; PN 25 with compatible round flanges compliant with ISO 2531 and ISO 7005 standards (Victaulic couplings or Tri-Clamp connections available upon request)
Helix VE 22 – 105: PN 16 and PN 25 round flanges compliant with ISO 2531 and ISO 7005 standards
Materials
Helix2.0-VE 2, 4, 6, 10, 16:
Material combination for Pump 1
Impeller, stage housing, and diffuser assembly made of 1.4307 stainless steel (AISI 304L)
Pump housing made of 1.4301 stainless steel (AISI 304)
Base plate and lantern made of EN-GJL 250 (with KTL coating)
Shaft made of 1.4301 (AISI 304) or 1.4462 (AISI 318LN) stainless steel (depending on design)
Sleeve beneath the mechanical seal made of 1.4404 (AISI 316L)
O-rings made of EPDM (FKM seals available upon request)
Outer sleeve made of 1.4301 stainless steel (AISI 304)
Material combination for Pump 2
Impeller, stage housing, and diffuser made of stainless steel Made of 1.4404 (AISI 316L)
Pump housing made of stainless steel 1.4404 (AISI 316)
Shaft made of stainless steel 1.4404 (AISI 316L) or 1.4462 (AISI 318LN) (depending on the design)
Sleeve beneath the mechanical seal made of 1.4404 (AISI 316L)
O-rings made of FKM (EPDM seals available upon request)
Outer sleeve made of stainless steel 1.4404 (AISI 316L)
Helix2.0-VE 22, 36, 52, 80, 105:
Material combination for Pump 1
Volute casing, impeller, and guide vane assembly made of stainless steel 1.4307 (AISI 304L)
Pump housing made of stainless steel 1.4308 (AISI 304); loose flanges made of KTL-coated grey cast iron EN-GJL 250 or EN-GJS 400
Shaft made of stainless steel 1.4057 (AISI 431)
Sleeve beneath the mechanical seal made of 1.4404 (AISI 316L)
O-rings made of EPDM (FKM seals available upon request)
Outer sleeve made of stainless steel 1.4301 (AISI 304)
Material combination for Pump 2
Volute casing, impeller, and guide vane assembly made of stainless steel 1.4404 (AISI 316L) Materials
Pump housing: All parts in contact with the fluid are made of 1.4409 (AISI 316L) stainless steel; loose flanges are made of KTL-coated EN-GJL 250 or EN-GJS 400 cast iron
Baseplate made of KTL-coated cast iron
Shaft made of stainless steel 1.4404 (AISI 316L) or 1.4462 (AISI 318LN) (depending on the design version)
Sleeve beneath the mechanical seal made of 1.4404 (AISI 316L)
O-rings made of FKM or EPDM
Pressure shroud made of stainless steel 1.4404 (AISI 316L)
Scope of delivery
High-pressure multistage centrifugal pump Helix2.0-VE
Installation and operating instructions
Helix2.0-VE 2 – 16 (PN 16 version with oval flanges): Stainless steel counter-flanges, including corresponding screws, nuts, and gaskets
Vibration damping accessory kit, including special washers and screws (only for specific models in the Helix2.0-VE 2 – 16 series ≥ 2.2 kW)
Accessories
CIF module PLR for connection to PLR/interface converters
CIF module LON for connection to LONWORKS networks
CIF module BACnet
CIF module Modbus
CIF module CANopen
CIF Ethernet module
CIF Ethernet connection M12 RJ45
Differential pressure setting 4–20 mA
Relative pressure setting 4–20 mA
