Features/Product Advantages
High-efficiency hydraulic design
Suitable for operating temperatures up to 180°C
Two patents related to high-temperature applications
New pump casing structure ensures long-term operation at high temperatures
Flexible connection options: round flanges or clamp connections
Construction

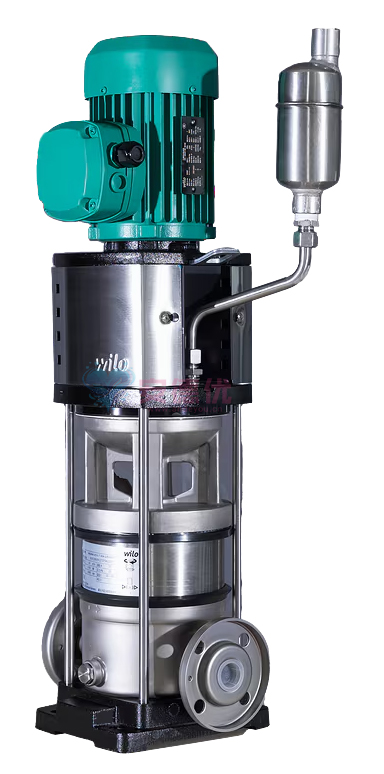

Non-self-priming, high-efficiency vertical multistage centrifugal pump for high-temperature applications (up to 180°C)
Applications
Steam boilers
Pharmaceutical processes
Food and beverage processing
High-temperature industrial heat pumps
Equipment/Functions
Corrosion-resistant impeller and volute; all hydraulic components made of 316L stainless steel.
Special cooling chamber and vent valve significantly reduce the temperature of the medium surrounding the mechanical seal.
Base and end cover castings utilize new materials for enhanced strength.
Special FKM gaskets extend the service life of the thin-walled canister O-ring.
Model Code
|
Example: |
Medana XCV1-C.606-5/E/E/16O |
|
Medana |
Product Series — High-Temperature, High-Pressure Multistage Centrifugal Pumps |
|
X |
It features a compact design and is equipped with a connection mechanism. |
|
C |
Commercial series |
|
V |
|
|
1 |
Series Tier (1 = Entry-level, 3 = Standard, 5 = High-end) |
|
C |
Cast shell |
|
6 |
Volumetric flow rate, in cubic meters per hour. |
|
06 |
Number of impellers |
|
5 |
1 = The pump body is made of stainless steel (1.4301). |
|
2 = Pump body material is grade 1.4409 stainless steel (AISI 316L); hydraulic system components are also made of grade 1.4404 stainless steel (AISI 316L), but are suitable only for the PN 25 pressure range. |
|
|
5 = Pump body made of cast iron (GJL250) |
|
|
E |
E = EPDM seal |
|
E |
E = 230/400 V – Frequency 50 Hz – Three-phase system |
|
16 |
Nominal pressure unit in bar: 16 = PN 16 |
|
O |
O = Oval flange |
Technical data
Electrical connection:
3~ 380 V (±10%), 50 Hz
≤3 kW: 220 V / 380 V; Δ/Y
>3 kW: 380 V / 660 V; Δ/Y
Fluid temperature range:
Medana XCV1-T: Min. temperature -20°C; max. temperature as per pump nameplate
Max. operating pressure: 25 bar
Max. inlet pressure: Inlet pressure + operating pressure at zero flow ≤ max. pump operating pressure
Min. inlet pressure: At least 1 bar above the fluid's vapor pressure at maximum fluid temperature
Protection class: IP55
Max. ambient temperature:
-15…+50°C (extended temperature range available upon request)
Available configurations:
PN25 pressure rating, round flange compliant with EN1092
PN25 pressure rating, quick-connect coupling compliant with DIN32676
Materials
Medana XCV1-T 2/4/6/10/16
Standard version, max. operating pressure PN25. Impeller and volute material: Stainless steel 1.4404 (AISI 316L)
Pump casing material: Stainless steel 1.4404 (AISI 316L)
Base and end cover material: EN-GJS-400 (electrophoretic coating)
Lantern bracket material: EN-GJL-250 (electrophoretic coating)
Shaft material: Stainless steel 1.4404 (AISI 316L)
Mechanical seal sleeve: 1.4404 (AISI 316L)
Wetted-part O-rings: EPDM
Canister gasket: FKM
Canister: Stainless steel 1.4404 (AISI 316L)
Type
The pump can be adapted to specific environmental requirements upon request (e.g., motor protection, IE4 motor efficiency class, extended ambient temperature range).
Standard scope of supply
Medana XCV1-T vertical high-temperature centrifugal pump
Installation and operating manual
Two connection options available: round flange and clamp connection
Optional high-temperature vent valve
Accessories
Vent valve
