I. Core Technical Architecture

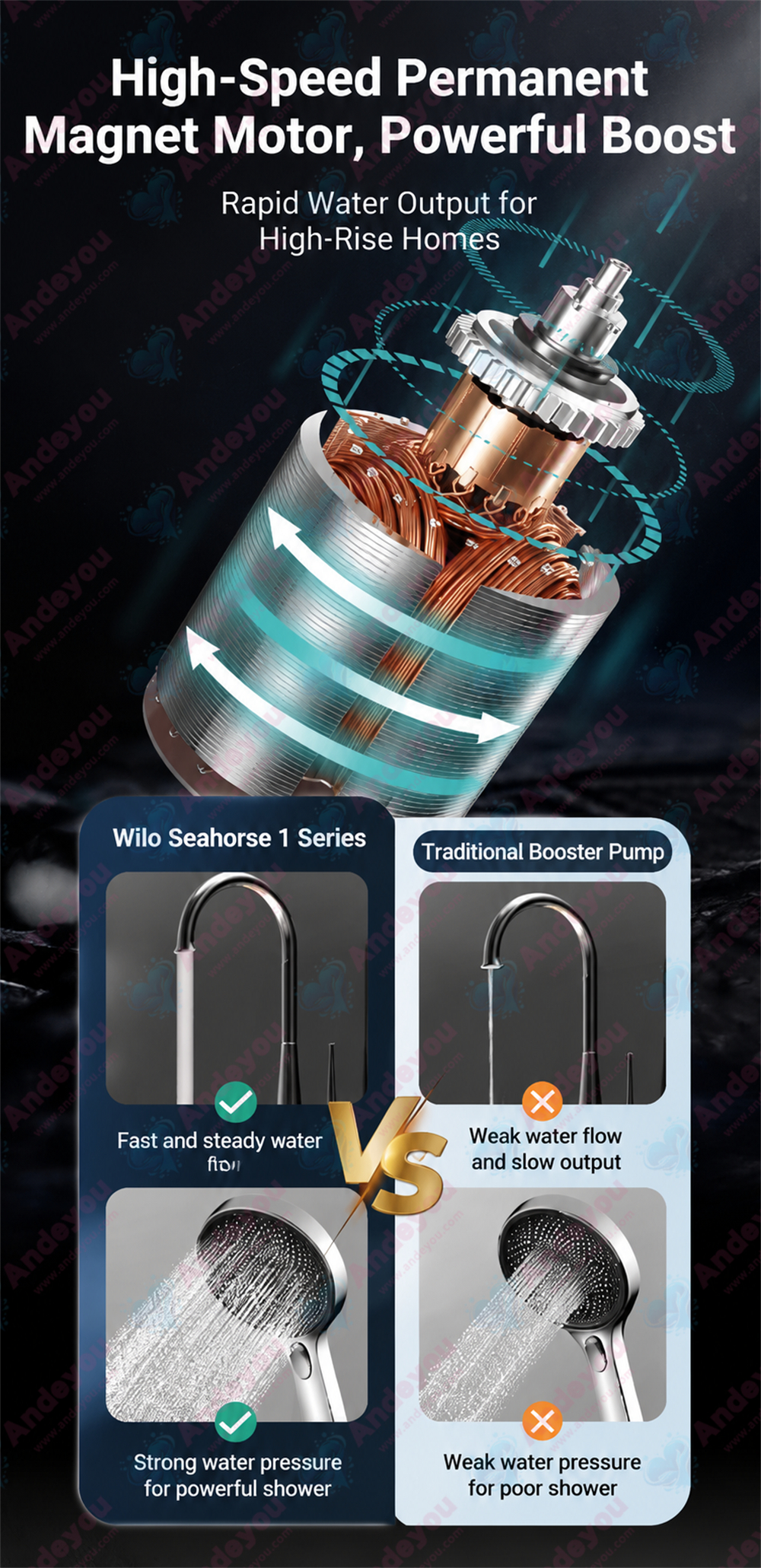

Permanent Magnet Synchronous Motor Technology
Rotor system constructed using permanent magnet materials; energy efficiency meets the IE5 ultra-high efficiency standard.
Offers over 30% energy savings compared to traditional asynchronous motors and increases torque density by approximately 50%.
Features a fully sealed, waterproof design with Class H (180°C) insulation.
Intelligent Variable-Frequency Control System
Built-in 32-bit ARM processor supporting stepless speed regulation (0–100 Hz).
Equipped with a pressure sensor for real-time monitoring of pipeline network pressure; accuracy reaches ±0.1 bar.
Supports both constant-pressure and variable-pressure operating modes to meet diverse application requirements.
II. Professional Performance Characteristics
High Efficiency and Energy Saving
Peak efficiency reaches 82%, offering 40% energy savings compared to standard booster pumps.
Maintains over 75% efficiency across the wide high-efficiency frequency range (30–80 Hz).
Standby power consumption <2W; features intelligent sleep/wake functions.
Reliable Operation
Head range: 15–60 meters; flow rate range: 1–8 m³/h.
Operating pressure range: 0.2–1.0 MPa; maximum pressure limit: 1.6 MPa.
Utilizes a dual-sealing structure (mechanical seal + oil seal) for a service life exceeding 10,000 hours.
III. Intelligent Control Functions
Multiple Control Modes
Constant Pressure Mode: Automatically maintains a preset pressure value.
Time-Based Mode: Supports 7×24 hour scheduled pressure settings. Configuration
Linked operation mode: Supports parallel operation of up to 6 pump units
Intelligent protection system
Dry-run protection: Automatic shutdown after 30 seconds of no-load operation
Overload protection: Immediate power cutoff if current exceeds limits
Overheat protection: Automatic frequency reduction if winding temperature reaches ≥130°C
IV. User-friendly experience
Plug-and-play design
Equipped with a color LCD display showing real-time pressure, frequency, and fault codes
Waterproof keypad panel (IP54 protection rating)
Intelligent diagnostic functions
Built-in self-diagnostic programs for various faults
Supports remote monitoring via app

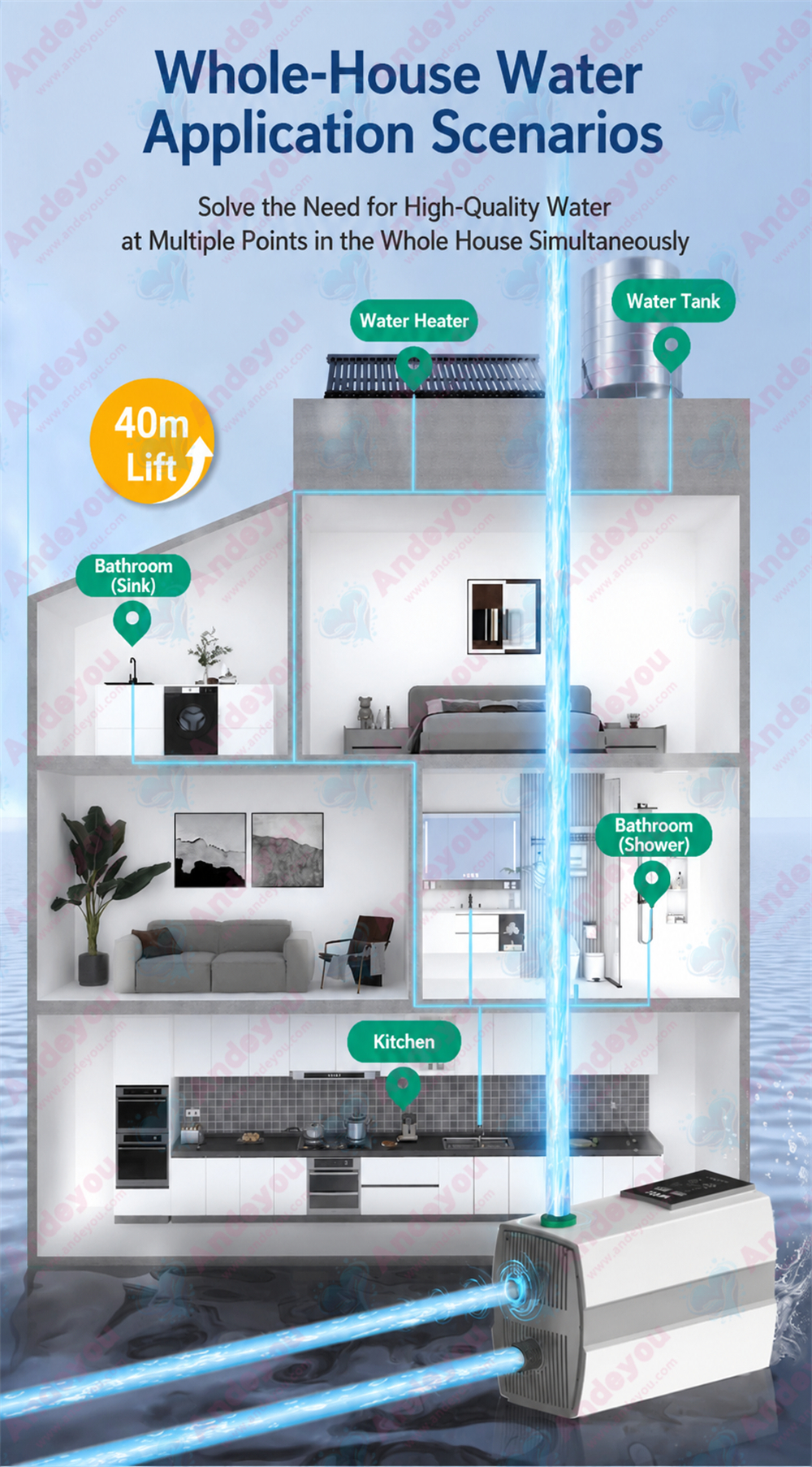

V. Application scenarios
Residential: Secondary water supply for villas/high-rise buildings, solar water heating systems
Commercial: Constant-pressure water supply for hotels, central air conditioning circulation systems
Industrial: Process water supply, equipment cooling circulation
Agricultural: Sprinkler irrigation systems, greenhouse irrigation
VI. Environmental friendliness and durability
Constructed using lead-free, eco-friendly materials; RoHS certified
Pump casing made of 304 stainless steel (Class A corrosion resistance)
Designed service life of 15 years; 5-year warranty on core components
This product holds EU CE certification and China Energy-Saving Product certification. With its intelligent variable-frequency control, high-efficiency permanent magnet motor, and multiple protection mechanisms, it serves as an ideal solution for modern building water supply systems, ensuring stable water delivery while significantly reducing operational energy consumption.

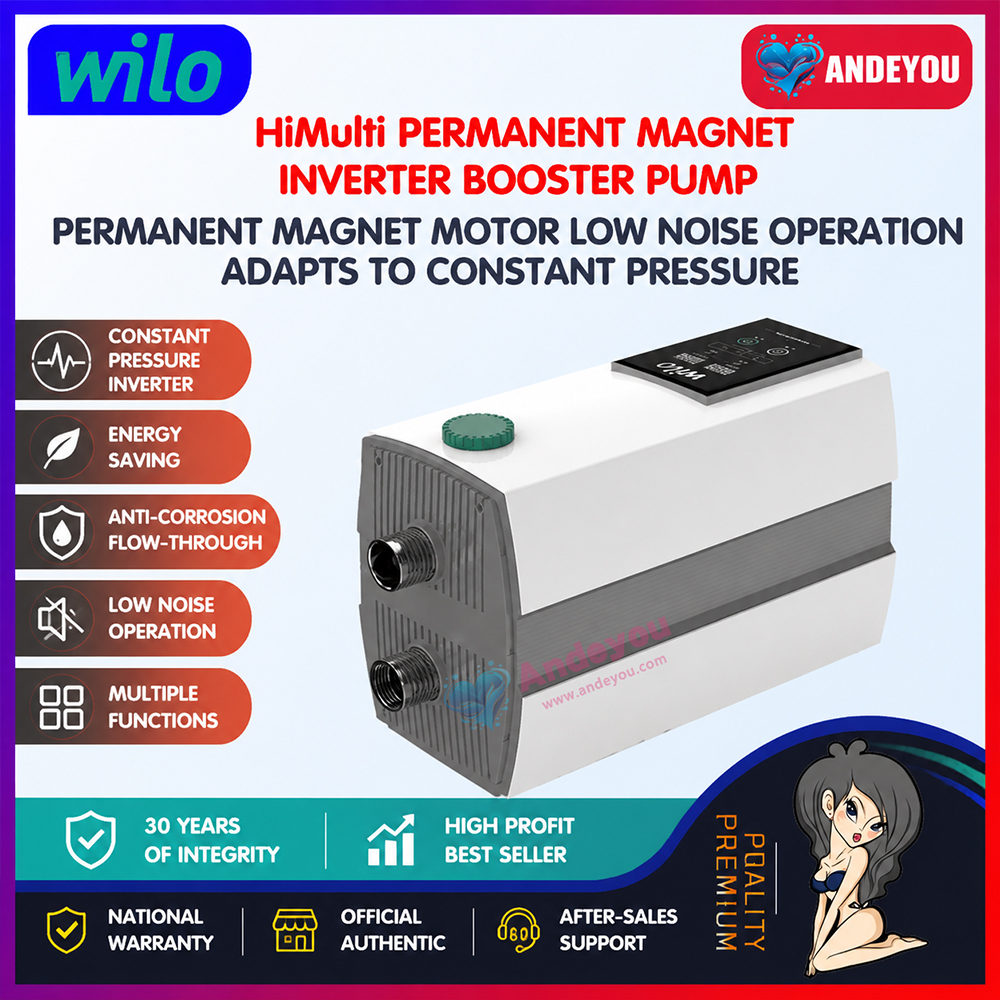

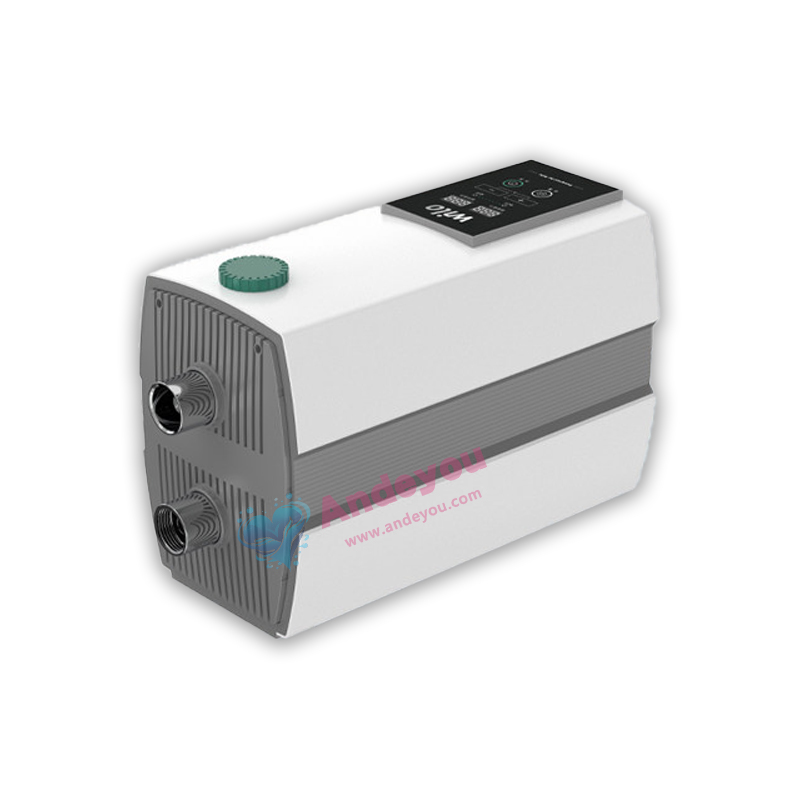

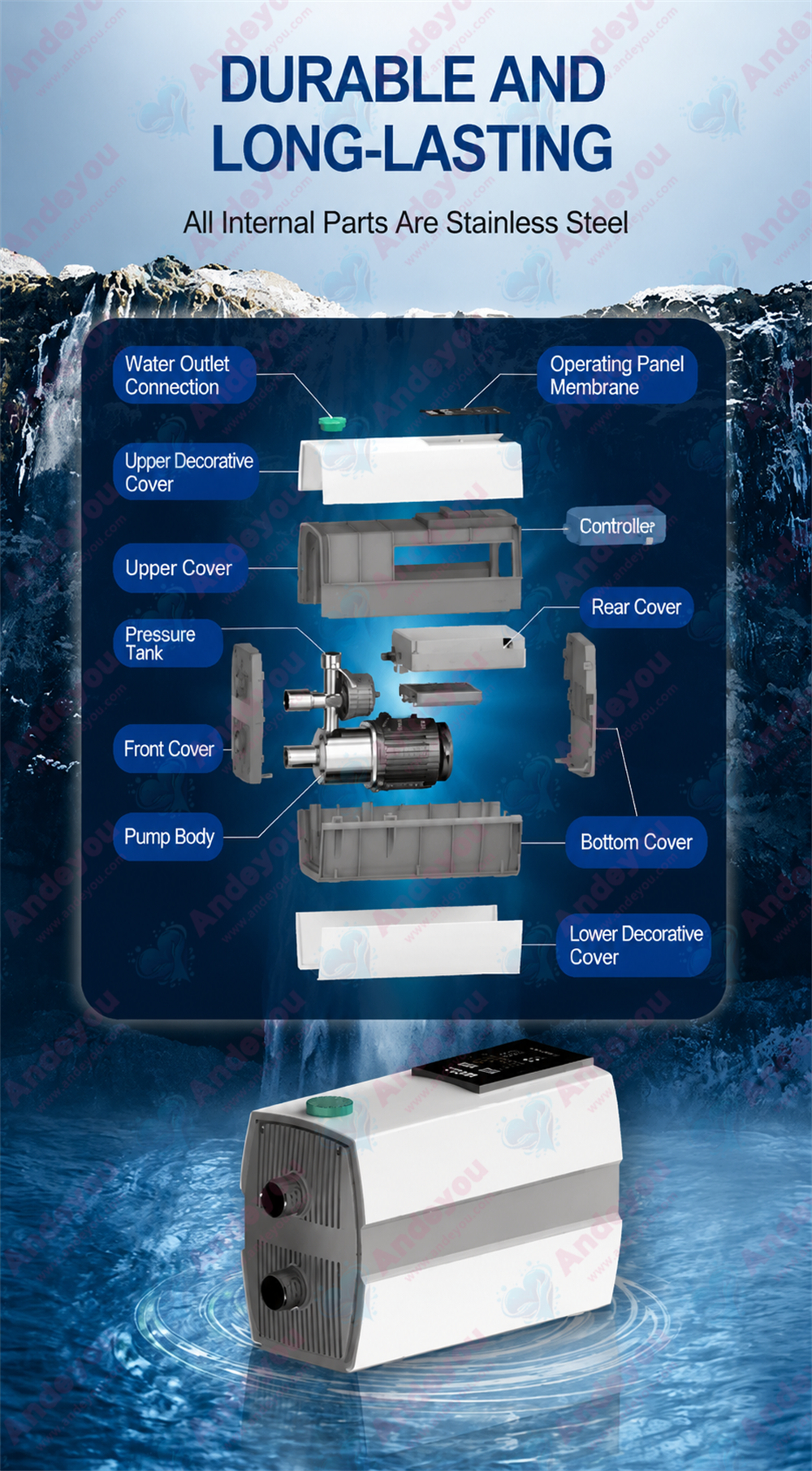

Structure
Multistage booster system for residential use
Appliance-style design for easy installation

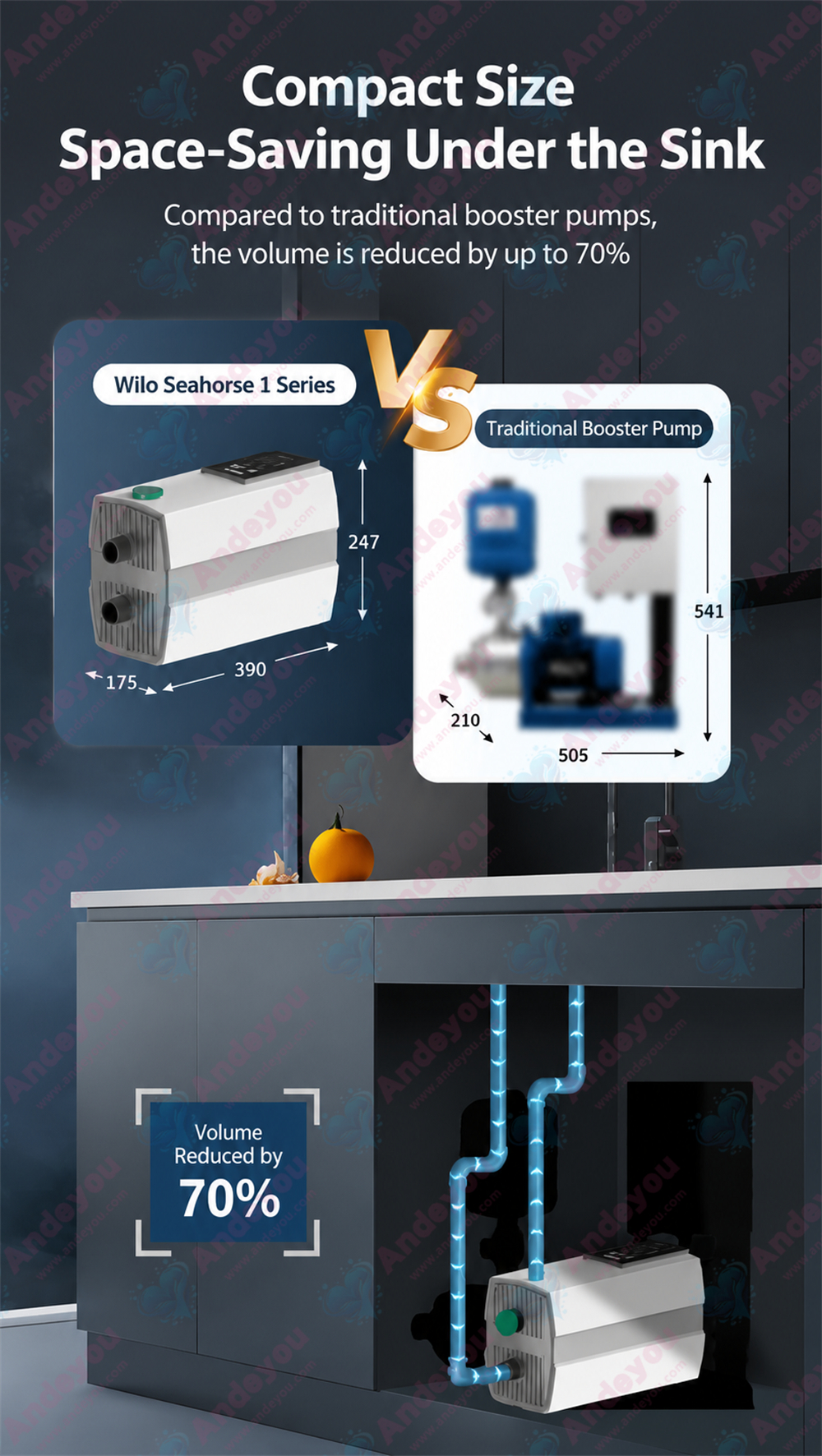

Compact, modern design that integrates seamlessly into the customer's environment
Equipped with an LCD display and push-buttons for convenient operation
Smart control; quiet, noise-free operation
Integrated variable frequency drive ensures comfortable constant-pressure control and smooth starting
On-demand supply; low power consumption
Comprehensive integrated protection functions for safe operation
Applications
Water supply systems
Irrigation systems
Rainwater harvesting
Raw water extraction
Equipment/Features
Permanent magnet synchronous motor
Thermal protection
Built-in variable speed control
Integrated protection functions (dry-running, overpressure and over-temperature detection, overcurrent, overvoltage, and undervoltage)
Model Code
|
Example |

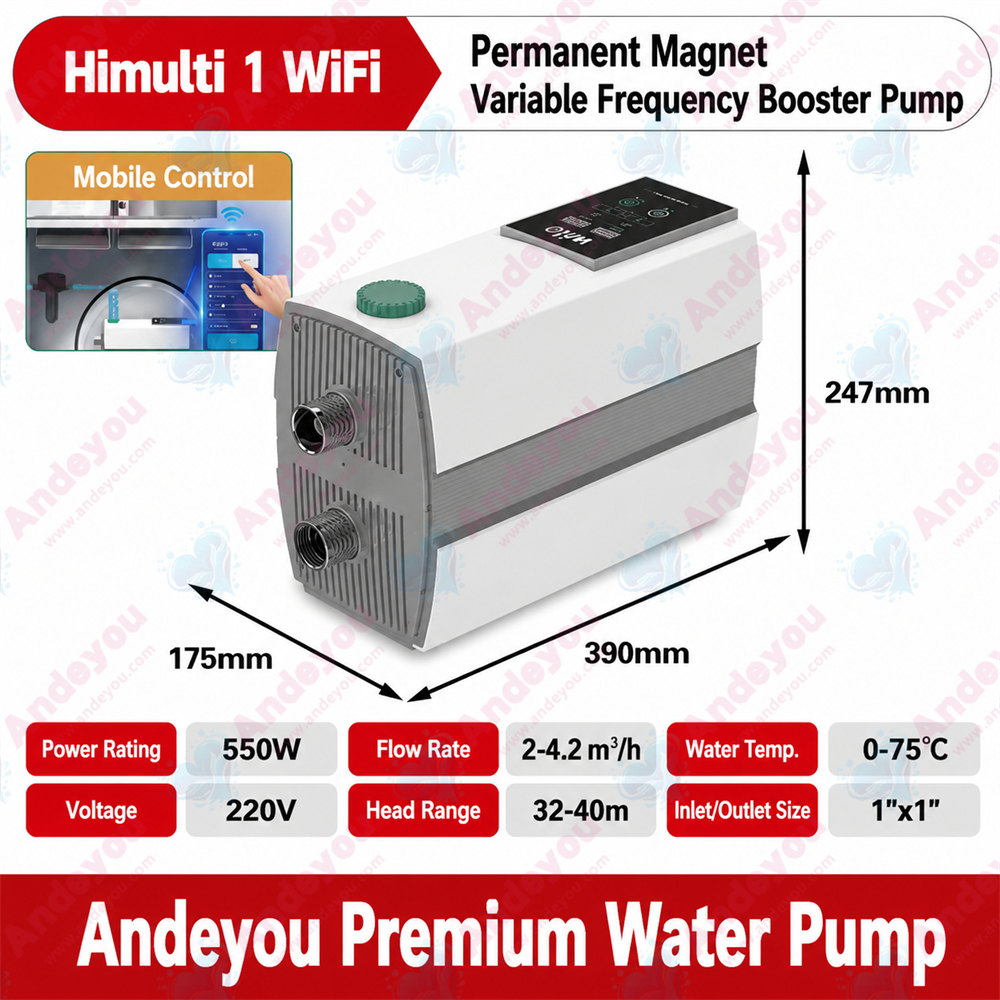

Wilo HiMulti 1 2-42 |
|
HiMulti |
Product Name |
|
1 |
Series Name |
|
2-42 |
model |

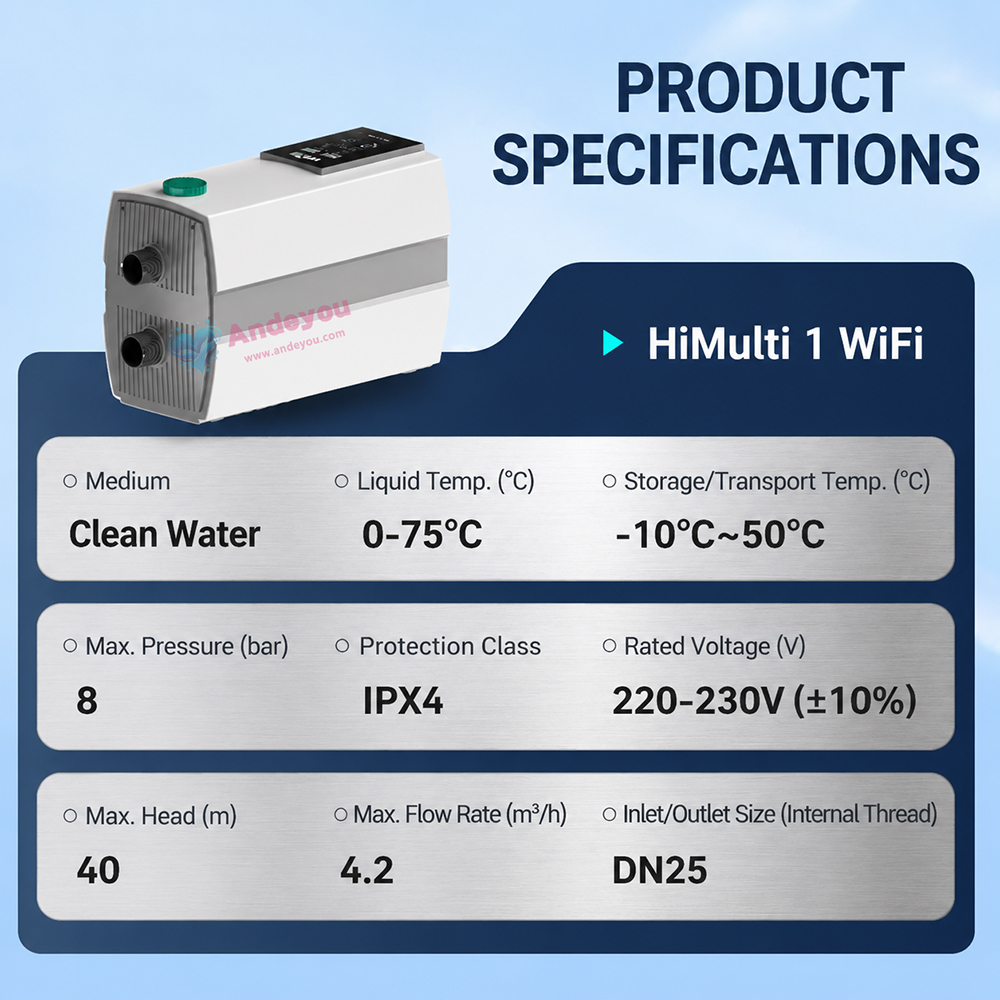

Technical Data
Power connection: 1~220 V, 50 Hz
Permissible fluid temperature: +5°C to +75°C
Permissible ambient temperature: 0°C to +40°C
Max. permissible operating pressure: 8 bar
Protection class: IPX4
Suction-side connection: G 1"
Discharge-side connection: G 1"
Factory-supplied items
Pump
Installation and operating instructions
Installation connectors
Tools for simplified installation
