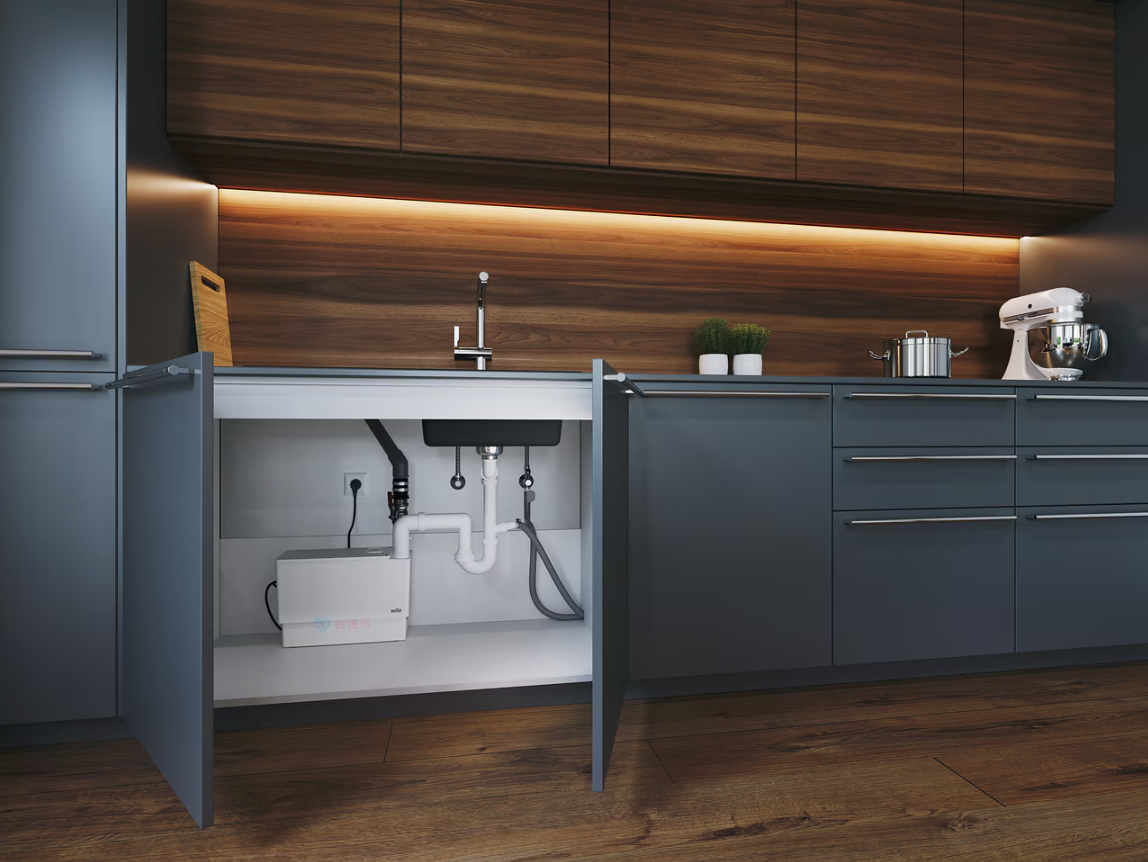

A space-saving, ready-to-use lifting system for single-room wastewater disposal, capable of handling wastewater from toilets, showers, dishwashers, washing machines, and basement kitchens.

The Wilo-DrainLift MINI3 series lifting systems provide reliable domestic wastewater handling. They are the ideal choice when gravity drainage is not possible. Depending on the model size, up to three inlets can be connected to handle wastewater from washbasins, showers, bathtubs, washing machines, or dishwashers. The compact design allows for integration into any pre-wall installation. Additionally, the system ensures quiet and discreet drainage. Models designed for toilets feature a sewage pump equipped with a rotating cutter for reliable and safe waste processing.

Features/Product Advantages

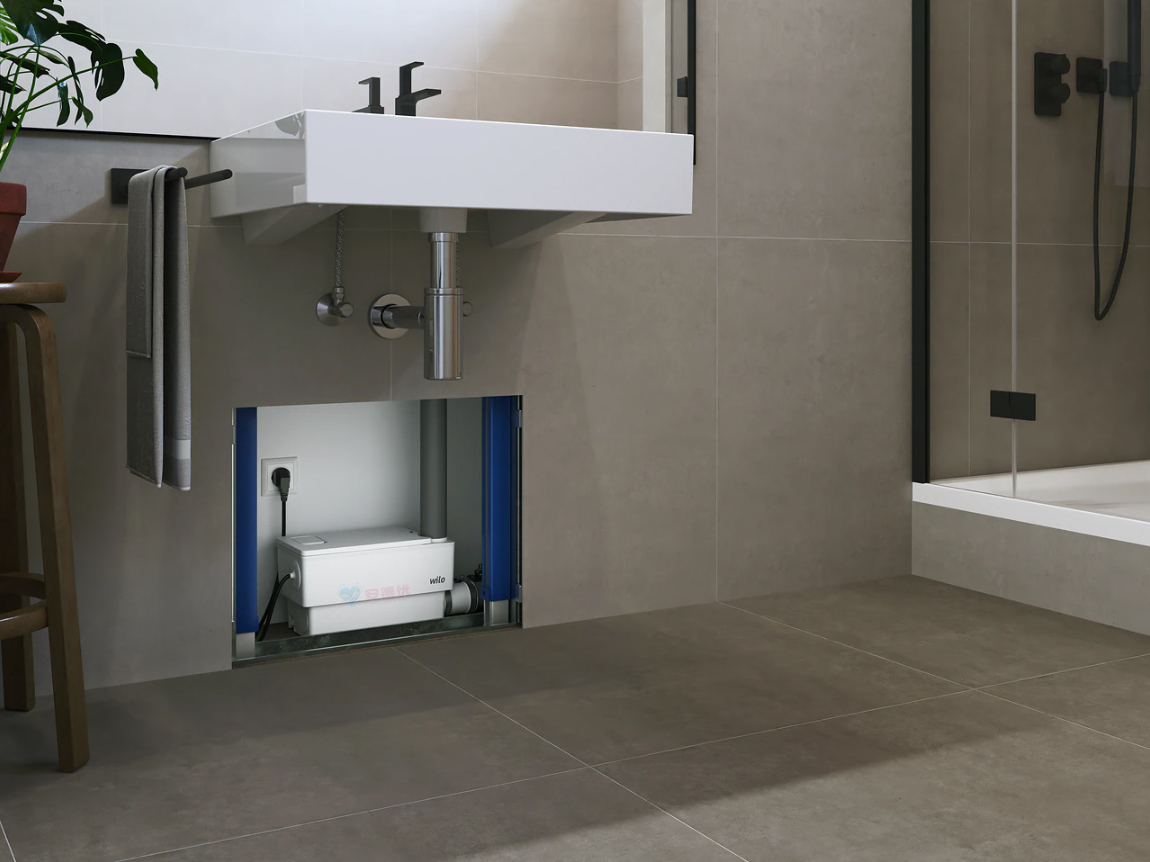

Compact, plug-and-play lifting system suitable for pre-wall installation
Attractive housing design that blends seamlessly into modern living environments
Includes toilet connection: Clog-free pump with rotating cutter ensures high operational reliability
Versatile connection options for flexible installation, especially when replacing older models using existing piping
Integrated level control with sediment flushing function
Silent mode reduces noise emissions when piping conditions are suboptimal
Very quiet operation allows for discreet drainage

Construction

Compact, ready-to-connect lifting system for draining washbasins, showers, bathtubs, and toilets.

Applications

For indoor or pre-wall installation. For connecting the following fixtures:

DrainLift MINI3-XXS

Washbasin
Shower

DrainLift MINI3-XS

Washbasin
Shower
Bathtub
Dishwasher
Washing machine

DrainLift MINI3-XS/WC

Toilet
Washbasin
Shower

Fluids

DrainLift MINI3-XXS

Collection and pumping within domestic areas:

Wastewater without fecal matter

Wastewater pumping in accordance with the 12050 standard

Wastewater lifting system compliant with EN 12050-2 requirements.

DrainLift MINI3-XS

Collection and pumping in domestic settings:

Wastewater without faeces

Wastewater pumping in accordance with the 12050 standard

Wastewater lifting unit compliant with EN 12050-2 requirements.

DrainLift MINI3-XS/WC

Collection and pumping in domestic settings:

Wastewater containing faeces

Wastewater pumping in accordance with the 12050 standard

Wastewater lifting unit compliant with EN 12050-3 requirements.

Equipment/Functions

Plug & Pump
Level detection via vertical float switch
Vertical discharge connection
Up to three inlets
"WC" version with toilet connection
Ventilation unit with activated carbon filter
"Silent mode" operation (DrainLift MINI3-XS only)
Low-level suction

Type code

Technical data

Mains connection: 1~230 V, 50 Hz
Operating mode: S3 15%
Fluid temperature: 3 ... 40 °C (37 ... 104 °F); max. 75 °C (167 °F) for 5 minutes
Max. ambient temperature: 3 ... 40 °C (37 ... 104 °F)
Protection class: IP68 (3 mWC/48 h)

Type

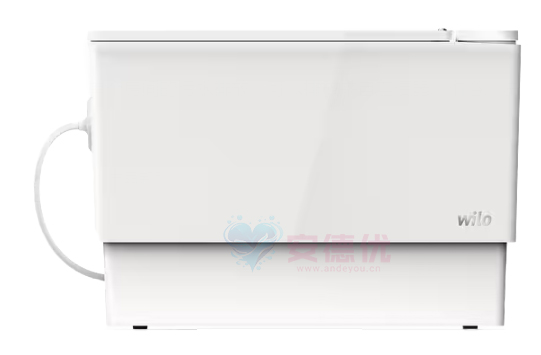

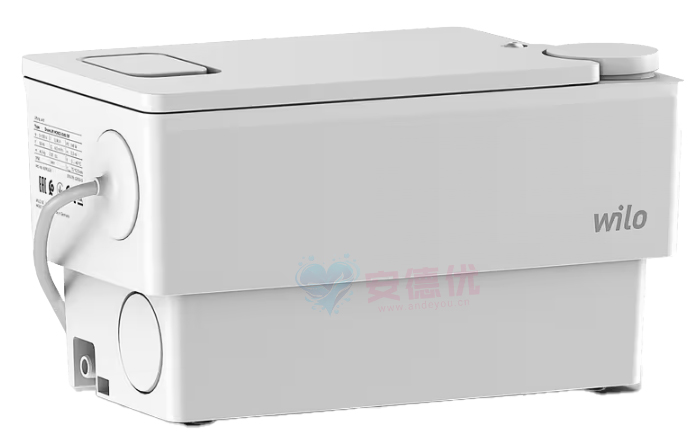

Wilo-DrainLift MINI3-XXS

Compact, ready-to-connect submersible lifting unit with submersible pump. Liquid level detection is achieved via a vertical float switch. The venting unit is integrated into the cover and equipped with an activated carbon filter.

Up to four connections available:

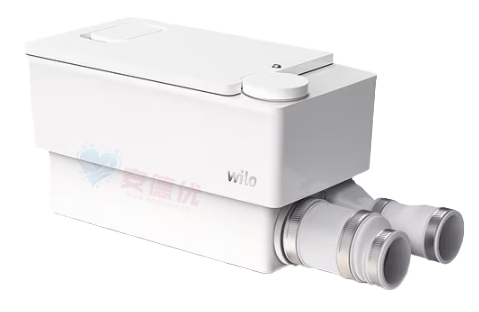

1× 40 mm (DN 40) inlet, without non-return valve, facing upwards, factory-sealed.
2× 40/50 mm (DN 40/50) inlets, with non-return valves, horizontal (left and right), factory-opened.
1× 32 mm (DN 32) discharge connection, with non-return valve, horizontal (right), factory-opened.

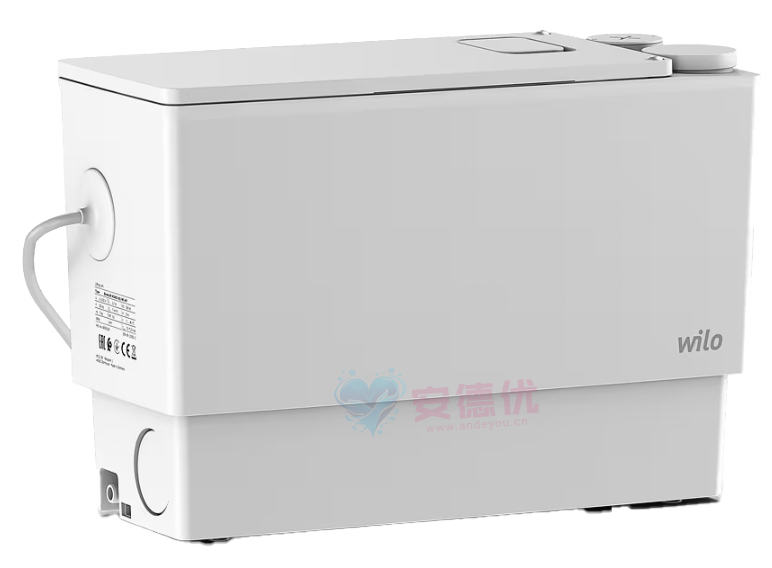

Wilo-DrainLift MINI3-XS

Compact, ready-to-connect submersible lifting system featuring a submersible pump. Liquid level detection is achieved via a vertical float switch. The venting unit is integrated into the cover and equipped with an activated carbon filter.

Up to four connections available:

1× 40 mm (DN 40) inlet, without non-return valve, facing upwards, factory-sealed.
2× 40/50 mm (DN 40/50) inlets, with non-return valves, horizontal (left and right), factory-opened.

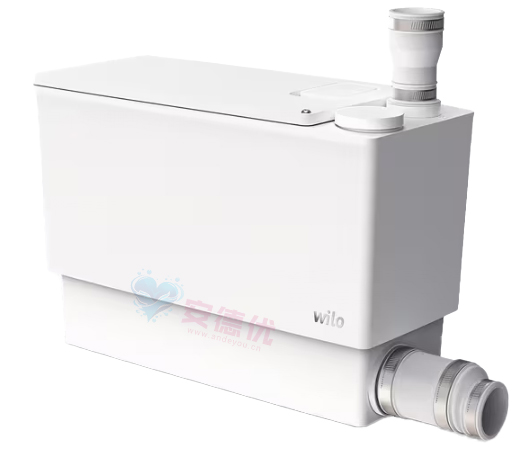

1× 32/40 mm (DN 32/40) discharge connection, with non-return valve, facing upwards, factory-opened.

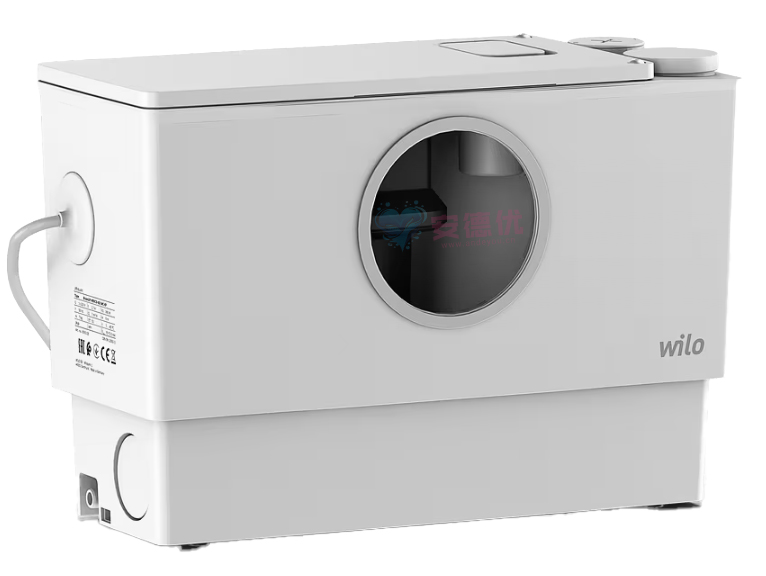

Wilo-DrainLift MINI3-XS/WC

Compact, ready-to-connect submersible lifting system featuring a submersible pump. The submersible pump is equipped with a rotating cutter. The cutter reliably shreds faecal matter in the sewage. Liquid level detection is achieved via a vertical float switch. The venting unit is integrated into the cover and equipped with an activated carbon filter.

Up to five connections available:

1× 40 mm (DN 40) inlet, without non-return valve, facing upwards, factory-sealed. 2× 40/50 mm (DN 40/50) inlets with non-return valves; horizontal (left and right); open at delivery.

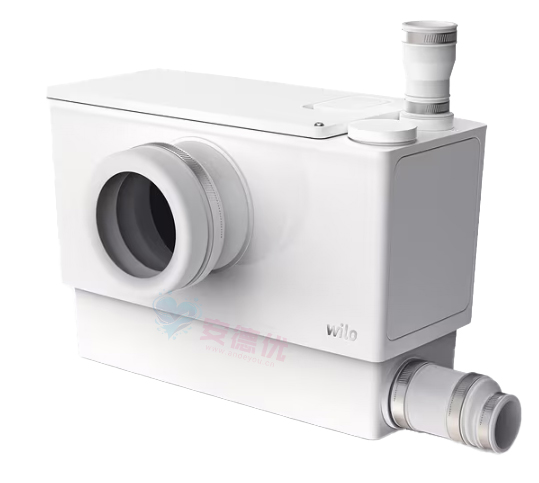

1× 110 mm (DN 110) WC connection; facing forward; open at delivery. If required, the WC connection can be configured to face horizontally to the right; the corresponding opening is closed at delivery.
1× 32/40 mm (DN 32/40) pressure connection with non-return valve; facing upwards; open at delivery.

As-delivered state

Pressure connection

DrainLift MINI3-XXS:
1× Collar for DN 32 (32 mm) HT pipe
2× 32–50 mm hose clamps
DrainLift MINI3-XS:
1× Collar for DN 32/40 (32/40 mm) HT pipe
2× 32–50 mm hose clamps

WC connection (only for "WC" models)

1× Collar for DN 110 (110 mm) HT pipe
1× Clamping ring
1× 110–130 mm hose clamp

Inlet connections

2× DN 50 (50 mm) inlet ports
2× Collars for DN 40/50 (40/50 mm) HT pipes
2× Non-return valves
2× 50–70 mm pipe clamps
2× 32–50 mm hose clamps
2× Sealing plugs
6× O-rings

Overview

Floor mounting kit (anti-buoyancy measure): 2× Mounting brackets with screws and anchors
Installation and operating instructions
