A convenient lifting system with alarm contacts for single-room wastewater disposal; capable of handling wastewater from toilets, showers, dishwashers, and washing machines, as well as condensate from condensing boilers located below the backflow level.

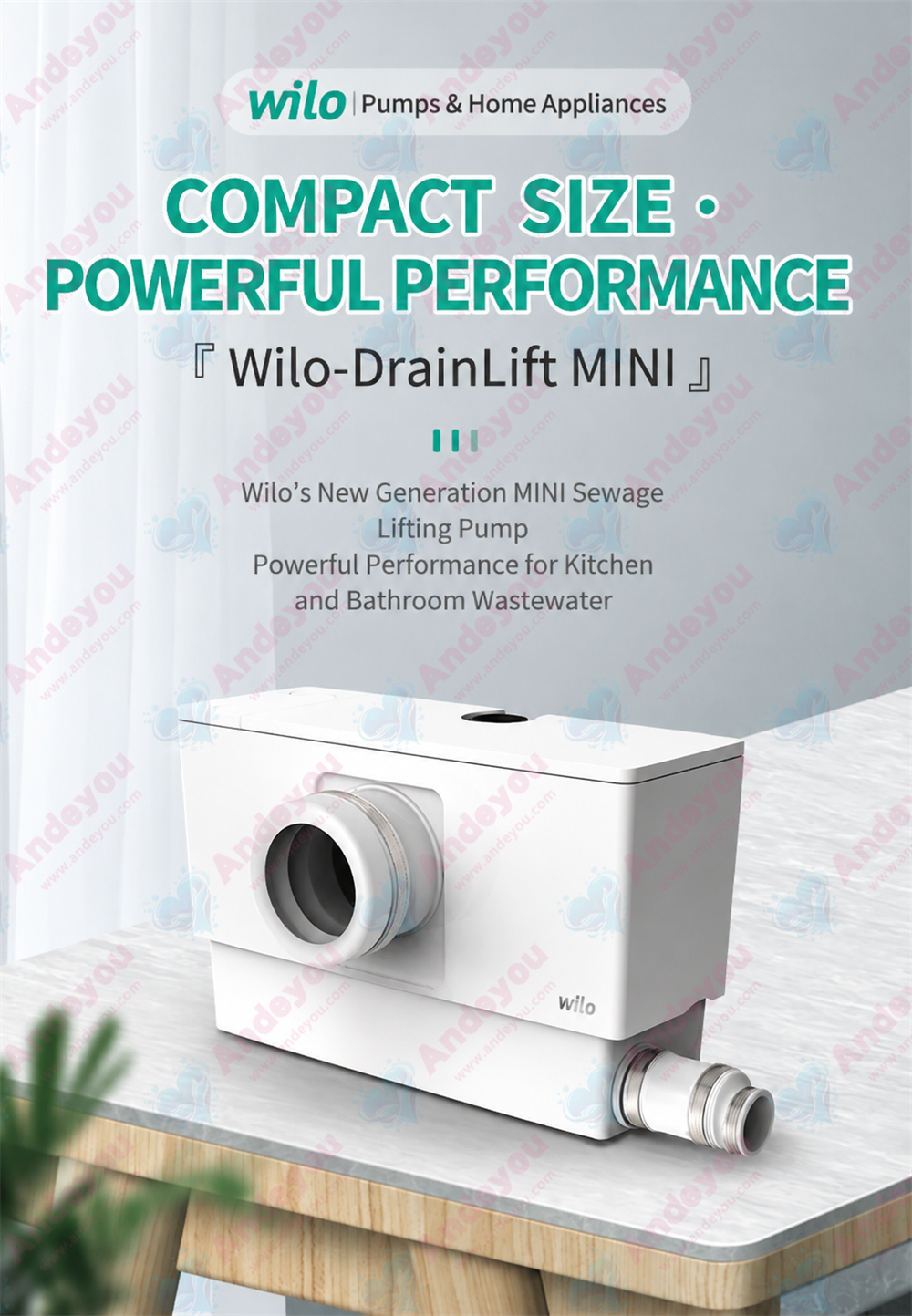

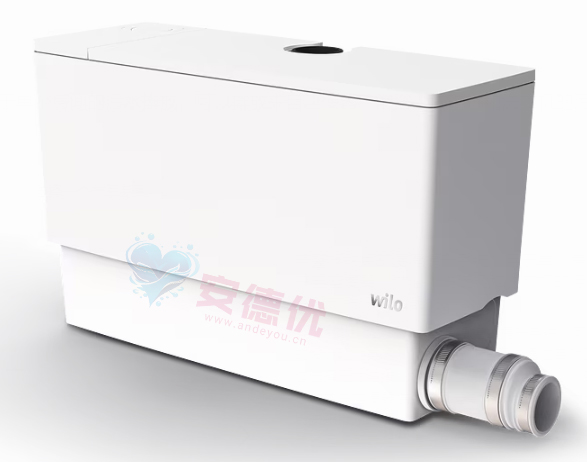

The Wilo-DrainLift MINI5 is a convenient lifting system designed for the safe handling of domestic wastewater. Featuring a modern, aesthetic design and compact dimensions, this series is the ideal choice for situations where gravity drainage is not possible. The system offers customizable configuration options, including a choice of pressure connections (horizontal or vertical DN 32/40), multiple DN 40/50 inlets, and either side or central toilet connections. The pressure outlet eliminates the need for complex additional piping, making installation straightforward—particularly during modernization and renovation projects. To minimize the risk of clogging and ensure high operational reliability, the system is equipped with a sewage pump featuring a rotating cutter.

Features/Product Advantages

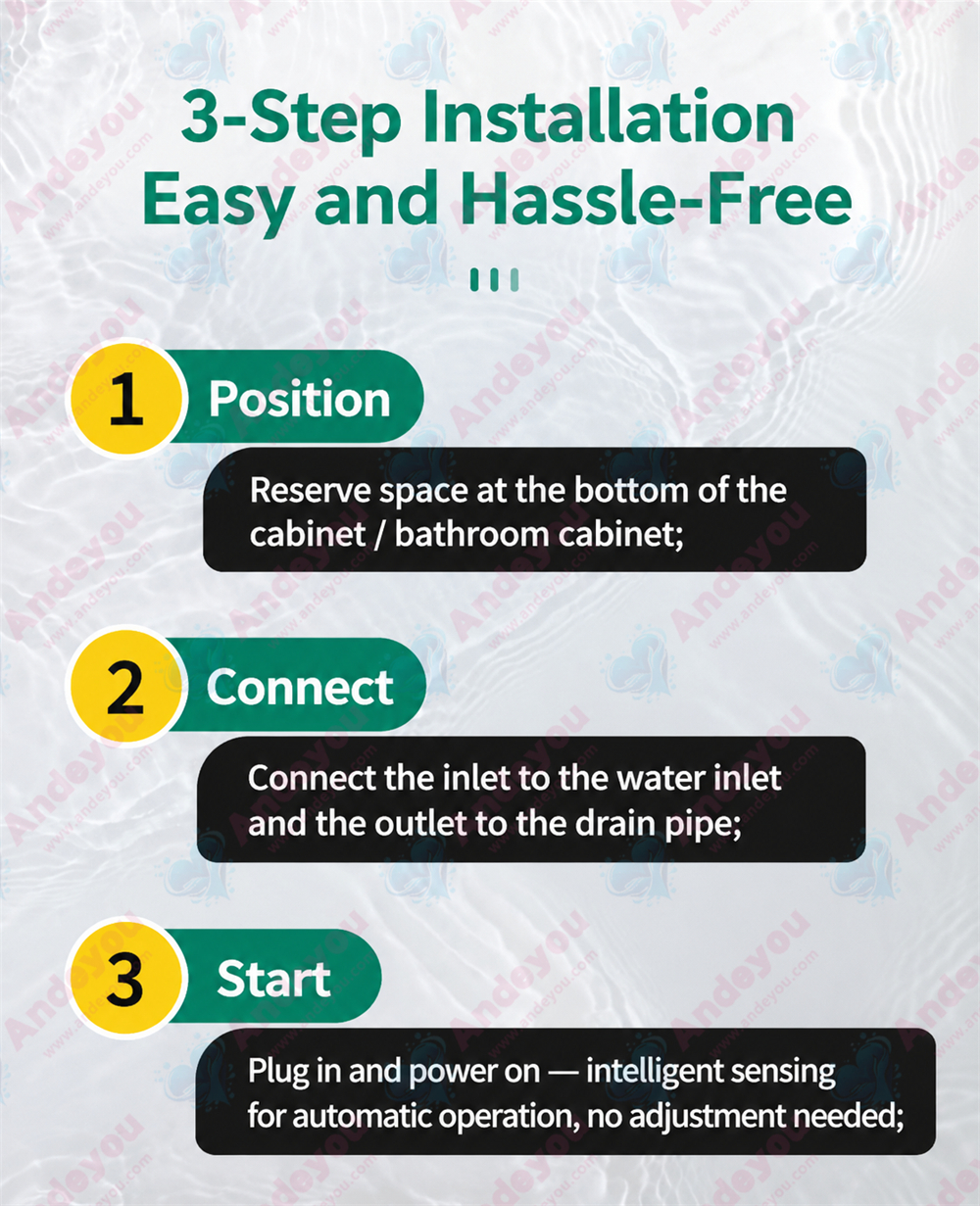

Compact, plug-and-play lifting system suitable for pre-wall installation
Aesthetic housing design that blends seamlessly into modern living environments

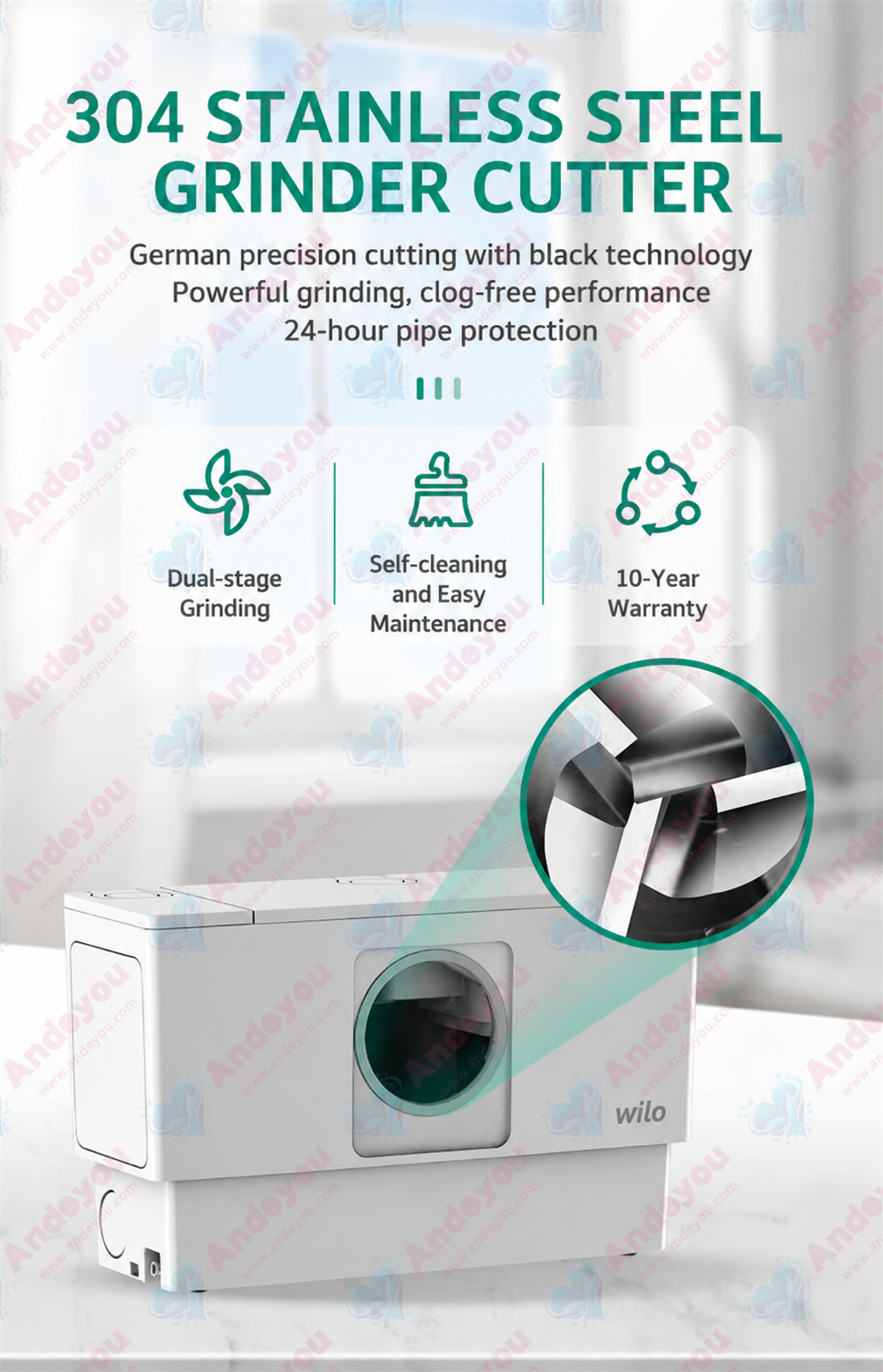

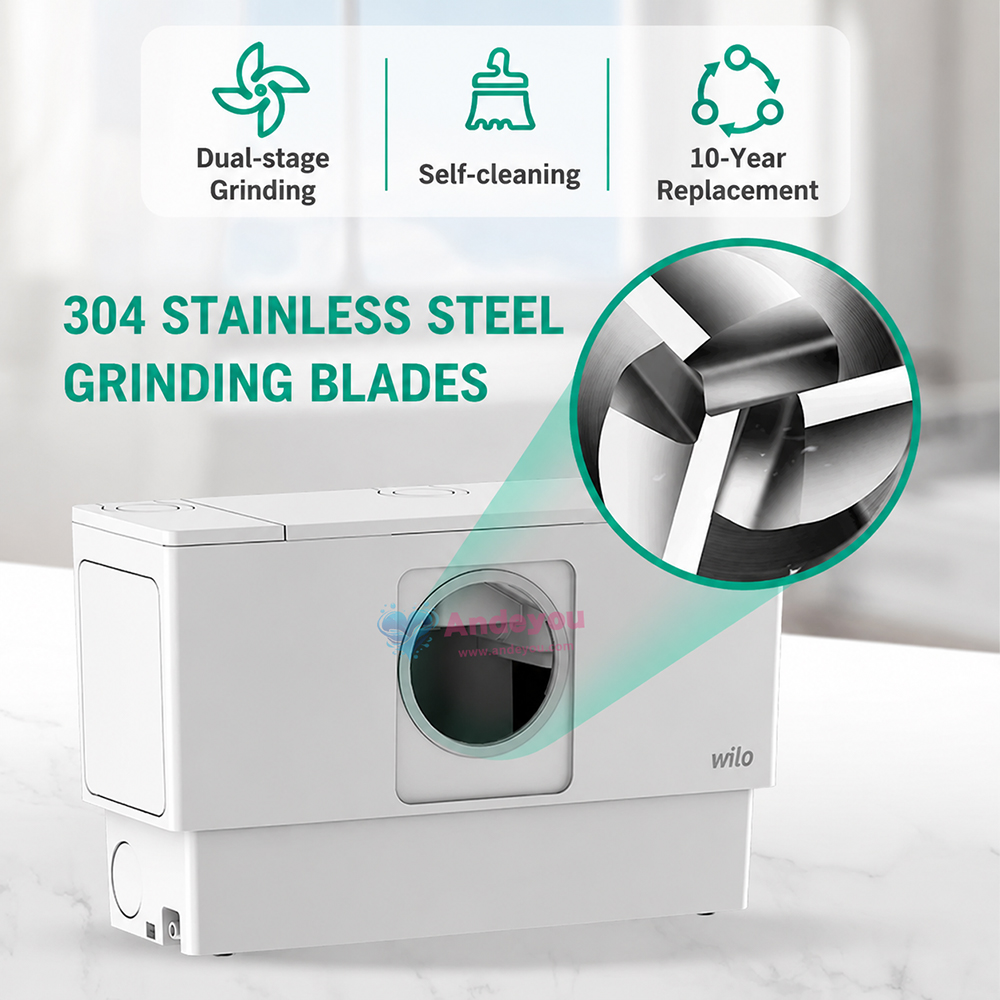

Includes toilet connection: Clog-resistant pump with rotating cutter ensures high operational reliability
Versatile connection options offer greater installation flexibility, especially when replacing older models using existing piping
Integrated level control system with sediment flushing function
Silent mode reduces noise emissions in suboptimal piping conditions
Built-in potential-free contact allows connection to external alarm signals or Smart Home systems for high-water-level alerts

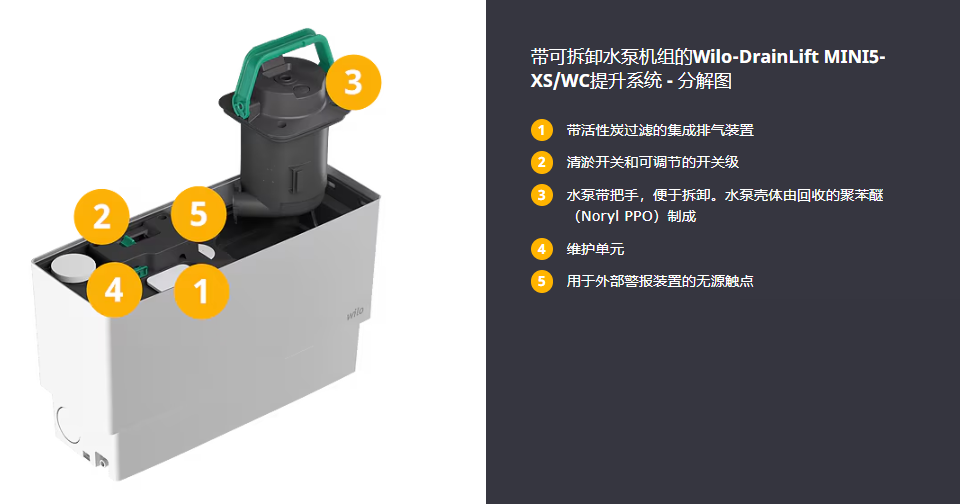

Innovative design provides convenient, hygienic access to the pump and level control unit
Corrosion-resistant plastic construction suitable for pumping condensate from heat generators and water softening systems (as part of a mixed wastewater stream)

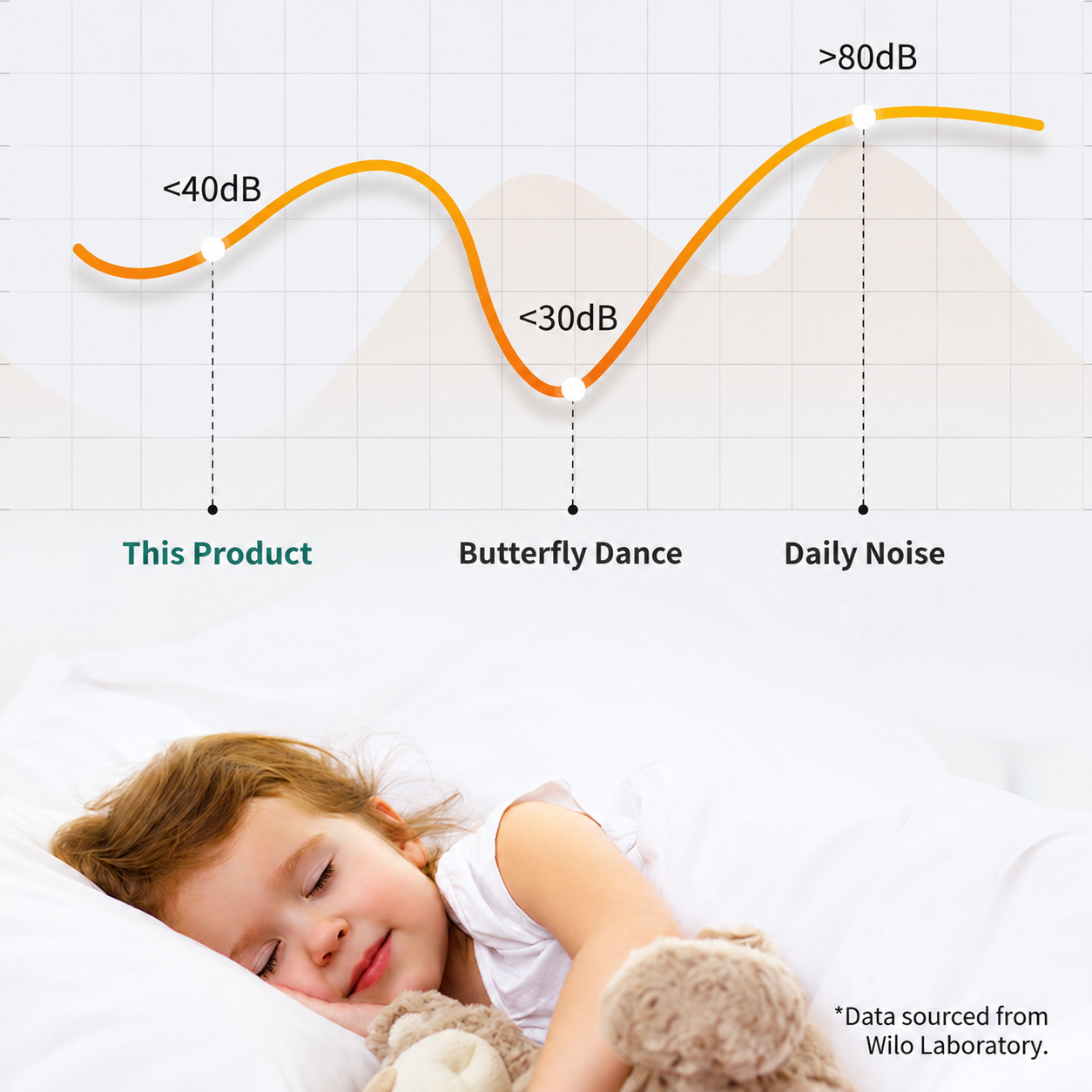

Very quiet operation enables discreet drainage

Construction

Compact, plug-and-play lifting system with alarm contacts for draining washbasins, showers, bathtubs, toilets, and condensing boilers.

Applications

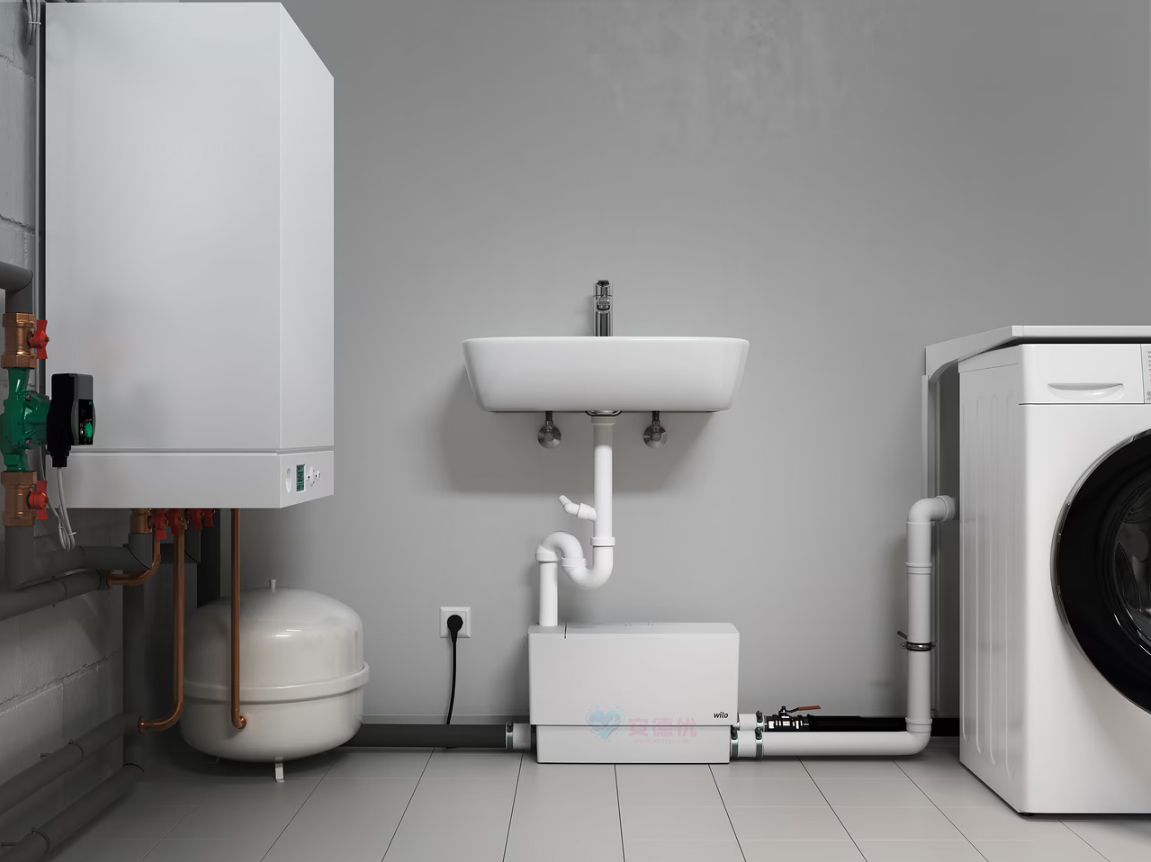

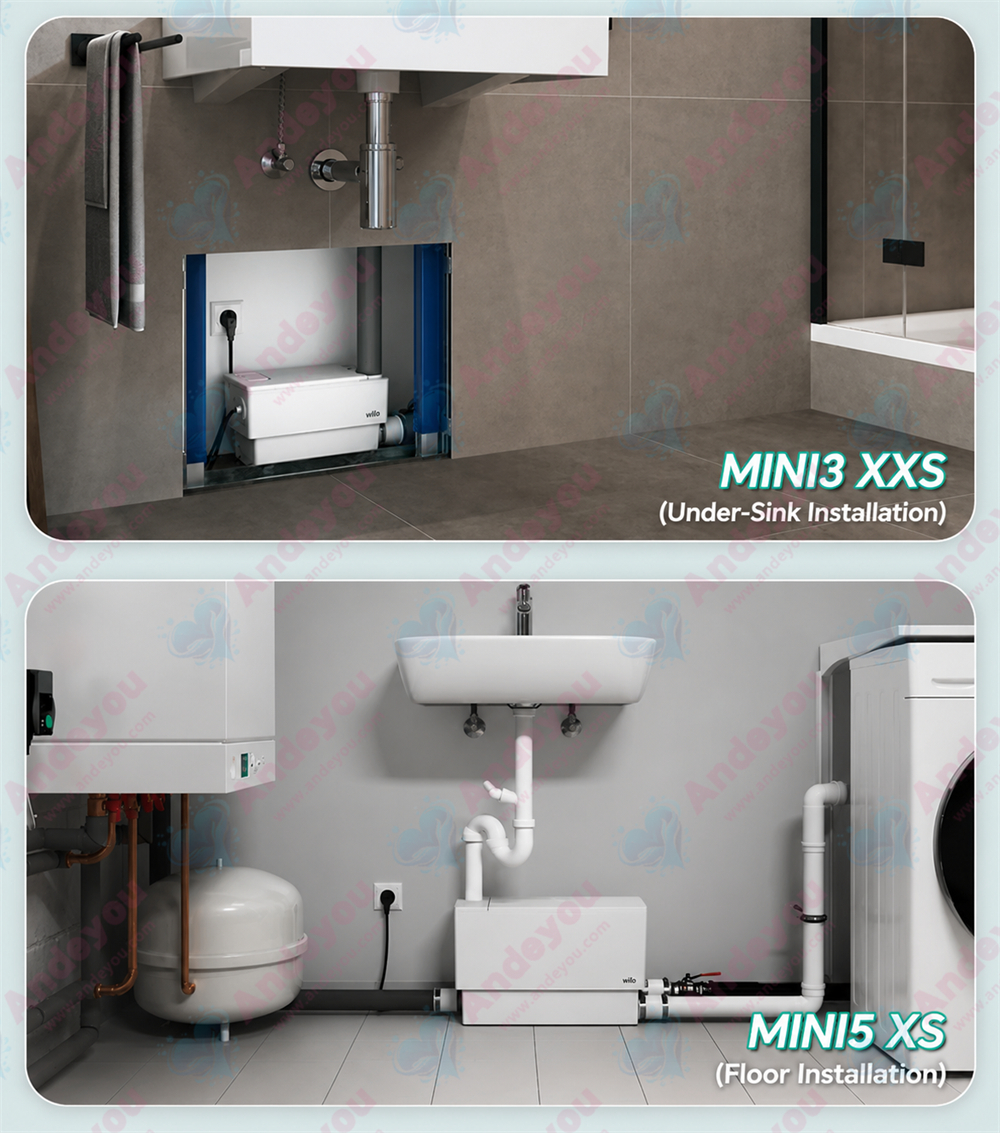

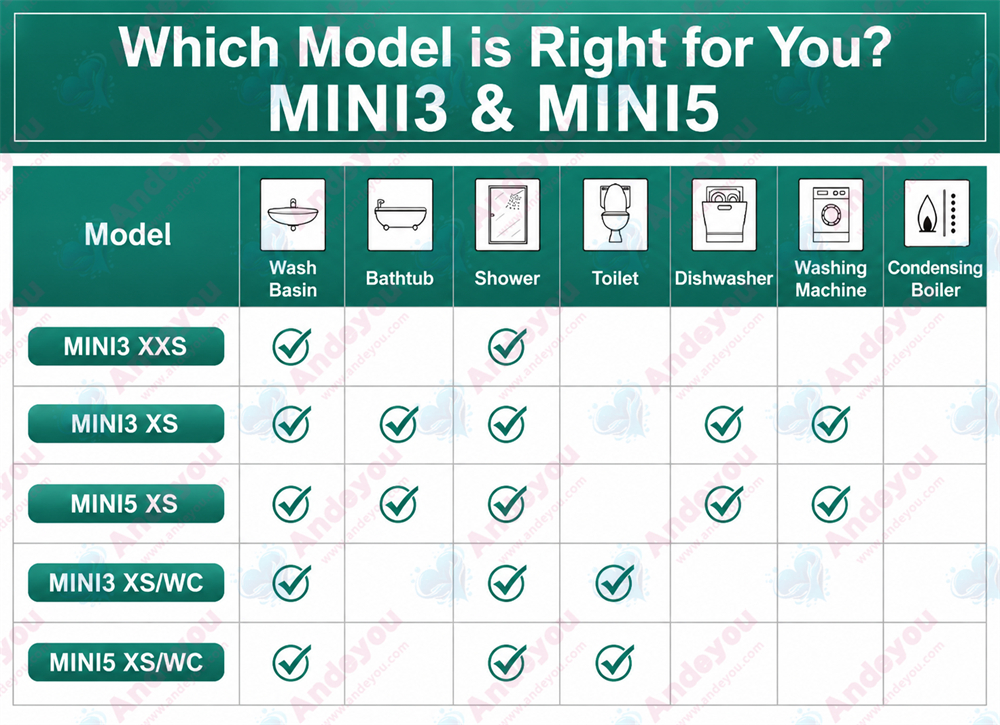

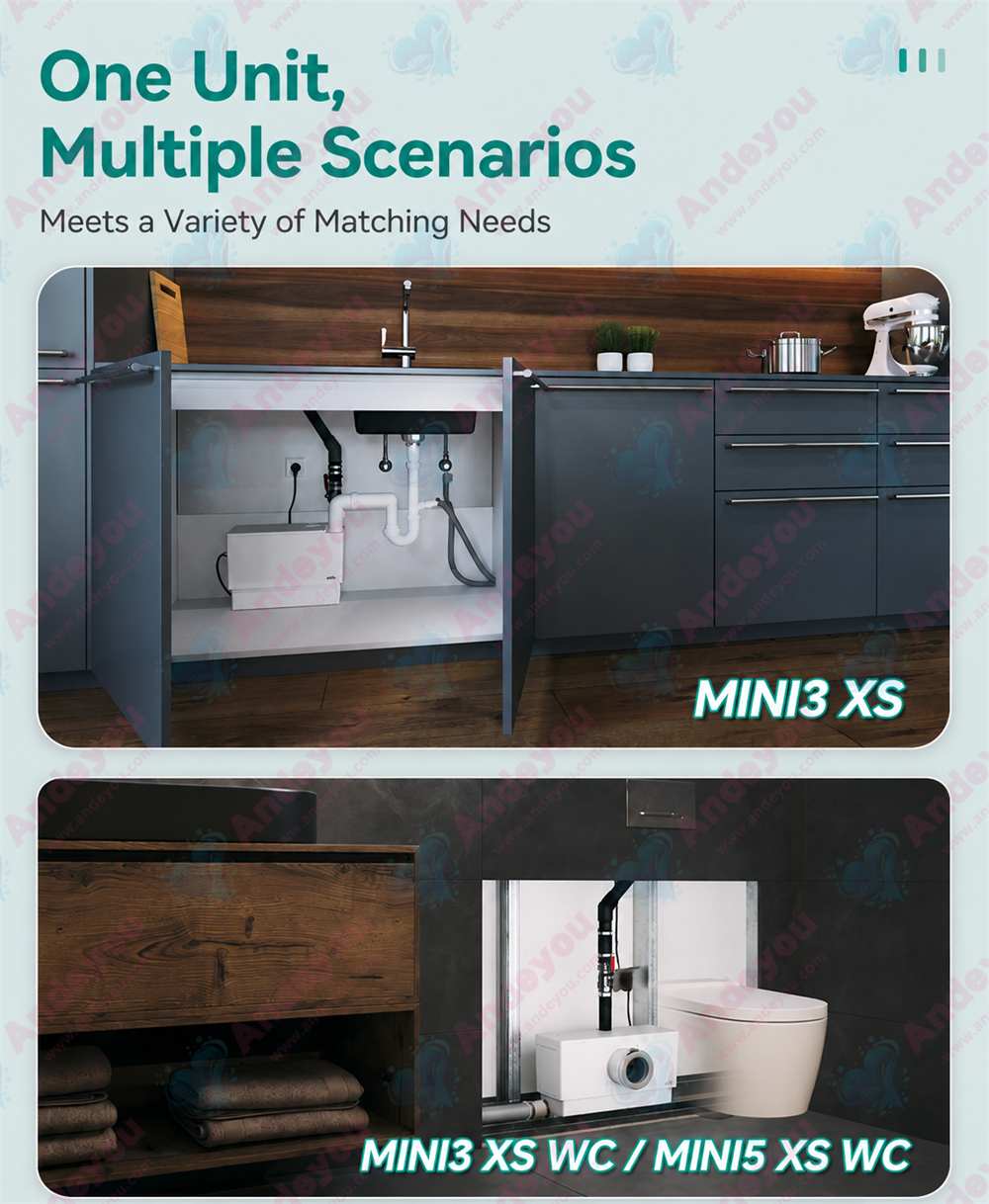

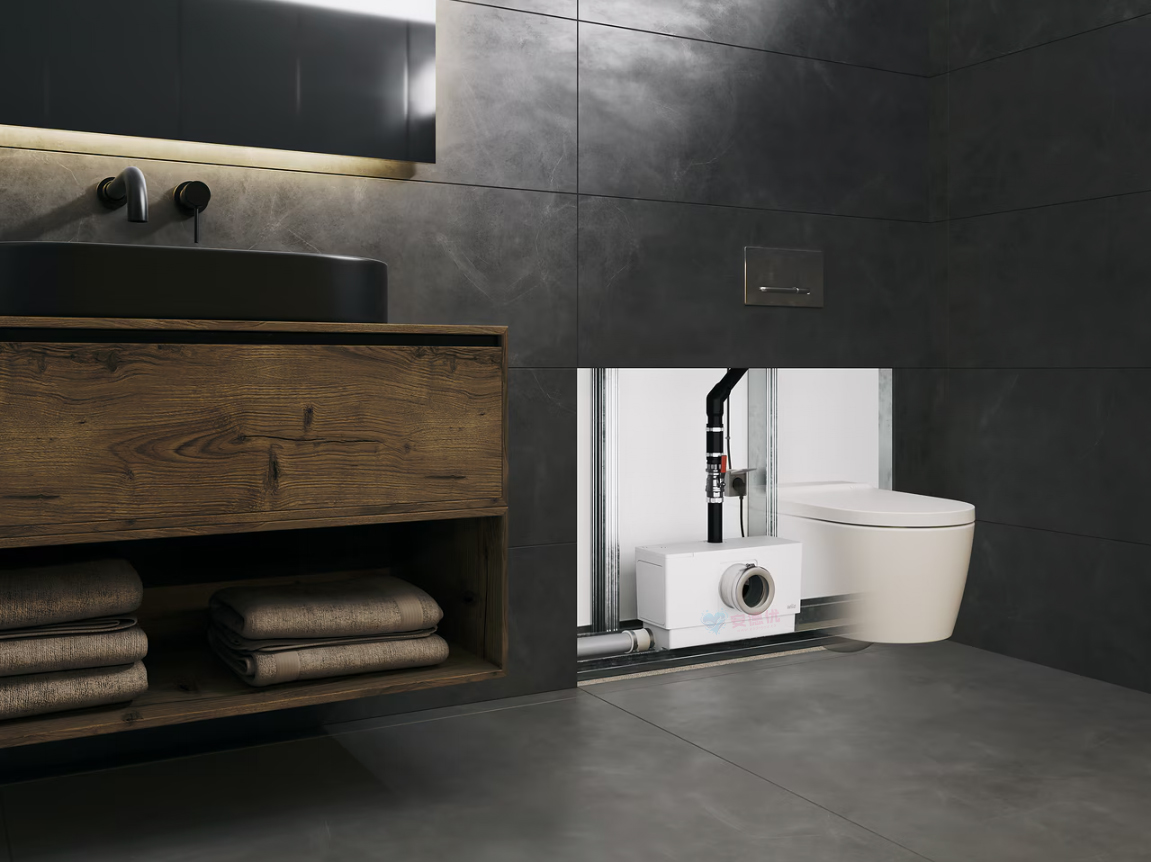

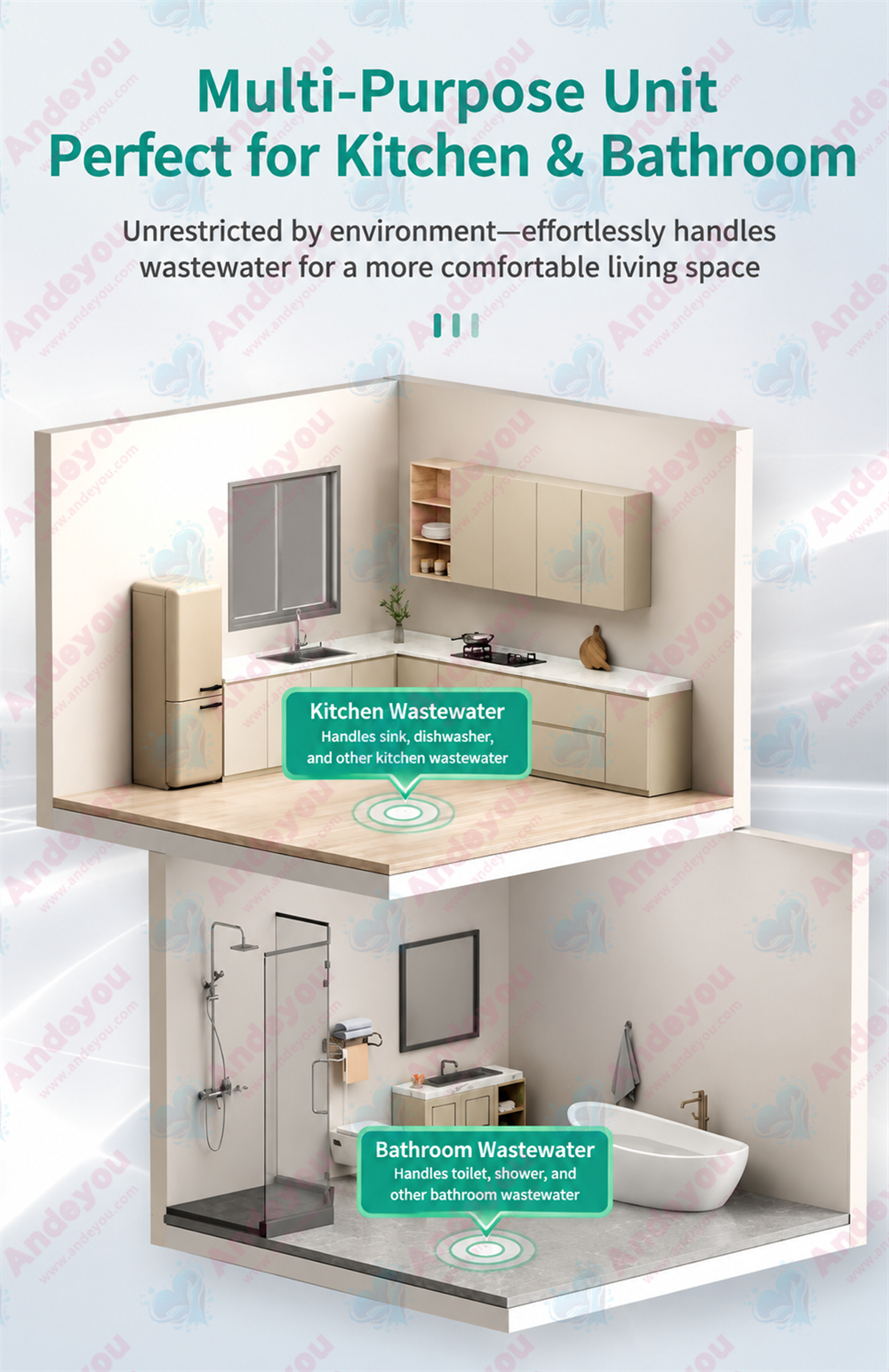

Designed for indoor or pre-wall installation. For connection to the following drainage fixtures:

DrainLift MINI5-XS/C

Washbasin
Shower
Bathtub
Dishwasher
Washing machine
Condensing boiler

DrainLift MINI5-XS/WC

Toilet
Washbasin
Shower

liquid

DrainLift MINI5-XS/C

Collection and pumping within domestic premises:

Fecal-free wastewater
Condensate (pH value 2.5 or higher) – not pure water; must be mixed with wastewater from another inlet.

Wastewater pumping in accordance with the 12050 standard

Wastewater lifting system complies with EN 12050-2 requirements.

DrainLift MINI5-XS/WC

Collection and pumping within domestic premises:

Wastewater containing feces

Wastewater pumping in accordance with the 12050 standard

Wastewater lifting system complies with EN 12050-3 requirements.

Equipment/Functions

Plug-and-play
Level detection via sensors
Vertical discharge connection; convertible to horizontal discharge connection. Up to three inlets
"WC" version, with toilet connection
Ventilation unit with activated carbon filter
"Silent mode" operation (DrainLift MINI5-XS/C only)
Low-level suction
Alarm unit (buzzer) with potential-free contact

Model code

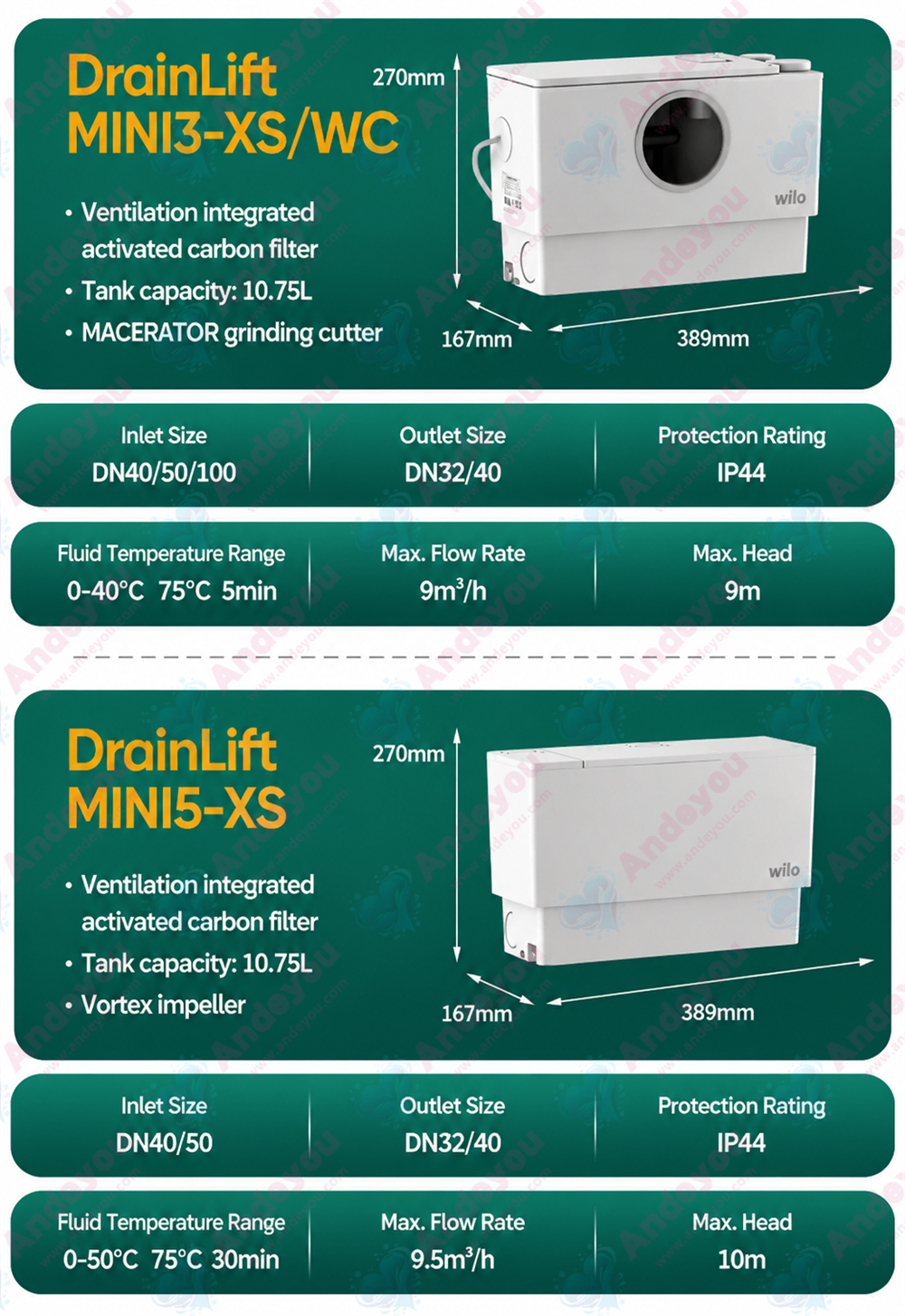

Technical data

Mains connection: 1~230 V, 50 Hz
Operating mode: S3 15%
Fluid temperature: 3 ... 50 °C (37 ... 122 °F); up to 75 °C (167 °F) for 30 minutes
Max. ambient temperature: 3 ... 40 °C (37 ... 104 °F)
Protection class: IP44

Type

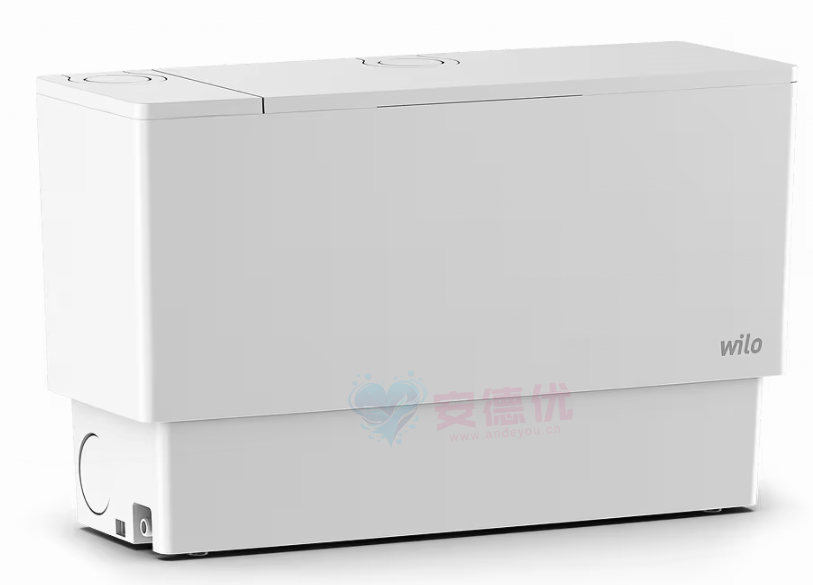

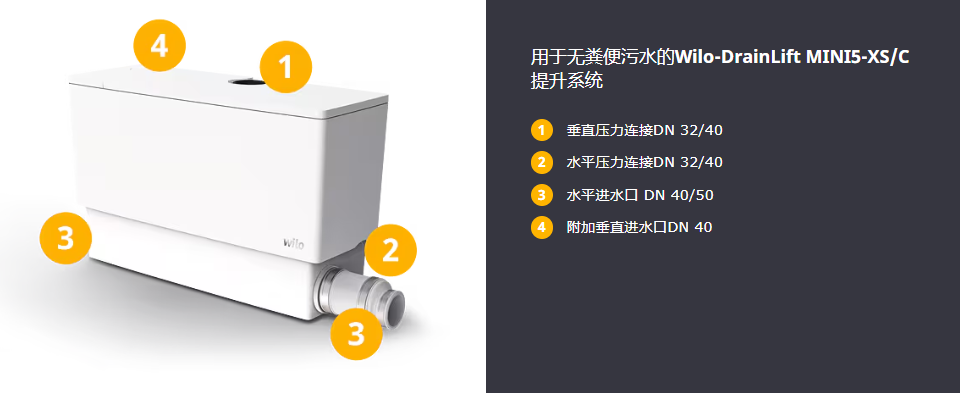

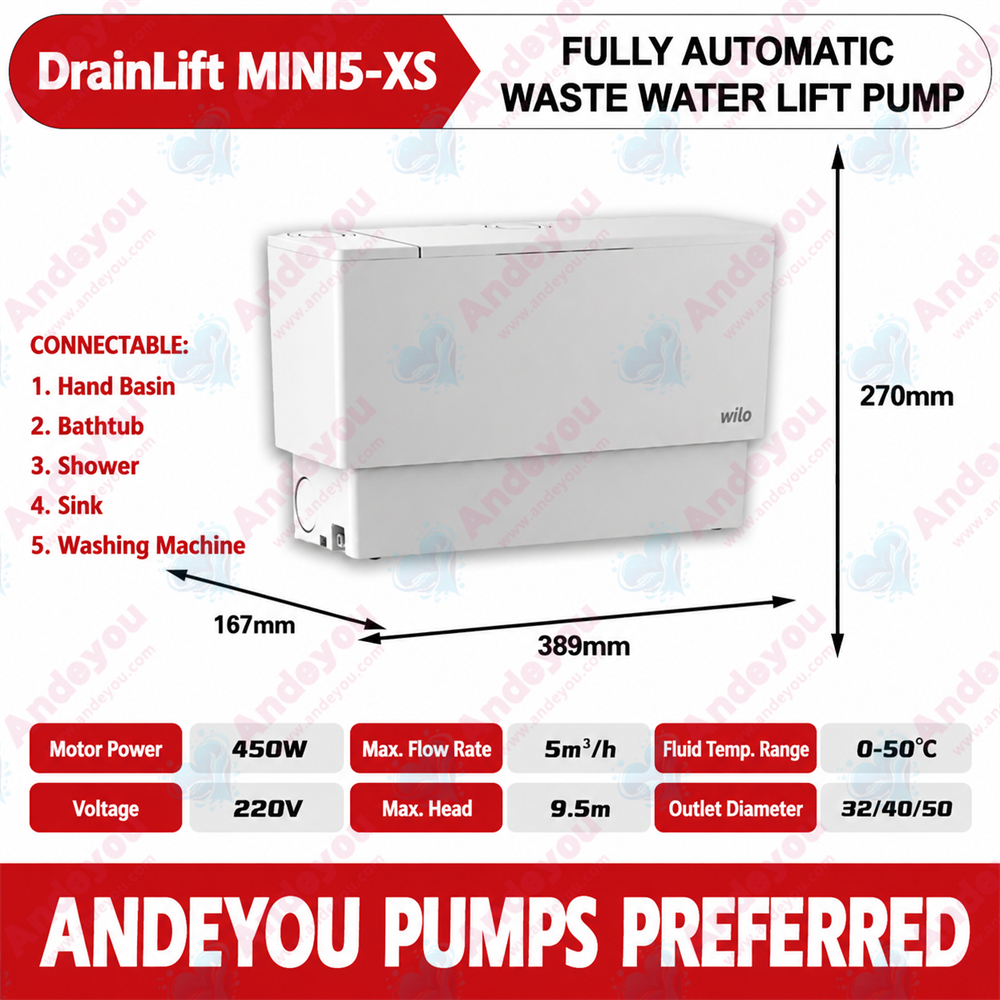

Wilo-DrainLift MINI5-XS/C

Compact, ready-to-connect lifting system equipped with a submersible pump. Level detection via level sensor. Ventilation unit integrated into the inner cover, equipped with an activated carbon filter. In addition, the lifting system is equipped with a buzzer and a potential-free alarm contact (max. switching capacity: 42 V DC, 500 mA; contact type: NC/normally closed). If a high water level occurs in the collection tank, the buzzer emits an audible alarm. An external alarm device can also be connected via the potential-free contact. The collection tank cover completely seals the system.

Up to four connections are available:

1× 40 mm (DN 40) inlet, without non-return valve, facing upwards, sealed at the factory.
2× 40/50 mm (DN 40/50) inlets, with non-return valves, horizontal (left and right), open at the factory.
1× 32/40 mm (DN 32/40) discharge connection, with non-return valve, facing upwards, open at the factory. If required, the discharge connection can be positioned horizontally to the right; the corresponding opening is sealed at the factory.

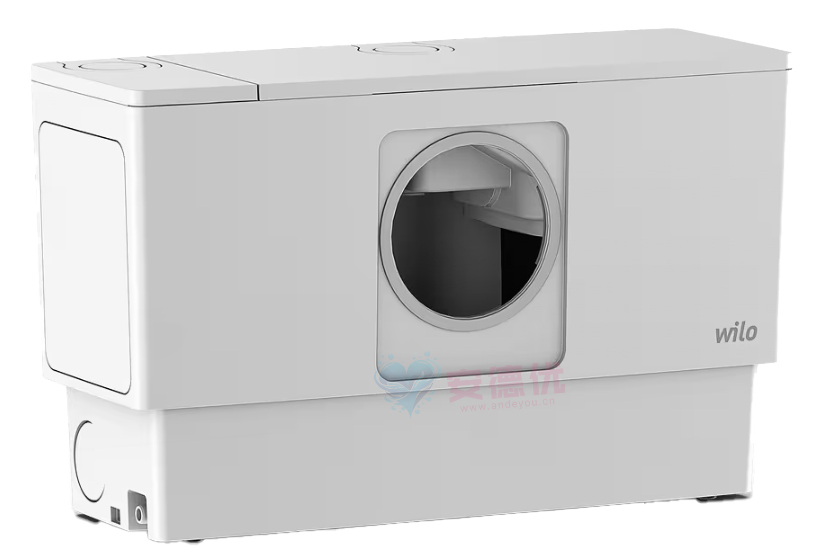

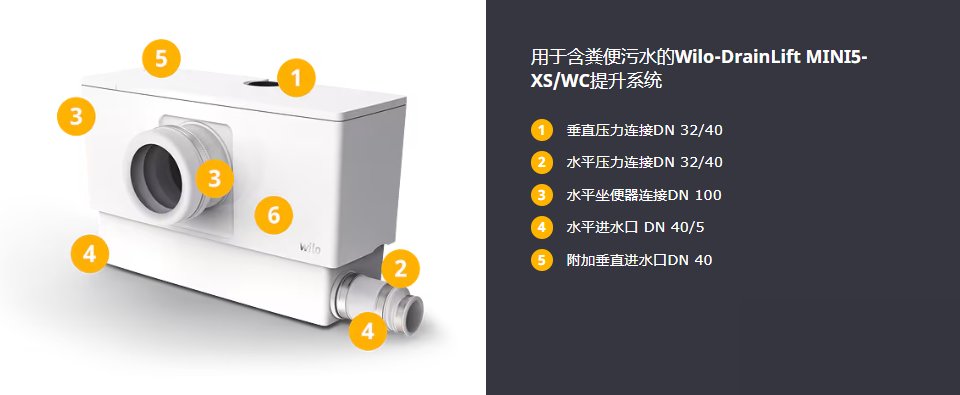

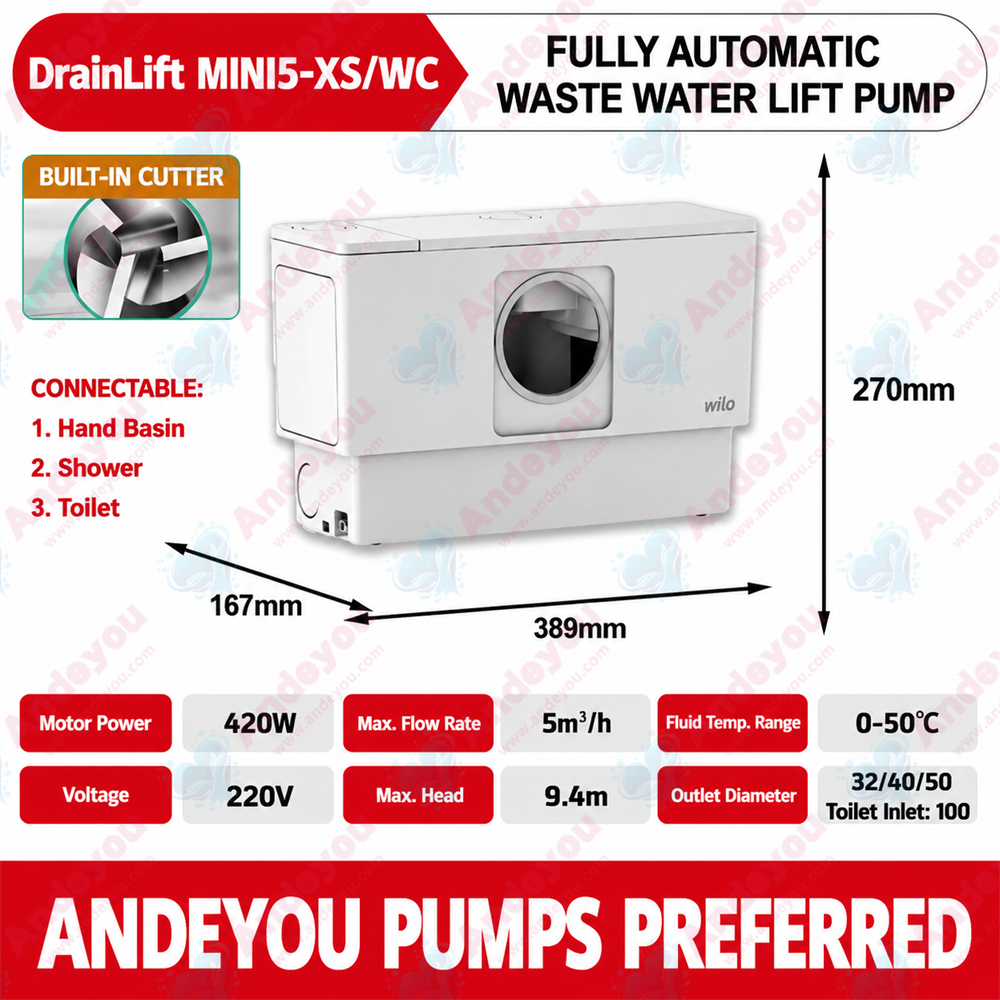

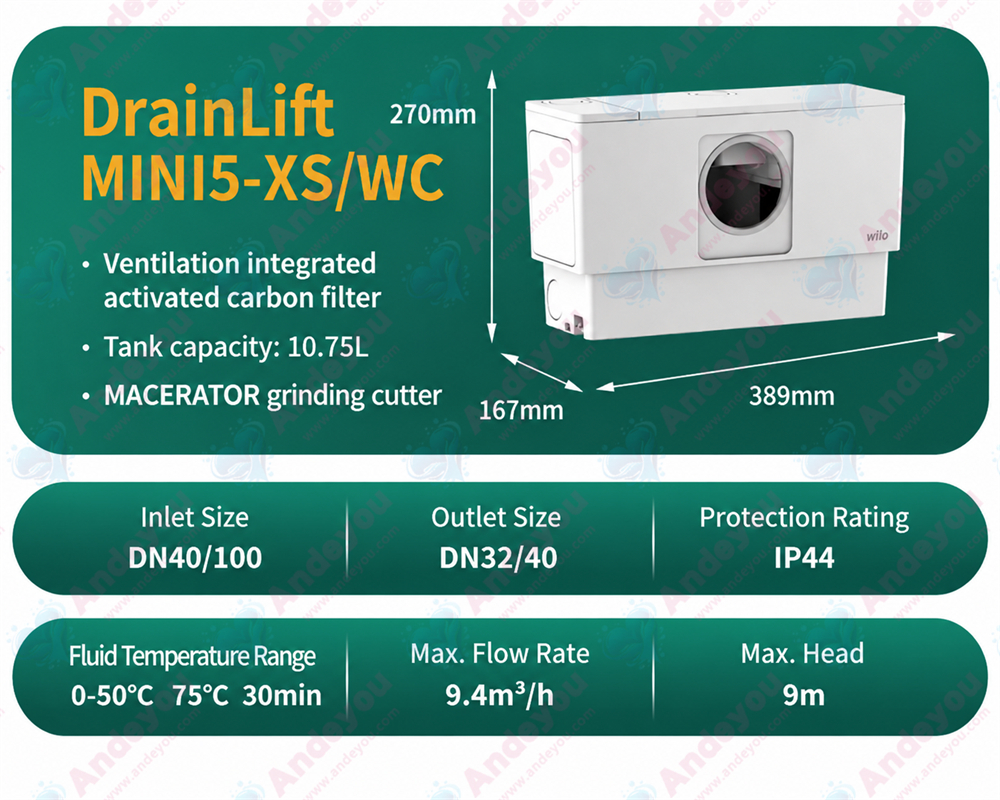

Wilo-DrainLift MINI5-XS/WC

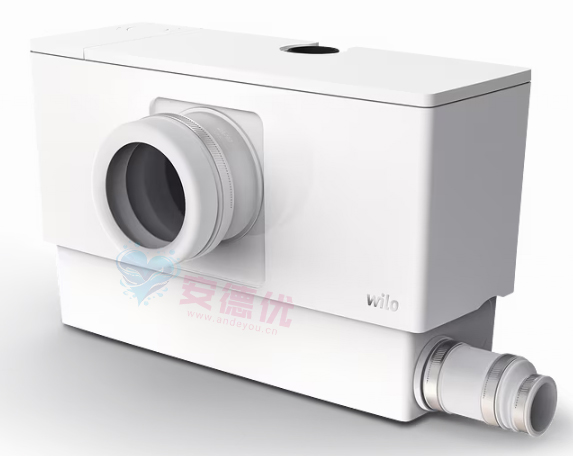

Compact, ready-to-connect submersible lifting system featuring a submersible pump. The submersible pump is equipped with a rotating cutter. The cutter reliably shreds faecal matter in the sewage. Level detection is achieved via a level sensor. The venting unit is integrated into the cover and includes an activated carbon filter. In addition, the lifting system is equipped with a buzzer and a potential-free alarm contact (max. switching capacity: 42 V DC, 500 mA; contact type: NC/normally closed). If a high water level occurs in the collection tank, the buzzer emits an audible alarm. An external alarm device can also be connected via the potential-free contact. The collection tank cover completely seals the system.

Up to five connections are available:

1× 40 mm (DN 40) inlet, without non-return valve, facing upwards, sealed at the factory.
2× 40/50 mm (DN 40/50) inlets with non-return valves; horizontal (left and right) orientation; open at delivery.
1× 110 mm (DN 110) WC connection; forward orientation; open at delivery. Can be configured for horizontal left orientation if required (corresponding opening is closed at delivery).
1× 32/40 mm (DN 32/40) discharge connection with non-return valve; upward orientation; open at delivery. Can be configured for horizontal right orientation if required (corresponding opening is closed at delivery).

As-delivered state

Discharge connection

1× Collar for DN 32/40 (32/40 mm) HT pipe
2× 32–50 mm hose clamps

WC connection ("WC" model only)

1× Collar for DN 110 (110 mm) HT pipe
1× Clamping ring
1× 110–130 mm hose clamp

Inlet connections

2× DN 50 (50 mm) inlet ports
2× Collars for DN 40/50 (40/50 mm) HT pipe
2× Non-return valves
2× 50–70 mm pipe clamps
2× 32–50 mm hose clamps
2× Sealing plugs
6× O-rings

Overview

Floor mounting kit (anti-buoyancy measure): 2× Mounting brackets with screws and anchors
Emergency drainage kit (drain hose, hose clamp, sealing plug)
Vertical discharge connection kit
Installation and operating instructions
