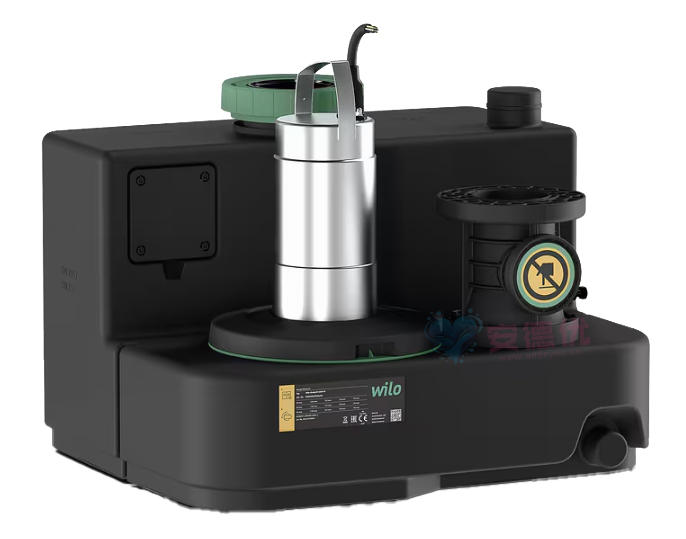

Large single-pump lifting system for single- and two-family homes.
With its large tank volume and motor modes suitable for both continuous and intermittent operation, the Wilo-DrainLift SANI-M single-pump sewage lifting system is an ideal, quiet-running solution for single- and two-family homes handling untreated sewage. It offers flexible application and easy installation, featuring a 44 mm or 65 mm solids passage, freely selectable inlets, and optional versions for aggressive media. A spring-loaded non-return valve minimizes noise levels at the end of each pump cycle. The user-friendly design ensures particularly easy maintenance.

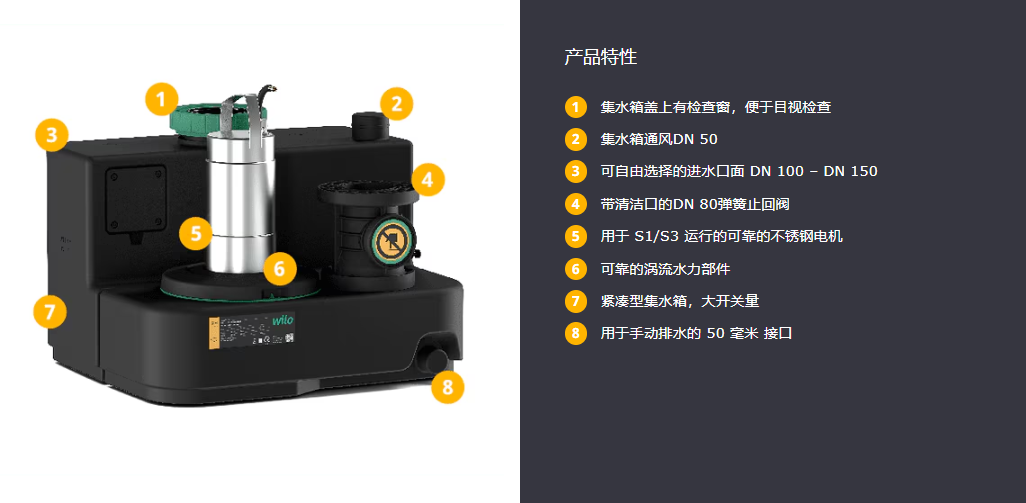

Features/Product Advantages
Compact design and low weight for simple installation and transport
Reliable operation thanks to high switching capacity, thermal motor protection, and a mains-independent alarm system
Corrosion-resistant design using industrial-grade plastics and stainless steel ensures high reliability
Freely selectable connections ensure maximum installation flexibility
Versatile application due to various models (44/65 mm solids passage), operating modes (continuous or intermittent), and versions for aggressive media
Easy maintenance and cleaning thanks to a transparent tank cover and a clean-out opening for the non-return valve
Quiet operation with low noise at the end of the pump cycle (spring-loaded non-return valve)
Eco-friendly attributes
Carefully selected materials ensure a long service life and reliable performance; use of recyclable plastics, some of which are even biodegradable
Modular design simplifies the product range and facilitates easy component replacement, extending product service life
Sustainable and carbon-neutral production and processes at our European plants
Construction
Ready-to-connect, submersible single-pump lifting system for pumping sewage containing faeces.
Applications
As a lifting system, it can be installed free-standing or against a wall within a building, or installed concealed on the floor within a pump chamber:
For situations where sewage cannot be discharged directly into the sewer system via gravity flow
For drainage when the discharge point is below the backflow level, ensuring protection against backflow
Liquids
Used for collecting and pumping the following media in industrial areas:
Sewage containing faeces
Sewage free of faeces
The "C" version is used for pumping the following corrosive liquids:
Boiler condensate
Seawater
Maximum sodium chloride content (brine): 30 g/l, at a maximum temperature of 20°C
Swimming pool water, maximum chlorine content: 400 mg/l
Slightly acidic wastewater with a pH > 3.5
Demineralized water / purified water
Sewage pumping in accordance with the 12050 standard
The lifting system complies with the DIN EN 12050-1 standard.
Equipment/Functions
Switchgear with mains-independent alarm and system fault signal
Plug-in type
Collection tank with inspection window and transparent cover
4–20 mA level sensor for level measurement
Non-return valve with inspection window
Motor thermal protection with bimetallic sensor
Type code
|
Example: |
DrainLift SANI-M.13/T540/4C-CEE |
|
DrainLift |
|
|
SANI |
Sewage lifting system |
|
M |
size |
|
13 |
Maximum head at Q = 0, in meters (m) |
|
T |
Power connection: M = 1~ |
|
540 |
Electrical specifications: 5 = 50 Hz |
|
4 |
Motor and switchgear specifications: 1 = Duty type: S3, Switchgear: Control MS-L |
|
C |
Specifications for corrosive media |
|
CEE |
Plugs: EF = Schuko plug (CEE 7/7) |
Technical data
Power connection: 1~230 V, 50 Hz; 3~400 V, 50 Hz
Duty type: S3 10%, S1
Medium temperature: 3 ... 40 °C (37 ... 104 °F); max. 65 °C (149 °F) for up to 5 minutes
Max. ambient temperature: 3 ... 40 °C (37 ... 104 °F)
Collection tank volume: 99 l (26 US liq. gal.)
Max. effective tank volume based on positive suction head: 50 l (13 US liq. gal.) (180 mm*) / 63 l (16.5 US liq. gal.) (250 mm*) / 74 l (19.5 US liq. gal.) (315 mm*)
Discharge connection: DN 80, PN 10
Inlet connection: DN/OD 110; DN/OD 160
Vent connection: DN/OD 75
Lifting system protection class: IP68 (2 mWC / 7 days)
Control unit protection class: IP54
Noise level: 70 dB(A)
Materials
Motor housing: 1.4404 (AISI 316L)
Hydraulic components: PP-GF30
Impeller: PP-GF30 or 1.4408 (AISI 316)
Collection tank: PE
Non-return valve: PPS
Type
Airtight, watertight collection tank:
Sloped tank bottom
Inspection window with transparent cover
Freely selectable inlet positions within the indicated area
Level measurement via 4–20 mA level sensor
Sewage pump:
Directly mounted on the collection tank
Motor with surface cooling (air-cooled) or self-cooling (surface vortex cooling) and motor overheat protection
Pressure connection with non-return valve and integrated inspection window
Pre-wired switchgear for automatic operation:
Wilo-Control MS-L
System fault signal via potential-free contact
Integrated mains-independent alarm
Adjustable overrun time
1.5 m connection cable with pre-assembled plug (version "O" without plug)
Wilo-Control EC-L
Operation via display and icon-based, alphanumeric menu
System fault signal via potential-free contact
Individual pump fault signal via potential-free contact
Modbus interface
Integrated mains-independent alarm
Adjustable overrun time
1.5 m connection cable with pre-assembled plug (version "O" without plug)
Scope of delivery
Lifting unit with switchgear and connection cable with plug (version "O" without plug!)
Flange adapter from DN 80, PN 10 to DN/OD 110
Flexible sleeve DN/OD 110 for discharge connection
Double socket DN/OD 75 HT for vent connection
Double socket DN/OD 50 HT for drainage connection
Includes 124 mm hole saw for DN/OD 110 Inlet connection kit for HT piping
Floor mounting kit
Sound insulation pad
9V battery
Installation and operating instructions
Options
Version for corrosive liquids, with Modbus interface
Version for S1 operation (continuous duty), with Modbus interface
