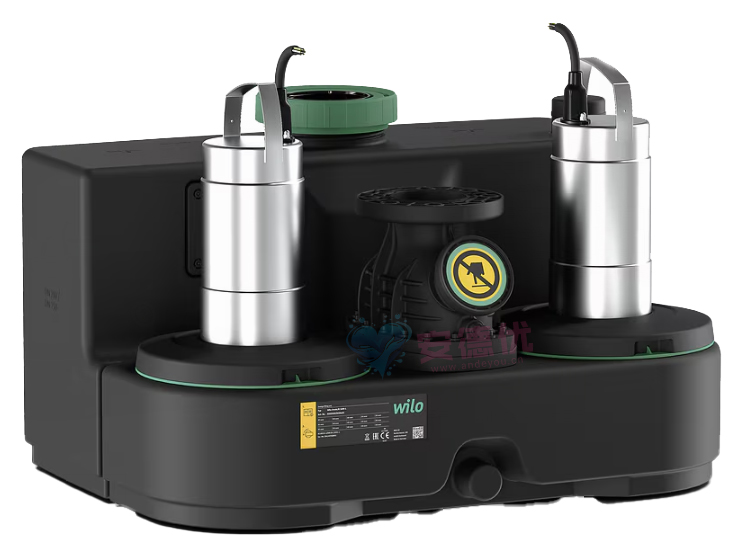

Compact dual-pump lifting system for multi-family residential and commercial buildings.

With its large tank volume and motor modes supporting both continuous and intermittent operation, the compact Wilo-DrainLift SANI-L dual sewage lifting system is an ideal, quiet-running solution for apartment complexes and commercial buildings handling untreated sewage. It offers flexible application and easy installation, featuring a choice of inlet positions, a solids passage of 44 mm or 65 mm, and optional specifications for handling particularly corrosive media. A spring-loaded non-return valve minimizes noise levels at the end of each pump cycle. The user-friendly design ensures particularly easy maintenance.

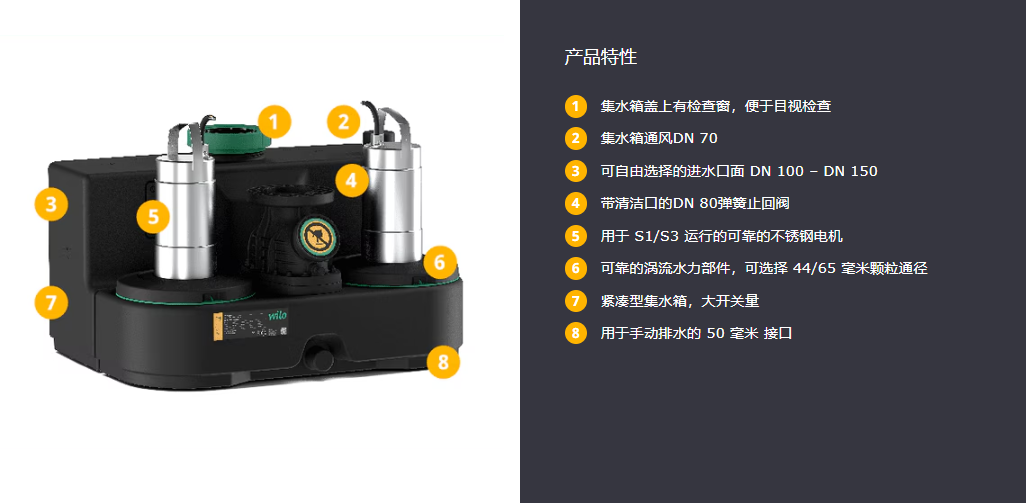

Features/Product Advantages

Compact design and low weight for simple installation and transport
High operational reliability thanks to a dual-pump system, high switching volume, thermal motor protection, and a mains-independent alarm system
Corrosion-resistant design utilizing industrial-grade plastics and stainless steel ensures high reliability
Flexible inlet selection ensures maximum installation versatility
Versatile application options: various models with two solids passage sizes (44/65 mm), continuous or intermittent operating modes, and specifications for corrosive media
Easy maintenance and cleaning thanks to a transparent tank cover and access ports for the non-return valves
Quiet operation with low noise levels at the end of the pump cycle due to spring-loaded non-return valves

Environmental Attributes

Carefully selected materials ensure a long service life and reliable performance; includes recyclable plastics, some of which are biodegradable
Modular design streamlines the product range and facilitates easy component replacement, extending the product's lifespan
Sustainable and carbon-neutral production processes at our European facilities

Construction

Compact, ready-to-connect, fully submersible dual-pump lifting system for pumping sewage containing faecal matter.

Applications

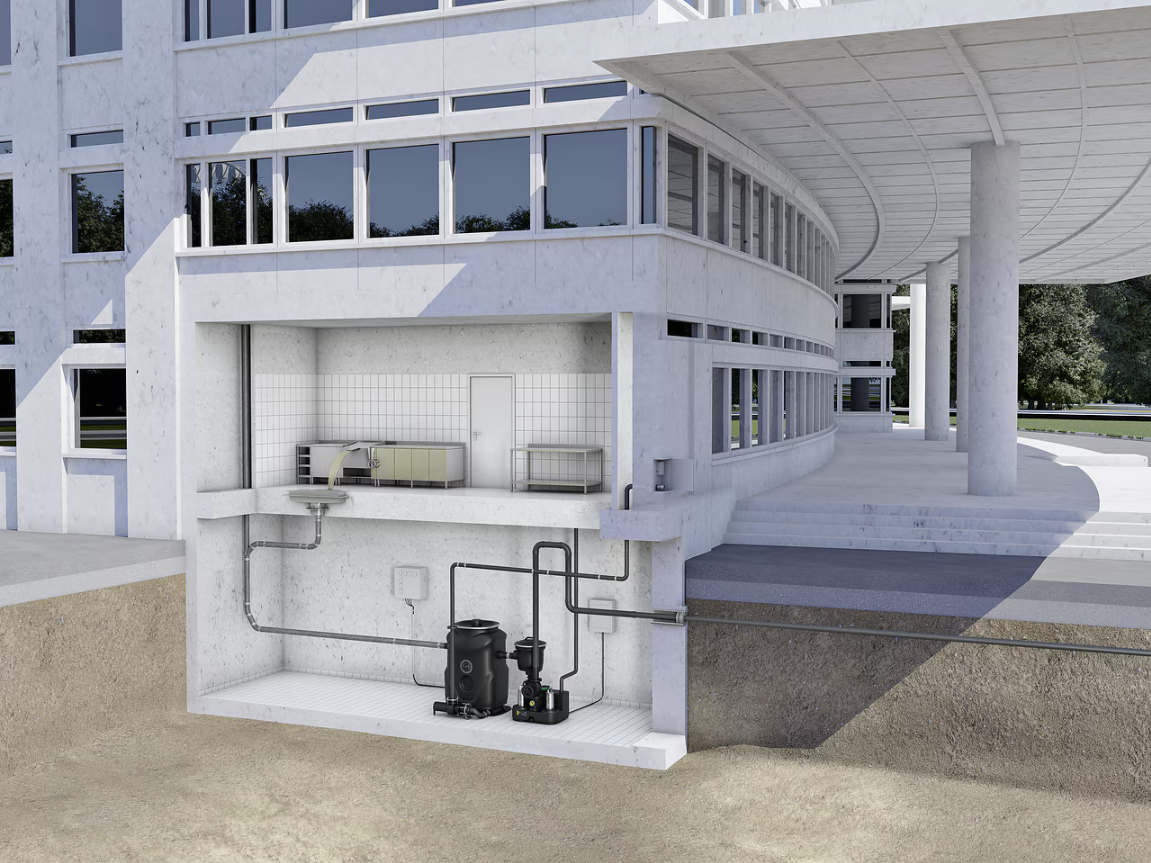

As a lifting system, it can be installed free-standing or against a wall within a building, or installed concealed on the floor within a pump chamber:

For situations where sewage cannot be discharged directly into the sewer system via gravity flow
For drainage when the discharge point is below the backflow level, ensuring protection against backflow

Liquids

Used for collecting and pumping the following media in industrial areas:

Sewage containing faeces
Sewage free of faeces

The "C" version is used for pumping the following corrosive liquids:

Boiler condensate
Seawater
Maximum sodium chloride content (brine): 30 g/l, at a maximum temperature of 20°C
Swimming pool water, maximum chlorine content: 400 mg/l
Slightly acidic wastewater with a pH > 3.5
Demineralized water / purified water

Sewage pumping in accordance with the 12050 standard

The lifting system complies with the DIN EN 12050-1 standard.

Equipment/Functions

Switchgear with mains-independent alarm and system fault signal
Plug-in type
Collection tank with inspection window and transparent cover
4–20 mA level sensor for level measurement
Non-return valve with inspection window
Motor thermal protection with bimetallic sensor

Type code

Technical data

Power connection: 1~230 V, 50 Hz; 3~400 V, 50 Hz
Operating mode: S3 10%, S1
Medium temperature: 3 ... 40 °C (37 ... 104 °F); max. 65 °C (149 °F) for up to 5 minutes
Max. ambient temperature: 3 ... 40 °C (37 ... 104 °F)
Collection tank volume: 122 l (32 US liq. gal.)
Max. effective tank volume based on positive suction head: 60 l (16 US liq. gal.) (180 mm*) / 76 l (20 US liq. gal.) (250 mm*) / 91 l (24 US liq. gal.) (315 mm*)
Discharge connection: DN 80, PN 10
Inlet connection: DN/OD 110; DN/OD 160
Vent connection: DN/OD 75
Lifting system protection class: IP68 (2 mWC / 7 days)
Control unit protection class: IP54
Noise level: 70 dB(A)

Materials

Motor housing: 1.4404 (AISI 316L)
Hydraulic components: PP-GF30
Impeller: PP-GF30 or 1.4408 (AISI 316)
Collection tank: PE
Non-return valve: PPS

Type

Airtight, watertight collection tank:

Sloped tank bottom
Inspection window with transparent cover
Freely selectable inlet positions within the indicated area
Level measurement via 4–20 mA level sensor

Sewage pump:

Directly mounted on the collection tank
Motor with surface cooling (air-cooled) or self-cooling (surface vortex cooling) and motor overheat protection
Pressure connection with non-return valve and integrated inspection window

Pre-wired switchgear for automatic operation:

Wilo-Control MS-L

System fault signal via potential-free contact
Integrated mains-independent alarm
Adjustable overrun time
1.5 m connection cable with pre-assembled plug (version "O" without plug)

Wilo-Control EC-L

Operation via display and icon-based, alphanumeric menu
System fault signal via potential-free contact
Individual pump fault signal via potential-free contact
Modbus interface
Integrated mains-independent alarm
Adjustable overrun time
1.5 m connection cable with pre-assembled plug (version "O" without plug)

Scope of delivery

Lifting unit with switchgear and connection cable with plug (version "O" without plug!)
Flange adapter from DN 80, PN 10 to DN/OD 110
Flexible sleeve DN/OD 110 for discharge connection
Double socket DN/OD 75 HT for vent connection
Double socket DN/OD 50 HT for drainage connection
Includes 124 mm hole saw for DN/OD 110 Inlet connection kit for HT piping
Floor mounting kit
Sound insulation pad
9V battery
Installation and operating instructions

Options

Version for corrosive liquids, with Modbus interface
Version for S1 operation (continuous duty), with Modbus interface
