Features/Product Advantages
Flexible use with a choice of one or two collection tanks
Deep-suction capability ensures optimal tank drainage
Wide performance range and reliable level sensing ensure dependable operation
Self-cooling motor suitable for continuous duty (S1)
Construction
Sewage lifting system configured as a dual-pump unit, featuring two independent pumps for dry-well installation
Applications
Pumping of sewage containing faeces (in accordance with DIN EN 12050-1) that cannot be discharged into the sewer system via natural gravity flow (due to discharge points being below the backflow level, in accordance with DIN EN 12056-1).
Equipment/Functions
Surface vortex cooling
Motor monitoring and seal monitoring
Level control unit with level sensors
Control unit with mains-independent alarm and Zener barrier in the housing
Volt-free contacts
Detachable pump cable
Hose connection for venting
Hose connection for manual diaphragm pump
Mounting material
Type code
|
for example: |
Wilo-DrainLift XXL 1080-2/8,4 |
|
XXL |
Sewage lifting system suitable for large objects |
|
10 |
10 = Outlet DN 100 8 = Outlet DN 80 |
|
80 |
80 = Total volume 800 l 40 = Total volume 400 l |
|
2 |
Dual-pump system |
|
/8.4 |
Power of each water pump P2 [kW] |
Technical data
Mains connection: 3~400 V, 50 Hz
Power consumption P1: 2.3 to 10.0 kW (depending on model)
Cable length (unit to control unit): 10 m
Operating mode: S1, S3
Fluid temperature: Max. 40 °C, up to 65 °C for short periods
Ambient temperature: Max. 40 °C
Max. solids passage: 78 mm to 95 mm (depending on model)
Discharge connection: DN 80 or DN 100 (depending on model)
Inlet connections: 3 x DN 100/150, 1 x DN 100
Vent connection: DN 70
Min. inlet height (installation level to inlet centre): 700 mm
Protection class (excl. control unit): IP68
Total tank volume: 400/800 l
Switching volume: 200/400 l
Materials
Motor housing: Stainless steel 1.4404 (AISI 316L)
Hydraulics: PUR plastic
Tank: PE Plastic
Type

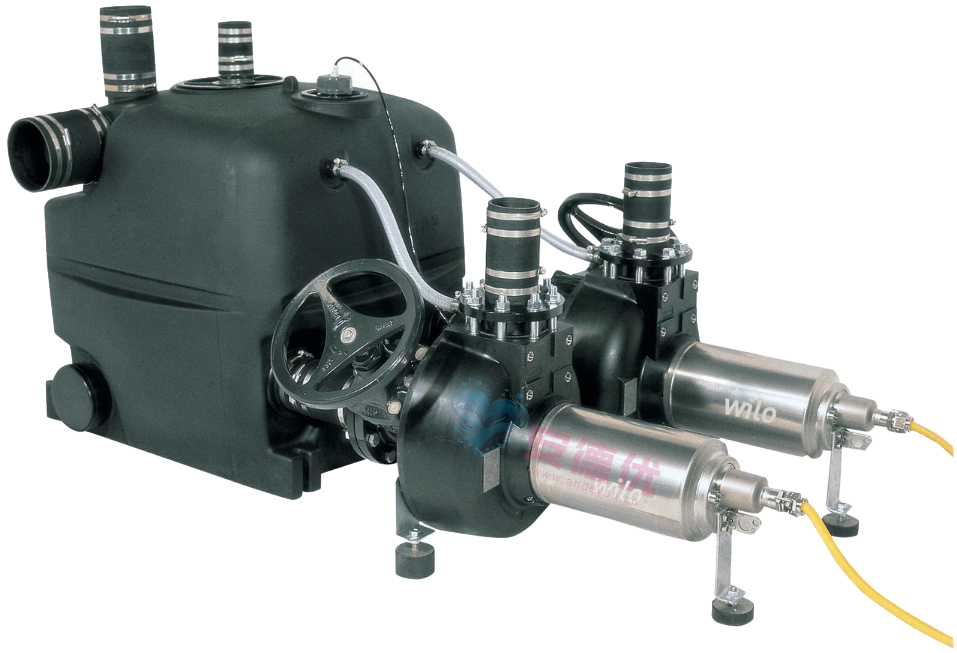

Fully submersible, ready-to-connect sewage lifting unit (flood-proof: 2 mWS, 7 days) featuring an airtight, watertight collection tank. Equipped with two Wilo-Drain TP 80 or TP 100 series sewage pumps (materials: stainless steel and composite). Low total weight for easy handling; a dual-pump unit with TP 80 pumps weighs only 160 kg (heaviest single component: 62 kg pump). Deep-suction capability ensures optimal tank drainage.
Important information: As the control unit is not submersible, it must be installed in a flood-proof location.
Standard scope of delivery
Microprocessor-controlled unit featuring automatic duty cycling, standby and peak-load operation, potential-free contacts, and status/fault indicator lights for each pump.
Flexible hose connection for DN 70 ventilation.
Flexible hose connection for a manual diaphragm pump. Connection components for the tank and pumps (including ventilation flange and hoses).
