Separating and transporting solids. Clean, safe, and reliable.
Coarse solids in sewage can clog transport systems, particularly in buildings and properties. The consequences include operational failures and increased maintenance costs. Wilo’s durable solution is the Wilo-EMUport CORE solids separation system. It ensures highly reliable, clog-free transport. Furthermore, it is exceptionally easy to maintain thanks to a hygienic dry-well installation, external accessibility, and a complete system package—including a corrosion-free collection tank and switchgear—that is also available for larger Wilo units. It fully meets your requirements.
Features/Product Advantages
High operational reliability through solids separation: prevents large solids from entering the pumps, thereby avoiding clogs
Simple refurbishment of old pumping stations, making system upgrades cost-effective
Durable and corrosion-resistant thanks to the use of PE and PUR materials
Easy maintenance—even during operation—due to hygienic dry-well installation, external accessibility, and a separate barrier system
Easily handles future increases in sewage solids content

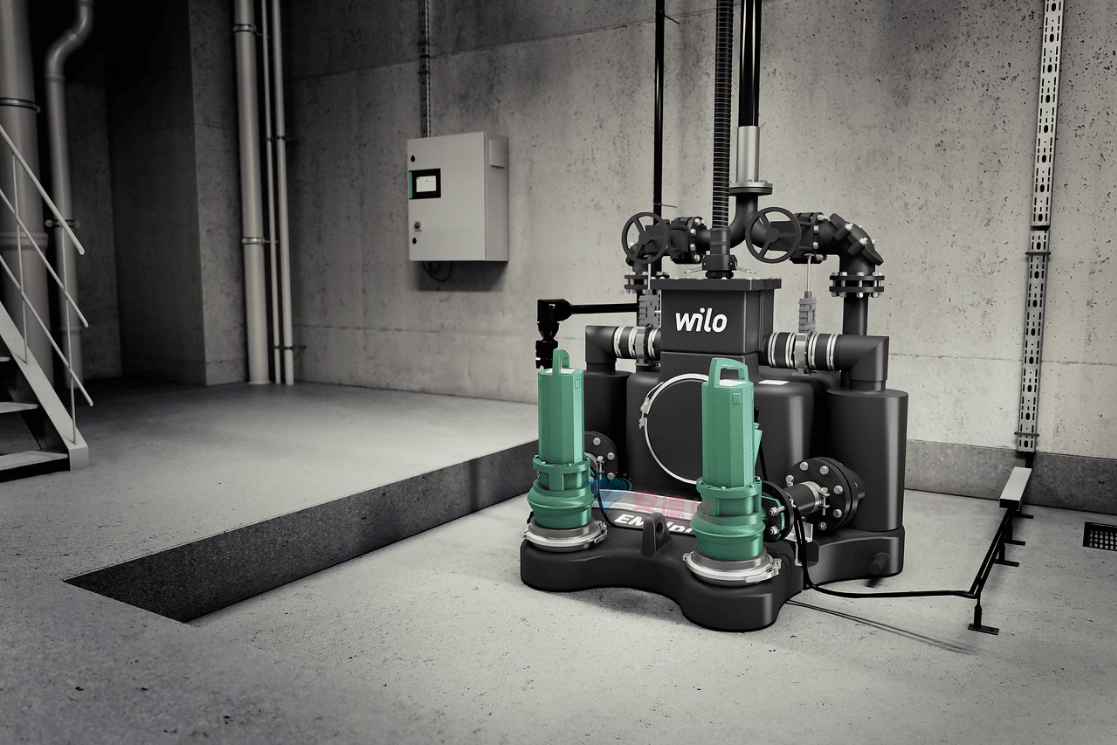

Flexible installation options: inside buildings or in shafts with diameters of 1,500 mm or larger
"Plug & Pump" system: easy to integrate and ready for immediate connection
Energy savings through efficient submersible sewage pumps and optional IE3 motors
Eco-friendly attributes
Future-proof and durable: the entire pumping station is constructed from polyethylene.
Cost-effective modernization of existing systems through retrofitting.
Durable collection tank made of corrosion-resistant PE, featuring a sediment-free geometry.
Sustainable and carbon-neutral production and processes at our European facilities.
Construction
Standardized sewage lifting unit with solids separation, compliant with DIN EN 12050-1; suitable for installation inside buildings or in outdoor collection shafts.
Applications
Pumping sewage containing fecal matter:
When sewage cannot flow into the sewer system via gravity. Drainage system designed to prevent backflow
Equipment/Functions
2 separate, lockable solids separation tanks
Level monitoring via sensors
Manual backflushing within the collection tank
Flanged pressure connection
Transparent cover on the inlet tank/distributor
Two dry-installed submersible sewage pumps operating in duty/standby mode
Submersible sewage pumps with moisture monitoring for the motor and seal chambers
Model code
|
example: |
Wilo-EMUport CORE 20.2-10/540 |
|
CORE |
Standard solids separation system |
|
20 |
Maximum flow rate, unit: m³/h |
|
2 |
Number of water pumps |
|
10 |
Maximum head, in meters |
|
5 |
Mains frequency: 5 = 50 Hz |
|
40 |
Supply voltage: 40 = 3~400 V |
Technical data
Mains connection: 3~400 V, 50 Hz
Max. continuous inflow: 20, 45, or 60 m³/h
Max. head: 55 m
Inlet height: 750 mm
Discharge connection: DN 200
Pressure connection:
CORE 20.2: DN 80
CORE 45.2/60.2: DN 100
Tank volume:
CORE 20.2: 400 l
CORE 45.2/60.2: 1200 l
Usable tank volume:
CORE 20.2: 295 l
CORE 45.2/60.2: 900 L
Materials
Collection tank: PE
Solids separation tanks: PE
Inlet: PUR
Piping: PE
Pumps: Grey cast iron
Gate valves: Grey cast iron
Pressure connection: PUR
Type

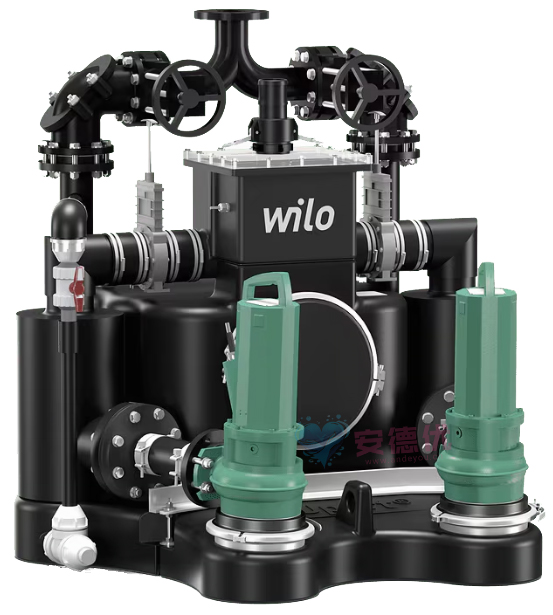

Fully submersible, ready-to-connect, automatic sewage lifting system featuring a solids separation system; utilizes two submersible sewage pumps operating alternately (no peak-load operation).
Solids separation system with an integrated, airtight and watertight collection tank (monolithic design without structural welded joints) and two individually lockable solids separation tanks. The collection tank features a circular geometry and a sloped bottom, with the lowest point located directly beneath the pumps; this design prevents sediment accumulation and solids buildup in critical areas. Coarse filters within the solids separation tanks filter out solids from the fluid, ensuring that only pre-filtered sewage enters the collection tank.
Fluid is pumped by submersible sewage pumps installed in a dry sump configuration. The two pumps operate alternately, providing redundancy.
Level control is managed via a level sensor.
As-delivered condition
Fully pre-assembled, ready-to-install sewage lifting system, including Y-piece, level sensor, and two pumps.
Options
"SC-L...FTS" control unit specifically designed for solids separation systems
Inductive flow meter
Inlet and pressure outlet adapters
Submersible sewage pumps with IE3 motors
