Wilo DrainLift EX Large-Scale Sewage Lifting Unit (400L/800L/1200L)

DrainliftEX812-2/4-26、DrainliftEX812-2/4-28、DrainliftEX812-2/5.5-34、DrainliftEX812-2/5.5-36、Drainlift EX812-V2/4-16、Drainlift EX812-V2/4-19

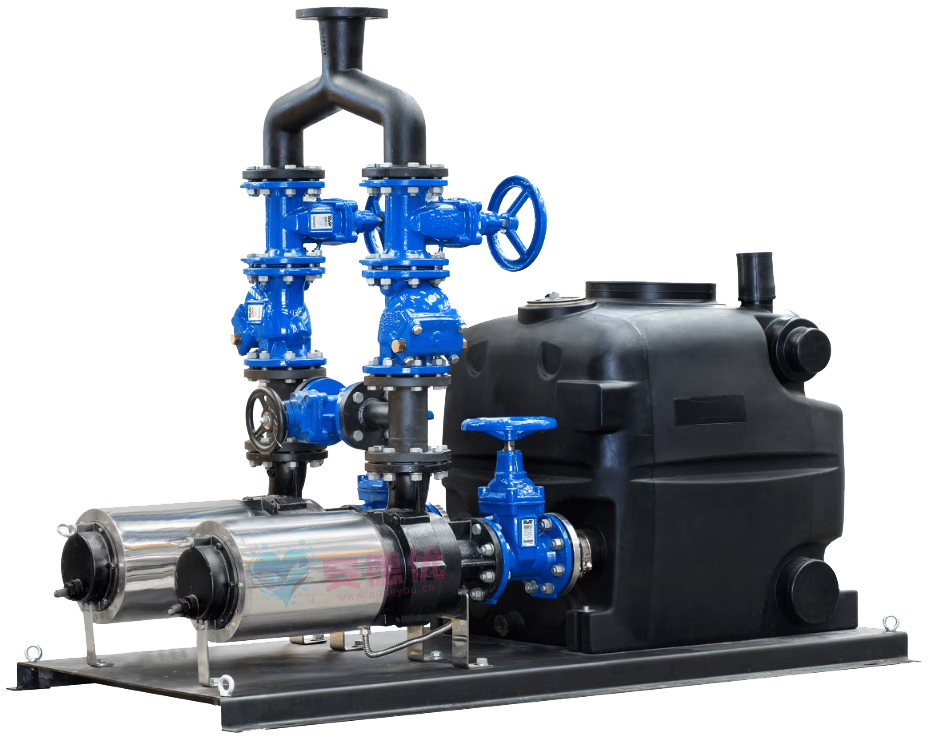

The Wilo DrainLift EX series of large-scale sewage lifting units is specifically designed to meet the high-standard drainage requirements of commercial complexes,hotels,public venues,and large villas.Available in capacities of 400L,800L,and 1200L,these units feature powerful,clog-resistant vortex impellers and an IP68 protection rating,ensuring the smooth,high-volume discharge of wastewater from sources such as basement restrooms and kitchens

Product Consultation By telephone

Function

Parameters

Size

Video Introduction

Function

Features/Product Advantages

Flexible use with a choice of one or two collection tanks
Deep-suction capability ensures optimal tank drainage
Wide performance range and reliable level sensing ensure dependable operation
Self-cooling motor suitable for continuous duty (S1)

Construction

Sewage lifting system configured as a dual-pump unit, featuring two independent pumps for dry-well installation

Applications

Pumping of sewage containing faeces (in accordance with DIN EN 12050-1) that cannot be discharged into the sewer system via natural gravity flow (due to discharge points being below the backflow level, in accordance with DIN EN 12056-1).

Equipment/Functions

Surface vortex cooling
Thermal motor monitoring and seal monitoring
Level control unit with level sensors
Control unit with mains-dependent alarm and Zener barrier in the housing
Volt-free contacts
Detachable pump cable
Hose connection for venting
Hose connection for manual diaphragm pump
Mounting material

Type key

example:	Wilo-DrainLift XXL 1080-2/8,4
XXL	Sewage lifting system suitable for large objects
10	10 = Outlet DN 100 8 = Outlet DN 80
80	80 = Total volume 800 l 40 = Total volume 400 l
2	Dual-pump system
/8.4	Power of each water pump P2 [kW]

Technical data

Mains connection: 380 V, 50 Hz
Power consumption P1: Model-dependent
Cable length (unit to control unit): 10 m
Operating mode: S1, S3
Fluid temperature: Max. 40 °C, up to 65 °C for short periods
Ambient temperature: Max. 40 °C
Max. solids passage: 78 mm to 95 mm (model-dependent)
Discharge connection: DN 80 or DN 100 (model-dependent)
Inlet connection: 3 x DN 100/150, 1 x DN 100
Min. inlet height (installation level to inlet center): 700 mm
Protection class (excluding control unit): IP68
Total tank volume: 400/800 l
Switching volume: 200/400 l

Materials

Motor housing: Stainless steel 1.4301 (AISI 304)
Hydraulics: Grey cast iron HT250
Tank: PE plastic

Type

Fully submersible sewage lifting unit, ready for connection (flooding height: 2 mWC, flooding duration: 7 days), with gas- and water-tight collection tank. Equipped with two Wilo-FAG EW series sewage pumps. The unit is lightweight and easy to handle; it utilizes suction for deep extraction, ensuring optimal drainage of the storage tank.

Important information: As the control unit is not submersible, it must be installed in a location protected against flooding.

Factory-supplied configuration:

Microprocessor-controlled unit featuring automatic pump cycling, standby and peak-load operation, potential-free contacts, and status indicators (operation and fault) for each pump.
Flexible hose connection.
Components for connecting the storage tank and pumps.

Parameters

model	Voltage (V)	Flow rate (m³/h)	Head (m)	Power (kW)	Total water tank capacity (L)	Water storage tank material	Single pump dimensions (L × H × W) (mm)
DrainliftEX812-2/4-26	380V	35	16	4	1200	PE	210016162910
DrainliftEX812-2/4-28	380V	35	28	4	1200	PE	210016162910
DrainliftEX812-2/5.5-34	380V	41	34	5.5	1200	PE	210016162910
DrainliftEX812-2/5.5-36	380V	35.5	36	5.5	1200	PE	21016162910
Drainlift EX812-V2/4-16	380V	35	16	4	1200	PE	210016162910
Drainlift EX812-V2/4-19	380V	30	19	4	1200	PE	210016162910
Drainlift EX812-V2/5.5-22	380V	35	22	5.5	1200	PE	210016162910
Drainlift EX812-V2/5.5-26	380V	30	26	5.5	1200	PE	210016162910
DrainliftEX840-2/4-26	380V	35	26	4	400	PE	21001616910
DrainliftEX840-2/4-28	380V	35	28	4	400	PE	21001616910
DrainliftEX840-2/5.5-34	380V	41	34	5.5	400	PE	21001616910
DrainliftEX840-2/5.5-36	380V	35.5	36	5.5	400	PE	21001616910
Drainlift EX840-V2/4-16	380V	35	16	4	400	PE	210016161910
Drainlift EX840-V2/4-19	380V	30	19	4	400	PE	21001616910
Drainlift EX840-V2/5.5-22	380V	35	22	5.5	400	PE	21001616910
Drainlift EX840-V2/5.5-26	380V	30	26	5.5	400	PE	21001616910
DrainliftEX880-2/4-26	380V	35	26	4	800	PE	210016161910
DrainliftEX880-2/4-28	380V	35	28	4	800	PE	210016161910
DrainliftEX880-2/5.5-34	380V	41	34	5.5	800	PE	210016161910
DrainliftEX880-2/5.5-36	380V	35.5	36	5.5	800	PE	210016161910
Drainlift EX880-V2/4-16	380V	35	16	4	800	PE	210016161910
Drainlift EX880-V2/4-19	380V	30	19	4	800	PE	210016161910
Drainlift EX880-V2/5.5-22	380V	35	22	5.5	800	PE	210016161910
Drainlift EX880-V2/5.5-26	380V	30	26	5.5	800	PE	210016161910
DrainliftEX1012-2/4-32	380V	45	32	4	1200	PE	210017142910
DrainliftEX1012-2/5.5-26	380V	50	26	5.5	1200	PE	210017142910
DrainliftEX1012-2/5.5-32	380V	50	32	5.5	1200	PE	210017142910
DrainliftEX1012-2/7.5-36	380V	50	36	7.5	1200	PE	210017142910
DrainliftEX1012-2/7.5-45	380V	50	45	7.5	1200	PE	210017242910
DrainliftEX1012-2/11-47	380V	55	47	11	1200	PE	210017242910
Drainlift EX1012-2/11-52	380V	59	52	11	1200	PE	210017252910
Drainlift EX1012-2/15-57	380V	53	57	15	1200	PE	210017242910
Drainlift EX1012-V2/4-15	380V	45	15	4	1200	PE	210017142910
Drainlift EX1012-V2/5.5-18	380V	50	18	5.5	1200	PE	210017142910
Drainlift EX1012-V2/5.5-21	380V	55	21	5.5	1200	PE	210017142910
Drainlift EX1012-V2/7.5-25	380V	60	25	7.5	1200	PE	210017142910
Drainlift EX1012-V2/7.5-31	380V	55	31	7.5	1200	PE	210017142910
Drainlift EX1012-V2/7.5-36	380V	30	36	7.5	1200	PE	210017142910
Drainlift EX1012-V2/11-34	380V	90	34	11	1200	PE	210017242910
Drainlift EX1012-V2/11-37	380V	80	37	11	1200	PE	210017242910
Drainlift EX1012-V2/15-42	380V	90	42	15	1200	PE	210017242910
Drainlift EX1012-V2/15-46	380V	80	46	15	1200	PE	210017242910
Drainlift EX1012-V2/15-51	380V	70	51	15	1200	PE	210017242910
DrainliftEX1040-2/4-23	380V	45	23	4	400	PE	21001714910
DrainliftEX1040-2/5.5-26	380V	50	26	5.5	400	PE	21001714910
DrainliftEX1040-2/5.5-32	380V	50	32	5.5	400	PE	21001714910
DrainliftEX1040-2/7.5-36	380V	50	36	7.5	400	PE	21001714910
DrainliftEX1040-2/7.5-45	380V	50	45	7.5	400	PE	21001724910
DrainliftEX1040-2/11-47	380V	55	47	11	400	PE	21001724910
DrainliftEX1040-2/11-52	380V	59	52	11	400	PE	21001724910
DrainliftEX1040-2/15-57	380V	53	57	15	400	PE	21001724910
Drainlift EX1040-V2/4-15	380V	45	15	4	400	PE	21001714910
Drainlift EX1040-V2/5.5-18	380V	50	18	5.5	400	PE	21001714910
Drainlift EX1040-V2/5.5-21	380V	55	21	5.5	400	PE	21001714910
Drainlift EX1040-V2/7.5-25	380V	60	25	7.5	400	PE	21001714910
Drainlift EX1040-V2/7.5-31	380V	55	31	7.5	400	PE	21001714910
Drainlift EX1040-V2/7.5-36	380V	30	36	7.5	400	PE	21001714910
Drainlift EX1040-V2/11-34	380V	90	34	11	400	PE	21001724910
Drainlift EX1040-V2/11-37	380V	80	37	11	400	PE	21001724910
Drainlift EX1040-V2/15-42	380V	90	42	15	400	PE	21001724910
Drainlift EX1040-V2/15-46	380V	80	46	15	400	PE	21001724910
Drainlift EX1040-V2/15-51	380V	70	51	15	400	PE	21001724910
DrainliftEX1080-2/4-23	380V	45	23	4	800	PE	210017141910
DrainliftEX1080-2/5.5-26	380V	50	26	5.5	800	PE	210017141910
DrainliftEX1080-2/5.5-32	380V	50	32	5.5	800	PE	210017141910
DrainliftEX1080-2/7.5-36	380V	50	36	7.5	800	PE	210017141910
DrainliftEX1080-2/7.5-45	380V	50	45	7.5	800	PE	210017241910
DrainliftEX1080-2/11-47	380V	55	47	11	800	PE	210017241910
DrainliftEX1080-2/11-52	380V	59	52	11	800	PE	210017241910
DrainliftEX1080-2/15-57	380V	53	57	15	800	PE	210017241910
Drainlift EX1080-V2/4-15	380V	45	15	4	800	PE	210017141910
Drainlift EX1080-V2/5.5-18	380V	50	18	5.5	800	PE	210017141910
Drainlift EX1080-V2/5.5-21	380V	55	21	5.5	800	PE	210017141910
Drainlift EX1080-V2/7.5-25	380V	60	25	7.5	800	PE	210017141910
Drainlift EX1080-V2/7.5-31	380V	55	31	7.5	800	PE	210017141910
Drainlift EX1080-V2/7.5-36	380V	30	36	7.5	800	PE	210017141910
Drainlift EX1080-V2/11-34	380V	90	34	11	800	PE	210017241910
Drainlift EX1080-V2/11-37	380V	80	37	11	800	PE	210017241910
Drainlift EX1080-V2/15-42	380V	90	42	15	800	PE	210017241910
Drainlift EX1080-V2/15-46	380V	80	46	15	800	PE	210017241910
Drainlift EX1080-V2/15-51	380V	70	51	15	800	PE	210017241910
