Features/Product Advantages

Pressure-tight, sealed collection tank suitable for both underground and above-ground installation
Flexible inlet selection
Large-capacity tank
Includes piping, level control system, control switches, and pumps

Construction

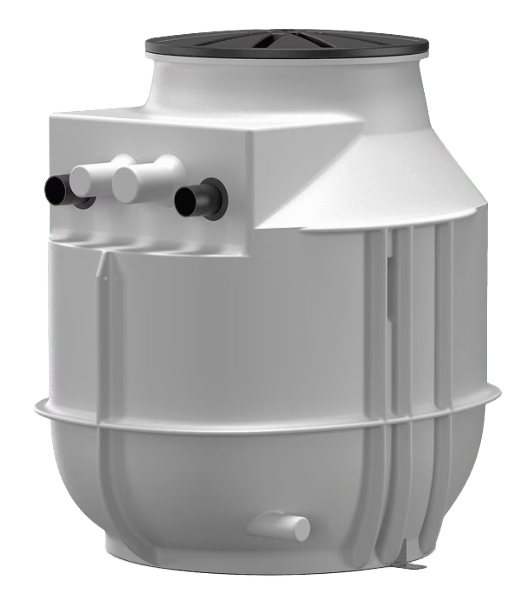

Plastic collection tank available as a single- or dual-pump system; suitable for underground installation or installation inside a building.

Applications

Installation inside a building (above-ground) as a lifting system.
Installation outside a building (underground) as a collection tank.
Ensure backflow prevention is implemented when:
The discharge point is below the backflow level;
Wastewater from the discharge point cannot drain away by gravity.

Fluids

For collection and pumping in commercial applications:

Wastewater with or without sewage

Wastewater pumping in accordance with the 12050 standard

EN 12050-1:
DrainLift WS 50E/D Basic with Rexa MINI3 ...
DrainLift WS 50E/D Basic with Rexa UNI ...
EN 12050-2:
DrainLift WS 40E/D Basic with Rexa MINI3 ...

Equipment/Functions

Shut-off ball valve
Non-return valve
Switchgear
Level controller (float switch or sensor)
Submersible pump with motor thermal protection
Plug-and-play

Model code

Technical data

Tank volume: 255 l / 67 US liq. gal. (WS...E) / 400 l / 105 US liq. gal. (WS...D)
Max. pressure in discharge pipe: 1.5 bar (22 psi)
Pressure connection: G 2 / 50 mm (WS 40), G 2½ / 63 mm (WS 50)
Inlet connection: DN 100/150/200
Vent connection: 75 mm (3 in)
Power connection: 1~230 V, 50 Hz or 3~400 V, 50 Hz
Fluid temperature: 3 ... 40 °C (37 ... 104 °F)
Max. ambient temperature: 3 ... 40 °C (37 ... 104 °F) °F)

Materials

Tank

Tank: PE
Piping: 1.4404 (AISI 316L)
Shut-off valve: PVC
Non-return valve: Grey cast iron

Pump

Rexa MINI3
Hydraulics housing: EN-GJL-200 (ASTM A48 Class 30)
Impeller: PK-GF30
Motor housing: 1.4301 (AISI 304)
Seal, pump side: C/MgSi
Seal, motor side: NBR
Rexa UNI
Hydraulics housing: PP-GF30
Impeller: PP-GF30
Motor housing: 1.4301 (AISI 304)
Seal, pump side: SiC/SiC
Seal, motor side: C/Cr

Type

DrainLift WS 40E Basic (1~230 V)

Tank

Tank with optimized geometry for sediment-free operation. Ribbed tank housing ensures high inherent stability and buoyancy resistance. Freely selectable inlet position. Two integrated lifting lugs for securing lifting equipment. Domed, walk-on tank cover (max. load 200 kg). Equipped with floor mounting fixtures for indoor installation.

Piping

Discharge pipe with threaded connection on the pump side
Shut-off ball valve
Ball valve

Pump

Submersible sewage pump for single-phase AC connection. Surface-cooled motor equipped with thermal motor protection (automatic reset) and plug.

Level control

Level control via pump float switch.

DrainLift WS 40E Basic (3~ 400 V)

Tank

Tank with optimized geometry for sediment-free operation. Ribbed tank housing ensures high inherent stability and buoyancy resistance. Freely selectable inlet position. Two integrated lifting lugs for securing lifting equipment. The domed sump cover is walkable, with a maximum load capacity of 200 kg. For indoor installation, the sump is equipped with floor-mounting hardware.

Piping

Discharge pipe with threaded connection on the pump side
Ball shut-off valve
Ball valve

Pump

Submersible sewage pump for connection to three-phase AC power (three-phase wiring). Surface-cooled motor with thermal motor protection and bare cable ends.

Level control

Level control is achieved via independent float switches and a control unit.

DrainLift WS 40D Basic

Sump

The sump features an optimized geometry for sediment-free operation. The ribbed sump housing offers high inherent stability and buoyancy resistance. Inlet positions can be freely selected. Two lifting lugs are integrated for securing lifting equipment. The domed sump cover is walkable, with a maximum load capacity of 200 kg. For indoor installation, the sump is equipped with floor-mounting hardware.

Piping

Discharge pipe with threaded connection on the pump side
Ball shut-off valve
Ball valve

Pump

Submersible sewage pump for connection to three-phase AC power (three-phase wiring). Surface-cooled motor with thermal motor protection and bare cable ends.

Level control

Level control is achieved via a level sensor and a control unit.

DrainLift WS 50E Basic

Sump

The sump features an optimized geometry for sediment-free operation. The ribbed sump housing offers high inherent stability and buoyancy resistance. Inlet positions can be freely selected. Two lifting lugs are integrated for securing lifting equipment. The domed sump cover is walkable, with a maximum load capacity of 200 kg. For indoor installation, the sump is equipped with floor-mounting hardware.

Piping

Discharge pipe with threaded connection on the pump side
Ball shut-off valve
Ball valve

Pump

Submersible sewage pump for connection to single-phase AC power. Surface-cooled motor with thermal motor protection (self-resetting) and plug. Level control

Level control is achieved via the pump's float switch.

DrainLift WS 50D Basic

Collection tank

The collection tank features an optimized geometry that ensures sediment-free operation. The ribbed tank housing offers high inherent stability and resistance to buoyancy. Inlet connections can be positioned as desired. Two lifting lugs are integrated for securing the lifting unit. The domed tank cover is walkable, with a maximum load-bearing capacity of 200 kg. For indoor installation, the tank is equipped with floor-mounting hardware.

Piping

Discharge pipe with threaded connection on the pump side
Shut-off ball valve
Ball valve

Pump

Submersible sewage pump for three-phase AC connection (three-phase wiring). Surface-cooled motor with thermal overload protection and bare cable ends.

Level control

Level control is achieved via a level sensor and a control unit.

Scope of delivery

DrainLift WS 40E Basic (1~230 V)

Plastic collecting tank with integrated piping, pump, and level control
Piping equipped with a shut-off ball valve and non-return valve
Pump with float switch and plug
Tank cover with seal
HT double socket 50 mm (2 in) for drainage connection
Inlet kit with 124 mm (5 in) hole saw and DN 100 seal
Floor mounting kit
Installation and operating instructions

DrainLift WS 40E Basic (3~400 V)

Plastic collecting tank with integrated piping, pump, and level control
Piping equipped with a shut-off ball valve and non-return valve
Pump
Switchgear with float switch and plug
Tank cover with seal
HT double socket 50 mm (2 in) for drainage connection
Inlet kit with 124 mm (5 in) hole saw and DN 100 seal
Floor mounting kit
Installation and operating instructions

DrainLift WS 40D Basic (1~230 V)

Plastic collecting tank with integrated piping, pump, and level control
Piping equipped with a shut-off ball valve and non-return valve
Pump with plug
Switchgear with level sensor and plug
Tank cover with seal
HT double socket 50 mm (2 in) for drainage connection
Inlet kit with 124 mm (5 in) hole saw and DN 100 seal
Floor mounting kit
Installation and operating instructions

DrainLift WS 40D Basic (3~400 V)

Plastic collecting tank with integrated piping, pump, and level control
Piping equipped with a shut-off ball valve and non-return valve
Pump
Switchgear with level sensor and plug
Tank cover with seal
HT double socket 50 mm (2 in) for drainage connection
Inlet kit with 124 mm (5 in) hole saw and seal DN 100 inlet kit
Floor mounting kit
Installation and operating instructions

DrainLift WS 50E Basic

Plastic collecting tank with integrated piping, pump, and level control
Piping equipped with a shut-off ball valve and non-return valve
Pump with float switch and plug
Tank cover with seal
HT double-socket coupling 50 mm (2 in) for drainage connection
Inlet kit with 124 mm (5 in) hole saw and DN 100 seal
Floor mounting kit
Installation and operating instructions

DrainLift WS 50D Basic

Plastic collecting tank with integrated piping, pump, and level control
Piping equipped with a shut-off ball valve and non-return valve
Pump with plug
Switchgear with level sensor and plug
Tank cover with seal
HT double-socket coupling 50 mm (2 in) for drainage connection
Inlet kit with 124 mm (5 in) hole saw and DN 100 seal
Floor mounting kit
Installation and operating instructions

Accessories

Tank extension
Clamping connection
Manual diaphragm pump
Alarm device
Additional items for tanks with switchgear:
Float switch for high-water detection
Buzzer
Flashing light
